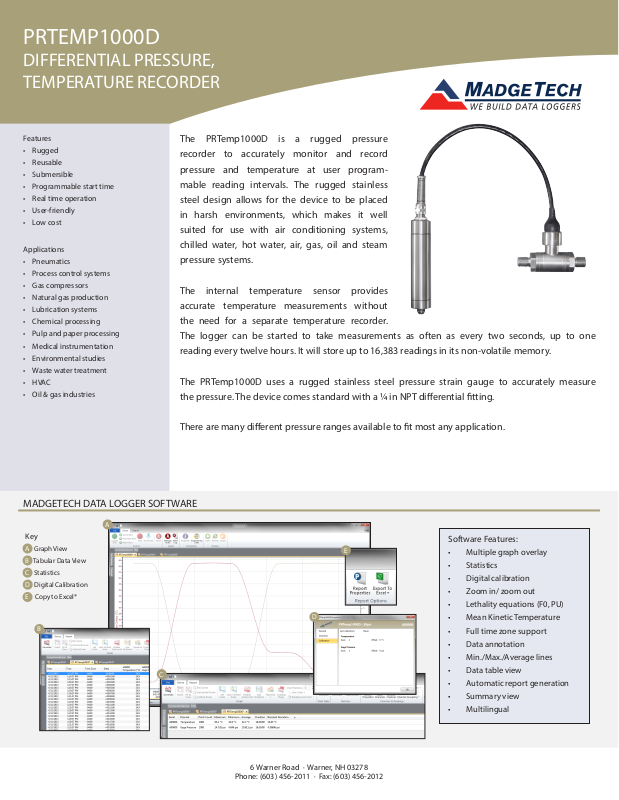

MadgeTech PRTemp1000D Specifications

PRTEMP1000D

DIFFERENTIAL PRESSURE,
TEMPERATURE RECORDER

Features

• Rugged

• Reusable

• Submersible

• Programmable start time

• Real time operation

• User-friendly

• Low cost

Applications

• Pneumatics

• Process control systems

• Gas compressors

• Natural gas production

• Lubrication systems

• Chemical processing

• Pulp and paper processing

• Medical instrumentation

• Environmental studies

• Waste water treatment

• HVAC

• Oil & gas industries

The PRTemp1000D is a rugged pressure

recorder to accurately monitor and record

pressure and temperature at user program-

mable reading intervals. The rugged stainless

steel design allows for the device to be placed

in harsh environments, which makes it well

suited for use with air conditioning systems,

chilled water, hot water, air, gas, oil and steam

pressure systems.

The internal temperature sensor provides

accurate temperature measurements without

the need for a separate temperature recorder.

The logger can be started to take measurements as often as every two seconds, up to one

reading every twelve hours. It will store up to 16,383 readings in its non-volatile memory.

The PRTemp1000D uses a rugged stainless steel pressure strain gauge to accurately measure

the pressure. The device comes standard with a ¼ in NPT dierential tting.

There are many dierent pressure ranges available to t most any application.

MADGETECH DATA LOGGER SOFTWARE

A

Key

A Graph View

B Tabular Data View

C Statistics

D Digital Calibration

E Copy to Excel®

B

C

E

D

6 Warner Road · Warner, NH 03278

Phone: [phone] · Fax: [phone]

Software Features:

• Multiple graph overlay

• Statistics

• Digital calibration

• Zoom in/ zoom out

• Lethality equations (F0, PU)

• Mean Kinetic Temperature

• Full time zone support

• Data annotation

• Min./Max./Average lines

• Data table view

• Automatic report generation

• Summary view

• Multilingual

PRTEMP1000D SPECIFICATIONS*

*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. SPECIFIC WARRANTY REMEDY LIMITATIONS

APPLY. CALL 1-603-456-2011 OR GO TO WWW.MADGETECH.COM FOR DETAILS.

Temperature Sensor: Semiconductor

Temperature Range: -20 ºC to +80 ºC (-4 ºF to +176 ºF)

Temperature Resolution: 0.1 ºC (0.18 ºF)

Calibrated Accuracy: ±0.5 ºC (over 0 ºC to 50 ºC)

Pressure Sensor: Semiconductor strain gauge

Pressure Range: 0 to 30, 100, 300 and 500 PSID

Maximum Line Pressure: 1000 PSI

Pressure Resolution: 0.002, 0.005, 0.02, 0.05 PSID

Calibrated Accuracy: ±0.25 %FSR, 0.1 % @ 25 ºC typical

Pressure Response Time: 1 ms (10 to 90 %FSR)

Adaptor: 1/4” male NPT

Software programmable immediate

Start Modes:

start or delay start up to six months
in advance

Real Time Recording:

May be used with PC to monitor and
record data in real time

Memory:

Reading Rate:

16,383 readings per channel,
32,766 total readings

1 reading every 2 seconds up to 1 reading
every 12 hours

Calibration: Digital calibration through software

Calibration Date: Automatically recorded within device

Battery Type: 3.6V lithium battery included; user replaceable

Battery Life: 1 year typical

Data Format:

Time Accuracy:

Computer Interface:

Date and time stamped ºC, ºF, K, ºR ; PSID,
inches, feet, mmHg, bar, Torr, kPa,

±1 minute/month
(at 20 ºC, RS232 port not in use )

PC serial or USB (interface cable required);
2,400 baud

Software: XP SP3/Vista/Windows 7/Windows 8

Operating Environment:

Dimensions:

-20 ºC to +80 ºC (-4 ºF to +176 ºF),
0 %RH to 100 %RH

0.99 in H x 21.87 in L x 3.35W
(25 mm x 533 mm x 85 mm)

Weight: 15.5 oz (440 g)

ORDERING INFORMATION

MODEL DESCRIPTION

PRTEMP1000D-30 0-30PSID Pressure and Temperature Recorder

PRTEMP1000D-100 0-100PSID Pressure and Temperature Recorder

PRTEMP1000D-300 0-300PSID Pressure and Temperature Recorder

PRTEMP1000D-500 0-500PSID Pressure and Temperature Recorder

IFC200 Software, manual and USB interface cable

Calibration Certicate Calibration Certicate available for data logger

TLH-5902 Replacement battery for PRTemp1000D

Material: Stainless Steel

BATTERY WARNING: RISK OF FIRE OR EXPLOSION. DO NOT RECHARGE, FORCE OPEN, HEAT OR

DISPOSE OF IN FIRE.

Temperature

ASK ABOUT
OUR OTHER

DATA

LOGGERS

Humidity

Pressure

pH

Level

Shock

LCD Display

Pulse/Event/State

Current
Voltage

Wireless

Intrinsically Safe

Spectral Vibration

Motion

For Quantity Discounts call 603-456-2011 or email [e-mail]

6 Warner Road · Warner, NH 03278

Phone: [phone] · Fax: [phone]

DOC-2040009-00 REV 8 08.07.2017
