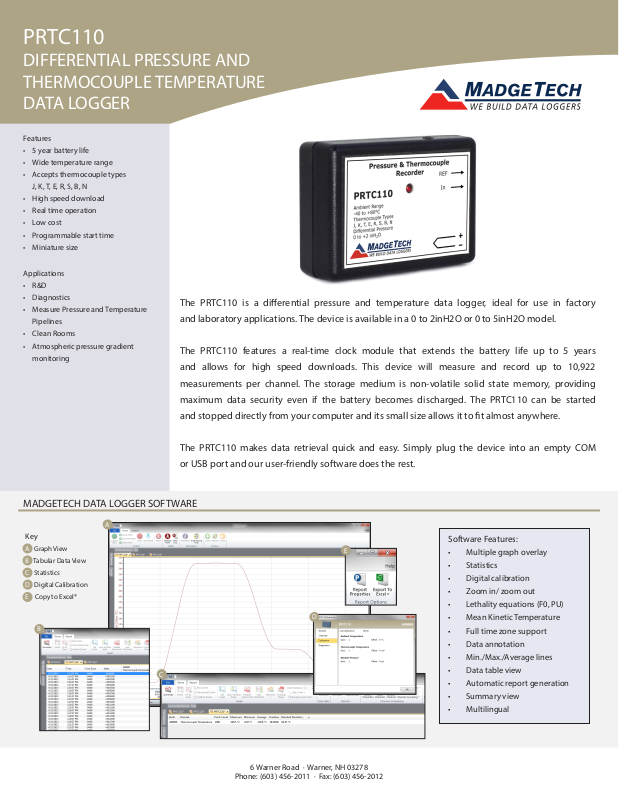

MadgeTech PRTC110 Specifications

PRTC110

DIFFERENTIAL PRESSURE AND
THERMOCOUPLE TEMPERATURE
DATA LOGGER

Features

• 5 year battery life

• Wide temperature range

• Accepts thermocouple types

J, K, T, E, R, S, B, N

• High speed download

• Real time operation

• Low cost

• Programmable start time

• Miniature size

Applications

• R&D

• Diagnostics

• Measure Pressure and Temperature

Pipelines

• Clean Rooms

• Atmospheric pressure gradient

monitoring

The PRTC110 is a dierential pressure and temperature data logger, ideal for use in factory

and laboratory applications. The device is available in a 0 to 2inH2O or 0 to 5inH2O model.

The PRTC110 features a real-time clock module that extends the battery life up to 5 years

and allows for high speed downloads. This device will measure and record up to 10,922

measurements per channel. The storage medium is non-volatile solid state memory, providing

maximum data security even if the battery becomes discharged. The PRTC110 can be started

and stopped directly from your computer and its small size allows it to t almost anywhere.

The PRTC110 makes data retrieval quick and easy. Simply plug the device into an empty COM

or USB port and our user-friendly software does the rest.

MADGETECH DATA LOGGER SOFTWARE

A

Key

A Graph View

B Tabular Data View

C Statistics

D Digital Calibration

E Copy to Excel®

B

C

Software Features:

E

D

• Multiple graph overlay

• Statistics

• Digital calibration

• Zoom in/ zoom out

• Lethality equations (F0, PU)

• Mean Kinetic Temperature

• Full time zone support

• Data annotation

• Min./Max./Average lines

• Data table view

• Automatic report generation

• Summary view

• Multilingual

6 Warner Road · Warner, NH 03278

Phone: [phone] · Fax: [phone]

PRTC110 SPECIFICATIONS*

Internal Channel

Temperature Range: -20 ºC to +80 ºC (-4 ºF to +176 ºF)

Temperature Resolution: 0.1 ºC (0.18 ºF)

Calibrated Accuracy: ±0.5 ºC (0 ºC to 50 ºC)

Remote Channel

Thermocouple Types: J, K, T, E, R, S, B, N

Thermocouple connection: Mini U connector

Cold Junction Compensation: Automatic, based on internal channel

Maximum thermocouple

Resistance:

**Thermocouple Type:

Voltage

**Accuracy specications based on 3-meter 24 AWG thermocouple.

Pressure Range (nominal):

Pressure Range (max):

Pressure Resolution: 0.002 inH2O and 0.005 inH2O

Pressure Specied Accuracy: Nominal Range at +25 ºC (+77 ºF)

1000 Ω, <1000 Ω recommended

Range (ºC) Resolution Accuracy

-210 to +760 0.1 ºC ±0.5 ºC

J

-270 to +1370 0.1 ºC ±0.5 ºC

K

-270 to +400 0.1 ºC ±0.5 ºC

T

-270 to +980 0.1 ºC ±0.5 ºC

E

-50 to +1760 0.1 ºC ±2.0 ºC

R

-50 to +1760 0.1 ºC ±2.0 ºC

S

+50 to +1820 0.1 ºC ±2.0 ºC

B

-270 to +1300 0.1 ºC ±0.5 ºC

N

-75 mV to +75 mV 5 μV ±20 μV

0 to 2 inH2O and 0 to 5 inH2O
(dierential)

-2 to +4inH2O and –2 to +8inH2O
(dierential)

*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. SPECIFIC WARRANTY REMEDY LIMITATIONS

APPLY. CALL 1-603-456-2011 OR GO TO WWW.MADGETECH.COM FOR DETAILS.

Combined Calibration

Accuracy:

Start Modes:

Real Time Recording:

Memory:

±5.0% FSR max at 25 ºC over 1 year

Software programmable immediate start or delay
start up to six months in advance

May be used with PC to monitor and record data
in real time

10,922 readings per channel; software
congurable memory wrap

Reading Rate: 2 seconds to 24 hours, selectable in software

Calibration: Digital calibration through software

Calibration Date: Automatically recorded within device

Battery Type: 3.6V lithium battery included, user replaceable

Battery Life: 5 year typical (5 minute, 25 ºC)

Data Format:

Date and time stamped ºC, ºF, ºK, ºR; inH2O,
PSIG, inHg, mmHg, bar, atm, Torr, Pa, kPa, MPa

Time Accuracy: ±1 minute/month (at 20 ºC to 30 ºC)

Computer Interface:

PC serial or USB (interface cable required);
57,600 baud

Software: XP SP3/Vista/Windows 7/Windows 8

Operating Environment:

-20 ºC to +80 ºC (-4 ºF to +176 ºF),
0 %RH to 95 %RH non-condensing

2.7 in x 1.6 in x 0.8 in

Dimensions:

(68 mm x 41 mm x 20 mm)
plus connective tubing

Enclosure: ABS Plastic

Weight: 1.25 oz (34 g)

Approvals: CE

BATTERY WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT RECHARGE,

DISASSEMBLE, HEAT ABOVE 212 °F, INCINERATE OR EXPOSE CONTENTS TO WATER

ORDERING INFORMATION

MODEL DESCRIPTION

PRTC110-2inH2O 2inH2O Dierential Pressure and Thermocouple Temperature Recorder

PRTC110-5inH2O 5inH2O Dierential Pressure and Thermocouple Temperature Recorder

IFC200 Software, manual and USB interface cable

Calibration Certicate Calibration Certicate available for data logger

LTC-7PN Replacement battery for PRTC110

For Quantity Discounts call 603-456-2011 or email [e-mail]
