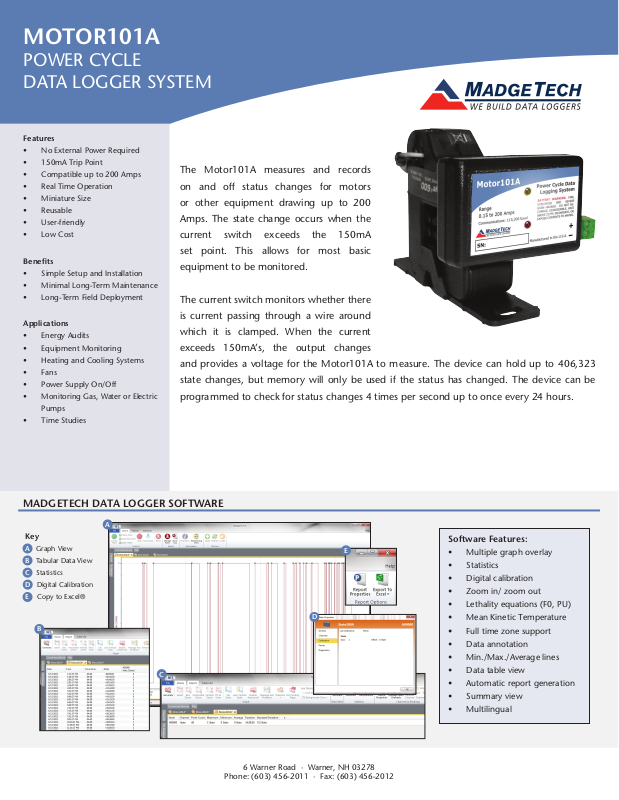

MadgeTech Motor101A Specifications
MOTOR101A
POWER CYCLE
DATA LOGGER SYSTEM
Features
• No External Power Required
• 150mA Trip Point
• Compatible up to 200 Amps
• Real Time Operation
• Miniature Size
• Reusable
• User-friendly
• Low Cost
Benefits
• Simple Setup and Installation
• Minimal Long-Term Maintenance
• Long-Term Field Deployment
Applications
• Energy Audits
• Equipment Monitoring
• Heating and Cooling Systems
• Fans
• Power Supply On/Off
• Monitoring Gas, Water or Electric
Pumps
• Time Studies
The Motor101A measures and records
on and off status changes for motors
or other equipment drawing up to 200
Amps. The state change occurs when the
current switch exceeds the 150mA
set point. This allows for most basic
equipment to be monitored.
The current switch monitors whether there
is current passing through a wire around
which it is clamped. When the current
exceeds 150mA’s, the output changes
and provides a voltage for the Motor101A to measure. The device can hold up to 406,323
state changes, but memory will only be used if the status has changed. The device can be
programmed to check for status changes 4 times per second up to once every 24 hours.
MADGETECH DATA LOGGER SOFTWARE
A
Key
A Graph View
B Tabular Data View
C Statistics
D Digital Calibration
E Copy to Excel®
B
C
E
D
6 Warner Road · Warner, NH 03278
Phone: (603) 456-2011 · Fax: (603) 456-2012
Software Features:
• Multiple graph overlay
• Statistics
• Digital calibration
• Zoom in/ zoom out
• Lethality equations (F0, PU)
• Mean Kinetic Temperature
• Full time zone support
• Data annotation
• Min./Max./Average lines
• Data table view
• Automatic report generation
• Summary view
• Multilingual
MOTOR101A SPECIFICATIONS*
Amperage Range: 0.15-200 Amps
Trip Point:
0.15A (150mA) fixed
(200mA AC for 50Hz operation)
Status Output (max.): N.O. 1.0A@30VAC/DC
Housing: Split Core
Reading Rate: 4Hz to 1 every 24 hours
Memory:
406,323 readings; software configurable
memory wrap
Wrap Around: Yes
• Immediate start
Start Modes:
• Delay start up to 18 months
• Multiple pushbutton start/stop
Start and stop the device multiple times
Multiple Start/Stop Mode:
without having to download data or
communicate with a PC
To start the device:
Press and hold the pushbutton for 5
seconds, the green LED will flash during
this time. The device has started logging.
Multiple Start/Stop Mode
Activation:
To stop the device:
Press and hold the pushbutton for 5
seconds, the red LED will flash for three
seconds and then the green LED will flash
for two seconds. The device has stopped
logging.
Real Time Recording:
The device may be used with PC to
monitor and record data in real-time
Green LED blinks:
10 second rate to indicate logging
15 second rate to indicate delay start
LED Functionality:
mode
Red LED blinks:
10 second rate to indicate low battery
and/or full memory
An optional password may be
Password Protection:
programmed into the device to restrict
access to configuration options. Data
may be read out without the password.
Engineering Units:
play measurement units of another type such as
on/off, open/closed and more.
Battery Type: 3.6V lithium battery included; user replaceable
Native measurement units can be scaled to dis-
Battery Life:
Time Accuracy:
10 years typical, dependent upon frequency and
duty cycle
Motor101A
Graph display of the device recording in a 25°C environment.
±1 minute/month (at 20ºC/68ºF, stand alone data
logging)
Computer Interface: USB (interface cable required); 115,200 baud
Software: XP SP3/Vista/Windows 7/Windows 8
Operating Environment:
-15ºC to +40ºC (5ºF to +104ºF),
10%RH to 90%RH non-condensing
Data Logger:
1.4” x 2.2” x 0.6” (36mm x 56mm x 16mm)
Dimensions:
Current Switch:
2.1” x 3.5” x 1.0” (54mm x 89mm x 26mm)
Weight:
Without IFC200: 4oz (113g)
With IFC200: 9oz (255g)
Materials: ABS Plastic
Approvals: CE
BATTERY WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT,
CHARGE, FORCE OVER DISCHARGE, DISASSEMBLE, CRUSH, PENETRATE OR INCINERATE.
BATTERY MAY LEAK OR EXPLODE IF HEATED ABOVE 80°C (176°F).
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.SPECIFIC WARRANTY AND
REMEDY LIMITATIONS APPLY. CALL 1-603-456-2011 OR GO TO WWW.MADGETECH.COM FOR
DETAILS.
ORDERING INFORMATION
MODEL DESCRIPTION
Motor101A
IFC200 Software, manual and USB interface cable
LTC-7PN Replacement battery for Motor101A
Machinery On/Off Status Data Logging System (includes data logger, current switch and
IFC200 interface cable)
6 Warner Road · Warner, NH 03278
Phone: (603) 456-2011 · Fax: (603) 456-2012
ASK ABOUT
OUR OTHER
DATA
LOGGERS
Temperature
Humidity
Pressure
pH
Level
Shock
LCD Display
Pulse/Event/State
Current
Voltage
Wireless
Intrinsically Safe
Spectral Vibration
Motion
REV 2 2014.02.04
