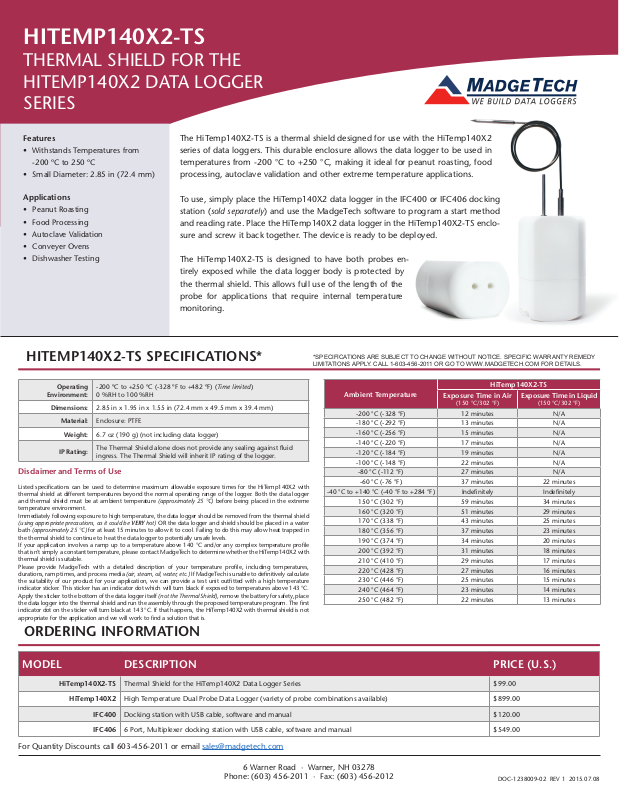

MadgeTech HiTemp140X2-TS Specifications

HITEMP140X2-TS

THERMAL SHIELD FOR THE
HITEMP140X2 DATA LOGGER
SERIES

Features

• Withstands Temperatures from

-200 ºC to 250 ºC

• Small Diameter: 2.85 in (72.4 mm)

Applications

• Peanut Roasting

• Food Processing

• Autoclave Validation

The HiTemp140X2-TS is a thermal shield designed for use with the HiTemp140X2
series of data loggers. This durable enclosure allows the data logger to be used in
temperatures from -200 °C to +250 °C, making it ideal for peanut roasting, food
processing, autoclave validation and other extreme temperature applications.

To use, simply place the HiTemp140X2 data logger in the IFC400 or IFC406 docking
station (sold separately) and use the MadgeTech software to program a start method
and reading rate. Place the HiTemp140X2 data logger in the HiTemp140X2-TS enclo­sure and screw it back together. The device is ready to be deployed.

• Conveyer Ovens

• Dishwasher Testing

The HiTemp140X2-TS is designed to have both probes en­tirely exposed while the data logger body is protected by
the thermal shield. This allows full use of the length of the
probe for applications that require internal temperature
monitoring.

HITEMP140X2-TS SPECIFICATIONS*

Operating

Environment:

Dimensions: 2.85 in x 1.95 in x 1.55 in (72.4 mm x 49.5 mm x 39.4 mm)

Material: Enclosure: PTFE

Weight: 6.7 oz (190 g) (not including data logger)

IP Rating:

Disclaimer and Terms of Use

Listed specifications can be used to determine maximum allowable exposure times for the HiTemp140X2 with
thermal shield at different temperatures beyond the normal operating range of the logger. Both the data logger
and thermal shield must be at ambient temperature (approximately 25 °C) before being placed in the extreme
temperature environment.
Immediately following exposure to high temperature, the data logger should be removed from the thermal shield
(using appropriate precautions, as it could be VERY hot) OR the data logger and shield should be placed in a water
bath (approximately 25 °C) for at least 15 minutes to allow it to cool. Failing to do this may allow heat trapped in
the thermal shield to continue to heat the data logger to potentially unsafe levels.
If your application involves a ramp up to a temperature above 140 °C and/or any complex temperature profile
that isn't simply a constant temperature, please contact MadgeTech to determine whether the HiTemp140X2 with
thermal shield is suitable.
Please provide MadgeTech with a detailed description of your temperature profile, including temperatures,
durations, ramp times, and process media (air, steam, oil, water, etc.) If MadgeTech is unable to definitively calculate
the suitability of our product for your application, we can provide a test unit outfitted with a high temperature
indicator sticker. This sticker has an indicator dot which will turn black if exposed to temperatures above 143 °C.
Apply the sticker to the bottom of the data logger itself (not the Thermal Shield), remove the battery for safety, place
the data logger into the thermal shield and run the assembly through the proposed temperature program. The first
indicator dot on the sticker will turn black at 143 °C. If that happens, the HiTemp140X2 with thermal shield is not
appropriate for the application and we will work to find a solution that is.

-200 ºC to +250 ºC (-328 ºF to +482 ºF) (Time limited)
0 %RH to 100 %RH

The Thermal Shield alone does not provide any sealing against fluid
ingress. The Thermal Shield will inherit IP rating of the logger.

ORDERING INFORMATION

*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. SPECIFIC WARRANTY REMEDY
LIMITATIONS APPLY. CALL 1-603-456-2011 OR GO TO WWW.MADGETECH.COM FOR DETAILS.

Ambient Temperature

-200 °C (-328 °F) 12 minutes N/A

-180 °C (-292 °F) 13 minutes N/A

-160 °C (-256 °F) 15 minutes N/A

-140 °C (-220 °F) 17 minutes N/A

-120 °C (-184 °F) 19 minutes N/A

-100 °C (-148 °F) 22 minutes N/A

-80 °C (-112 °F) 27 minutes N/A

-60 °C (-76 °F) 37 minutes 22 minutes

-40 °C to +140 °C (-40 °F to +284 °F) Indefinitely Indefinitely

150 °C (302 °F) 59 minutes 34 minutes

160 °C (320 °F) 51 minutes 29 minutes

170 °C (338 °F) 43 minutes 25 minutes

180 °C (356 °F) 37 minutes 23 minutes

190 °C (374 °F) 34 minutes 20 minutes

200 °C (392 °F) 31 minutes 18 minutes

210 °C (410 °F) 29 minutes 17 minutes

220 °C (428 °F) 27 minutes 16 minutes

230 °C (446 °F) 25 minutes 15 minutes

240 °C (464 °F) 23 minutes 14 minutes

250 °C (482 °F) 22 minutes 13 minutes

Exposure Time in Air

(150 °C/302 °F)

HiTemp140X2-TS

Exposure Time in Liquid

(150 °C/302 °F)

MODEL DESCRIPTION PRICE (U.S.)

HiTemp140X2-TS Thermal Shield for the HiTemp140X2 Data Logger Series $99.00

HiTemp140X2 High Temperature Dual Probe Data Logger (variety of probe combinations available) $899.00

IFC400 Docking station with USB cable, software and manual $120.00

IFC406 6 Port, Multiplexer docking station with USB cable, software and manual $549.00

For Quantity Discounts call 603-456-2011 or email [e-mail]

6 Warner Road · Warner, NH 03278

Phone: [phone] · Fax: [phone]

DOC-1238009-02 REV 1 2015.07.08
