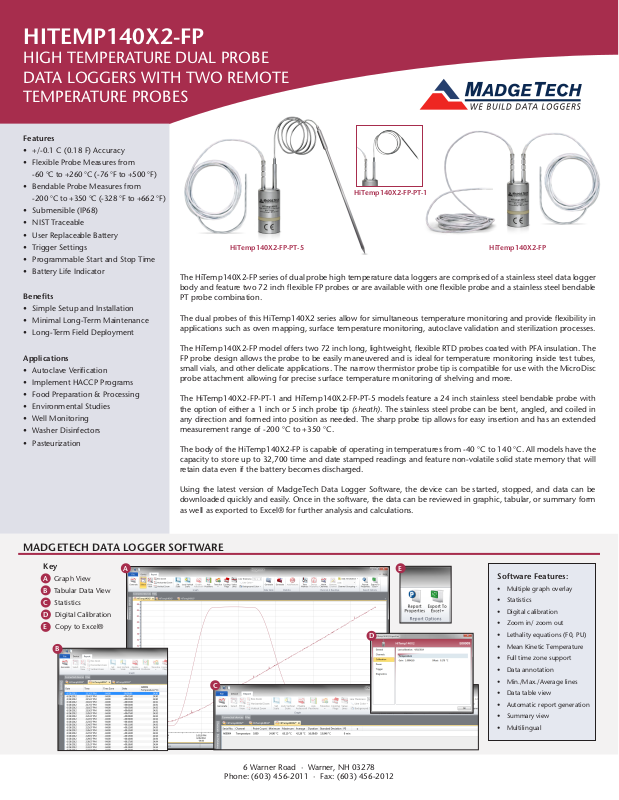

MadgeTech HITEMP140X2-FP Data Sheet

HITEMP140X2-FP

HIGH TEMPERATURE DUAL PROBE
DATA LOGGERS WITH TWO REMOTE
TEMPERATURE PROBES

Features

• +/-0.1 C (0.18 F) Accuracy

• Flexible Probe Measures from

-60 °C to +260 °C (-76 °F to +500 °F)

• Bendable Probe Measures from

-200 °C to +350 °C (-328 °F to +662 °F)

• Submersible (IP68)

• NIST Traceable

• User Replaceable Battery

• Trigger Settings

• Programmable Start and Stop Time

• Battery Life Indicator

Benefits

• Simple Setup and Installation

• Minimal Long-Term Maintenance

• Long-Term Field Deployment

Applications

• Autoclave Verification

• Implement HACCP Programs

• Food Preparation & Processing

• Environmental Studies

• Well Monitoring

• Washer Disinfectors

• Pasteurization

The HiTemp140X2-FP series of dual probe high temperature data loggers are comprised of a stainless steel data logger
body and feature two 72 inch flexible FP probes or are available with one flexible probe and a stainless steel bendable
PT probe combination.

The dual probes of this HiTemp140X2 series allow for simultaneous temperature monitoring and provide flexibility in
applications such as oven mapping, surface temperature monitoring, autoclave validation and sterilization processes.

The HiTemp140X2-FP model offers two 72 inch long, lightweight, flexible RTD probes coated with PFA insulation. The
FP probe design allows the probe to be easily maneuvered and is ideal for temperature monitoring inside test tubes,
small vials, and other delicate applications. The narrow thermistor probe tip is compatible for use with the MicroDisc
probe attachment allowing for precise surface temperature monitoring of shelving and more.

The HiTemp140X2-FP-PT-1 and HiTemp140X2-FP-PT-5 models feature a 24 inch stainless steel bendable probe with
the option of either a 1 inch or 5 inch probe tip (sheath). The stainless steel probe can be bent, angled, and coiled in
any direction and formed into position as needed. The sharp probe tip allows for easy insertion and has an extended
measurement range of -200 °C to +350 °C.

The body of the HiTemp140X2-FP is capable of operating in temperatures from -40 °C to 140 °C. All models have the
capacity to store up to 32,700 time and date stamped readings and feature non-volatile solid state memory that will
retain data even if the battery becomes discharged.

HiTemp140X2-FP-PT-1

HiTemp140X2-FPHiTemp140X2-FP-PT-5

Using the latest version of MadgeTech Data Logger Software, the device can be started, stopped, and data can be
downloaded quickly and easily. Once in the software, the data can be reviewed in graphic, tabular, or summary form
as well as exported to Excel® for further analysis and calculations.

MADGETECH DATA LOGGER SOFTWARE

Key

A Graph View

B Tabular Data View

C Statistics

D Digital Calibration

E Copy to Excel®

B

C

D

6 Warner Road · Warner, NH 03278

Phone: [phone] · Fax: [phone]

EA

Software Features:

• Multiple graph overlay

• Statistics

• Digital calibration

• Zoom in/ zoom out

• Lethality equations (F0, PU)

• Mean Kinetic Temperature

• Full time zone support

• Data annotation

• Min./Max./Average lines

• Data table view

• Automatic report generation

• Summary view

• Multilingual

HITEMP140X2-FP SPECIFICATIONS*

Temperature

• Hi Temp14 0X2-F P:

Temperature Sensor:

Probe Measurement

Calibrated Accuracy: ±0.1 °C (±0.18 °F)

Range:

Temperature

Resolution:

General

Reading Rate: 1 reading every second up to 1 reading every 24 hours

Memory: 32,767 readings

Start Modes:

Stop Modes: Manual or Timed (specific date and time)

Real Time Recording: May be used with PC to monitor and record data in real time

Password Protection:

Readings in Trigger

Settings Mode:

Trigger Settings:

Wrap Around: Yes

Battery Type:

Battery Life:

Flexible RTD Probe

• HiTemp140X2-FP-PT:
Flexible RTD Probe & Bendable RTD Probe

• Flexible Probe: -60 °C to +260 °C (-76 °F to +500 °F)

• Bendable Probe: -200 °C to +350 °C (-328 °F to + 662 °F )

0.01 °C (0.02 °F)

• Software programmable immediate start

• Delay start up to 18 months in advance

An optional password may be programmed into the device to
restrict access to configuration options. Data may be read out
without the password.

16,383 readings

High and Low limits may be set. Once data meets or exceed
sets limits, the device will record to memory. Bi-level start and
stop triggers can also be programmed. Users can specify the
number of readings to take after the device triggers. (Triggering on

channel #1 only)

3.6V high-temperature lithium battery included;

user replaceable

1 year typical
(1 minute reading rate at 25 °C/77 °F)

*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. SPECIFIC WARRANTY REMEDY LIMITATIONS

APPLY. CALL 1-603-456-2011 OR GO TO WWW.MADGETECH.COM FOR DETAILS.

Calibration: Digital calibration through software

Calibration Date: Automatically recorded within device

Data Format: Date and time stamped °C, °F, °R, K,

Time Accuracy:

Computer Interface: IFC400 or IFC406 USB docking station required; 125,000 baud

Operating System

Compatibility:

MadgeTech Software

Compatibility:

Operating

Environment:

IP Rating: IP68

Dimensions (body):

Dimensions (probe):

Weight:

Materials:

Approvals: CE

BATTERY WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT,

CHARGE, FORCE OVER DISCHARGE, CRUSH, PENETRATE, OR INCINERATE. BATTERY MAY LEAK
OR EXPLODE IF HEATED ABOVE 150 ºC (302 ºF).

• 1 minute/month at 25 °C (77 °F)

• Extended Operation: ±20 minutes/month at 140 °C (±450 ppm)

XP SP3/Vista/Windows 7/Windows 8

• MadgeTech Standard Software version 4.2.1.0 or later

• MadgeTech Secure Software version 4.2.0.0 or later

-40 °C to +140 °C (-40 °F to +284 °F)
0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA

1.89 in x 0.97 in x 0.97 in (48 mm x 24.6 mm x 24.6 mm)

• HiTemp140X2-FP:
Flexible Probe: 72 in x 0.10 in (1829 mm x 2.5 mm)

• HiTemp140X2-FP-PT 1 Inch Bendable Probe:
Probe tip: 1.7 in x 0.125 in dia. (42 mm x 3.2 mm dia.)
Bendable portion: 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.)

• HiTemp140X2-FP-PT 5 Inch Bendable Probe:
Probe tip: 4.8 in x 0.125 in dia. with 1 in x 0.188 in dia. handle

(121 mm x 3.2 mm dia. with 25 mm x 4.8 mm dia. handle)
Bendable portion: 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.)

• HiTemp140X2-FP: 4.1 oz (115 g)

• HiTemp140X2-FP-PT: 3.9 oz (110 g)

• Body: 316 Stainless Steel, PEEK

• Bendable Probe: 316 Stainless Steel

• Flexible Probe: PFA Insulated Cable

ORDERING INFORMATION

MODEL DESCRIPTION PRICE (U.S.)

HiTemp140X2-FP High temperature dual probe data logger with two 72 inch flexible RTD probes. $999.00

HiTemp140X2-FP-PT-1

HiTemp140X2-FP-PT-5

IFC400 Docking station with USB cable, software and manual. $120.00

IFC406 6 Port, Multiplexer docking station with USB cable, software and manual. $549.00

ER1425S-HT Replacement battery for the HiTemp140X2-FP Series $50.00

For Quantity Discounts call 603-456-2011 or email [e-mail]

*To order the product with the NIST certificate add -CERT to the end of the part number and add $90.00 to the price.

High temperature dual probe data logger with one 72 inch flexible RTD probe
and one 24 inch bendable probe with a 1 inch probe sheath.

High temperature dual probe data logger with one 72 inch flexible RTD probe
and one 24 inch bendable probe with a 5 inch probe sheath.

$999.00

$999.00

*NIST NIST Calibration Certificate. $90.00
