Specification HiTemp140

Temperature Sensor 100 Ω platinum RTD

Probe Range

Temperature Resolution 0.01 °C

Temperature Accuracy

Memory 32,700 readings

Reading Rate 1 reading every second up to 1 reading every 24 hours

Required Interface Package IFC400 or IFC406

Baud Rate 125,000 baud

Typical Battery Life 1 year (1 minute reading rate at 25 °C/77 °F)

Operating Environment

Material

Dimensions (Body: HiTemp140-1) 1.6 in x 0.970 in dia. (40 mm x 24.6 mm dia.)

Dimensions (Body: HiTemp140-2,

HiTemp140-5.25, HiTemp140-7)

Weight 4.2 oz (120 g)

Submersible Yes (IP68)

Approvals CE

Model Number Dimensions (Probe)

HiTemp140-1

HiTemp140-2 2.0 in x 0.188 in dia. (51 mm x 4.8 mm dia.)

HiTemp140-2-TD

HiTemp140-5.25 5.25 in x 0.188 in dia. (133 mm x 4.8 mm dia.)

HiTemp140-5.25-TD

HiTemp140-7 7.0 in x 0.188 in dia. (178 mm x 4.8 mm dia.)

–40 °C to +140 °C, 0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA

–200 °C to +260 °C (-328 °F to +500 °F)

*BODY OF LOGGER CANNOT EXCEED 140 °C

±0.1 ºC/±0.18 ºF (20 ºC to +140 ºC/68 ºF to +284 ºF)

±0.3 °C/±0.54 ºF (-20 °C to +19.99 °C/-4 °F to +67.98 °F)

±0.4 °C/±0.72 ºF (-40 °C to -20.01 °C/-40 °F to -4.02 °F)

BODY OF LOGGER CAN NOT EXCEED 140 ºC

316 Stainless Steel

1.9 in x 0.970 in dia. (48 mm x 24.6 mm dia.)

1.1 in x 0.125 in dia. (0.188 in transitional diameter)

27 mm x 3.2 mm dia. (4.8 mm transitional diameter)

2.0 in x 0.125 in dia. (0.188 in transitional diameter)

51 mm x 3.2 mm dia. (4.8 mm transitional diameter)

5.25 in x 0.125 in dia. (0.188 in transitional diameter)

133 mm x 3.2 mm dia. (4.8 mm transitional diameter)

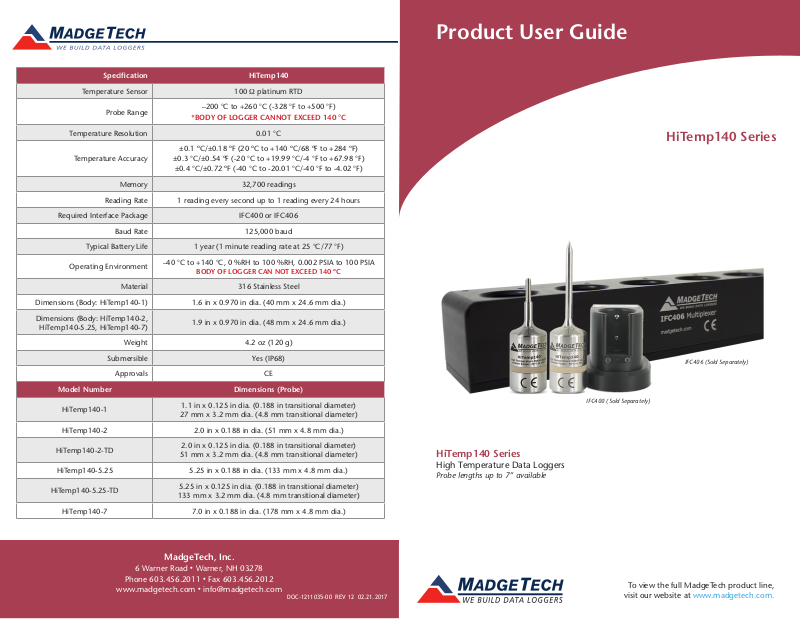

Product User Guide

HiTemp140 Series

IFC406 (Sold Separately)

IFC400 (Sold Separately)

HiTemp140 Series

High Temperature Data Loggers

Probe lengths up to 7” available

MadgeTech, Inc.

6 Warner Road

Phone [phone]

www.madgetech.com

l

Warner, NH 03278

l

Fax [phone]

l

[e-mail]

DOC-1211035-00 REV 12 02.21.2017

To view the full MadgeTech product line,

visit our website at www.madgetech.com.

HiTemp140

Product Notes

The HiTemp140 is a rugged, high precision, temperature data logger that is built for use with

autoclaves and harsh environments. This stainless steel device is submersible, can withstand

temperatures up to 140 °C (284 °F) and has an accuracy of +/-0.1 °C (0.18 °F).

NOTE: BODY OF LOGGER CAN NOT EXCEED 140 °C

The HiTemp140 can store up to 32,700 readings, and features a rigid external probe capable

of measuring extended temperatures, up to 260 °C (500 °F). Custom probe lengths up to

7 inches are available. The device records date and time stamped readings, and has non-

volatile solid state memory that will retain data even if the battery becomes discharged. The

HiTemp140 can be used in both wet and dry applications up to 140 °C indefinitely.

Submergibility

The HiTemp140 is fully submersible and is rated IP68. It can be placed in environments with

up to 230 feet (70 m) of water.

O-Rings

O-ring maintenance is a key factor when properly caring for the HiTemp140. The O-rings

ensure a tight seal and prevent liquid from entering the inside of the device. Please refer to

the application note “O-Rings 101: Protecting Your Data”, found on the MadgeTech website,

for information on how to prevent O-ring failure.

Note: This product is rated for use up to 140 °C. Please heed the battery warning. The product will explode if exposed to
temperatures above 140 °C.

Installation Guide

Installing the Interface cable

- IFC400 or IFC406

Refer to the “Quick Start Guide” included in the package.

Installing the software

The Software can be downloaded from the MadgeTech website at the following link:

www.madgetech.com/software-download. Follow the instructions provided in the Installation

Wizard to install the MadgeTech Software.

Device Operation

Connecting and Starting the data logger

- Once the software is installed and running, plug the interface cable into the docking station.

- Connect the USB end of the interface cable into an open USB port on the computer.

- Place the data logger into the docking station.

- The data logger will automatically appear under Connected Devices within the software.

- For most applications, select “Custom Start” from the menu bar and choose the desired

start method, reading rate and other parameters appropriate for the data logging application

and click “Start”. (“Quick Start” applies the most recent custom start options, “Batch Start”

is used for managing multiple loggers at once, “Real Time Start” stores the dataset as it records

while connected to the logger.)

Product User Guide

- The status of the device will change to “Running”, “Waiting to Start” or “Waiting to

Manual Start”, depending upon your start method.

- Disconnect the data logger from the docking station and place it in the environment to

measure.

Note: The device will stop recording data when the end of memory is reached or the device is stopped, unless user selectable
memory wrap is enabled. At this point the device cannot be restarted until it has been re-armed by the computer.

Downloading data from a data logger

- Place the logger into the docking station.

- Highlight the data logger in the Connected Devices list. Click “Stop” on the menu bar.

- Once the data logger is stopped, with the logger highlighted, click “Download”. You will

be prompted to name your report.

- Downloading will offload and save all the recorded data to the PC.

Device Maintenance

Battery Replacement Warning

When replacing the battery, it is important to insert the battery with positive polarity pointing

upward towards the probe. Failure to do so could result in product inoperability or potential

explosion if exposed to high temperatures.

Recalibration

The HiTemp140 standard calibration points are 20 °C and 140 °C.

Prices and specifications subject to change. See MadgeTech’s terms and conditions at www.madgetech.com

To send the devices back, visit www.madgetech.com, select Services then RMA Process.

Battery Warning

WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE,
FORCE OVER DISCHARGE, DISASSEMBLE, CRUSH, PENETRATE OR INCINERATE. BATTERY MAY
LEAK OR EXPLODE IF HEATED ABOVE 150 °C (302 °F).

Specifications subject to change.
