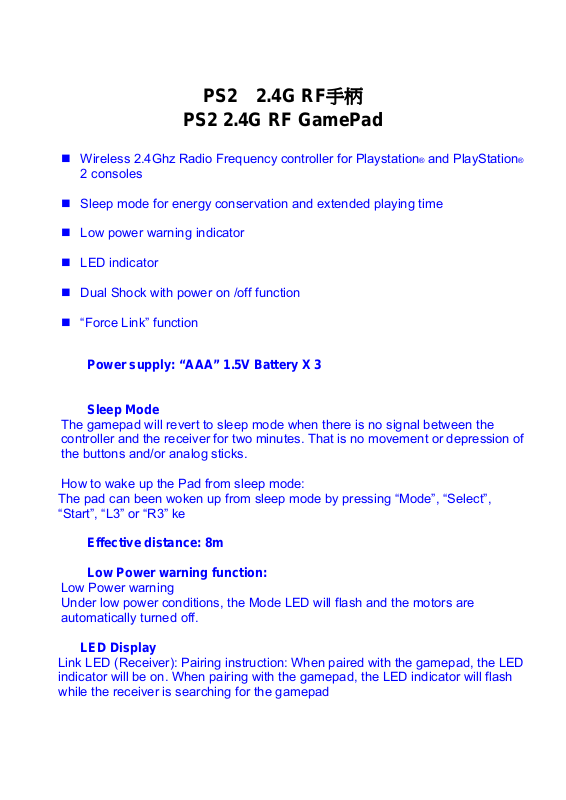

PS2 2.4G RF手柄

PS2 2.4G RF GamePad

 Wireless 2.4Ghz Radio Frequency controller for Playstation® and PlayStation®

2 consoles

 Sleep mode for energy conservation and extended playing time

 Low power warning indicator

 LED indicator

 Dual Shock with power on /off function

 “Force Link” function

Power supply: “AAA” 1.5V Battery X 3

Sleep Mode

The gamepad will revert to sleep mode when there is no signal between the
controller and the receiver for two minutes. That is no movement or depression of
the buttons and/or analog sticks.

How to wake up the Pad from sleep mode:

The pad can been woken up from sleep mode by pressing “Mode”, “Select”,
“Start”, “L3” or “R3” ke

Effective distance: 8m
Low Power warning function:

Low Power warning
Under low power conditions, the Mode LED will flash and the motors are
automatically turned off.

LED Display

Link LED (Receiver): Pairing instruction: When paired with the gamepad, the LED
indicator will be on. When pairing with the gamepad, the LED indicator will flash
while the receiver is searching for the gamepad

Link LED (GamePad): Pairing instruction: When paired with the receiver, the LED
indicator will be on. The LED will go off when the power is off or gamepad is ion
sleep mode. When the LED is flashing, the gamepad is searching for the receiver.

Mode LED (GamePad): Mode instruction: When gamepad and receiver are paired,
the mode LED is on when in analog mode and the LED light is off when in digital
mode.

Function of keys

z Twelve analogy keys: ▲、■、●、X、L1 、R1 、L2、R2、Up、Down、Left、

Right

z Two Analog 3D joysticks
z 4 base digital Keys: Start、Select、L3、R3

z 3 special function keys: VIBRATION、MODE、FORCE LINK

The default setting of the vibration motor is on. It will turn off when the vibration key is

pressed once. The vibration motor will oscillate two consecutive to indicate the same.

It will be turn on when the vibration key was pressed once again and the vibration

motor will be oscillate once to indicate same.
In order to avoid disturbance between the working Pads at the same time, the ID of

the GamePad is unique to each gamepad. If, however, there is a need to pair the
gamepad and the receiver, that were not the original pairing, simply press the “Force
Link” key on the receiver first, the Link LED will be flash and the receiver will begin to
search the Pad. At the same time, press the “Force Link” key on the gamepad once,
the Pad and the receiver will be paired.
