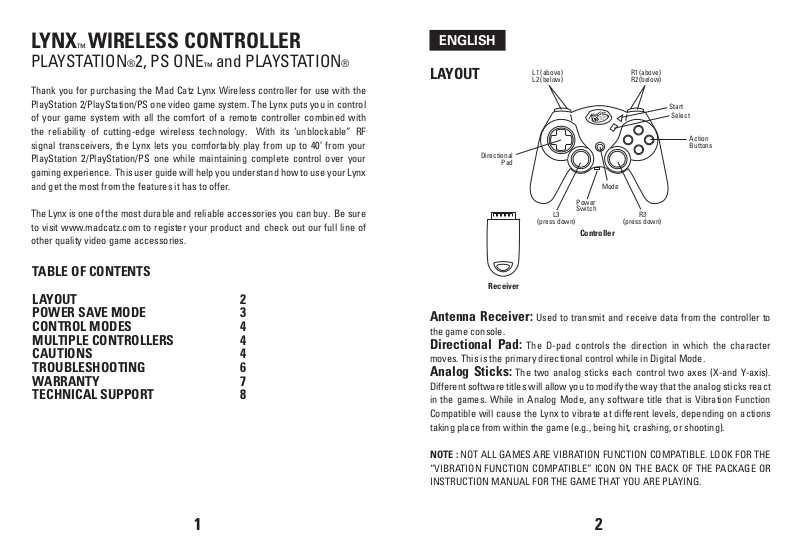

LYNX™ WIRELESS CONTROLLER
Receiver
Controller
L3
(press down)
R3
(press down)
Mode
Power Switch
Start
Select
Directional
Pad
Action Buttons
L1 (above) L2 (below)
R1(above) R2(below)
PLAYSTATION®2, PS ONE™ and PLAYSTATION
The Lynx is one of the most durable and reliable accessories you can buy. Be sure to visit www.madcatz.com to register your product and check out our full line of other quality video game accessories.
TABLE OF CONTENTS
LAYOUT 2 POWER SAVE MODE 3 CONTROL MODES 4 MULTIPLE CONTROLLERS 4 CAUTIONS 4 TROUBLESHOOTING 6 WARRANTY 7 TECHNICAL SUPPORT
8
1 2
ENGLISH
®
LAYOUT
Antenna Receiver: Used to transmit and receive data from the controller to
the game console.
Directional Pad: The D-pad controls the direction in which the character
moves. This is the primary directional control while in Digital Mode.
Analog Sticks: The two analog sticks each control two axes (X-and Y-axis).
Different software titles will allow you to modify the way that the analog sticks react in the games. While in Analog Mode, any software title that is Vibration Function Compatible will cause the Lynx to vibrate at different levels, depending on actions taking place from within the game (e.g., being hit, crashing, or shooting).
NOTE : NOT ALL GAMES ARE VIBRATION FUNCTION COMPATIBLE. LOOK FOR THE “VIBRATION FUNCTION COMPATIBLE” ICON ON THE BACK OF THE PACKAGE OR INSTRUCTION MANUAL FOR THE GAME THAT YOU ARE PLAYING.
ENGLISH
Shoulder Buttons (L1, L2, R1, and R2): These are action buttons and
their specific functions depend on the software being used.
Action Buttons ( ) : These buttons are used to perform
various actions, depending on the software. For more details, see the software instruction manual.
Start Button: This button is generally used to make selections in the menus and
for pausing the game. For more details, see the software instruction manual.
Select Button: This is a standard button that allows you to do various things,
depending on the software. For more details, see the software instruction manual.
Mode Button: The Lynx has two different modes; Analog Controller Mode and
Red Light - ANALOG MODE Light Off - DIGITAL MODE
(Refer to “CONTROL MODES” for instructions on this feature.)
SET UP PROCEEDURE
(set up receiver first, and turn on controller after).
1. Slot the host into PS2 console
2. Power on the controller
3. Controller & host will connect automatically
POWER SAVE MODE
The Lynx comes with a switch that will turn off the controller to save batteries when not in use. This switch is located between the two controller handles. It is advised that when you are not using the controller for prolonged periods of time, that you turn the controller off.
Sleep mode
When not in use, the Lynx controller will enter a “sleep mode” in order to save battery life In order to bring the controller out of sleep mode, you could do either of the following steps to “wake” up the controller
- press start button
3 4
ENGLISH
- press select button
- press mode button
- turn the power switch to the OFF position and then ON again
Low Power Indication
The LED will blink when the power is low. And it is time to replace your battery.
CONTROL MODES
There are two different control modes from which you can choose, depending on your style of play. Change control modes by pressing the Mode button. The color of the lighted Mode button tells you which mode you are in:
Analog Controller Mode - RED light will turn ON
This is the standard “Dual Shock™” mode. Some games will only vibrate if the controller is in Analog Controller mode.
Digital Mode - RED light will turn OFF
This is the original PlayStation controller mode. This is the default control mode.
MULTIPLE CONTROLLERS
If you want to use two or more Lynx controllers at the same time (as in multi-player games or with the Mad Catz PS2 Multi-Port™), simply plug the controllers into the game system as you normally would and begin play. You don’t need to set any buttons or switches. The Lynx uses AUTOMATIC CHANNEL RECOGNITION and AUTOMATIC ID RECOGNITION to automatically avoid most controller interference conflicts.
When you play in the multi-player mode WITHOUT a Multi-Port:
1. Insert the game disk and turn on your console.
2. Insert the Antenna Receiver for the first controller into the Player-1 Controller port on the game console.
3. Confirm the link between first Antenna Receiver and first Lynx by using the
ENGLISH
controller to see if it works in the game or game menu.
4. Insert the Antenna Receiver for the second Lynx into the Player-2 Controllerport on the game console.
5. Confirm the link between second Antenna Receiver and second Lynx controller by using the controller to see if it works in the game or game menu.
When you play in the multi-player mode WITH a Multi-Port:
If you want to play with the Multi-Port, you should set each controller in the same way as listed above – Plug in and confirm each controller one by one.
CAUTIONS
IMPORTANT! Before using this product read all accompanying information and
your game system’s instruction manual for safety, health and other information.
- Use this unit only as intended
- To prevent fire or shock hazard, do not expose this unit to rain or moisture. Do
not use within 30’ of any water such as swimming pools, bathtubs, or sinks.
- To avoid electrical shock, do not disassemble. Refer servicing to qualified
personnel only.
- This unit should be operated only from the power source indicated on the unit. If
you are not sure of the type of electrical power supplied to your home, contact your local power company.
- Never push objects of any kind, other than authorized items, into the product as
they may touch dangerous voltage points or short out parts that could result in fire or electrical shock.
- Stop using this unit immediately if you begin to feel tired or if you experience
discomfort or pain in your hands and/or arms while operating the unit. If the condition persists, consult a doctor.
- Do not attempt to operate the unit in any way except with your hands. Do not
bring the unit in contact with your head, face, or near the bones of any other part of your body.
- The vibration function of this unit can aggravate injuries. Switch off or do not use
5 6
ENGLISH
the vibration function of the unit if you have any ailment of the bones or joints of your hands or arms.
- Avoid prolonged use of this unit. Take breaks every 30 minutes.
- Route all cords so that they are not likely to be walked on or tripped over. Make sure that cords are not placed in positions or areas where they may become pinched or damaged. Do not wrap this cord around any part of anyone’s body.
- Do not allow children to play with cords.
- Use this unit only as intended.
- This product contains small parts that may cause choking if swallowed. Not intended for use by children under 3 years of age.
- Do not overload wall outlets or extension cords beyond their capacity, since doing so can cause fire or electric shock.
Seizures
Some indivduals may have seizures or black outs triggred by the flashing lights on television or in video games, even if they have never before had a seizure. Anyone who has had a seizure, loss of awareness, or other symptom linked to an epileptic condition should consult a doctor before playing a video game. Parents should be aware when their children play video games and observe them regularly. Stop playing and consult a doctor if you or your child have any of the following symptoms: Convulsions Loss of awareness Involuntary movements Eye or muscle twitching Altered vision Disorientation
When playing video games:
1. Sit or stand as far from the screen as possible.
2. Play video games on the smallest available screen.
3. Do not play if you are tired or need rest.
