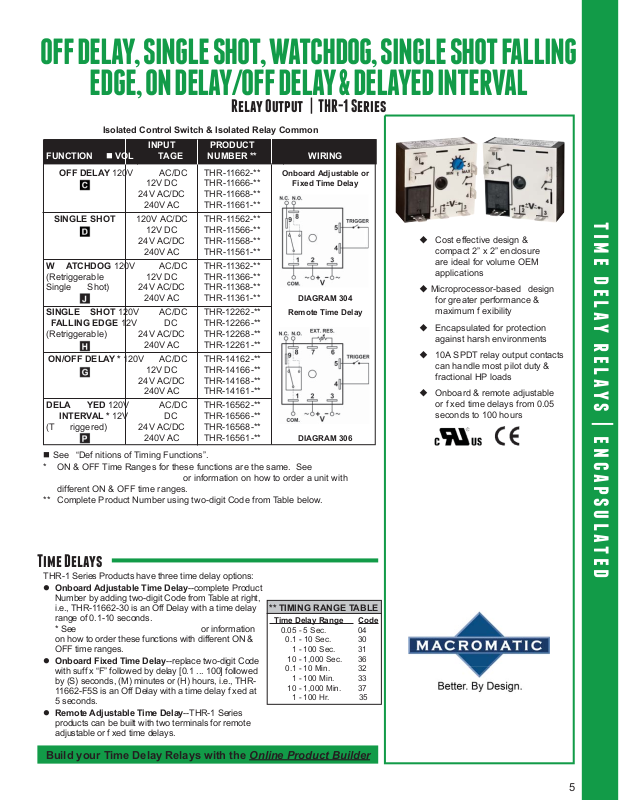

Macromatic THR-1 Series Catalog Page

OFF DELAY, SINGLE SHOT, WATCHDOG, SINGLE SHOT FALLING

EDGE, ON DELAY/OFF DELAY

& DELAYED INTERVAL

Relay Output | THR-1 Series

Isolated Control Switch & Isolated Relay Common

INPUT PRODUCT
FUNCTION  VOL TAGE NUMBER ** WIRING

OFF DELAY 120V AC/DC THR-11662-** Onboard Adjustable or
12V DC THR-11666-** Fixed Time Delay
24V AC/DC THR-11668-**
240V AC THR-11661-**

SINGLE SHOT 120V AC/DC THR-11562-**
12V DC THR-11566-**
24V AC/DC THR-11568-**
240V AC THR-11561-**

W ATCHDOG 120V AC/DC THR-11362-**
(Retriggerable 12V DC THR-11366-**
Single Shot) 24V AC/DC THR-11368-**
240V AC THR-11361-**

SINGLE SHOT 120V AC/DC THR-12262-** Remote Time Delay
FALLING EDGE 12V DC THR-12266-**
(Retriggerable) 24V AC/DC THR-12268-**
240V AC THR-12261-**

ON/OFF DELAY * 120V AC/DC THR-14162-**
12V DC THR-14166-**
24V AC/DC THR-14168-**
240V AC THR-14161-**

DELA YED 120V AC/DC THR-16562-**
INTERVAL * 12V DC THR-16566-**
(T riggered) 24V AC/DC THR-16568-**
240V AC THR-16561-**

 See “Def nitions of Timing Functions”.
* ON & OFF Time Ranges for these functions are the same. See

or information on how to order a unit with

different ON & OFF time ranges.

**

Complete Product Number using two-digit Code from Table below.

DIAGRAM 304

DIAGRAM 306

time delay relays | encapsulated

 Cost effective design &

compact 2” x 2” enclosure
are ideal for volume OEM
applications

 Microprocessor-based design

for greater performance &
maximum f exibility

 Encapsulated for protection

against harsh environments

 10A SPDT relay output contacts

can handle most pilot duty &
fractional HP loads

 Onboard & remote adjustable

or f xed time delays from 0.05
seconds to 100 hours

Time Delays

THR-1 Series Products have three time delay options:

Onboard Adjustable T

Number by adding two-digit Code from Table at right,
i.e., THR-11662-30 is an Off Delay with a time delay
range of 0.1-10 seconds.
* See or information
on how to order these functions with dif
OFF time ranges.

Onboard Fixed Time Delay--replace two-digit Code

with suff x “F” followed by delay [0.1 ... 100] followed
by (S) seconds, (M) minutes or (H) hours, i.e., THR­11662-F5S is an Off Delay with a time delay f xed at
5 seconds.

Remote Adjustable Time Delay--THR-1 Series

products can be built with two terminals for remote
adjustable or f xed time delays.

Build your Time Delay Relays with the Online Product Builder

ime Delay--complete Product

ferent ON &

** TIMING RANGE TABLE

Time Delay Range Code

0.05 - 5 Sec. 04

0.1 - 10 Sec. 30
1 - 100 Sec. 31
10 - 1,000 Sec. 36

0.1 - 10 Min. 32
1 - 100 Min. 33
10 - 1,000 Min. 37
1 - 100 Hr. 35

5
