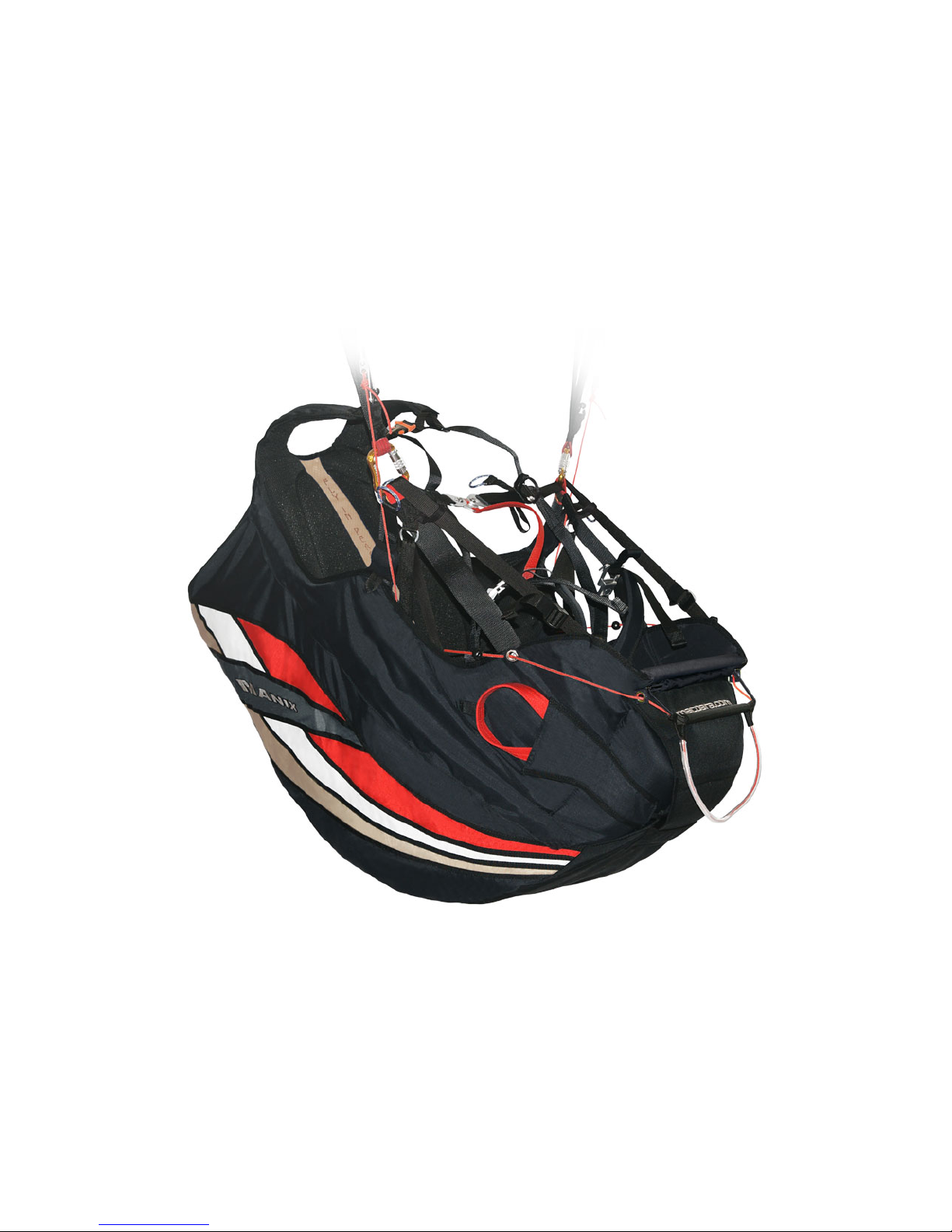

Introduction
We congratulate you on your purchase of a new Manix harness.
The Manix harness is built to comply with the high standards and demands for
paragliding harnesses. You have chosen a st ate of the art product which is one of most
comfortable lightweight paragliding harnesses available on the market today.
Please read this user manual carefully and use it as a guide to adjusting the harness
properly for your size and shape; and to obtaining the most comfortable flight position.
In addition to adjusting the harness please pay spec ial attention to the insertion of the
reserve parachute and its connection to the harness. In additio n to instructions you will
find a few important suggestions and tips on how to care for, clean and use your new
harness.
By purchasing our equipment, you accept respons ibility for being a certified paraglider
pilot and you accept all risks inherent with paragliding activities including injury and
death. Neither the manufacturer nor the seller of this product shall be held liable for
personal or third party injuries or damages under any circ umstances.
We thank you for placing your trust in us, and hope that c omfortably seat ed you will get
maximum enjoyment during many pleasant flights. We wish you maximum enjoyment
from your discovery of this fantastic aerial sport and of course happy landings.
MAC PARA TEAM
Technical description
The Manix is harness for light sport aircraft with an empty weight of less than 120 kg in
the category paraglider. The Manix harness was developed to satisfy th e demands for
a modern paragliding harness, and incorporates feed-back from the most demanding
pilots. MAC PARA's long experience of the design and development of harnesses
combined with the use of the best selected materials guarantees a combination of
longevity and comfort during use combined with perfect flying characteristics.
The Manix harness is suitable for all pilots, from begi nner to the experienced pilot who
prefers a slightly inclined sitting position. The Manix can be flown with all types of
paraglider unless the manufacturer of your particular model requires a s pecific harness
to be used with their glider.
The breathable back material provides comfortable sitting position. The harness is
equipped with a foam protector against the shock caused by impact. The rear pocket
provides large storage space. The harness has o ne lateral pocket on left side for small
objects. The Manix harness is supplie d inclu sive of rela x-ba r and speed bar s ystem with
Brummel-hooks, as usually delivered on MAC paragliders.
4
Features of the Manix
thick foam protector for increased safety
two step speed light speed bar with brumel hooks
comfort sitting position, leg support
large dorsal storage pocket and pocket on left side
light rest bar , kevlar plate option
The Manix is available in sizes S, M, L, XL and XXL.
Weight: 5.30 kg (Medium size complete with back protection, 4,80 kg with Kevlar plate).
Volume space for the rescue: 7.2 dm
3
Loop for main
carabineer
Speed
system
Shoulder Straps
Chest
Straps
Leg Straps
Whistle
Styrofoam
protection
Speed bar
Reserve parachute handle
5
Adjusting your Manix
The Manix harness offers you several adjustment choices, making it possible for the
pilot to find his ideal position according to his size and shape. T he harness is adjust able
using shoulder, back, chest and legs straps. The harness is correctly adjusted when
you feel comfortable without any pressure on shoulders or back.
Individual settings
Setting the angle between your back and the vertical axis.
Please devote sufficient time to setting the harness correctly. Preferably hang it on a
simulator or similar, and check it, spending long enough to simulate long periods of
flight. This gives you the opportunity, to easily try a number of different settings at one
time before undertaking your first flight.
Adjusting of lateral straps
Adjustments can be made to the lateral straps leading trough the flat buckles to your
back.
When correctly adjusted you feel only light pressure on both back a nd shoulder. If the
lateral straps are too loose you will feel pressure on your shoulders from the shoulder
straps. By pulling on them you change the posi tion. If you feel pressure on your back,
release the lateral straps by pulling the loop on the flat buckles within the tunnel of
Neoprene material.
Adjusting of lateral straps Adjusting of shoulder straps
Adjusting of shoulder straps
Adjustments can be made to the shoulder straps leading trough the flat buckles to your
shoulders.
When correctly adjusted you should feel only light press ure on both back and shoulder.
If the shoulder straps are too loose you will f eel pressure on your back from the lateral
straps. By pulling on them you can change the position. If you feel pressure on your
shoulders release the shoulder straps by pulling the loop on the flat buckles.
6
Adjusting of the chest strap
The chest strap is secured with a T-lock system buckle. This prevents any chance of the
pilot falling out of the harness if he forgets to fasten the legs straps. The clicks must be
audible! By adjusting the chest strap the pil ot determines the sensitivity of the harness
and the ABS system.
Adjustment of the distance between the main carabineers is made using the narrow
chest strap leading through an adjustable flat buckle. T he harness is most sensitive to
weight-shift when the chest strap is released. The shorter the distance between the
main carabineers the less sensitive the harness becomes to weight shift and the effect
of the ABS-system is increased. By pulling the black colored “release” loop the chest
strap can be slackened.
Additional chest strap with whistle
Additional chest strap with plastic buckle with whistle provides better position of pad ded
shoulder flaps and prevents their sliding by wide adjustments of the chest strap.
Whistle on plastic buckle can help in emergency cases.
Adjusting of the chest strap Additional chest strap with whistle
Adjusting of leg straps
The leg straps are secured with a djustable automatic Finsterwalder buckles. The click
must be audible!
Correctly adjusted, the leg straps control the freedom of movement of the legs, before
and during take off. If the leg straps are too tight your upright position in the harness is
limited and not comfortable. If they are too slack you can have trouble sitting in the
harness after take off.
Attention! Never forget to close the buckles on the leg straps!
7
Automatic buckle on leg straps Adjusting of bottom lateral straps
Adjusting of bottom lateral straps - angle of seat and back support
The Manix harness is equipped with lateral 25mm straps l eading from b ack part through
the D-rings placed under main carabineers to the rear of the seat plate. Using these
straps you can change angle of the seat plate and support your back to find your
preferred position. Adjustments are made with the narrower strap leading trough the
plastic buckles. The plastic buckles are hidden by side wall of the harness. When the
straps are tightened you will feel better stabilization and support to the hips. You can
release them by pulling down on the black plastic buckle. After preferred a djustment the
lose part of the strap can be hidden on the side.
Attention: These straps are used solely to chang e the angle of the seat pla te. They can
not replace the function of the main straps and for this reason there is a stop point on
the lateral straps. If you prefer a more prone position then we recommend the choice of
either the XCL or Hawaii harness.
Emergency parachute assembly
The Manix harness is compatible with most available emergency parachutes. The
envelope system outer container is integrated into the harness shape. The inner
container is big enough to hold a rescue can opy up to 45 m2 in size. The reserve bridle
is integrated into the harness, being attached to the shoul der straps and covered by a
tunnel on the right side of the harness. The rescue canopy must be inserted in the
original Manix inner container with attached handle an d pins. You must not use an inner
container from other manufacturers.
Attention: Rescue canopies from other manufacturers must be refolded following
original instructions into the supplied Manix inner container without their originally
provided container.
Possibilities of emergency parachute connections
1. The lines of the rescue c anopy are directly connected (slipped onto) the integrated
connection bridle.
2. A rescue canopy with a short bridle can be attached directly to the integrated
connection bridle. Alternatively connection can be made with a carabineer with a
minimum strength of 2000 kg. (See pictures below).

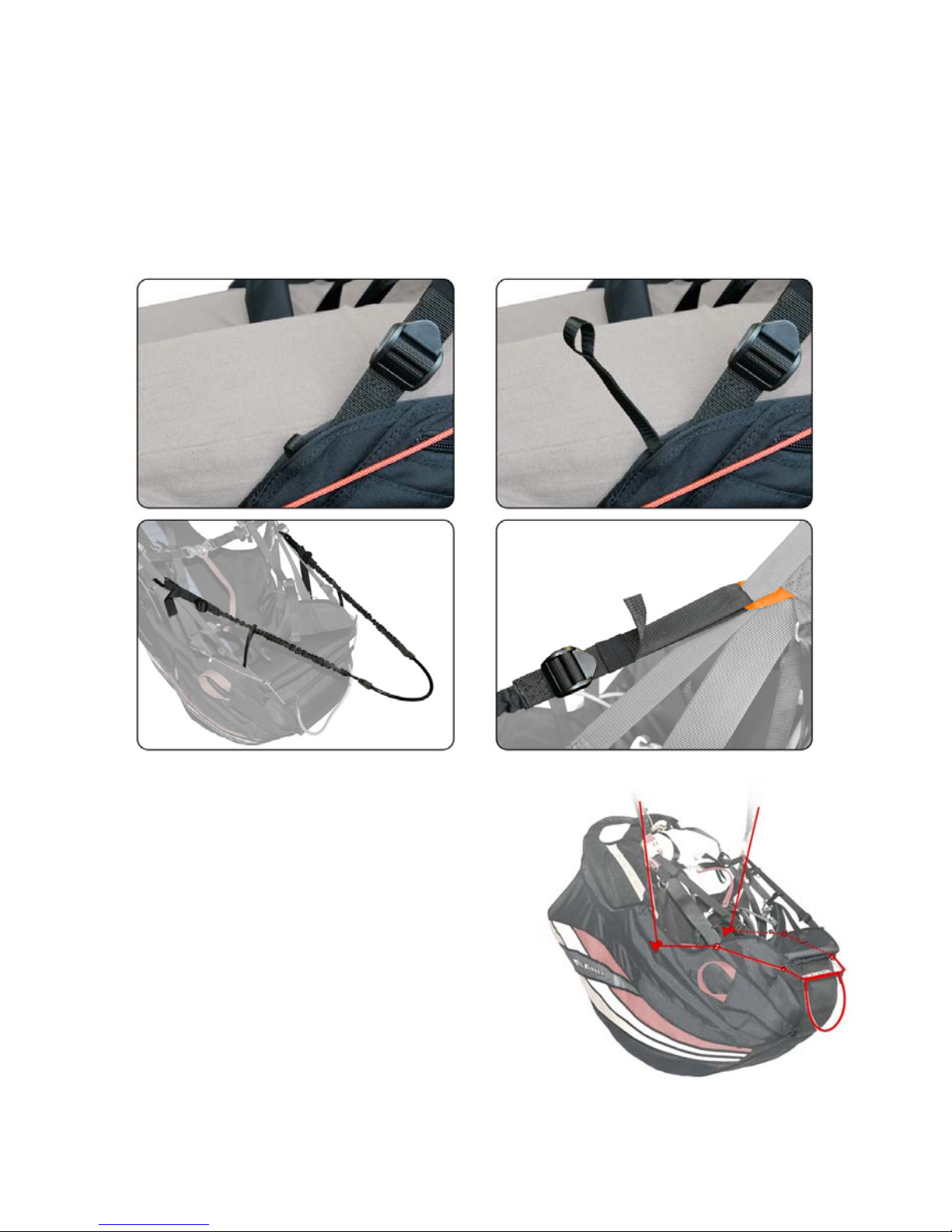

8
Attention! If you are unsure of the correct assembly of your rescue system ask
your dealer, or contact the MAC PARA importer in your country direct.
Assembly in outer container
1. Place the Manix inner container with rescue canopy onto the outer container as
shown in the pictures below. The rescue canopy brid le leads to the tunnel on the righthand side. The line loop of the rescue canopy is placed in the tunnel on the right side.
Attention! Other placements can lead to malfunction of the system!
2. You need 2 pieces of 50 cm spare line to place through the elastic loops on lateral
flaps. Thread this spare line through each elastic loo p. This will help close the pocket.
Then lace the spare lines step by step through the bottom and followed upper front flap.
Thread the elastic loops into the smallest of the eyelets on the pocket fla ps. Close the
flaps following the order shown in the photogra phs below. Push the metal pins on the
handle into the elastic loops. It is essential to remove the cords after th is oper ation. T he
cords should be pulled out slowly in order not to damage the elastic lo ops by excessive
friction. Finally, the handle should be positioned using the Velcro.
The Manix harness is ready for the reserve parachute contain er to be attached, using
the plastic buckles.
Correct assembly must be checked by a test release of the rescue system. If the system
is working then reassemble in the same way as described. When connecting the
reserve parachute to the harness, ensure that the parachute bridle passes outside the
harness' main attachment strap, relax bar and then leads to the rescue bridle.
Attention! Before each take-off check the locking pins securing the outer
container.
9
Assembly in outer container - step by step
10
Reserve parachute deployment
The position of the reserve parachute deployment handle is visible in flight. We
recommend practicing gripping the reserve parachute handle regularly, so that the
action of reaching for the handle becomes instinctive. In emergency situations, the
deployment procedure is as follows: L ook for the reserve parachute han dle and grasp it
firmly with one hand. Pull the handle out wards in order to extract the reserve parachute
from the ventral container. Look for a clear area, and, in a c ontinuous motion, throw the
reserve parachute away from yourself and the paraglider. After the reserve parachute
has opened, avoid any chance of entanglement by pulling in the paraglider, gripping one
of the brake lines, in order to collapse the glider. On landing, adopt an upright body
position, and ensure that you perform a parachute landing fall to minimize the risk of
injury.
11
Relax-bar
The Manix harness can be equipped with an adjustable relax-bar with rubber cords.
The relax-bar is used to keep the legs stretc hed out and the feet resting on a support.
Assembly: The relax-bar straps lead through narro w lateral straps plac ed o n the sides in
front of the harness and through strap loops placed just under main carabineers. The
right position of the relax bar is adjustable by plastic buckles.
When flying without relax bar the front lateral straps can be hidden into small pockets
closed to the straps. See pictures below.
Speed system
The Manix harness is equipped with a speed
system and includes Brummel hooks as supplied
on MAC paragliders. The speed bar lines feature
stoppers preventing free movement of the speed
bar unless required. The first step of the speed
bar should maintain its position to the front after
first use and be operated by foot without hand
help.
Storage/Pockets
The Manix contains a large back pocket and
smaller left side pocket. They are positioned to
prevent contents from falling out during flight if
the pocket is opened.
12
Flying with the Manix
Pre-flight checks
For maximum safety, use a complete and consistent system of pre-flight checks and
repeat the same mental sequence every flight.
Check that:
There is no visible damage to the harness or carabineers that could affect its
airworthiness. The rescue parachute container is closed correctly and the pins are
in the right position. The deployment handle is placed on its position.
All buckles, belts, zips are securely fastened. Buckles should click into place as you
close them, and a gentle pull on the fastened buckle v erifies this. Secure any zips
after fastening the buckles. Take extra care in snowy or sandy environments.
The paraglider is connected correctly to the harness and both carabineers are
secured by their locking mechanisms.
The speed bar is attached correctly to the glider.
All pockets are closed properly and any loose items are tie d down safely.
Check again that you have closed your leg and chest straps before you take off!
Attention! Pay special attention during winter in ice or snow. Always clear any
ice or snow before fastening the buckles.
Take off with the Manix
Check that the leg straps allow proper leg movement by take off. All strap’s adjustments
should allow upright standing position without any pressure on shoulders.
Rescue Deployment
It is vital to periodically feel the position of the rescue handle in normal flig ht, so that the
action of reaching for the rescue handle is instinctive in an emergenc y.
In the event of an emergency, the pilot must quickly evaluate his or her height and the
seriousness of the incident. Deploying the rescue when the glider is recoverable may
increase the danger of injury. If you have su fficient height and th e glider is in a flat spin,
it is preferable to first try to stop the spin (e.g. full stall), due to the risk of entanglement.
On the other hand, a second’s hesitation in deplo ying the reserve could prove costly if
there is insufficient height.
13
If the rescue is to be deployed, the procedure is as follows:
Look for the rescue handle and grasp it firmly with one hand
Pull sidewards / upwards on the handle to release the deployment bag from the
harness container
Look for a clear area, and in a continuous motion, throw (and RELEASE!) the
rescue away from yourself and the glider, preferably into the air stream and against
the direction of spin
After deployment, avoid entanglement and pendulum motions by pulling in the
glider as symmetrically as possible with the B, C, D or brake lines
On landing take an upright body position and be sure to do a PLF (Parachute
Landing Fall) to minimize the risk of injury
Landing with the Manix
Before landing, slide your legs forward in the harness so that you adopt the standing
position. NEVER land in the sitting position; it is very dangerous for yo ur back even if
you have back protection. Standing up before la nding is an active safet y system, and is
much more effective than the passive system of back protection.
Towing
The Manix harness is suitable for to wing. The release system must be connected to the
same main carabineers attached to the p araglider risers! To attach the release system
properly, insert the release bridle i n such a way that the release itself is in front of the
risers, in the direction of flight. For further details, refer to the documentation provided
with your tow release, or ask a qualified towing instructor at your flying site.
Tandem flying
The Manix harness is suitable for tandem flying as passenger harness. Thanks to a well
designed leg strap system it offers an outstanding freedom of leg movement.
This facilitates an easy run during take off. If the passenger is not an advanced pilot,
then remove the emergency parachute from the harness to avoid an involuntary
deployment.
Flying above water
It is inadvisable to use the Manix har ness on flights over water. In the e vent of the pilot
being forced to land on the water, the foam protector, which is fill ed with air, may force
the harness into a position that holds the pilot underwater. For SIV trainings remove the
foam protector from the harness. MAC PARA recommends the use of a suitable
lifejacket when flying over water.
Maintenance and repairs
We suggest you have your harness checked by an authorized person once every two
years. If you have your reserve repacked, ask for a harness check. T he main aluminium
carabineers can be used only under instructions and regulations of the carabineer
manufacturer. Impacts may create undetectable cracks that, because of continual cyclic
loads, could result in structural damage. Avoid dragging your harness on the ground
and rocks etc. Protect from unnecessary exposure to UV rays, avoid storing when
damp and avoid exposure to extreme temperatures.
14
The customer may not do any harness repairs or replacement of spare parts
him/herself. This can lead to limitation of functionality, or can even endang er your life.
For this reason any repair or corrections must be made directly by the manufacturer.
Looking after your harness
Looking after your harness correctly will prolong the life of your harness.
Deterioration: a few tips:
The Harness is mainly made of NYLON clot h and Polyester straps which, like any
synthetic material, deteriorates through excessive exposure to UV. Hence, it is
recommended that you reduce UV exposure to a minimum.
Keep the cloth and straps clean as dirt may penetrate into the fiber and damage the
cloth.
Be careful, not to allow snow, sand or stones to enter inside the harness. The sharp
edges can destroy the cloth and damage the buckles!
Never drag the harn ess over rough ground ! This will damage the cloth on the wear
points.
Clean the harness with fresh water after contact with salt water. Pay high attentio n
to clean the automatic buckles. Salt water crystal can reduce strengths, e ven after
rinsing in fresh water.
Clean the harness only with lukewarm water with a light soapy solution. Use of
chemical cleaners or thinners is expressly prohibited. Keep automatic buckles
clean. They may be lubricated once in a year with a silicon spray.
Storage:
Store the harness a dry space at ambient temperature away from chemicals and
UV light.
Never store the harn ess wet. This shortens the life of the cloth. Al ways dry harness
thoroughly before any packing or storage.
During transport it has to be considered, that some materials of the harness are
temperature sensitive. Avoid subjecting your harness to high temperatures
(e.g. the luggage space of a parked car in the sun)!
Disposal:
T he synthetic materials used in a paragliding harness need professio nal disposal.
Please send disused harness back to us: we will dismantle and dispose of it.
In Conclusion:
The Manix is a modern paragliding harness. You will enjoy many safe years of flying
with your Manix if you look after it correctly and adopt a mature and responsible
approach to the demands and dangers flying can pos e.
It must be clearly understood that all air spor ts are potentially dangerous and that you r
safety is ultimately dependent upon you. We strongly urge you to fly safely. This
includes your choice of flying conditions as well as safety margins during flying
maneuvers. Every pilot should be suitably qualified, have a vali d license and 3rd party
insurance.
The Manix is delivered with a speed bar, brummel hooks, rest bar and user manual.
15
Treating nature with respect
Finally the call to practice our sport with respect for nature and wildlife! Don't walk
outside marked routes, don't leave any waste, don't make needless noise and respect
the sensitive biological balance in the mountain eco system: especially in the takeoff
area!
Checks
Let check the harness by an authorized person once every two years.
Name Company Date Signature & Stamp
Technical description
Description: paragliding harness
Max. load: 120 kg
Distance between karabiner and
seat:
size S-44 cm, size M-45 cm,
size L-47 cm, size XL-47 cm
Distance between karabiner
(min/max):
size S-34/45 cm, size M-34/45 cm,
size L-34/46 cm, size XL- 34/52 cm
Size of Plate (width/length): size S-34/38 cm, size M-36/38 cm,
size L-36/40 cm, size XL- 38/42 cm
Recommended pilots height:
S - under 170 cm, M - 165/178 cm,
L - 175/190 cm, size XL- 185/195 cm
Weight (without rescue chute and
carabineers):
S - 4,90 kg, M - 5,30 kg,
L - 5,45 kg, XL - 5,75kg
Back protection: Styrofoam protection; 18 cm
Rescue system: Integrated container (envelope
system) under seat plate with a
lateral handle
Certification: Certified standards and procedures
LTF 91/09 - EN 1651:1999
Type testing:
MAC PARA TECHNOLOGY Ltd.
Televizni 2615
Roznov pod Radhostem
756 61 CZECH REPUBLIC
tel.: +420 571 11 55 66
fax: +420 571 11 55 65
web: www.macpara.com
Loading...
