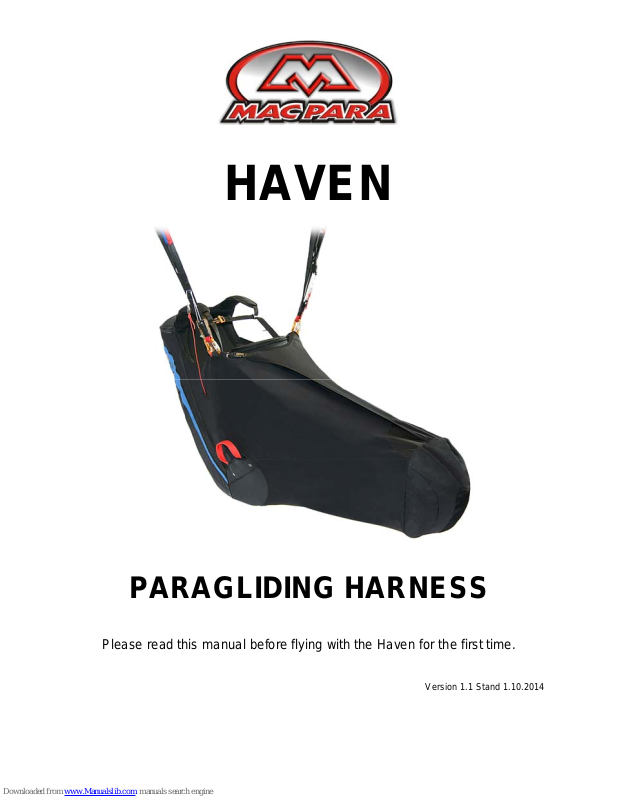

HAVEN
PARAGLIDING HARNESS
Please read this manual before flying with the Haven for the first time.
Version 1.1 Stand 1.10.2014
2
Contents
MAC PARA COMMUNITY ...................................................................................2
Thank You…........................................................................................................3
Safety Notice.......................................................................................................3
Introducing the Haven........................................................................................4
Features of the Haven:................................................................................................4
Optional Extras ...........................................................................................................7
Before you fly......................................................................................................8
Assembly ....................................................................................................................8
Adjustments ..............................................................................................................11
Flying with the Haven.......................................................................................14
Pre-flight checks .......................................................................................................14
Take off with Haven .................................................................................................14
Rescue Deployment..................................................................................................15
Storage/Pockets.........................................................................................................15
Landing with the Haven............................................................................................16
Miscellaneous ...................................................................................................16
Towing......................................................................................................................16
Tandem flying...........................................................................................................16
Flying over water......................................................................................................16
Behaviour in the nature and preservation of flying site............................................16
Care, Maintenance and Repairs ......................................................................17
Care and Maintenance...............................................................................................17
Repairs......................................................................................................................18
Environmentally friendly disposal of the harness ........................................18
Checks ...............................................................................................................19
Technical Data...................................................................................................20
Specification .............................................................................................................20
MAC PARA COMMUNITY
MAC PARA
Newsletter
Facebook
Twitter
YouTube
Vimeo
Pinterest
Download
www.macpara.com/community
3
Thank You…
Thank you for choosing the Haven harness. We are confident that this harness will
provide you with enhanced comfort, control, performance and fun in flight. This manual
contains all the information you need to set up, trim, fly and maintain your harness.
A thorough knowledge of your equipment will keep you safe and enable you to
maximize your full potential.
Please pass on this manual to the new owner if you do resell your harness.
Happy Flights and Safe Landings,
The MAC PARA Team
Safety Notice
By the purchase of our equipment, you ar e responsible for being a certified paraglider
pilot and you accept all risks inherent with paragliding activities including injury and
death. Improper use or misuse of MAC PARA equipment greatly increases these
risks. Neither MAC PARA ltd nor the seller of MAC PARA equipment shall be held
liable for personal or third party injuries or damages under any circumstances.
If any aspect of the use of our equipment remains unclear, please contact your local
MAC PARA reseller or importer in your country.
4
Introducing the Haven
The Haven meets the highest stand ards of the most demanding pilots and is used by
many high performance oriented pilots. Covered harnesses have a positive influenc e to
the glide ratio increase. The Haven is suitable from the experienced pilot to the cross
country or competition pilot.
The Haven can be flown with all types of paragliders un less the manufacturer of your
paraglider requires a specific harness to be used with his paraglider. Please refer to the
manual of your paraglider to find out if this mi ght be the cas e. T he Haven i s a sleek an d
easy harness, designed for maximum comfort and ease of use. T he elegant design
focuses on simplicity, eliminating the need for complicated adjustments.
The overall geometry of the harness enables the pilot to feel the fee dback from the
glider sensitively, whilst retaining a secure feeling in flight. This increases the
precision of turns while thermaling and aids active flying. On long flights, the comfort of
the Haven is second to none.
Features of the Haven:
light construction with excellent comfort
thick back protection
large dorsal storage pocket
carbon seat plate serial
3 step speed bar, lines and Brummel hooks
light Kevlar/Carbon rest plate
karabineers Lock Jaw
5
(&(
The Haven is available in sizes S, M, L and XL.
Weight: 5.45 kg (L size complete with HAVEN back protection, carabiners, 3 step s peed
system and cockpit).
Weight: 4.50 kg ( L size without back protection).
Weight of Haven back protection: 0,95 Kg
Volume space for the rescue: 10,0 dm
3
Leg and chest straps are integrate d into the “Get-Up system” to prevent the pilot from
falling out of the harness if he forgets to fasten the leg straps. The pilot has to fasten
the leg straps first in order to fasten the chest strap, so it helps the pilot not to forget
fastening the leg straps.
The safety has also been improved by optimising the position of the back protection;
the rear pocket has been moved upwards, offering protection for the pilot in case he
accidentally falls on his back.
The bottom rescue container is designed to enab le a fast and easy deployment of the
parachute. The bottom position is ideal because the weight of the rescue sta ys near
the centre of gravity and therefore provides you with the most balanced comfort and
feeling in flight.
The cocoon covers the legs with neopr ene in an aer odynamic sha pe to reduce the dr ag
during flight. You can adjust the angle of the cocoon to be optimized compar e to the
wing’s angle of attack with the 4 attached straps.
The speed system works through a large ba ll bearing pulley that helps to greatly reduce
friction when using the speedbar, it also reduces wear when used often and reduces
pilot fatigue during long flights.
6
(&(
Back protection
The Haven is equipped with an ne w back protector
with 23 cm thickness. The back protector is
divided into separate compartments, to prevent air
being dissipated too rapidly in the event of a hard
impact.
The foam protector is designed to protect the pilot
in case of an impact and to reduce the energy of
the impact as much as possible, but it cannot
completely eliminate the risk of injury.
Speed bar
The Haven is compatible with all
common types of speed systems.
The Haven is supplied with a 3 step
speed bar that allows more accurate
speed control for acceleration.
Cockpit
The light cockpit remains comfortable dur ing flight. The angle of view is automaticall y
adjusted and remains optimally positioned through all positi ons in flight.
7
(&(
Optional Extras
The following items are available as optional extras.
Rescue parachute
The Haven is designed for use with MAC PARA rescue Aegis parachutes. Other
manufacturers’ rescue chutes may also be used, but they must be folded in Haven`s
original deployment bag with lateral deployment handle. Every first installation of a
rescue system into the harness (that means every n ew combination of harness and
rescue system) must be checked by a qualifie d paragli ding professional. T his is called
a "compatibility check". In this compatibility check the pilot himself, who will be flying
with this harness, must always sit in the harness hanging on a simulator and deploy
the rescue from the harness container. T his check must also be done each time after
the rescue has been repacked and re-installed.
8
Before you fly
Other Accessories
For up-to-date information on additional accessories, visit www.macpara.com or contact
your local MAC PARA dealer or the distributor in your country.
The Haven must be assembled by a suitably qualified paragliding professional, for
example your instructor. In particular great care and attenti on must be paid to the fittin g
of the rescue parachute in the harness. The pilot should then adjust the harness for
comfort.
Assembly
Haven is delivered with the back protection and speedbar already installed from the
factory. But when it is necessary to assemble the harness by yourself, MAC PARA
recommend that assembly be carried out in the order below. If there is any doubt
whatsoever about this procedure, please seek profess ion al advice from your instr uctor,
MAC PARA dealer or importer.
Back Protection
When you receive the back protector it m ay be folded. Please l et it lay open for several
hours before you install it in the harness. To install it, open the zip per i nside of the l arge
dorsal pocket and slide the backprotector inside. It needs to slide into the space
underneath the seat plate and behind the back support. Do not put it underneath the
cross straps in the back of the harness. Insert upper part of the back pro tector into the
pocket placed on the back. Attach the Velcro tapes to each other. The protection should
be not compressed in normal use and should not hamper the space of the rescue or
move into an incorrect position.
Rescue Installation
The Haven is compatible with MAC PARA rescue parachutes. Other manufacturer’s
rescues may be used as well, but as already mentioned earlier in this manual:
Every first installation of a rescue system into the harness (that means every new
combination of harness and rescue system) must be checked by a qualifie d paraglidin g
professional. Prior to the installation, you should also ensure that you have the
necessary materials to complete the procedure, for example, suitable maillons and
thread.
Rescue parachutes should be repacked at least once every 6 months or as
recommended by the manufacturer of your reserve; s o installing your rescue in a ne w
harness may also provide a goo d opportunity for a repack. Check your rescue manua l
for further details.
9
(&(
To attach the rescue bridle to the harness webbing
A Maillon Rapide type connector or dynema s oft shackl e are recommended.
The connector should be rated at least 15 times the maximum weight, for example,
a 7mm Stainless Steel square Maillon – 3125 Kg - provides a suitable c onnection. The
Maillon should be held in place with rubber bands, tape or p lastic heat shrink tube.
Webbing to webbing connection
Webbing to webbing connecti on is light and easy. The webbing knot must be kept tight
using tape. If loose these connections have potential danger of friction and melting of
the webbing during a deployment, which would significantly weaken or even cut the
connection. Tight both straps and secure them with rubber band or tape.
Attachment of rescue deployment bag and harness deployment handle
The rescue container of the Haven comes with its own deploym ent handle. This handle
is firmly and permanently connected to the deployment bag of the parachute. Other
manufacturers’ rescue chutes may also be used, but they must be folded in Haven`s
original deployment bag with lateral deployment handle.
In any case a qualified professional must check the compatibility of the system;
harness and rescue parachute, when a rescue par achute is installed for the first time.
After every repack of the rescue parachute you can do this compatibil ity check yourself.
Please observe carefully how the professional installs the rescue system, so that you
can remember the procedure when you have to do it yourself the next time.
This compatibility check - that means to test if the rescue can be released from the
rescue container in the harness - must be done by the pilot himself, sitting in the
harness hanging on a simulator. It must be done after every repack of the rescue
parachute to be sure that the rescue can be released without problems in case of an
emergency
10
(&(
11
(&(
Speed system
The speed system should be connected from the seat end upwards. Pass the speed bar
line from the foot end, through the metal ring, under the side straps, throug h the big
pulley and up through the slot in the c over, adjust the l ength and tie the li ne to the hook.
Be careful that the lines run freely and are not tangled.
Adjustments
The Haven should be adjust ed to suit your physique and flying style. It is important to
adjust it correctly to ensure you can easily slide into the sitting position after take off.
Adjustments should ideally be tested by hanging on a simulator prior to the first flight.
Additional fine-tuning can be done during your first few flights.
Ensure that the rescue system, back and side protection have been ins talled before
making adjustments.
Height of main attachment points above seat plate varies from 41 up to 46 cm
depending on the size of the harness.
Shoulder straps
The optimum setting for the shoulder straps dep ends on the height of the pilot. Stand
upright with the chest/leg straps closed and symmetrically adjust the shoulder straps
until they are just tight. To loosen the shoulder straps, pull the narrow webbing loo p
that protrudes downwards from the buckle cover on the shoulder strap. The shoulder
straps don't slip down thanks to an auxiliary strap with a plastic clip. A well-designed
back pocket system enables easy assembly of the harness and packing in a rucksack.
Lateral straps
The lateral straps adjust the angle bet ween the thighs and t he back. T his angle can
be set between 110° and 130°. Lengtheni ng the straps increases the angle and viceversa. The easiest way to adjust them correctly is during a flight in calm air. Remember
that flying in the “supine position”, that means leaning back, reduces the st ability of the
harness and increases the risk of twisting after an asymmetric deflation.
Seat adjustment straps
The seat adjustment straps allow you to adjust the depth of the seat. You can control
the angle of the seat in the seating position with these straps. To get the optimum
setting you can loosen these straps to the maximum in the sitting position and start
pulling the straps until you get the comfort from the back support depending on the
flying style of the pilot.
12
(&(
Side straps to control angle of seat
The seat adjustment straps allow you to adjust the angle of the front seat. You can
control the angle of the seat in the seating position with the straps beside the seat. To
get the optimum setting you can loosen these straps to the maximum in the sitting
position and start pulling the straps until you get the comfort from the leg support
depending on the flying style of the pilot. Don’t tighten this strap too much; otherwise
you take the load from the main straps. In thi s case the stra p can sl ip out or bre ak out of
the material during flight.
Leg straps
The correct adjustment of the leg straps allows the pilot to easily reach the sitting
position after take-off without using his hands. In the standing position, use the buckles
under the chest strap to adjust the leg straps so that they fit comfortably witho ut being
tight; make sure you do it symmetrically. If it is necessary to lengthen the leg straps, first
check that the shoulder straps are not too tight. It is not normally necessary to make
large adjustments from the default leg strap setting.
Side straps to foot support
These straps help you to adjust the angle of the foot support and give support for your
legs on long flights. They also help you to feel more fee dback from the gli der by feeli ng
the gliders movements. To adjust these straps you first must adjust the length of the
bottom part under seat attached with two straps. You may need some assistance to
save time to get the correct adjustment. For best results the 2 straps at each side of the
harness should be pulled at the same time, pull the upper straps to raise the angle of
the legs and pull the lo wer straps to lower the angle of th e legs depending o n the flying
position of the pilot.
13
(&(
Chest strap
The adjustment of the chest strap controls the distance between the carabiners and
affects the handling and stability of the glider. Widening the distance between the
carabiners increases feedback from the wing and allows for easier weight shifting.
Closing the strap gives you a more stab le feelin g in turbule nce but increases the r isk of
stable spiral and also the risk of twisting!
We advise pilots of MAC PARA paragliders to fly with a distance between the
carabiners of approximately 44 to 57 cm depending on the size of the Haven.
The chest strap may also be adjusted in flight according to the conditions; for example,
it may be tightened in turbulent air and flown at a looser s etting in more stable or weak
conditions.
Speed bar
Hanging on the simulator, adjust the length of the speed b ar cord so that the bar hangs
at least 15cm below the front of the harness. Making the cord too short could result in
the speed system being constantly and unintentiona lly engaged during flight. It is safer
to start with the speed bar a little long and shorten it following your first flights. Test the
speed bar in flight only after you are comfortabl e with your new harness, and al ways do
so in calm conditions with ample clearance above the ground.
14
Flying with the Haven
Pre-flight checks
For maximum safety, use a complete and consistent system of pre-flight checks and
repeat the same mental sequence every flight.
Check that:
There is no visible damage to the harness or carabiners that could affect its
airworthiness. The rescue parachute container is clos ed correctly and the pins are
in the right position. The deployment ha ndle is completely inserted into the elastic
pockets.
All buckles, belts, zips are securely fastened. Buckles should click into place as you
close them, and a gentle pull on the fastene d buckle verifies this. Secure any z ips
after fastening the buckles. Take extra care in snowy or sandy environments.
The paraglider is connected correctly to the harness and both carabiners are
secured by their locking mechanisms.
The speed bar is attached correctly to the glider.
All pockets are closed properly and any loose items are tie d down safely.
Check again that you have closed your leg and chest straps before you take off!
Take off with Haven
Check that the cocoon straps are loose enough so that you can put your le gs inside the
cocoon without any problem after take off. Having legs inside, strech your legs and the
cocoon closes automaticaly.
15
(&(
Rescue Deployment
It is vital to periodically feel the position of th e rescu e hand le in normal flig ht, so that the
action of reaching for the rescue handle is instinctive in an emergenc y.
In the event of an emergency, the pilot must quickly evaluate his or her height and the
seriousness of the incident. Deploying the rescue when the glider is recoverable may
increase the danger of injury. If you have sufficient height a nd the gli der is in a flat spin,
it is preferable to first try to stop the spin (e.g. full stall), due to the risk of entanglement.
On the other hand, a second’s hesitatio n in deploying the reserve could prove costly if
there is insufficient height.
If the rescue is to be deployed, the procedure is as follows:
Look for the rescue handle and grasp it firmly with one hand
Pull sidewards / upwards on the handle to release the deployment bag from the
harness container
Look for a clear area, and in a continuous motion, throw (and RELEASE!) the
rescue away from yourself and the glider, preferably into the air stream and against
the direction of spin
After deployment, avoid entanglement and pendulum motions by pulling in the
glider as symmetrically as possible with the B, C, D or brake lines
On landing take an upright body position and be sure to do a PLF (Parachute
Landing Fall) to minimize the risk of injury
Storage/Pockets
The Haven contains a large back pocket and smaller pocket in the cockpit.
16
(&(
Landing with the Haven
Before landing, get your legs out of cocone and slide your legs forward in the harness
so that you adopt the standing position. NEVER land in the sitting position; it is very
dangerous for your back even if you have back protection. Standing up before landin g
is an active safety system, and is much more effective than the passive s ystem of back
protection.
Miscellaneous
Towing
The Haven is ideal for towing. T he tow release system is placed in main karabineers or
at the lower end of risers. Read the instructions in the user manu al for your tow release
and the tow adapter or ask for help your flight instructor who has experience with
paraglider towing.
Tandem flying
The Haven is not recommended for tandem flying.
Flying over water
The Haven is not recommended for the extreme manoeuvres. But in any case all
other flights over water, the back protection should be removed, due to the increased
possibility of drowning after a water landing.
Behaviour in the nature and preservation of flying site
Please observe the local rules at the respective flying site which you use. This is
important not to endanger the preservation of flying sites which are necessary to
maintain the possibility to execute our beautiful sport.
17
Care, Maintenance and Repairs
The materials used in the Haven have been carefully selected for maximum durabilit y.
Nevertheless, keeping your harness clean and airworthy will ensure a long period of
continuous safe operation.
Care and Maintenance
Avoid dragging your harness over rough or rocky ground.
Unnecessary exposure to UV rays, heat and humidit y should be always avoided. Keep
the harness in your rucksack when not in use.
Store all your paragliding equipment in a cool, dry place, and never put it away while
damp or wet.
Keep your harness as clean as possible by regularly cleaning off dirt with a plastic
bristled brush and/or a damp cloth. If the harness gets exceptionall y dirty, wash it with
water and a mild soap. Make sure you first remove all the sub-component s: seat board,
back plate, back protection, rescue parachute etc. Allow the harness to dry natural ly in a
well ventilated area away from direct sunlight.
If your rescue parachute ever gets wet (e.g. in a water landing) you must remove it from
the harness, dry it and repack it before putting it back in the container.
After a hard landing you must check your back protection for damage. A tear in the
back protection could significantly reduce the efficiency of the protection it provides.
The zips and buckles may be occas ionally lubricated with silicone spray, no more than
once a year.
Inspection checklist
In addition to regular pre-flight checks, the Haven should be inspected thoroughly on
every rescue repack, normally every 150 days. Additional inspections should be
performed after any crash, bad landing or take off, or if there are any signs of damage
or undue wear. Every 2 ye ars or 200 hours y our harness has to b e inspected from your
dealer or a professional repair shop. Always seek professional advice whenever in
doubt.
The following checks should be carried out:
Check all webbing, straps and buckles for wear and damage, especially the areas
that are not easily seen, such as the inside of the carabiner hook-in points.
All sewing must be intact and any anomalies attended to immediately to avoid
exacerbation of the problem. Special attention should be paid to the rescue
installation, particularly the elastic and Velcro parts.
The seat and back plates must be free from cracks.
The main cara biners must be replaced if they have suffered any dam age no matter
how slight. Impacts may create undetectable cracks that could result in structural
failure under continuous load.
18
(&(
Repairs
The manufacturer or an approved specialist should carry out any repair that involves
critical parts of the harness. This will ensure that the correct materials and repair
techniques are used.
Environmentally friendly disposal of the harness
When this paragliding harness cannot be u sed any longer after an extended period of
life time, then you must ensure that it will be disposed in an environmentally friendly
way. Please observe the existing regulations and laws in your country.
19
Checks
Haven harness must be checked at least every 24 months.
Name Company Date Signature & Stamp
20
tel: +420 571 11 55 66
tel./fax: +420 571 11 55 65
web: www.macpara.com
Technical Data
Specification
Description: paragliding harness
Max. load: 120 kg
Distance between karabiner and
seat:
size S-41 cm, size M-43 cm,
size L-44 cm, size XL-46 cm
Distance between karabiner
(min/max):
size S-44/55 cm, size M-45/56 cm,
size L-46/57 cm, size XL- 46/57 cm
Size of Plate (width/length): size S-31/37 cm, size M-32/38 cm,
size L-34/40 cm, size XL- 35,5/43 cm
Recommended pilots height:
S - under 165 cm, M - 165/178 cm,
L - 175/190 cm, size XL- 185/195 cm
Weight (without rescue chute and
carabineers):
S - 4,90 kg, M - 5,30 kg,
L - 5,45 kg, XL - 5,75kg
Back protection:
Styrofoam protection; 23 cm
Rescue system:
Integrated container (tunnel system)
under the seat plate with a lateral handle.
Every effort has been made to ensure that the information in this manual is correct, but
please remember that it has been produced for guidance only.
This owner's manual is subject to changes without prior notice.
Please check with www.macpara.com
for the latest information regarding the Haven
and other MAC PARA products.
MAC PARA TECHNOLOGY Ltd.
Televizní 2615
Roznov pod Radhostem
756 61 CZECH REPUBLIC
Loading...
