Operator’s Manual

MM102708V1

Rev. F, Aug/06

P5100 Series

Portable Radios

MM102708V1, Rev. F

MANUAL REVISION HISTORY

REV DATE REASON FOR CHANGE

A Jun/04 Initial release B Dec/04 Added RU101219V171 and V173 coverage and corrected LED, updated CE marking information, updated radio

C May/05 Add marine channels, change lapel mic earphone assembly, update CE Mark. D Jun/05 Update VHF maritime information for Industry Canada regulatory approval. E Oct/05 Added P25 Trunked operation, updated options and accessories, added battery conditioning. F Aug/06 Updated battery conditioning section and safety symbol conventions, and added WEEE statement and symbol.

M/A-COM Technical Publications would particularly appreciate feedback on any errors found in this document and suggestions on how the document could be improved. Submit your comments and suggestions to: Wireless Systems Business Unit M/A-COM, Inc. fax your comments to: 1-434-455-6851 Technical Publications or 221 Jefferson Ridge Parkway e-mail us at: techpubs@tycoelectronics.com Lynchburg, VA 24501

The software contained in this device is copyrighted by M/A-COM, Inc. Unpublished rights are reserved under the copyright laws of the United States.

This device is made under license under one or more of the following U.S. Patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795.

EDACS is a registered trademark and ProScan, ProSound, and Failsoft are trademarks of M/A-COM, Inc. RBRC and 1-800-8-BATTERY are registered trademarks of Rechargeable Battery Recycling Corporation. Cadex is a registered trademark of Buchmann Enterprises, Inc. iTech and iQ

five

are trademarks, registered trademarks, or service marks of Intelligent Technologies LLC LTD.

All other product and brand names are trademarks, registered trademarks, or service marks of their respective holders.

This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life.

display and moved safety conventions to section one.

ACKNOWLEDGEMENTS

CREDITS

NOTICE!

This manual covers M/A-COM products manufactured and sold by M/A-COM, Inc.

The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form.

Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations, or substitution of recommended parts made by the user to this equipment not approved by the manufacturer could void the user’s authority to operate the equipment in addition to the manufacturer’s warranty.

This manual is published by M/A-COM, Inc. without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A-COM, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of M/A-COM, Inc.

MM102708V1, Rev. F

NOTICE!

This device is a RF transceiver intended for land mobile radio applications. The device may have use restrictions, which require that the national authority be contacted for any system licensing requirements, frequency use, allowable power level, etc.

MM102708V1, Rev. F

TABLE OF CONTENTS

1 SAFETY TRAININ G INFORMATION...............................................................................................8

1.1 RF EXPOSURE GUIDELINES...................................................................................................8

1.2 ELECTROMAGNETIC INTERFERENCE/ COMPATIBILITY................................................9

2 SAFETY SYMBOL CONVENTIONS................................................................................................10

3 OPERATIN G TIPS ..............................................................................................................................11

3.1 EFFICIENT RADIO OPERATION...........................................................................................11

3.1.1 Antenna Care and Replacement.....................................................................................11

3.1.2 Electronic Devices.........................................................................................................12

3.1.3 Aircraft...........................................................................................................................12

3.1.4 Electric Blasting Caps....................................................................................................12

3.1.5 Potentially Explosive Atmospheres...............................................................................12

4 MARITIME CHANNELS ...................................................................................................................13

5 BATTERIES .........................................................................................................................................14

5.1 CONDITIONING NIMH BATTERY PACKS ..........................................................................14

5.2 CONDITIONING NICD BATTERY PACKS...........................................................................14

5.3 ADDITIONAL INFORMATION...............................................................................................14

5.4 CHANGING THE BATTERY PACK .......................................................................................14

5.4.1 Removing the Battery Pack ...........................................................................................14

5.4.2 Attaching the Battery Pack............................................................................................15

5.5 BATTERY DISPOSAL..............................................................................................................15

Page

6 INTRODUCTION ................................................................................................................................17

6.1 WATER RESISTANCE.............................................................................................................17

7 OPTIONS AND AC CESSORIES........................................................................................................18

8 USER INTERFACE .............................................................................................................................20

8.1 CONTROLS ...............................................................................................................................21

8.1.1 Buttons and Knobs.........................................................................................................21

8.1.2 Scan Model Keypad.......................................................................................................22

8.2 DISPLAY ...................................................................................................................................23

8.2.1 Radio Status Icons .........................................................................................................24

8.2.2 LED ...............................................................................................................................25

8.2.3 Status Messages............................................................................................................. 26

8.2.4 Error Messages ..............................................................................................................27

8.3 ALERT TONES..........................................................................................................................27

8.4 UNIVERSAL DEVICE CONNECTOR (UDC).........................................................................27

9 BASIC OPERATION...........................................................................................................................28

9.1 TURNING ON THE RADIO .....................................................................................................28

9.2 SYSTEM SELECTION..............................................................................................................28

9.2.1 Scan Model....................................................................................................................28

9.2.2 Select Model..................................................................................................................28

9.3 GROUP SELECTION................................................................................................................29

9.3.1 Scan Model....................................................................................................................29

9.3.2 Select Model..................................................................................................................29

9.4 CHANNEL SELECTION...........................................................................................................29

9.4.1 Scan Model....................................................................................................................29

MM102708V1, Rev. F

9.4.2 Select Model..................................................................................................................29

9.5 MODIFY SCAN LIST (SCAN MODEL ONLY)......................................................................29

9.6 BACKLIGHT ON/OFF (SCAN MODEL ONLY).....................................................................30

9.7 CONTRAST ADJUST (SCAN MODEL ONLY)...................................................................... 30

9.8 DECLARING AN EMERGENCY............................................................................................. 30

9.9 LOCKING/UNLOCKING KEYPAD (SCAN MODEL ONLY)...............................................30

9.10 HIGH/LOW POWER ADJUSTMENT......................................................................................31

9.10.1 Using the Menu Button (Scan Model Only)..................................................................31

9.10.2 Using the Pre-Programmed Option Button....................................................................31

9.11 MENU (SCAN MODEL ONLY)...............................................................................................31

9.11.1 Menu Item Selection ...................................................................................................... 32

9.12 DIGITAL VOICE OPERATION ...............................................................................................35

9.12.1 Clear Mode ....................................................................................................................35

9.12.2 Digital Mode..................................................................................................................35

10 CONVENTIONAL OPERATION......................................................................................................37

10.1 RECEIVING A CALL ...............................................................................................................37

10.2 SENDING A CALL ...................................................................................................................37

11 TRUNKE D OPERATI O N ...................................................................................................................38

11.1 SCANNING TRUNKED GROUPS........................................................................................... 38

11.1.1 Turning Scan On and Off ..............................................................................................38

11.1.2 Adding Groups to a Scan List........................................................................................38

11.1.3 Deleting Groups from a Scan List .................................................................................39

11.2 SCANNING TRUNKED SYSTEMS......................................................................................... 39

11.2.1 Wide Area System Scanning ......................................................................................... 40

11.2.2 Priority System Scan......................................................................................................40

11.2.3 ProScan..........................................................................................................................40

11.2.4 Menu Selection (Scan Model Only) ..............................................................................40

11.2.5 Pre-Programmed Keypad Key (Scan Model Only).......................................................41

11.3 EMERGENCY OPERATION....................................................................................................41

11.3.1 Receiving an Emergency Call .......................................................................................41

11.3.2 Declaring an Emergency Call........................................................................................ 41

11.4 INDIVIDUAL CALLS (SCAN MODEL ONLY) .....................................................................41

11.4.1 Receiving and Responding To an Individual Call (Trunked Mode Only).....................41

11.4.2 Sending an Individual Call (Trunked Mode Only)........................................................42

11.5 TELEPHONE INTERCONNECT CALLS................................................................................43

11.5.1 Receiving a Telephone Interconnect Call......................................................................43

11.5.2 Sending a Telephone Interconnect Call (Scan Model Only).........................................43

11.6 STATUS/MESSAGE OPERATION (SCAN MODEL ONLY) ................................................44

11.6.1 Status Operation.............................................................................................................44

11.6.2 Message Operation ........................................................................................................ 44

11.6.3 Dynamic Regroup Operation......................................................................................... 44

11.6.4 Emergency Operation....................................................................................................44

11.6.5 Macro Key Operation ....................................................................................................44

11.7 PORTABLE DATA....................................................................................................................45

11.7.1 Displays .........................................................................................................................45

11.7.2 DATA OFF Operation...................................................................................................46

11.7.3 DATA ON Operation ....................................................................................................46

11.7.4 Exiting Data Calls.......................................................................................................... 46

11.7.5 Scan Lockout Mode.......................................................................................................47

MM102708V1, Rev. F

11.7.6 Data Lockout Mode.......................................................................................................47

11.8 PAGE (P25 TRUNKING ONLY)..............................................................................................47

12 PROJECT 25 (P25) CONVENTIONAL OPERATION....................................................................48

12.1 GROUP CALLS IN P25 MODE................................................................................................48

12.1.1 Transmitting a Group Call............................................................................................. 48

12.1.2 Receiving a Group Call .................................................................................................48

12.2 INDIVIDUAL CALLS IN P25 MODE......................................................................................48

12.2.1 Transmitting an Individual Call.....................................................................................48

12.2.2 Receiving an Individual Call .........................................................................................49

12.3 EMERGENCY GROUP CALLS IN P25 MODE ......................................................................49

12.3.1 Declaring an Emergency Group Call............................................................................. 49

12.3.2 Receiving an Emergency Group Call ............................................................................50

13 OPERATION FOLLOWING WATER CONTACT.........................................................................51

13.1 RADIO MICROPHONE ............................................................................................................51

13.2 RADIO SPEAKER.....................................................................................................................51

14 BATTERY WAR RANT Y ....................................................................................................................52

15 WARRANTY ........................................................................................................................................53

TABLES

Table 1-1: RF Exposure Compliance Testing Distances .................................................................................9

Table 7-1: Options and Accessories...............................................................................................................18

Table 8-1: Scan Model Radio Key Functions................................................................................................23

Table 8-2: Display Icons................................................................................................................................24

Table 8-3: LED Color and Status...................................................................................................................25

Table 8-4: Alert Tones...................................................................................................................................27

Table 9-1: Menu Item Information ................................................................................................................33

Table 9-2: Transmit/Receive Mode Compatibility for Digital Voice Operation..........................................36

FIGURES

Figure 5-1: Removing the Battery Pack.........................................................................................................15

Figure 5-2: Attaching the Battery Pack..........................................................................................................15

Figure 8-1: Top View.....................................................................................................................................20

Figure 8-2: Side View....................................................................................................................................20

Figure 8-3: Scan Model Front Panel Controls ...............................................................................................21

Figure 8-4: Scan Model Radio Keypad..........................................................................................................22

Figure 8-5: Radio Display.............................................................................................................................. 23

Figure 8-6: Battery Charge Icons (Full Cycle) ..............................................................................................24

Figure 8-7: LED.............................................................................................................................................25

Figure 9-1: Menu Display..............................................................................................................................31

Figure 9-2: Backlight Menu Display..............................................................................................................32

MM102708V1, Rev. F

Figure 9-3: Information Display....................................................................................................................35

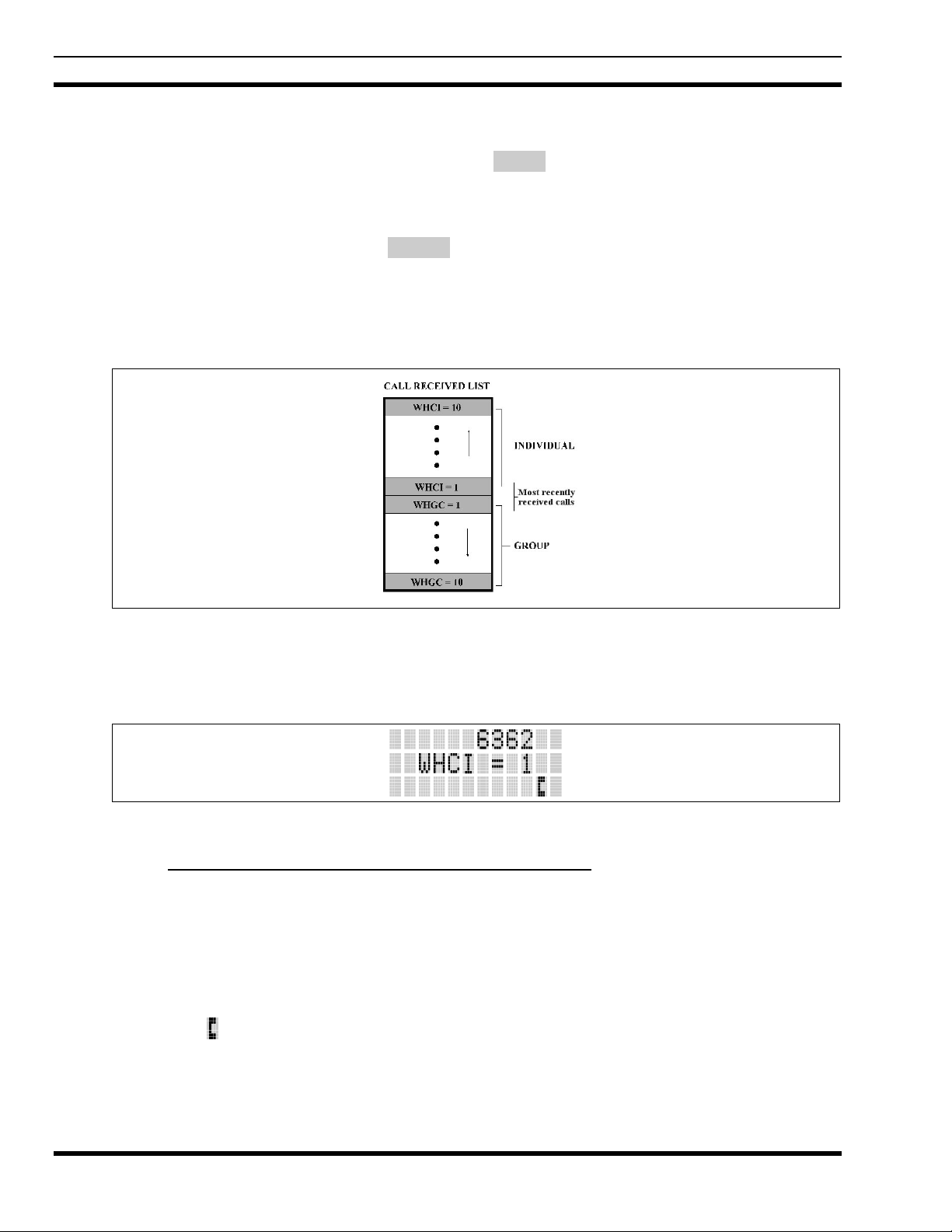

Figure 11-1: Calls Received Lists..................................................................................................................42

Figure 11-2: WHC Individual Call Display...................................................................................................42

Figure 13-1: Radio Microphone.....................................................................................................................51

MM102708V1, Rev. F

1 SAFETY TRAINING INFORMATION

The M/A-COM P5100 portable radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only,” meaning it must be used only during the course of employment by individuals aware of the hazards and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment.

The P5100 portable radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only.” In addition, this M/A-COM radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans:

• FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for

Human Exposure to Radio Frequency Electromagnetic Fields.

• American National Standards Institute (C95.1 – 1992), IEEE Standard for Safety Levels with Respect

to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.

• American National Standards Institute (C95.3 – 1992), IEEE Recommended Practice for the

Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave.

1.1 RF EXPOSURE GUIDELINES

To ensure that exposure to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines:

CAUTION

• DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may

also cause the FCC RF exposure limits to be exceeded. A proper antenna is the antenna supplied with this radio by M/A-COM or an antenna specifically authorized by M/A-COM for use with this radio. (Refer to

• DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more

than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX” indicator appears in the display. The radio will transmit by pressing the “PTT” (Push-To-Talk) button.

• ALWAYS transmit using low power when possible (refer to Section

battery charge, low power can reduce RF exposure.

• ALWAYS use M/A-COM authorized accessories (antennas, batteries, belt clips, speaker/mics, etc).

Use of unauthorized accessories may cause the FCC Occupational/Controlled Exposure RF compliance requirements to be exceeded. (Refer to

• ALWAYS keep the device and its antenna at least 2 cm (0.8 inches) from the body and at least 5 cm

(2 inches) from the face when transmitting to ensure FCC RF exposure compliance requirements are not exceeded. This radio has been tested for RF exposure compliance at the distances listed in 1-1

. However, to provide the best sound quality to the recipients of your transmission, hold the

antenna at least 5 cm (2 inches) from mouth, and slightly off to one side.

Table 7-1: Options and Accessories.)

9.10). In addition to conserving

Table 7-1: Options and Accessories.)

Table

Table 1-1: RF Exposure Compliance Testing Distances

MM102708V1, Rev. F

RADIO FREQUENCY

800 MHz 1.1 cm 2.5 cm VHF (136-174 MHz) 1.1 cm 2.5 cm UHF-H (450-512 MHz) 1.1 cm 2.5 cm UHF-L (378-430 MHz) 1.1 cm 2.5 cm

TESTED DISTANCES

(worst case scenario)

Body Face

The information in this section provides the information needed to make the user aware of an RF exposure, and what to do to assure that this radio operates within the FCC RF exposure limits of this radio.

1.2 ELECTROMAGNETIC INTERFERENCE/ COMPATIBILITY

During transmissions, this M/A-COM radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites.

MM102708V1, Rev. F

2 SAFETY SYMBOL CONVENTIONS

The following conventions are used to alert the user to general safety precautions that must be observed during all phases of operation, service, and repair of this product. Failure to comply with these precautions or with specific warnings elsewhere violates safety standards of design, manufacture, and intended use of the product. M/A-COM, Inc. assumes no liability for the customer's failure to comply with these standards.

The WARNING symbol calls attention to a procedure, practice, or the like, which, if not correctly performed or adhered to, could result in personal injury. Do not proceed beyond a WARNING symbol until the conditions identified are fully understood or met.

The CAUTION symbol calls attention to an operating procedure, practice, or the like, which, if not performed correctly or adhered to, could result in a risk of

CAUTION

danger, damage to the equipment, or severely degrade the equipment performance.

The NOTE symbol calls attention to supplemental information, which may improve system performance or clarify a process or procedure.

The ESD symbol calls attention to procedures, practices, or the like, which could expose equipment to the effects of Electro-Static Discharge. Proper precautions must be taken to prevent ESD when handling circuit modules.

WARNING - The electrical hazard symbol indicates there is an electrical hazard present.

3 OPERATING TIPS

Antenna location and condition are important when operating a portable radio. Operating the radio in low lying areas or terrain, under power lines or bridges, inside of a vehicle or in a metal framed building can severely reduce the range of the unit. Mountains can also reduce the range of the unit.

In areas where transmission or reception is poor, some improvement may be obtained by ensuring that the antenna is vertical. Moving a few yards in another direction or moving to a higher elevation may also improve communications. Vehicular operation can be aided with the use of an externally mounted antenna.

Battery condition is another important factor in the trouble free operation of a portable radio. Always properly charge the batteries.

3.1 EFFICIENT RADIO OPERATION

Hold the portable radio approximately three inches from your mouth and speak into the microphone at a normal voice level.

Keep the antenna in a vertical position when receiving or transmitting a message. Do not hold the antenna when the radio is powered on.

MM102708V1, Rev. F

Do NOT hold onto the antenna when the radio is powered on!

3.1.1 Antenna Care and Replacement

Always keep the antenna at least 0.4 inches (1.1 cm) away from the body and 1 inch (2.5 cm) from the face when transmitting to ensure FCC RF exposure compliance requirements are not exceeded.

Do not use the portable radio with a damaged or missing antenna. A minor burn may result if a damaged antenna comes into contact with the skin. Replace a damaged antenna immediately. Operating a portable radio with the antenna missing could cause personal injury, damage the radio, and may violate FCC regulations.

Use only the supplied or approved antenna. Unauthorized antennas, modifications or attachments could cause damage to the radio unit and may violate FCC regulations. (Refer to Table 7-1: Options and Accessories.)

MM102708V1, Rev. F

3.1.2 Electronic Devices

RF energy from portable radios may affect some electronic equipment. Most modern electronic equipment in cars, hospitals, homes, etc. are shielded from RF energy. However, in areas in which you are instructed to turn off two-way radio equipment,

CAUTION

always observe the rules. If in doubt, turn it off!

3.1.3 Aircraft

Always turn off a portable radio before boarding any aircraft!

• Use it on the ground only with crew permission.

• DO NOT use while in-flight!!

3.1.4 Electric Blasting Caps

To prevent accidental detonation of electric blasting caps, DO NOT use two-way radios within 1000 feet of blasting operations. Always obey the "Turn Off TwoWay Radios" signs posted where electric blasting caps are being used. (OSHA Standard: 1926.900)

3.1.5 Potentially Explosive Atmospheres

Areas with potentially explosive atmosphere are often, but not always, clearly marked. These may be fuelling areas, such as gas stations, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.

Turn OFF two-way radios when in any area with a potentially explosive atmosphere. It is rare, but not impossible, that a radio or its accessories could generate sparks.

4 MARITIME CHANNELS

As part of FCC Equipment Authorization Part 80 licensing, a maritime frequency usage plan has been included in this manual for reference.

The antenna connector (between antenna and radio) is a nominal 50Ω impedance.

MM102708V1, Rev. F

5 BATTERIES

The P7100 series portable radios use rechargeable, recyclable Nickel Cadmium (NiCd) or Nickel Metal Hydride (NiMH) batteries. Please follow the directions below to maximize the useful life of each type of battery.

If the battery is ruptured or is leaking electrolyte that results in skin or eye contact with the electrolyte, immediately flush the affected area with water. If the battery electrolyte gets in the eyes, flush with water for 1 5 minutes an d consult a physician immediately.

5.1 CONDITIONING NIMH BATTERY PACKS

Condition a new NiMH battery before putting it into use. This also applies to rechargeable NiMH batteries that have been stored for long periods (weeks, months, or longer). Conditioning requires fully charging and fully discharging the battery three (3) times using a “battery analyzer/conditioner/charger.” M/A-COM recommends either the Cadex iTECH

five®

battery conditioners, purchased directly from M/A-COM. These units condition a battery

pack by automatically charging and discharging (cycling) the battery.

C7400 or the Intelligent Technologies Co. BC3506QP-5

Failure to properly condition NiMH battery packs before initial use will result in shortened performance by the battery.

CAUTION

5.2 CONDITIONING NICD BATTERY PACKS

A new NiCD battery does not require conditioning before use. Periodically condition NiCD batteries to avoid the memory effect. If a NiCD battery is repeatedly charged and not fully discharged, the result is lower voltage and lower capacity. Fortunately, both voltage and capacity are restored through battery conditioning.

Always use M/A-COM authorized chargers and conditioners. Use of unauthorized chargers and conditioners may void the warranty.

CAUTION

5.3 ADDITIONAL INFORMATION

For more information regarding the proper care of portable radio batteries or establishing a battery maintenance program, refer to ECR-7367 which may be ordered by calling toll free 1-800-368-3277, then select option 7.

5.4 CHANGING THE BATTERY PACK

5.4.1 Removing the Battery Pack

1. Make sure the power to the radio is turned OFF.

2. Press the latch at the bottom of the battery pack.

3. Lift the battery pack from the bottom.

4. Remove the battery pack from the radio.

Figure 5-1: Removing the Battery Pack

5.4.2 Attaching the Battery Pack

Make sure the power to the radio is turned OFF.

MM102708V1, Rev. F

1. Align the tab on the top of the battery pack with the slot at the top of the battery cavity.

2. Push the battery pack down to attach the battery to the radio.

3. Verify that the battery pack is properly latched to the radio.

Figure 5-2: Attaching the Battery Pack

5.5 BATTERY DISPOSAL

In no instance should a battery be incinerated. Disposing of a battery by burning will cause an explosion.

CAUTION

MM102708V1, Rev. F

RECHARGEABLE BATTERY PACK DISPOSAL – The product you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal. Canadian and U.S. users may call Toll Free 1-800-8-BATTERY® for information and/or procedures for returning rechargeable batteries in your locality.

6 INTRODUCTION

This manual describes how to use the P5100 series portable radio. The P5100 series portable radio is available without a front mounted keypad (P5130 – Select model) and with a 6-button front mounted keypad (P5150 – Scan model radio). The P5100 series radios are synthesized, microprocessor-based, high performance portable FM radios providing reliable two-way communications in the Enhanced Digital Access Communications Systems (EDACS communications systems.

In P25 Trunked and EDACS modes, the user selects a communications system and group. In these modes, channel selection is transparent to the user and is controlled via digital communication with the system controller. This provides advanced programmable features and fast access to communication channels.

In conventional mode, the user selects a channel and communicates directly on that channel. In this mode, a system refers to a set of channels. A channel is a transmit/receive radio frequency pair.

The exact operation of the radio will depend on the operating mode, the radio’s programming, and the particular radio system. Most features described in this manual can be enabled through programming. Consult the particular features programmed into the P5100.

For further detail about features and operation refer to the appropriate maintenance manual or contact the system administrator.

MM102708V1, Rev. F

) and P25 Trunked environments as well as conventional

6.1 WATER RESISTANCE

The P5100 series portable radios operate reliably even under adverse conditions. These radios meet MILSTD-810F specifications for driven rain, humidity, and salt fog.

MM102708V1, Rev. F

7 OPTIONS AND ACCESSORIES

Table 7-1 lists the Options and Accessories tested for use with the P5100 series portable radios. Items for use with a specific band split are noted.

Refer to the maintenance manual or to M/A-COM’s Products and Services Catalog for a complete list of options and accessories, which includes those items that do not adversely affect the RF energy exposure.

Always use M/A-COM authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of unauthorized accessories may cause the FCC Occupational/Controlled Exposure RF compliance requirements to be exceeded. (Refer to Table 7-1: Options and Accessories.)

Always use the correct options and accessories (battery, antenna, speaker/mic, etc.) for the radio. (Refer to Table 7-1: Options and Accessories.)

CAUTION

Table 7-1: Options and Accessories

DESCRIPTION PART NUMBER

Antennas

Antenna, Helical Coil (136-151 MHz) KRE 101 1219/1 Antenna, Helical Coil (150-162 MHz) KRE 101 1219/2 Antenna, Helical Coil (162-174 MHz) KRE 101 1219/3 Antenna, Helical Coil (150-174 MHz) KRE 101 1219/21 Antenna, Helical Coil (378-403 MHz) KRE 101 1219/9 Antenna, Helical Coil (403-430 MHz) KRE 101 1219/10 Antenna, Quarter Wave (378-430 MHz) KRE 101 1223/10 Antenna, Helical Coil (450-470 MHz) KRE 101 1219/12 Antenna, Helical Coil (470-512 MHz) KRE 101 1219/13 Antenna, Quarter Wave (450-512 MHz) KRE 101 1223/12 High Gain Antenna (800 MHz) KRE 101 1506/1 Whip Antenna, Quarter Wave (800 MHz) KRE 101 1506/2 Whip Antenna, Quarter Wave (800 MHz) KRE 101 1223/01

Batteries (Immersion-Rated)

7.5V NiCd Battery-Intrinsically Safe <IS> BKB 191 210/35

7.5V NiMH Battery-Intrinsically Safe <IS> BKB 191 210/36

Batteries (Wind Driven Rain)

7.5V NiCd Battery BKB 191 210/43

7.5V NiMH Battery BKB 191 210/44

Miscellaneous Accessories

Speaker Mic <IS> KRY 101 1617/183

MM102708V1, Rev. F

DESCRIPTION PART NUMBER

Miscellaneous Accessories (Continued)

Speaker Mic Antenna Version Plus <IS> KRY 101 1617/184 Speaker Mic, Charger Compatible <IS> KRY 101 1617/185 Speaker Mic, Ant. Version, Charger Comp. <IS> KRY 101 1617/186 Speaker Mic, Immersible <IS> KRY 101 1617/283 Speaker Mic, Ant. Version, Immersible <IS> KRY 101 1617/284 Speaker Mic, Ant. Version, Immersible, Charger

Comp. <IS> Speaker Mic, Ruggedized <IS> KRY 101 1617/383 Speaker Mic, Antenna Version, Ruggedized KRY 101 1617/384 Speaker Mic, Ruggedized, Vehicular Charger

Comp., <IS> Speaker Mic, Ant. Version, Ruggedized, Charger

Comp <IS> Metal Belt Clip KRY 101 1647/1 Belt Loop with Swivel KRY 101 1609/1 Swivel Mount Clip (part of KRY 101 1639 and 1648) KRY 101 1608/2 Leather Case with Swivel & Belt Loop KRY 101 1639/4 Nylon Case (Black) with Swivel KRY 101 1648/1 Nylon Case (Orange) with Swivel KRY 101 1649/1 Nylon T-Strap KRY 101 1656/1 Earpiece Kit for Speaker Mic <IS> LS103239V1 Speaker Mic, Industrial OT-V2-10121 Speaker Mic, Industrial PLUS OT-V2-10122 Ultra-Lite Headset with Inline PTT OT-V4-10314 Liteweight Headset with Single Speaker OT-V4-10315 Over-the-Head Headset OT-V4-10316 Behind-the-Head Headset OT-V4-10317 Earphone Kit, Black OT-V1-10520 Earphone Kit, Beige OT-V1-10521 Palm Microphone, 2-wire, Black OT-V1-10522 Palm Microphone, 2-wire, Beige OT-V1-10523 3-Wire Mini-Lapel (Beige) OT-V1-10524 3-Wire Mini-Lapel (Black) OT-V1-10525 The carrying accessories and antennas listed above can be used with

Intrinsically Safe radios.

KRY 101 1617/287

KRY 101 1617/385

KRY 101 1617/387

MM102708V1, Rev. F

8 USER INTERFACE

LED

Figure 8-1: Top View

Figure 8-2: Side View

MM102708V1, Rev. F

8.1 CONTROLS

The P5100 portable radios feature two rotary control knobs and an emergency button mounted on the top of the radio. The Push-To-Talk (PTT), option, and monitor buttons are mounted on the side. In addition, the P5150 Scan model portable radio has a front mounted keypad with six buttons (see

8.1.1 Buttons and Knobs

This section describes the primary function of the radio’s buttons and knobs. Other functions associated with these controls are detailed in later sections.

POWER ON-OFF VOLUME KNOB

Figure 8-3: Scan Model Front Panel Controls

Figure 8-3).

The Power ON/OFF-Volume knob is used to apply power to the radio and adjust the receiver’s volume. Rotating the control clockwise from the OFF position applies power to the radio. A single alert tone (if enabled through programming) indicates the radio is operational.

Continuing to rotate the knob clockwise increases the volume level. Minimum volume levels may be programmed into the radio to prevent missed calls due to a low volume setting. While adjusting the volume, the display will momentarily indicate the volume level (i.e. VOL=31). The volume range is from a minimum programmed level of zero (displayed as VOL=OFF) up to 31, which is the loudest level.

MM102708V1, Rev. F

SYSTEM/GROUP/ CHANNELKNOB

EMERGENCY/ HOME BUTTON

PTT BUTTON

CLEAR/MONITOR BUTTON

The System/Group/Channel knob is used to select systems or group/channels (depending on programming). This is a 16-position rotary knob.

Note: A mechanical stop, which can limit the positions accessed, is shipped with the radio but must be installed. To install the mechanical stop, remove the channel knob, loosen the set screw on the channel knob metal base (using a 1.27mm hex wrench), and remove the channel knob metal base. Replace the 16 channel ring with the channel stop ring located at the desired channel. Reinstall the channel knob metal base, tighten the set screw, and reinstall the channel knob.

The Emergency/Home button automatically selects the pre-programmed “Home” Group/System by pressing and holding for a programmed duration. It can also be used to declare an emergency by pressing and holding for a programmed duration. The button must be pre-programmed for one of these operations, but not both.

The PTT button must be pressed before voice transmission begins. In trunked mode, the radio’s ID is transmitted upon depression of the PTT button. (Refer to

Figure 8-2).

In trunked mode: Pressing the Clear/Monitor button exits the current operation (clearing all displays associated with it) and returns the radio to the selected talk group. This button is also used to terminate individual and telephone interconnect calls.

In conventional mode: Pressing the Clear/Monitor button will unsquelch the receiver and allow channel monitoring prior to transmission. Also momentarily removes the Channel Guard decoding from the channel.

OPTION BUTTON

The Option button activates one of a number of programmable software options selected during PC programming. Programmable options include high/low power settings, keypad lock, LCD contrast, and keypad back lighting.

8.1.2 Scan Model Keypad

The keys on the P5150 Scan model radio keypad (Figure 8-4) have special functions and are labeled with symbols or word abbreviations representing its primary function. Each key is described in

Table 8-1.

Figure 8-4: Scan Model Radio Keypad

Table 8-1: Scan Model Radio Key Functions

KEY FUNCTION

Primary Function: Allows the user to select system, groups, or channels, depending on pe rso nality programming. The buttons act as STEP UP or STEP DOWN. Pressing one of these buttons displays the next or previous stored system, group, or channel.

Secondary Function: Changes the selection for an item within a list.

Primary Function: Accesses the pre-stored menu. Menus include high/low power setting, keypad lock, LCD contrast, and keypad backlighting.

Secondary Function: Activates a selected item within a list. After a menu list is accessed, scroll through the list

using the items with the

Adds/Deletes selected groups or channels from the Scan list of the currently selected system.

 or  keys and then activate specific

 key. This is similar to an “Enter” key.

MM102708V1, Rev. F

8.2 DISPLAY

The radio display (Figure 8-5) is made up of three lines. Lines 1 and 2 contain eight alphanumeric character blocks and are used primarily to display system and group names. Line 1 also displays radio status messages. Line 3 is used primarily to display radio status icons. All three lines are used to display menu options when in the menu mode. If programmed, the display backlighting will illuminate upon power up or when radio controls are operated.

Turns the Scan operation ON and OFF.

Activates one of a number of programmable soft wa re options.

Figure 8-5: Radio Display

MM102708V1, Rev. F

8.2.1 Radio Status Icons

Status Icons indicate the various operating characteristics of the radio. The icons show operating modes and conditions and appear on the third line of the display (see

Table 8-2).

Table 8-2: Display Icons

Steady – “Busy” transmitting or receiving Flashing – call queued

Steady – special call mode (individual or telephone)

Steady – during all radio transmissions Steady – transmit at low power

If icon is not visible – transmit at high power Steady – battery charge indicator (refer to Figure 8-6)

Flashing – low battery indicator (refer to Figure 8-6)

Steady – indicates the current channel is set up as an analog channel.

Steady – trunked system in Failsoft™ mode

Steady – group or channel in scan list

Steady – priority 2 group or channel

Steady – priority 1 group or channel Steady (rotates clockwise) – scan mode enabled

If icon is not visible – scan is disabled Steady – ProVoice digital call Steady – Channel Guard enabled

If icon is not visible – Channel Guard is disabled Steady – indicates the current channel is set up as a Project 25 (P25)

channel.

Figure 8-6: Battery Charge Icons (Full Cycle)

The battery charge icons (Figure 8-6) indicate approximate level only, based on battery voltage.

MM102708V1, Rev. F

Figure 8-7: LED

8.2.2 LED

The LED (Figure 8-7) changes color to indicate radio status and is visible from both the front and top of the radio. The two colors of the LED and the status they represent are listed in

Table 8-3.

Table 8-3: LED Color and Status

COLOR STATUS

Green Receiving Red Transmitting

MM102708V1, Rev. F

8.2.3 Status Messages

During radio operation, various radio Status Messages can be displayed. The messages are described below.

MESSAGE NAME DESCRIPTION

QUEUED Call Queued Trunked mode only. Indicates the system has placed

SYS BUSY System Busy

DENIED Call Denied Trunked mode only. Indicates the radio or talkgroup

CC SCAN Control

WA SCAN Wide Area

TALKARND Talkaround

SYSC ON System Scan

SYSC OFF System Scan

LOW BATT Low Battery Battery voltage has dropped to the point to where the

RXEMER Receive

TXEMER Transmit

VOL=31 Volume Level Indicates the current volume level. The volume level

WHC Who Has

UNKNOWN Unknown ID Trunked and P25 modes only. Indicates an

Channel Scan

Scan

Features On

Features Off

Emergency

Called

the call in a request queue. Trunked mode only. Indicates the system is busy, no

channels are currently available, the queue is full, or an individual call is being attempted to a radio that is currently transmitting.

is not authorized to operate on the selected system and/or talkgroup.

Trunked mode only. Indicates the control channel is lost and the radio has entered the Control Channel Scan mode to search for the control channel (usually out of range indication).

Trunked mode only. Indicates the radio has entered the Wide Area Scan mode to search for a new system (if enabled through programming).

Conventional mode only. Indicates the radio is operating on conventional channels in talkaround mode (no repeater).

Trunked mode only. Indicates the System Scan features are enabled.

Trunked mode only. Indicates the System Scan features are disabled.

radio is no longer able to transmit. The radio will still be able to receive calls until the battery is discharged beyond the point of operation upon which the radio will automatically shutdown.

Trunked and P25 modes only. Indicates an emergency call is being received. This message will be flashing on line two.

Trunked and P25 modes only. Indicates an emergency call has been transmitted on this radio. This message will be flashing on line two.

display ranges from OFF (silent) to 31 (loudest). Trunked and P25 modes only. Indicates an

individual call has been received, but not responded to. The indicator turns OFF if the individual call mode is entered, the system is changed, or the radio is turned off and then on again.

individual call is being received from an unknown ID.

8.2.4 Error Messages

If either of the Error Messages shown below is displayed, the radio is programmed incorrectly or needs servicing.

DSP ERR ERR=XXXX

(Power Up only)

Where: xxxx is the error code and DSP ERR or DIG V ERR is the message.

8.3 ALERT TONES

The P5100 radio provides audible Alert Tones or “beeps” to indicate the various operating conditions (see Table 8-4).

NAME TONE DESCRIPTION

Call Originate

Call Queued

Autokey (T) one mid-pitched System

Busy Call Denied (T) one low-pitched

Carrier Control Timer

Low Battery

TX Low Battery Alert

Page (P) three high-pitched

DIG V x ERR x

Table 8-4: Alert Tones

(A) one short mid-

pitched

(T) one high-pitched

(T) three low-pitched

(A) five high-pitched /

one long low-pitched

(A) one low-pitched/

one short midpitched

(A) one low-pitched

MM102708V1, Rev. F

OK to talk after pressing the push-to-talk button

Call queued for processing

Queued call received channel assignment System busy or unable to complete call

Radio is not authorized on the system or group

PTT depressed for maximum length of time

Low battery

After PTT - battery too low to transmit

If receiving radio accepts page, both radios emit tone

(T) = trunked mode only (P25T and EDACS) (A) = All modes (P) = P25T only

8.4 UNIVERSAL DEVICE CONNECTOR (UDC)

The Universal Device Connector (UDC) provides connections for external accessories such as a headset or a speaker-microphone. The UDC is located on the right side of the radio (opposite the PTT Button). When the radio is locked in a vehicular charger, the UDC provides the audio and control connections between the radio and the vehicular charger. The UDC facilitates programming and testing the radio. The UDC pins perform different functions depending on the accessory attached to the UDC.

MM102708V1, Rev. F

9 BASIC OPERATION

This section covers those functions and features common to all P5100 radio models. Subsequent sections will cover functions and features common to specific operating modes (conventional, trunked, and P25).

9.1 TURNING ON THE RADIO

1. Power ON the radio by rotating the POWER ON-OFF/VOLUME knob clockwise. A short alert

signal (if enabled through programming) indicates the radio is ready to use. Refer to location of the POWER ON-OFF/VOLUME KNOB.

2. The display shows the last selected system and group or, if programmed, a default system and group.

3. Adjust the POWER ON-OFF/VOLUME knob to the desired volume level.

4. Select the desired system and group. The display indicates the current system and group names.

5. The radio is now ready to transmit and receive calls.

In the trunked environment, CC SCAN will be displayed if communication with the system's control channel cannot be established. This may occur if, for example, the radio is out of range of the trunking site. It may be necessary to move to another location or select another trunking system to re-establish the control channel link for trunked mode operations. CC SCAN is displayed on the group line until a control channel is accessed.

Figure 8-1 for

9.2 SYSTEM SELECTION

The control used to select systems is programmable. System selection may be assigned to the System/Group/Channel knob on the top of the radio, to the up

only), or to the Option 1 button on the side of the radio. The following subsections offer steps for the various possible control configurations.

9.2.1 Scan Model

1. Rotate System/Group/Channel knob to desired system number position (1-16). The Option 1 button

can be programmed to provide access to a “2

2. Press the

one.

9.2.2 Select Model

1. Rotate System/Group/Channel knob to desired system number position (1-16). The Option 1 button

can be programmed to provide access to a “2

2. If programmed, press the Option 1 button to scroll through and change systems. The display registers

the new system name on line one.

 and  buttons to change systems. The display registers the new system name on line

 and down  buttons (Scan model

bank” of 16 system number positions (17-32).

9.3 GROUP SELECTION

The control used to select groups is also programmable. Group selection may be assigned to the

MM102708V1, Rev. F

System/Group/Channel knob on the top of the radio, to the the Option 1 button on the side of the radio. The following subsections offer steps for the various possible control configurations.

9.3.1 Scan Model

1. Rotate System/Group/Channel knob to the desired group number position. The Option 1 button can

be programmed to provide access to a “2

2. If this knob is not programmed for groups, press the  and  buttons to change groups. The

display registers the new group name on line two.

9.3.2 Select Model

1. Rotate System/Group/Channel knob to the desired group number position. The Option 1 button can

be programmed to provide access to a “2

2. If programmed for groups, press the Option 1 button to change groups. The display registers the new

group name on line two.

9.4 CHANNEL SELECTION

 and  buttons (Scan model only), or to

bank” of 16 group number positions (17-32).

In conventional mode, channels are selected instead of groups. The control used to select channels is still programmable but is the same control assigned the task of changing groups. Channel selection may be

assigned to the System/Group/Channel knob on the top of the radio, to the model only), or to the Option 1 button on the side of the radio. The following subsections offer steps for the various possible control configurations.

9.4.1 Scan Model

1. Rotate System/Group/Channel knob, or

2. If this knob is not programmed for channels, press the

 and  buttons to change channels.

9.4.2 Select Model

1. Rotate System/Group/Channel knob, or

2. If programmed for channels, press the Option 1 button to change the channel. The display registers

the new channel.

9.5 MODIFY SCAN LIST (SCAN MODEL ONLY)

1. Press  to toggle scan OFF and verify is not displayed.

2. Select group or channel.

 and  buttons (Scan

3. Press

 once to remove group or channel from the list.

MM102708V1, Rev. F

4. Press  once to add as a normal group or channel.

 twice to add as a Priority 2 group.

Press Press

 three times to add as a Priority 1 group.

5. Press

 to re-start scanning.

9.6 BACKLIGHT ON/OFF (SCAN MODEL ONLY)

1. Press  to access the menu.

2. Press

3. Press

4. Press

5. Press

 or  to scroll through menu until “BCKLGHT” appears.  to select Backlight menu.

 or  to toggle backlight ON and OFF.

 to select new backlight setting.

9.7 CONTRAST ADJUST (SCAN MODEL ONLY)

1. Press  to access the menu.

2. Press

3. Press

4. Press

 or  to scroll through menu until “CONTRAST” appears.

 to select Contrast menu.

 or  to adjust contrast setting from 1 - 4.

5. Press

 to select new contrast setting.

9.8 DECLARING AN EMERGENCY

1. Press and hold the red Emergency/Home button (the length of time is programmable; check with the

system administrator).

2. *TXEMER* will flash in the display, plus and will be displayed. After 2-3 seconds the transmit

icon

3. *TXEMER* and will remain until the emergency is cleared.

4. Press the PTT and will reappear.

5. Release PTT when the transmission is complete.

will turn off.

9.9 LOCKING/UNLOCKING KEYPAD (SCAN MODEL ONLY)

1. Press  button.

2. Within 1 second, press the Option button on the side of the radio.

9.10 HIGH/LOW POWER ADJUSTMENT

Transmit power adjustment is possible if enabled through programming. Within conventional systems, transmit power is adjustable on a per channel basis. Within P25 Trunked and EDACS systems, transmit power is adjustable on a per system basis.

There are two ways to toggle between high and low power:

9.10.1 Using the Menu Button (Scan Model Only)

1. Press .

MM102708V1, Rev. F

2. Using the

display.

3. Press

4. “POWER = HIGH” or “POWER = LOW” will appear momentarily on the top line of the display.

9.10.2 Using the Pre-Programmed Option Button

Press the Option button. “POWER = HIGH” or “POWER = LOW” will appear momentarily on the top line of the display.

 and  keys, scroll until the cursor (>) appears to the left of “TX POWER” in the

 again to toggle between High and Low power.

9.11 MENU (SCAN MODEL ONLY)

The Menu function accesses features that are not available directly from the keypad. The order and actual menu items available is configurable through programming. Upon radio power up, the menu item that is at the top of the menu list will always be displayed first. Subsequent access to the menu function will return the last menu item that was shown in the display and cursor position.

1. To enter the menu mode, press

2. Upon entering the menu selection mode, Menu options will appear in the display (

.

Figure 9-1).

Figure 9-1: Menu Display

3. The radio will continue to receive and transmit normally while in the menu function.

4. To scroll through the menu options use the

found align the cursor with the option then press shown in the display can now be changed by using values. Once the desired setting is reached press selection level. For menu items that display radio information, pressing

a list of informational displays. The possible menu items are in

 or  keys. When the required menu item has been

 to select it. The menu item's parameter setting

 or  to scroll through the list of parameter

 to store the value and return the menu option

 or  will scroll through

Table 9-1.

MM102708V1, Rev. F

9.11.1 Menu Item Selection

An example of the menu item selection process and menu item parameter change is detailed below for the backlight menu item.

1. PRESS The menu mode is entered.

2. PRESS  or  until the display shows:

3. PRESS . The backlight menu item is activated. Line one shows the active menu item and its current parameter

setting. Line two shows the currently selected system or group name (

4. The menu item's parameter setting shown in the display can now be changed by using

5. Once the desired setting is reached press

level.

.

Figure 9-2)

Figure 9-2: Backlight Menu Display

 or .

 to store the value and return the menu option selection

For menu items that display radio information, pressing informational displays. An example of information displays is shown in

The TX POWER menu item (Scan model radio only), when selected, toggles LOW/HIGH power. It does not use  or  to scroll nor is an additional press of the  button required.

 or  will scroll through a list of

Figure 9-3.

Table 9-1: Menu Item Information

MM102708V1, Rev. F

FEATURE DISPLAY

Keypad Lock Menu Item:

KEY LOCK Once Selected:

LOCKED

Backlight Adjust

Contrast Adjust

Transmit Power Select

Radio Revision Information

Toggle Scan On/Off

Display Current Encryption Key

Display Current Home Group/ Channel

Select Desired System

Add Group/ Channel to Scan List

Delete Group/ Channel

Add/Delete Scan List

Menu Item: BCK LIGHT Once Selected: BCKL=

Menu Item: CONTRAST Once Selected: CNTRST=

Menu Item: TX POWER Once Selected: POWER=

Menu Item: REVISION

SCAN ON/OFF

DISP KEY N/A

HOME N/A

SYS SEL N/A Selects a new system.

SCAN ADD N/A Adds to Scan List.

SCAN DEL N/A

SCAN A/D N/A

PARAMETER SETTING

Locked Unlocked

OFF/ON

1, 2, 3, 4

HIGH or LOW

N/A

COMMENT

Locks the keypad. To unlock; press and release “M” then within 1 second press the option button (NOTE: this sequence is also a short cut to locking the keypad.)

Selects the light level for backlighting.

Selects the display contrast level.

Selects radio output power mode.

Selects the information display to view. Informational display only (see No user selectable settings.

Toggles Scan operation ON/OFF.

Displays current encryption key. Informational display only. No selectable settings.

Selects Home Group/Channel

Deletes Group or Channel from Scan List.

Add or Delete from Scan List.

Figure 9-3).

MM102708V1, Rev. F

FEATURE DISPLAY COMMENT

PARAMETER SETTING

Select Telephone Numbers From Phone List

Data Operation

Select Individual Call from IC List

Select Group

Talkaround TALKARND ON/OFF

Select Channel

Feature Encryption Display

System Scan Enable

PHN CALL N/A Trunked Only.

NO DATA ON/OFF

IND CALL N/A Trunked Only.

GRP SEL N/A Trunked Only.

CHN SEL N/A Conventional Only.

Trunked Only. Toggles Data Operation ON/OFF.

Conventional Only. Toggles Talkaround feature ON/OFF.

Menu Item: FEATURES Once Selected: (See Feature

Encryption Display Section)

Menu Item: SYS SCAN Once Selected: SYSC ON or

SYSC OFF

N/A

ON/OFF

Indicates current features programmed into the radio as well as certain information required to add features to the radio. Informational display only. No user selectable settings.

System Scan features are toggled ON and OFF.

MM102708V1, Rev. F

PRS – NAME XXXXXXXX

EEPR SIZ EEPROM Size RAM SIZ RAM Size FLSH SIZ Flash Size RF BAND Frequency Band HSD RATE Data Transfer Rate PRS VER Software Version DSP_ _RAM DSP Software Version FLSH - VER FLASH Software

M/A-COM (C) – 2003-2004

Figure 9-3: Information Display

9.12 DIGITAL VOICE OPERATION

Digital voice programmed systems have two (2) different voice modes: clear (analog) and digital. The voice modes are programmed on a per-group basis within each trunked system and on a per-channel basis within each conventional system.

9.12.1 Clear Mode

Personality Name

r - released, 01A - revision state Copyright

Clear mode is a voice mode in which the radio transmits and receives only clear (analog) voice signals. These analog signals are non-digitized and non-encrypted. Unauthorized persons can monitor clear mode transmissions easily.

Groups or channels programmed for clear operation cannot transmit or receive digital messages.

9.12.2 Digital Mode

Digital mode allows the radio to transmit and receive digitized voice signals. Digital signals provide improved weak signal performance and cannot be easily monitored with a standard receiver. Groups and channels programmed for digital operation transmit only digital signals. Message trunked group calls and individual phone calls (I-Calls) are answered back in the mode in which they were received assuming the call or hang time is still active. Individual phone and emergency calls are transmitted clear if the digital mode is disabled or inoperative.

1. If receiving an analog message trunked call, the radio responds in the analog mode during the hang

time on the working channel.

2. If receiving an analog I-Call, the radio responds in the analog mode during the hang time.

3. Scan Model only: When using the *WHC* feature to respond to an I-Call (after the hang time has

expired), the call is transmitted in the mode defined by the system mode as programmed for the current system if the ID being called is not in the I-Call list. If the ID is in the I-Call list, then the call is transmitted as defined by the I-Call mode programmed in the list for that ID.

MM102708V1, Rev. F

The overdial DTMF tones are not available while in the Digital Mode.

9.12.2.1 Scanned Group Calls

Receiving a Scanned Group Call is the same as receiving a selected group call. During the scan hang time, if the radio was programmed for autoselect, it will transmit back in the same mode it received the call. For example, if a clear group is entered in the scan list, it will only receive clear calls. The user can select transmitting on the scanned or selected group. If a group is entered in the scan list more than once and in different modes (clear and digital), only the first occurrence of the group will be used.

Table 9-2: Transmit/Receive Mode Compatibility for

Digital Voice Operation

GROUP/CHANNEL PROGRAMMING

(TRANSMIT)

CLEAR Yes No

DIGITAL Yes Yes

CLEAR

RECEIVE

DIGITAL

RECEIVE

Conventional digital channels require Channel Guard on the channel to operate correctly. The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to de-compile, reverse engineer, or to disassemble the Object Code, or in any other way convert the Object Code into a human-readable form.

10 CONVENTIONAL OPERATION

In addition to the features covered in Section 9 - BASIC OPERATION, the following functions are applicable to conventional mode operation. The radio functions in the conventional mode when using conventional (non-trunked) communications channels.

10.1 RECEIVING A CALL

1. Select desired conventional system and channel or turn scan ON and make sure desired channel is in

scan list.

2. When the radio receives a call, the radio will unmute and the channel name will appear in the display.

10.2 SENDING A CALL

1. Select desired system and channel.

2. Ensure the channel is not busy by pressing the Clear/Monitor button momentarily. If audio is heard

or if the

3. When sure that the channel is not busy, press the Push-To-Talk button and speak into the microphone.

icon is on, the channel is busy.

MM102708V1, Rev. F

11 TRUNKED OPERATION

In addition to the features covered in Section 9 - BASIC OPERATION, the following functions are applicable to P25 Trunked and EDACS operation. The radio functions in the P25 Trunked or EDACS mode when using trunked communications systems.

11.1 SCANNING TRUNKED GROUPS

A P5130 Select model radio can be programmed (using ProGrammer) to utilize the scan function by assigning that function to one of the option buttons on the side of the radio. If so, a fixed scan list of groups must also be established and programmed into the radio. Scanning these groups would then be turned on and off through the press of the option button. In addition, a group can be deleted from the scan list only through programming.

Groups that have been previously added to the scan list on a per system basis can be scanned. Each system's group scan list is retained in memory when the radio is powered OFF or when the battery pack is removed.

The following procedures outline scan operations for trunked groups.

11.1.1 Turning Scan On and Off

The following procedure applies to the P5150 Scan model radio.

1. Toggle Scan operation ON by pressing the

indicate radio is scanning.

2. Toggle Scan operation OFF by again pressing the

• If the radio scans to a group other than the selected group then receives a call on the selected

group, the radio will switch to the selected group. However, if the “scanned-to” group is programmed at a higher priority the radio will remain on the “scanned-to” group.

• The radio will continue scanning if a new group is selected when scan is ON.

Pressing the PTT button when scan is ON causes the radio to transmit on the displayed group or on the currently selected group (depending on programming).

 button. The icon lights and rotates clockwise to

 button. The icon will disappear.

11.1.2 Adding Groups to a Scan List

The following procedure applies to the P5150 Scan model radio.

1. Scan must be OFF to add/delete groups to/from the scan list. If the Scan icon

button to turn Scan OFF.

2. Select the desired group using the SYSTEM/GROUP/CHANNEL knob and/or the

If the selected group is currently on the list, pressing

 will display on line three.

is ON, press the 

 or  keys.

3. If the scan list status icon is blank (

key.

4. Press the

will be displayed on line three.

 key a second time to set the group to Priority 2. will display on line three.

), the group can be added to the scan list by pressing the 

MM102708V1, Rev. F

5. Press  a third time to set the group to Priority 1. will display on line three. The priority level

section sequence only advances the group to the next high priority level and stops at priority level 1. To select a lower priority level, the group must be deleted from the scan list and then added back to the scan list. Each new group added to the scan list starts at the lowest priority. If the priority 1 and Priority 2 groups are already set and a new group is assigned as Priority 1 or Priority 2, the previously assigned group will change to non-priority scanning. One of the following messages may be momentarily displayed:

SCAN DIS

The radio is not programmed to scan.

FIXED P1

FIXD LST

A Priority 1 group has been pre-programmed into the radio. A new Priority 1 group cannot be selected.

A fixed scan list has been pre-programmed into the radio. It is not possible to change the lis without reprogramming the radio.

To quickly view multiple group scan status, press  then slowly but consistently rotate the group knob. Each group status will appear on the display.

11.1.3 Deleting Groups from a Scan List

The following procedure applies to the P5150 Scan model radio.

1. With scan operation turned OFF, select the desired group to delete from the selected trunked system

group scan list.

2. Press

3. While the current status is displayed, press

. The current status of the group is displayed for a time-out period.

. until the group from the scan list is "blank". The

sequence is for the time-out period when it is the selected channel.

, , , , . Any group that is not in a trunked system group scan list will show

11.1.3.1 Nuisance Delete (Scan Model Only)

A group can also be deleted from the scan list, if it is not the currently selected group, by pressing the  key during scan operation while the radio is displaying the unwanted group. The group will be deleted from the system's group scan list in the same manner as if done using the steps above. Deletions done in this manner will not remain deleted if the radio is powered OFF and then powered ON.

11.2 SCANNING TRUNKED SYSTEMS

The radio can be programmed with the following System Scan features. These features are automatically enabled when the radio is powered ON. A key or menu option is also defined to allow the System Scan features to be toggled during radio operation. This is covered in the Menu Selection and Pre-Programmed Keypad Key sections. The System Scan state will be maintained through system changes but will default to ON when the radio is powered ON.

MM102708V1, Rev. F

11.2.1 Wide Area System Scanning

The P5100 series radios can be programmed for Wide Area System Scan operation for roaming across mobile systems. Upon the loss of the currently selected system's control channel, radios can be programmed to automatically scan the control channels of other systems. If a new control channel is found, the radio will switch to the new system and sound an alert tone.

11.2.2 Priority System Scan

The radio can also be programmed for Priority System Scan. The priority system is the desired or preferred system. While receiving the control channel of the selected system, the radio will periodically leave the selected system and search for the control channel of the priority system. This is done at a programmable rate defined by the value in the Priority Scan Time control (unless the ProScan is enabled, as explained in the following sections). This priority scan timer is reset each time the PTT button is pressed or when the call is received. If the priority system control channel is found, (or meets the predefined criteria <ProScan>), the radio will automatically switch to the priority system.

11.2.2.1 Enabling the Wide Area System Scan Function

If the radio cannot find the control channel of the selected system and begins to wide area system scan, the radio will only scan for the priority system control channel if the priority system is in the wide area scan list.

™

algorithm

11.2.2.2 When ProScan is Enabled

The radio monitors the priority system and will switch to the priority system if the criteria defined by the controls in the ProScan Options dialog box are met. If ProScan is enabled, the rate at which the radio will scan for the priority system is defined by the System Sample Time control, located in the ProScan Options dialog box.

11.2.3 ProScan

The radio can be programmed for ProScan system scan operation for multi-site applications depending on the version of radio flash code. ProScan is a multi-site system scanning algorithm. ProScan provides the radio with the ability to select a new system for the radio to communicate on, when the selected system drops below a predefined level. This is accomplished by enabling each radio to analyze the signal quality of its current control channel and compares it with the signal quality of the control channel for each site in its adjacent scan list. (The signal quality metric used for the ProScan algorithm is based on a combination of both Received Signal Strength Indicator (RSSI) and Control Channel Verification (CCV) measurements.) When the selected system degrades to a pre-programmed level, the radio will begin to look for a better control channel. Once a control channel that exceeds the pre-programmed parameters is found, the radio will change to the new system and emit a tone (if enabled through programming). If the control channel is completely lost, the radio will enter Wide Area System scanning and search the programmed adjacent systems until a suitable control channel is found.

11.2.4 Menu Selection (Scan Model Only)

Press  and then use the  or  buttons to scroll through the selections until SYS SCAN is displayed. Then press  to toggle the System Scan state. The SYSC ON or SYSC OFF display message

is displayed for two seconds to show the new state.

11.2.5 Pre-Programmed Keypad Key (Scan Model Only)

Press the key pre-programmed to toggle System Scan and the SYSC ON or SYSC OFF display message is displayed for two seconds to show the new state.

11.3 EMERGENCY OPERATION

The radio's ability to declare an emergency, clear an emergency, remain locked on an emergency system and group, and the emergency audio and display freeze can each be enabled or disabled through programming. When an emergency is declared scanning will stop and restarts only after the emergency has been cleared.

11.3.1 Receiving an Emergency Call

When receiving an emergency call on the selected group and system, an alert beep is heard and is displayed. The message *RXEMER* flashes in the display on line two until the emergency condition is cleared.

11.3.2 Declaring an Emergency Call

To send an emergency call to a selected system and group (or on an optionally pre-programmed group), proceed as follows:

MM102708V1, Rev. F

1. Press and hold the red EMERGENCY button that is on top of the radio in front of the antenna for

approximately one second (this time is programmable and therefore could be longer or shorter; check with the system administrator). The radio will transmit an emergency call request with the radio ID until an emergency channel assignment is received.

2. When the working channel assignment is received, the radio sounds a single beep indicating the radio

has auto keyed (see Table 8-4) and is ready for voice transmission. *TXEMER* flashes on line two in the display until the emergency is cleared.

3. Press PTT and speak into the microphone in a normal voice. and momentarily turn ON.

4. Release PTT when the transmission is complete. To clear the emergency, first press and hold the CLEAR/MONITOR button. While continuing to hold the

CLEAR/MONITOR button, press the EMERGENCY button. (This will work only if the radio is programmed to clear emergencies.)

11.4 INDIVIDUAL CALLS (SCAN MODEL ONLY)

11.4.1 Receiving and Responding To an Individual Call (Trunked Mode Only)

When the radio receives an individual call (a call directed only to the user's radio), it un-mutes on the assigned working channel and displays
