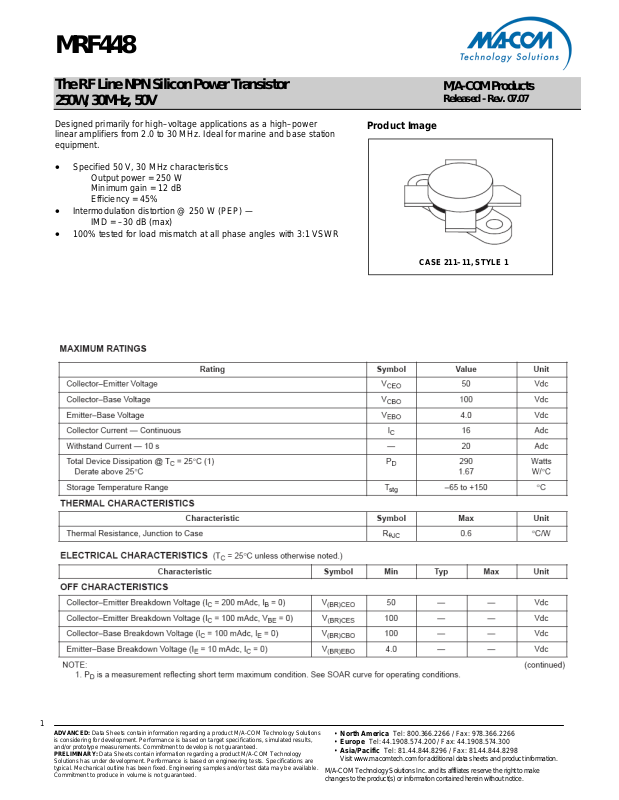

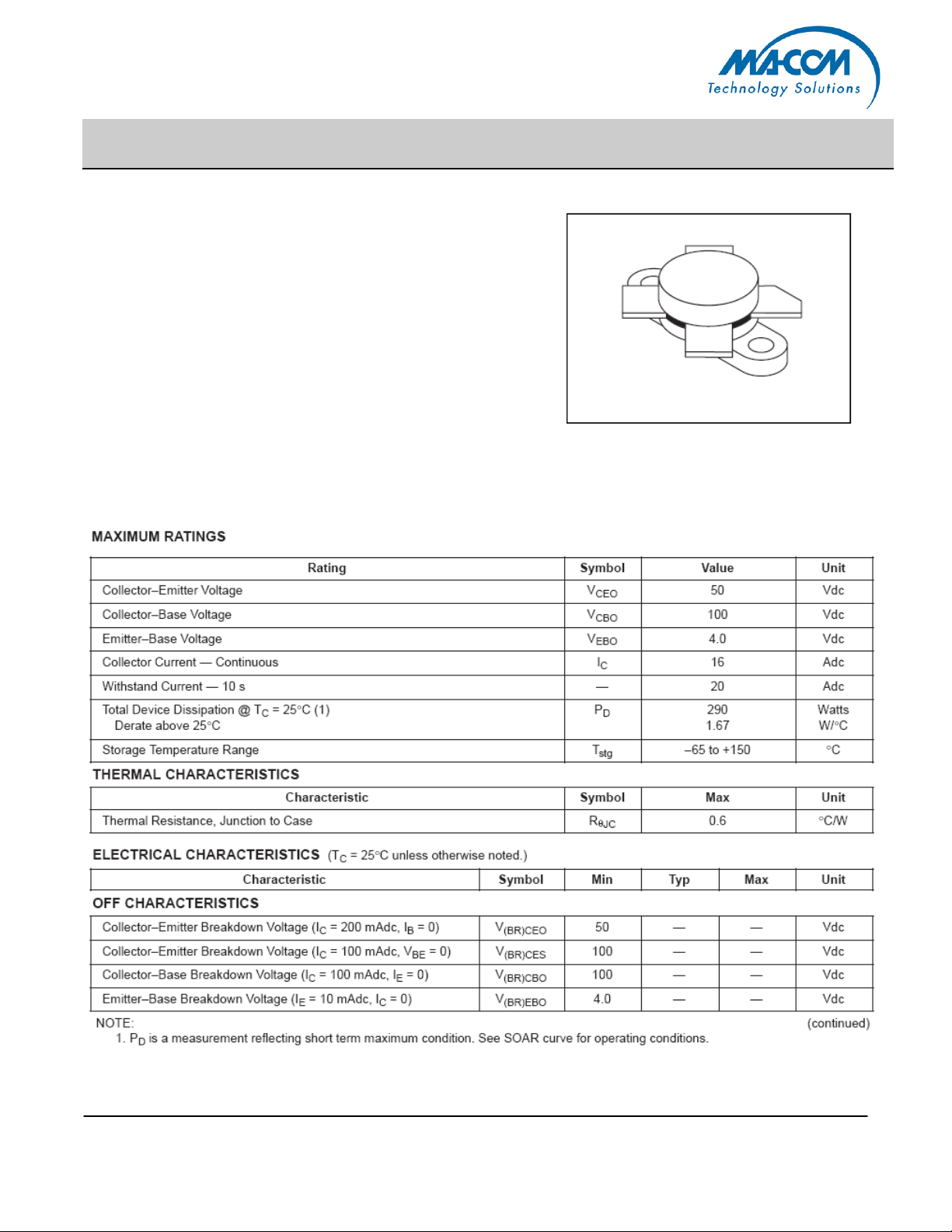

MRF448

The RF Line NPN Silicon Power Transistor
250W, 30MHz, 50V

Designed primarily for high–voltage applications as a high –power
linear amplifiers from 2.0 to 30 MHz. Ideal for marine and base station
equipment.

• Specified 50 V, 30 MHz characteristics

Output power = 250 W
Minimum gain = 12 dB
Efficiency = 45%

• Intermodulation distortion @ 250 W (PEP) —

IMD = –30 dB (max)

• 100% tested for load mismatch at all phase angles with 3:1 VSWR

M/A-COM Products

Released - Rev. 07.07

Product Image

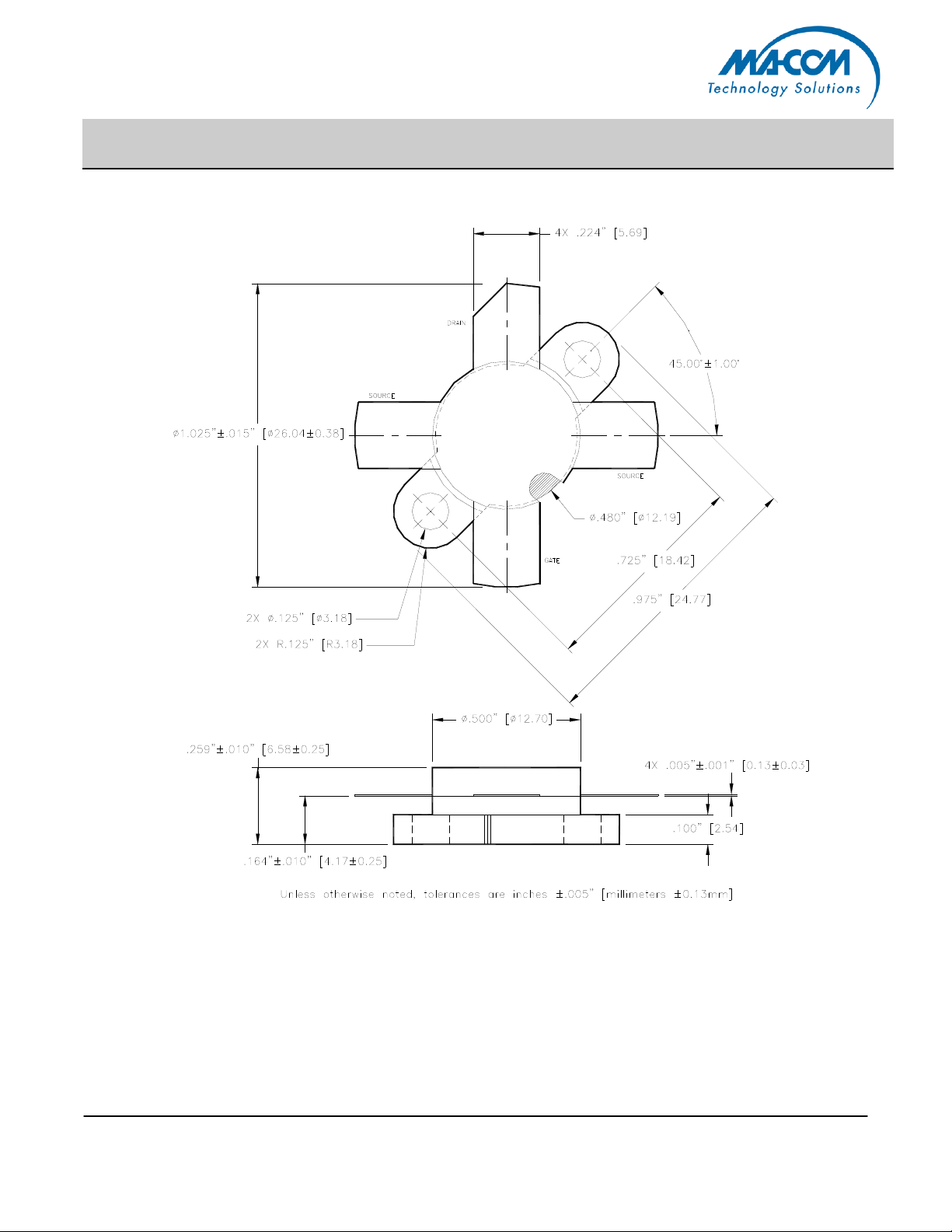

CASE 211–11, STYLE 1

1
