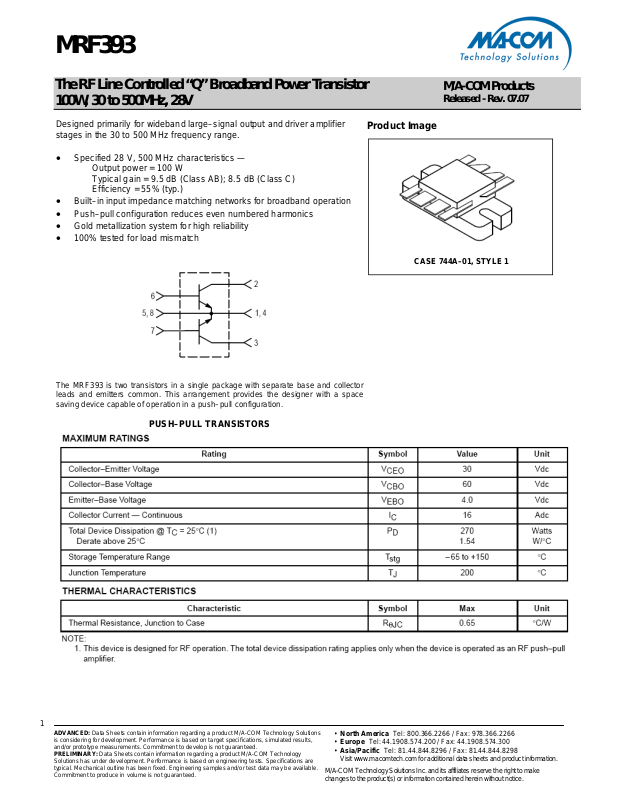

MRF393

The RF Line Controlled “Q” Broadband Power Transistor
100W, 30 to 500MHz, 28V

Designed primarily for wideband large–signal output and driver amplifier
stages in the 30 to 500 MHz frequency range.

• Specified 28 V, 500 MHz characteristics —

Output power = 100 W
Typical gain = 9.5 dB (Class AB); 8.5 dB (Class C)
Efficiency = 55% (typ.)

• Built–in input impedance matching networks for broadband operation

• Push–pull configuration reduces even numbered harmonics

• Gold metallization system for high reliability

• 100% tested for load mismatch

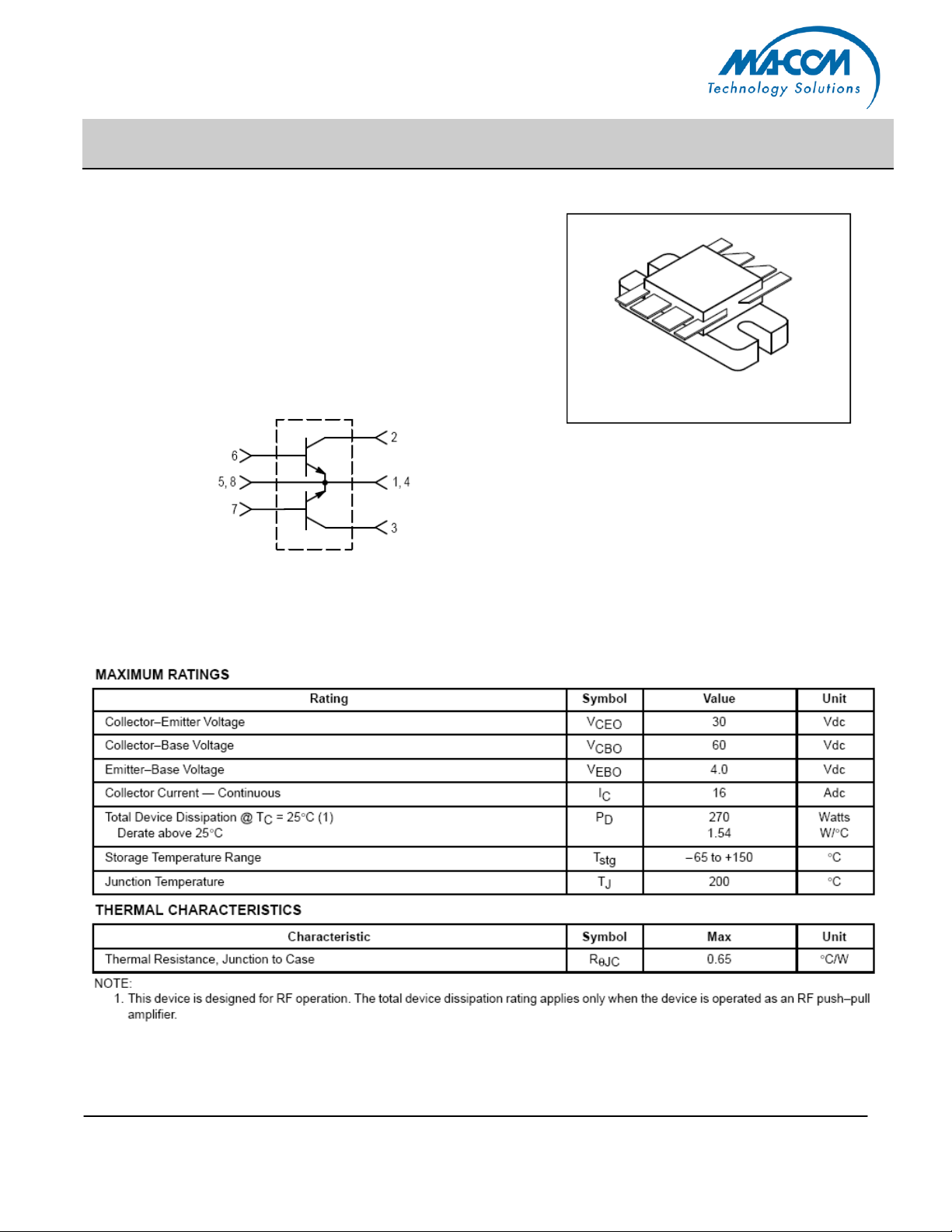

The MRF393 is two transistors in a single package with separate base and collector
leads and emitters common. This arrangement provides the designer with a space
saving device capable of operation in a push–pull configuration.

PUSH–PULL TRANSISTORS

M/A-COM Products

Released - Rev. 07.07

Product Image

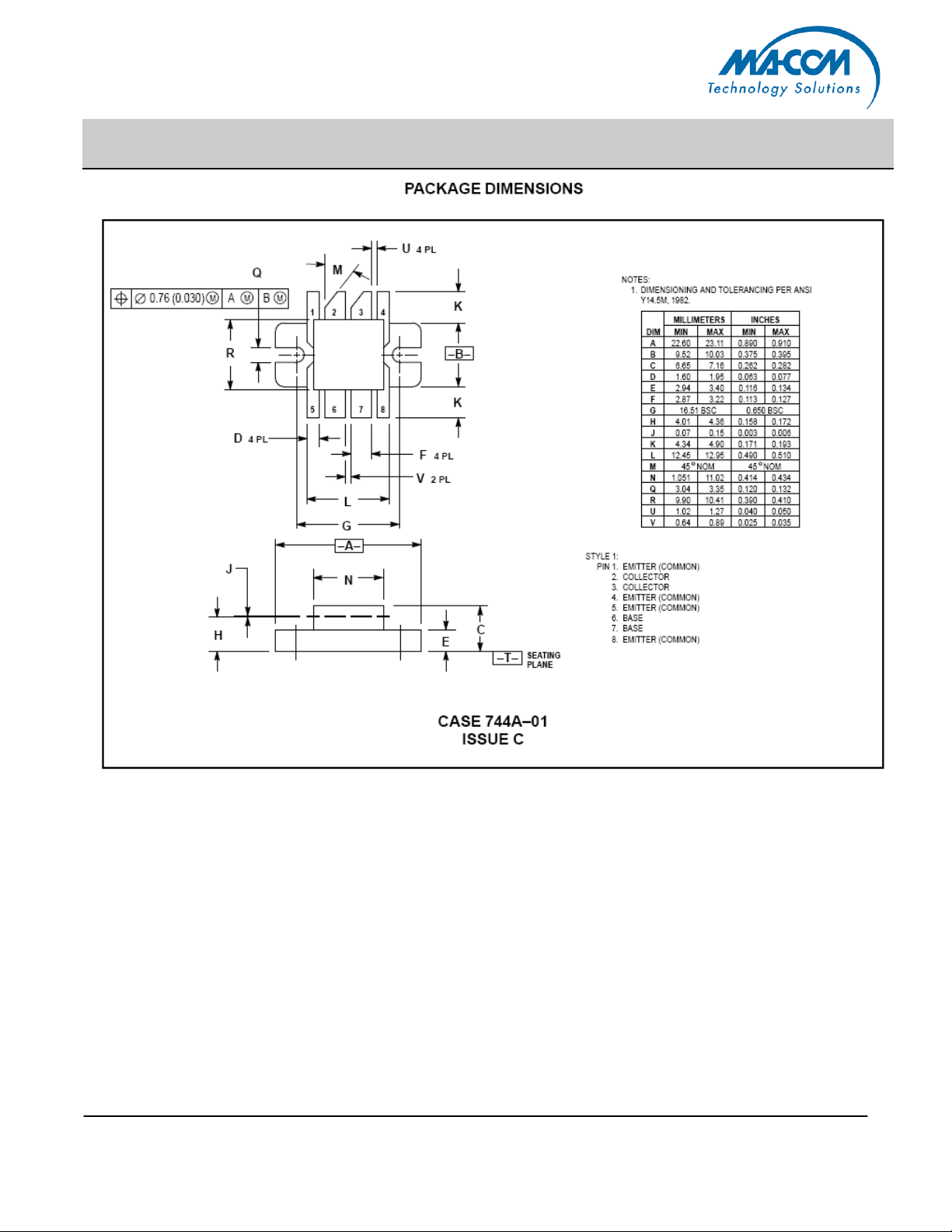

CASE 744A–01, STYLE 1

1

ADVANCED: Data Sheets contain information regarding a product M/A-COM Technology Solutions
is considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY: Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
