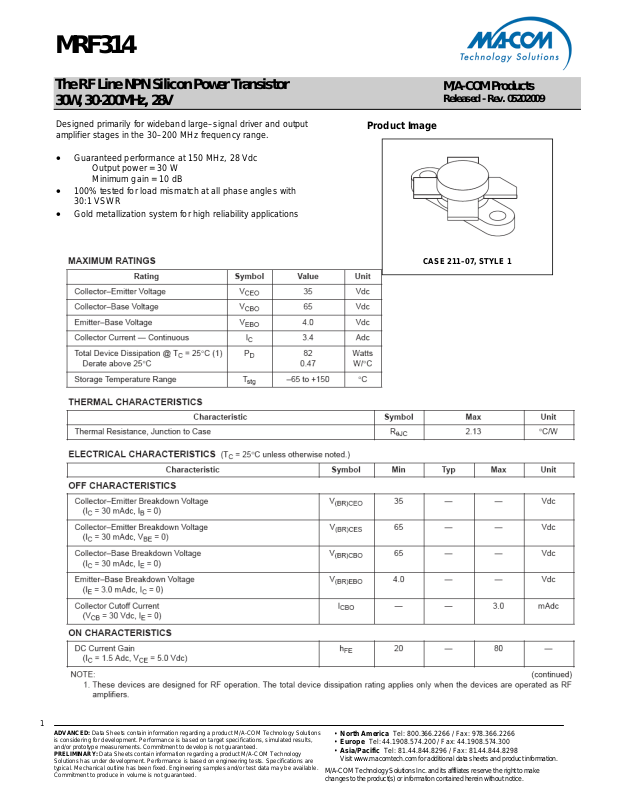

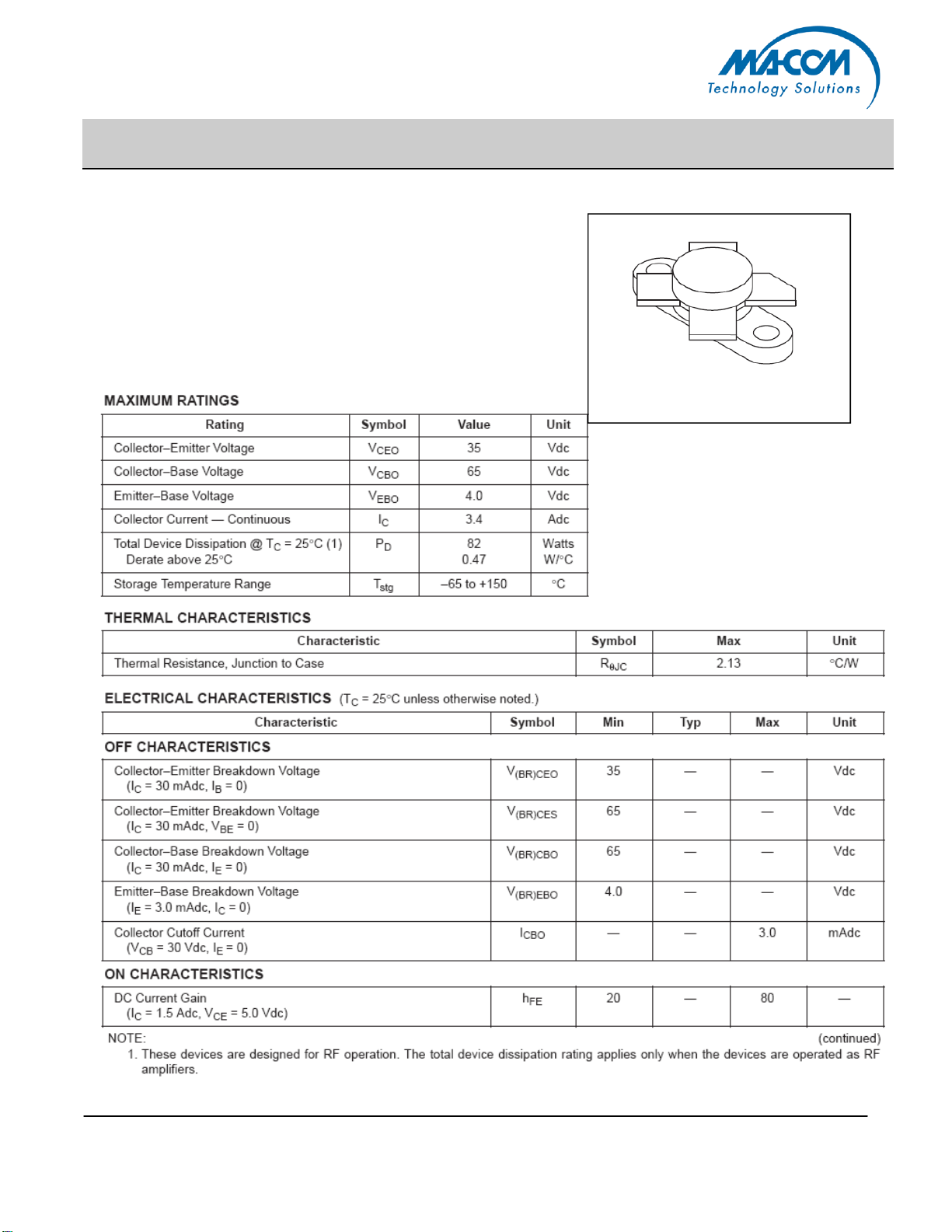

MRF314

The RF Line NPN Silicon Power Transistor
30W, 30-200MHz, 28V

Designed primarily for wideband large–signal driver an d output
amplifier stages in the 30–200 MHz frequency range.

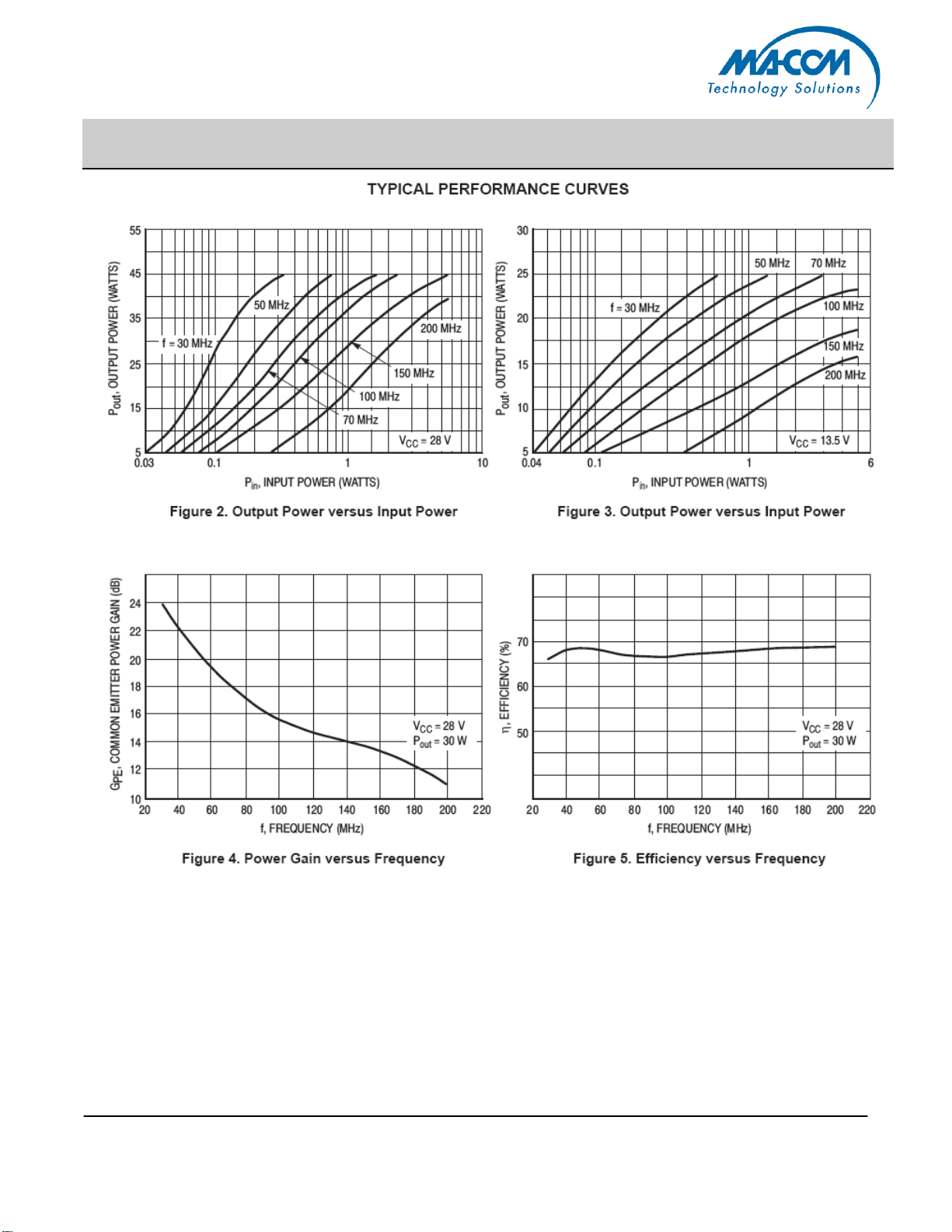

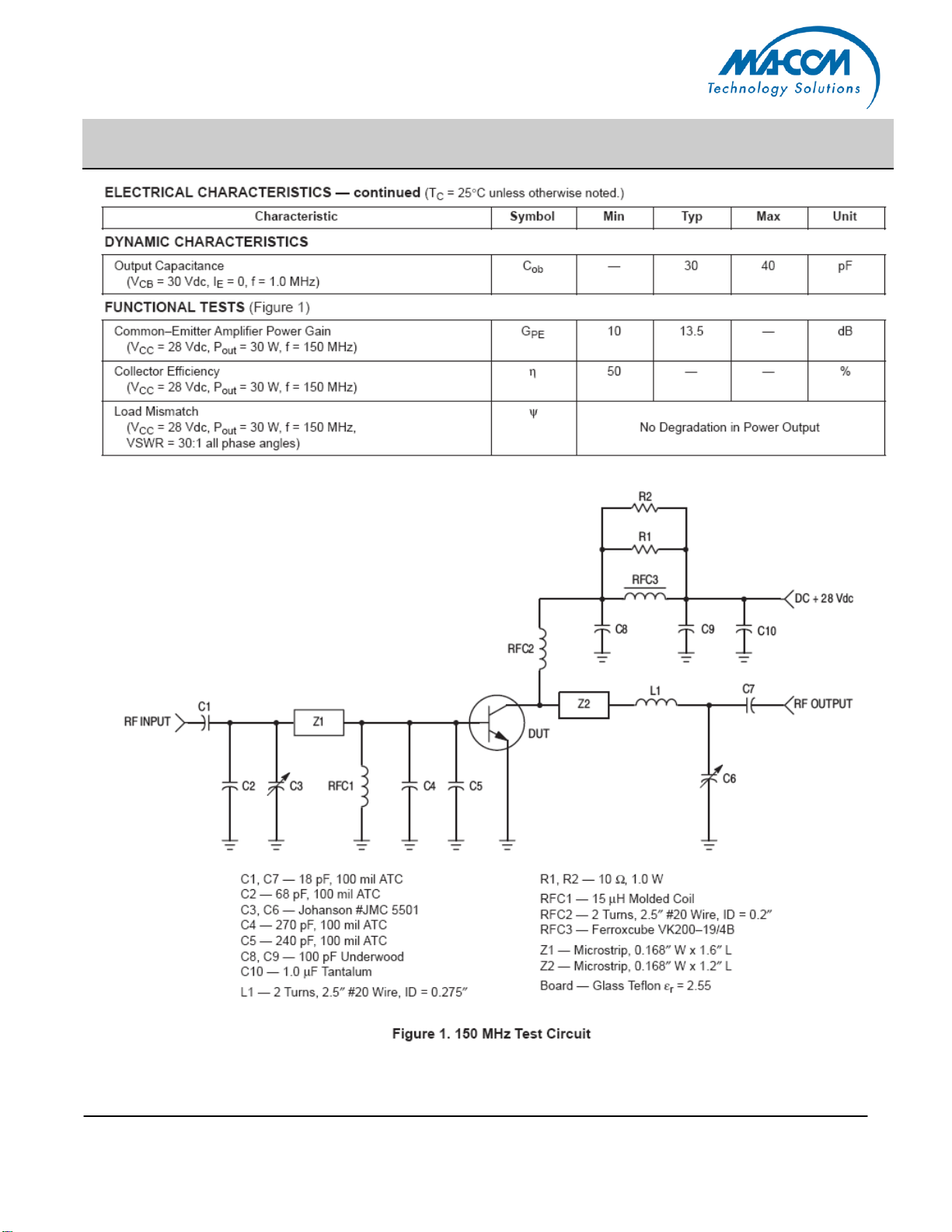

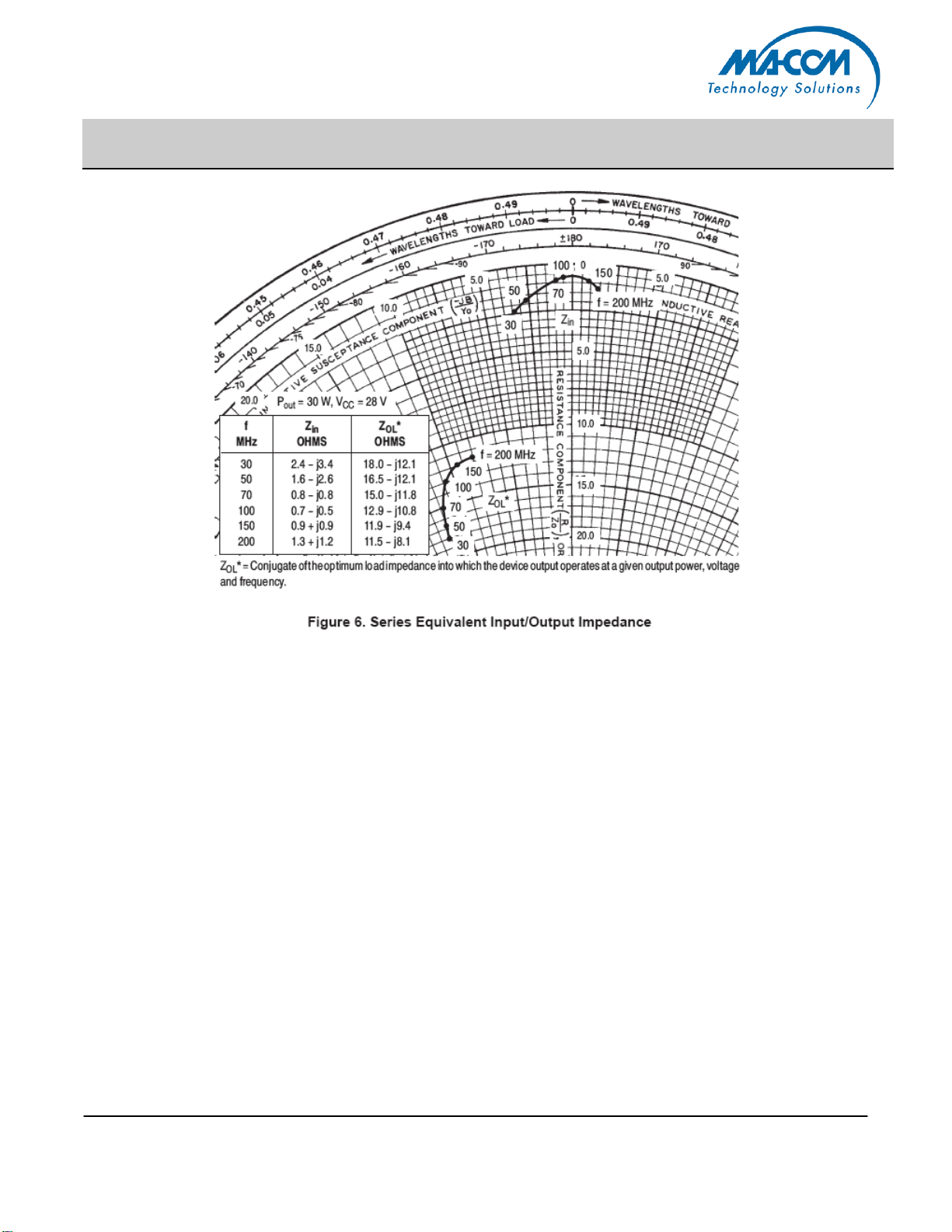

• Guaranteed performance at 150 MHz, 28 Vdc

Output power = 30 W
Minimum gain = 10 dB

• 100% tested for load mismatch at all phase angles with

30:1 VSWR

• Gold metallization system for high reliability applications

M/A-COM Products

Released - Rev. 05202009

Product Image

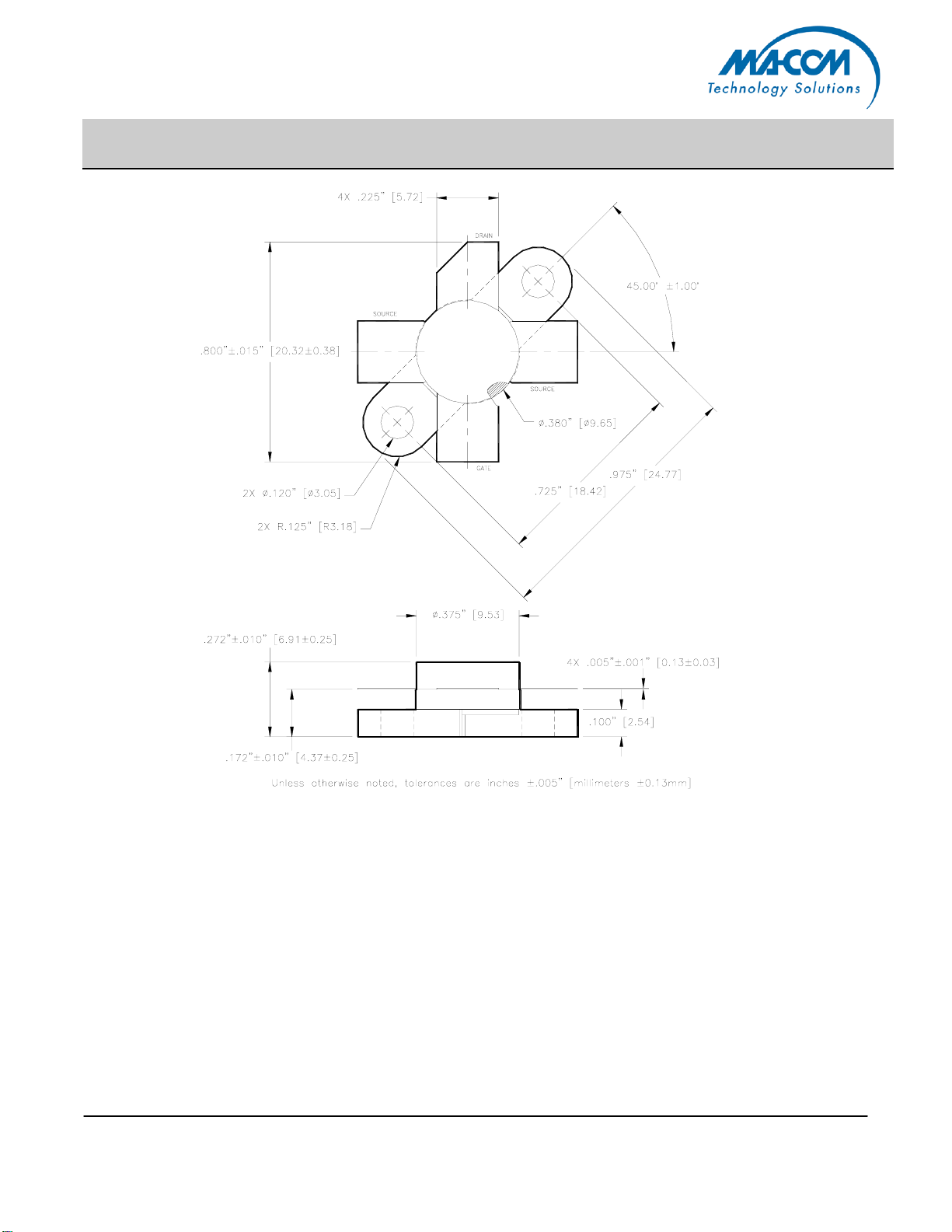

CASE 211–07, STYLE 1
