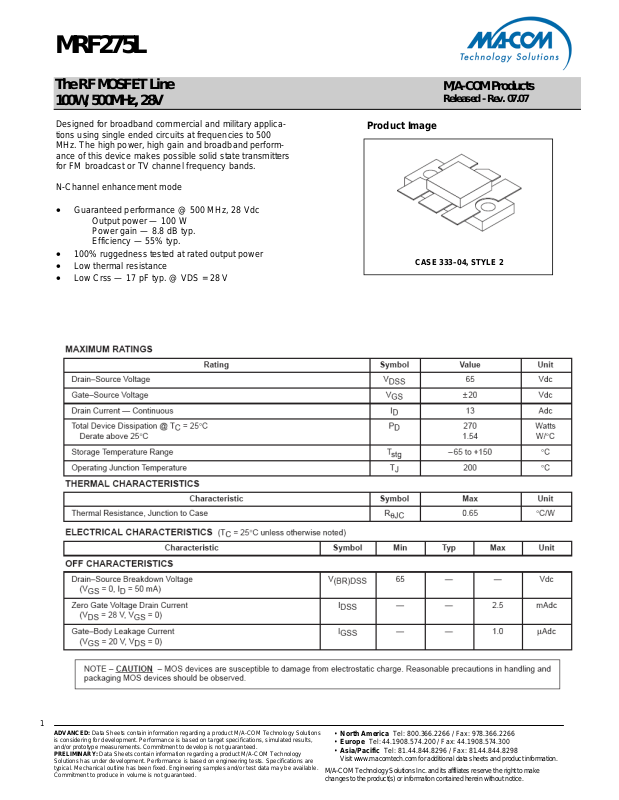

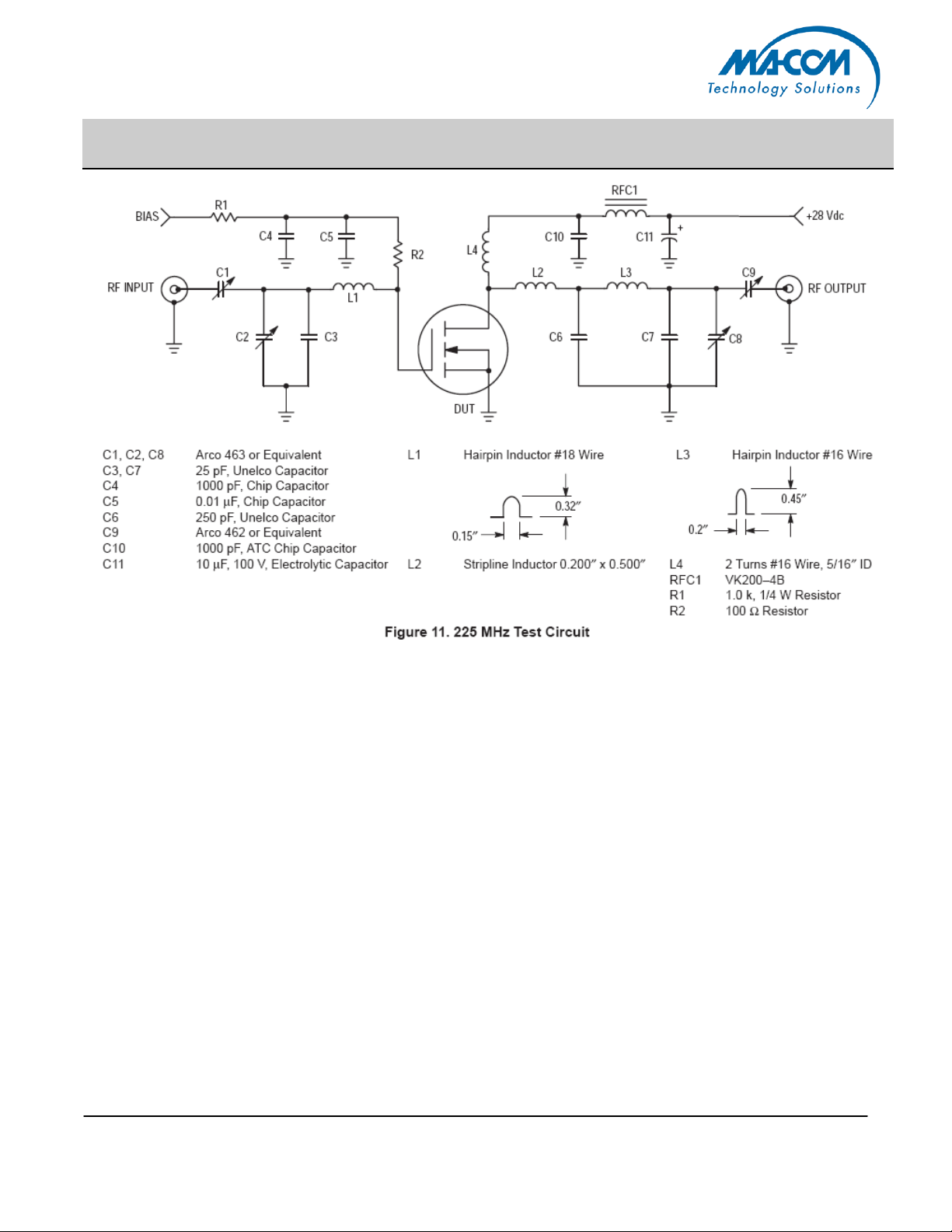

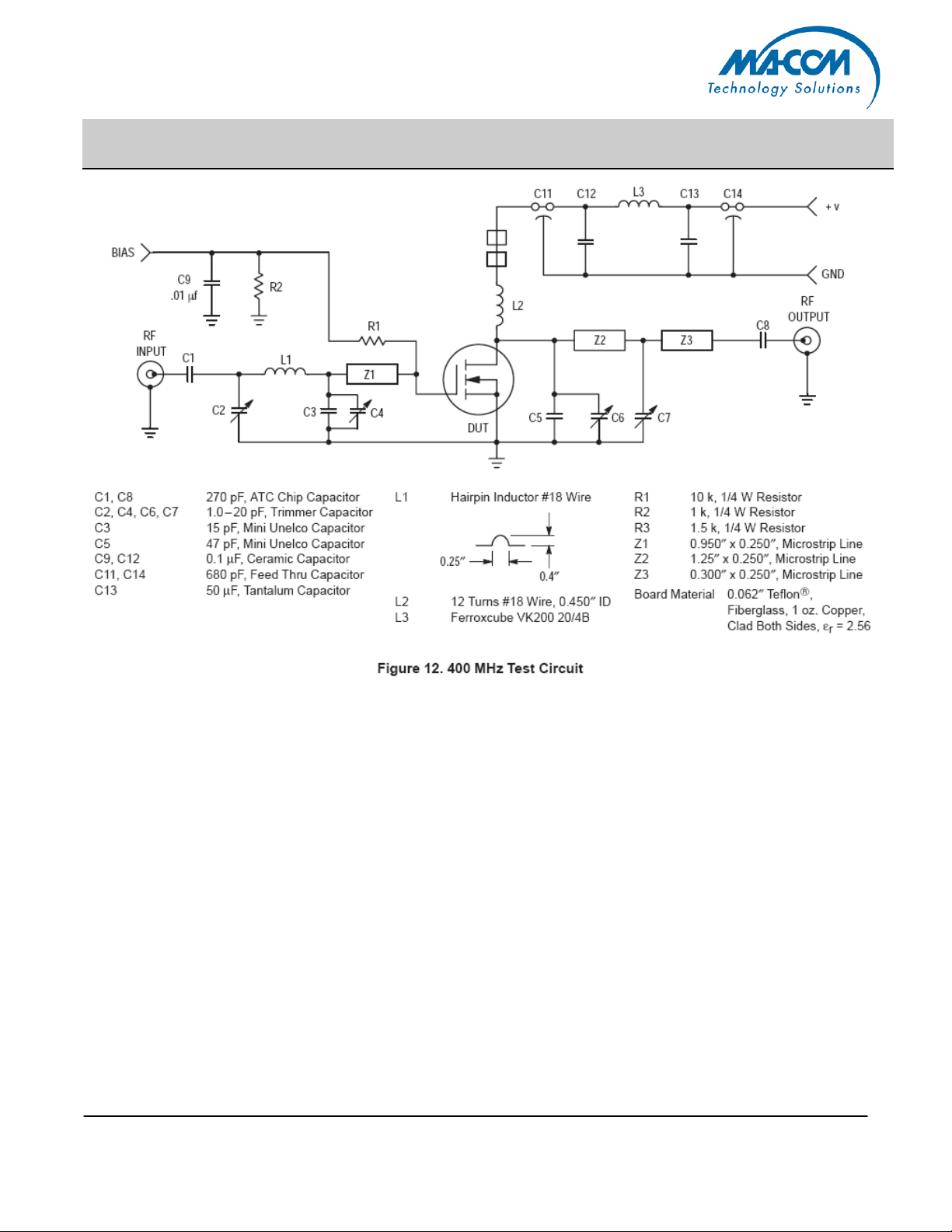

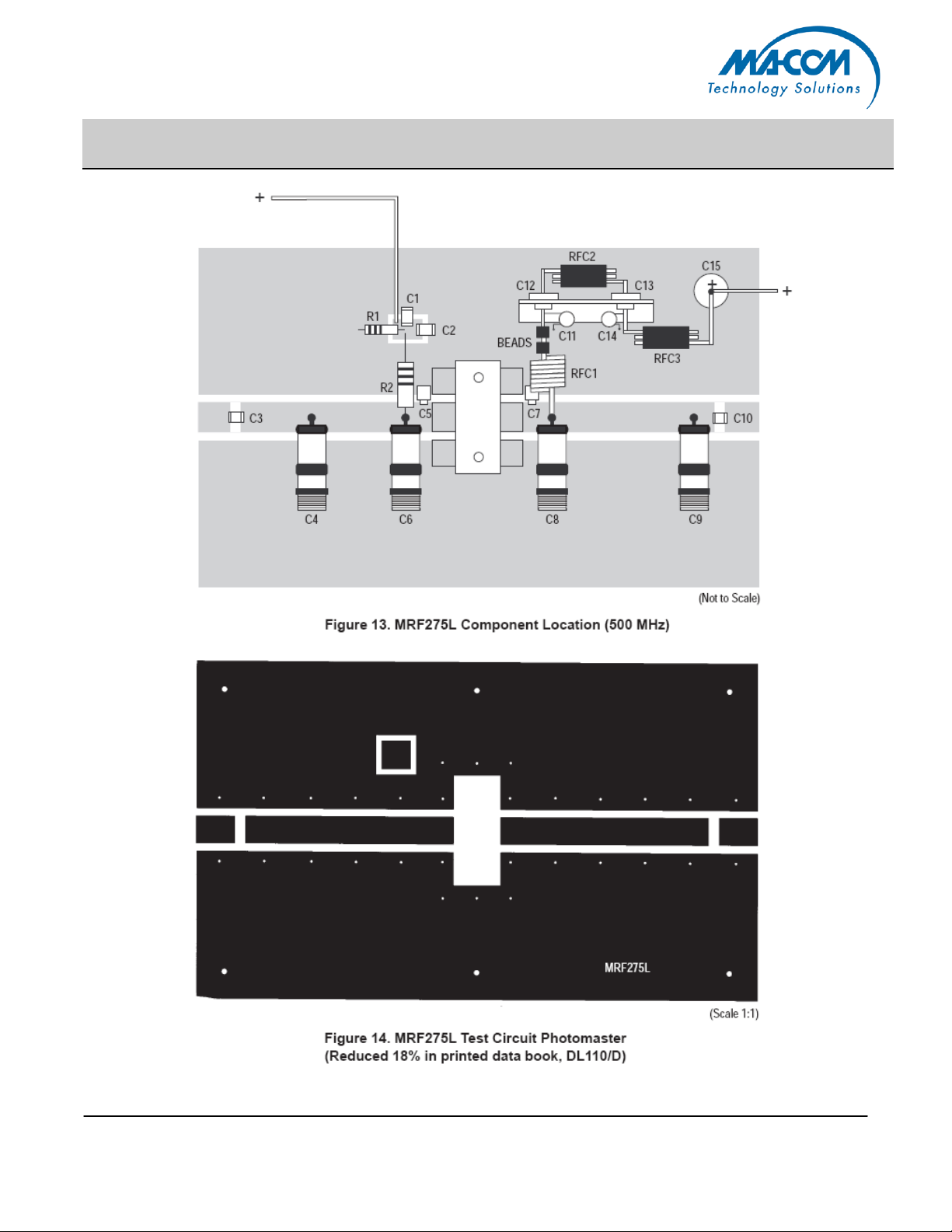

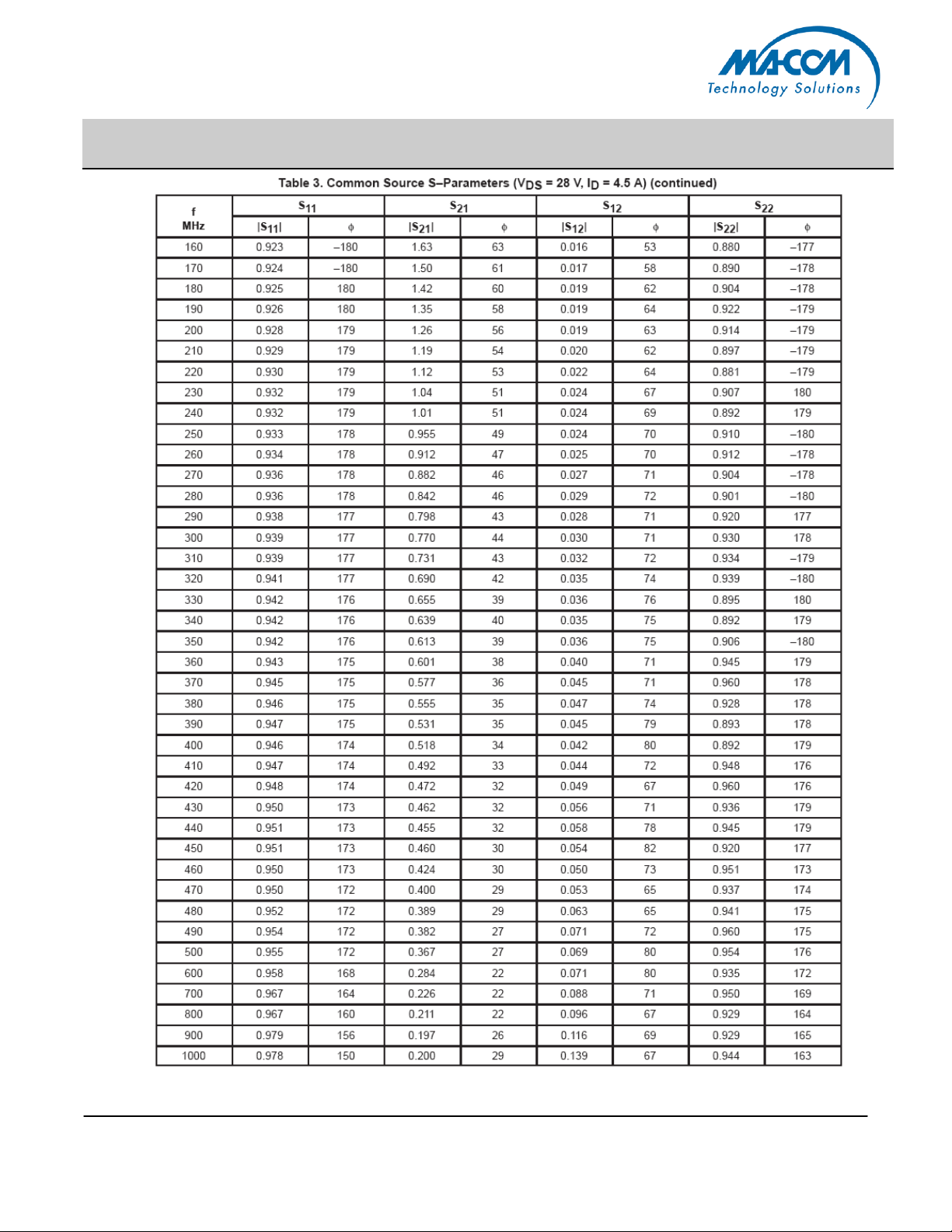

MRF275L

The RF MOSFET Line
100W, 500MHz, 28V

Designed for broadband commercial and military applica­tions using single ended circuits at frequencies to 500
MHz. The high power, high gain and broadband perform­ance of this device makes possible solid state transmitters
for FM broadcast or TV channel frequency bands.

N-Channel enhancement mode

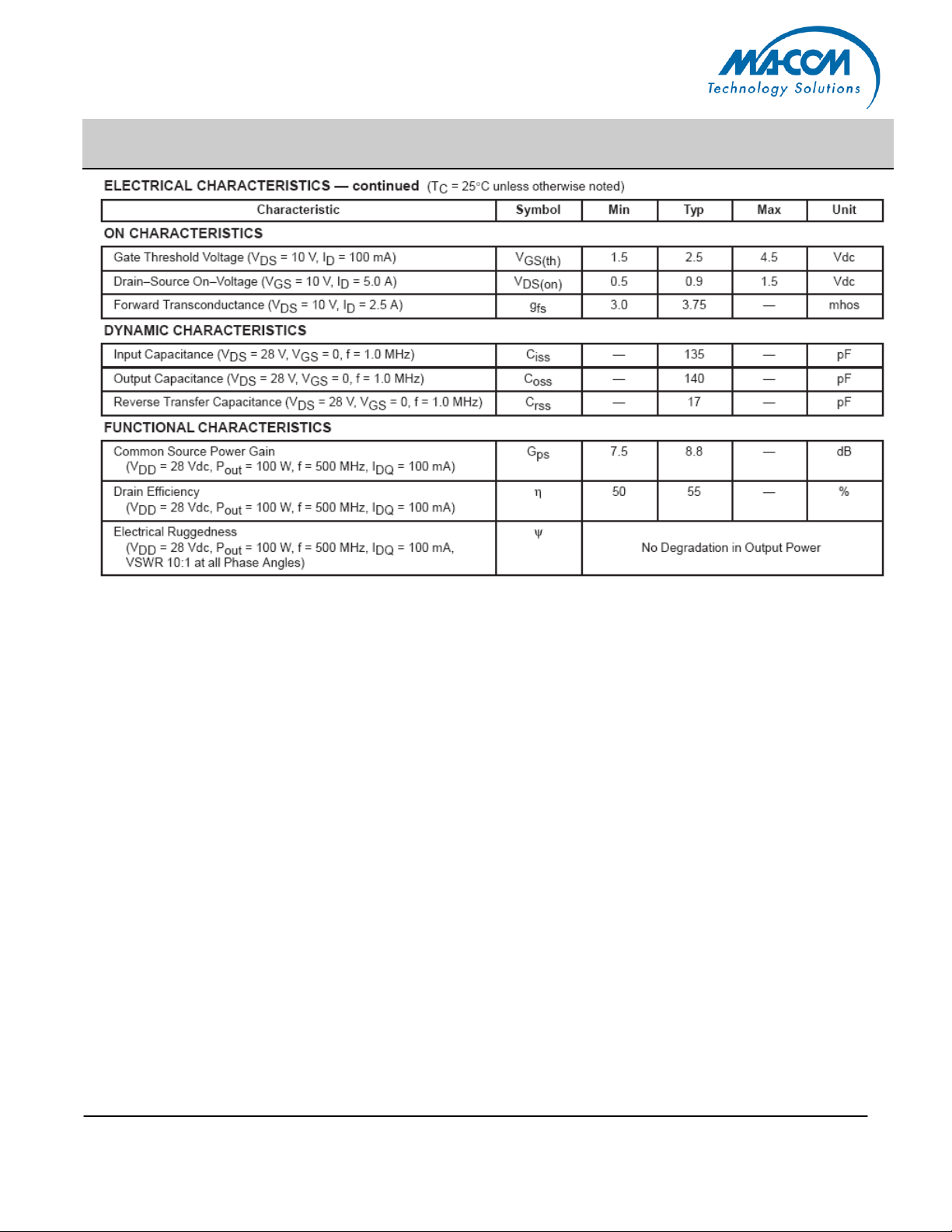

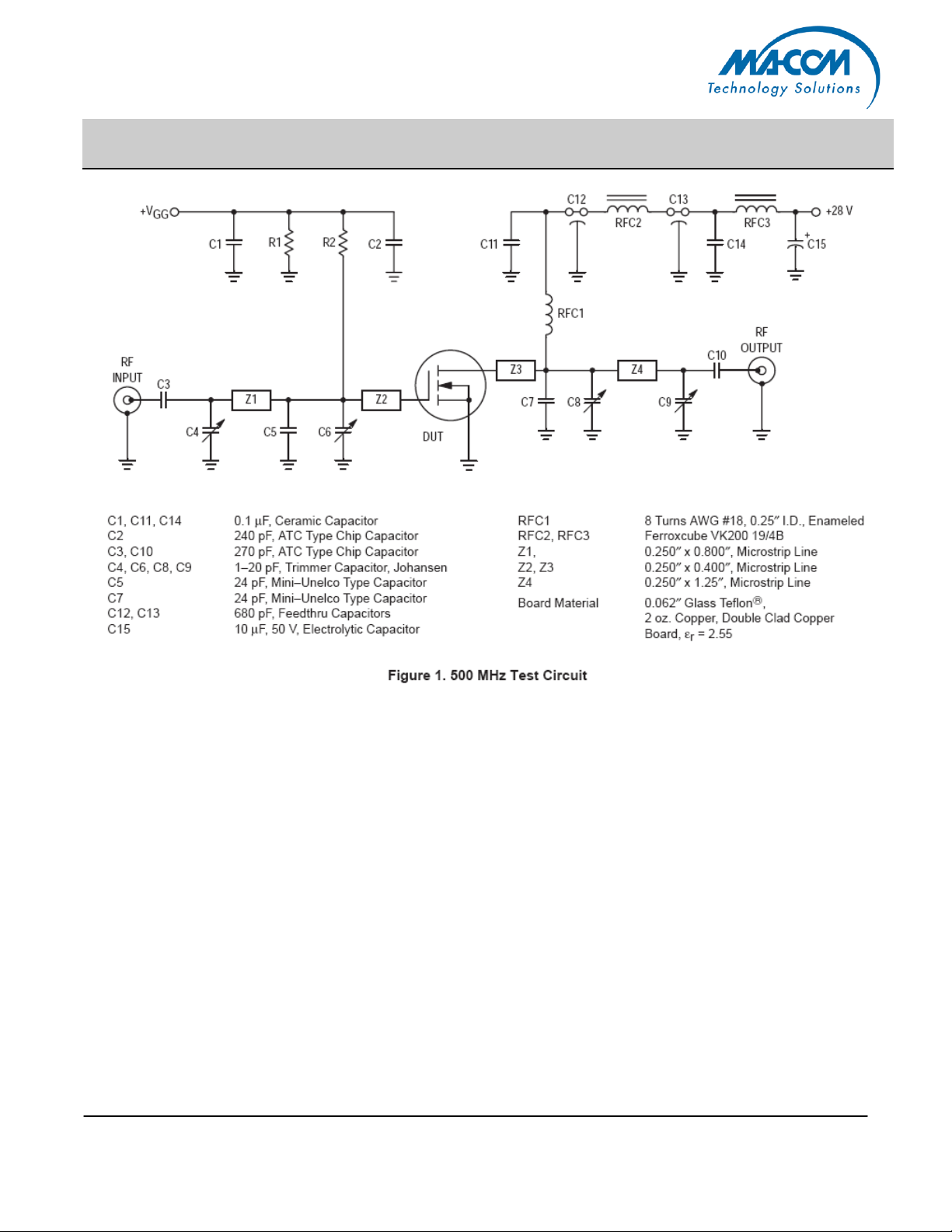

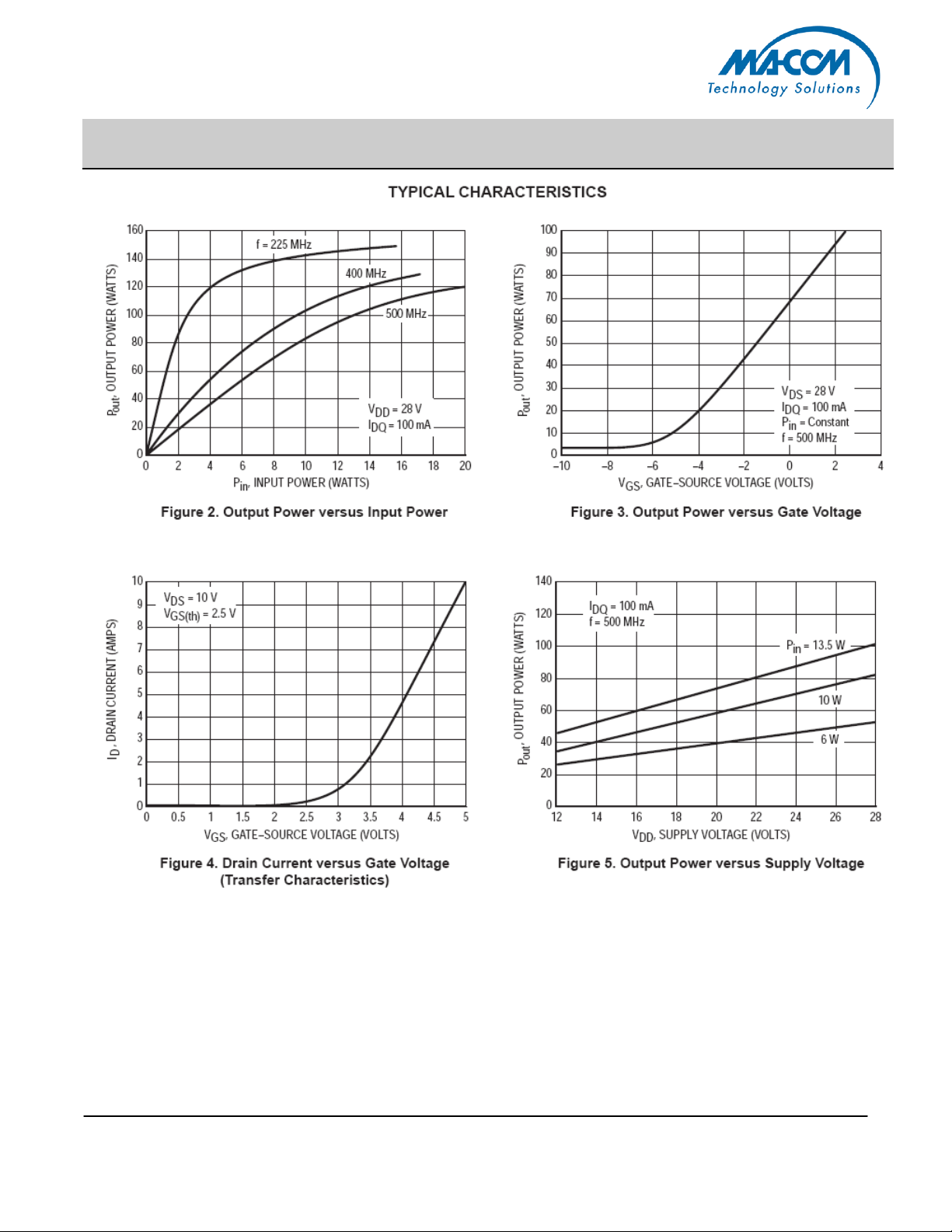

• Guaranteed performance @ 500 MHz, 28 Vdc

Output power — 100 W
Power gain — 8.8 dB typ.
Efficiency — 55% typ.

• 100% ruggedness tested at rated output power

• Low thermal resistance

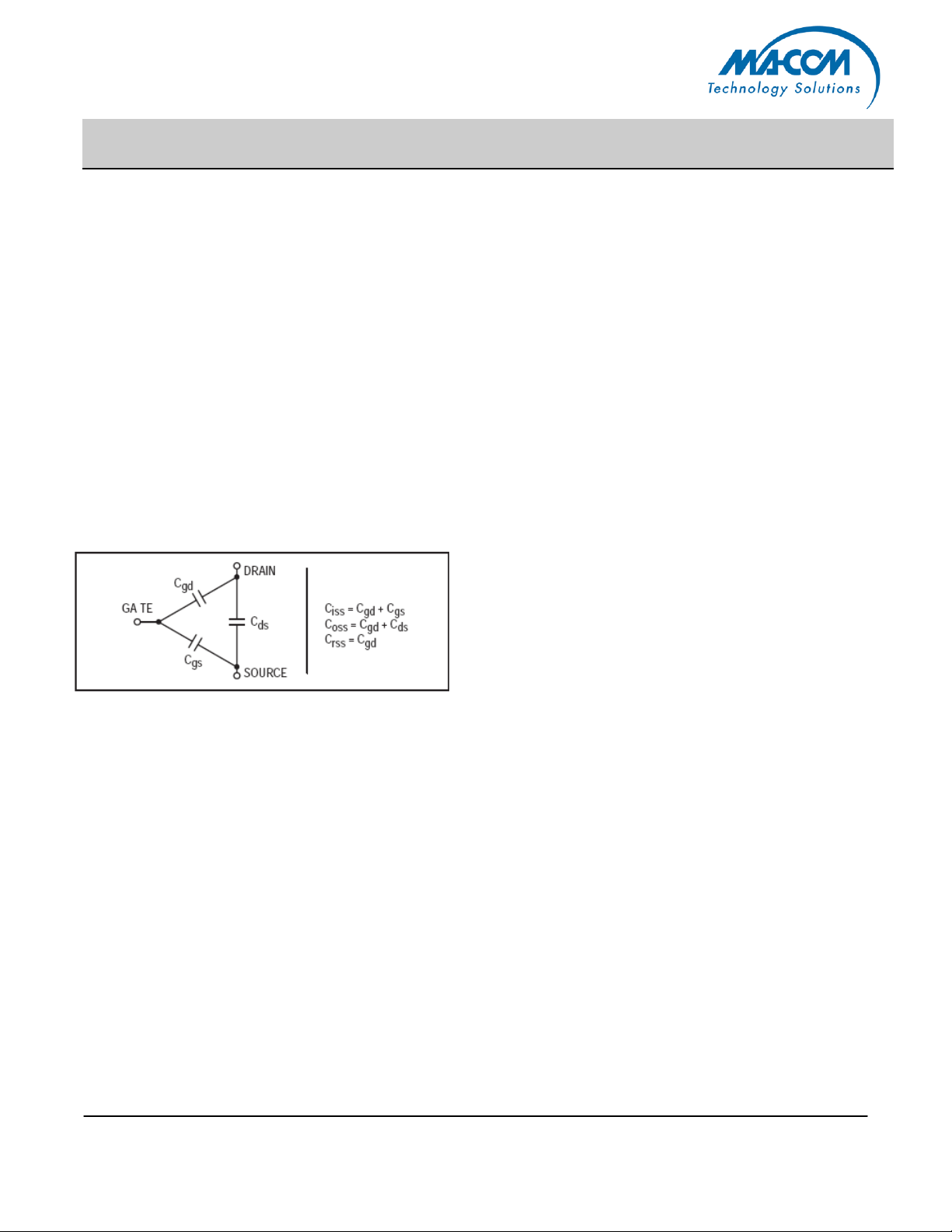

• Low Crss — 17 pF typ. @ VDS = 28 V

M/A-COM Products

Released - Rev. 07.07

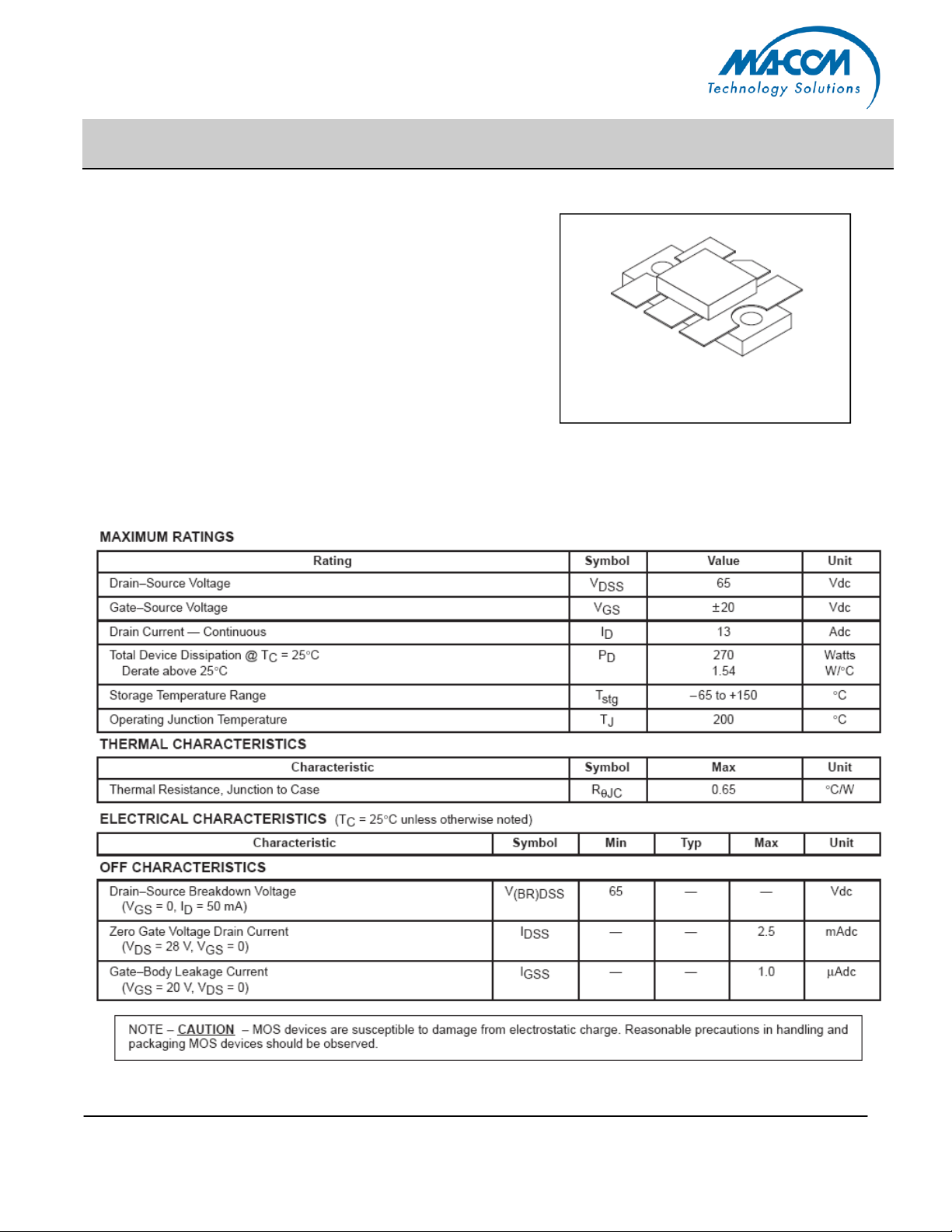

Product Image

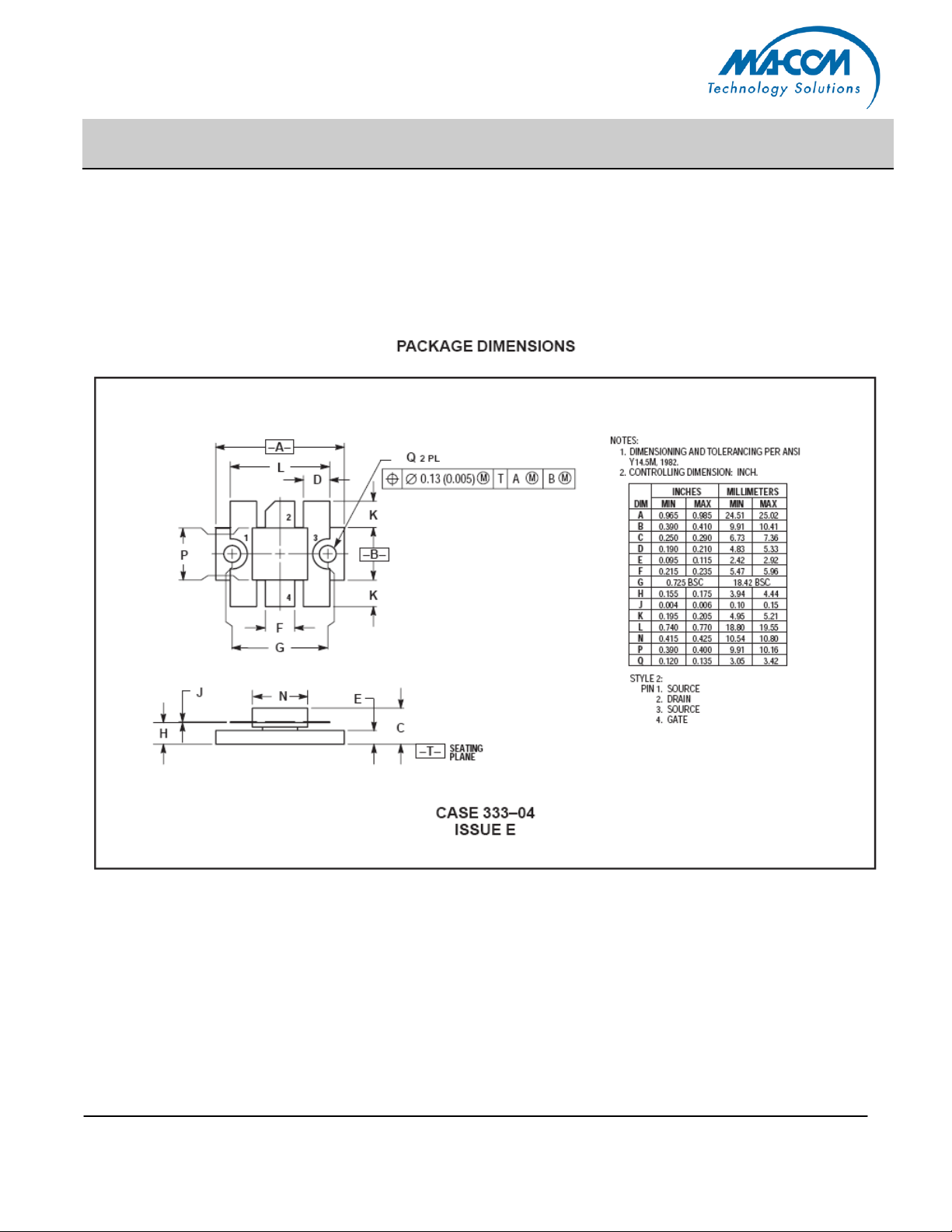

CASE 333–04, STYLE 2

1

ADVANCED: Data Sheets contain information regarding a product M/A-COM Technology Solutions
is considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY: Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.

• North America Tel: [phone] / Fax: [phone]

• Europe Tel: [phone] / Fax: [phone]

• Asia/Pacific Tel: [phone] / Fax: [phone]
Visit www.macomtech.com for additional data sheets and product information.
