MX-SERIES FLOW METERS
MX100F-1SE
Aluminium steel body with LCD register
D - PR
LCD Display (12mm)
E - PRA
LCD Display (12mm)
with outputs
A - Standard Pulse
Reel/Hall Effect
I - Standard Pulse
Reel/Reed Effect
J - Standard Pulse
Hall/Hall Effect
K - High Resolution
Hall NPN
The MX100 4” Digital Flow Meter are suitable for flows between 31.7-317 GPM. The 4” Digital Flow Meters have
an accuracy of +/- 0.5% and provides exceptional levels of reliability and durability.
SPECIFICATIONS
MX100F MX100S
Materials of
Construction
Meter Body
Design Specifications
Process Connections
Technical
Specifications
Flow rate
Operating Temperature
Max. Operating
Pressure**
Accuracy
Repeatability
Nominal K-Factor
*Temperature based on standard pulse output - subject to change dependant on rotor and output type, contact Macnaught technical support for further investigations
** Pressure rating subje
Cast Aluminium (6061)
Rotor
Aluminium (6061)
Seals
Fluorocarbon (FKM)
Threaded
3” G
3” NPT
<5cP
220-1000L/min
60-250USG/min
-40 - 120ºC
Range*
-40 - 248ºF
175 psi
12 bar
+/- 0.5%
+/- 0.03%
8.71 Pulses/Gallon
ct to change as per flange rating
Flange
ANSI CLASS 150
DIN PN16
JIS 10k
>5cP
120-1200L/min
31.7-317USG/min
Cast Aluminium (6061)
Aluminium (6061)
PTFE encapsulated (FEP)
Threaded
3” G
3” NPT
<5cP
220-1000L/min
60-250USG/min
120ºC
-40 -
-40 - 248ºF
175 psi
12 bar
+/- 0.5%
+/- 0.03%
8.71 Pulses/Gallon
Flange
ANSI CLASS 150
DIN PN16
JIS 10k
>5cP
120-1200L/min
31.7-317USG/min
Meter RFQ Form
OUTPUT TYPES
X No Output - No Output
A Standard Pulse Reed /Hall (NPN) Pulse (1m flying lead)
B Ex approved (Ex ia) Hall (NPN) Pulse (2m DIN cable) —
D PR (LCD 12mm display) - Display 12mm
E PRA (LCD 12mm display) - Display 12mm, 4-20mA output, Pulse
F ER (LCD 17mm display) - Display 17mm
G ERA (LCD 17mm display) - Display 17mm, 4-20mA output, Pulse
H ERB (LCD 17mm display) - Display 17mm + Batch Control
N Ex Approved (Ex ia NAMUR) NAMUR Pulse (2m DIN cable) —
T High Temp. Pulseerature Hall (NPN) Pulse
I Reed/Reed Reed/Reed Pulse (1m flying lead) — —
J Hall/Hall Hall/Hall Pulse (1m flying lead) — —
K High Resolution (omnipolar) Hall (NPN) Pulse (1m flying lead) — —
DESCRIPTION SWITCH TYPE OUTPUT TYPE MX100F MX100S
MX-SERIES FLOW METERS
Available Not Available

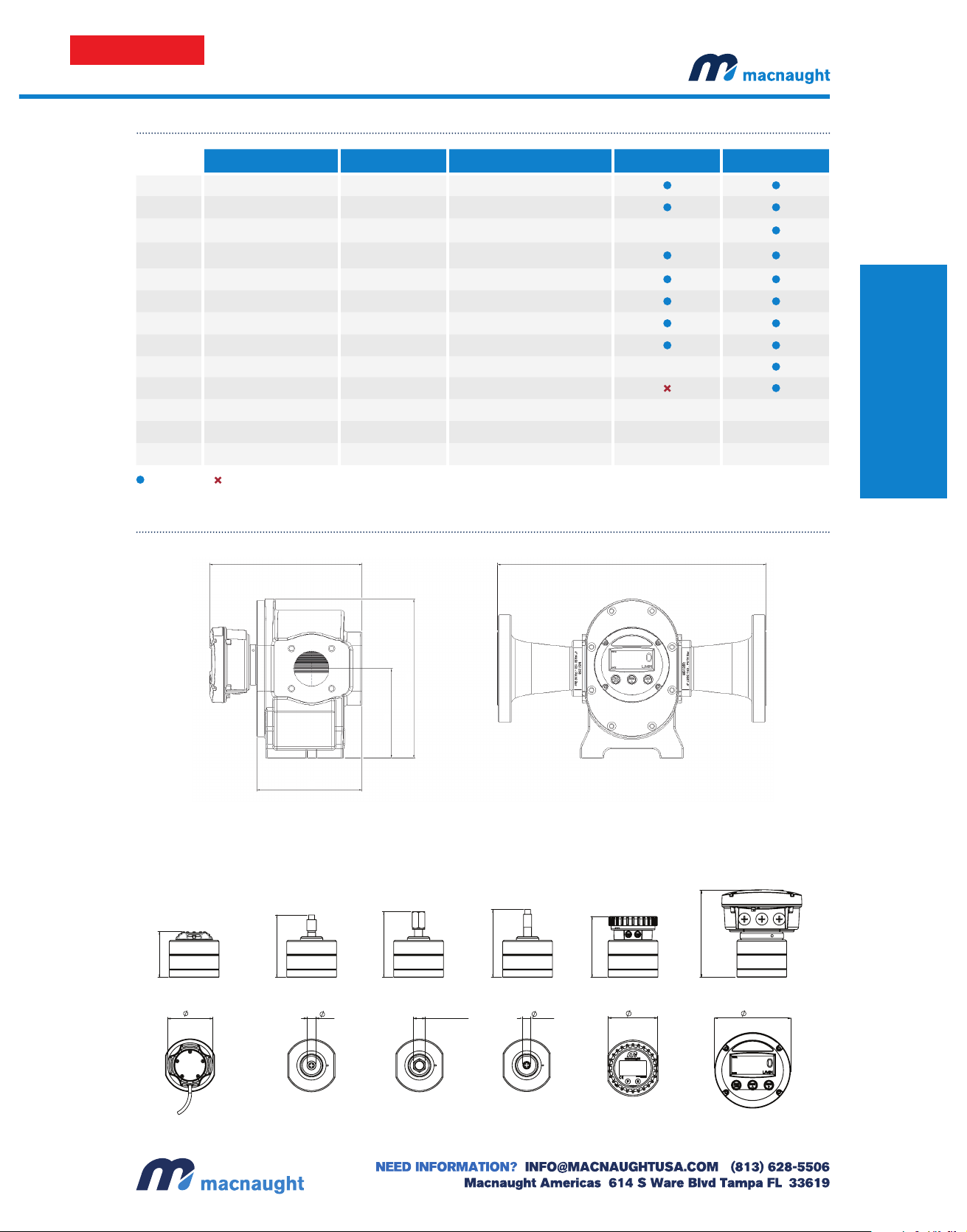

DIM E NSIONS
OUTPUT A
PULSER - Standard
S
Only with stainless steel rotors
A
141mm
179mm
PULSER AND DISPLAY HEIGHT - A
OUTPUT B
PULSER - Exia
PULSER - Exia
254mm
OUTPUT
—
Consult Macnaught Technical regarding availability
583mm*
OUTPUT
OUTPUT
N
T
PULSER - High Temp.
OUTPUT D,E
DISPLAY - LCD 12mm
F,G,H
DISPLAY - LCD 17mm
242mm
74mm
276mm
19mm
283mm
25.4mm (1") A/F
*Length subject to change refer to appendix B (pg. 74) for full dimension variations
NEED A QUOTE? hthttps://www.macnaughtusa.com/request-for-quote/
287mm
16mm
273mm
99mm
326mm
161mm
•
: ,
