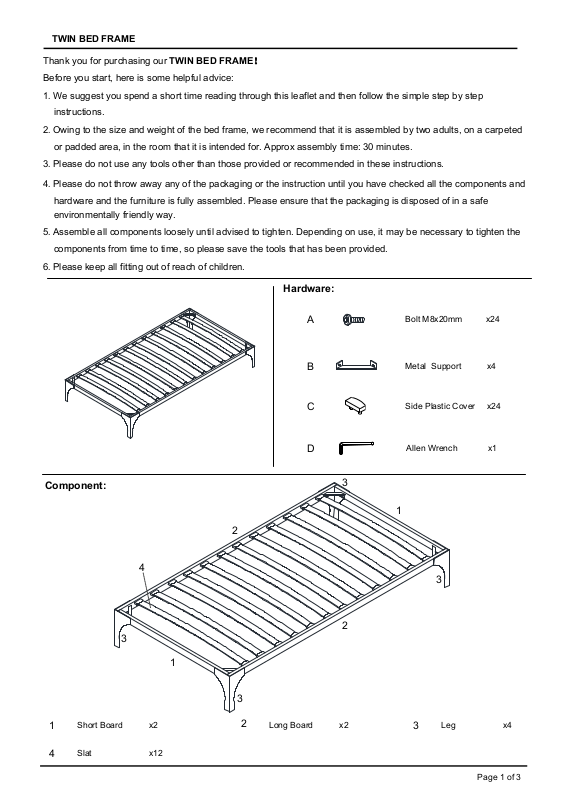

TWIN BED FRAME
Thank you for purchasing our TWIN BED FRAME！
Before you start, here is some
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the bed frame, we recommend that it is assembled by two adults, on a carpeted
or padded area, in the room that it is intended for. Approx assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
helpful advice:
Hardware:
A
Bolt M8x20mm x24
Component:
B
C
D
Metal Support x4
Side Plastic Cover x24
Allen Wrench x1
3
1
2
4
3
2
3
Short Board x2
1
Slat x12
4
1
3
2
Long Board x2
Leg x4
3
Page 1 of 3
Page 2

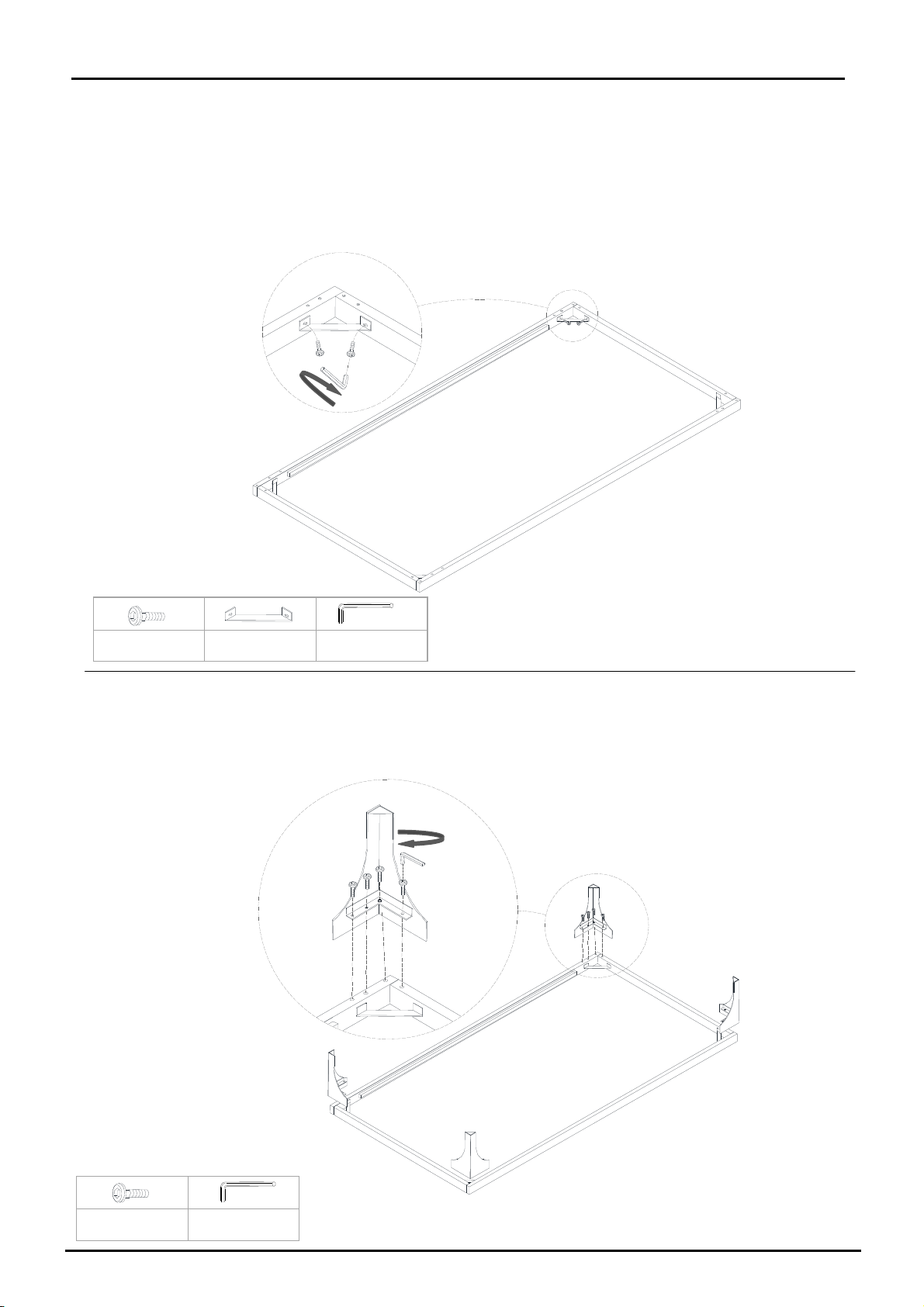

STEP 1:
Please put Short Boards (1), Long Boards (2) upside down on a carpeted or padded area.
Attach 1 piece of Metal Support (B) to one corner of Short Boards (1) and Long Boards (2) by using 2 pieces of
Bolt (A) as shown.
Repeat the same steps for the remaining 3 pieces of Metal Support (B).
Use Allen Wrench (D) to tighten Bolts (A) clockwise until secure.
2
B
A
1
B
A
A
1
A
D
2
2
1
Ax8 Bx4 Dx1
STEP 2:
Attach 1 piece of Leg (3) to one corner of Short Boards (1) and Long Boards (2) by using 4 pieces of Bolt (A) as shown.
Repeat the same steps for the remaining 3 pieces of Leg (3).
Use Allen Wrench (D) to tighten Bolts (A) clockwise until secure.
Hardware & Tool required
Ax16 Dx
3
A
A
A
D
A
A
A
A
3
A
1
2
1
2
3
B
3
3
2
1
1
Hardware & Tool required
Page 2 of 3
Page 3

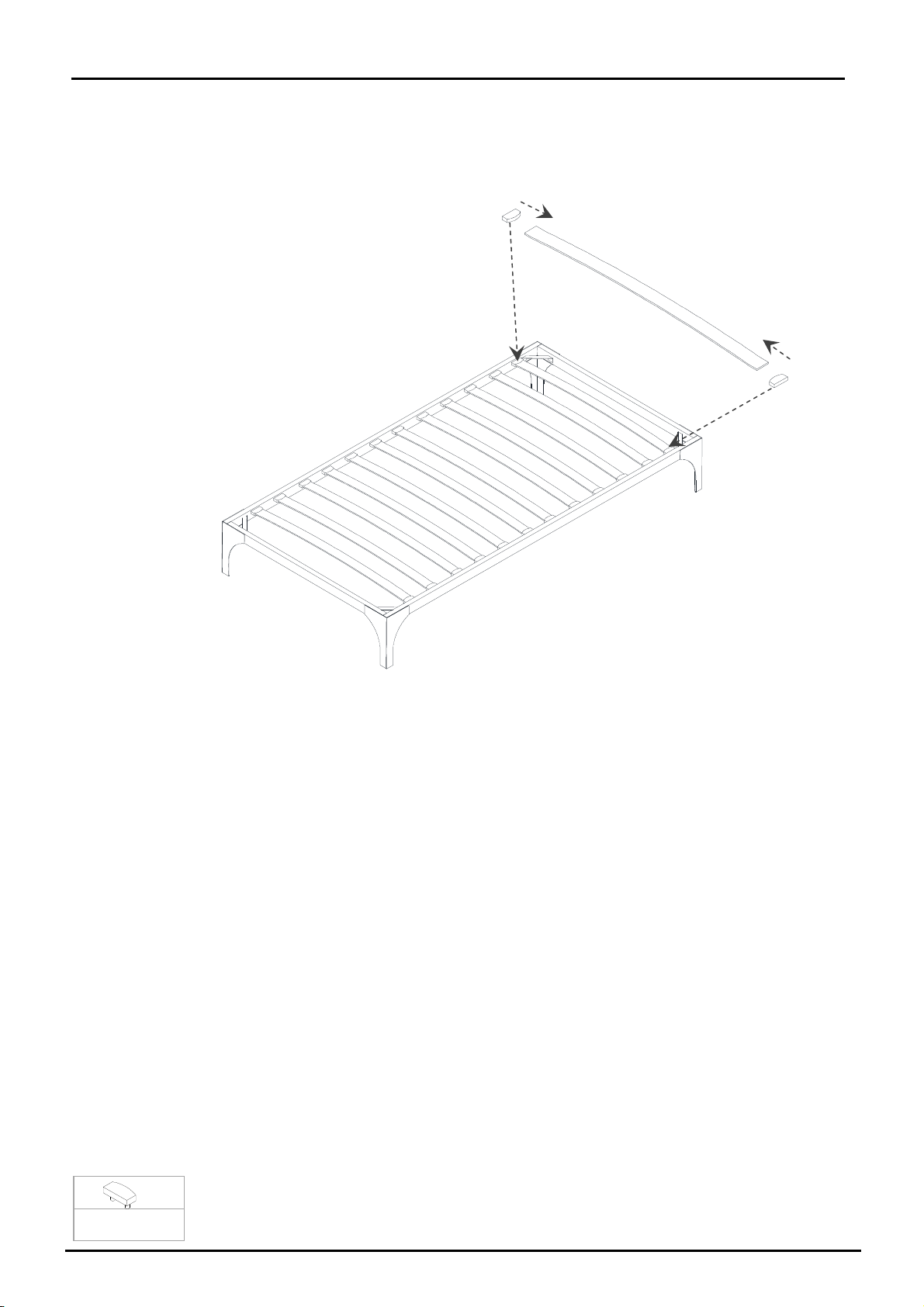

STEP 3:
Insert 2 piece of Side Plastic Cover (C) into each end of Slat (4) as shown.
Insert the assembled Side Plastic Covers (C) into the corresponding holes on Long Board (2) as shown.
Repeat the same steps for the remaining 11 pieces Slat (4).
C
4
2
C
2
Ax24
Assembly is complete. Your bed frame is ready to be used now!
