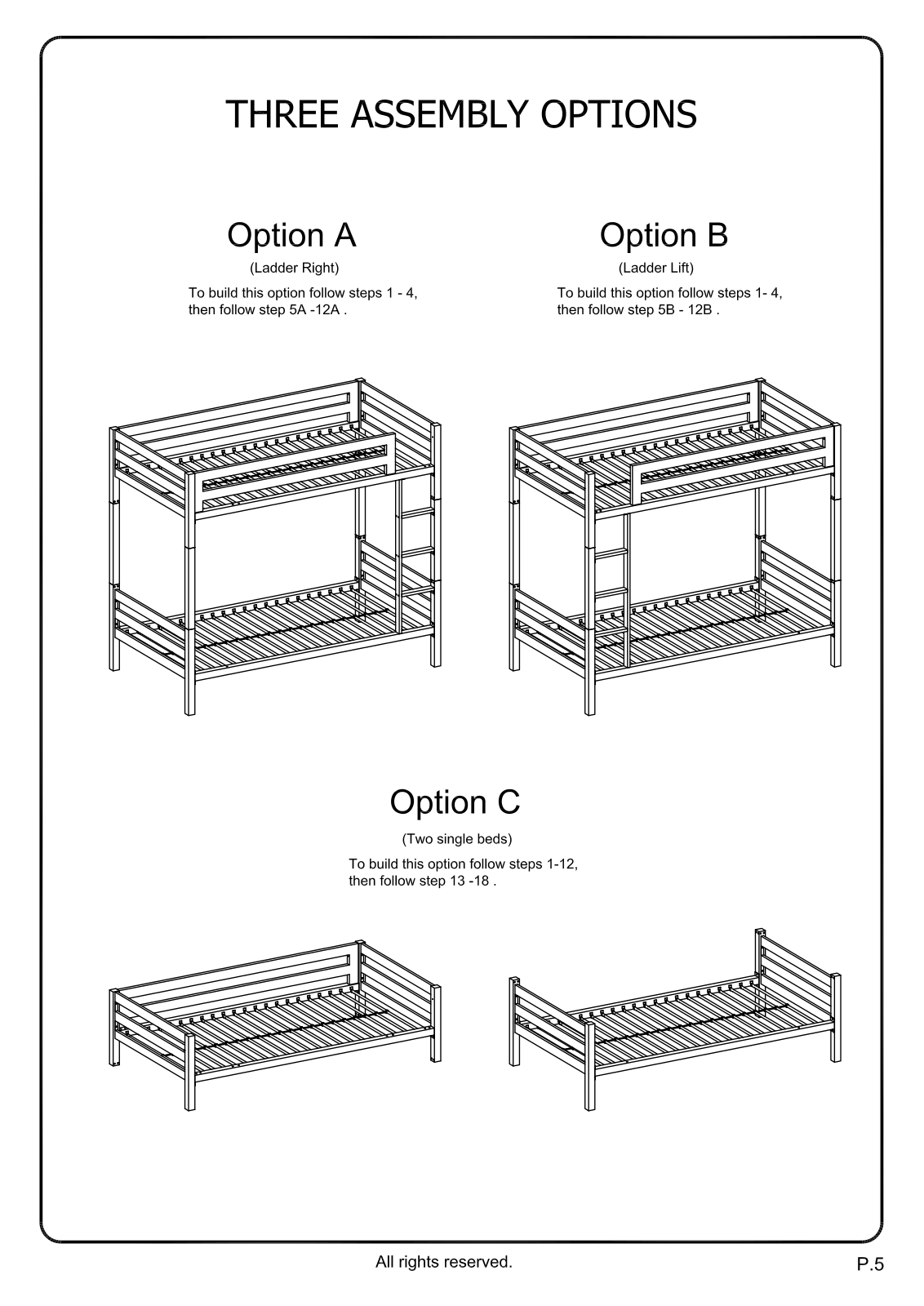

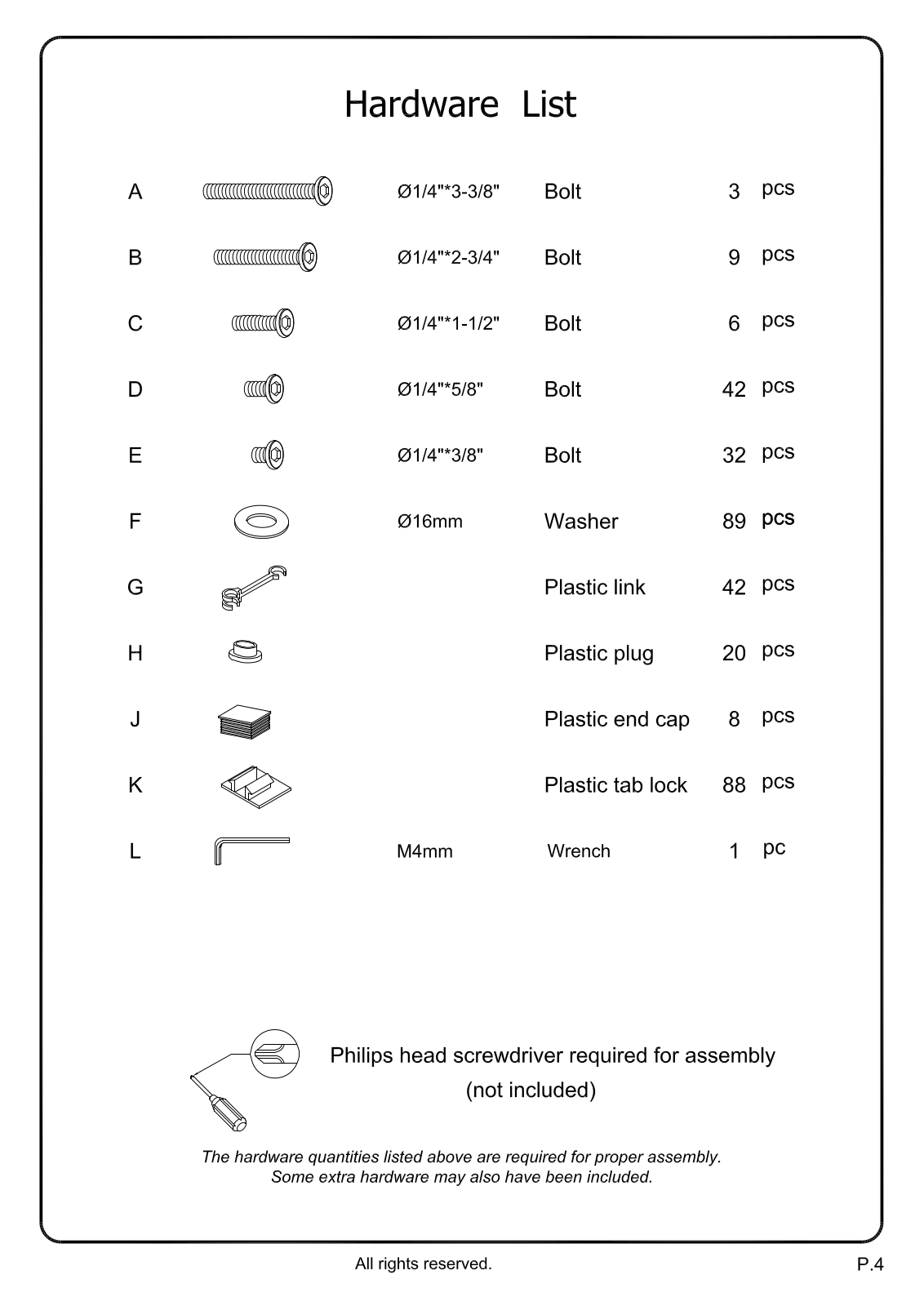

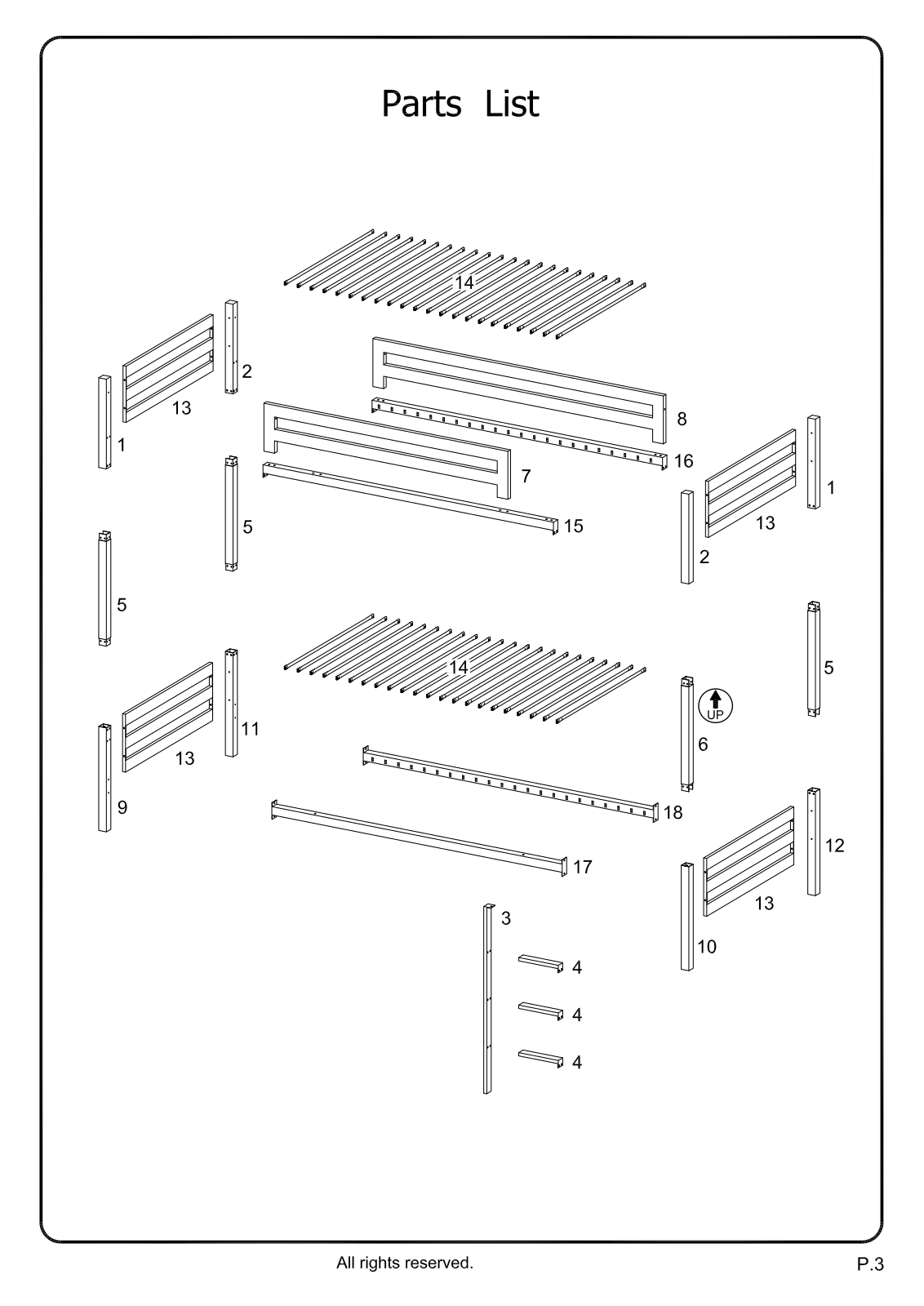

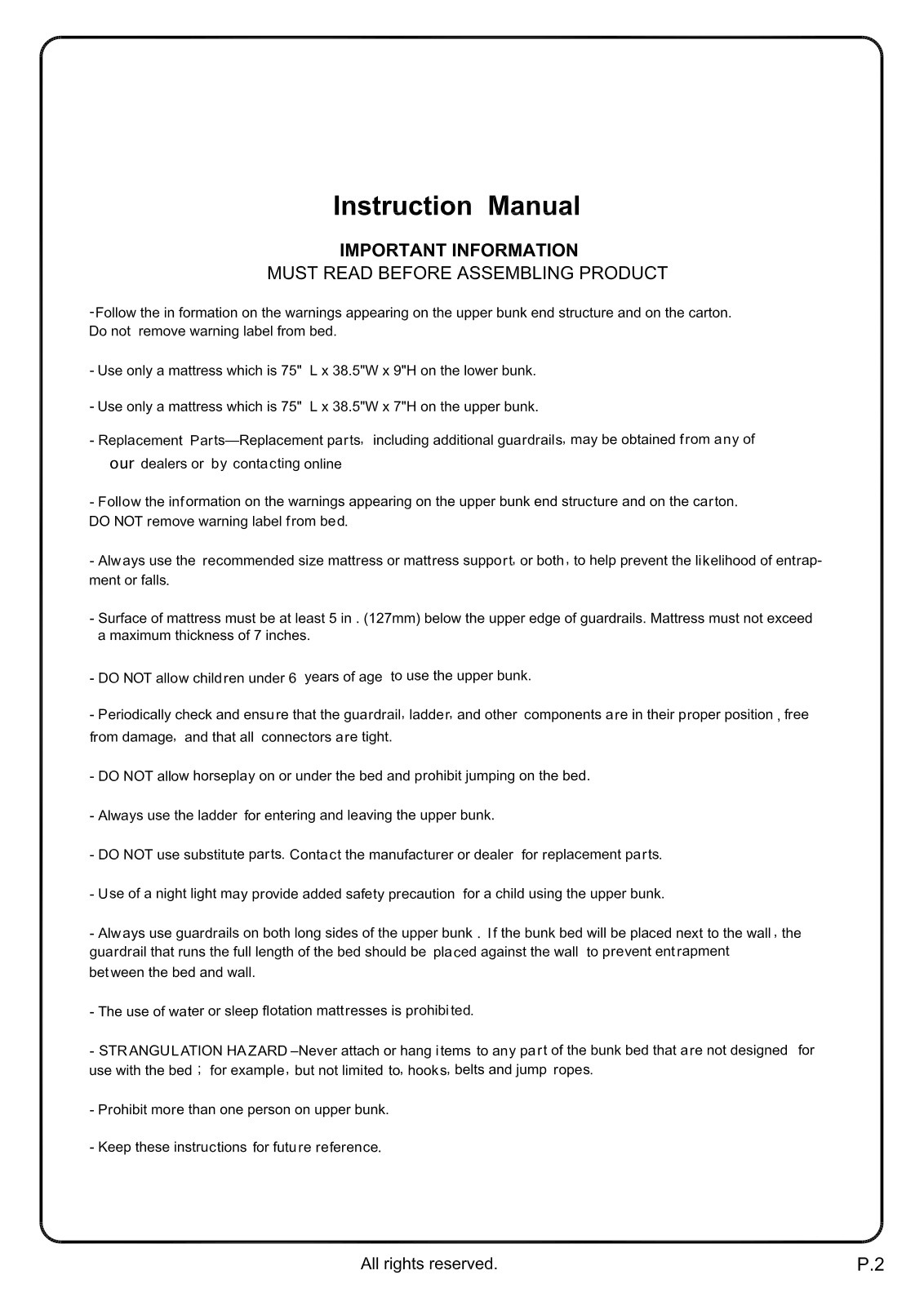

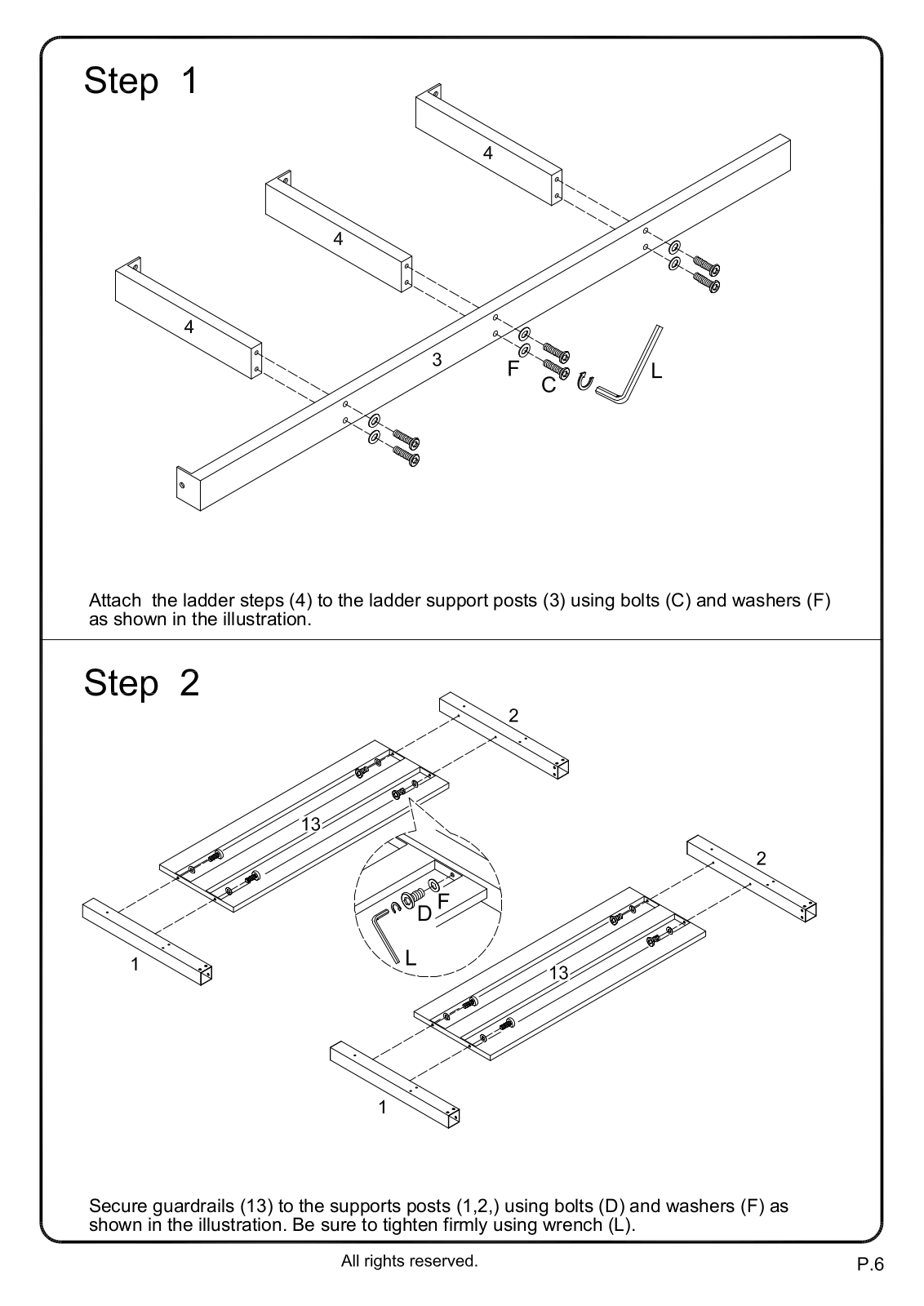

Secure guardrails (13) to the supports posts (1,2,) using bolts (D) and washers (F) as
shown in the illustration. Be sure to tighten firmly using wrench (L).
Attach the ladder steps (4) to the ladder support posts (3) using bolts (C) and washers (F)
as shown in the illustration.

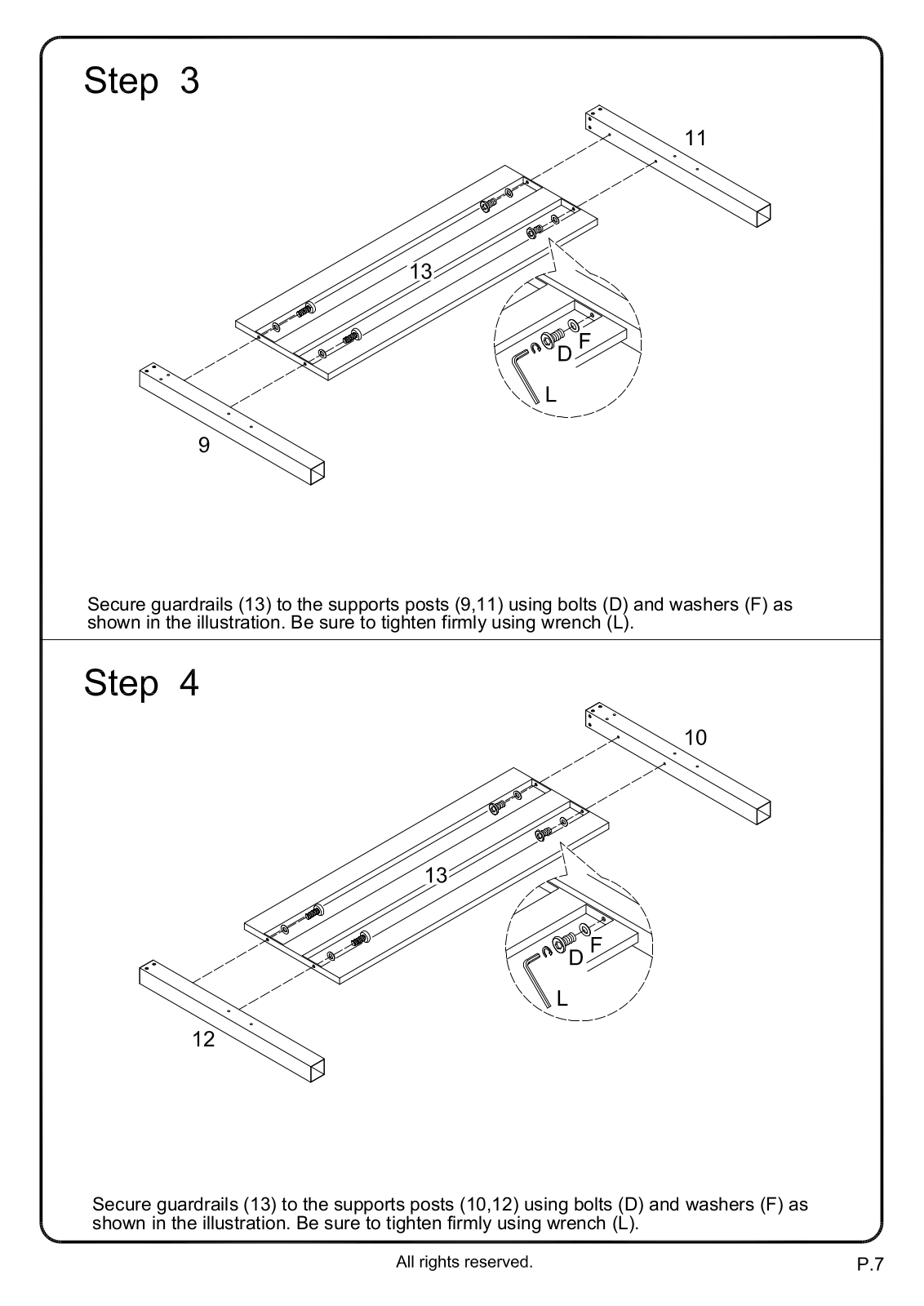

Secure guardrails (13) to the supports posts (10,12) using bolts (D) and washers (F) as
shown in the illustration. Be sure to tighten firmly using wrench (L).
Secure guardrails (13) to the supports posts (9,11) using bolts (D) and washers (F) as
shown in the illustration. Be sure to tighten firmly using wrench (L).

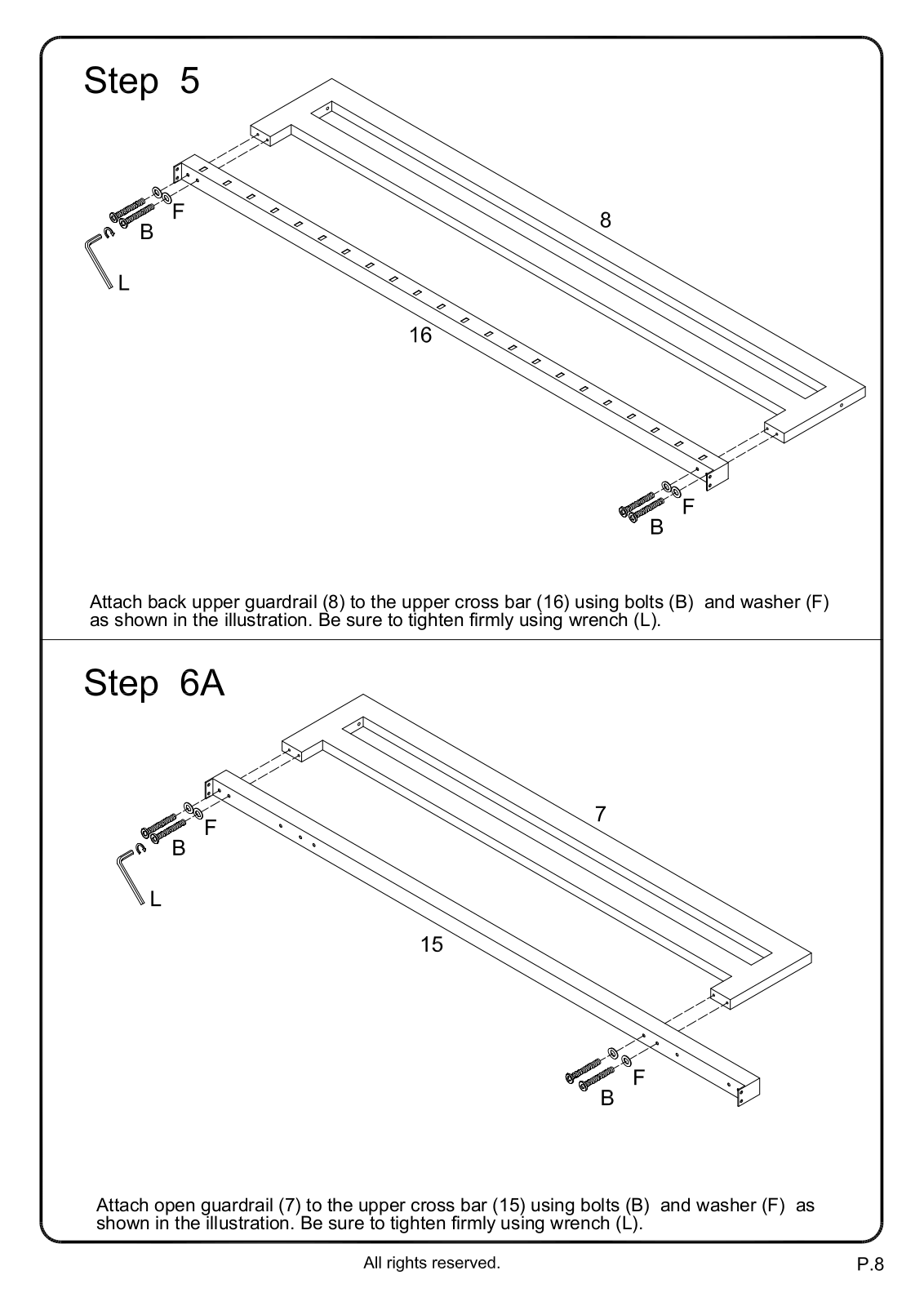

Attach back upper guardrail (8) to the upper cross bar (16) using bolts (B) and washer (F)
as shown in the illustration. Be sure to tighten firmly using wrench (L).

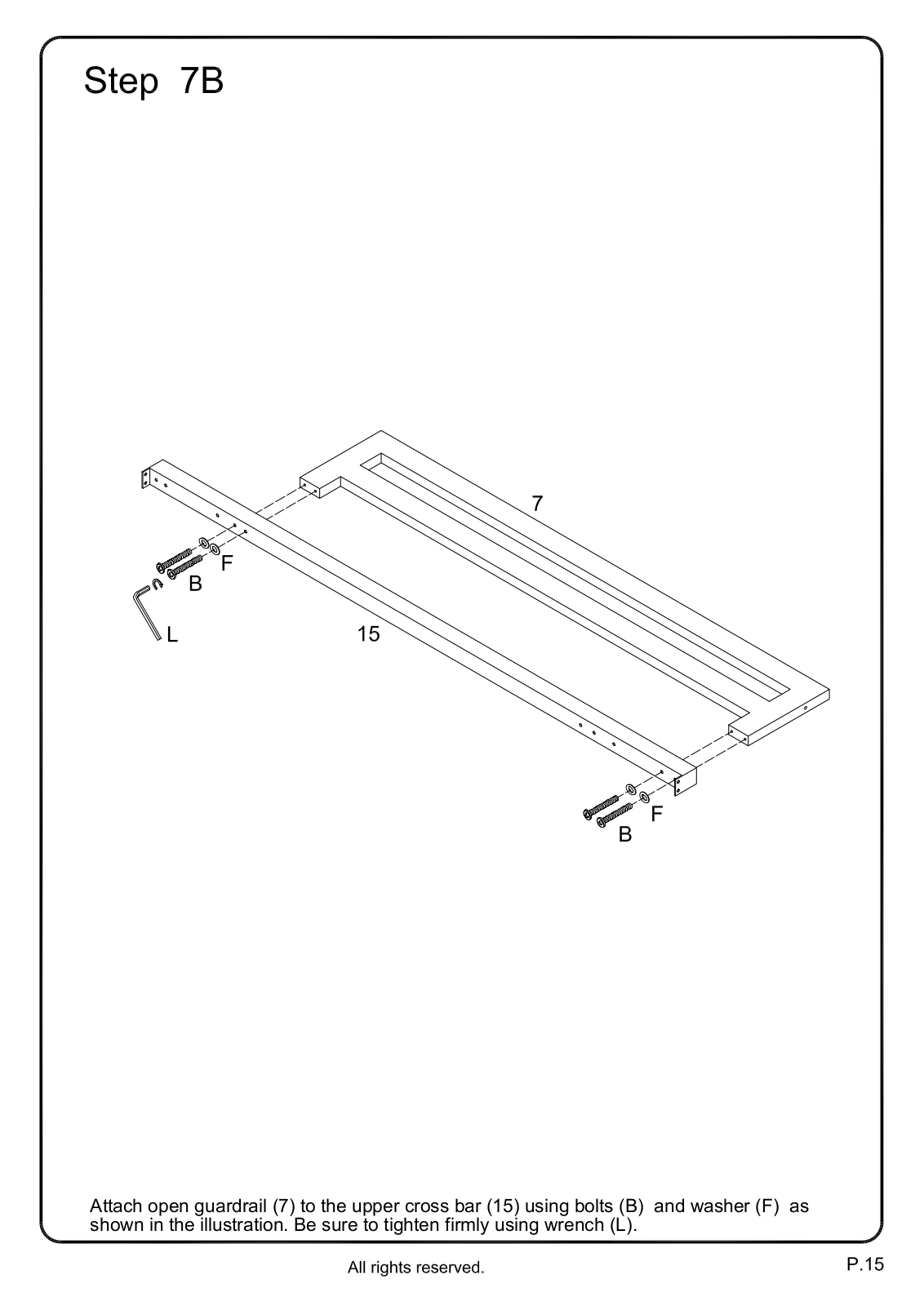

Attach open guardrail (7) to the upper cross bar (15) using bolts (B) and washer (F) as
shown in the illustration. Be sure to tighten firmly using wrench (L).

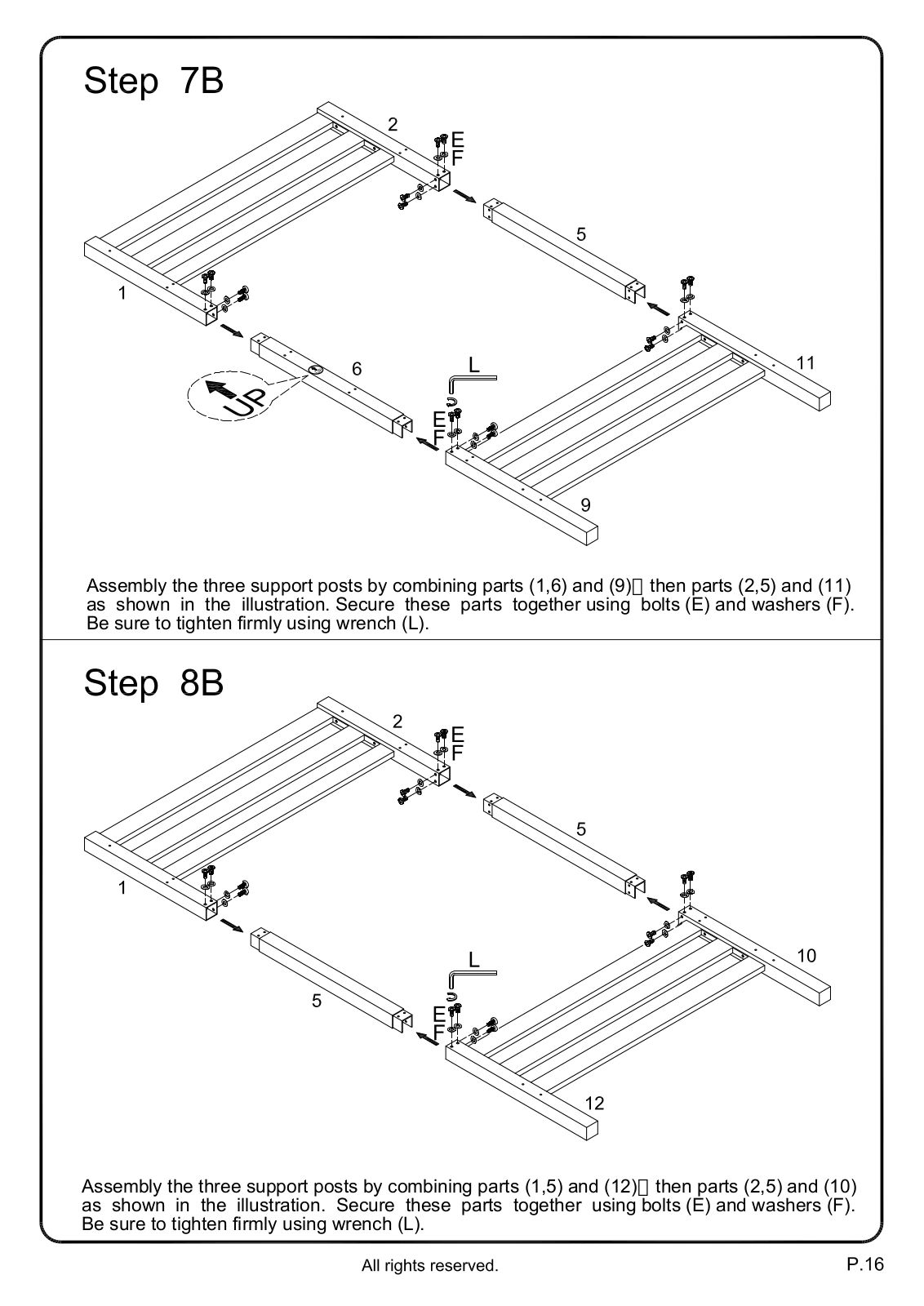

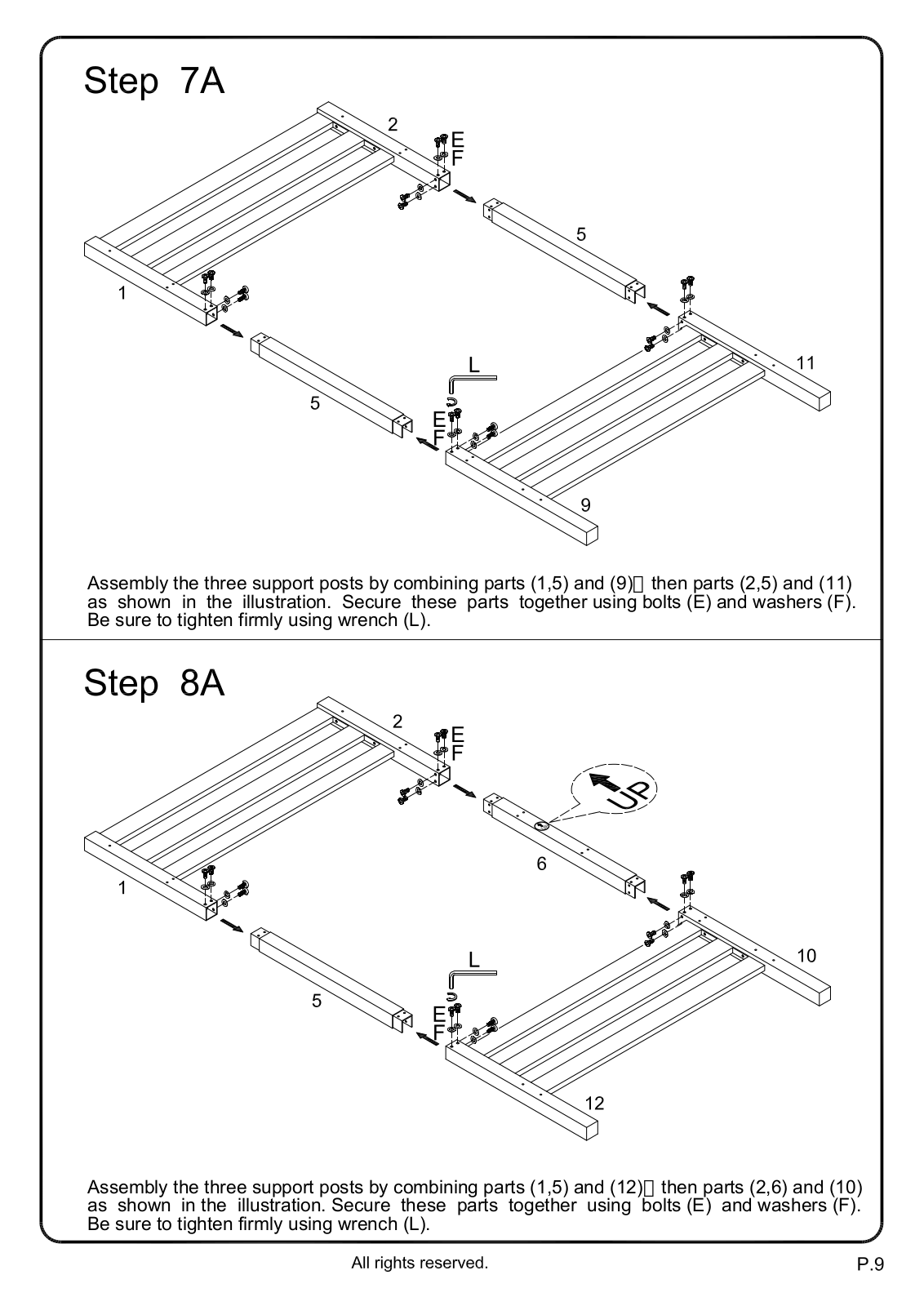

Assembly the three support posts by combining parts (1,5) and (12)；then parts (2,6) and (10)
as shown in the illustration. Secure these parts together using bolts (E) and washers (F).
Be sure to tighten firmly using wrench (L).
Assembly the three support posts by combining parts (1,5) and (9)；then parts (2,5) and (11)
as shown in the illustration. Secure these parts together using bolts (E) and washers (F).
Be sure to tighten firmly using wrench (L).

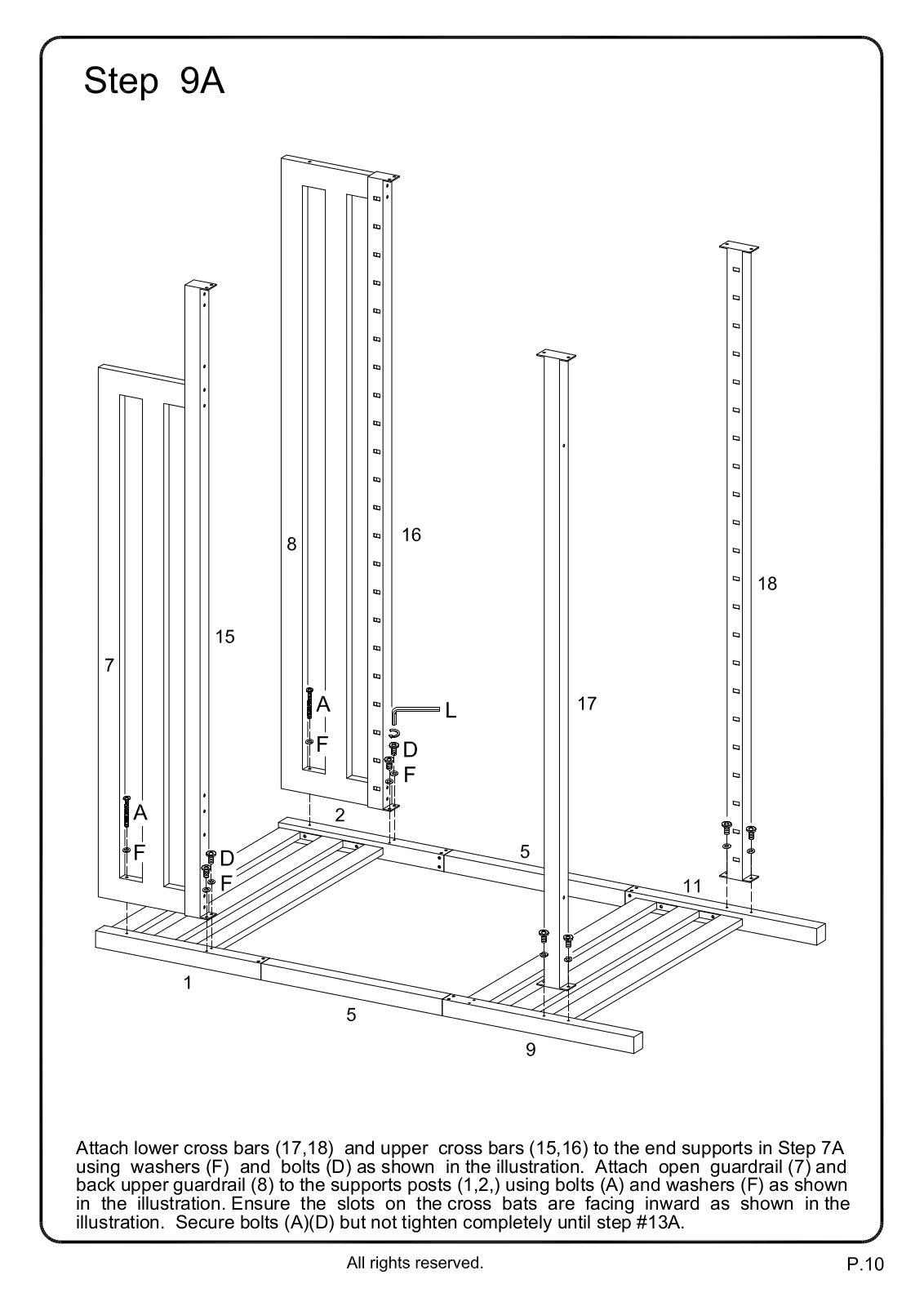

Attach lower cross bars (17,18) and upper cross bars (15,16) to the end supports in Step 7A
using washers (F) and bolts (D) as shown in the illustration. Attach open guardrail (7) and
back upper guardrail (8) to the supports posts (1,2,) using bolts (A) and washers (F) as shown
in the illustration. Ensure the slots on the cross bats are facing inward as shown in the
illustration. Secure bolts (A)(D) but not tighten completely until step #13A.

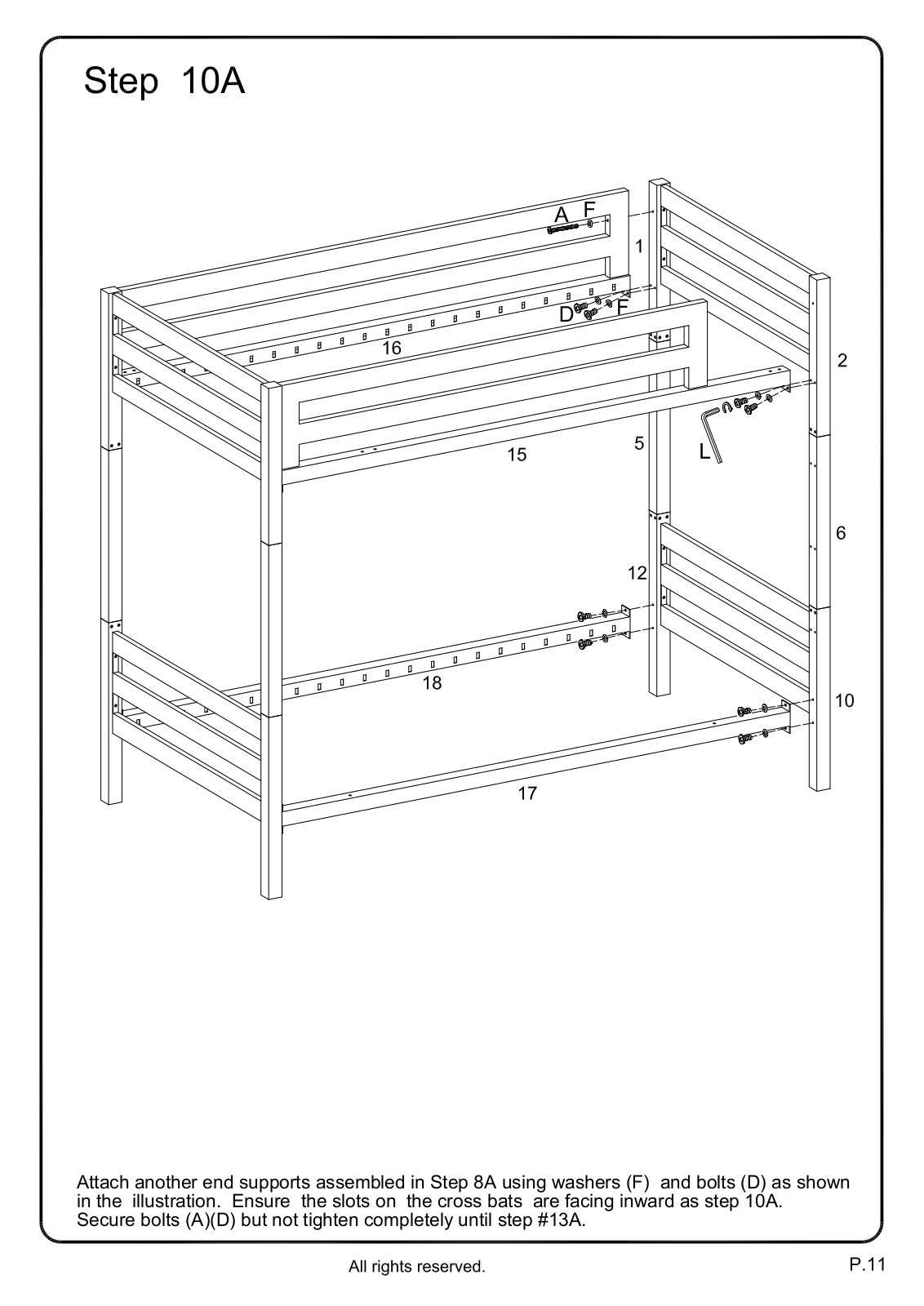

Attach another end supports assembled in Step 8A using washers (F) and bolts (D) as shown
in the illustration. Ensure the slots on the cross bats are facing inward as step 10A.
Secure bolts (A)(D) but not tighten completely until step #13A.

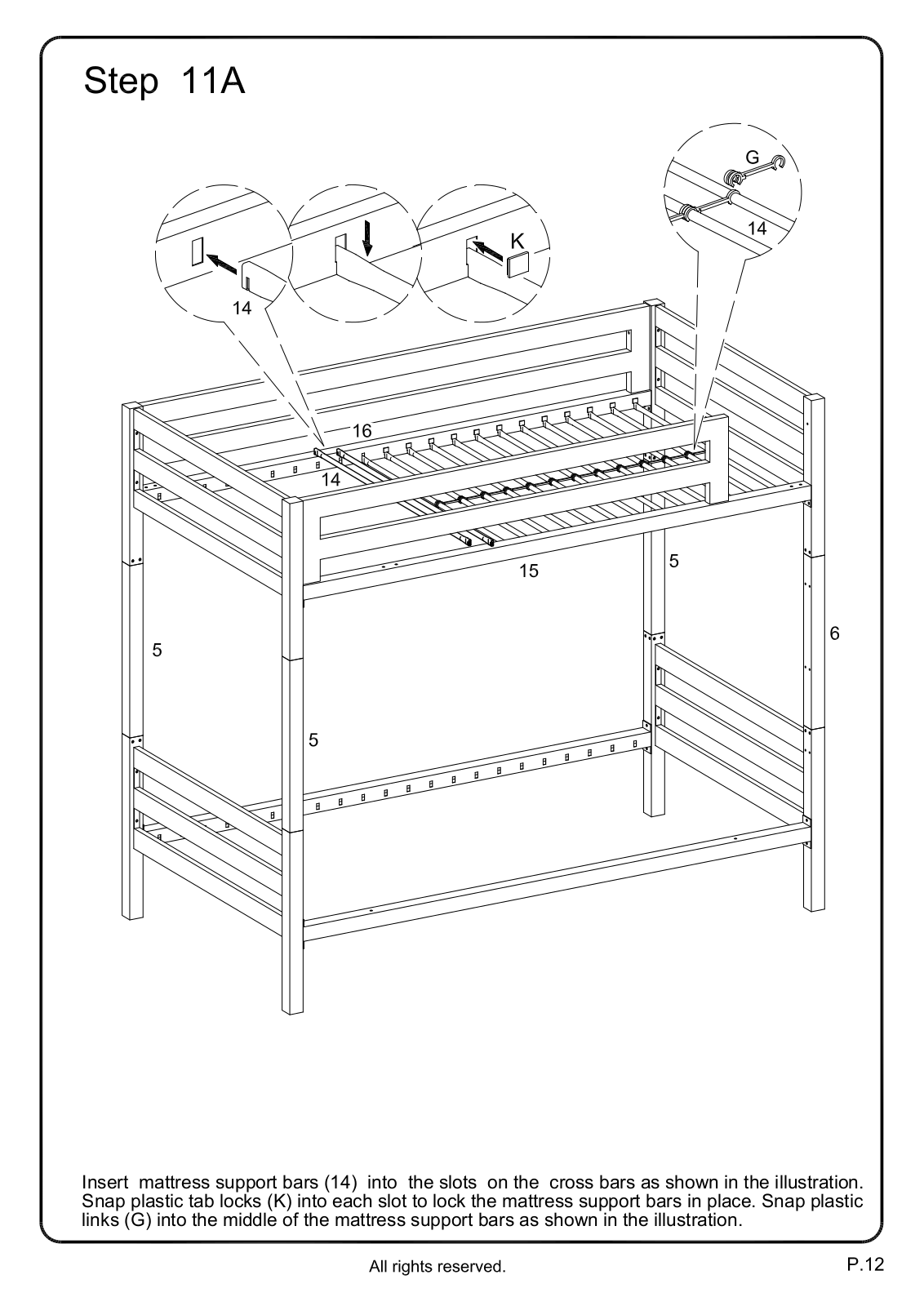

Insert mattress support bars (14) into the slots on the cross bars as shown in the illustration.
Snap plastic tab locks (K) into each slot to lock the mattress support bars in place. Snap plastic
links (G) into the middle of the mattress support bars as shown in the illustration.
Insert mattress support bars (14) into the slots on the cross bars as shown in the illustration.
Snap plastic tab locks (K) into each slot to lock the mattress support bars in place. Snap plastic
links (G) into the middle of the mattress support bars as shown in the illustration.

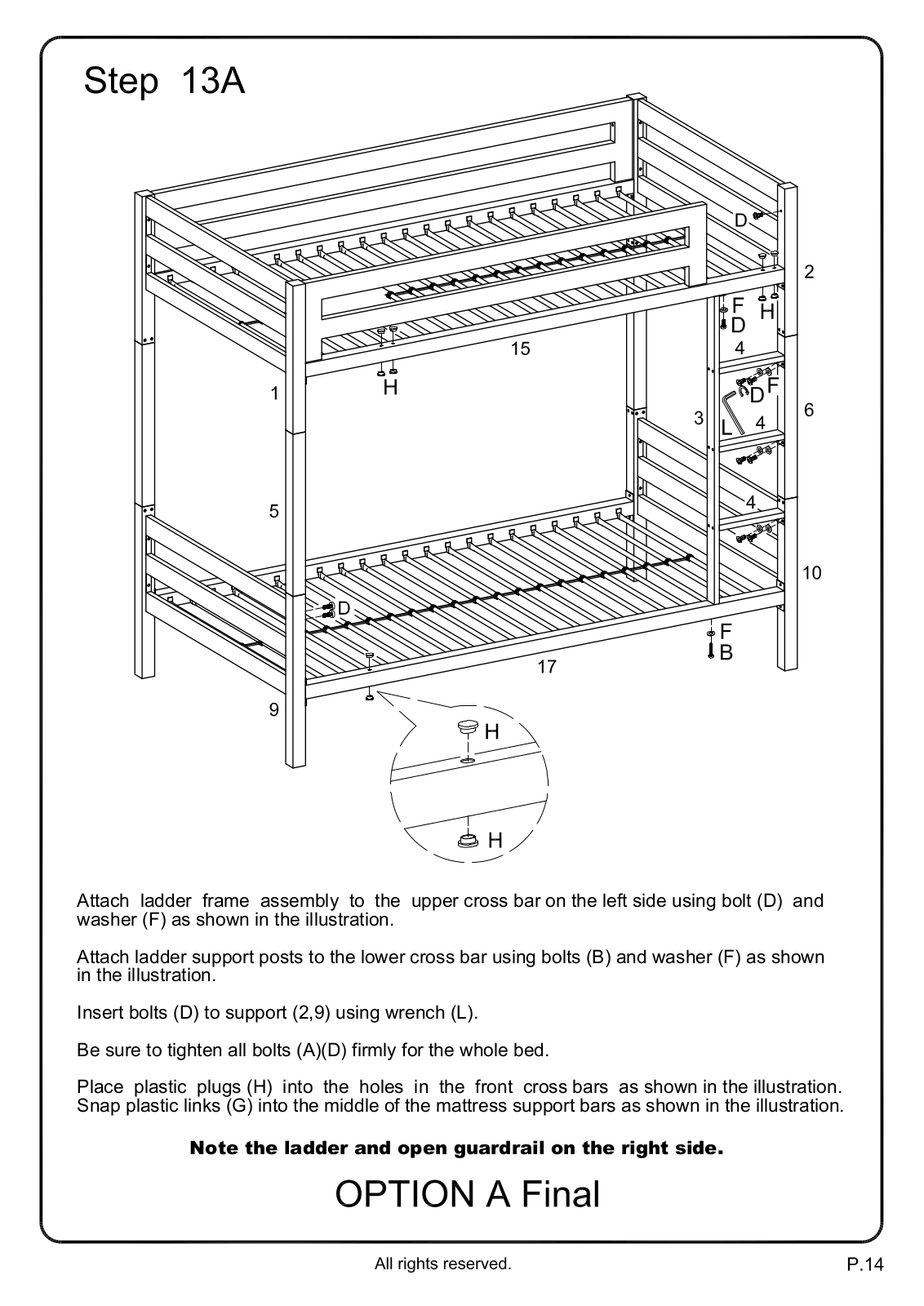

Note the ladder and open guardrail on the right side.
Attach ladder frame assembly to the upper cross bar on the left side using bolt (D) and
washer (F) as shown in the illustration.
Attach ladder support posts to the lower cross bar using bolts (B) and washer (F) as shown
in the illustration.
Insert bolts (D) to support (2,9) using wrench (L).
Be sure to tighten all bolts (A)(D) firmly for the whole bed.
Place plastic plugs (H) into the holes in the front cross bars as shown in the illustration.
Snap plastic links (G) into the middle of the mattress support bars as shown in the illustration.
Attach open guardrail (7) to the upper cross bar (15) using bolts (B) and washer (F) as
shown in the illustration. Be sure to tighten firmly using wrench (L).
Assembly the three support posts by combining parts (1,5) and (12)；then parts (2,5) and (10)
as shown in the illustration. Secure these parts together using bolts (E) and washers (F).
Be sure to tighten firmly using wrench (L).
Assembly the three support posts by combining parts (1,6) and (9)；then parts (2,5) and (11)
as shown in the illustration. Secure these parts together using bolts (E) and washers (F).
Be sure to tighten firmly using wrench (L).

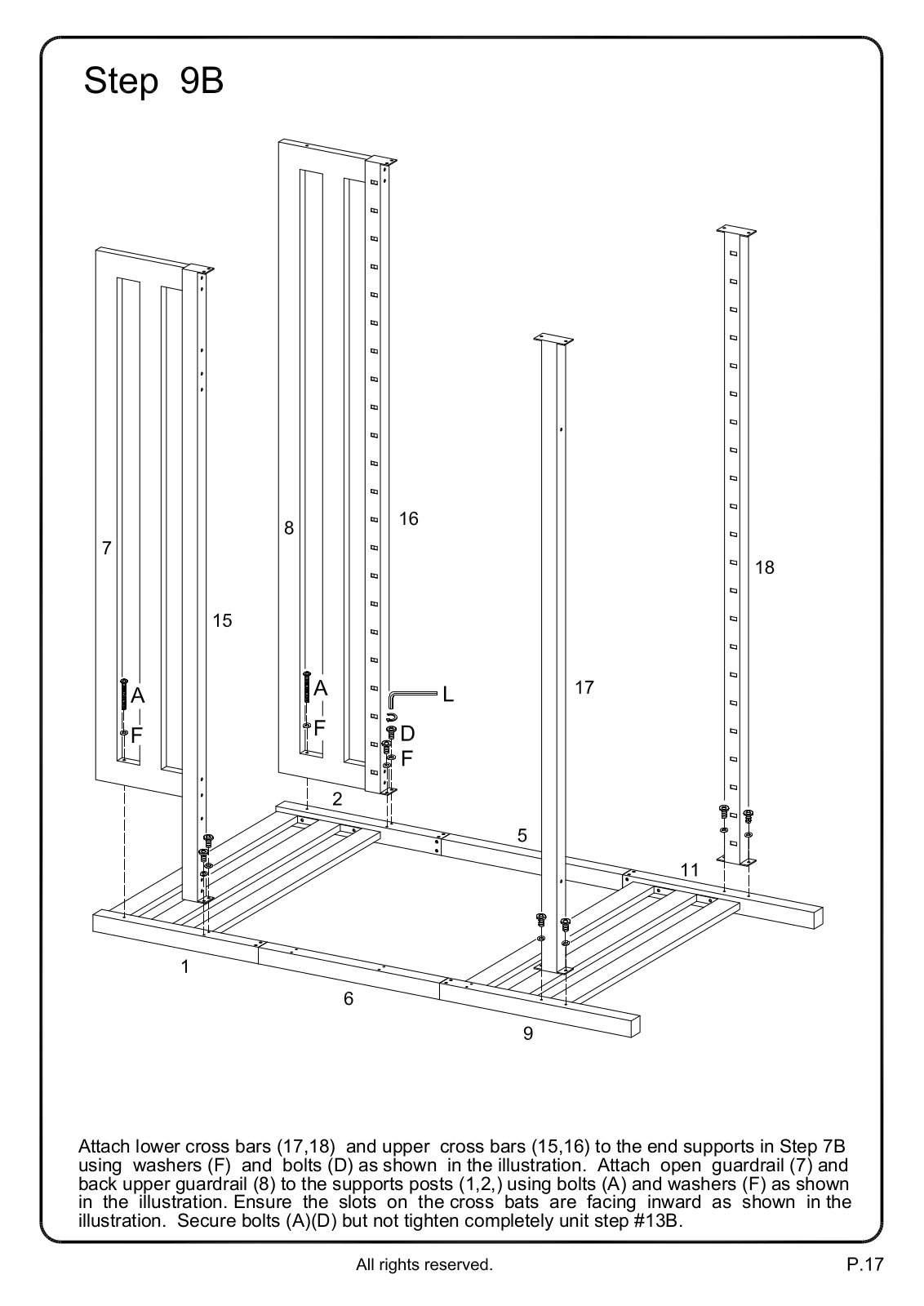

Attach lower cross bars (17,18) and upper cross bars (15,16) to the end supports in Step 7B
using washers (F) and bolts (D) as shown in the illustration. Attach open guardrail (7) and
back upper guardrail (8) to the supports posts (1,2,) using bolts (A) and washers (F) as shown
in the illustration. Ensure the slots on the cross bats are facing inward as shown in the
illustration. Secure bolts (A)(D) but not tighten completely unit step #13B.

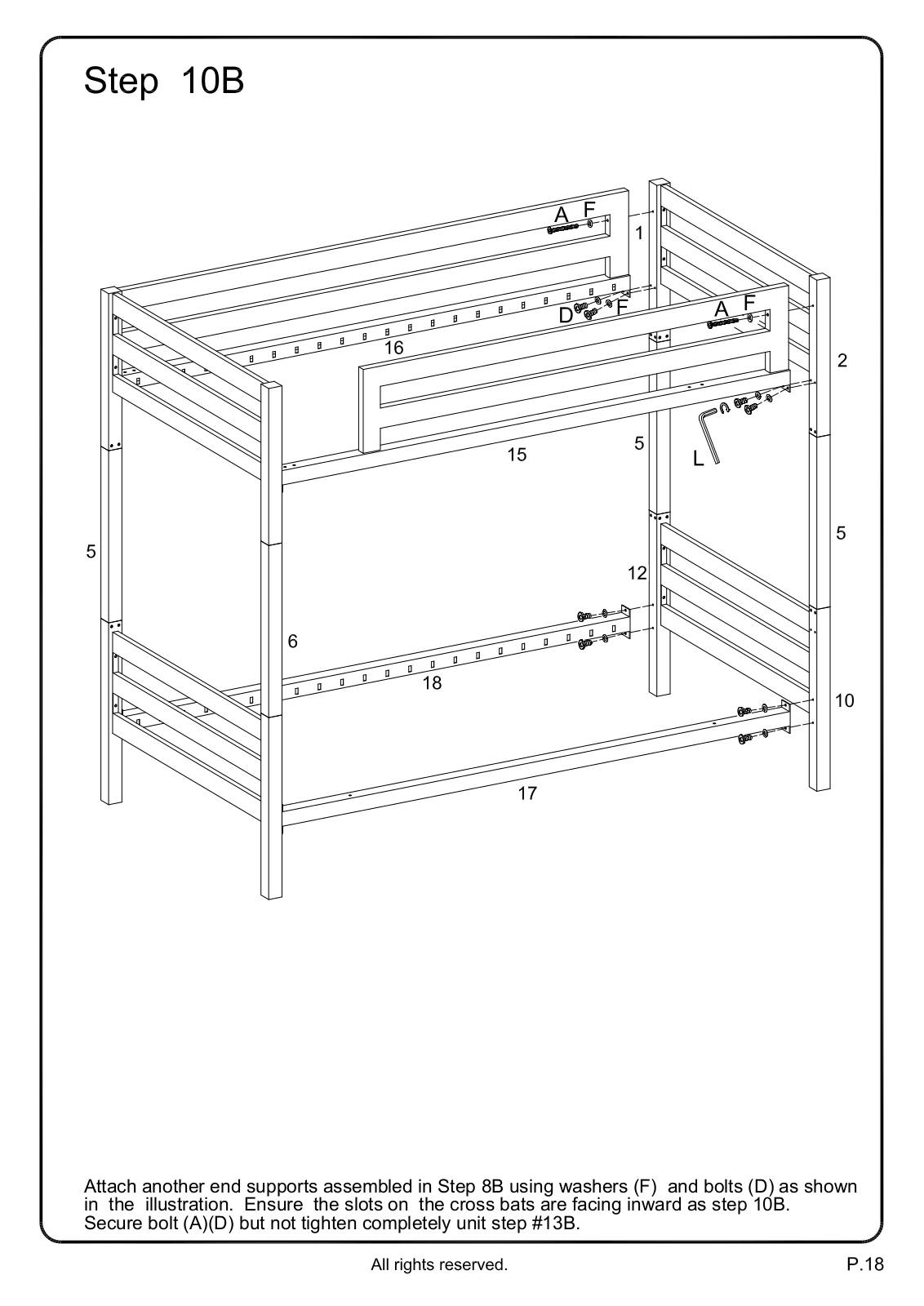

Attach another end supports assembled in Step 8B using washers (F) and bolts (D) as shown
in the illustration. Ensure the slots on the cross bats are facing inward as step 10B.
Secure bolt (A)(D) but not tighten completely unit step #13B.

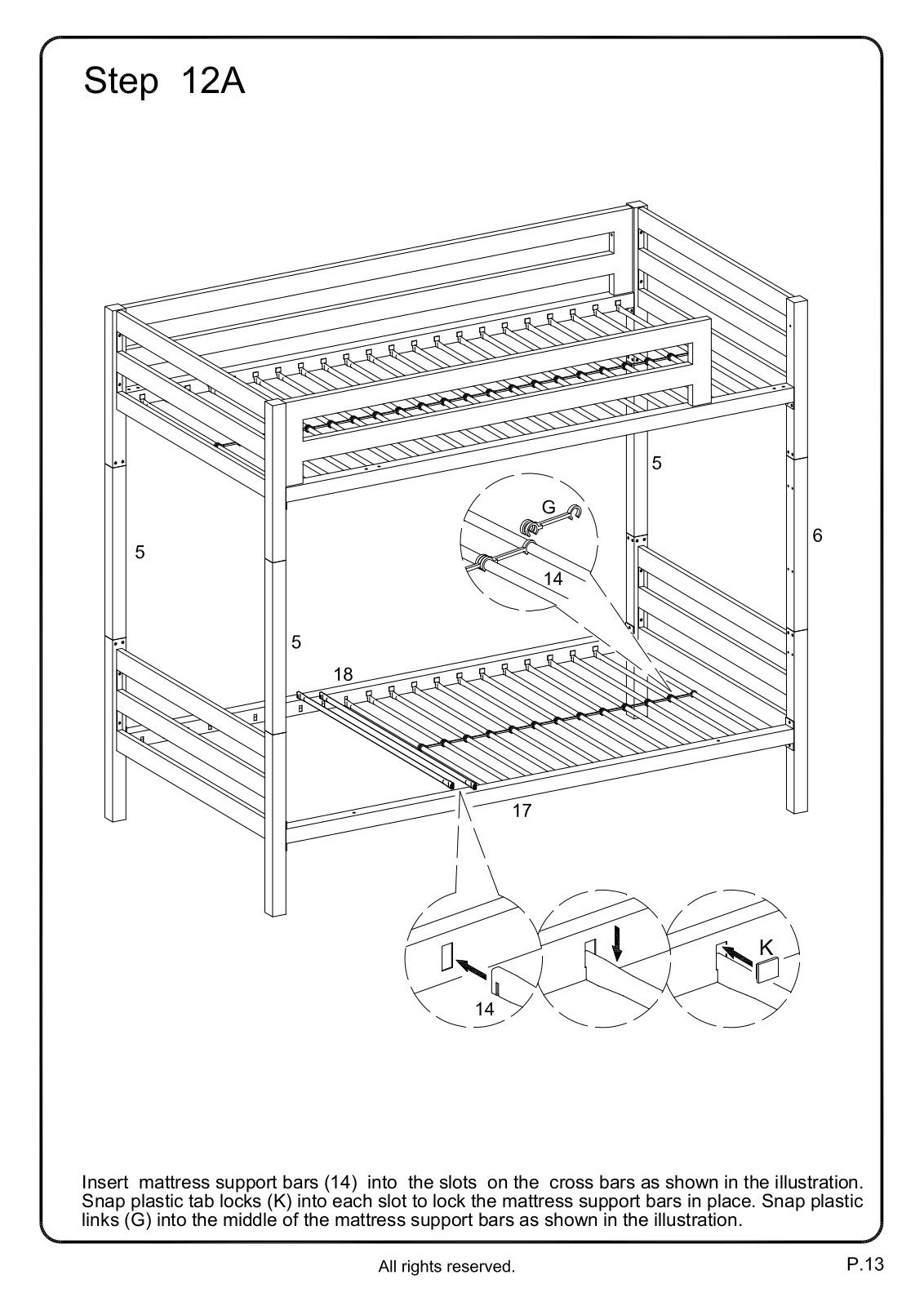

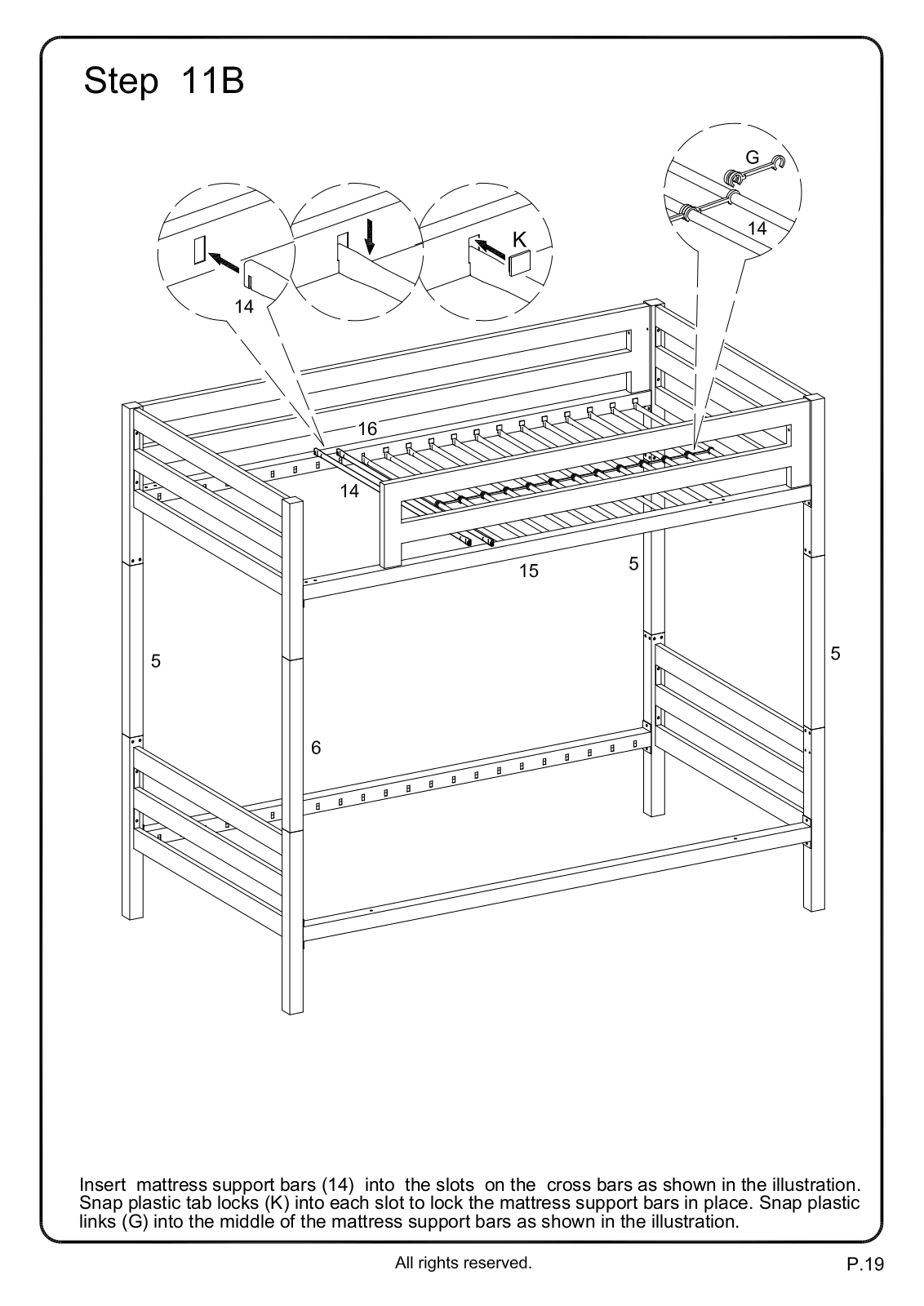

Insert mattress support bars (14) into the slots on the cross bars as shown in the illustration.
Snap plastic tab locks (K) into each slot to lock the mattress support bars in place. Snap plastic
links (G) into the middle of the mattress support bars as shown in the illustration.

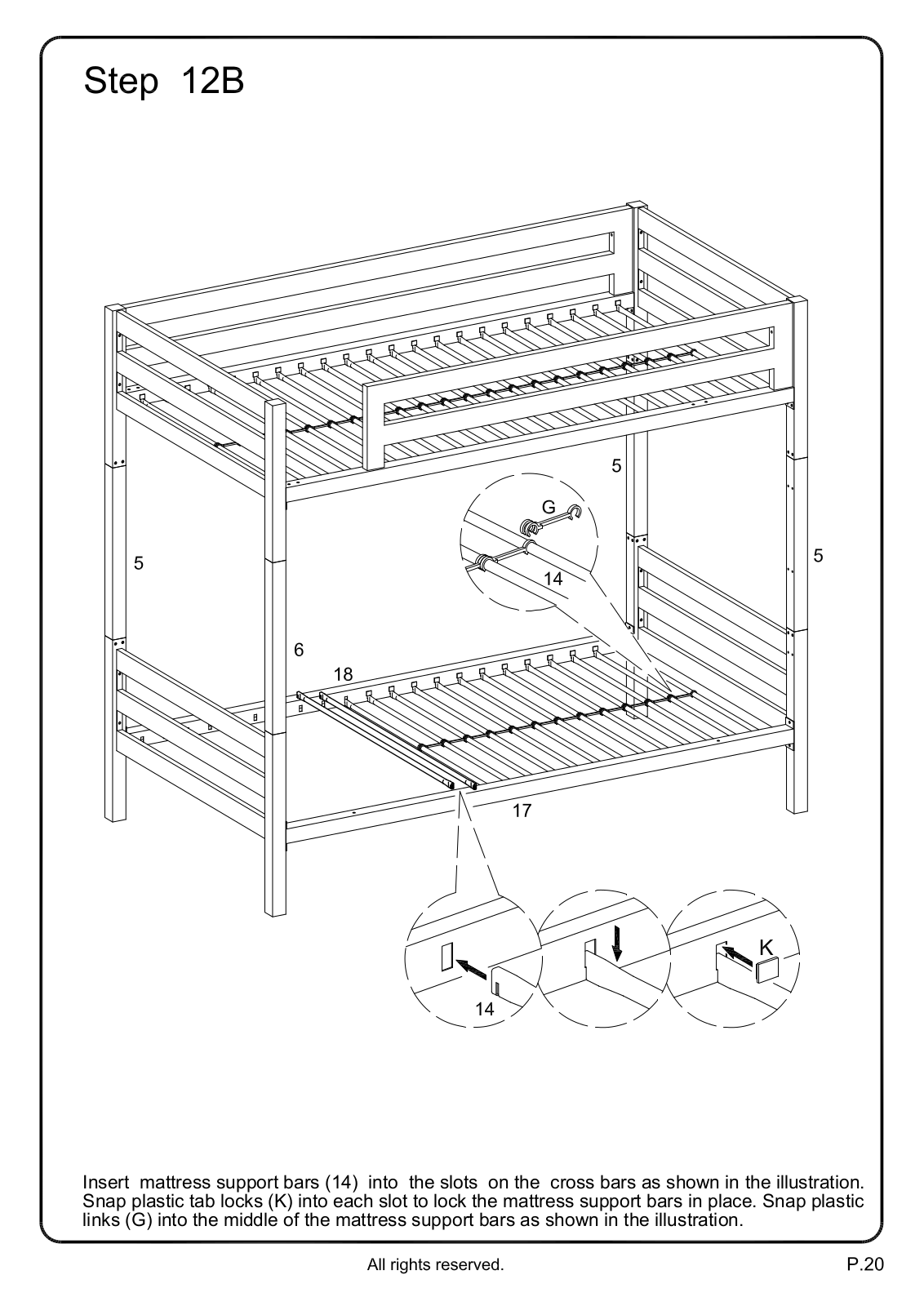

Insert mattress support bars (14) into the slots on the cross bars as shown in the illustration.
Snap plastic tab locks (K) into each slot to lock the mattress support bars in place. Snap plastic
links (G) into the middle of the mattress support bars as shown in the illustration.

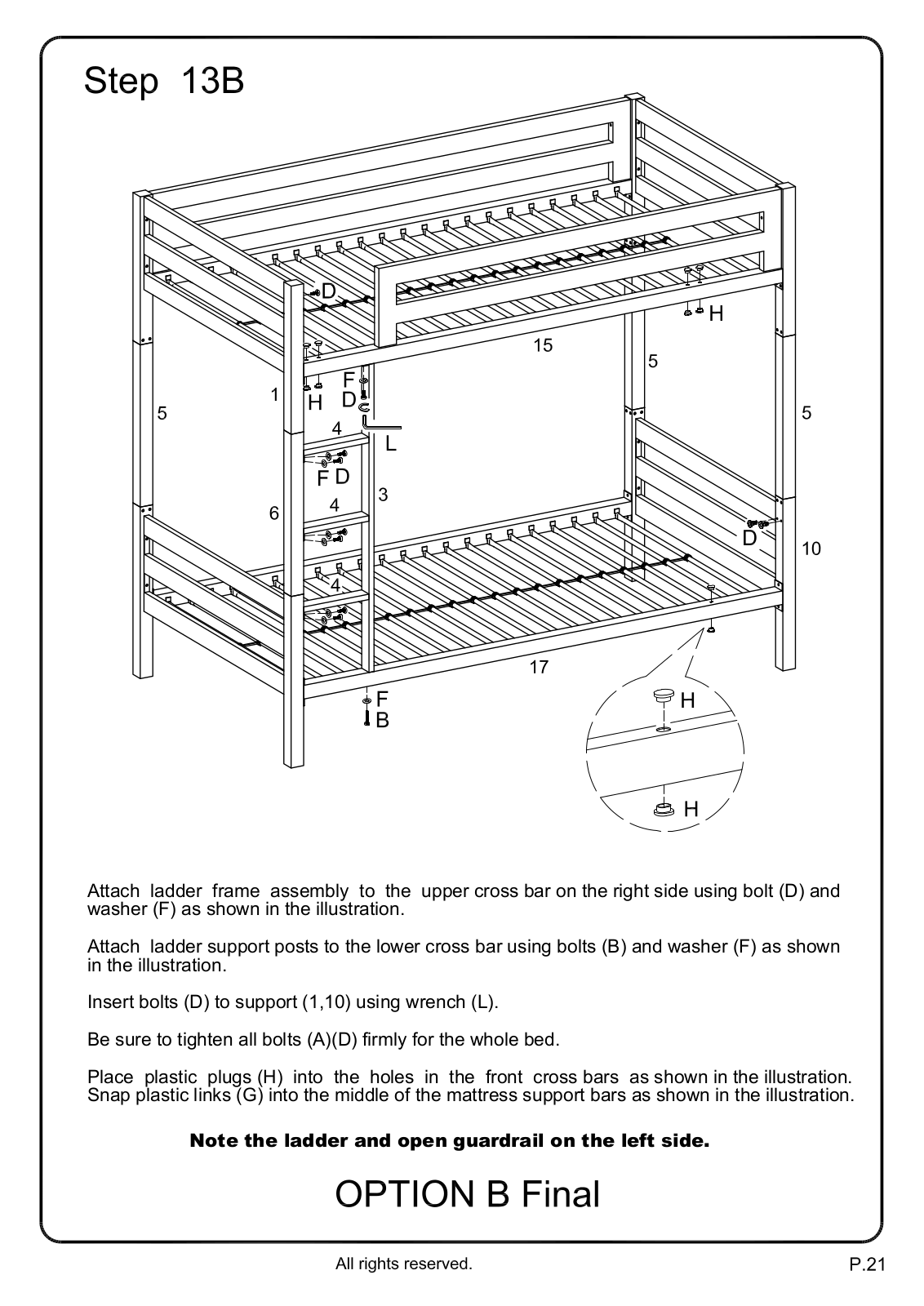

Note the ladder and open guardrail on the left side.
Attach ladder frame assembly to the upper cross bar on the right side using bolt (D) and
washer (F) as shown in the illustration.
Attach ladder support posts to the lower cross bar using bolts (B) and washer (F) as shown
in the illustration.
Insert bolts (D) to support (1,10) using wrench (L).
Be sure to tighten all bolts (A)(D) firmly for the whole bed.
Place plastic plugs (H) into the holes in the front cross bars as shown in the illustration.
Snap plastic links (G) into the middle of the mattress support bars as shown in the illustration.

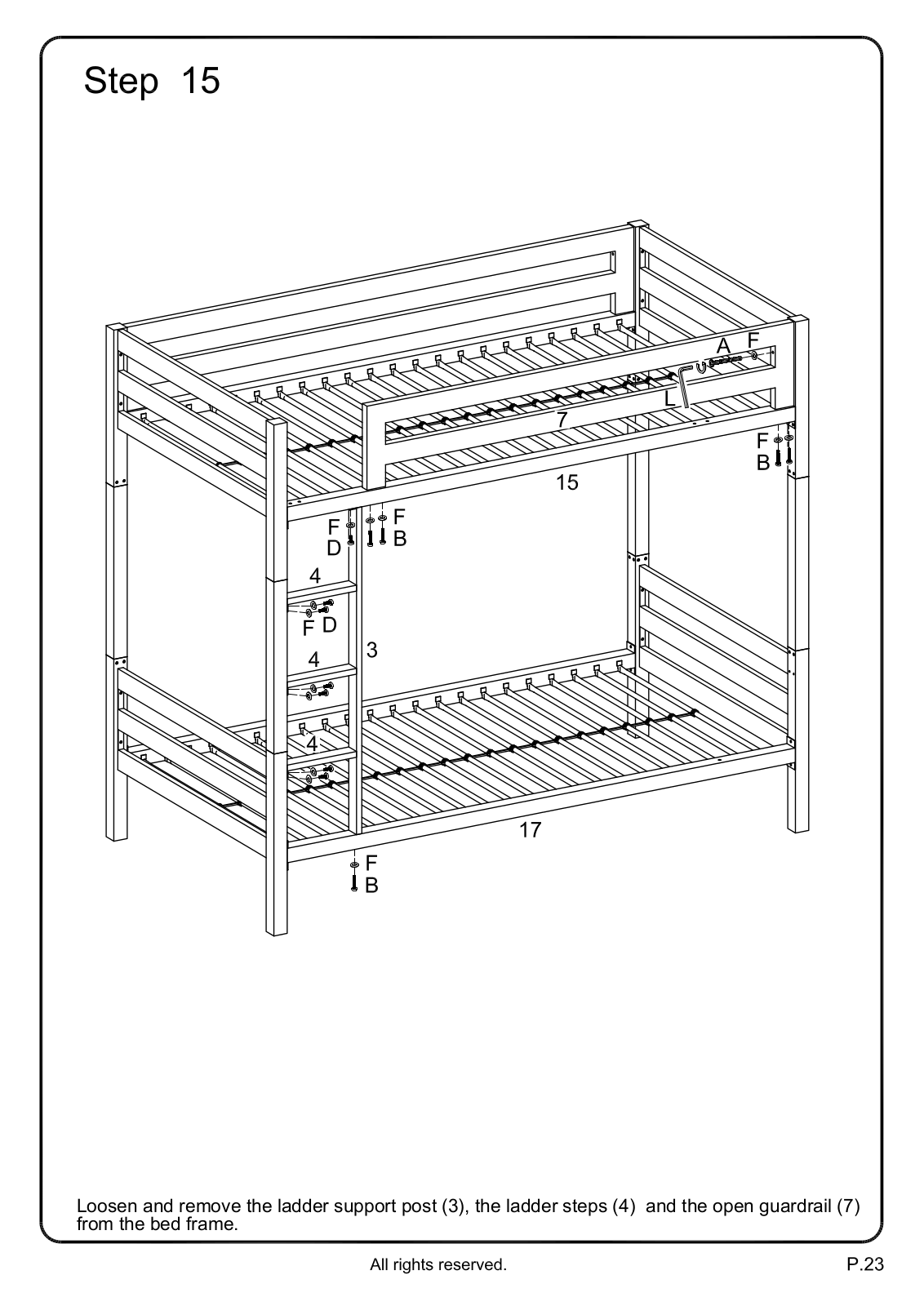

Loosen and remove the ladder support post (3), the ladder steps (4) and the open guardrail (7)
from the bed frame.

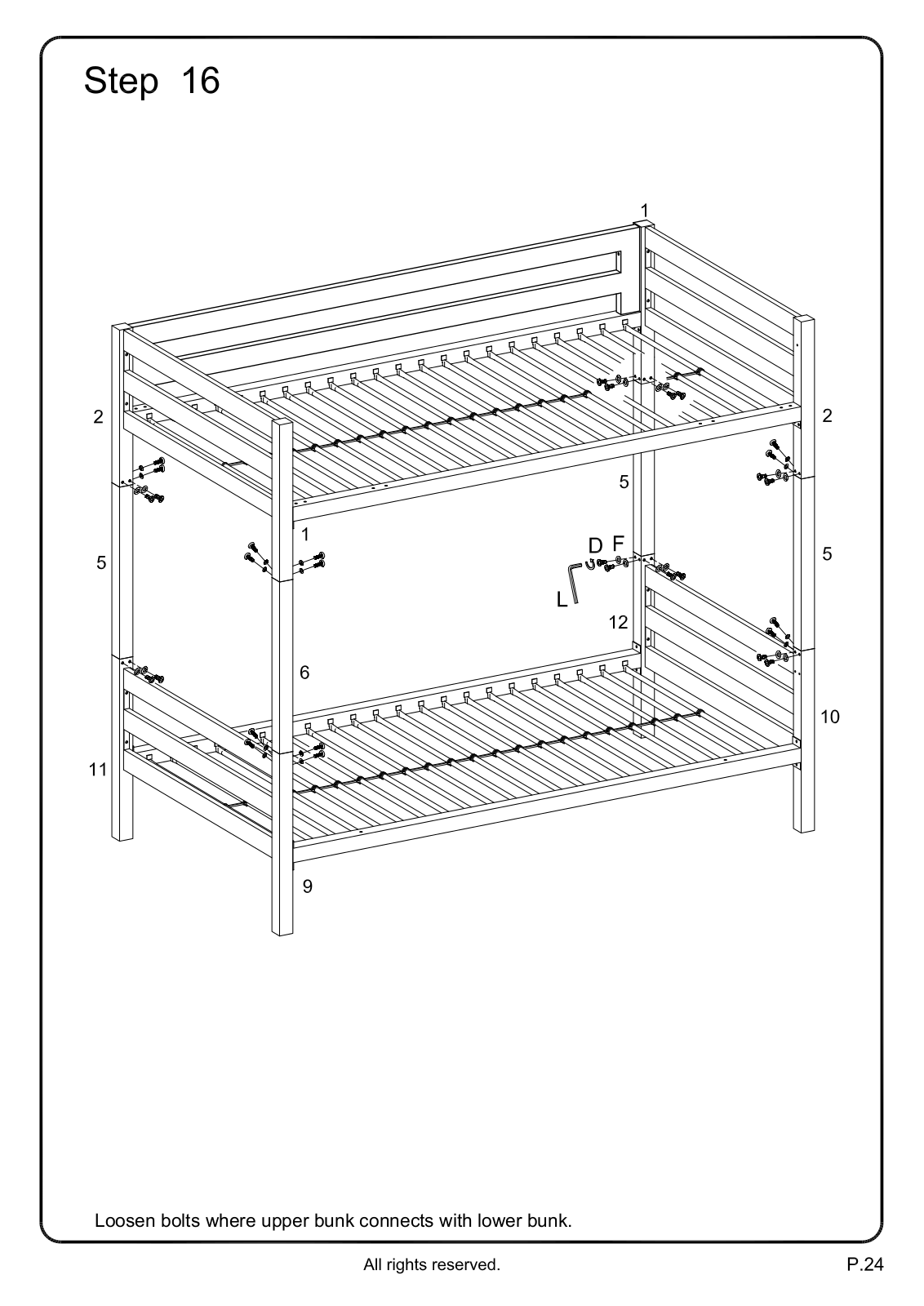

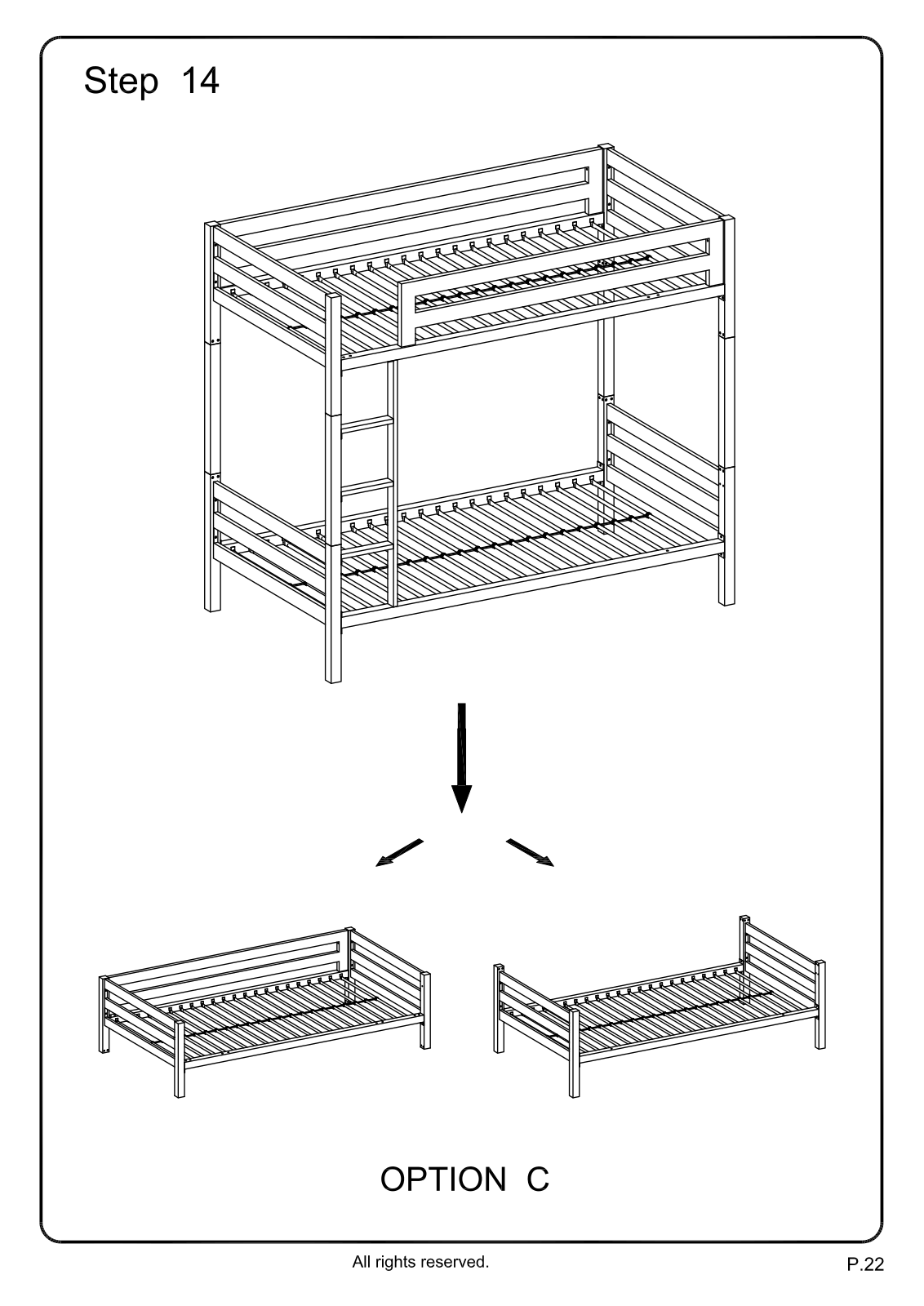

Loosen bolts where upper bunk connects with lower bunk.

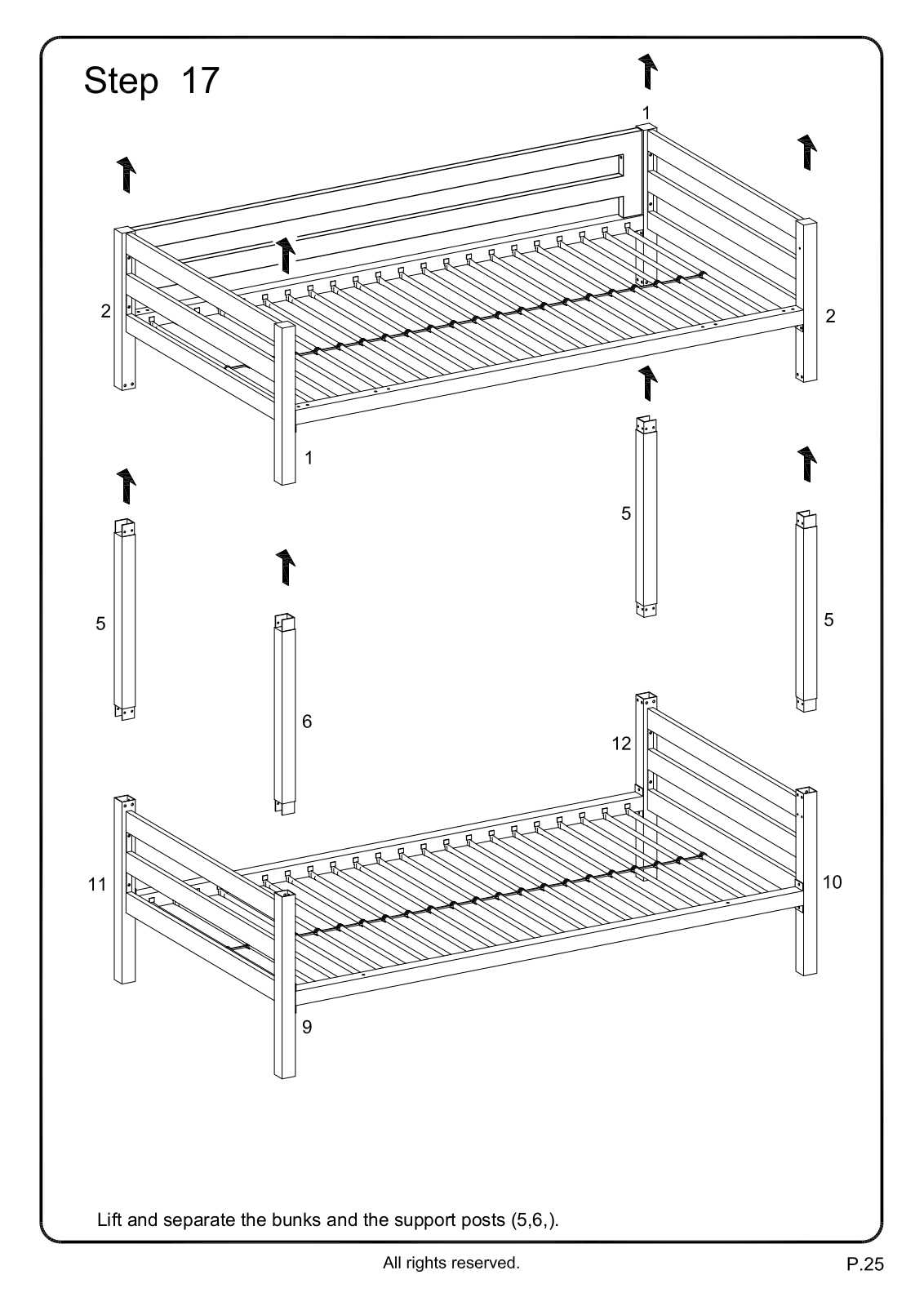

Lift and separate the bunks and the support posts (5,6,).

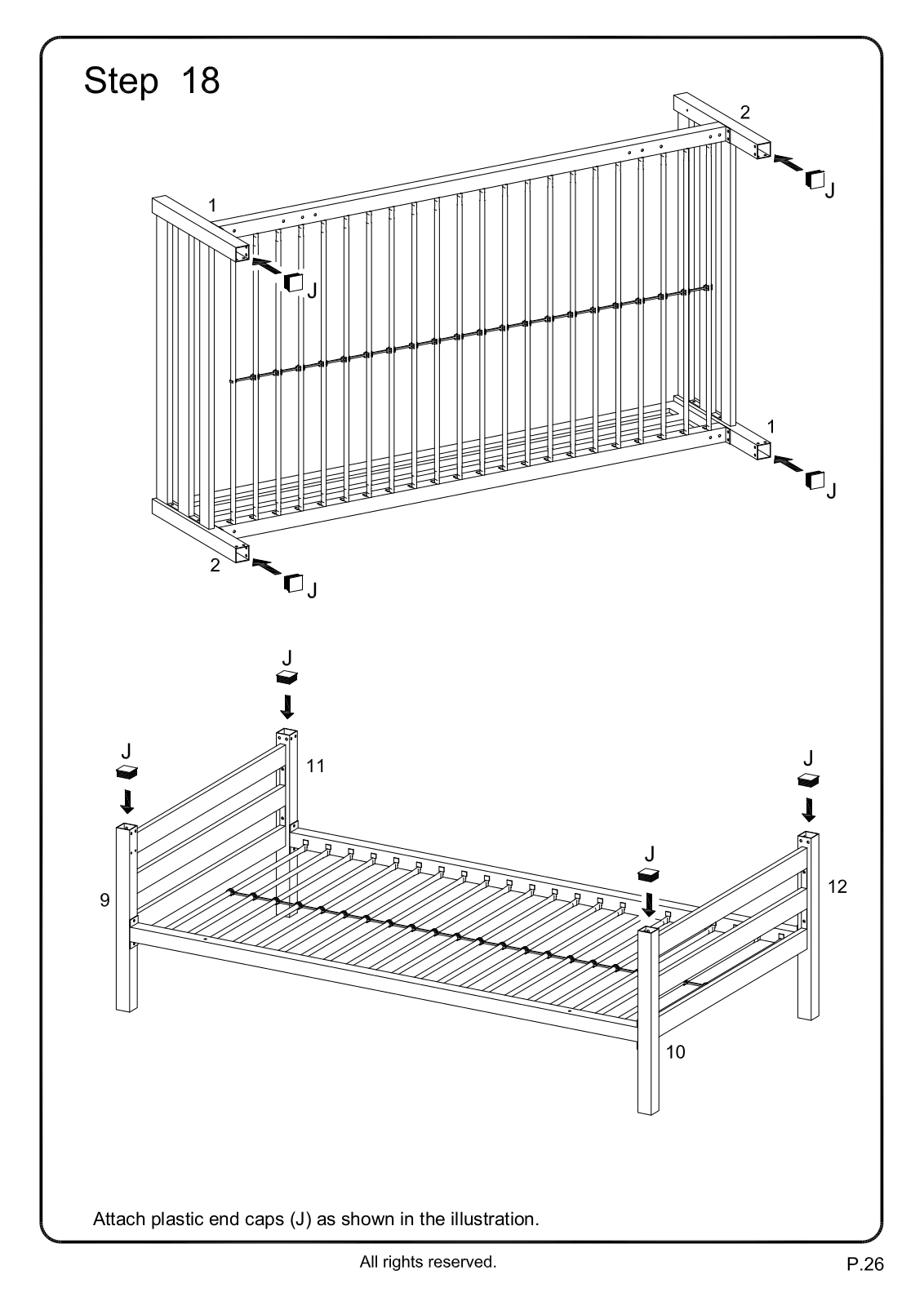

Attach plastic end caps (J) as shown in the illustration.

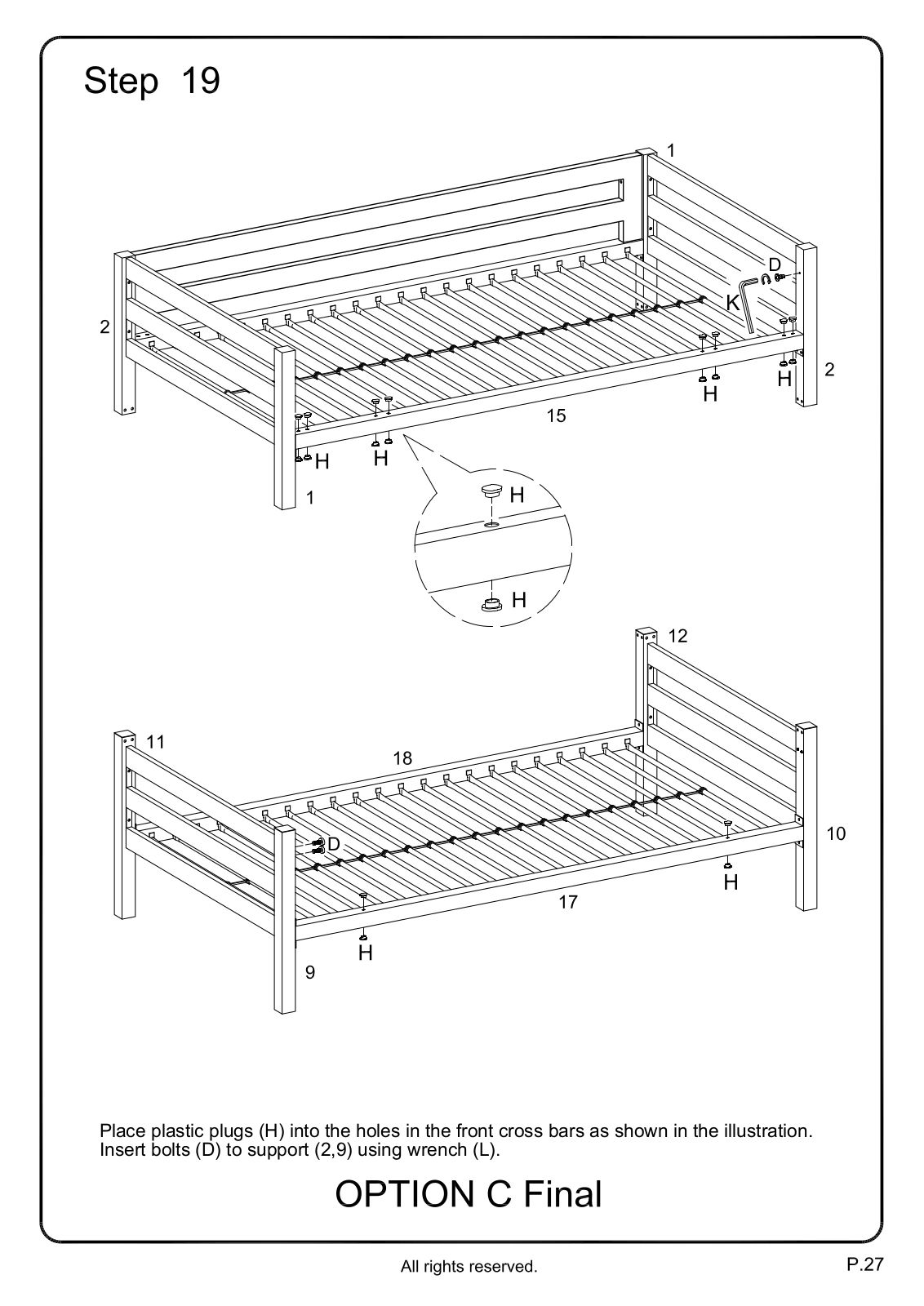

Place plastic plugs (H) into the holes in the front cross bars as shown in the illustration.
Insert bolts (D) to support (2,9) using wrench (L).
