About this Guide

This guide describes the XD-2 USB interface, the XD-2 software, and includes a short overview of the Tracktion software and the offside rule.

For details of the bundled software, please refer to the help documentation included within the software itself, or included on the Spike software installer CD-ROM

“Mackie,” “Spike,” and the “Running Man” ﬁ gure are trademarks or registered trademarks of LOUD Technologies Inc. All other brand names mentioned are trademarks or registered trademarks of their

respective holders, and are hereby acknowledged.

Thinking of a vacation this year? Then come to sunny Edmonds, WA, and enjoy the scenic splendor of the Paciﬁ c Northwest, where the snow-capped mountains rise majestically above the Puget Sound. Ask for Gary.

Manual Part No. SW0078 Rev.

07/2004

OCEAN

LINER

User’s

Guide

Contents

Safety Instructions-----------------------------------2 Mackie Software License -------------------------- 4 Introduction----------------------------------------- 10

XD-2 USB Interface------------------------------ 10 Bundled Software --------------------------------11 Special Offers -------------------------------------11

Getting Started --------------------------------------12

Installing PC Software---------------------------12 Installing Mac Software-------------------------13 Installing and Connecting the Hardware --- 14 Typical Hookup Diagram------------------------15 Making a Recording----------------------------- 16

XD-2 Features --------------------------------------- 25

XD-2 Front Panel--------------------------------- 25 XD-2 Rear Panel---------------------------------- 28

Connectors -------------------------------------------31 XD-2 Software -------------------------------------- 33

Drivers and Platform Support ---------------- 33 The XD-2 Software screens -------------------- 35 Basic Controls -------------------------------- 36 Overview Screen----------------------------- 38 Setup Screen---------------------------------- 43 DSP Screen ------------------------------------46 Parametric Equalizer Module---------51 Compressor Module------------------- 53 Gate/Expander Module -------------- 56

Using Spike ------------------------------------------ 59 Appendix A: Technical Information ------------ 64

System Requirements---------------------------64 XD-2 Speciﬁ cations------------------------------ 65

XD-2 Block Diagram-----------------------------68

Appendix B: Troubleshooting Guide------------ 69 Appendix C: Service Information --------------- 73

Service --------------------------------------------- 73

Repair --------------------------------------------- 73

Limited Warranty-------------------------------- 75

Stop Right There!

It is very important that you register your Spike, then you

will have access to the latest drivers, software, ﬁ rmware updates, and any updates to this guide. Please visit:

www.mackie.com/spikeaut

User’s

Guide

Introduction

Thank you for purchasing the Mackie Spike Powered Recording System

This is a complete, compact solution for computer-based music production on either a Macintosh or a PC

Spike consists of the XD-2 USB Interface and all the software you need to

record and create wonderful music using your computer

XD-2 USB Interface

The XD-2 USB interface provides two analog audio inputs which can accept microphone level, line level, or direct instrument input signals. Mackie's

high-headroom preamps convert the analog audio signals into digital signals. In addition, there is a coaxial S/PDIF (RCA-type) digital input and

output.

When a microphone is plugged into an XLR input, that channel automati

cally adjusts to become a mic input. When a 1/4" TRS or TS connector is plugged in, that channel

adjusts to become a line-level input (or an instrument-level input if the INSTRUMENT (guitar icon)

button is pressed in)

An onboard SHARC processor provides full EQ and dynamics processing, including a 4-band Parametric Equalizer, a Compressor/Limiter, and a Gate/

Expander, without draining the host computer of

processing power. The processed signals are transferred to the host computer via the USB connec-

tion. Master mixes can also be transferred from your host computer into the XD-2 for processing, and then output to an external device, or sent back into the computer as a stereo mixdown pass

A front panel MIX knob is provided to adjust between low-latency direct monitoring (from the analog or digital inputs) and playback monitoring (from the USB input). Monitoring is provided by the head

phone jack on the front, and by balanced outputs on the back, each with their own level controls.

XD-2 USB Inter face

MIN MAX

PHONES

MIN MAX

MONITOR

MIN MAX

GAIN 2

MIN MAX

GAIN 1

DIR USB

MIX

-30 0

48V

-30 0

User’s

Guide

Bundled Spikeware

Spike comes with some incredibly powerful software to get you started with your own desktop multi-

track audio recording music production studio

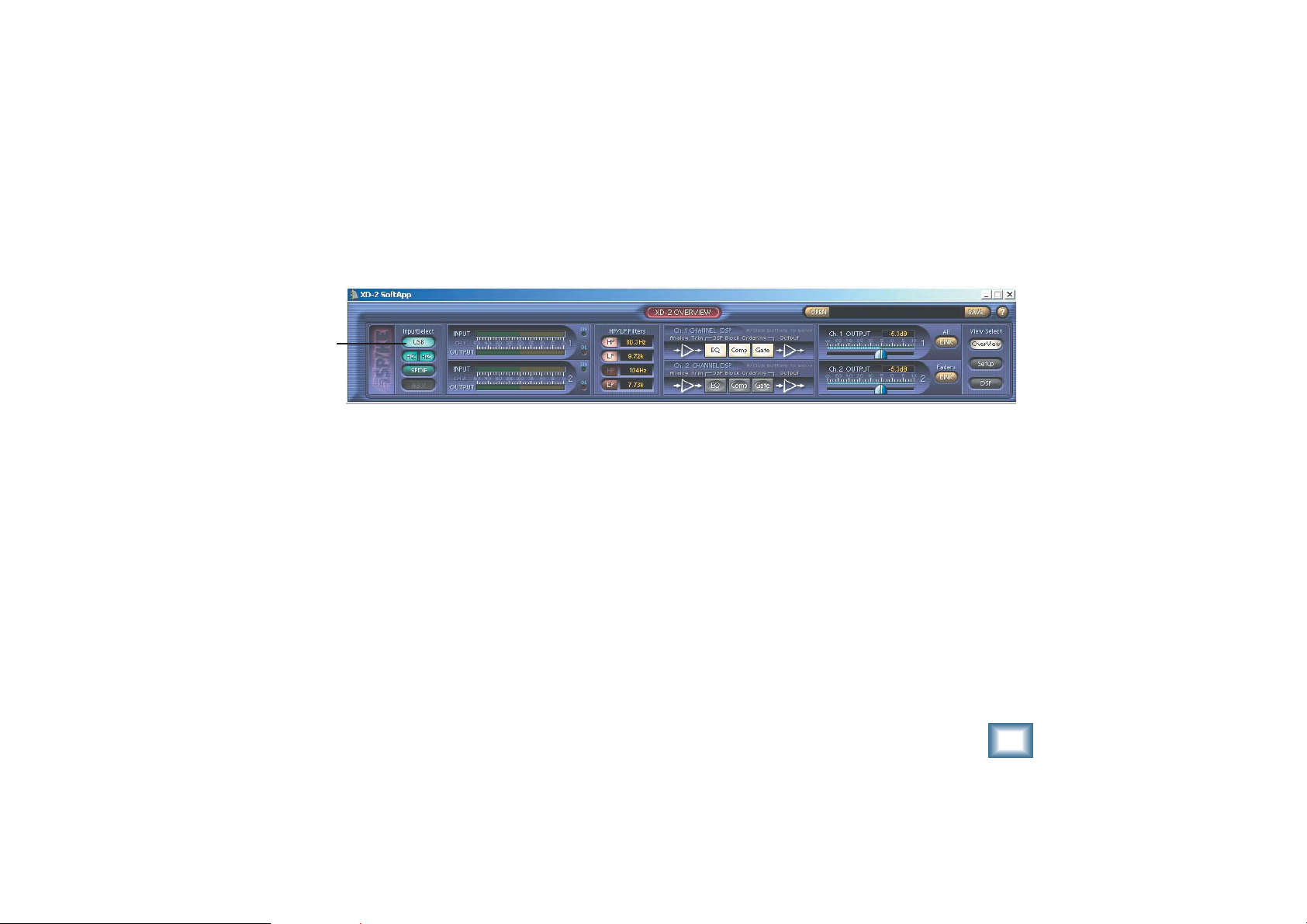

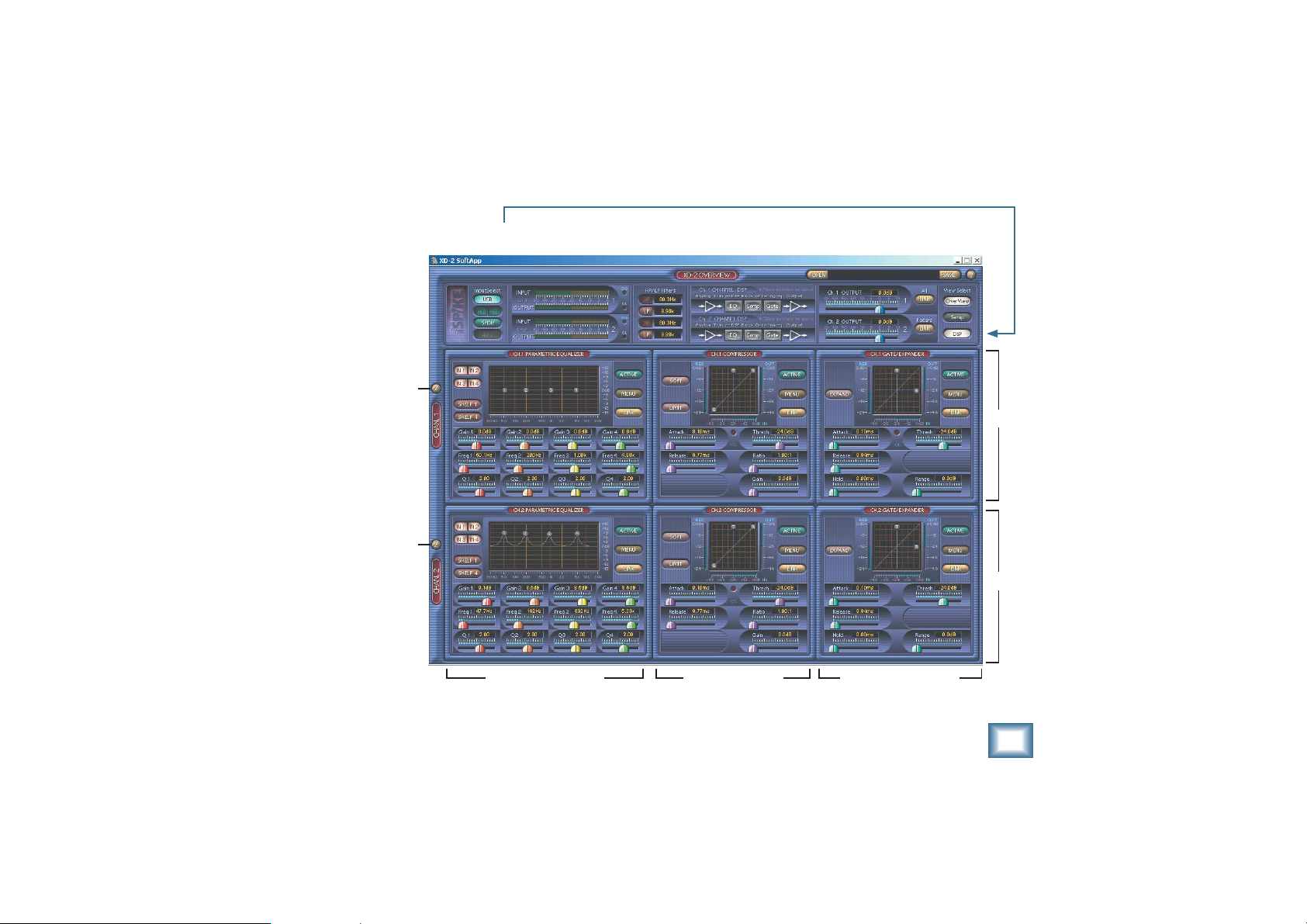

The XD-2 software a

pplication provides all the control you need for the XD-2 USB interface. Any adjustments you make to the EQ, Compressor/Limiter, and Gate/

Expander, will be recorded as part of

the audio signal. Each dynamics setting can be saved, recalled, cop-

ied, and pasted as needed. In addition, all the parameter settings can be saved as a single preset ﬁ le for later recall

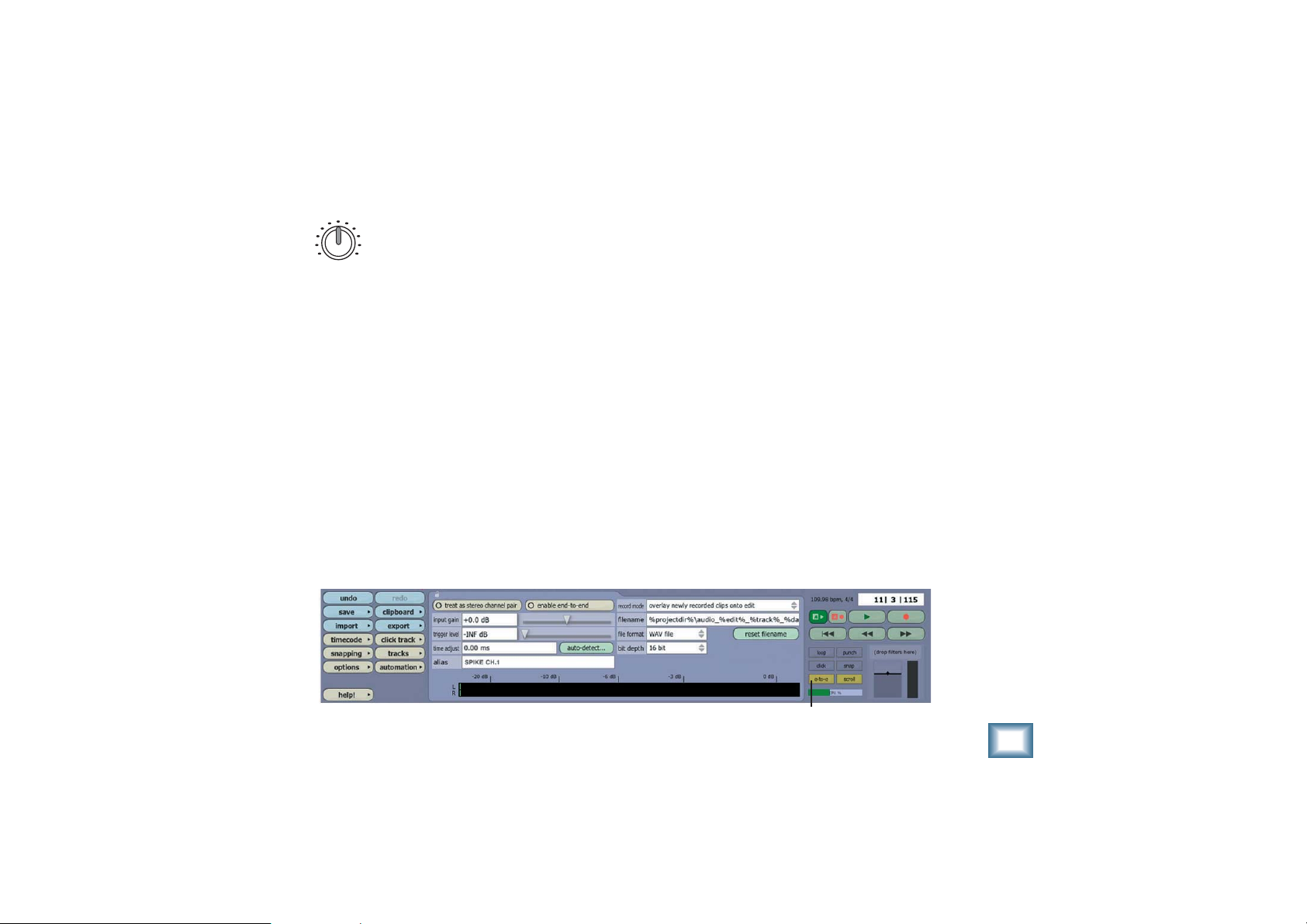

Tracktion is an easy-to-use multitrack audio recording and

MIDI sequencing software application, capable of unlimited

track count, VST support, automation, and much more.

armer Phaser is a VST plug-in by Nomad Factory speciﬁ cally designed for Spike to

give a warmer tube sound to the digital recording process

ackie Final Mix VST (PC only, for Tracktion) is a powerful stereo mastering

suite with two 5-band parametric EQs on either side of a multi-band compressor.

Special Offers

As you purchased Spike, you are entitled to discounts for a number of plug-ins including Nomad Factory Blue Tubes and Liquid Bundle, and Antares plug-ins.

Note: The software titles and offers included with Spike are subject to change without

notice.

XD-2 Sof tware Main Screen

User’s

Guide

Getting Started

Use this section to get your Spike recording system set up quickly

Installing the Software

• The Spike CD contains an installer which will help you install the various software applications

plug-ins and drivers

• Visit www.mackie.com/spikeauth to register your Spike, and download any updates to the soft-

ware and ﬁ rmware

• Your computer must meet the minimum system requirements (shown on page

64).

• The XD-2 software application does not need authorization in order to run.

• Tracktion authorizes the ﬁ rst time it detects the XD-2 hardware attached to your computer.

Mackie Final Mix authorizes with the Tracktion PC version

• Other software bundled with Spike will need authorization. You will need Internet access, but it

does not have to be from the same machine you install the software on.

To install the software on a PC:

1. Turn off any (non-essential) applications

2. Insert the Spike CD into your PC’s CD drive

3. The CD should begin automatically, bringing up an installer (StartHere.html). If not, click Start in

the task bar, then click Run. Type: <drive>:StartHere.html (where <drive> is the letter assigned to your CD drive)

User’s

Guide

4. Follow the instructions in the installer to load and authorize the various software applica-

tions and plug-ins. A basic installation would be to install the XD-2 a

pplication, its drivers, and

Tracktion. This will get you going fairly nicely.

5. If you want, go ahead and install Warmer Phaser (and other plug-ins from Nomad Factory), and

Antares plug-ins

6. You can accept the default directories, or specify different locations. We recommend that you use

the default settings

Note: Be sure to install the plug-ins into the Tracktion plug-ins folder, so they are accessi-

ble to Tracktion. If you have already installed plug-ins, you can direct Tracktion to scan for

these folders as well. Tracktion will default to scan both the "C:/Program ﬁ les/Tracktion/

plugins/" and "C:/Program ﬁ les/Steinberg/VSTplugins/" folders

To install the software on a Macintosh:

1. Turn off any (non-essential) applications

2. Insert the Spike CD into your Macintosh’s CD drive.

3. Open the disk icon on your desktop

4. Start

Here.html contains the latest instructions for installing the software. Some software is drag

and drop, and some use installers. Follow all instructions for authorizing the software.

Note: For plug-ins, be sure to install them into the "/Library/Audio/Plug-ins/VST" folder

so they are accessible to Tracktion. If you have already installed plug-ins, you can di

rect Tracktion to scan for these folders as well. Tracktion will default to scan both the

"/Library/Audio/Plug-ins/VST" and "Users/<your login name>/Library/Audio/Plug-ins/VST" folders.

User’s

Guide

Installing and connecting the hardware

• To stand the XD-2 upright, pull the stabilizer bar downwards and

twist it out 90˚ from the body, as shown here. The spring is quite strong, so be careful not to nip yourself as it snaps back into place

• Turn down all XD-2 knobs to prevent any loud surprises.

• Connect microphones using the XLR input connectors on the back of the XD-

2. Press the

48V but-

ton if your microphone needs phantom power (mostly used for condenser microphones)

• Connect guitars or other instruments using the 1/4" input connectors on the back of the XD-2.

Press the front panel INSTRUMENT button (guitar icon) if you are connecting your guitar or in

strument directly to the XD-2 without using a preampliﬁ er or direct box.

• Connect a pair of powered monitor speakers, or an ampliﬁ er connected to speakers, to the XD-2

rear panel Monitor jacks. You can also plug in headphones to the front panel Phones jack

• Connect one end of the external power su

pply to the XD-2's 9 VDC connector, and the other end to an AC power source. There is no power switch; the XD-2 is on when the power su

pply is connected.

The universal power su

pply can be used with any local AC Mains

voltage between 90 VAC and 264 VAC.

• Connect the XD-2's USB connector to a USB port on your computer

with the USB cable provided

• Launch the XD-2 software, and an XD-2 icon will appear in your PC system tray, or Dock on a Mac. Click on the icon to open the pro-

gram, then you can conﬁ gure the XD-2 system to your liking

User’s

Guide

MONITOR L / R

USB

9V DC 750mA

INPUT 1

INPUT 2

OUT

MIDI

Power Suppl

Mackie Control

(or other MIDI

device)

MIDI OUT

MIDI

USB Connection

Laptop

Guitar

Microphone

Mackie HR624 or other Active Studio Monitors

Headphones

(plug into front panel)

SPDIF

DAT, CD/DVD player

or CD-R recorder

MIDI OUT

MIDI IN

Typical Hookup Diagram

User’s

Guide

Making a Recording

The following example of a recording session uses a guitar plugged directly into the XD-2 channel 1 input, and a microphone plugged into the channel 2 input, to record audio tracks in the Tracktion soft

ware. We will also record some MIDI data that will trigger a softsynth within Tracktion

Before starting, make sure you have correctly installed the XD-2 and Tracktion software

1. Connect your equipment using the diagram on the previous page as a guide.

2. On the XD-2 front panel, set the GAIN, MONITOR and PHONES knobs to minimum, and the MIX

knob to DIR (direct). Press the 48V button if your microphone needs phantom power. Press the

INSTRUMENT button on Channel 1 if you are not using a guitar preamp or direct box

3. On your computer, open the XD-2 software and click the “Overview” button

You should see input and output meters, along with slide faders and a bunch of other cool stuff

Make sure the USB and SPDIF buttons are not illuminated

4. Play the guitar and gently turn up the front panel Ch.1 GAIN knob. You should see the XD-2 front

panel LEDs dance with happiness

5. The Overview screen's input meters should dance as well. This means you have signals coming

into your computer. Make sure the OL LED does not light; turn down the GAIN knob if it does. If

the meters do not show any signals present, check your connections to the XD-

XD-2 Sof tware Overview Screen

User’s

Guide

6. On the XD-2 front panel (with the MIX knob set to DIR) turn the PHONES knob gently to hear

yourself through your headphones. Remember – to avoid feedback, keep your monitor volume

turned down while using a microphone, especially if your mic is close to the monitors.

7. To reduce any low-end bass rumble, push in the front panel HP ﬁ lter button (see page 25 for more

details

8. On the XD-2 Overview screen, click the DSP button to bring up the DSP graphic interface

Fool around with the channel EQ

Compressor/Limiter, and Gate/

Expander as you see ﬁ t. For more details of the mysterious DSP workings, see page 46.

Note: The XD-2 has its own DSP

chip, so its processing power is in

dependent of your CPU. This means you can use as much XD-2 processing

as you like, or need, without causing your

computer to slow, so be creative and have fun. Your audio recording will be affected by

any changes you make.

9. When you are happy with the sounds and

are ready to start recording, put down the

guitar and....

...continued on the next page...

(rather exciting isn't it?

)

XD-2 Sof tware DSP Screen

User’s

Guide

10. Launch the Tracktion software and select the Mackie

XD-2 hardware under Settings menu/WAVE devices.

Also select Mackie XD-2 (for Mac), USB Audio Device (for PC) under the Settings/MIDI devices menu.

For more details of the Tracktion software, press "F12" on your keyboard, or click the HELP button in

the lower left of the Tracktion screen

11. Click the NEW PROJECT

button in the

Projects Menu.

Trackt ion Project screen

Help

Trackt ion Se t tings screen

User’s

Guide

12. Navigate to a good location, enter a wonderful name for the

new project in the pop-up dialog box, then click Save. All of

this project's tracks, clips and edits will be saved here by

Tracktion

Note: Do not create project folders inside the

Tracktion main folder, or any software main folder

Otherwise, if you un-install/re-install software, your project folders will disappear (mine sure did).

13. “New edit #1” appears at the top of the Item List. Do not be alarmed. An Edit is Tracktion's way of

keeping everything related to your song. See Tracktion's Help (F12) for more information.

User’s

Guide

Trackt ion Edit Screen

14. Double click on “new edit

#1” to open up the Edit Screen. This new project starts with eight hori-

zontal tracks, stacked vertically. You can add or remove tracks once you get going. Tracks can

also be renamed by selecting them and typing the new name in the Properties area.

The audio icon represents Tracktion's stereo audio input (from your XD-2). The MIDI icon repre

sents its MIDI input. If these icons do not appear, check the input selections in the "Settings" tab,

and make sure the Mackie XD-2 is chosen as your audio input and output device.

MIDI Icon

INPUT 1 + 2

MACKIE XD2

User’s

Guide

Ch.2 Icon

Trackt ion Edit Screen (with a high-lighted Input 1 Icon, and its properties shown)

The Properties of whatever is highlighted Transport Area

Treat as

stereo

channel pair (of f)

Ch.1 Icon

15. As we have a microphone and a guitar connected in this example, we want two independent chan-

nels instead of a stereo pair. Click the audio icon and uncheck the "treat as stereo channel pair"

button in the Properties area. Two independent audio icons will then appear

INPUT 1

MACKIE XD2

INPUT 2

INPUT 1

User’s

Guide

16. Click on the Ch.1 icon, hold down your mouse button, and drag it next to the track you want to

record onto. As it gets closer, an arrow pops out and connects the icon to the track. This indicates

the track is

armed for recording. To disconnect an icon

(disarm the track), drag it to the left and

the arrow will disappear. In the Properties area, set the Bit Depth to

16 bit, or

24 bit as needed

We will begin by recording the guitar, so go ahead and arm track 1. Leave the icon highlighted, as

the input meters (in the Properties area) will show the signal levels being recorded

Trackt ion Edit Screen (with connected Input 1 Icon, shown larger t han real size)

Record

Properties Area Transport Area

M=Mute

S=Solo

Pan and volume

Channel

Meter

Play

Bit Depth

INPUT 1

MACKIE XD2

INPUT 2

INPUT 1

User’s

Guide

17. To record, click the Record button in the Transport area (or press

keyboard R). Tracktion records any armed tracks (icon with arrow).

Play your guitar as the vertical cursor line moves right. A pink bar shows the track recording

18. To stop recording, click the Record button (or R) again. A squi

ggly-

wiggle (amplitude vs time waveform) of your recording is displayed.

19. To play back your guitar recording, grab the purple vertical cursor line with your mouse and move

it to the beginning of your recording (or press

), turn the MIX knob to USB, click Play (green

triangle) in the transport area, and gently turn the MONITOR or PHONES knob up to suit. If you

are happy with your guitar recording, drag the Ch

.1 icon to the left to disarm the track

20. To record some vocals, drag the Ch.2 icon to track 2 (the mic is connected to Ch

.2 on the XD-2)

To play back your guitar recording

hear the direct input from your microphone, turn the MIX

knob to the

12 o'clock position. Adjust the CH

.2 GAIN knob so your vocals do not light the OL

LEDs. Adjust the MIX knob to ﬁ ne tune the balance between the direct and USB signal. Press Re

cord to record your vocal masterpiece

21. You can record other instruments, passages, vocals, wax cylinders, CDs and sessions onto other tracks, and assemble a masterpiece by continuing in a similar fashion. As you record and play

other tracks, Mute any tracks you don't want to hear, (Mute M appears to the right of each

track).

22. When your unique sounds are on the computer, they can be processed in many ways, and option

ally sent back through the XD-2 for a ﬁ nal master pass and tweak. Tracktion comes with various

plug-ins, and there are many third party plug-ins available. Tracktion lets you export your mas-

terwork in various formats for distribution, and lets you import previous work. (For more details

about using Spike please see page 59.)

User’s

Guide

Trackt ion Edit Screen (with connected MIDI Icon) and new ﬁ lter menu

23. MIDI data can be recorded

using one of the softsynths

supplied with Tracktion. Drag the MIDI icon to the left of a track, and Arm it.

24. Click the "New Filters" button,

and drag down the new ﬁ lter to

the right of the track, in front

of any existing ﬁ lters. A list of plug-ins will appear, and you can choose the MDA DX10 or other synths. (Synths have

a little keyboard icon). The

properties area shows various options for the MDA DX10, in

cluding loading presets.

25. Depending on the setting of your

keyboard, enable "end to end" in the

MIDI icon's Properties area and "e-to-e" in the Transport area, in order to hear your keyboard through the XD-

2. You can

click on the keyboard to test out

the synths.

26. Press Record and ...play Maestro play!

27. See Tracktion's Help (F12) for more information on end-to-end and MIDI

Properties area (when MIDI Icon is highlighted)
