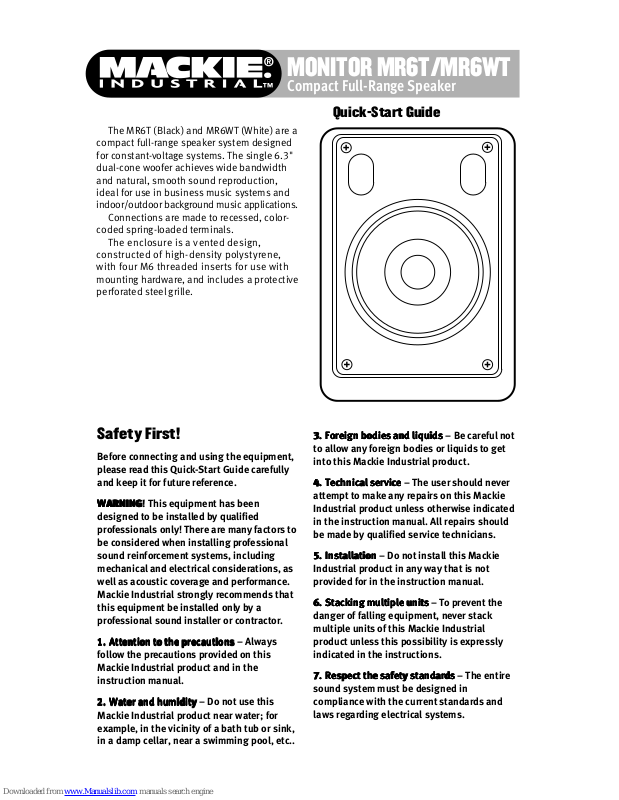

Mackie Monitor MR6T, MR6WT Quick Start Manual

Safety First!

Before connecting and using the equipment, please read this Quick-Start Guide carefully and keep it for future reference.

WARNINGWARNING

WARNING! This equipment has been

designed to be installed by qualified professionals only! There are many factors to be considered when installing professional sound reinforcement systems, including mechanical and electrical considerations, as well as acoustic coverage and performance. Mackie Industrial strongly recommends that this equipment be installed only by a professional sound installer or contractor.

1.1.

1.

Attention to the precautionsAttention to the precautions

Attention to the precautions – Always follow the precautions provided on this Mackie Industrial product and in the instruction manual.

2.2.

2.

Water and humidityWater and humidity

Water and humidity – Do not use this Mackie Industrial product near water; for example, in the vicinity of a bath tub or sink, in a damp cellar, near a swimming pool, etc..

MONITOR MR6T/MR6WT

Compact Full-Range Speaker

Quick-Start Guide

3.3.

3.

Foreign bodies and liquidsForeign bodies and liquids

Foreign bodies and liquids – Be careful not to allow any foreign bodies or liquids to get into this Mackie Industrial product.

4.4.

4.

Technical serviceTechnical service

Technical service – The user should never attempt to make any repairs on this Mackie Industrial product unless otherwise indicated in the instruction manual. All repairs should be made by qualified service technicians.

5.5.

5.

Installation Installation

Installation – Do not install this Mackie Industrial product in any way that is not provided for in the instruction manual.

6.6.

6.

Stacking multiple units Stacking multiple units

Stacking multiple units – To prevent the danger of falling equipment, never stack multiple units of this Mackie Industrial product unless this possibility is expressly indicated in the instructions.

7.7.

7.

Respect the safety standardsRespect the safety standards

Respect the safety standards – The entire sound system must be designed in compliance with the current standards and laws regarding electrical systems.

The MR6T (Black) and MR6WT (White) are a compact full-range speaker system designed for constant-voltage systems. The single 6.3" dual-cone woofer achieves wide bandwidth and natural, smooth sound reproduction, ideal for use in business music systems and indoor/outdoor background music applications.

Connections are made to recessed, colorcoded spring-loaded terminals.

The enclosure is a vented design, constructed of high-density polystyrene, with four M6 threaded inserts for use with mounting hardware, and includes a protective perforated steel grille.

8.8.

8.

SpecificationsSpecifications

Specifications – When installing and using this Mackie Industrial product, keep in mind the technical specifications indicated in the dedicated section of the manual.

9.9.

9.

AccessoriesAccessories

Accessories – Install and use this Mackie Industrial product only with the accessories specified by the manufacturer or supplied with the product.

Hearing loss Hearing loss

Hearing loss - Exposure to high sound levels can cause permanent hearing loss. The sound pressure level which leads to hearing loss varies considerably from one person to another, and depends on the duration of exposure. The U.S. Government’s Occupational Safety and Healt Administration (OSHA) has established the maximum sound pressure levels that can be with stood without causing damage, which are shown in the table

below. According to the OSHA regulations, any exposure over the maximum limits indicated in the table can reduce the hearing capacity of a person. To prevent potentially dangerous exposure to high sound pressure levels, anyone subjected to such levels must use suitable protection. When a Mackie Industrial product capable of producing high sound levels is being used, it is therefore necessary to wear ear plugs or protective earphones when the limits shown in the table are exceeded.

Consult the specifications provided in the instruction manual to know the maximum sound pressure (SPL) the speaker is capable of producing.

repnoitaruD

)sruoh(yad

leveldnuoS

)ABd(

elpmaxelacipyT

809bulcllamsaniouD

629

459niartyawbuS

379

2001cisumlacissalcduolyreV

5.1201

1501teef05taevitomocoL

5.0011

sselro52.0511trecnockcoratastraptseduoL

2

25V 50V 70V 100V GND

OUTPUTS

POWER AMPLIFIER

+– +–

MONITOR 6T

50W

BYPASS

4

10W

0

25W

0

70V

100V

25V

50V

MONITOR 6T

50W

BYPASS

4

10W

0

25W

0

70V

100V

25V

50V

4 Ohm Stereo Connection

INPUT

MONITOR 6T

50W

BYPASS

4

10W

0

25W

0

70V

100V

25V

50V

AND REGISTERED TRADEMARKS OF MACKIE DESIGN INC.: "MACKIE",

"MACKIE INDUSTRIAL", & THE "RUNNING MAN" FIGURE

SERIAL NUMBER

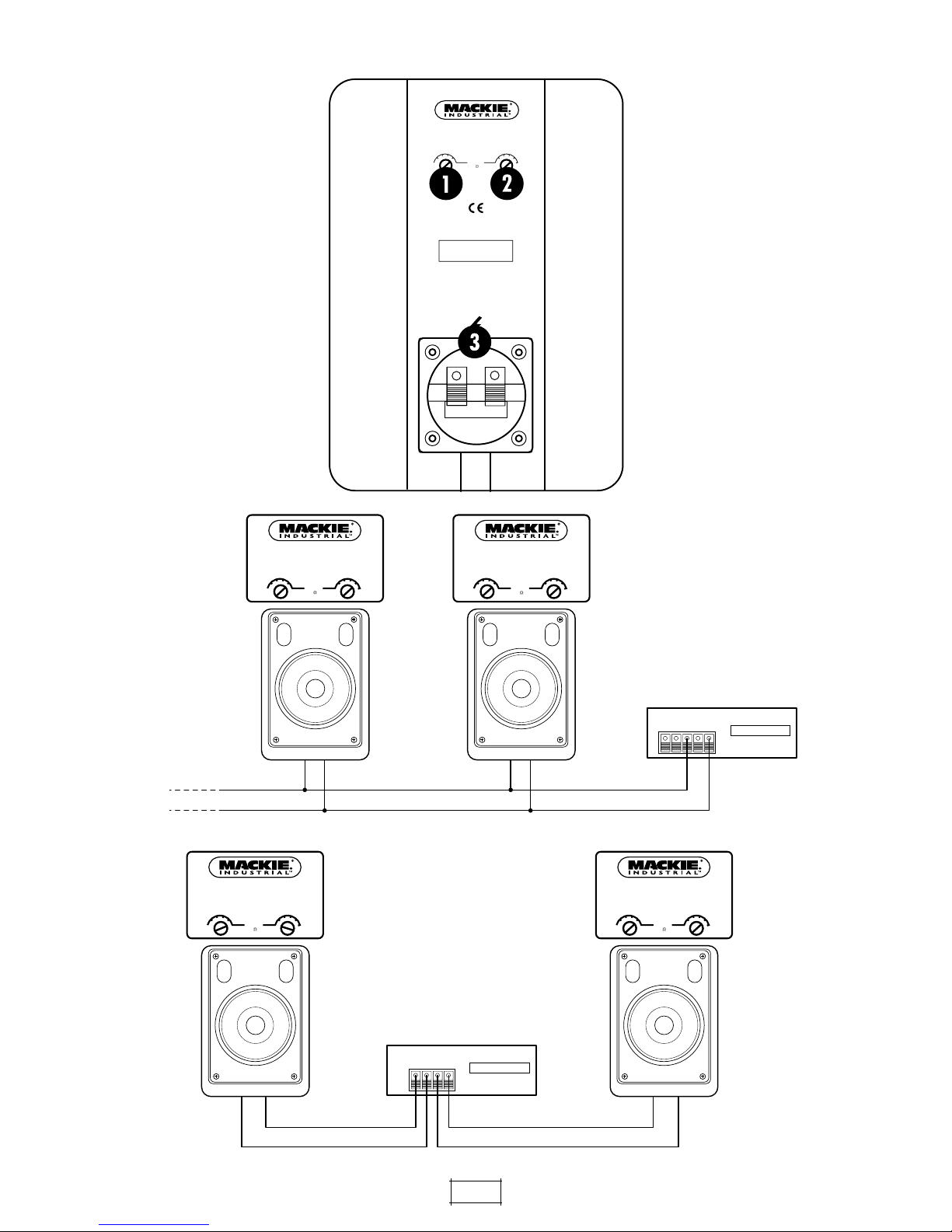

Hookup

+ – + –

OUTPUTS

POWER AMPLIFIER

– +

LR

MONITOR 6T

50W

BYPASS

4

10W

0

25W

0

70V

100V

25V

50V

MONITOR 6T

50W

BYPASS

4

10W

0

25W

0

70V

100V

25V

50V

70V Connection

3

WARNING: Consult a professional rigger or structural engineer prior to suspending loudspeakers from a structure not intended for that use. Always know the working load limit of the structure supporting the loudspeaker array. Always make sure that the rigging hardware minimum rating is at least five times the actual load.

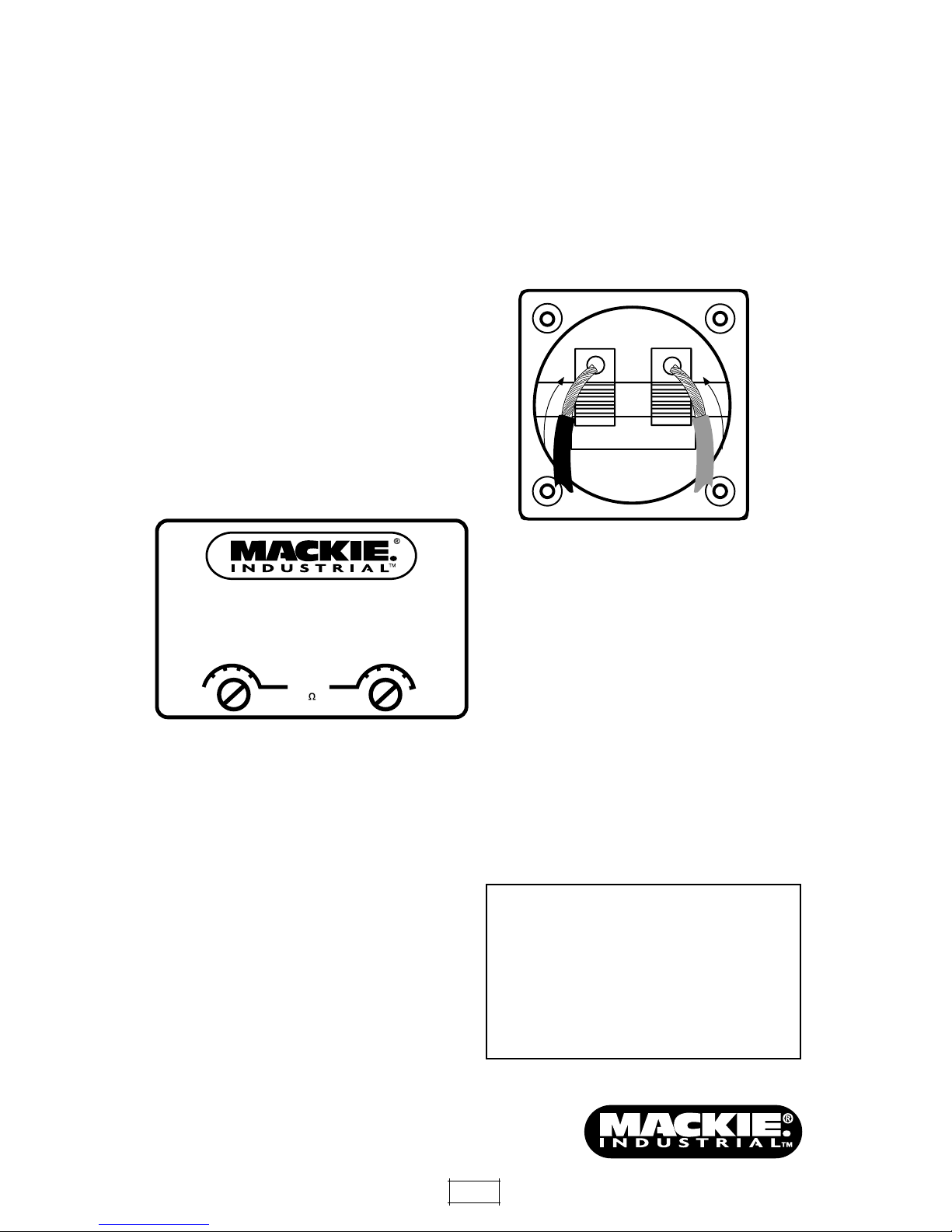

Rear Panel Features and Controls

1. This rotary control selects the power tap

for the internal constant voltage transformer. Choices are 1W, 2.5W, 5W, 10W, 20W, and BYPASS (used for 4Ω operation).

2. This rotary control selects the constant

voltage distributed system in which the speaker is used. Choices are BYPASS (used for 4Ω operation), 0(Off), 25V, 50V, 70V, and 100V.

Note: Use a slot-head screwdriver to adjust the rotary controls.

3. Use these spring-loaded terminals to

connect the speaker wiring.

Connections

The spring-loaded speaker terminals are designed to accept bare wire, up to a maximum of 18 gauge. Strip 1/4" of insulation off the end of the speaker wire, press in the tab, and insert the bare wire into the hole. When you release the tab, the wire is locked in place. Make sure there are no stray strands of wire outside the terminal connection.

+ –

INPUT

MONITOR 6T

50W

BYPASS

4

10W

0

25W

0

70V

100V

25V

50V

4

Physical:

Enclosure:

45° back angles, high density polystyrene

Attachment Inserts:

4 points M6 threaded

Color: Matte black (MR6T)

White (MR6WT)

Grille: Matching perforated steel grille

Input Connectors:

Spring-loaded terminal

Dimensions HxWxD:

11.82 in x 8.39 in x 8.96 in (300 mm x 213 mm x 228 mm)

Net Weight:

15.0 lb (6.8 kg)

MR6T/MR6WT Specifications

System:

Freq. Range (–10 dB):

70Hz-18kHz

Freq. Response (–3 dB):

200Hz-15kHz

Coverage Angle (–6 dB):

90°, averaged 800Hz-16kHz

Directivity Factor Q (DI):

9.3 (9.7), averaged 800Hz-16kHz

System Sensitivity

1

:

95 dB, 1W@1m

Rated Maximum SPL:

118 dB @ 1 m (3.3 ft) peak

Rated Nominal Impedance:

4Ω (bypassed)

System Input Power Rating

2

:

50W IEC, 200W Peak

Constant Voltage:

25V, 50V, 70V, 100V

Power Taps:

10W, 25W, 50W

Transducer:

Full Frequency:

6.3" (160 mm) dual-cone woofer with

1.5" (38mm) coil

1

Measured on-axis in the far field with 1 watt (2.00V RMS @ 4Ω ) input and referenced to 1 meter distance using the inverse square law. Listed sound pressure represents an average from 300Hz to 3kHz.

2

RMS using 20 Hz to 20 kHz, PN Spectrum, peak for 2 hours with +6 dB crest factor.
