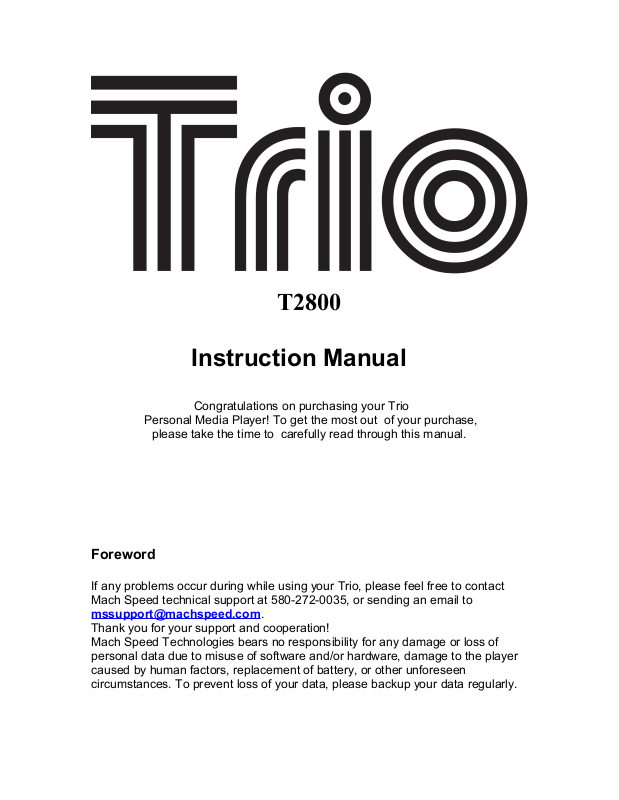

Mach Speed Technologies T2800 User Manual
T2800
Instruction Manual
Congratulations on purchasing your Trio
Personal Media Player! To get the most out of your purchase,
please take the time to carefully read through this manual.
Foreword
If any problems occur during while using your Trio, please feel free to contact
Mach Speed technical support at 580-272-0035, or sending an email to
mssupport@machspeed.com.
Thank you for your support and cooperation!
Mach Speed Technologies bears no responsibility for any damage or loss of
personal data due to misuse of software and/or hardware, damage to the player
caused by human factors, replacement of battery, or other unforeseen
circumstances. To prevent loss of your data, please backup your data regularly.
Information in the manual is subject to change without notice and is subject to
copyright protection. Copying or otherwise reproducing this material without prior
written consent is prohibited.
Due to Firmware changes, some of the pictures and functions described in this
manual may not be the same as are included with your player.
Note:
● The playback times listed refer to the maximum playback times possible, using
the best power savings. The actual playback time may differ as adjustments to
screen brightness, power savings modes, volume, etc are made.
● As there are many brands of Micro SD cards in market, using different quality
and speed standards. Therefore, we are unable to guarantee that our product will
be compatible with all types or brands of Micro SD cards, but will be compatible
with those Micro SD cards with mainstream specifications in the market, and we
will constantly strive to provide the largest selection of cards possible.
● As parameters such as formats, bitrate, codecs, framerates, and resolutions
differ, the player will not be compatible with all listed files. If you are experiencing
issues playing your files on this player, we recommend using a supported
conversion tool to reconvert your file to the specifications of the device.
Caution
Modifications not approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE- This equipment has been tested and found to comply with the limits for
Class B Digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generate, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio or telephone reception,
which can be determined by turning the equipment off and on, the user in
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution
• Do not use the player in exceptionally cold or hot, dusty, damp or dry
environments.
• Do not drop, strike, or throw your player. Physical damage to your player
will void ALL warranties.
• Please charge your battery when
• Battery power icon shows an empty icon;
• The system automatically shuts down and the power is soon off when you
switch on the unit once again;
• There is no response if you operate on any key
• Please always follow the correct disconnect procedures for your operating
system. Do not disconnect power abruptly when the player is being
formatted or in the process of uploading or downloading files. Otherwise it
may lead to file corruption, firmware failure, and even hardware damage.
• We are not liable for any loss of data stored on this device.
• Please do not dismantle this player. Any disassembly not done by an
authorized technician will void ALL warranties
• This product and manual are change without subject to notice.
Features
• Touch Screen Operating system for ease of use
• 2.8”, 240x320 resolution, 260k color TFT touch screen
• Supports the following audio formats: MP3, WMA (non encrypted), OGG,
APE, FLAC, and WAV
• Supports the following image formats: JPEG, BMP, GIF, PNG, and TIFF
• Supports the following Video formats: AVI (XVID), WMV (non encrypted),
and FLV
• Supports eBook files in TXT format
• Built in Audio Recording software, which allows you to make voice notes
in either MP3 or WAV formats
• Built in Micro SD card slot for expandable memory
Basic Operations
Powering on
To power the player on, slide the power switch to the UP position and hold it
there for 5 seconds or until the welcome screen is displayed.
Powering off
To power the player on, slide the power switch to the UP position and hold it
there for 5 seconds or until the goodbye screen is displayed.
Locking and Unlocking the touchscreen
To lock the touchscreen, slide the power switch into the DOWN position. To
unlock the touchscreen, return the power switch to the neutral or middle position.
Charging the Player
To charge the player, simply connect it to a powered USB port, or external AC
adapter. If you choose to use a third party adapter, please ensure that it is 5V
and between 350 and 500mA.
When you connect the player to your computer, you will see the “USB
Connected” screen displayed above. When connected to a charger, you will see
the “Charging” screen. You can push the “back” button to enter the main menu
and use the player while it charges.
Inserting and removing the Micro SD card
Inserting: Ensure that the player is powered off, and disconnected from the
computer. Hold the Micro SD card face up (side with words aligned in the
opposite direction of the display screen), and slide the card into the socket on the
player, slightly past flush. When you hear the card click into place, you can
access the card.
Removing: Ensure that the player is powered off, and push the SD card just past
flush. When you hear the click, release pressure, and the card will slide out.
Caution: Please ensure that the power is off when you connect or disconnect
your SD card, or damage may occur to the player or your card.
Loading files
Using Windows Media Player
(Note: you must use Windows Media Player 10 or later to use this feature.)
(Note: this player does not support DRM encrypted audio or video files, such as
those downloaded from the Windows Media Player “Overdrive” download
service.)
1. Open Windows Media Player and connect the player to a working USB
port. Windows Media player will prompt you with a setup screen asking
you to name the MP3 player.
2. Once you have named your MP3 player, select Finish, and your Windows
Media Player will open to the Sync tab.
3. Drag your music to the sync list (on the right of the screen) from the list on
the left. Once you have selected the music you wish to add to the player,
press Sync.
4. Windows Media player will load the songs on to your player.
5. Once all the songs you have added are synced to the unit, and
Windows Media Player says that is safe to disconnect your MP3
player, disconnect the device.
COPY AND PASTE
Note- This alternate method is used to load videos, pictures, and ebook files as well as audio files
1. Connect the MP3 player to a working USB port.
2. When the unit is connected to your computer, it will create a gray and
green icon in the system tray (lower right hand corner of your desktop). The icon
will be called safely remove hardware.
3. Go to the “My Computer” section of your computer. In there you will find
a section called “devices with removable storage”
4. Locate the drive created by the unit, generally just called Removable
Disk, with a letter in Parenthesis. Drive letters vary depending on your system
configuration.
5. Open the drive by either double left clicking on the drive itself, or by right
clicking to open the option menu then left click on the desired drive.
