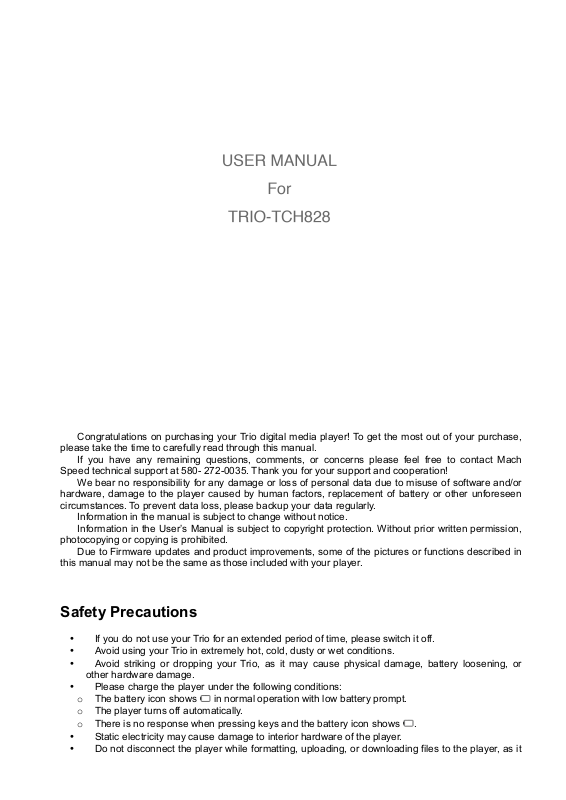

Mach speed TRIO-TCH828 User Manual

Congratulations on purchasing your Trio digital media player! To get the most out of your purchase,

please take the time to carefully read through this manual.

If you have any remaining questions, comments, or concerns please feel free to contact Mach

Speed technical support at 580- 272-0035. Thank you for your support and cooperation!

We bear no responsibility for any damage or loss of personal data due to misuse of software and/or
hardware, damage to the player caused by human factors, replacement of battery or other unforeseen
circumstances. To prevent data loss, please backup your data regularly.

Information in the manual is subject to change without notice.

Information in the User’s Manual is subject to copyright protection. Without prior written permission,
photocopying or copying is prohibited.

Due to Firmware updates and product improvements, some of the pictures or functions described in
this manual may not be the same as those included with your player.

Safety Precautions

• If you do not use your Trio for an extended period of time, please switch it off.

• Avoid using your Trio in extremely hot, cold, dusty or wet conditions.

• Avoid striking or dropping your Trio, as it may cause physical damage, battery loosening, or

other hardware damage.

• Please charge the player under the following conditions:

o The battery icon shows in normal operation with low battery prompt.

o The player turns off automatically.

o There is no response when pressing keys and the battery icon shows .

• Static electricity may cause damage to interior hardware of the player.

• Do not disconnect the player while formatting, uploading, or downloading files to the player, as it

may cause program errors, or cause the unit to not power on.

• When the player is used as a removable hard disk, user should store files following correct file

management methods. We are not liable for any data loss or damage.

• Do not disassemble this player or attempt to repair a faulty player on your own. Doing so will

void the warranty, and may cause harm.

Disposal

Do not dispose of a defective MP3 player in normal household waste
disposal containers (internal battery). Take the defective device to your
retailer or to an appropriate waste collection site. This will ensure that the
device is disposed of in an environmentally-friendly way.

Appearance and Key Description

1. Microphone

2. USB port

3. Power Switch

4. headphone Jack

5. Lanyard connection

6. Reset switch

Charging the Battery

Whenever connected to the computer, the battery in the player will charge. Thus, your battery will charge
when you load files to the player. We recommend powering the player off before connecting it to your
computer to charge.

Powering ON

To power your player on, slide the power switch down (covering the red area) for 5 seconds. This will
power the player on. To power the player off, follow the same procedure.

Basic Touch Screen use

To use the Touch screen controls, simply touch the icon you wish to access.

1. Pressing the Mode button will return you to the previous menu, or return you to the main menu.

2. When in a menu, you can scroll the menu by dragging your finger up or down the screen. When
in picture mode or eBook mode, you will advance to the next picture or turn the page using this same
method

3. In Most menus there is a button in the upper left hand corner which will allow you to return to the
previous menu page, or the main menu

4. In some menu screens, there may be a “del” button in the upper right hand corner of the screen.

If this is displayed, you can touch this icon to bring up the “delete icon” ( ) next to your files.
Touch this icon to delete the file. When you are done deleting files, touch the “del” button up top again
to resume normal menu functionality.

5. To lock the touch screen, move the power switch to the up position (covering the black area). A
small lock will be displayed on the top of the screen, and the touch screen controls will be disabled.
To unlock the touch pad, return the power switch to the neutral position.

Music Mode

On the main menu, touch the “Music” icon to enter Music Mode. You will enter your media Library,
which allows you to select the song you wish to play. Once you have selected the song, it will begin to
play automatically.

Operation

4) When playing a song, touch " "to enter the Music Setting Menu.

• Repeat Mode- Select Once, Repeat, All, Repeat All, or Intro as your repeat mode.

• Play Mode- Select to play your files in order, or shuffle mode.

• MSEQ- Allows you to access 3 specialized equalizer settings.

• EQ Select- Allows you to select one of 7 general equalizer settings.

• User EQ Setup- Allows the user to create a specialized equalizer setting.

• Volume Shader- Allows you to select the length of time the music will “fade” between song files.

Setting this value to “closed” will disable this feature

Video

On the main menu, touch the “Video” icon to enter Video Mode. You will enter the navigator, which
allows you to select the file you wish to play. Once you have selected the file, it will begin to play
automatically.

Press the PLAY/PAUSE icon to pause playback, and press it again to resume. Press and hold the
“Speed up” icon to fast forward through the current file; you can rewind the current file following the
same procedure with the “Restart/Backward” icon. A quick touch to either of these icons will skip to the
next or previous video file.

Photo Browsing Mode

On the main menu, touch the “Photo” icon to enter Photo Browsing Mode. You will enter the navigator,
which allows you to select the file you wish to view. Once you have selected the file, it will display
automatically.

To change the picture you are viewing slide your fingertip from the bottom of the picture to the top, or
from the top to the bottom. Tapping the screen briefly will bring up the Photo interface, which will allow
you to zoom in and out of your photo as well as enter the Photo setup menu

Photo Setup Menu

To enter the Photo setup Menu, tap the icon. In this menu you can manipulate your photo and even

set it as a background for several modes and menus.

• Rotate Right- Rotates the current picture 90 degrees clockwise

• Rotate Left- Rotates the current picture 90 degrees counterclockwise

• Zoom In- Zooms in to the current picture

• Zoom Out- Zooms out of the current picture

• Slide Show- Allows you to set up a slideshow of the pictures on the player. Setting a numerical

value will determine how long a particular picture will display (in seconds) before changing to the
next. Setting this to “Turn Off” will disable the slideshow mode.

• Set Background- Allows you to set the current picture as a background for your desktop, music

screen, EBook screen, record screen, Radio screen, Taskbar, title bar, and windows.
