Mach speed TCH-843 User Manual
TCH-843
User’s Manual
Specifications:
4.3” TFT touch screen
Excellent sound effect performance; supports MP3/WMA/FLAC/APE,PLAY FX sound
effect
Supports TF card
Supports video: AVI、RM、RMVB、FLV、DAT and more formats.

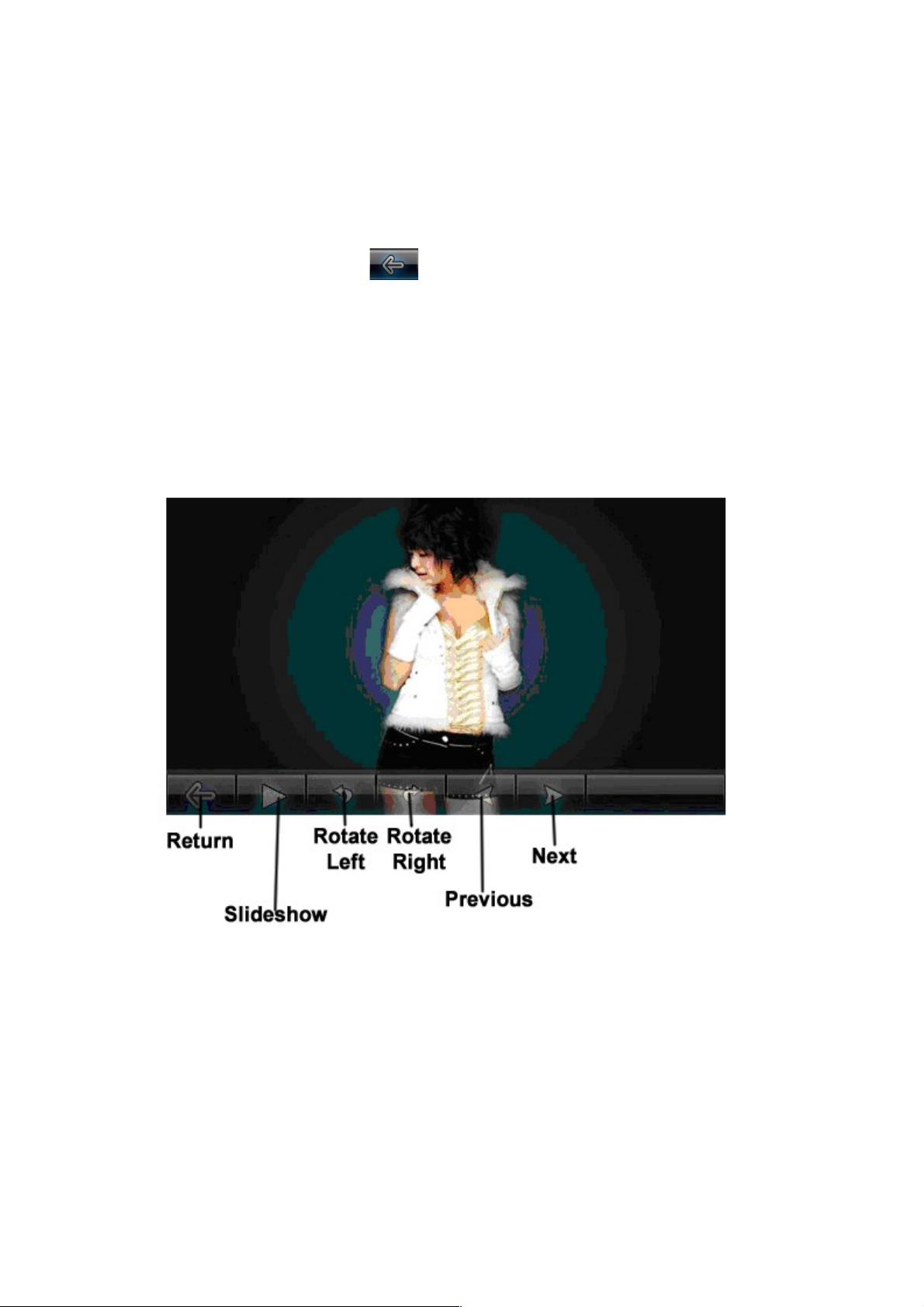

Photo viewer JPEG、BMP、GIF formats

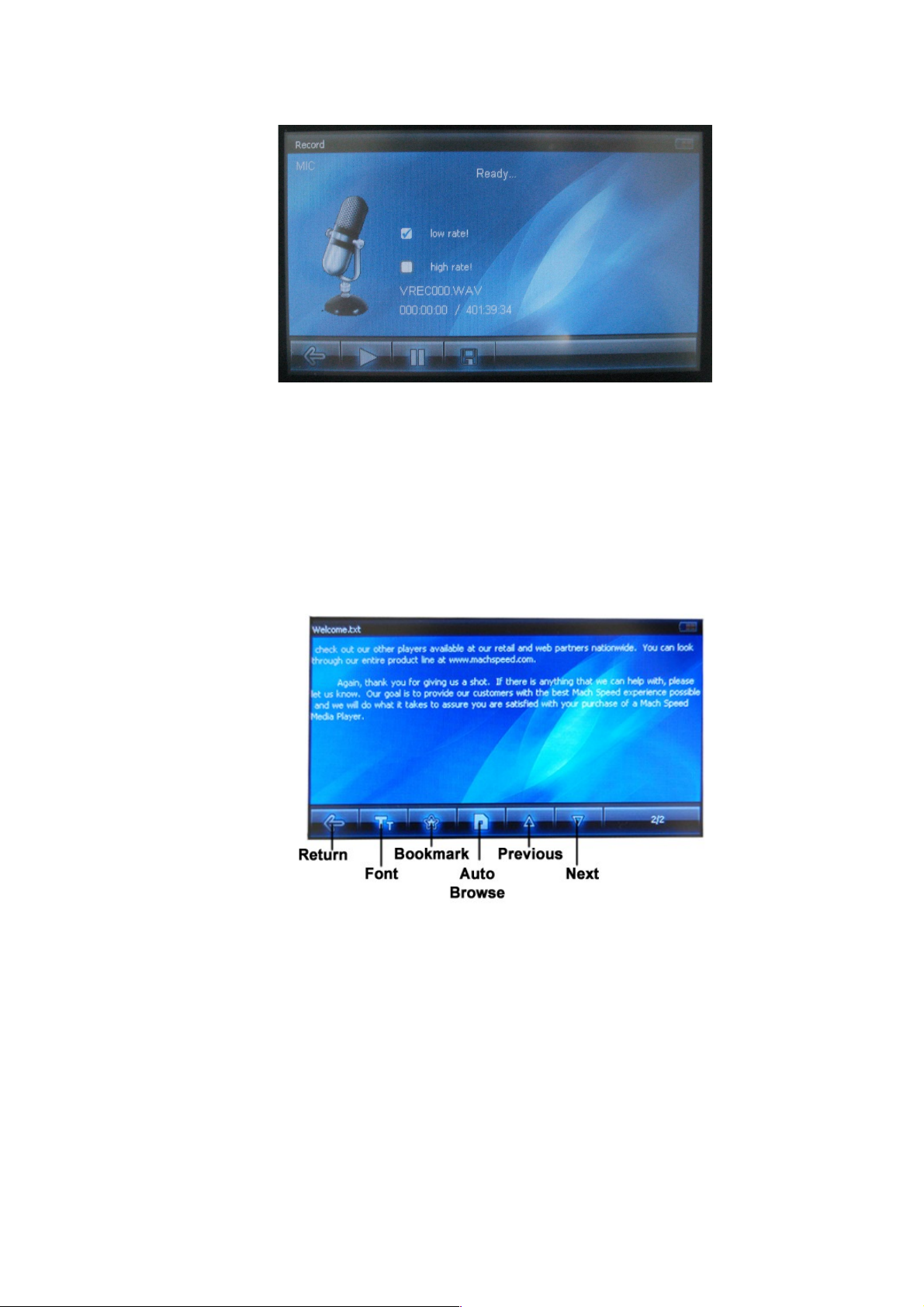

Insert MIC，Supports long time recording.
Supports Multi-languages
High speed USB2.0 interface
E-book reading & bookmark functions
Congratulations on purchasing your Trio Personal Media
Player! To get the most out of your purchase, please take
the time to carefully read through this manual.
Foreword
If any problems occur during while using your Trio, please feel free to contact Mach
Speed technical support at 580-272-0035. Thank you for your support and cooperation!
Mach Speed Technologies bears no responsibility for any damage or loss of personal
data due to misuse of software and/or hardware, damage to the player caused by human
factors, replacement of battery, or other unforeseen circumstances. To prevent loss of
your data, please backup your data regularly.
Information in the manual is subject to any change without notice and is subject to
copyright protection. Copying or otherwise reproducing this material without prior written
consent is prohibited.
Due to Firmware changes, some of the pictures and functions described in this
manual may not be the same as are included with your player.
Precautions
•
Avoid using your Trio under extremely hot, cold, dusty or wet environments.
•
Striking, dropping, or severe jolts to your Trio may cause physical damage,
battery loosening, or other hardware damage.
•
The following conditions indicates a low battery level and signifies that the player
should be charged:
o
The battery icon displays in normal operation with low battery prompt.
o
Where there is no response when pressing keys and the battery icon displays .
o
The player turns off automatically.
•
Static electricity may cause damage to interior hardware of the player.
•
Do not disconnect the player while formatting, uploading, or downloading files to
the player, as it may cause program errors, or cause the unit to be unable to power
on.
•

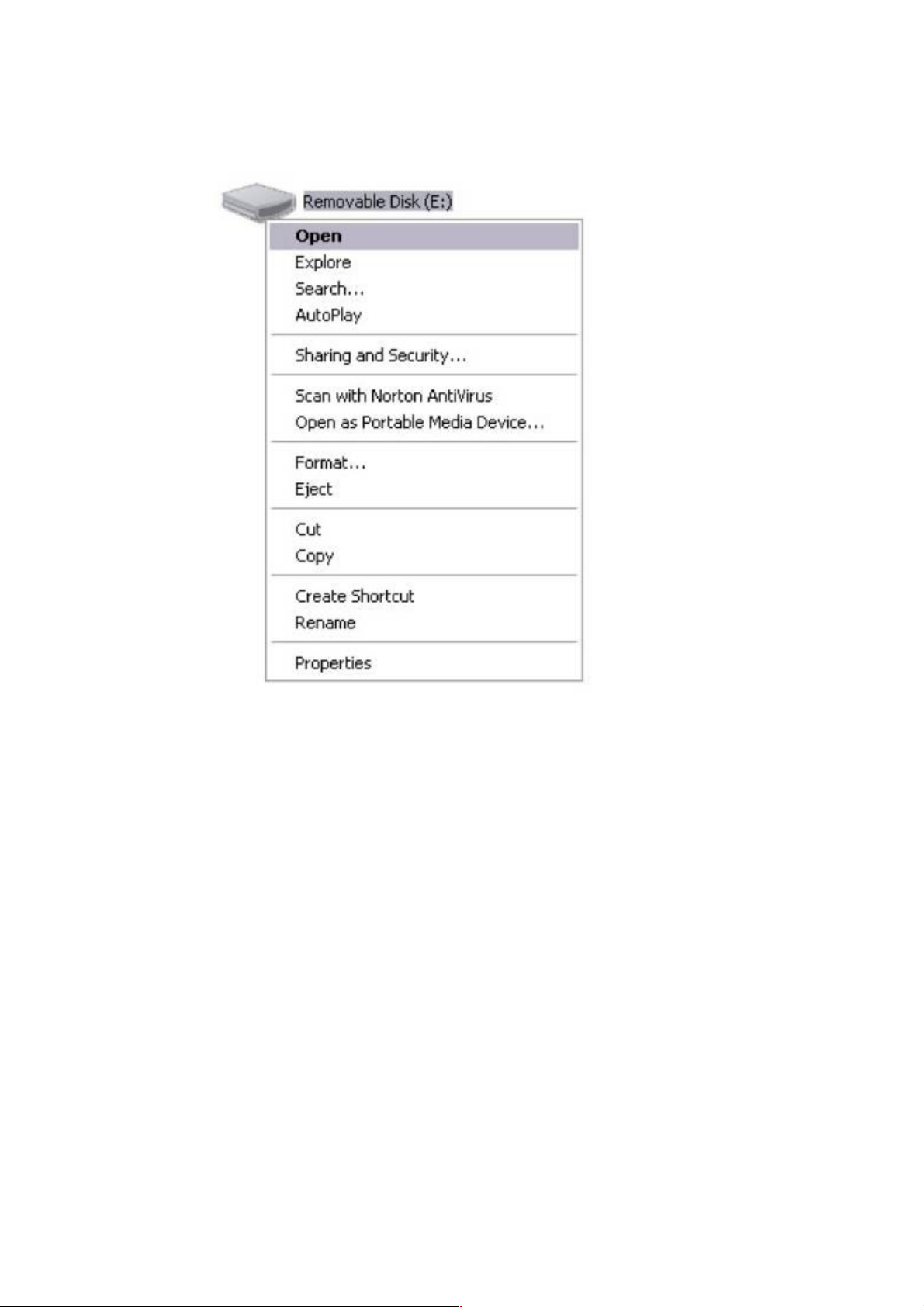

When the player is used as a removable hard disk, users should store files
following correct file management methods. We are not liable for any data loss or
damage.
•
Do not disassemble the unit in any way as this will void all warranties. Please
contact your place of purchase if you experience any problems with your unit.
•
Ensure that your player is powered off before connecting or removing your Micro
SD card.
Basic Operation
Charging the player
Whenever connected to the computer, the battery in the player will charge.
Thus, your battery will charge when you load files to the player. We
recommend powering the player off before connecting it to your computer to
charge.
Power on
To power your player on, push the power switch up and hold it there for 5 seconds. A
welcome screen will display, and then you will be at the main menu.
Power off
To power off your player, move the power switch bottom and hold it there for 5 seconds
and then the screen will power off. Once the screen is dark, the player is powered down.
HOLD
When listening to music or watching a video, it can be easy to accidentally touch the
screen and interrupt your session. To counter this, the player has a HOLD feature. To set
the player in HOLD mode, push the power switch up to the top. A lock will display on the
screen. To unlock the screen, touch your fingertip to the arrow below the lock and slide
the arrow to the right all the way. The lock will disappear and the player will be unlocked.
Functions
1. Playing Music
On the main menu, touch the “Music” icon to enter Music Mode. You will enter your
media Library, which allows you to select the song you wish to play. Once you have
selected the song, it will begin to play automatically.
Touch the Play/pause icon to pause the file, and press it again to resume playback.
Briefly touching the Next or Previous icons will skip to the next or previous track, while
touching and holding these icons will cause the current track to rewind or fast forward.
Adjusting the volume
To adjust the volume, touch the Reduce volume or Increase volume icon. The Volume
indicator in the lower right hand corner will display the volume level.
Music Menu Icons
The music menu icons located at the bottom edge of the music screen each have a
different application.
•
Return- Touching this icon will return you to the Media Library.
•
Shuffle Mode- Allows you to alternate between normal and shuffle modes
•
Display- Switch between an equalizer and lyric display NOTE- lyrics will only
display if you have installed the corresponding .lrc file.
•
Play Mode- Allows you to change your play mode. select from play all, play once,
repeat 1, and repeat all
•
Equalizer- Allows you to choose one of ten equalizer settings.
Video Mode
On the main menu, touch the “video” icon to enter video Mode. You will enter your
media Library, which allows you to select the file you wish to play. Once you have
selected the video, it will begin to play automatically.
Touch the Play/pause icon to pause the file, and press it again to resume playback.
Briefly touching the Next or Previous icons will skip to the next or previous track, while
touching and holding these icons will cause the current track to rewind or fast forward.
Touching the screen size icon will swap between the true size of the video, and full
screen mode. You can touch the “Skip to” icon to skip to a particular point in your video.
Touching the return icon will return you to the Media Library
Adjusting the volume
To adjust the volume, touch the Reduce volume or Increase volume icon. The Volume
indicator in the lower right hand corner will display the volume level.
