S5
S1
S2
S4

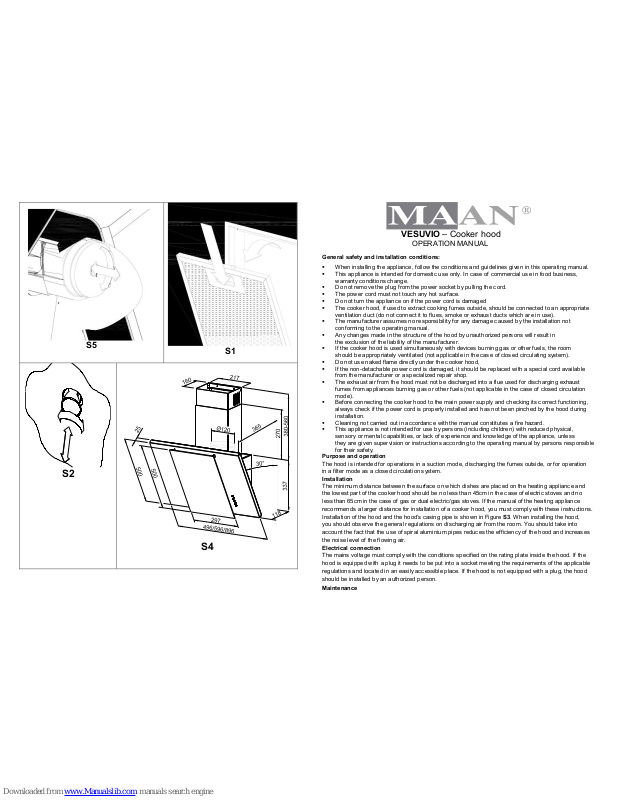

VESUVIO – Cooker hood
OPERATION MANUAL
General safety and installation conditions:
When installing the applianc e, follow the conditions and gu idelines given in this oper ating manual.
This appliance is intended f or domestic use only. In cas e of commercial use in f ood business,
warranty conditions change.
Do not remove the plug fr om the power socket by pulling t he cord.
The power cord must not touch any hot surface.
Do not turn the appliance on if the power cord is damag ed
The cooker hood, if used to extract cooking fumes outsi de, should be connected to an appropriate
ventilation duct (do not c onnect it to flues, smoke or exhaus t ducts which are in us e).
The manufacturer assumes no r esponsibility for any dam age caused by the installation not
conforming to the operating manual.
Any changes made in th e structure of the hood by unauth orized persons will result in
the exclusion of the liabilit y of the manufacturer.
If the cooker hood is used si multaneously with devices burn ing gas or other fuels, the room
should be appropriately venti lated (not applicable in th e case of closed circulating system).
Do not use naked flame directl y under the cooker hood,
If the non-detachable power c ord is damaged, it should be r eplaced with a special cord a vailable
from the manufacturer or a sp ecialized repair shop.
The exhaust air from the hood must not be discharged int o a flue used for discharging exhaust
fumes from appliances burning gas or other fuels (not applic able in the case of cl osed circulation
mode).
Before connecting the c ooker hood to the main power sup ply and checking its correct functioning,
always check if the power c ord is properly installed and h as not been pinched by the hood during
installation.
Cleaning not carried out in acc ordance with the manual c onstitutes a fire hazard.
This appliance is not intend ed for use by persons (includi ng children) with reduced physical,
sensory or mental capabiliti es, or lack of experience and kn owledge of the applianc e, unless
they are given supervision or instructions according to th e operating manual by persons responsible
for their safety.
Purpose and operation
The hood is intended for operations in a suction mode, disch arging the fumes outsid e, or for operation
in a filter mode as a closed circ ulation system.
Installation
The minimum distance bet ween the surface on which dish es are placed on the heatin g appliance and
the lowest part of the c ooker hood should be no less than 45cm in the case of electric st oves and no
less than 65cm in the case of gas or dual electric/gas st oves. If the manual of the heatin g appliance
recommends a larger distanc e for installation of a cooker h ood, you must comply with these instructions.
Installation of the hood and th e hood’s casing pipe is shown in Figure S3. When inst alling the hood,
you should observe the gener al regulations on discharging air from the room. You sh ould take into
account the fact that the us e of spiral aluminium pipes red uces the efficiency of the h ood and increases
the noise level of the flowing air.
Electrical connection
The mains voltage must c omply with the conditions sp ecified on the rating plate insid e the hood. If the
hood is equipped with a plug it needs to be put into a sock et meeting the requirements of the applicable
regulations and located in an easily accessible place. If t he hood is not equipped wit h a plug, the hood
should be installed by an auth orized person.
Maintenance
Before proceeding to any mai ntenance operations, unplug the hood from the power su pply. The appliance
should be cleaned with sp ecial cleansing agents f or surface made of stainless sheet met al or coated
sheet metal. The hood should be cleaned with mild deterg ents, do not use abrasive cl eaners. Regular
maintenance will improve th e operation of the hood.
Caution: DO NOT USE ALCOH OL!!!
Grease filter
The cooker hood is equipp ed with an aluminium filter. T he filter is removed by moving the loc ks in the
direction indicated by the arr ow (Fig. S1). The filter should be cleaned manually in the f ollowing manner:
immerse it for 15 minutes in water mixed with mild deterg ent at the temperature of 40-50 °C. After 15
minutes, start washing th e filter and rinse it carefully. Th e filter must be completely dry befor e it is put
back in the hood. If the filter is not cleaned regularly, the p erformance of the hood d ecreases and
the fire risk increases. If wash ed in a dishwasher, the filter may become discoloured, b ut this does
not affect its filtering properti es.
Charcoal filters (Only for clo sed circulation mode - Fig. S5 )
The cooker hood can be equipped with carbon filters. Carbon filters are used only when t he hood is NOT
connected to a ventilation duct. The filters should be placed on the turbine casing, as sh own in Fig. S5.
In this case, the filtered air is discharged back into the room. The hood should not be c onnected to
ventilation ducts. In order t o ensure correct operation and efficient filtering of odours, t he carbon filters
should be replaced regularl y (every 3 to 6 months), depen ding on the intensity of utili zation of the hood.
Lighting replacement (Fig. 2)
Before proceeding to any operations related to lighting r eplacement, unplug the ho od from the power
supply. If the hood was previously on, wait a few minutes an d only replace the bulb after it c ools down.
Caution! Do not touch th e bulbs as long as they are hot. Make sure you do not touch t he front of the bulb
you install directly with your fingers.
Aluminium filter replacement - Fig. S1
Lighting replacement - Fig. S 2
Hood and chimney installation – Fig. S3
Hood dimensions – Fig. S4
Charcoal filters replacement - Fig. S5
The symbol placed on a pr oduct or on the accompanying d ocuments means that this
product may not be treated as household waste. In order t o dispose of the appliance,
you should take it
to an appropriate collection p oint for the recycling of electrical and electronic equip ment.
Disposal must be carried out in accordance with local regulations concerning waste disposal.
For more information about uti lization, scrapping and rec ycling of this appliance, pleas e contact
your local authorities, wast e disposal facility or the store where you purchased the pr oduct.
Manual control (push button)
Control of the turbine in th e hood
„0” – turns the turbine on
„1” – turbine works at the minimal speed
„2” – turbine works at the medium speed
„3” – turbine works at the maximum speed
The turbine is turned on b y pressing the selected butt on. The higher speed, the bigg er the air flow.
„Light bulb icon” - Press th e button to t urn lights on. Pr ess it the second time to turn the lights off.
6x PW8x40
6x HS4,0x45
2x O3,9x9,5
2x O2,9x9,5
S3
