Industrial Data-Logger cum
Cloud Gateway
r
User Manual
LadderLOGIX
Revision List
Revision
Date
Description
1.3.0.0
27 April 2014
Match firmware release 1.3.0.0
1.4.1.0
16 June 2014
Match firmware release 1.4.1.0
1.6.0.0
1 July 2014
Match firmware release 1.6.0.0
Preface
The data and illustrations found in this document are not binding. We reserve the right
to modify our products in line with our policy of continuous product development. The
information in this document is subject to change without notice and should not be
considered a commitment by M2MLogger. M2MLogger assumes no responsibility for
any errors that may appear in this document.
The document uses following pictures to get the reader’s attention:
Symbol
Description
Note! Important information to avoid configuration that can cause
problems and therefore should be read carefully.
Additional information about how to get the most out of LadderLOGIX
Contents
1 Warranty ....................................................................................................................... 6
2 Support.......................................................................................................................... 6
3 Terminology................................................................................................................... 7
4 How to use LadderLOGIX ................................................................................................ 8
5 Quick Setup Instructions ................................................................................................ 9
5.1 As Cloud (WebFRONT) Data-logger .................................................................................. 9
5.2 As FTP Data-Logger ........................................................................................................... 9
5.3 As USB Data-Logger ........................................................................................................ 10
5.4 As Local Web based Data-Logger .................................................................................... 11
6 About LadderLOGIX...................................................................................................... 12
6.1 Features .......................................................................................................................... 12
6.2 Mounting on DIN rail ...................................................................................................... 12
6.3 Technical Specification ................................................................................................... 13
6.4 Mechanical ..................................................................................................................... 14
6.5 Connections .................................................................................................................... 14
6.5.1 RS232 GSM/GPRS ........................................................................................................... 15
6.5.2 MODBUS RS-485 ............................................................................................................. 15
6.5.3 Power 24VDC .................................................................................................................. 15
6.5.4 LED Indication ................................................................................................................. 16
7 Getting Started ............................................................................................................ 17
7.1 Auto Discovery utility ...................................................................................................... 17
7.1.1 Installation ...................................................................................................................... 17
7.1.2 Scanning devices connected over network ..................................................................... 17
7.1.3 Scanning devices connected directly .............................................................................. 17
8 Web UI overview ......................................................................................................... 19
8.1 Browser Requirement ..................................................................................................... 19
8.2 Log in .............................................................................................................................. 19
9 User interface .............................................................................................................. 20
9.1 Control Panel .................................................................................................................. 20
9.2 Device Settings ............................................................................................................... 21
9.2.1 General ........................................................................................................................... 21
9.2.2 System ............................................................................................................................ 22
9.2.3 Explorer .......................................................................................................................... 28
9.3 IO Mappings ................................................................................................................... 29
9.3.1 Tags ................................................................................................................................ 29
9.3.2 Alerts .............................................................................................................................. 33
9.4 Workflow ........................................................................................................................ 38
9.4.1 Toolbar ........................................................................................................................... 38
9.4.2 Manage ........................................................................................................................... 39
9.4.3 Tasks ............................................................................................................................... 39
9.5 Monitor Settings ............................................................................................................. 42
9.5.1 Widgets........................................................................................................................... 43
9.5.2 Widget Properties ........................................................................................................... 43
9.6 Trend Settings ................................................................................................................. 45
9.6.1 Trend .............................................................................................................................. 45
9.6.2 Trend Properties ............................................................................................................. 45
9.7 Account........................................................................................................................... 47
9.8 Monitors ......................................................................................................................... 48
9.8.1 Toolbar ........................................................................................................................... 48
9.9 Trends ............................................................................................................................. 49
9.9.1 Toolbar ........................................................................................................................... 49
9.9.2 Zoom............................................................................................................................... 49
9.10 Tag Stream ...................................................................................................................... 50
9.10.1 Toolbar ........................................................................................................................... 50
9.11 Alerts .............................................................................................................................. 51
9.11.1 Toolbar ........................................................................................................................... 51
10 Appendix ..................................................................................................................... 52
10.1 File name wildcards ........................................................................................................ 52
10.1.1 [*] - Asterisk .................................................................................................................... 52
10.2 FTP Commands ............................................................................................................... 52
10.2.1 STOR ............................................................................................................................... 52
11 Troubleshoot ............................................................................................................... 53
11.1 Power LED not ON .......................................................................................................... 53
11.2 Both Run and Error LEDs blinking ................................................................................... 53
11.3 Run LED ON and Error LED blinking ................................................................................ 53
11.4 Run LED OFF and Error LED ON ....................................................................................... 53
11.5 Connecting internet with Static IP Address..................................................................... 53
6 ver. 1.6.0.0
User Manual LadderLOGIX
1 Warranty
M2MLogger warrants that, for a period of 365 days from date of shipment of product,
the product shall be free from defects under normal use. Under this warranty it is
obligation of M2MLogger to replace any device found defective (within the warranty
period) and has been returned to M2MLogger by buyer at buyer's expense. All shipping
and insurance costs both ways are the responsibility of buyer. The warranties do not
include damage due to negligence, improper installation or operation, accident,
tampering with warranty seal or other conditions other than normal use which might
cause the Products to fail.
THE WARRANTIES AND THE REMEDIES SET FORTH IN THIS SECTION ARE EXCLUSIVE
AND IN LIEU OF ALL OTHER WARRANTIES, ORAL OR WRITTEN, EXPRESS OR IMPLIED,
EXCEPT AS SET FORTH IN THIS SECTION. M2MLOGGER MAKES NO WARRANTIES,
EITHER EXPRESS OR IMPLIED, REGARDING ANY OF THE PRODUCTS, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY FOR A PARTICULAR
PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PRODUCT
IS WITH BUYER. IN NO EVENT WILL M2MLOGGER BE LIABLE TO BUYER OR ANY OTHER
PERSON OR ORGANIZATION FOR ANY DAMAGES, INCLUDING ANY LOST PROFITS, LOST
SAVINGS OR INCIDENTAL OR CONSEQUENTIAL DAMAGES, ARISING OUT OF THE USE OR
INABILITY TO USE ANY OF THE PRODUCTS, EVEN IF M2MLOGGER HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER PARTY.
2 Support
To obtain fast and simple support for your LadderLOGIX, please use our website
http://www.m2mlogger.com. Here you will find the latest documentation,
configuration utilities, drivers etc. You can also contact our support at
support@m2mlogger.com.
7 ver. 1.6.0.0
User Manual LadderLOGIX
3 Terminology
Term
Extract
Description
TCP/IP
Transmission Control
Protocol/Internet Protocol
TCP (Transmission Control Protocol) is a
set of rules used along with the Internet
Protocol (IP) to send data in the form of
message units between computers over
the Internet.
HTTP
Hyper Text Transfer Protocol
HTTP is a set of rules for exchanging files
(text, graphic images, sound, video and
other multimedia files) on the Web.
DHCP
Dynamic Host Configuration
Protocol
DHCP is a standard protocol that
automates the process of configuring
network hosts by allowing hosts to obtain
IP addresses and configuration
parameters.
Gateway
A device that makes it possible to
transfer data between networks of
different kind, e.g. MODBUS and Internet
Device
A MODBUS slave unit that is connected
to LadderLOGIX
Tag MODBUS register configured in
LadderLOGIX.
8 ver. 1.6.0.0
User Manual LadderLOGIX
4 How to use LadderLOGIX
Figure 1 How it works
9 ver. 1.6.0.0
User Manual LadderLOGIX
5 Quick Setup Instructions
Make field connections to device. (See Section 6.5)
Discover the device using AutoDiscovery ustility. (See Section 7.1)
Log on to Web UI. (See Section 8.2)
Go to Control Panel > IO Mapping screen and Configure and Save
Tags and Alerts. (See Section 9.3)
Go to Control Panel > Settings > System Settings
5.1 As Cloud (WebFRONT) Data-logger
Configure and Save Mode Setting. (See Section 9.2.2.1)
o Cloud Connector: On
o Gateway Mode: Send
o Loop: Continuous
o Loop Interval: 10 sec
o Workflow: Disabled.
Configure and Save Server Settings. (See Section 9.2.2.1 )
Power Off and Power On the device.
5.2 As FTP Data-Logger
Configure and Save Mode Setting. (See Section 9.2.2.1)
o Cloud Connector: Off
o Gateway Mode: Log
o Loop: Continuous
o Loop Interval: 10 sec
o Workflow: Enabled.
Configure and Save Logger Settings. (See Section 9.2.2.8)
Go to Control Panel > Workflow. (See Section 9.4)
o Add Move File Task.
Trigger: Any
Source Folder: Data
Source Filename: tag[*].fdb
Destination Folder: Workflow
o Add Custom Task.
Trigger: Any
Executable: Fdb2Csv.exe
Arguments: tag[*].fdb
Timeout sec(s): 2
o Add FTP Task.
10 ver. 1.6.0.0
User Manual LadderLOGIX
Trigger: Success
Command: STOR “tag[*].csv”
o Add Delete File Task.
Trigger: Any
Folder: Workflow
Filename: tag[*].fdb.ftp
o Add Delete File Task.
Trigger: Any
Folder: Workflow
Filename: tag[*].fdb.done
Save Workflow
Power Off and Power On the device.
5.3 As USB Data-Logger
Configure and Save Mode Setting. (See Section 9.2.2.1)
o Cloud Connector: Off
o Gateway Mode: Log
o Loop: Continuous
o Loop Interval: 10 sec
o Workflow: Enabled.
Configure and Save Logger Settings. (See Section 9.2.2.8)
Go to Control Panel > Workflow. (See Section 9.4)
o Add Move File Task.
Trigger: Any
Source Folder: Data
Source Filename: tag[*].fdb
Destination Folder: Workflow
o Add Custom Task.
Trigger: Any
Executable: Fdb2Csv.exe
Arguments: tag[*].fdb
Timeout sec(s): 2
o Add Move File Task.
Trigger: Any
Source Folder: Workflow
Source Filename: tag[*].csv
Destination Folder: USB
o Add Delete File Task.
Trigger: Any
11 ver. 1.6.0.0
User Manual LadderLOGIX
Folder: Workflow
Filename: tag[*].fdb.done
Save Workflow
Power Off and Power On the device.
5.4 As Local Web based Data-Logger
Configure and Save Mode Setting. (See Section 9.2.2.1)
o Cloud Connector: Off
o Gateway Mode: Log
o Loop: Continuous
o Loop Interval: 10 sec
o Workflow: Enabled.
Configure and Save Logger Settings. (See Section 9.2.2.8)
Go to Control Panel > Monitor Settings and create a Monitor
screen. (See Section 9.5)
Go to Control Panel > Trend Settings and create a Trend screen.
(See Section 9.6)
Power Off and Power On the device.
Go to Control Panel > Monitors or Control Panel > Trends to
view real-time data visualization.
12 ver. 1.6.0.0
User Manual LadderLOGIX
6 About LadderLOGIX
LadderLOGIX series comprises of advanced Industrial Cloud gateways that can extend
any Industrial network to Cloud. They enhance your capability monitor, analyze and
control the performance of your process remotely, from any place in world. These
gateway devices can be easily interfaced with:
Existing PLC, DCS or SCADA system with an MODBUS interface.
MINT Intelligent IOs.
6.1 Features
Remote monitoring.
WebFRONT Web SCADA Cloud
gateway.
Web User Interface (Web UI).
MODBUS RTU RS-485 &
MODBUS Ethernet/IP.
File Transfer Protocol (FTP).
USB Pen drive data logger.
Alerts: SMS, Email.
Signal Scaling.
Rugged design for rough
Industrial conditions.
Compact DIN rail mounting.
Plug-n-play.
Fail-safe for power failures.
Over-The-Air (OTA) upgrades.
1KV isolation.
LadderLOGIX supports an RS-232 connection through a 9-pin DSUB, MODBUS RS-485
through screw terminals, USB pen drive through USB type A connector and 10/100
Mbps Ethernet through a standard Ethernet connector (RJ-45).
It can be configured via a user-friendly Web interface (Web UI).
6.2 Mounting on DIN rail
Snap On
Snap Off
13 ver. 1.6.0.0
User Manual LadderLOGIX
6.3 Technical Specification
Communication
Interface
2 Wire, EIA RS485
Protocol
MODBUS – RTU
Available Ports
1 x RS485 Multi-drop Serial Communication
1 x MODBUS Ethernet/IP
Baud Rate
9600, 19200, 38400, 57600, 115200
Status Indication
LEDs
Power, Module Status, Internet, Cloud, Communication
Status
Additional
MXPXA300
MXPXA1000
Processor
208 MHz
1Ghz Dual Core
Ethernet
10/100Mbits
10/100Mbits
USB Host
1 (USB 2.0)
1 (USB 2.0)
Real Time Clock
SNTP
Email (SMTP)
FTP
Web Server
GSM
- - GPRS
-
-
Internal Storage
3000 records
5000 records
Power
MXPXA300
MXPXA1000
Voltage
24VDC ±10%
24VDC ±10%
Current
< 1 A
< 1 A
Power Usage
4 Watts (max)
5 Watts (max)
Isolation
Supply to
Communication Port
1000 VAC RMS
Environmental
Operating
Temperature
0 to 55 °C
14 ver. 1.6.0.0
User Manual LadderLOGIX
Storage Temperature
-10 to 70 °C
Humidity
30 to 95% RH non-condensing
Physical
Dimensions
35(W) x 101(H) x 120(D) mm
Mounting
DIN Rail
Weight
250 gms approx.
Enclosure Material
Molded ABS
6.4 Mechanical
Figure 2 Physical Dimensions (mm)
6.5 Connections
Figure 3 Field Connections
15 ver. 1.6.0.0
User Manual LadderLOGIX
6.5.1 RS232 GSM/GPRS
The 9 pin DSUB – Male connector on the LadderLOGIX contains and RS232 interface.
This port can be used to connect GSM/GPRS modem.
Pin
Function
1
CD (Carrier Detect)
2
RX (Receive)
3
TX (Transmit)
4
DTR (Data Terminal Ready)
5
GND (Ground)
6
DSR (Data Set Ready)
7
RTS (Request To Send)
8
CTS (Clear To Send)
9
RI (Ring Indicator)
6.5.2 MODBUS RS-485
Pin
Function
A
RS-485 Line A
B
RS-485 Line B
6.5.3 Power 24VDC
Pin
Function
+
+ 24 VDC
-
Ground
Figure 4 Normal wiring diagram for MODBUS terminal A and B
A
B
A
B
LadderLOGIX
MODBUS slave
16 ver. 1.6.0.0
User Manual LadderLOGIX
AC
DC
Line Voltage
+
-
+ 24VDC
GND
LadderLOGIX
Power Supply
Figure 5 How to connect AC power
6.5.4 LED Indication
Name
Color
Function
Power
Off
No Power
Orange
Power
Device Run
Off
Not running
Orange
Boot-up or Error
Flashing Orange
Module running
Internet
Off
No Internet
Orange
Internet Connected
WebFRONT
Off
WebFRONT disconnected
Orange
WebFRONT Connected
Error
Off
No Error
Red
Unrecoverable Error
Flashing Red
Error
Data
Transmission
Off
No Transmission
Flashing Orange
MODBUS Transmitting
Data Reception
Off
No Reception
Flashing Orange
MODBUS Receiving
17 ver. 1.6.0.0
User Manual LadderLOGIX
7 Getting Started
7.1 Auto Discovery utility
The Auto Discovery is a PC-based configuration utility to scan the Ethernet network for
connected LadderLOGIX devices so that further configurations can be made to selected
device.
7.1.1 Installation
Download and run AutoDiscovery.exe utility from:
http://www.m2mlogger.com/downloads.htm
7.1.2 Scanning devices connected over network
If your LadderLOGIX device(s) are connected over a network, then you should consider
following steps:
1. Power up LadderLOGIX device and connect LadderLOGIX with network.
2. Start AutoDiscovery.exe utility.
3. Select the relevant Network Adapter and select Discover.
4. To configuration a LadderLOGIX device click the Configure button to open
up Web UI for the device in Web Browser.
7.1.3 Scanning devices connected directly
If your device is directly connected to Laptop via straight/cross Ethernet cable, then
you should consider following steps:
1. Power up LadderLOGIX device. Do NOT connect Ethernet cable to laptop yet.
18 ver. 1.6.0.0
User Manual LadderLOGIX
2. Start AutoDiscovery.exe utility.
3. Click Connect Directly.
4. On Direct Connect Setup dialogue, select the Network Adapter you will
be connecting the LadderLOGIX and click Configure.
5. Click Finish upon successful configuration.
6. Now connect LadderLOGIX with Laptop, make sure data-logger is running.
7. Select the relevant Network Adapter and select Discover.
8. To configuration a LadderLOGIX device click the Configure button to open
up Web UI for the device in Web Browser.
AutoDiscovery.exe runs on Dot Net Framework 3.5. Please download
and install Dot Net Framework 3.5 from http://www.microsoft.com.
It your device is connected on LAN and you are having trouble discovering
device using AutoDiscovery.exe, try disabling your Antivirus and/or
Firewall.
19 ver. 1.6.0.0
User Manual LadderLOGIX
8 Web UI overview
8.1 Browser Requirement
The web-pages are optimized for Internet Explorer version 9 or later and Google
Chrome. Other browsers can work as well, but the web pages might appear differently
and some functionality can be limited. The browser must be HTML 5 (with Canvas
support) enabled, to use pages like the Monitors and Trends. If it is not, please upgrade
to a HTML 5 enabled browser (visit: http://www.html5test.com).
8.2 Log in
Open a web browser and enter the IP address of your device (if you know) or click on
Configure button in Auto Discovery to launch Web Browser with appropriate IP
address of device.
For example, if IP Address of device is 192.168.1.2 then you should enter the text
below in the address field of the browser and press enter.
http://192.168.1.2
Now you should see the login screen:
Username: admin
Default Password: password
20 ver. 1.6.0.0
User Manual LadderLOGIX
9 User interface
9.1 Control Panel
Control Panel is the default landing screen for the device. Here you can navigate to
different screens for configuration and SCADA visualizations.
21 ver. 1.6.0.0
User Manual LadderLOGIX
9.2 Device Settings
At device settings screens you can make configuration changes to device.
9.2.1 General
This tab shows the general settings for device.
9.2.1.1 Options
Option
Description
Serial
Device Serial Number.
MAC Address
Unique Device MAC address.
Firmware
Device Firmware version.
Name
Device Name; also reflected on network.
Internet
Internet connection status.
Cloud
WebFRONT connection status.
9.2.1.2 Toolbar
Button
Description
Refresh General Settings.
Save changes to Device Name.
Restart device.
Upgrade device firmware
22 ver. 1.6.0.0
User Manual LadderLOGIX
9.2.2 System
This tab shows the system settings.
9.2.2.1 Mode
This setting lets the user configure mode for the device.
Option
Description
Cloud Connector
Switched On/Off the Cloud connector
[Default On].
Gateway mode
Sets the gateway mode:
Send – send values to Cloud
Log – log values on local storage
Send & Log – send values to Cloud and also log on local
storage. [Default Send]
Loop
Sets the loop mode for device.
Continuous – loops continuously.
Triggered – one iteration; when triggered.
[Default Continuous]
Loop Interval
Sets device loop interval.
[Default 5 sec]
Workflow
Enable/Disable Workflow.
When the device is running, Average Loop is
displayed to give an approximation of actual
execution time.
23 ver. 1.6.0.0
User Manual LadderLOGIX
9.2.2.2 Server
This setting lets the user configure Cloud server for the device.
Option
Description
Server
WebFRONT Cloud server location.
[Default webfront.m2mlogger.com].
Region
WebFRONT Cloud server regions. For improved performance
select a region that represents best proximity to your device.
[Default in-1]
Account
WebFRONT account name.
Keep-Alive Timeout
Duration to wait for WebFRONT keep-alive message.
[Default 30 sec]
Keep-Alive Retry
Number of keep-alive retries to detect a closed WebFRONT
connection.
[Default 3 sec].
9.2.2.3 Clock
This setting lets user set the device calendar and clock.
Option
Description
Timezone
Device time zone.
[Default Coordinate Universal Time].
Date
Current Date.
Month
Current Month.
Year
Current Year.
Hour
Current Hour in 24 hour format.
Minutes
Current Minutes.
Seconds
Current Seconds.
9.2.2.3.1 Toolbar
Button
Description
Manually Sync clock with NTP server.
It is advisable to always leave the device connected with Cloud. This will
enable you to manage and configure the device online, without going to
the field.
24 ver. 1.6.0.0
User Manual LadderLOGIX
9.2.2.4 Ethernet
This is device Ethernet settings.
Option
Description
DHCP enabled
Ethernet Dynamic Host Configuration Protocol is enabled.
IP Address
Ethernet IP Address
Subnet Mask
Ethernet Subnet Mask.
Default Gateway
Ethernet default gateway
Hour
Current Hour in 24 hour format.
Minutes
Current Minutes.
Seconds
Current Seconds.
9.2.2.5 Modem
This setting lets user set modem options. An external modem, which is optional, can be
a GSM/GPRS attached to the RS-232 9-pin DSUB interface.
Option
Description
Modem
Mode
Set Modem Modes:
None
Message
Data
[Default None].
Baudrate
Baudrate settings in bps:
9600
19200
38400
57600
115200
[Default 115200]
Start bits
Frame start bit:
1
[Default 1]
Data bits
Frame data bits:
5
6
7
8
[Default 8]
LadderLOGIX data logger does not support Static IP Address. It can only
be connected to networks with Dynamic IP Address (i.e. network with
DHCP server).
25 ver. 1.6.0.0
User Manual LadderLOGIX
Stop Bits
Frame stop bits:
1
1.5
2
[Default 1 stop bit]
Handshake
None
Software
Hardware
Both
[Default Hardware]
Parity
None
Even
Odd
[Default None]
Timeout
Connection timeout.
User name
User name assigned by ISP.
Password
Password assigned by ISP.
Country Code
Country code to dial to the ISP.
Area Code
Area Code to dial to ISP.
Phone number
Phone number to dial to the ISP.
APN
Access Point Name, GPRS gateway that is given by SIM card
operator.
9.2.2.6 SMTP
This setting lets user configure the SMTP settings to use while sending out email.
Option
Description
Account
Account name for the SMTP server.
Username
User name for the SMTP server.
Password
Password for the SMTP server.
Server
SMTP Server that is used for sending e-mail. Could be entered
as IP address or domain name.
Port
SMTP server port.
SSL
SMTP server SSL settings:
None
SSL
TLS/STARTTLS
[Default None]
9.2.2.7 MODBUS
This sub menu item lets the user configure the MODBUS RS-485 communication
interface. Make sure that the wiring is correct.
Option
Description
26 ver. 1.6.0.0
User Manual LadderLOGIX
UART Mode
Set MODBUS transmission mode: RTU.
[Default RTU].
Baudrate
Baudrate settings in bps:
9600
19200
38400
57600
115200
[Default 9600]
Start bits
Frame start bit:
1
[Default 1]
Data bits
Frame data bits:
5
6
7
8
[Default 8]
Stop Bits
Frame stop bits:
1
1.5
2
[Default 1 stop bit]
Handshake
None
Software
Hardware
Both
[Default Hardware]
Parity
None
Even
Odd
[Default None]
Timeout
The time that device will wait for a response from a slave
before serial timeout will occur.
[Default 1000]
Retry
Number of retry if an error occurs while querying data from
MODBUS slave.
[Default 3]
9.2.2.8 Logger
This setting lets user configure the device Tag logger.
27 ver. 1.6.0.0
User Manual LadderLOGIX
Option
Description
Mode
Set Tag Logger mode:
Continuous
On Change
[Default Continuous].
Column Separator
Column Separator to be used by logger:
Comma (,)
Pipe (|)
[Default Comma(,)]
Row Separator
Row Separator to be used by logger:
Line Feed
Carriage Return & Line Feed
[Default Line Feed]
Rollover time
Rollover time for the logger when it rolls over the current file
and starts writing to a new file.
[Default 5 mins]
Encoding
Logger text encoding.
[Default ASCII]
tag.fdb is the active file on which Logger is writing. Any operation on
tag.fdb may result in device malfunction
Logger always writes the file to Data directory.
Logger filename format: tag[ddMMyyyyHHmmss].fdb
This setting is only used if Gateway mode is Log or Send & Log (see
Section 9.2.2.1)
28 ver. 1.6.0.0
User Manual LadderLOGIX
9.2.3 Explorer
This tab lists down the files being logged on data logger. User can download or delete
the data files from this screen.
9.2.3.1 Data
This selection lists down the files under Data folder.
9.2.3.2 Logs
This selection lists down the files under Logs folder.
9.2.3.3 Workflow
This selection lists down the files under Workflow folder.
9.2.3.4 Toolbar
Button
Description
Folder
Folder to explore.
Refresh Data files.
Delete a data file
29 ver. 1.6.0.0
User Manual LadderLOGIX
9.3 IO Mappings
At IO Mappings screen you define Tags (MODBUS queries) and Alerts.
9.3.1 Tags
You can configure MODBUS queries as Tags.
9.3.1.1 Toolbar
Button
Description
Add a Tag.
Edit a Tag.
Clone a Tag
Delete Tag(s).
Delete a Tag Group – all the Tags within the same Group will be
deleted.
Add/Edit Scaling for Tag.
30 ver. 1.6.0.0
User Manual LadderLOGIX
9.3.1.2 Defining Tag
Option
Description
Name
Tag Name
Type
Tag Type:
MODBUS UART Input
MODBUS UART Output
MODBUS TCP Input
MODBUS TCP Output
[Default MODBUS UART Input]
Function
MODBUS Functions:
Read Coils
Read Discrete Inputs
Read Holding Registers
Read Input Registers
Write Single Coil
Write Single Register
[Default Read Input Register]
Trigger
Trigger for Tag to get recorded:
None
On Change
[Default None]
Units
Tag units
Precision
Tag precision digits [0 to 6]
Slave Id
MODBUS Slave Id of slave device [1 to 247]
Data Type
Data Type of Tag:
Bit
Integer (16 bit)
31 ver. 1.6.0.0
User Manual LadderLOGIX
Integer (32 bit)
Integer (64 bit)
Float
Swap Float
[Default Integer (16 bit)]
Address
MODBUS Address of registers to read/write [0 to 65536]
Data Points
Data points to read/write (read-only)
IP Address
MODBUS slave IP Address. Applicable to MODBUS TCP Input
and MODBUS TCP Outputs
Port
MODBUS slave Port. Applicable to MODBUS TCP Input and
MODBUS TCP Outputs
Timeout
Time for which device will wait for MODBUS slave to reply.
[Default 100 ms]
Retry
Number of retries after which MODBUS query errors out.
Hysteresis
Hysteresis for Tag values. Tag value only gets recorded if
Hysteresis is satisfied.
None
Absolute
Percentage
[Default None]
Value
Hysteresis Value to use for computing Tag Hysteresis.
Group
Specify Group name to group Tags to execute MODBUS Bulk
Query.
Notify Server
Check to send Tag value to server.
Valid for Trigger is On Change
Valid for Trigger is On Change
Swap Float uses word swap floating notation.
32 ver. 1.6.0.0
User Manual LadderLOGIX
9.3.1.3 MODBUS Bulk Query
LadderLOGIX device can execute bulk query over MODBUS. Tags with Group are
eligible for MODBUS Bulk Query
9.3.1.3.1 MODBUS UART
For MODBUS UART, Bulk Query is grouped by Tag Group, Slave Id and Function.
9.3.1.3.2 For MODBUS TCP
For MODBUS TCP, Bulk Query is grouped by Tag Group, IP Address, Host Port, Slave Id
and Function.
9.3.1.3.3 Timeout
Bulk Query obtains Timeout value from Device Settings > System > MODBUS >
Timeout. (See Section 9.2.2.7)
9.3.1.3.4 Retry
Bulk Query obtains Retry value from Device Settings > System > MODBUS >
Retry. (See Section 9.2.2.7)
9.3.1.4 Scale Tag
Scaling is used to convert measured values to engineering values. LadderLOGIX
supports Linear Scaling.
Only Input Tags can be scaled.
Enter minimum 4 values for best result.
33 ver. 1.6.0.0
User Manual LadderLOGIX
Option
Description
Reg
Register Value
Engineering
Engineering Value
9.3.2 Alerts
An Alert is an exception that has to be raised and notified when a Tag breaches its
threshold.
9.3.2.1 Toolbar
Button
Description
Add an Alert.
Edit an Alert.
Delete an Alert.
Add/Edit Success actions.
Add/Edit Failure actions.
Reg Value has precision of 6 decimal places
Engineering Value has same precision as that of Tag.
A maximum of 10 data points can be entered.
34 ver. 1.6.0.0
User Manual LadderLOGIX
9.3.2.2 Defining Alert
Option
Description
Name
Alert Name
Severity
Alert Severity:
Low
Medium
High
Critical
[Default Low]
LHS
Left Hand Side for Alert Comparison
sys.reset – System Reset Alert
sys.storage – System Storage Alert
<Tags> – Input Tags
Operation
Alert Operation
Equal
Not Equal
Greater Than
Greater Than Equal
Less Than
Less Than Equal
On Change – Raises alert if underlying Tag has changed
[Default Equal]
Value
Right Hand Side Value to compare with.
Precision
Alert precision digits
Hysteresis
Hysteresis for Alert values. Alert get raised only if Hysteresis is
satisfied.
35 ver. 1.6.0.0
User Manual LadderLOGIX
None
Absolute
Percentage
[Default None]
Value
Hysteresis Value to use for computing Hysteresis.
Delay
Sec(s)
Delay period to wait before raising the Alert.
9.3.2.3 Alert Actions
Various actions such as: Notify Server, SMS, Email, Update Tags etc. can be performed
based on Success/Failure of an Alert. To configure select an Alert and click a relevant
action button.
9.3.2.3.1 Notify
To send notification to WebFRONT server, check Notify checkbox in the Alert Action
handler.
9.3.2.3.2 SMS
User can choose to send SMS notification for an Alert.
Alert condition should hold True through the
delay period. Otherwise Alert is reset.
Valid for sys.reset, sys.storag and Tags
Valid for sys.reset, sys.storag and Tags
Valid for sys.reset, sys.storag and Tags
36 ver. 1.6.0.0
User Manual LadderLOGIX
Option
Description
To
Recipients’ mobile numbers separated by Semi Colon (;)
Body
Custom message to be included in SMS
Include Snapshot
Include Alert Values snapshot.
9.3.2.3.3 Email
User can choose to send Email notification for an Alert.
Option
Description
To
Recipients’ emails separated by Semi Colon (;)
Configure Modem to Messaging mode. See Section 0
SMS will only be sent if a GPRS modem is detected by device.
37 ver. 1.6.0.0
User Manual LadderLOGIX
Cc
Carbon Copy Recipients’ emails separated by Semi Colon (;)
Bcc
Blank Carbon Copy Recipients’ emails separated by Semi Colon
(;)
Subject
Custom Alert Email Subject
Body
Custom message to be included in SMS
Include Snapshot
Include Alert Values snapshot.
9.3.2.3.4 Tag
User can choose to update Output Tags as an alert action. Updates to Tag are
immediately sent to MODBUS slaves.
Option
Description
Tag
Select a Tag you wish to update.
Value
Provide a value to update to the Tag.
Helpful when preventive actions have to be taken in response to an
alert.
Internet Connection required for sending email. See Section 0
Valid SMTP settings required. See Section 9.2.2.6
38 ver. 1.6.0.0
User Manual LadderLOGIX
9.4 Workflow
Workflow is collection to Tasks that execute in user-defined sequential order. User can
configure custom workflow from this screen.
9.4.1 Toolbar
Button
Description
Refresh Workflow
Add a Workflow Task.
Edit a Workflow Task.
Delete a Workflow Task.
Save Workflow.
Frequency
Frequency, in seconds, to run Workflow.
Enable Workflow from option Workflow in Section 9.2.2.1
39 ver. 1.6.0.0
User Manual LadderLOGIX
9.4.2 Manage
Option
Description
Type
Type of Workflow Tasks
Move File
FTP
Delete File
Custom
Network Move
[Default Move File]
Trigger
Trigger condition to start the task based on result of previous
task result.
Any – Starts a task irrespective of previous task being
success/failure
Success – Starts a task only if previous task was success.
Failure – Starts a task only if previous task was failure.
[Default Any]
9.4.3 Tasks
9.4.3.1 Move File
Move a file from source folder to a destination folder.
Option
Description
Source Folder
Source folder to copy file from.
Data
Workflow
[Default Data]
Source Filename
File name of source filename. Filename can contain wildcards.
40 ver. 1.6.0.0
User Manual LadderLOGIX
See Section 10.1
Destination Folder
Source folder to copy file from.
Workflow
USB
[Default Workflow]
9.4.3.2 FTP
This task transfers a file over to FTP server.
Option
Description
FTP Server
File Transfer Server name
Port
File Transfer Server Port
Username
Username for logging on to FTP server
Password
Password for logging on to FTP server.
Command
FTP command to run. See Section 10.2
9.4.3.3 Delete File
This task deletes a file from source location.
FTP files will be picked from Workflow folder only.
After successful FTP, file is renamed to <original-filename>.ftp
Only simple FTP supported.
SSL is NOT supported.
41 ver. 1.6.0.0
User Manual LadderLOGIX
Option
Description
Folder
Source folder to copy file from.
Data
Workflow
USB
[Default Data]
Filename
File name of source filename. Filename can contain wildcards.
See Section 10.1
9.4.3.4 Custom
This is a custom task and should only be configured after consultation from
M2MLogger.
Option
Description
Executable
Name of Custom Executable to run.
Arguments
Arguments to Custom Executable file. Filename can contain
wildcards. See Section 10.1
Timeout
sec(s)
Time to wait for Custom Executable to return. The Custom
Executable will be terminated if does not returns within timeout
duration.
42 ver. 1.6.0.0
User Manual LadderLOGIX
9.4.3.5 Network Move
This task moves the file from source folder to a network folder.
Option
Description
Source Folder
Source folder to copy file from.
Data
Workflow
[Default Data]
Source Filename
File name of source filename. Filename can contain wildcards.
See Section 10.1
Host name
Hostname of network computer.
Destination Folder
Shared folder on network compute where files have to be
copied.
9.5 Monitor Settings
Monitor Settings is a WYSIWYG (What You See Is What You Get) designer, where you
can design visualization screen with gauges.
Shared folder should have exclusive Read/Write/Delete rights for
Everyone on network.
Make sure network computer is reachable by data-logger.
43 ver. 1.6.0.0
User Manual LadderLOGIX
Option
Description
Refresh Rate
Rate at which data is refreshed from server.
Size
Canvas Size in Width x Height for Monitor View.
9.5.1 Widgets
Option
Description
Type
Visualization Widget Types:
Radial Analog Gauge
Rectangular Analog Gauge
VU Meter
Thermometer
Liner Meter
Digital Meter
Led
Tank
Power Switch – Use this to toggle Output
[Default Radial Analog Gauge]
Tag
Tag name to bind with Widget.
9.5.2 Widget Properties
Option
Description
44 ver. 1.6.0.0
User Manual LadderLOGIX
General
Type
Type of Widget
Tag
Tag associated with Widget
Color #
Hexadecimal RGB color for the Widget.
Scale
1:X
Scales up/down Widget values by 1:X
Values
Min
Minimum value for Widget
Max
Maximum value for Widget
Steps
Major
Major Ruler Steps for Widget.
Minor
Minor Ruler Steps for Widget.
Range
Green
Maximum Rule Value for Green range marker.
Yellow
Maximum Rule Value for Yellow range marker.
Red
Maximum Rule Value for Red range marker.
Size & Position
Height
Height of Widget in pixels.
Width
Width of Widget in pixels.
Left
Left position of Widget in pixels.
Top
Top position of Widget in pixels.
Title
Text
Title text
Dock
Docking position for Title text:
top center – show title on Top-Center of Widget
bottom center – show Title on Bottom-Center of Widget
Visible
Show/hide Title on Widget
45 ver. 1.6.0.0
User Manual LadderLOGIX

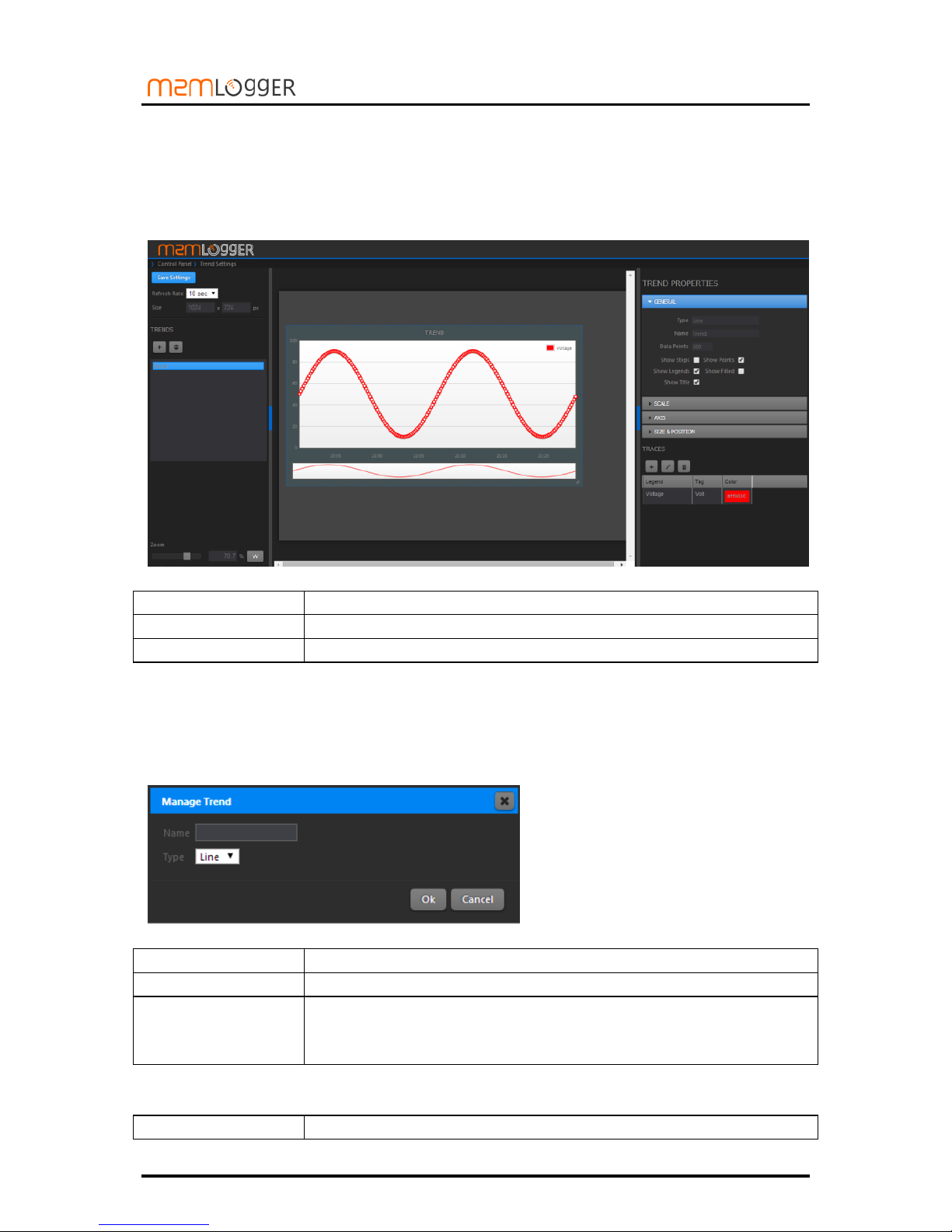

9.6 Trend Settings
Trend Settings is a WYSIWYG (What You See Is What You Get) designer, where you can
design visualization screen with Trending charts.
Option
Description
Refresh Rate
Rate at which data is refreshed from server.
Size
Canvas Size in Width x Height for Monitor View.
9.6.1 Trend
A Trend is a graphical representation of Time series data. One Trend can contain
multiple Traces. Each Trace represents one Tag.
Option
Description
Name
Name of Trend.
Type
Visualization Trend Types:
Line
[Default Line]
9.6.2 Trend Properties
Option
Description
46 ver. 1.6.0.0
User Manual LadderLOGIX
General
Type
Type of Trend
Name
Name of Trend.
Data Points
Maximum number of Data points to display in Trend chart.
Show Steps
Connect line chart values as Steps.
Show Points
Show/Hide Point marker for data Points.
Show Legends
Show/Hide Legends for Traces
Show Filled
Show/Hide filled area under chart.
Show Title
Show/Hide Title for chart.
Scale
1:X
Scales up/down Widget values by 1:X
Axis
Y Axis Min
Minimum value for Y Axis
Y Axis Max
Maximum value for Y Axis
Size & Position
Height
Height of Widget in pixels.
Width
Width of Widget in pixels.
Left
Left position of Widget in pixels.
Top
Top position of Widget in pixels.
Traces
Legend
Legend for Trace
Tag
Tag to bind with Trace.
Color #
Hexadecimal RGB color for the Trace.
47 ver. 1.6.0.0
User Manual LadderLOGIX
9.7 Account
You change your account password from this screen. Type New Password and
Confirm Password and Click Change Password.
48 ver. 1.6.0.0
User Manual LadderLOGIX
9.8 Monitors
Monitor screen lets you visualize logged Tag values as Gauges on a real-time basis.
9.8.1 Toolbar
Button
Description
Refresh Rate
Refresh Rate for Monitor screen.
Start polling data from server.
Stop polling data from server.
Last Refreshed
Timestamp of last refresh.
Double clicking a Power Switch will toggle the output.
49 ver. 1.6.0.0
User Manual LadderLOGIX
9.9 Trends
Trend screen lets you visualize logged Tag values as Trending chart on a real-time basis.
9.9.1 Toolbar
Button
Description
Refresh Rate
Refresh Rate for Trends screen.
Start polling data from server.
Stop polling data from server.
Last Refreshed
Timestamp of last refresh.
9.9.2 Zoom
To zoom the Trend chart, select the desired area in the Zoom panel at the bottom of
Trend chart
50 ver. 1.6.0.0
User Manual LadderLOGIX
9.10 Tag Stream
Tag Stream screen tabulates the latest Tag values. To refresh values click on Refresh
button.
9.10.1 Toolbar
Button
Description
Refresh Tag Stream data.
51 ver. 1.6.0.0
User Manual LadderLOGIX
9.11 Alerts
Alert screen tabulates all the Alerts raised by device.
9.11.1 Toolbar
Button
Description
Refresh Alerts data.
52 ver. 1.6.0.0
User Manual LadderLOGIX
10 Appendix
10.1 File name wildcards
Filename can contain wildcards:
10.1.1 [*] - Asterisk
Substitute for zero or more characters.
Example
tag[*].fdb
Successful Match: tag0123.fdb
Failed Match: tag.fdb
10.2 FTP Commands
10.2.1 STOR
Accept the data and to store the data as a file at the server site
Syntax
STOR “filename”
filename is the source file name. See Section 10.1
Example
STOR “tag_[*].fdb”
The destination filename will always be same as source file name.
FTP files will be picked from Workflow folder only.
53 ver. 1.6.0.0
User Manual LadderLOGIX
11 Troubleshoot
11.1 Power LED not ON
If power is connected to device and Power LED does not glow, this means:
Either, rated power is not connected. (See Section 6.3)
Or, reverse polarity connection. (See Section 6.5.3.)
11.2 Both Run and Error LEDs blinking
If both Run and Error LEDs are blinking, this means device is running out of memory.
Please consult M2MLogger Support for further assistance.
11.3 Run LED ON and Error LED blinking
If Run LED is ON and Error LED is blinking, this means the device Clock is reset. Under
such a condition device does not executes the Loop.
Please connect the device with Internet and Synchronize the Clock as per Section
9.2.2.3.
11.4 Run LED OFF and Error LED ON
If Run LED is OFF and Error LED is ON, this means the device has encountered an
unrecoverable error. Generally LadderLOGIX device will restart under such a condition.
But if the problem persists on three consecutive restarts then device shows the status
until remedial action is taken.
Please consult M2MLogger Support for further assistance.
11.5 Connecting internet with Static IP Address
LadderLOGIX Data-logger only supports Dynamic IP Address, i.e. it needs a DHCP server
to allocate IP Address. If you wish to install data-logger in a network where DHCP
server is not available, consider installing a commercially available multi-port router
(with DHCP capability) between data-logger and network. You should configure the
router with appropriate Static IP Address.
Please consult M2MLogger Support for further assistance.
Head Office:
Techno Instrumentation (India) Pvt. Ltd.
An ISO 9001:2008 Certified Company
Plot# 67, Street# 1-B ,
Friends Colony Industrial Area,
G.T Road, Shahdara, Delhi – 110095,
India
Telefax : +91-11-22112232
Mobile : +91 98105 54547
E-mail : sales@m2mlogger.com
Web : www.m2mlogger.com
M2MLogger is a division of Techno Instrumentation (India) Pvt. Ltd.
Loading...
