Page 1
SETUP
TOTEM
TOT4 UL
Page 2
2
Page 3
CONTENTS
2
3
4
1
TECHNICAL SPECIFICATIONS
Integrated LED
Linear Module
20 x 5,5W - 350mA
120-277V: Dimmable 0-10V & TRIAC
50Hz 90W
1 Shades 3 un.
2 Canopy 1 un.
3 Electrical cable 1 un.
4 Steel cables 3 un.
5 Electrical kit 1 un.
6 Stoppers 3 un.
7 Allen key Nº2 1 un.
8 Allen key Nº3 1 un.
9 Separating ring 2 un.
10 Level 1 un.
11 Disc 1 un.
12 Screw 1 un.
120 - 277V
WEIGHT
Net 30,4 Lb
Gross 84,4 Lb
WARNINGS
Before assembly and installing this product, carefully read the following:
Turn off the mains before installing the lamp. Dry location only. This lamp is for indoor use only.
WOOD VENEER: Since wood is a natural material, a gradual change in tone may occur over time. Furthermore, if the lamps have been purchased at
different times, there will be differences in colour and tone, particularly in light coloured veneers. Luziferlamps S.L. will not be held responsible for this.
MORE INFO: http://www.lzf-lamps.com/guarantee/
3
Page 4
ASSEMBLY INSTRUCTIONS
1
2
1
A
The canopy is composed of an outer cover
where the electrical part is housed and a
counterflow, which serves to close, unscrew
the nut to separate them.
The canopy is made up of a back plate with the
electrical connections on it and a front cover.
Feed the electrical wires (A) from the mains
through the electrical back plate (B), fix
back plate to the junction box (1) with the
most adequate screws (C) (not supplied) and
prepare to wire up.
B
C
4
Page 5
ASSEMBLY INSTRUCTIONS
3
D
CUT
2cm
4

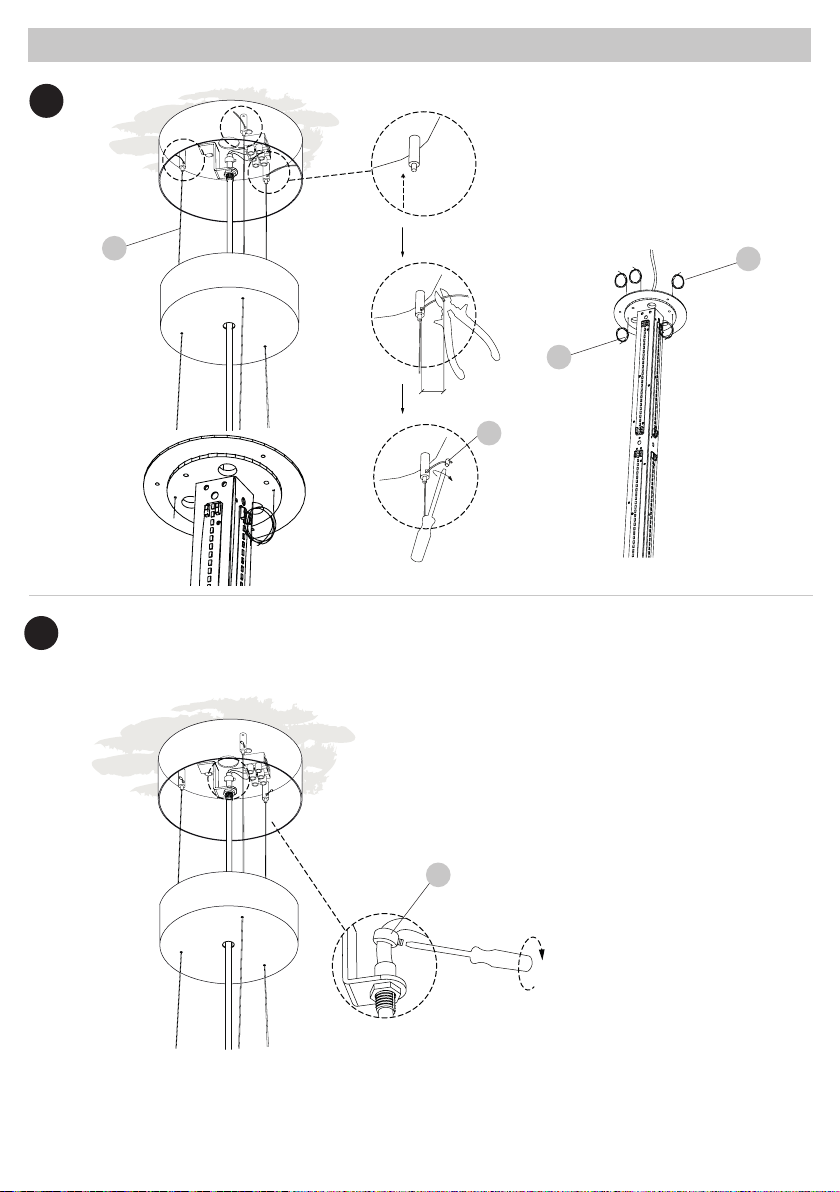

Adjust the height of your lamp by raising or
lowering the stainless steel adjustment cable
(D) and cut off the excess. For added security
put on the stopper (E) and tighten it.
Level the lamp with the level supplied.
D
K
E
Tighten the screw on the electrical cable
trap (F).
F
5
Page 6
ASSEMBLY INSTRUCTIONS
5
DIFERENT ELECTRICAL CONNECTION OPTIONS
MAINS CABLE
N
L
MAINS CABLE
D+
D-
N
L
Switch
Terminal Blocks
Switch
OPTION 1: NON DIMMABLE / TRIAC
You should have a three wire cable coming
from the mains. Connect poles N and GND
( ) as shown in the terminal block Orange.
Connect the line (L) that goes through the
switch installation to the pole F (terninal
block Orange).
Poles D- and D+ are not used.
L
N
OPTION 2: DIM 0-10
You should have a five wire cable coming from
the mains.
Connect poles N and GND ( ) as shown in
the terminal block Orange. Connect the line
(L) that goes through the switch installation
to the pole F (terminal block Orange).
After connecting the mains wires to the
terminal block take the other two wires (the
+/- dimming controls) and connect them to
L
the dimming terminal block (terminal block
Pink).
N
D-
D+
Pink
Terminal Blocks
6
Page 7
ASSEMBLY INSTRUCTIONS
CABLE FROM LIGHT
6
Black
White
Green
Blue
Red
F
N
V +
V -
Terminal Blocks
LAMP CONNECTION
This is the wiring diagram of how to connect
the cables to the yellow terminal blocks.
Yellow
Tighten the screw on the electrical cable
trap (F).
F
7
G
Once all your wiring is complete raise the
canopy and screw on the canopy support nut
(G) that holds the cover in place.
7
Page 8
ASSEMBLY INSTRUCTIONS
Push
Push
8
Use allen key No. 2
K
Shade 1
POPY SG
Undo steel cables for shades (K).
Shade mounting.
Take the shade support cables and pass
them through the one way cable traps
located at the bottom of the Totem shades 1,
2 and 3.
Insert the neck separating ring (J) after the
installed shade and then place the next
shade.
1.
1.2
J
1.3
Shade 2
POPY SM
J
2
Shade 3
POPY SP
CUT
8
Page 9
ASSEMBLY INSTRUCTIONS
9
Insert the neck separating ring (J) after the
shade 3 and then, place the shade 4.
Screw on base support screw until the shades
join together adequately.
When this screw is tightened it compresses
the shades together, be careful not to press
too hard as this may collapse the shades.
1.
1.
1.
J
Shade 4
POD SP
1.
nº 3
Use allen key No. 3
9
Page 10
ASSEMBLY INSTRUCTIONS
10
Turn on the mains again.
ON
OFF
10
Page 11
11
Page 12
USEFUL INFORMATION
Precautions
Luminaire for indoor use only.
Avoid direct sunlight, strong indirect sunlight and moisture on your lamp. Unplug the lamp before cleaning or changing the light bulb. Servicing
or manipulation of the electrical installation should only be performed by qualified electrical personnel or by the LZF service department .
Wood veneer
Since wood is a natural material, a gradual change in tone may occur over time. Furthermore, if the lamps have been purchased at different
times, there will be differences in colour and tone, particularly in light coloured veneers. Luziferlamps S.L. will not be held responsible for this.
Use and care of your lamp.
You have just purchased an original handmade product by LZF. Your lamp is made out FSC® certified natural wood veneer treated with our
patented finish, Timberlite®.
This treatment both protects and safeguards the wood veneer against breakages.
For cleaning shades we recommended a feather duster or a damp cloth, clean only the flat surface of the veneer with the cloth, and please
avoid any moisture contact along the edge of the veneer.
For cleaning the metallic surfaces should be treated with care and cleaned with a soft damp cloth only. Make sure that moisture does not
penetrate joins or junctions between metal parts. Do not use solvents of any kind.
For cleaning the acrylic diffusers on your lamp can be cleaned with a regular window cleaning spray and a soft cloth. Do not use solvents of
any kind.
If your lamps contains Integrated LED:
All LEDS are included in your lamp. Never touch the LED surface with your bear hands as this may reduce the life of your LED.
If your lamp needs Bulbs:
The bulbs are not included, unless indicated. We recommend using energy-saving light LED bulbs. Please refer to the instruction manual or
visit our website www.lzf-lamps.com to make sure you are using the best bulb for your type of lamp.
Depending on the color of the wood veneer recommend using different light source, for optimum appearance:
Blue 28, Turquoise 30 and Grey 29: 4000k
Ivory White 20, Natural Beech 22, and Natural Cherry 21: 3000 or 4000k.
Yellow 24, Orange 25, Red 26, Chocolate 31 & Pale Rose 33: 3000 k.
MORE INFO: http://www.lzf-lamps.com/guarantee/
© Luziferlamps, S.L All rights reserved. Valencia, Spain. 2019 - www.lzf-lamps.com - [email protected]
REV.09-2020 D88_322
