LY-TECH LY-GSM200KIT User Manual

Intelligent Alarm System

User Manual

Ver 1202 2012-02-14

Dear users,

Thank you for having selected the intelligent alarm systems. Please read
through this manual before installation so as to operate properly.

The intelligent alarm system adopts the newest GSM network and Digital
Signal Processing technology, and is widely used in security fields, such as
protect your home, store, office, factory etc. It really realizes wireless alarm
dealing and controlling remotely, conveniently and flexible, and solves the
limitation of wired data transmission in telephone and wired network.
Perfect structure, convenient installation, easy operation with wireless
remote controllers are designed for the idea of people-oriented, which will
make you feel easy and comfortable while using this intelligent alarm
system.

“People is center, technology is first” is our company’s action rule.
Customer Satisfaction is our consistent pursuit. Perfect system, excellent
services, sincere attitudes will bring you a new enjoyment.

Contents

1．Description ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 1

1.1 Main functions．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 1

1.2 Specification．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 2

2 ． S tructure．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 3
3 ． Installation and Operation．．．．．．．．．．．．．．．．．．．．．．．．．．． 6

3.1. Installing the SIM card．．．．．．．．．．．．．．．．．．．．．．．．．．． 6

3.2 The connection of wired detectors and speaker．．．．．．．．．6

3.3 Running．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 7

4 . Pre-record alarming voice．．．．．．．．．．．．．．．．．．．． ． ．．．．．．． 7
5 . Programming by keyboard．．．．．．．．．．．．．．．．．．．．．．．．．． 8

5.1. Entering into setting status．．．．．．．．．．．．．．．．．．．．．．． 8

5.2. Programming mobile phone numbers for SMS alarm．．． 8

5.3. Programming phone numbers for voice calling alarm．．． 9

5.4. Modifying the password of alarm host．．．．．．．．．．．．．．．9

5.5. Modifying alarm host ID．．．．．．．．．．．．．．．．．．．．．．．．．．． 9

5.6.Whether send SMS or not when arm/disarm．．．．．．．．．．．．．．．．．． 10

5.7. Exiting setting status．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 10

6．Programming by SMS command．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 10

6.1. Programming 3 mobile phone numbers for SMS alarm．．．．．．． 10

6.2. Programming 3 phone numbers for voice calling alarm．．．．．．．． 11

6.3. Deleting alarm phone numbers．．．．．．．．．．．．．．．．．．．． 11

6.4. Modifying the password of alarm host．．．．．．．．．．．．．．．．．．．．． 11

6.5. Arm/Disarm．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 1 1

6.6. Modifying zones name．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 12

6.7. Modifying installation address name．．．．．．．．．．．．．．．．．．．．．．．． 12

6.8. Inquiring arm/disarm status．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．12

6.9. Inquiring AC power status of alarm host．．．．．．．．．．．．．．．．．．． 12

6.10. Switching over four languages．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．13

6.11.Programming independent arm．．．．．．．．．．．．．．．．．．．．． ．．．．．．． 13

6.12.Cancel independent arm．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 13

7. Programming by phone keypad remotely．．．．．．．．．．．．．．．．．．．．．．．．． 14

8. Operating steps．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 15

8.1.Arm/disarm by remote controller．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 15

8.2.Emergency alarm．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 15

8.3.AC power failure alarm．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 15

8.4. Handling alarm．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 16

8.5.Arm/disarm and listen in remotely．．．．．．．．．．．．．．．．．．．．．．．．．．． 16

9. Installation and operation cautions．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 17

10.Encode method．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 18

1. Description

The alarm system adopts SMS data transmission and voice platform of
GSM network to send control command and receive alarm message
remotely. The system can be armed according to user’s requirements, when
a signal is detected by sensors, the sensors will send alarm signal to alarm
host immediately, then the alarm host will send alarm SMS to pre-set
mobile phone numbers, and meanwhile dials its preset telephone/mobile
phone numbers automatically. In addition, user can dial the number in the
alarm host to remote control the host, such as arm, disarm etc.

1.1 Main functions

l Whether send SMS or not when arm/disarm;
l Arm/disarm remotely by phone keypad;
l Automatically send SMS to 3 preset phone numbers while alarming;
l Automatically call 3 preset phone numbers and start on-site listen in

while alarming;

l Real-time report the alarm zone remotely by SMS and voice

reminding;

l With user-friendly voice reminder while operating the alarm host;
l Support two-way communications;
l Built-in dedicated emergency alarm zone and fire alarm zone;
l Automatically report while the AC power failed or recovered and

switch to backup battery when the external power failure;

l Built-in 12 wireless alarm zones ( including 1 emergency zone and

1fire alarm zone), and 2 wired zones (with anti-cut function);

1.2 Specification

1. Wireless frequency: 315MHz/433MHz;

2. GSM frequency: 900/1800/850/1900MHz

3. Alarm response time: ≤8s (GSM signal in normal)

4. Power requirements: AC 220V 50Hz/60Hz

Working consumption：< 0.6W

Backup battery: DC7.4V/850MA

Backup battery working hours: ≥10 hours

5.Working condition

temperature: -20～+60℃ humidity: ≤95% (non-condensation)

6.Size: 150mm（L）×100mm（W）×16mm（H）

7. Record time: 10s

2．Structure

As shown above:

1. Emergency button: used for emergency alarm

2. WIRLESS LED indicator: when receiving wireless signal from wireless
sensor or remote controller, the LED will be on, otherwise is off.

3. RUN LED indicator: blinking every 2s when the GSM signal is normal,
when the GSM signal is failure it blinks every 1s.

4. ALARM LED indicator: When there is an alarm or entering into setting
status, it will be on; when there is no alarm or escaping the setting status, it

will be off.

5. Independent arm LED indicator: When there is one zone in the
independent arm status, the LED is on.

6. ARM LED indicator: After system armed, it will be on; it will be off
when disarm.

7. Power LED indicator: External AC power is connected, the LED is
on; external AC power is failure, the LED is off.

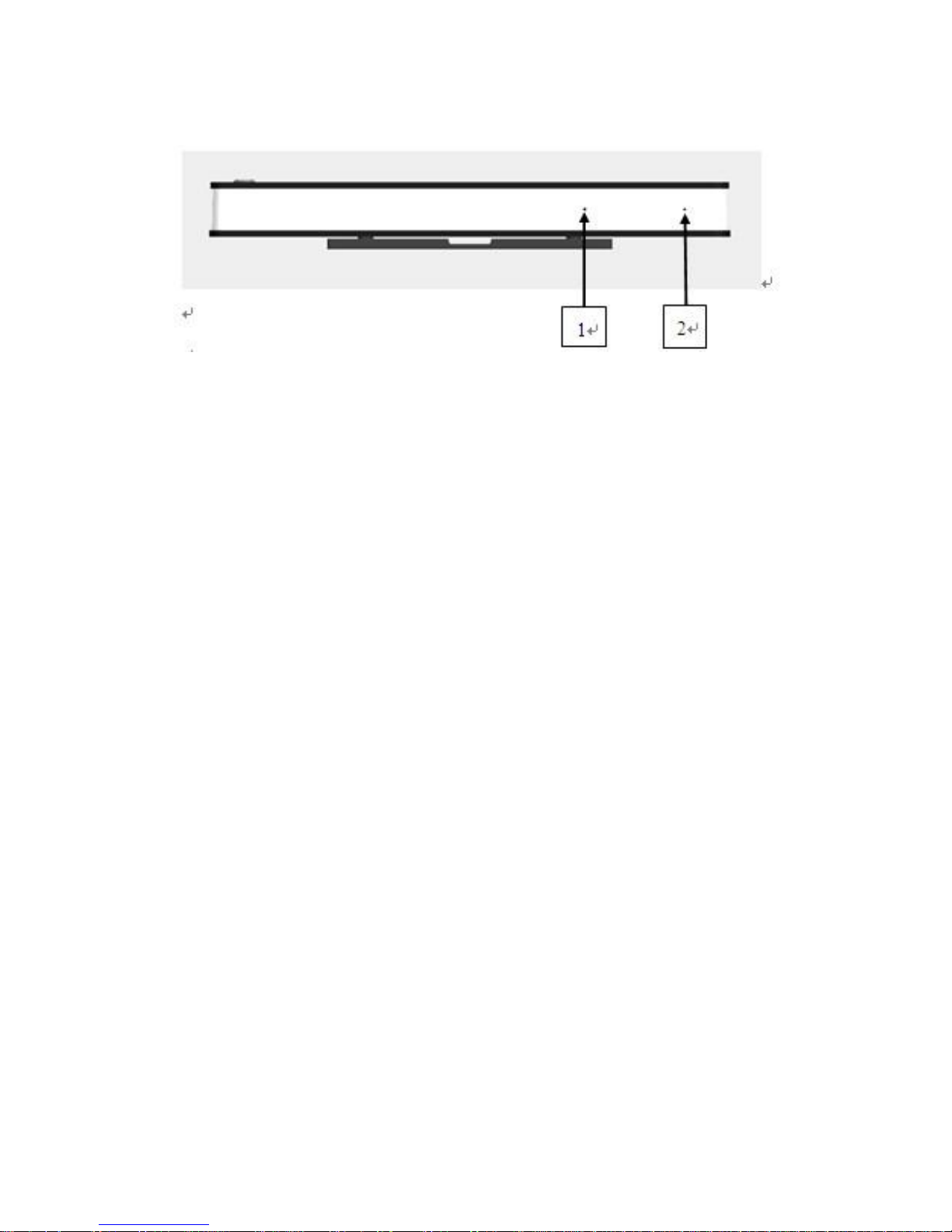

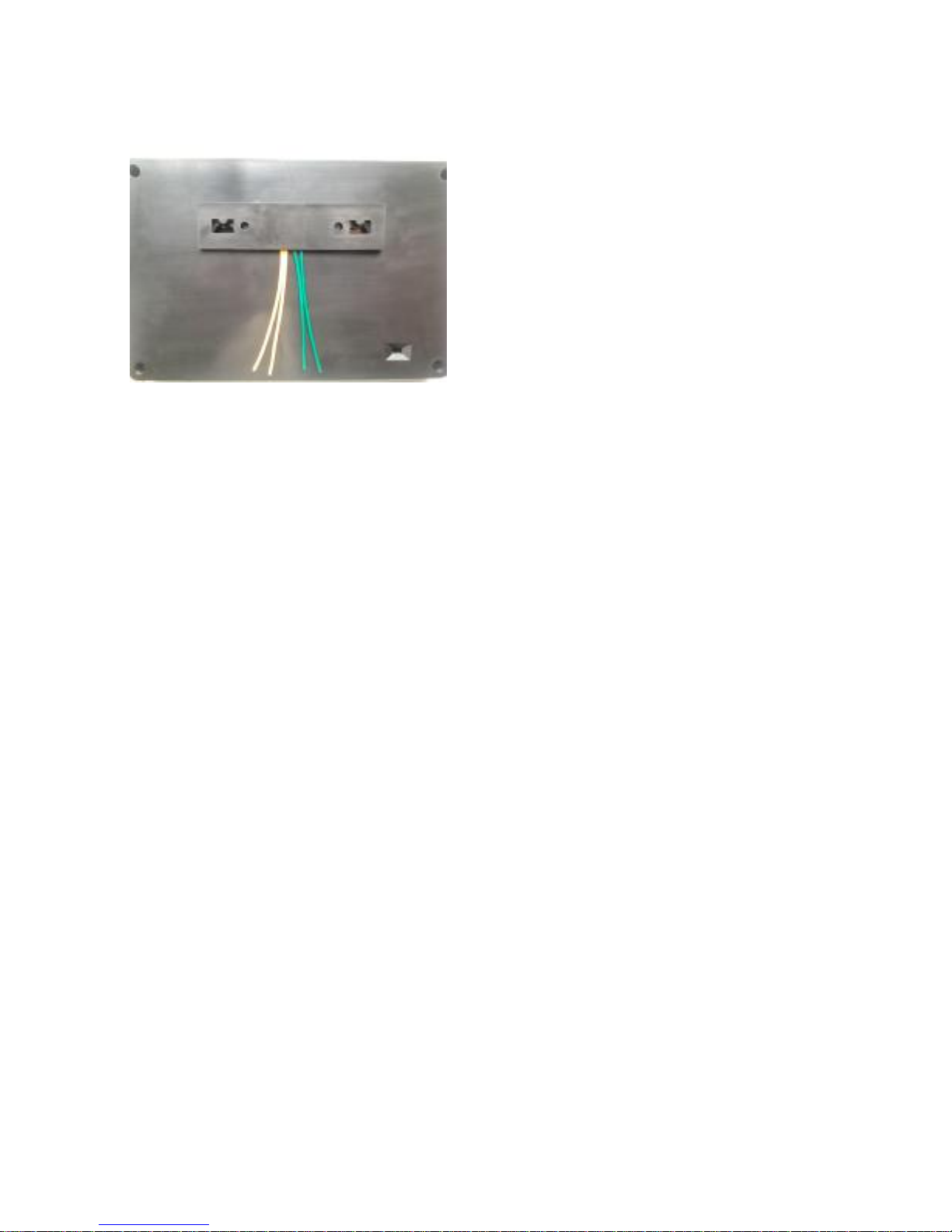

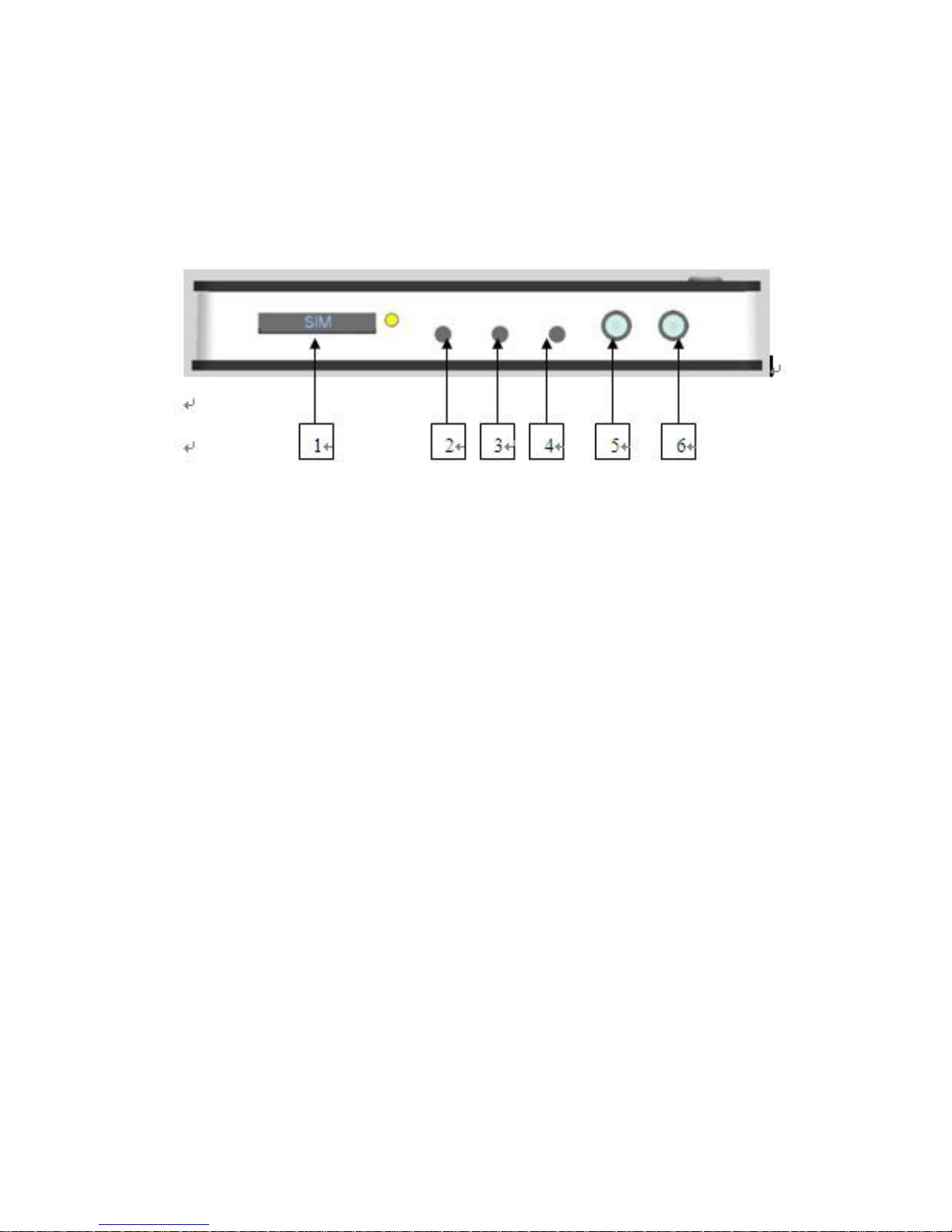

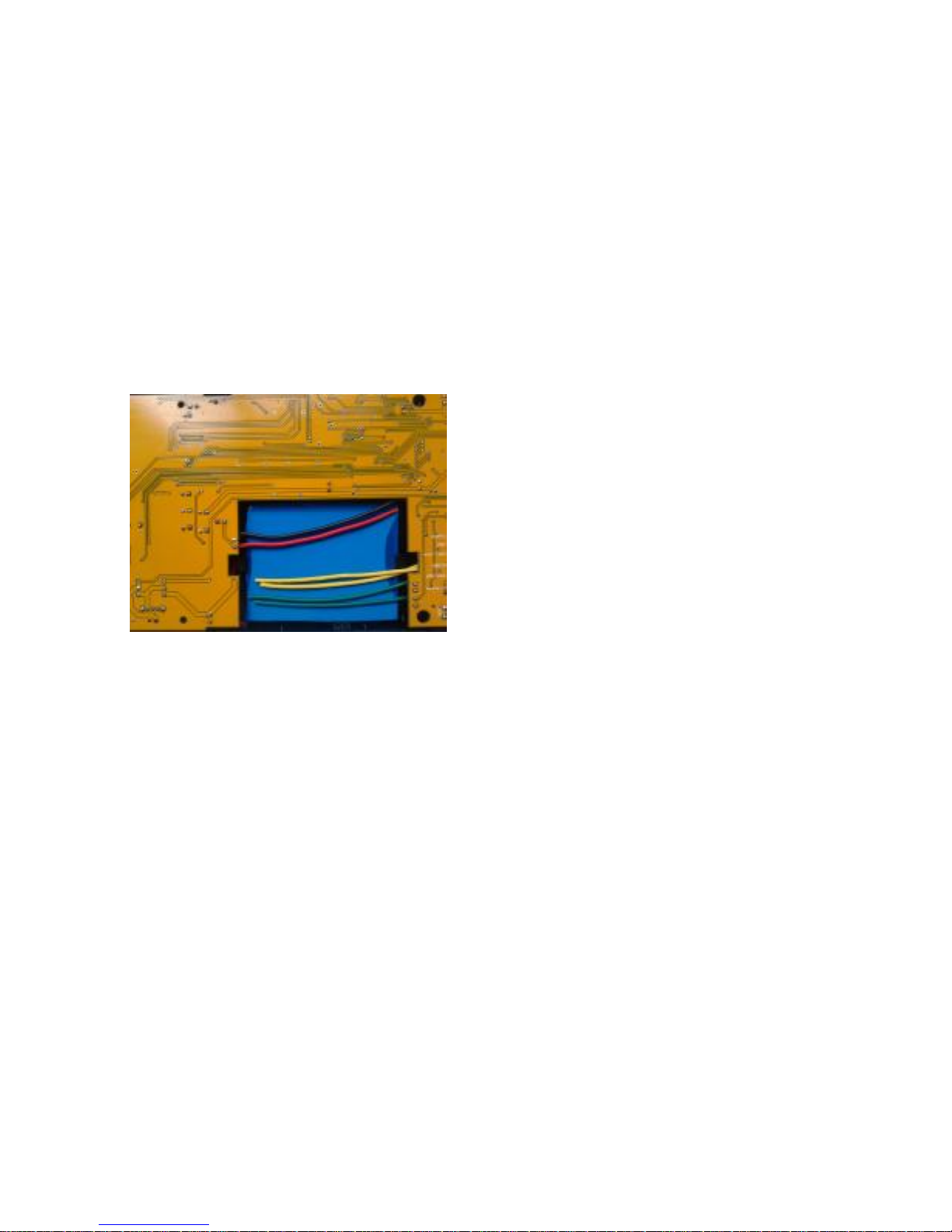

Shown as above:

1. Fixing hole: Use for fixing the alarm host;
