LYON KTHR1003 Specifications

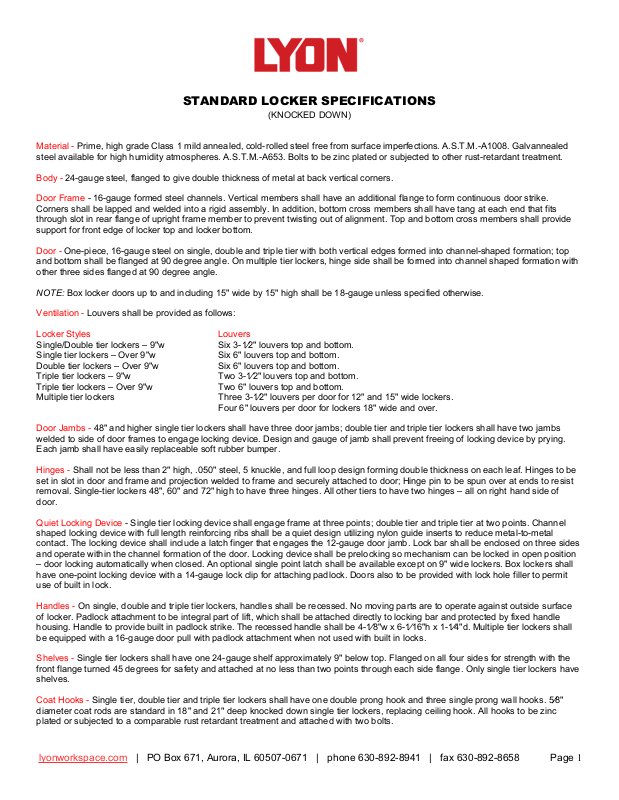

STANDARD LOCKER SPECIFICATIONS

(KNOCKED DOWN)

Material - Prime, high grade Class 1 mild annealed, cold-rolled steel free from surface imperfections. A.S.T.M.-A1008. Galvannealed

steel available for high humidity atmospheres. A.S.T.M.-A653. Bolts to be zinc plated or subjected to other rust-retardant treatment.

Body - 24-gauge steel, flanged to give double thickness of metal at back vertical corners.

Door Frame - 16-gauge formed steel channels. Vertical members shall have an additional flange to form continuous door strike.

Corners shall be lapped and welded into a rigid assembly. In addition, bottom cross members shall have tang at each end that fits
through slot in rear flange of upright frame member to prevent twisting out of alignment. Top and bottom cross members shall provide
support for front edge of locker top and locker bottom.

Door - One-piece, 16-gauge steel on single, double and triple tier with both vertical edges formed into channel-shaped formation; top

and bottom shall be flanged at 90 degree angle. On multiple tier lockers, hinge side shall be formed into channel shaped formation with
other three sides flanged at 90 degree angle.

NOTE: Box locker doors up to and including 15" wide by 15" high shall be 18-gauge unless specified otherwise.

Ventilation - Louvers shall be provided as follows:

Locker Styles Louvers

Single/Double tier lockers – 9"w Six 3-1⁄2" louvers top and bottom.
Single tier lockers – Over 9"w Six 6" louvers top and bottom.
Double tier lockers – Over 9"w Six 6" louvers top and bottom.
Triple tier lockers – 9"w Two 3-1⁄2" louvers top and bottom.
Triple tier lockers – Over 9"w Two 6" louvers top and bottom.
Multiple tier lockers Three 3-1⁄2" louvers per door for 12" and 15" wide lockers.

Four 6" louvers per door for lockers 18" wide and over.

Door Jambs - 48" and higher single tier lockers shall have three door jambs; double tier and triple tier lockers shall have two jambs

welded to side of door frames to engage locking device. Design and gauge of jamb shall prevent freeing of locking device by prying.
Each jamb shall have easily replaceable soft rubber bumper.

Hinges - Shall not be less than 2" high, .050" steel, 5 knuckle, and full loop design forming double thickness on each leaf. Hinges to be

set in slot in door and frame and projection welded to frame and securely attached to door; Hinge pin to be spun over at ends to resist
removal. Single-tier lockers 48", 60" and 72" high to have three hinges. All other tiers to have two hinges – all on right hand side of
door.

Quiet Locking Device - Single tier locking device shall engage frame at three points; double tier and triple tier at two points. Channel

shaped locking device with full length reinforcing ribs shall be a quiet design utilizing nylon guide inserts to reduce metal-to-metal
contact. The locking device shall include a latch finger that engages the 12-gauge door jamb. Lock bar shall be enclosed on three sides
and operate within the channel formation of the door. Locking device shall be prelocking so mechanism can be locked in open position
– door locking automatically when closed. An optional single point latch shall be available except on 9" wide lockers. Box lockers shall
have one-point locking device with a 14-gauge lock clip for attaching padlock. Doors also to be provided with lock hole filler to permit
use of built in lock.

Handles - On single, double and triple tier lockers, handles shall be recessed. No moving parts are to operate against outside surface

of locker. Padlock attachment to be integral part of lift, which shall be attached directly to locking bar and protected by fixed handle
housing. Handle to provide built in padlock strike. The recessed handle shall be 4-1⁄8"w x 6-1⁄16"h x 1-1⁄4"d. Multiple tier lockers shall
be equipped with a 16-gauge door pull with padlock attachment when not used with built in locks.

Shelves - Single tier lockers shall have one 24-gauge shelf approximately 9" below top. Flanged on all four sides for strength with the

front flange turned 45 degrees for safety and attached at no less than two points through each side flange. Only single tier lockers have
shelves.

Coat Hooks - Single tier, double tier and triple tier lockers shall have one double prong hook and three single prong wall hooks. 5⁄8"

diameter coat rods are standard in 18" and 21" deep knocked down single tier lockers, replacing ceiling hook. All hooks to be zinc
plated or subjected to a comparable rust retardant treatment and attached with two bolts.

lyonworkspace.com | PO Box 671, Aurora, IL 60507-0671 | phone [phone] | fax [phone] Page 1

STANDARD LOCKER SPECIFICATIONS

(KNOCKED DOWN)

Number Plates - Optional aluminum number plates with etched figures at least 3⁄8" high. All lockers shall have number plates attached

near top of door.

Standard Finish - Exposed steel parts shall be thoroughly cleaned, given a bonding and rust inhibitive phosphate treatment and then

electrostatically sprayed with powder coat.
NOTE: Contact Lyon for finish compatibility with any chemicals.

Anchoring - To prevent tipping or injury, Lyon strongly recommends that lockers be floor and/or wall anchored.

Free-Standing Lockers - Lockers shall be furnished with 6" legs. Optional front and end closed bases available.

Recess Trim - End and top recess trim for lockers to be placed in wall recesses shall be 18-gauge formed steel with a 2-3⁄4" wide face

and shall be bolted to locker frames. Top recess trim to be in approximately 5'0" lengths with a formed splice cap to cover joints and to
hold top recess trim in alignment. End recess trim to be 2-3⁄4" higher than lockers and will lap over ends of top recess trim for a hairline
joint at top of corners.

NOTE: There are certain sizes and/or types of lockers that are available in minimum quantity production runs only. Contact your Lyon
factory representative for complete details.

Quiet-Plus

Eliminating metal to metal contact, all Lyon locker doors are fitted with nylon lockbar guides to reduce clanging and provide smoother,
quieter operation. In addition to quieter lock bars, Lyon Quiet-Plus locker doors include a sound deadening door panel. The resulting
combination minimizes noise levels caused by opening and closing locker doors.

Spec Summary

Standard Lockers

 16-gauge door and frames
 24-gauge body parts
 One piece 16-gauge door
 Full loop type hinges
 Secure multi-point locking system
 Powder coat finish
 Built in padlock loop
 Built in locks are also available
 Fully assembled construction optional
