yellobrik
Technical Speci cations
SDI Input
SDI Outputs
Power
1 x SDI; 75 Ohm BNC connector
SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081, SMPTE 2082
Multi-standard operation from 270Mbit/s to 12Gbit/s; reclocking
Input present LED indication
Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from
1.5GHz to 3GHz, >7dB from 3GHz to 6GHz; >4dB from 6GHz to 12GHz
Automatic cable EQ (Belden xxxx cable)
400m @ 270Mbit/s, 200m @ 1.5Gbit/s, 150m @ 3Gbit/s; 80m @
6Gbit/s; 80m @ 12Gbit/s
Hot pluggable
7 x multi-rate reclocked SDI outputs ; 75 Ohm BNC connectors
SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081, SMPTE 2082
Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from
1.5GHz to 3GHz, >7dB from 3GHz to 6GHz; >4dB from 6GHz to 12GHz
Alignment Jitter < 0.2 UI @ 270Mbit/s, < 0.2 UI @ 1.5Gbit/s,
< 0.3 UI @ 3Gbit/s, 6Gbit/s, 12Gbit/s
+12VDC @ 2.7W nominal - ( supports 7 - 24VDC input range )
yellobrik
Reference

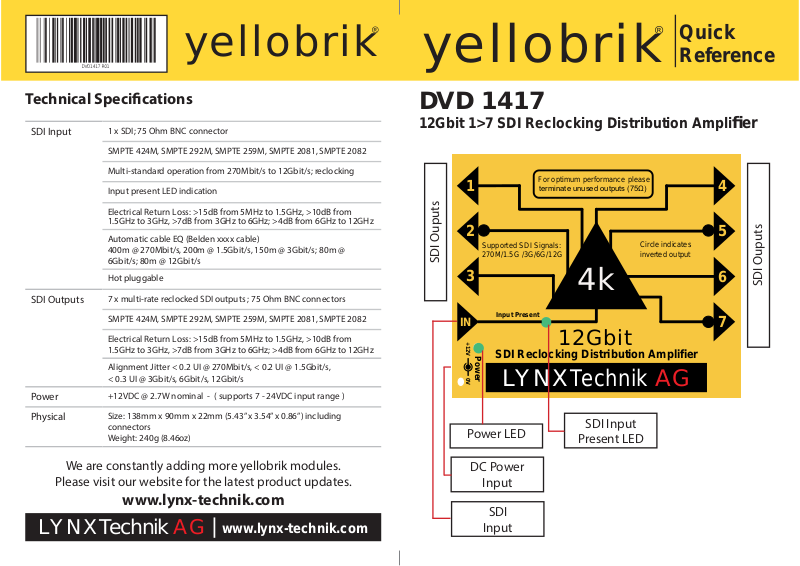

DVD 1417
12Gbit 1>7 SDI Reclocking Distribution Amplifi er
1
2
Supported SDI Signals:
SDI Ouputs
270M/1.5G /3G/6G/12G
3
For optimum performance please
WHUPLQDWHXQXVHGRXWSXWVȍ
Circle indicates
inverted output
4
5
6
4k
IN
+12V 0V
Input Present
12Gbit
Power
SDI Reclocking Distribution Amplifier
LYNXTechnik AG
7
SDI Ouputs
Physical
We are constantly adding more yellobrik modules.
Please visit our website for the latest product updates.
Size: 138mm x 90mm x 22mm (5.43” x 3.54” x 0.86”) including
connectors
Weight: 240g (8.46oz)
www.lynx-technik.com
|
LYNXTechnik AG
www.lynx-technik.com
Power LED
DC Power
Input
SDI
Input
SDI Input
Present LED
Connections
Power Lead Strain Relief
All connections are clearly indicated on the module and self
explanatory.
Operation
The DVD 1417 has one multi-format SDI input, with seven SDI outputs.
The Input bit rate is automatically detected and the signal reclocked at
the corresponding clock rate.
The “Signal Present” LED is illuminated when a valid input signal is
connected.
The module supports all SDI video standards up to 12Gbit/s.
The D VD 1417 is hot swappable and hot pluggable.

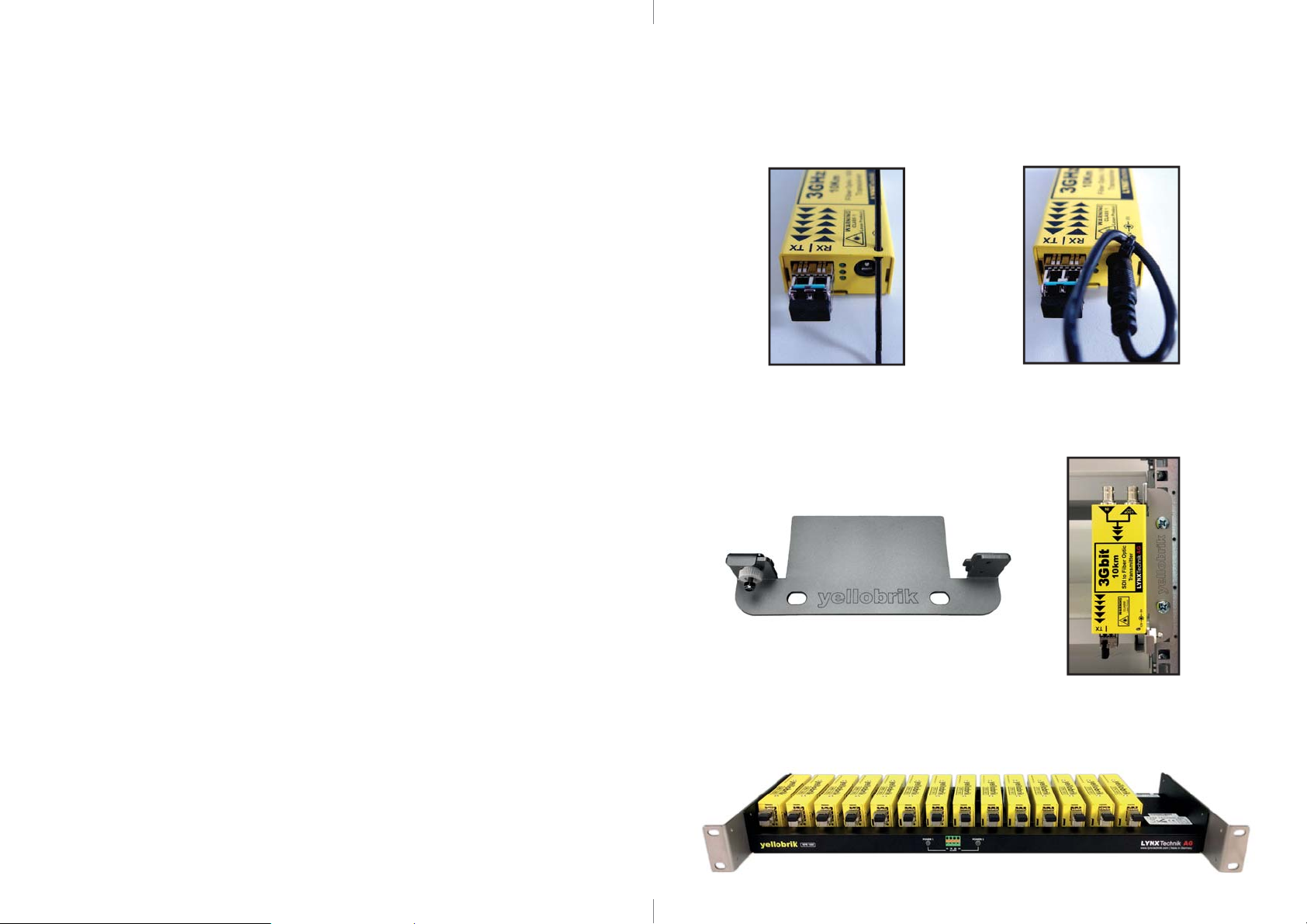

The module (di erent module shown here) has a small hole in the case
which is located above the power connection. This prevents the power
lead being accidentally pulled out. Use the supplied tie-wrap and
secure the lead as shown below.
Optional Mounting Solutions
The optional RFR 1001 mounting bracket can be used to permanently
mount the module on any surface or on 19” rack rails.
No user settings are provided for this module.
Power
The module requires a 12V DC power input and the LED con rms when
power is connected. A power supply is provided, however if you use
your own power supply, please provide a clean 12V DC power source
between 7 and 24VDC.
The D VD 1417 has a power consumption of approximately 2.7W
nominal.
The optional RFR 1000-1 rack mount can be used to permanently
mount up to 14 yellobrik modules. In addition, the RFR 1000-1 can
provide full power redundancy for all mounted yellobriks.
