Lynx RaveTM 600, XtrimTM SE 600 E-TEC, RaveTM RE 600 E-TEC, XtrimTM SE 800 Power TEK, RaveTM RE 800 Power TEK Operator's Manual
OPERATOR’S MANUAL 2009
Rave
TM
600
Rave
TM
RE 600 E-TEC
Xtrim
TM
SE 600 E-TEC
Rave
TM
RE 800 Power TEK
Xtrim
TM
SE 800 Power TEK
SAFETY WARNING
Disregarding any of the safety precautions and instructions contained in this
Operator’s Guide, or on-product warnings may result in injury, including the
possibility of death.
This Operator’s Guide should remain with the snowmobile at time of resale.
Lynx products are manufactured by BRP.
The following are tradem a rks of Bombardier Recreation al Products Inc. or its
subsidiaries.
DESS
TM
3–D RAVE™
ROTAX
TM
LYN X
®
HPG™
RER
TM
E-TEC
®
TRA™
2009 RE-X JK
®™ and the BRP logo are trademarks of Bombardier Recreational Products Inc. or its affiliates.
©2008 Bombardier Recreational Products Inc. and BRP US Inc. All rights reserved.
FOREWORD
Congratulations on your purchase of
a new Lynx snowmobile. Whatever
model you have chosen, it is backed
by the Bombardier Recreational Products inc. (BRP) warranty and a network of authorized Lynx snowmobile
dealers ready to provide the parts, service or accessories you may require.
The Operator's Guide has been prepared to acquaint the owner/operator
and passenger with this new snowmobile and its various controls, maintenance and safe riding instructions.
This guide is indispensable for the
proper use of the product and should
be kept with this snowmobile at all
times.
Make sure you read and understand
the content of this Operator's Guide.
After reading, please keep this Operator's Guide with the snowmobile. If
the snowmobile is resold, please give
the guide to the new owner for his
awareness. An extra copy of the Operator's Guide is available from your
Lynx snowm obile dealer at no charge.
If you have any question regarding any
topic whether or not it is covere d in
this Operator's Guide, please send a
written letter to BRP to following address:
BRP Finland OY
Service Department
P. O . B o x 8 0 3 9
FIN-96101 ROVANIEMI
FINLAND
This guide uses the following safety
alert symbol in conjunction with signal
words to indicate a potential personal
injury hazard.
WARNING
Indicates a potentially hazardous
situation which, if not avoided,
could result in death or serious
injury.
CAUTION
Indicates a potentially hazardous
situation which, if not avoided,
may result in minor or moderate
injury. When used without the
safety alert symbol ,potential
hazard exists for property damage
only.
NOTE: Indicates supplementary infor-
mation needed to fully complete an instruction.
Although the mere reading of such information does not eliminate the hazard, the understanding and application
of the information will promote the
correct use of the vehicle.
Your dealer is comm itted to your satisfaction. He has taken training to perform the init ial set-up and inspectio n
of your snowmobile as well as completed the final adjustment required
to suit your specific weight and riding
environment before you took possession. At delivery, your dealer would
have ex plained the snowmobile controls and provided you with a brief
explanation of the various suspension
adjustments. We trust you have taken full advantage of this!
At delivery, you were als o informed
of the warranty coverage and have
completed the Warranty Registration
process.
The information and components/system descriptions contained in this
guide are correct at time of publication. BRP, ho wever m aintains a
policy of continuous improvement of
its products without imposing upon
itself any obligation to install the m on
products previously manufactured.
______________________
1
Because of its ongoing commitment
to product quality and innovation, BRP
reserves the right at any time to d iscontinue or change specifications, designs, features, models or equipment
without incurring oblig atio n.
The illustrations in this document
show the typical construction of the
different assemblies and, in all cases,
may not reproduce the full detail or
exact s hape o f the parts shown, however, they represent parts which have
the same or a similar function.
It is understood that this guide may
be translated into another language.
In the event of any discrepancy, the
English version shall prevail.
Specifications are given in the SI metric system with the SAE U.S. equivalent in parentheses. Where pre cise
accuracy is not required, some conversions are rounded off for easier use.
Most components of this snowmobile
are built with parts dimensioned in the
metric system. Most fasteners are
metric and must not be replaced by
customary fasteners or vice versa.
We recommend genuine BRP products for replacement parts and accessories. They've been specially
designed for your vehicle and manufactured to meet BRP's demanding
standards.
For any questions pertaining to the
warranty and its application, consult
the WARRANTY section in this guide,
and/or an authorized Lynx dealer.
2
_______________________
TABLE OF CONTENTS
SAFETY INFORMATION
IMPORTANT BASIC SAFETY MEASURES....................................... 8
LAWS AND REGULATIONS....................................................... 12
RIDING THE VEHICLE.............................................................. 13
Principle of Operation .......................................................... 13
How to Ride ..................................................................... 13
Carrying a Passenger........................................................... 15
Terrain/Riding Variations........................................................ 17
Transporting and Towing ....................................................... 21
ENVIRONMENT INFORMATION
GENERAL ............................................................................ 24
JUST WHAT IS LIGHT TREADING? ............................................. 25
WHY IS LIGHT TREADING SMART.............................................. 26
VEHICLE INFORMATION
HOW TO IDENTIFY YOUR SNOWMOBILE ..................................... 28
CONTROLS/INSTRUMENTS/EQUIPMENT .................................... 30
1) Speedometer................................................................. 34
2) Tachometer (RPM) ........................................................... 34
3) Gauge Digital Display........................................................ 34
4) Gauge Multifunction Digital Display ....................................... 36
5) Gauge Pilot Lamps........................................................... 46
6) Gauge MODE (M) Button ................................................... 49
7) Gauge SET (S) Button ....................................................... 49
8) Throttle Lever ................................................................ 49
9) Brake Lever................................................................... 49
10) Parking Brake Lever........................................................ 49
11) Multi-Switch Housing ...................................................... 50
12) Handlebar ................................................................... 52
13) Holding Strap ............................................................... 52
14) Tether Cut-Out Switch ..................................................... 52
15) Engine Cut-Out Switch .................................................... 54
16) Rewind Starter Handle..................................................... 55
17) Choke Lever ................................................................ 55
18) Fuel Tank Cap ............................................................... 55
19) Heated Carburetor Valve................................................... 55
20) Hood and Side Panels...................................................... 56
21) Fuses ........................................................................ 56
22) Grab Handle/Bumper....................................................... 57
______________________
3
23) Storage Compartment ..................................................... 58
24) Tool Kit....................................................................... 58
25) Spark Plug Storage ......................................................... 58
26) Spare Drive Belt Holder.................................................... 58
27) Shields and Guards......................................................... 59
28) Track ......................................................................... 59
29) 1+1 Seat..................................................................... 60
30) Rear Passenger Heating Grip Switch..................................... 61
31) Rear Grab Handles ......................................................... 61
32) Rear Rack ................................................................... 61
33) 12-Volt Power Outlet....................................................... 61
34) C-Type Hitch ................................................................ 61
RECOMMENDED FUEL AND OIL ................................................ 63
BREAK-IN PERIOD.................................................................. 65
OPERATING INSTRUCTIONS..................................................... 66
Pre-Operation Check ........................................................... 66
Engine Starting Procedure ..................................................... 67
Carburetor Engine Starting Procedure........................................ 68
Vehicle Warm-Up ............................................................... 69
Shifting in Reverse.............................................................. 69
Shutting Off the Engine ........................................................ 70
Post-Operation Care ............................................................ 70
SPECIAL OPERATING INSTRUCTIONS ......................................... 71
Riding at High Altitudes ........................................................ 71
Riding in Cold Weather......................................................... 71
Emergency Starting............................................................. 71
Towing an Accessory........................................................... 72
Towing Another Snowmobile.................................................. 72
Transporting the Vehicle........................................................ 72
SUSPENSION ADJUSTMENTS .................................................. 74
Adjustable suspension ......................................................... 74
Front Springs — Handling...................................................... 78
Front Suspension Shock Damping ............................................ 79
Suspension Troubleshooting Chart............................................ 80
Deep Snow Riding .............................................................. 80
TROUBLESHOOTING.............................................................. 81
Beeper Codes ................................................................... 81
General........................................................................... 81
SPECIFICATIONS ................................................................... 84
MAINTENANCE INFORMATION
PERIODIC MAINTENANCE CHART .............................................. 96
2–STROKE MAINTENANCE CHART (FAN AND LIQUID COOLED) ......... 97
ENGINE SYSTEM................................................................. 101
Air Intake Silencer Prefilter Verification..................................... 101
4
_______________________
Cooling System ............................................................... 101
Exhaust System............................................................... 101
DRIVE SYSTEM................................................................... 102
Belt Guard Removal and Installation ........................................ 102
Brake Fluid Level.............................................................. 102
Brake Condition ............................................................... 103
Brake Adjustment............................................................. 103
Chaincase Oil.................................................................. 103
Drive Chain Tension .......................................................... 103
Drive Belt Inspection ......................................................... 104
Drive Belt Removal ........................................................... 104
Drive Belt Installation/Adjustment .......................................... 105
Drive Pulley Adjustment ..................................................... 109
Track Condition................................................................ 110
Track Tension and Alignment ................................................ 111
REAR SUSPENSION ............................................................. 114
STEERING AND FRONT SUSPENSION....................................... 115
ELECTRICAL SYSTEM ........................................................... 116
Recommended Spark Plug .................................................. 116
Spark Plug Removal/Installation............................................. 116
Fuse Removal/Inspection .................................................... 117
BODY/FRAME..................................................................... 119
Vehicle Cleaning and Protection............................................. 119
Bulb Replacement ............................................................ 119
Headlamp Beam Aiming ..................................................... 120
STORAGE AND PRESEASON PREPARATION ............................... 121
WARRANTY
BRP FINLAND OY INTERNATIONAL LIMITED WARRANTY: 2009 LYNX
®
SNOWMOBILES .................................................................. 124
PRIVACY OBLIGATIONS/DISCLAIMER ....................................... 127
CHANGE OF ADDRESS/OWNERSHIP ........................................ 128
______________________
5
6
_______________________
SAFETY
INFORMATION
______________________
7
IMPORTANT BASIC SAFETY MEASURES
Training
Basic training is required for the
safe operation of any snowmobile.
Study your Operator's Guide paying
particular attention to cautions and
warnings. J oin your local snowmobile club : its social activities
and trail systems are planned for
both fun and safety. Obtain basic
instructions from your snowmobile
dealer, friend, fellow club m ember
or enroll in your local training program.
Always show a new operator how
to start and stop the vehicle. Indicate the correct riding positions
and, above all else, only allow him
to operate the snowmobile in a restricted flat area — at least until he
is completely familiar with its operation. If there is a local snowmobile
operator's training course existing,
have him enroll.
Performance
The performance of some snow-
mobiles may significantly exceed
that of other snowmobiles you have
operated. Therefore, use by novice
or inexperienced operators is not
recommended.
Snowmobiles are used in many ar-
eas and in many snow conditions.
Not all models perform the same in
similar conditions. Always consult
your snowmobile dealer when selecting the snowmobile model for
your particular needs and uses.
Injury or death may result to the
snowmobile operator, passenger
or bystander if the snowmobile is
used in risky conditions which are
beyond the driver's, passenger's
or snowmob ile's capabilities or intended use.
Age
BRP recommends the operator has
at least 16 years old of age. Follow
your local legislation.
Speed
Speeding can be fatal. In many
cases, you cannot react or respond
quickly enough to the unexpected.
Always ride at a speed which is
suitable to the trail, weather conditions and your own ability. Know
your local rules. Speed limit may
be in effect and meant to be observed.
Riding
Always keep right hand side of the
trail.
Always keep a safe distance
from other snowmobiles and bystanders.
Remember, promotional material
may show risky maneuvers performed by professional riders under
ideal and/or controlled conditions.
You should never attempt any such
risky maneuvers if they are beyond
your level of riding ability.
Never ride after consuming drugs or
alcohol or if y o u feel tired or ill. Operate your snowmobile prudently.
Your snowmobile is not designed to
be operated on public streets, roads
or highways.
Snowm ob ilin g at night can be a de-
lightful experience but because of
reduced visibility, be extra cautious.
Avoid unfamiliar terrain and be sure
your lights are working. Always carry a flashlight and spare light bulbs.
8
_______________________
Nature is wonderful but don't let it
distract your attention from driving.
If you want to truly appreciate winter's scenery, stop your snowmobile on the side of the trail so that
you don't become a hazard to others.
Fences represent a very serious
threat for both you and your snowmobile. Give a wide berth to telephone poles or posts.
Hidden wires unseen from a dis-
tance can cause serious accidents.
Always wear an approved safety
helmet, eye protection and a face
shield. This also applies to your
passenger.
Be aware of inherent risks associ-
ated with riding off trails, such as
avalanche and other natural or man
made hazards or obstacles.
Avoid road traveling. If you must
do so, and it is permitted, reduce
speed. The snowmobile is not designed to operate or turn on paving.
When crossing a road, make a full
stop, then look carefully in both directions before crossing at a 90° angle. Be wary of parked vehicles.
Tailgating another snowmobile
should be avoided. If the snowmobile in front of you slows for any
reason, its driver and passenger
could be harmed through your neglect. Maintain a safe stopping
distance between you and the
snowmobile in front of you. Depending on the terrain condition,
stopping may require a little more
space than you think. Play it safe.
Be prepared to use evasive driving.
Venturing out alone with your snow-
mobilecouldalsobehazardous.
You could run out of fuel, have an
accident, or damage your snowmobile. Remember, your snowmobile
is capable of traveling further in half
an hour than you may be able to
walk in a day. Use the “buddy system”. Always ride with a friend or
member of your snowmobile club.
Even then, tell someone where you
are going and the approximate time
you plan to return.
Meadows sometimes have low ar-
eas where water accumulate and
freezes over in winter. This ice is
usually glare ice. Attempting to
turn or brake on this surface could
cause your vehicle to spin out of
control. Never brake or attempt
speeding or turning on glare ice. If
youdohappentotraveloversuch
a condition, reduce speed by carefully releasing the throttle.
Never “jump” with your snow mo-
bile. This should be left to professional stunt men. Don't show off.
Be responsible.
While on safari, do not “gun” the
throttle. Snow and ice can be
thrown back into the path of a
following snowmobile. In addition,
when “gunning” the throttle, the
vehicle digs into and leaves an irregular sn o w surface for others.
Safaris are both fun and enjoyable
but don't show off or overtake
others in the group. A less experienced operator might try to do the
same as you and fail. When riding
with others, limit your abilities to
the experience of others.
Operation
Always make a pre-start inspection
BEFORE you turn on the ignition.
______________________
9
In an emergency, the snowmobile
engine can be stopped by activating
the engine cut-out switch, pulling
the tether cord cap or turning off the
key.
Throttle mechanism should be
checked for free movement and
return to idle position befo r e starting engine.
Always engage parking brake when
vehicle is not in use.
Never run the engine in a non-ven-
tilated area and/or if vehicle is left
unattended.
Never operate the engine without
belt guard securely installed or,
with hood or access/side panels
open or removed. Never run the
engine without drive belt installed.
Running an unloaded engine such
as without drive belt or with track
raised, can be dangerous.
Electric start models only: Never
charge or boost a battery while installed on snowmobile.
Ensure the path behind is clear of
obstacles or bystanders before proceeding in reverse.
Do not leave your keys in the ig-
nition switch, it is an invitation to
thieves and a danger to young children.
Raising th e rear of your snowmob ile
while the engine is running could
cause snow, ice or debris to be
thrown back at an observer. Never raise the rear of the vehicle while
the engine is running. To clear or inspect the track, stop the engine, tilt
thevehicleonitssideandremove
blockage with a piece of wood or
branch. Never allow anyone near a
rotating snowmobile track.
Maintenance
Know your snowmobile and treat
it with the respect and care due of
any power driven machine. Common sense, proper handling and
routine maintenan ce will result in
safer and enjoyable use.
Only perform procedures as de-
tailed in this guide. Unless otherwise specified, engine should be
turned OFF and cold for all lubrication, adjustment and maintenance
procedures.
Never have the engine running
whilethehoodisopen. Evenat
idle, a snowmobile engine is tu rn ing around 1,800 revolutions per
minute. Always turn off the ignition before opening the hood for
any reason.
Never remove any original equip-
ment from your snowmobile. Each
vehicle h as many built in safety features. Such features include various guards and conso les, plus reflective materials and warning labels.
A poorly maintained snowmobile
itself can b e a potential haza rd. Excessively worn components could
render the vehicle completely inoperative. Keep the snowm o bile
in good working condition at all
times. Follow your pre-operation
check, weekly, monthly and annually routine maintenance and
lubrication procedures as detailed
in this guide. Consult a snowmobile dealer or acquire a shop manual
and proper tools and equipment if
other repairs or service is required.
Do not stud the track unless it as
been approved for studs. At speed,
a studded track that as not been
approved for studs could tear and
separate from vehicle posing a risk
of severe injury or death.
10
______________________
Fuel
Always stop the engine before
refueling. Fuel is flammable and
explosive under certain conditions.
Always work in a well-ventilated
area. D o not smoke or allow open
flames or sparks in the vicinity.
Open cap slowly. If a d ifferen tial pressure condition is noticed
(whistling sound heard when loosening fuel tank cap) have vehicle
inspected and/or repaired before
further operation. Do not overfill
or top off the fuel tank before placingthevehicleinawarmarea.
As temperature increases, fuel expands and might overflow. Always
wipe off any fuel spillag e from the
vehicle. Periodically verify fuel system.
Basics for Passenger
Never ride as a passenger unless
the snowmobile is equipped with a
passenger seat, and sit only on the
designated passenger seat.
Always wear a DOT approved hel-
met and follow the same dressing
guidelines as those recommended
for the operator and described in
this guide.
Make sure that you are able to
achieve a stable stance, both feet
resting positively on the footboards
of footrests with good grip, and
that you are able to hold on firmly
to the handholds.
Once underway, if you feel uncom-
fortable or insecure for any reason,
don‘t wait, tell the driver to slow
down or stop.
_____________________
11
LAWS AND REGULATIONS
Know your local laws.
State, provincial and local government
agencies have enacted laws and regulations pertaining to the safe use and
operation of snowmobiles. It is your
responsibility as a snowmobiler to
learn and obey these laws and regulations. Respect and observance will
result in safer snowmobiling for all.
Be aware of the liability property damages and insurance law s regarding
your equipment.
12
______________________
RIDING THE VEHICLE
Before venturing on the trails, operate
the snowmobile in a restricted flat area
until yo u are completely familiar with
its operation and feel comfortable that
you can safely tackle a more demanding task. Have an enjoyable and safe
ride.
Principle of Operation
Propulsion
Depressing throttle lever increases
engine RPM causing the drive pulle y
to engage. Depending on models, engine RPM must be between 2500 and
4200 before drive pulley engagement
will occur.
Outer sheave of drive pulley moves
toward inner sheave, forcing the drive
belt to move upward on the drive
pulley and simultaneously forcing the
sheaves apart on the driven pulley.
The driven pulley senses the load on
the track and lim its the belt movement. The result is an optimized
speed ratio between engine RPM and
the speed of the vehicle at any time.
WARNING
Never operate engine without belt
guard securely installed or, with
hood or access/side panels open
or removed.
Power is transferred to the track
through the chaincase or gearbox
and drive axle.
WARNING
Always use a wide-base snowmobile mechanical stand to properly
support vehicle during any track
verification. Slowly accelerate
engine in order to rotate track at
very low speed when it is not on
ground.
Tur ni ng
Handlebar controls the steering of the
vehicle. As the handlebar is rotated to
right or left, the skis are turned right or
left to steer the snowmobile.
Stopping
Before riding your snowmobile, you
should understand how to stop it.
This is done by releasing the throttle
and gradually depressing the brake
lever on the left side of the handlebar.
In an emergency, you may stop your
vehicle by pressing the engine cut-out
switch located near the throttle control
and applying the brake. Remember, a
snowmobile cannot “stop on a dime”.
Braking characteristics vary with deep
snow, packed snow or ice. If the track
is locked during hard braking, skidding
may result.
How to Ride
How to Dress
Proper snowmobile clothing should
be worn. It should be comfortable
and not too tight. Always check the
weather forecast before going on a
ride. Dress for the coldest weather
expected. Thermal underwear next
to the skin also provides a good insulation.
DOT approved helmets are recommended at all times. They provide
both warm t h and reduce injury. A
stocking type cap, balaclava and face
mask should always be carried or
worn. Goggles or a face shield that
attach to the helmet are indispensable.
Hands should be protected by a pair
of snowmobile gloves or mitts which
have sufficie nt insulation and allow
use of thumbs and fingers for operation of controls.
_____________________
13
Rubber bottom boots with either a nylon or a leather top, with removable
felt liners are best suited for snowmobiling.
You should keep yourself as dry as
possible when snowmobiling. When
you come indoors, take your snowmobile suit and boots off and make certain they dry properly.
Do not wear long scarfs and loose apparels that could get caught in moving
parts.
What to Bring
Every snowmobiler should carry at
least the following basic parts and
tools that can help him and others in
an emergency:
• this Operator's Guide
• spare spark p lugs and wrench
•frictiontape
• spare drive belt
• spare starter rope
• spare light bulbs
• tool kit (including at lea st pliers,
screwdriver, adjustable wrench)
•knife
• flashlight.
Include other items depending on the
length and time of your ride.
Riding Position
Your riding position and balance are
the two basic prin ciples of making
your snowmobile go where you want
it to. When turning on the side of a
hill, you and your passenger m ust be
ready to shift body weight to help it
turn in the desired direction. Driver
and passenger(s) must never attempt
this maneuvering by placing feet outside of the vehicle. Experience will
teach you how much lean to put into turns at different speeds and how
much you w ill have to lean into a slope
to maintain proper balance.
Generally, the riding position for best
balance and control is sitting. However, the posting, kneeling or standing
positions are also used under certain
conditions.
The novice driver should become familiar with the snowmobile through
practice on a level area at slow speeds
before venturing afield.
WARNING
Do not attempt any maneuvers if
they are beyond your abilities.
14
______________________
Sitting
Feet on the running boards, body midway back on seat is an ideal position
when operating the snowmobile over
familiar, smoo th terrain. Knees and
hips should remain flexible to a bs orb
shocks.
Posting
A semi-sitting position with the body
off the seat and the feet under the
body in a sort of squatting posture,
thus allowing the legs to absorb the
shocks when traveling over uneven
terrain. Avoid abrupt stops.
Kneeling
This position is achieved by placing
one foot firmly on the running board
and the opposite knee on the seat.
Avoid abrupt stops.
Standing
Place both feet o n the running boards.
Knees should be flexed to absorb the
shock from surface bumps. This is
an effective position to see better and
to shift weight as conditions dictate.
Avoid abrupt stop.
Carrying a Passenger
Certain snowmobiles are designed for
an operator only, others can allow one
passenger only, and others can allow
up to two passengers. Refer to the
indications on the vehicles to know if
any particular snowmobile can accommodate passengers o r not, and if so,
how many. Always respect those indications. Overloading is dangerous because snowmobiles are not designed
for it.
_____________________
15
Even when passengers are allowed,
you must make sure that the persons
who would like to become passengers
are physically fit for snowmobiling.
WARNING
Anypassengermustbeableto
firmly lay his feet on the footrests
andkeephishandsonthegrab
handles or seat strap at all times
when seated. Respecting those
physical criteria is important to
ensure that the passenger is stable
and to reduce the risks of ejection.
Each ope rator has a responsibility to
ensure the safety of his passengers
and should inform them of snowmobiling basics.
WARNING
– Passengers must only sit on
designated passenger seats.
Never allow anyone to sit between the handlebar and the
operator.
– Each passenger seat must have
a strap or grab handles and
meet SSCC standards.
– Passengers and operators must
always wear DO T approved helmets and warm clothing appropriate for snowmobiling. Make
sure that no skin is exposed.
– Once underway, if a passenger
feels uncomfortable or unsecure for any reason, he must
not wait, and tell the driver to
slowdown or stop.
Riding with passengers on board is
different than riding alone. The operator has the benefit of knowing what
will be the next maneuver and is able
to prepare himself accordingly. The
operator also benefits from the support of his grip on the handlebar. In
contrast, the passengers have to rely on the operator’s careful and safe
operation of the vehicle. In addition,
“body english” is limited with passengers, and the operator can sometimes
see more of the trail ahead than the
passengers. Therefore, smooth starting and stopping are required with
passengers, and the operator must
slow down. The operator m ust also
warn passengers of side hills, bumps,
branches, etc. An unforeseen bump
can leave y ou passenger-less. Remind your pa ssengers to lean into
the turn with you, without causing
the vehicle to topple. Be extremely
careful, go more slowly and check the
passengers frequently.
WARNING
When riding with a passenger:
– Braking ability and steering
control are reduced. Decrease
speed and allow extra space to
maneuver.
– Adjust suspension according to
weight.
For complete in formation on how
to adjust the suspension, please refer to the section of this Operator’s
Guide entitled SUSPENSION ADJUSTMENTS under OPERATING INSTRUCTIONS and to the relevant label on the
belt guard.
Use extra caution and go even more
slowly with young passengers. Check
frequently to make certain the child
has a firm grip and is properly positioned with his feet on the running
boards.
16
______________________
Terrain/Riding Variations
Groomed Trail
On a m ain ta ine d trail, sitting is the
most preferred riding position. Do not
race and, above all, keep to the right
hand side of the trail. Be prepared
for the unexpected. Observe all trail
signs. Do not zigzag from one side of
the trail to the other.
Ungroomed Trail
Unless there has been a fresh snowfall you can expect “washboard” and
snowdrift conditions. Taken at excessive speeds, such conditions can be
physically harmful. Slow down. Hold
on the handlebar and assume a posting position. Feet should be under the
body assuming a crouched position to
absorb any jarring effect. On longer
stretches of “washboard” trails, the
kneeling position of one knee on the
seat can be adopted. This provides
a certain amount of comfort, while at
thesametimekeepsthebodyloose
and capable of vehicle control. Beware of hidden rocks or tree stumps
partially hidden by a recent snowfall.
Deep Snow
In deep “powder” snow, your vehicle
could begin to “bog” down. If this occurs,turninaswideanarcaspossible and look for a firmer base. If you
do get “bogged”, and it happens to
everyone, do not spin your track as
this makes the vehicle sink deeper. Instead, turn the engine off, get off and
move the back of the vehicle onto new
snow. Then tramp a clear path ahead
of the vehicle. A few feet will generally suffice. Restart the engine. Assume the standing position and rock
the vehicle gently as you steadily an d
slowly apply the throttle. D epending
on whether the front or rear end of
the vehicle is sinking, your feet should
be placed on the opposing end of the
running board s. Never place foreign
material beneath the track for support.
Do not allow anyone to stand in front
of, or to the rear of, the snowmobile
with the engine running. Stay away
from the track. Personal injury will result if contact is made with the revolving track.
_____________________
17
Frozen Water
Traveling frozen lakes and rivers can
be fatal. Avoid waterways. If you
are in an unfamiliar area, ask the local authorities or residents about the
ice condition, in lets, outlets, spring s,
fast m oving currents or other hazards. Never attempt to operate y ou r
snowmobile on ice that may be too
weak to support you and the vehicle.
Operating a snowmobile on ice or icy
surfaces can be very dangerous if you
do not observe certain precautions.
Theverynatureoficeisforeignto
good control of a snowmobile or any
vehicle. Tractio n for starting, tu rning
or stopping is much less than that
on snow. Thus, these distances can
be multiplied man yfold. Steering is
minimal, and uncontrolled spins are
an ev er present danger. When operating on ice, drive slowly with caution.
Allow yourself plenty of room for
stopping and turning. This is especially true at night.
Hard Packed Snow
Don't underestimate hard packed
snow. It can be difficult to negotiate
as both skis and track do not have as
much trac tion. Best advice is to slow
down and avoid rapid acceleration,
turning or braking.
Uphill
There are two types of hills you can encounter — the open hill on which there
are few trees, cliffs or other obstacles,
and a hill that can o nly be climbed directly. On an open hill, the approach
is to climb it by side hillin g or slaloming. Approach at an angle. Adopt a
kneeling position. Keep your weight
on the uphill side at all times. Maintain a steady, safe speed. Continue
as far as you can in this direction, then
switch to an opposite hill angle a nd riding position.
A direct climb could present prob le m s.
Choose the standing position, accelerate before you start the climb and
then reduce throttle pressure to prevent track slippage.
In either case, vehicle speed should
be as fast as the incline demands.
Always slow down as you reach the
crest. If you cannot proceed further,
don't spin your track. Turn the engine off, free the skis by pulling them
out and downhill, place the rear of the
snowmobile uphill restart the engine
and ease it out with slow even throttle
pressure. Position yourself to avoid
tipping over, then descend.
Downhill
Downhill driving requires that you
have full control of your vehicle at all
times. On steeper hills, keep y ou r
center of gravity low and both hands
on the handlebar. M aintain slight
throttle pressure and allow t he machine to run downhill with the engine
operating. If a higher than safe speed
is reached, slow down by braking but
apply the brake with frequent light
pressure. Never jam the brake and
lock the track.
Side Hill
When crossing a side h ill or traversing up or downhill, certain procedures
must be followed. All riders should
lean towards the slope as required
for stability. The p re ferre d operating
positions are the kneeling position,
with the knee of the down hill leg
on the seat and the foot of the uphill leg on the running board, or the
posting position. Be prepared to shift
your weight quickly as needed. Side
hills and steep slop es are not recommended for a beginner or a novice
snowmobiler.
18
______________________
Slush
Slush should be avoided at all times.
Always check for slush before starting across any lake or river. If dark
spots appear in your tracks, get off the
ice immediately. Ice and water can be
thrown rearward into the path of a following snowmobile. Getting a vehicle
out of a s lush area is strenuous and in
some cases, impossible.
Fog or Whiteo uts
On land or water, fog or v isibility-limiting snow can form. If you have to
proceed into the fog or heavy snow,
do so slowly with your lights on and
watch intently for hazards. If you are
not sure of your way, do not proceed.
Keep a safe distance behind other
snowmobilers to improve visibility
and reaction time.
Unfamiliar Territory
Whenever you enter an area that is
new to you, drive with extreme caution. Go slow enough to recognize
potential hazards such as fences or
fence posts, brooks crossing your
path, rocks, sudden dips, guy wires
and coun tle ss other obstacles which
could result in a termination of your
snowmobile ride. Even when following existing tracks, be cautious.
Travel at a speed so you can see what
is around the next bend or over the
top of the hill.
Bright Sunshine
Bright sunny days can considerably reduce your vision. The glare from sun
andsnowmayblindyoutotheextent that you cannot easily distinguish
ravines, ditches or other obstacles.
Goggles with colored lenses should
always be worn under these conditions.
Unseen Obstruction
There may be obstructions hidden
beneath the snow. Driving off established t rails and in the woods requires
reducedspeedandincreasedvigilance. Driving too fast in an area can
make even minor obstacles very hazardous. Even hitting a small rock or
stump could throw your snowmobile out of control and cause injury to
its riders. Stay on established trails
to reduce your exposure to hazards.
Be safe, slow down and enjoy the
scenery.
Hidden Wires
Always be on the lookout for hidden
wires, especially in areas t ha t may
have been farmed at one time or any
other. Too many accidents have been
caused by running into wires in the
fields, guy wires next to poles and
roads, and into chains and wires used
as road closures. Slow speeds are a
must.
Obstacles and Jumping
Unplanned jumps of snowdrifts,
snowplow ridges, culverts or indistinguishable objects can be dangerous.
You can avoid them by wearing the
proper color lenses or face shields and
by operating at a lower speed.
Jumping a snowmobile is an unsafe
and dangerous practice. However, if
the trail does suddenly drop a way from
you, crouch (stand) towards the rear
ofthevehicleandkeeptheskisup
and straight ahead. Apply partial throttle and brace yourself for the im p act.
Knees must be flexed to act as shock
absorbers.
_____________________
19
Tur n in g
Depending on terrain conditions, there
are two preferred ways to turn or corner a snowmobile. For most snow
surfaces, “body english” is the key to
turning. Leaning towards the inside of
the turn and positioning body weight
on the inside foot will create a “banking” condition beneath the track. By
adopting this position and positioning
yourself as far forward as possible,
weight will be transferred to the inside
ski.
On occas ion, you will find that the only way to turn the vehicle about in
deep snow is to pull the snowmob ile
around. Do not over-exert yourself.
Get assistance. Reme mber to always
lift using your legs as opposed to your
back.
Road Crossing
In some cases, you will be approaching the road from a ditch or snowbank.
Choose a place where you know you
can climb with ou t difficulty. Use the
standing position and proceed w ith only as much speed needed to crest the
bank. Stop c ompletely at the top of
the bank and wait f or all traffic to clear.
Judge the drop to the roadway. Cross
the road a t a 90° angle. If you encounter another snowbank on the opposite side, position y our feet near the
rear of the veh icle . R emember, your
snowmobile is not designed to operate on bare pavement and steering on
this ty pe of surface is more difficult.
Railroad Crossing
Never ride on railroad tra cks. It is illegal. Railroad track s and railroad r ightsof-way are private property. A snowmobile is no match for a train. When
crossing a railroad track, stop, look and
listen.
Night Rides
The amount of natural and artificial
light at a given time can effect your
ability to see or to be seen. Nig httime
snowmobiling is deligh tful. It can be
a unique experience if you acknowledge your reduced visibility. Before
you start, make certain your lights
are clean and work properly. Drive
at speeds that will allow you to stop
in time when you see an unknown
or dangerous object ahead. Stay on
established trails and never operate in
unfamiliar territory. Avoid rivers and
lakes. Guy wires, barbed wire fences,
cabled road entrances and other objects such as tree limbs are difficult
to see at night. Neve r drive alone.
Always carry a flashlight. Keep away
from residential areas and respect the
right of others to sleep.
20
______________________
Safari Riding
Before starting out, designate a “trail
boss” to lea d the party and another
person to follow-up at the end of the
party. Ensure that all members of the
party are aware of the proposed route
and destination. Make certain that
you are carrying all necessary tools
and equipment and that you hav e
sufficient fuel to complete the trip.
Never overtake the trail boss or, for
that matter, any other snowmobile.
Use down-the-line hand signals to indicate hazards or intent of direction
change. Assist others whenever necessary.
ItisalwaysIMPORTANTtokeepa
safe distance between each snowmobile. Always maintain a safe interval
and allow sufficient stopping distance.
Don't be a tailgater. Know the position
of the machine ahead.
Signals
If you intend to stop, raise either hand
straight above your head. A left turn is
indicated by extending your left hand
straight out in the proper direction.
For right turns, extend the left arm and
raise the hand to a vertical position so
it forms a right angle at the elbow. Every snowmobiler should relay any signal to the ones behind.
Trail Stops
Whenever possible, pull off the trail
when you stop. This will reduce the
hazard to other snowmobilers using
the trail.
Trails and Signs
Trail signs are used to control, direct
or regulate the use of snowmobiles on
trails. Become familiar with all signs
used in the area where you are snowmobiling.
Transporting and Towing
Follow transporting and towing instructions explained furth e r in this
guide.
_____________________
21
22
______________________
ENVIRONMENT
INFORMATION
_____________________
23
GENERAL
Wildlife compliments your snowmobiling day. Snowm obile tracks provide
firm ground over which animals can
travel from area to area. Do not violate this privilege by chasing or harassing wildlife. Fatigue and exhaustion
can lead to animal's death. Avoid areas posted for the protection or feeding of wildlife.
If you happen to be fortunate enough
to see an animal, stop your snowmobile and observe quietly.
The guidelines that we support are
not designed to limit your snowmobiling fun, b ut to preserve the beautiful freedom that you can experience
only on a snowmobile! These guidelines will keep s nowmobilers hea lthy,
happy and able to introduce others to
what th ey know and enjoy about their
favorite winter pastime. So, the next
time you hit the trails on a cool, crisp
and clear winter day, we ask you to remember that you are paving the way
for the future of our sport. Help us
lead it down the right path! From all
of us at BRP, thank yo u for doing your
share.
There is nothing more exhilarating
than sno wmobiling. Venturing onto
snowmobile trails th at criss-cross the
wild areas of forests an exciting and
healthy winter sport. However, as the
number of people using these recreational parks increases, so does the
potential for damage to the environment. Abuse of land, facilities and
resources inevitably leads to restrictions and closures of both private and
public land.
In essence, the greatest threat to our
sport, is all around us. Which leaves
us with one logical choice. When we
snowmobile, we must always ride responsibly.
The vast majority respect the law and
the environment. Each of us must set
an example for those who are new to
the sport, young and old alike.
It is in every one's best interest to
tread lightly into our recreational area s.
Because, in the long run, to protect the
sportwemustpreserve the environment.
Recognizing the importance of this issueandtheneedforsnowmobilersto
do their share in preserving areas that
make it possible to enjoy our sport,
BRP has developed the “Light Treading Is Smart Sledding” campaign for
snowmobilers.
Light Treading refers to more than the
thread of our tracks. It's a statement
of concern, respect and willingne ss to
take the lead and take action. It applies to the environment in general, its
proper care and m aintenance, its natural inhabitants and all enthusiasts and
the public at large who enjoy the great
outdoors. With this theme, we invite
all snowmobilers to remember that respecting the environment is not only
critical to the future of our industry but
to future generations.
Light Treading in no w ay suggests you
should curb your appetite for snowmobiling fun! It simply means tread with
respect!
24
______________________
JUST WHAT IS LIGHT TREADING?
The fundamental objective of Light
Treading is one of respect for where
and how you ride a snowmobile.
You're a light treader when you follow
the principles below.
Become informed. Obtain maps,
regulations and other information
from the Forest Service or from other
public land agencies. Learn the rules
and follow them and that goes for
speed limits, too!
Avoid running over young trees,
shrubs, and grasses and don't cut
wood. On flatlands or areas where
trail riding is popular, it's important to
ride only where authorized. Remember, there is a link between protecting
your environment and your own safety.
Respect wildlife andbeparticularly
sensitive of anim als that are rearing
young or suffering from food shortage. Stress can sap scarce energy reserves. Refrain from riding in areas
where only animals are intended to
tread!
Obey gate closures and regulatory
signs and remember, light treaders
don't litter!
Stay out of wilderness areas. They're
closed to all vehicles. Know where
the boundaries are.
Obtain permission to travel across
private land. Respect the rights of
landowners and other people's privacy. Remember, snowmobile technology has lowered the noise factor
considerably, but you still shouldn't
rev your engines where quiet “is the
order of the day”.
_____________________
25
WHY IS LIGHT TREADING SMART
Snowmobilers know all too well the
efforts that have been made throughout the sport's history to enjoy access
to areas where people can snowmobile safely and responsibly. This effort
continues today, as strong as ever.
Respectingtheareaswhereweride...
wherever they may be... is the only way to ensure their future enjoyment. That's one major reason why
we know you'll a gree that L ight Treading is smart sledding! And there are
more.
Enjoying the opportunity to see winter
and all its natural majestic wonders,
is an experience cherished by snowmobilers. Light Treading will preserve
this opportunity and will make it possible for us to expose others to the
beauty of winter and the unique thrill
of our sport! Light Treading will help
our sport to grow!
Finally, Light Treading is the sign of a
smart snowmobiler. You don't have to
leave big tracks or careen through a virgin forest to show you can ride. So
whether you're driving a high performance Lynx, a sporty Lynx RE-X snowmobile or any other make or model,
show you know what you're doing.
Show you know how to send snow flying and make tracks with a light touch!
26
______________________
VEHICLE
INFORMATION
_____________________
27
HOW TO IDENTIFY YOUR SNOWMOBILE
Vehicle Description Decal
Vehicle description decal is located on
right hand side of tunnel.
2009label1
TYPICAL
1. Vehicle description decal
2009label2
VEHICLE DESCRIPTION DECAL
1. Manufacturer name
2. Manufacturing date
3. Vehicle identification number (VIN)
Serial Numbers
The main components of your snowmobile (engine and frame) are identified by different serial numbers. It
may sometimes become necessary
to locate these numbers for warranty
purposes or to trace your snowmobile
in the event of loss. These numbers
are required by the authorized Lynx
dealer to complete warranty claims
properly. No warranty will be allowed
by BRP if the engine serial number or
vehicle identification number (VIN) is
removedormutilatedinanyway. We
strongly recommend that you take
note of all the serial numbers on your
snowmobile and supply them to your
insurance company.
Vehicle Identification Number
(VIN) Location
VIN is scribed on vehicle description
decal. See above. It is also engraved
on tunnel near vehicle description decal.
Model Number Location
Model number is part of vehicle identification number (VIN).
VIN DESCRIPTION
Engine Serial Number Location
mmo2007-002-007_a
593SS ENGINE
1. Engine serial number
28
______________________
mmo2007-002-006_a
800R POWER TEK ENGINE
1. Engine serial number
mmo2008-008-025_a
600 HO E-TEC®ENGINE — RH SIDE OF
ENGINE COMPARTMENT
1. Engine serial number
_____________________
29
CONTROLS/INSTRUMENTS/EQUIPMENT
NOTE: Some controls/instruments/equipment do not apply or are optional on
some models. In these cases their reference numbers are deliberately missing
in the illustrations.
Typ i ca l 1
TYPICAL
Typ i ca l 2
TYPICAL
30
______________________
mmo2008-003-059_a
TYPICAL
_____________________
31
Typ i ca l 3
TYPICAL
Xtrim1
mmo2008-003-069_b
XTRIM MODELS O NLY
mmo2008-003-013_e
ANALOG/DIGITAL GAUG E
mmo2007-009-066_v
MULTIFUNCTION ANALOG/DIGITAL GAUGE
32
______________________
1. Speedometer
2. Tachometer (RPM)
3. Gauge Digital Display
4. Gauge Multifunction Digital Display
5. Gauge Pilot Lamps
6. Gauge MODE (M) Button
7. Gauge SET (S) Button
8. Throttle Lever
9. Brake Lever
10. Parking Brake Lever
11. Multi-Switch Housing
12. Handlebar
13. Holding Strap
14. Tether Cut-Out Switch
15. Engine Cut-Out Switch
16. Rewind Starter Handle
17. Choke Lever
18. Fuel Tank Cap
19. Heated Carburetor Valve
20. Hood and Side Panels
21. Fuses
22. Grab Handle/Bumper
23. Storage Compartment
24. Tool Kit
25. Spark Plug Storage
26. Spare Drive Belt Holder
27. Shields and Guards
28. Track
29. 1+1 Seat
30. Rear Passenger Heating Grip Switch
31. Rear Grab Handles
32. Rear Rack
33. 12-Volt Power Outlet
34. C-Type Hitch
_____________________
33
1) Speedometer
Measures vehicle speed in miles or
kilometers.
The speedometer is factory preset
in Metric units but it is possible to
change it to Imperial units, contact an
authorized LYNX dealer for unit settings.
mmo2008-003-014
LH PORTION OF GAUGE
2) Tachometer (RPM)
Measures engine revolution per
minute (RPM). Multiply by 1000 to
obtain the actual revolutions.
mmo2008-003-019
RH PORTION OF GAUGE
3) Gauge Digital Display
Digital display that supplies several real time useful information to the driver.
WARNING
Reading the gauge digital display
can distract from the operation of
the vehicle, particularly from constantly scanning the environment.
This could lead to a collision resulting in severe injuries or death. Before reading the gauge digital display, ensure your environment is
clear and free from obstacle, and
bring t he vehicle to a low speed.
Before proceeding with any adjustments, park vehicle in a safe place
and away from the trail.
The digital display is factory preset
in Metric units but it is possible to
change it to Imperial units, contact an
authorized LYNX dealer for unit settings.
mmo2008-003-013_b
ANALOG/DIGITAL GAUG E
1. Digital display
DISPLAY FEATURES
FUNCTIONS
REFER TO
TOPICS
Odometer
A)
Trip m et er “A ” or “ B” B)
Trip hour meter
C)
Fuel level D)
A) Odometer
Records the total distance travelled.
Push the SET (S) button to select
odometer (Km/Mi) mode.
34
______________________
mmo2008-003-013_c
1. Odometer (Km/Mi) mode
B) Trip Meter “A” or “B”
Trip meters records distance travelled
since it has been reset.
Push the SET (S) button to select trip
meter (TRIP A/TRIP B) mode.
mmo2008-003-013_c
1. Trip meter (TRIP A/TRIP B) mode
PushandholdtheSET(S)buttonto
reset.
mmo2008-003-013_d
C) Trip Hour Meter
Records vehicle running time when
the electrical system is activated since
it has been reset.
Push the SET (S) button to select trip
hour meter (HrTRIP) mode.
mmo2008-003-013_c
1. Trip hour meter (HrTRIP) mode
PushandholdtheSET(S)buttonto
reset.
mmo2008-003-013_d
D) Fuel Level
Bar gauge that continuously indicates
the amount of fuel left in the fuel tank.
mmo2008-003-020_a
FUEL LEVEL
1. Operating range
_____________________
35
4) Gauge Multifunction
Digital Display
Multifunction digital display that supplies several real time useful information to the driver in E nglish.
WARNING
Reading the gauge digital display
can distract from the operation of
the vehicle, particularly from constantly scanning the environment.
This could lead to a collision resulting in severe injuries or death. Before reading the gauge digital display, ensure your environment is
clear and free from obstacle, and
bring t he vehicle to a low speed.
Before proceeding with any adjustments, park vehicle in a safe place
and away from the trail.
Also, the m u ltifunction digital display
is factory preset in Metric units but it is
possible to change it to Imperial units,
contact an authorized LYNX dealer for
unit settings.
mmo2007-009-066_u
MULTIFUNCTION ANALOG/DIGITAL GAUGE
1. Multifunction display
DISPLAY FEATURES
FUNCTIONS
REFER TO
TOPICS
Speedometer
A)
Tachometer (RPM) B)
Odometer C)
Trip m et er “ A ” or “ B” D)
Trip hour meter E)
Clock
F)
Fuel level
G)
Altitude H)
Top speed I)
Top RPM J)
Average speed K)
Heated grips heating
intensity
L)
Heated throttle lever
heating intensity
M)
Instant fuel consumption N)
Totalfuelconsumption
O)
Message Display P)
A) Speedometer
In addition of the analog type
speedometer, vehicle speed can also be displayed via the m ultifunction
display.
mmo2007-009-066_b
1. Vehicle speed display
36
______________________
To display vehicle speed, proceed as
follow.
Push the MODE (M) button to select
display.
mmo2007-009-066_m
NOTE: Display will flash for approximately 5 seconds , then will return to
the previously selected mode if display is not changed.
Push the SET (S) button to select
speedometer (Km/h/MPH) mode.
mmo2007-009-066_n
1. Speedometer (Km/h/MPH) mode
Push the M ODE (M) button to confirm
selection or wait 5 seconds.
mmo2007-009-066_o
B) Tachometer (RPM)
In addition of the analog type tachom e ter, RPM can also be displayed via the
multifunction display.
mmo2007-009-066_b
1. RPM display
To display RPM, proceed as follow.
Push the MODE (M) button to select
display.
mmo2007-009-066_m
NOTE: Display will flash for approximately 5 seconds , then will return to
the previously selected mode if display is not changed.
Push SET (S) button to select RPM
mode.
mmo2007-009-066_n
1. RPM mode
_____________________
37
Push the MODE (M) button to confirm
selection or wait 5 seconds.
mmo2007-009-066_o
C) Odometer
Records the total distance travelled.
Push the SET (S) button to select
odometer (Km/Mi) mode.
mmo2007-009-066_p
1. Odometer (Km/Mi) mode
D) Trip Meter “A” or “B”
Trip meters records distance travelled
since it has been reset.
Push the SET (S) button to select trip
meter (TRIP A/TRIP B) mode.
mmo2007-009-066_p
1. Trip meter (TRIP A/TRIP B) mode
PushandholdtheSET(S)buttonto
reset.
NOTE: On E-TEC models, resetting
TRIP B mode will also reset TOTAL
FUEL CONSUMPTION.
mmo2007-009-066_k
E) Trip Hour Meter
Records vehicle running time when
the electrical system is activated since
it has been reset.
Push the SET (S) button to select trip
hour meter (HrTRIP) mode.
mmo2007-009-066_p
1. Trip hour meter (HrTRIP) mode
PushandholdtheSET(S)buttonto
reset.
mmo2007-009-066_k
38
______________________
F) Clock
Electric Start Models
Push the SET (S) button to select clock
mode.
mmo2007-009-066_p
1. Clock mode
PushandholdtheSET(S)buttonto
activate clock set-up.
mmo2007-009-066_k
To change HOURS, while the value of
HOURS is blinking, use the SET (S)
button to change hours.
To change MINUTES, while the value of HOURS is blinking, press the
MODE(M)buttontoswitchtominutes. Use the SET (S) button to
change minutes.
Push the MODE (M) button to save
clock set-up and exit mode.
G) Fuel Level
Bar gauge that continuously indicates
the amount of fuel left in the fuel tank.
mmo2007-009-042_a
FUEL LEVEL
1. Operating range
H) Altitude
Displays v ehicle altitude above sea
level in meters or feet.
Vehicle altitude can be displayed via
display 1 or display 2 of the multifunction display.
mmo2007-009-066_q
MULTIFUNCTION DISPLAY
1. Display 1
2. Display 2
Via Display 1
To display vehicle altitude via dis-
play 1, proceed as follow.
Push the MODE (M) button to select
display.
mmo2007-009-066_m
_____________________
39
NOTE: Display will flash for approximately 5 seconds, then will return to
the previously selected mode if display is not changed.
PushtheSET(S)buttontoselectaltitude (M/FT) mode.
mmo2007-009-066_n
1. Altitude (M/FT) mode
Look for the following symbol to ensure proper mode.
mmo2008-003-023
ALTITUDE MODE
Push the MODE (M) button to confirm
selection or wait 5 seconds.
mmo2007-009-066_o
Via Display 2
To display vehicle a ltitu de via dis-
play 2, proceed as follow.
PushtheMODE(M)button2times
within a second to select display.
mmo2007-009-066_r
NOTE: Display will flash for approximately 5 seconds , then will return to
the previously selected mode if display is not changed.
Push the SET (S) button to select altitude (M/FT) mode.
mmo2007-009-066_s
1. Altitude (M/FT) mode
Look for the following sym bol to ensure proper mode.
mmo2008-003-023
ALTITUDE MODE
Push MODE (M) button to confirm selection or wait 5 seconds.
40
______________________
mmo2007-009-066_t
I) Top Speed
Records vehicle top speed since it has
been reset.
To display vehicle top speed, proceed
as follow.
Push the MODE (M) button to select
display.
mmo2007-009-066_m
NOTE: Display will flash for approximately 5 seconds , then will return to
the previously selected mode if display is not changed.
Push the SET (S) button to select top
speed (TOP_SPD) mode.
mmo2007-009-066_n
1. Top speed (TOP_SPD) mode
Push the M ODE (M) button to confirm
selection or wait 5 seconds.
mmo2007-009-066_o
To reset, push the MODE (M) to select
mode.
mmo2007-009-066_m
Push and hold the SET (S) button within 5 seconds to reset.
mmo2007-009-066_w
J) Top RPM
Records engine top revolution per
minute (RPM) since it has been reset.
To display engine top revolution per
minute, proceed as f ollow.
Push the MODE (M) button to select
display.
_____________________
41

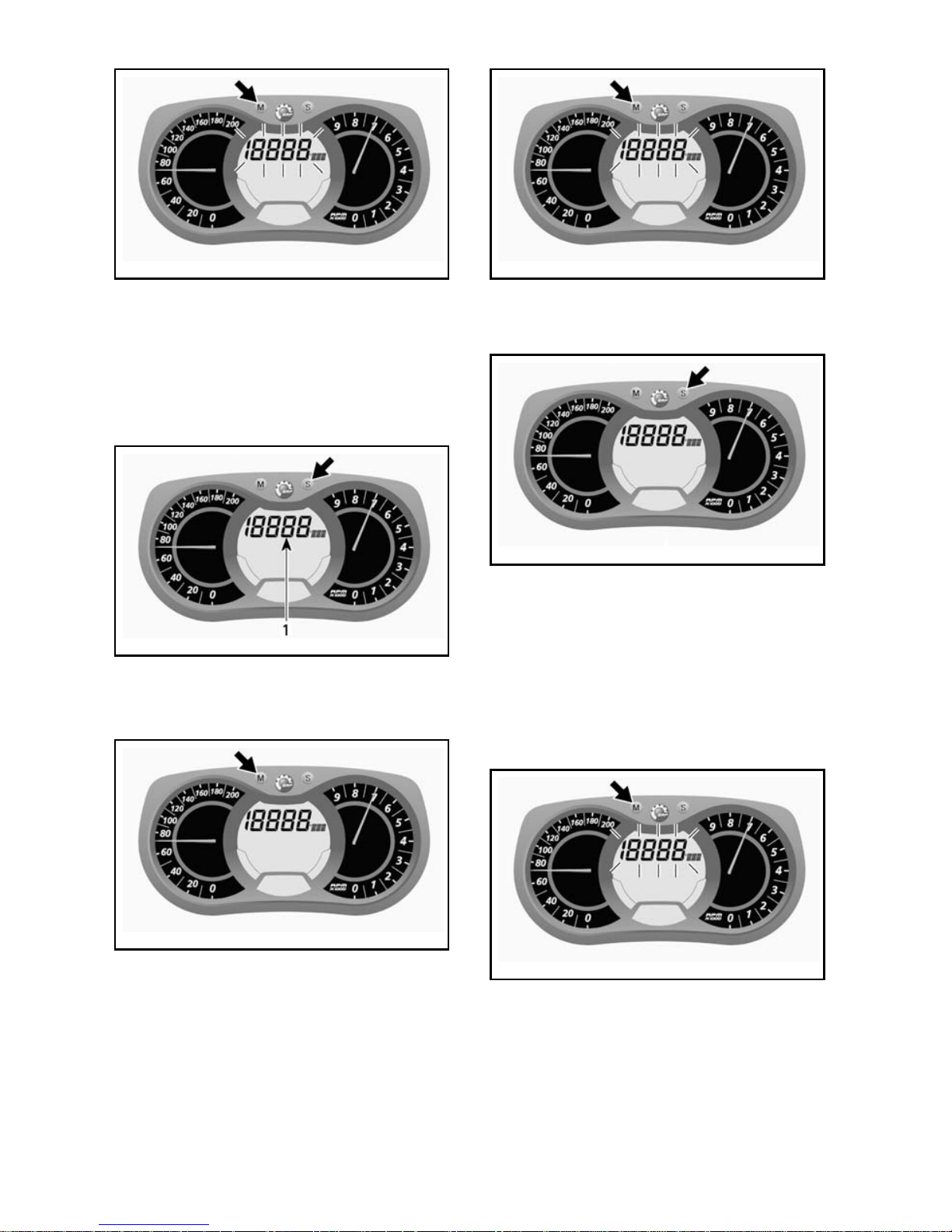

mmo2007-009-066_m
NOTE: Display will flash for approximately 5 seconds, then will return to
the previously selected mode if display is not changed.
Push the SET (S) button to select top
RPM (TOP_RPM) mode.
mmo2007-009-066_n
1. Top RPM (TOP_RPM) mode
Push the MODE (M) button to confirm
selection or wait 5 seconds.
mmo2007-009-066_o
To reset, push the MODE (M) to select
mode.
mmo2007-009-066_m
Push and hold the SET (S) button within 5 seconds to reset.
mmo2007-009-066_w
K) Average Speed
Records vehicle average speed since
it has been reset.
To display vehicle average speed, proceed as follow.
Push the MODE (M) button to select
display.
mmo2007-009-066_m
NOTE: Display will flash for approximately 5 seconds , then will return to
the previously selected mode if display is not changed.
Push SET (S) button to select vehicle
average speed (AVR_SPD) mode.
42
______________________
mmo2007-009-066_n
1. Vehicle average speed (AVR_SPD) mode
Push the M ODE (M) button to confirm
selection or wait 5 seconds.
mmo2007-009-066_o
To reset, push the MODE (M) to select
mode.
mmo2007-009-066_m
Push and hold the SET (S) button within 5 seconds to reset.
mmo2007-009-066_w
L) Heated Grips Heating
Intensity
Bar gauge that indicates heating intensity.
Refer to HEATING GRIPS SWITCH for
more details.
mmo2007-009-043_a
HEATING GRIPS
1. Operating range
M) Heated Throttle Lever
Heating Intensity
Bar gauge that indicates heating intensity.
Bar gauge will be displayed instead of
the fuel level with the activation of the
heating throttle lever switch. When
released, display will return to fuel level.
Refer to HEATIN G THROTTLE LEVER
SWITCH for more details.
mmo2007-009-044_a
HEATING THROTTLE LEVEL
1. Operating range
_____________________
43
N) Instant Fuel Consumption
600 HO E-TEC Models Only
Calculates vehicle average fuel consumption while riding.
To display vehicle average fuel consumption, proceed as follow.
Push the MODE (M) button to select
display.
mmo2007-009-066_m
NOTE: Display will flash for approximately 5 seconds, then will return to
the previously selected mode if display is not changed.
Push SET (S) button to select instant
fuel consumption (L/100 km) mode.
mmo2007-009-066_n
1. Instant fuel consumption (L/100 km) mode
Push the MODE (M) button to confirm
selection or wait 5 seconds.
mmo2007-009-066_o
O) Total Fuel Consumption
600 HO E-TEC Models Only
Records vehicle averag e fuel consumption since it has been reset.
To display vehicle total fuel consumption, proceed as follow.
Push the MODE (M) button to select
display.
mmo2007-009-066_m
NOTE: Display will flash for approximately 5 seconds , then will return to
the previously selected mode if display is not changed.
Push the SET (S) button to select total
fuel consumption (TC) mode.
mmo2007-009-066_n
1. Total fuel consumption (TC) mode
44
______________________
Look for the abbreviation (TC) to ensure proper mode.
mmo2008-003-021_a
TYPICAL
Push the M ODE (M) button to confirm
selection or wait 5 seconds.
mmo2007-009-066_o
To reset, set the trip meter to TRIP B.
Refer to TRIP METER “A” OR “B” fo r
more details.
mmo2007-009-066_p
1. Trip meter (TRIP B) mode
PushandholdtheSET(S)buttonto
reset.
mmo2007-009-066_w
P) Message Display
This display is used as a complement
of the pilot lamps to catch your attention and to give you a brief description
if an anomaly occurs or to inform you
of a particular condition.
mmo2007-009-066_c
1. Message display
Message will be displayed with a bee p
code and pilot lamp(s).
Refer to GAUGE PILOT LAMPS for
more details on beeper codes and
what to do depending on the message.
_____________________
45
MESSAGE DESCRIPTION
ENGINE
Engine is overheating
CHECK ENGINE
Engine fault
LOW BAT/
HIGH BAT
Low/high
battery voltage
(if so equipped)
REVERSE
Reverse is selected
REV. FAIL Reverse fail, try again
LOW OIL
Injection oil level is low
KNOCK
Ensure recom m ended
fuel is used
SHUTDOWN
Engine overheating
problem
5) Gauge Pilot Lamps
Gauge pilot lam p (s) will inform you if
an anomaly occurs or to inform you of
a particular condition.
mmo2008-003-024_a
TYPICAL — PILOT LAMPS
Pilot lamp can flash alone or in combination with another lamp.
Beeper codes will be heard and messages (depending on gauge model)
will be displayed to catch your attention.
Refer to the following table for more
details.
NOTE: Message display is not av ailable on all gauges.
46
______________________
PILOT
LAMP(S)
ON
BEEPER
MESSAGE
DISPLAY
DESCRIPTION
Fast short
beeps
ENGINE
Engine is overheating, reduce snowmobile
speed and run in loose snow or stop engine
immediately and allow engi ne to cool.
Check cooling system.
LOW BAT
4short
beeps every
2minutes
HIGH BAT
Indicate a low or high battery voltage
condition. See an authorized LYNX dea ler
as soon as possible.
Fast short
beeps
LOW OIL
Critical low injection oil level. Stop vehicle
in a safe place then, replenish injection oil
reservoir as soon as possible.
4 short beeps
CHECK
ENGINE
Engine fault, see an authorized LY NX dealer
as soon as possible.
4short
beeps every
2minutes
KNOCK
– Ensure recommended fuel is used.
– Check fuel quality, replace if necessary.
– If fault still occurs, contact an authorized
LYNX dealer.
Continuously
beeps
SHUTDOWN
Shutdown procedure i n force due to engine
overheating problem, remove tether cord
cap (DESS key) and contact an authorized
Lynx dealer.
4short
beeps every
2minutes
LOW OIL
Injection oil level is low. Stop vehicle in
a safe place then, replenish injection oil
reservoir.
——
Low fuel level. One (1) bar left in fuel level
display. Replenish fuel tank as soon as
possible.
Slow long
beeps
REVERSE
Electronic reverse is selected.
3 short beeps REV. FAIL
Engine rotation did not change after reverse
try, try again.
——
Headlamp is in HI beam position
DESS Refer to DESS PILOT LAMP CODES in TETHER CUT-OUT SWITCH
_____________________
47
E-TEC 600 HO engine
PILOT
LAMP(S) ON
BEEPER DESCRIPTION
Continuous
fast short
beeps
Engine, muffler or ECM is/are overheating, engine is
limited to 5500 RPM. Sto p engine as soon as possible
and allow components to cool. Check cooling system.
Continuous
fast short
beeps
– Critical low injection oil le vel. Stop vehicle in a safe
place as soon as possible then, repl enish injection
oil reservoir before restarting engine.
– If oil injection level is high, it then indicates a
failure of the oil injection system, see an authorized
LYNX dealer as soon as possible.
4 short beeps
Engine, muffler or ECM is/are overheating, reduce
snowmobile speed and run in loose snow or stop engine
and allow components to cool. Check cooling system.
4 short beeps
Engine management system fault that can change the
normal operation of the e ngi ne, see an authorized LYNX
dealer as soon as possible.
4 short
beeps every
2minutes
– Engine under protection mode.
– Ensure recommended fuel is used.
– Check fuel quality, replace if necessary.
– If fault still occurs, contact an authorized LYNX dealer.
Continuously
beeps
– Engine shutdown pro cedure in force due to an
overheating during too long idle.
– Fuel pump problem, contact an authorized
LYN X d eal er.
4 short
beeps every
2minutes
Injection oil level is low. Replenish injection oil reservoir
as soon as possible.
—
Low fuel level. One (1) bar left in fuel level display.
Replenish fuel tank as soon as possible.
Slow long
beeps
Electronic reverse is selected.
3 short beeps Engine rotation did not change after reverse try, try again.
—
Headlamp is in HI beam position.
DESS
Refer to DESS PILOT LAMP CODES in TETHER CUT-OUT SWITCH.
48
______________________
6) Gauge MODE (M)
Button
Multifunction Analog/Digital
Gauge Only
Buttonusetonavigateingaugemultifunction display.
NOTE: MODE (M) button on the multiswitch housing has the same functionsandcanalsobeused.
7) Gauge SET (S) Button
Button use to navigate, adjust or reset
gauge multifunction display.
NOTE: SET (S) button on the multiswitch housing has the same functionsandcanalsobeused.
8) Throttle Lever
Designed to be thumb activated.
When squeezed, it increases the engine speed and engages the transmission. When released, engine speed
returns automatically to idle.
WARNING
Test the throttle lever operation
each time be fore st art in g the engine. The lever must return to its
original position once released.
Otherwise, do not start engine.
9) Brake Lever
When squeezed, the brake is applied.
When released, it automatically returns to its original position. Braking
effect is proportional to the pressure
appliedontheleverandtothetypeof
terrain and its snow coverage.
10) Parking Brake Lever
Parking brake should be used whenever snowmobile is parked.
WARNING
Make sure parking brake is fully
disengaged before operating the
snowmobile. When you ride the
vehicle, brake pads that are caused
to drag by a continuous pressure
onthelevermaycausedamageto
the brake system and cause loss of
braking capacity and/or fire.
To Engage Mechanism
Squeeze brake lever and maintain
while pulling locking lever with a finger. When brake lever is held at
halfway the parking brake should be
fully applied.
CAUTION: Parking brake position
can vary depending on brake pads
wear. Ensure when the parking
brake is applied that the vehicle
stays securely in place.
NOTE: Locking lever can be adjusted
in two differe nt positions.
mmo2007-009-037_a
TYPICAL — ENGAGE MECHANISM
Step 1: Squeeze and maintain brake lever
Step 2: Adjust locking lever
1. Position 1
2. Position 2
3. OFF
To Release Mechanism
Squeeze brake lever. Locking lever
will automatically return to its original positio n. Always release p arking
brake before riding.
_____________________
49
mmo2007-009-037_b
TYPICAL — RELEASE MECHANISM
Step 1: Squeeze brake lever
11) Multi-Switch Housing
mmo2008-003-009_a
TYPICAL
1. Electronic Reverse (RER) button
2. Headlamp dimmer switch
3. Heating grips
4. Heating throttle lever
5. Mode/set button
Electronic Reverse (RER™)
Button
When pressed, it allows selection
the electronic reverse, refer to SHIFT-
ING IN REVERSE in OPERATING INSTRUCTIONS section for procedure.
Headlamp Dimmer Switch
When pressed, it allows selection of
headlamp HI or LOW beam. Lights
are automatically ON whenever the
engine is running.
Heating Grips Switch
Select the desired position to keep
your hands at a comfortable temperature.
Rave 600 only.
mmo2007-003-003_b
TYPICAL
1. Heatinggripswitch
2. Hot
3. Warm
4. Off
All other RE-X models
mmo2008-003-009_c
1. Heatinggripswitch
2. Warmer
3. Colder
On the above mentioned models,
grips heating intensity will be displayed via the multifunction display
Heating grips will b e in OFF position
when there are no bars left in the display.
50
______________________
mmo2007-009-043_b
MULTIFUNCTION GAUGE — HEATING
INTENSITY
1. Colder
2. Warmer
Heating Throttle Lever Switch
Select the desired position to keep
your thumb at a comfortable temperature.
Rave 600 only.
mmo2007-003-003_c
TYPICAL
1. Heated throttle lever switch
2. Hot
3. Warm
4. Off
All other RE-X models.
mmo2008-003-009_d
1. Heated throttle lever switch
2. Warmer
3. Colder
Heating throttle lever will be in OFF
positionwhentherearenobarsleftin
the display.
NOTE: Bar ga ug e will be displayed
with the activation of the thro ttle lever
switch. When released, display will
return to fuel tank level.
mmo2007-009-044_b
MULTIFUNCTION GAUGE — HEATING
INTENSITY
1. Colder
2. Warmer
_____________________
51
Mode/Set Button
All other RE-X models.
This button can be used instead of
the two buttons on top of the analog/
digital gauge to facilitate gauge adjustments.
– When pushed upward, it has the
same functions as the MODE (M)
button.
– When pushed downward, it has the
same functions as the SET (S) button.
mmo2008-003-009_b
MULTIFUNCTION GAUGE
1. MODE function
2. SET function
12) Handlebar
The handlebar controls the steering of
the snowmobile. As the handlebar is
rotated t o right or left, the skis are
turned right or left to steer the snowmobile.
WARNING
Fast reverse while turning, could
result in loss of stability and control.
13) Holding Strap
Xtrim Models only
Holding strap provides a grip for driver
when side-hilling.
WARNING
This strap is not for towing, lifting
or other purpose than temporary
use as a grab handle during sidehilling. Always keep at least one
hand on handlebar.
14) Tether Cut-Out Switch
General
When the tether cord cap (DESS key)
is removed, it shuts the engine off preventing snowmobile to runaway if the
operator falls off the vehicle accidently.
WARNING
Always remove the tether cord cap
(DESS key) when vehicle is not in
operation in order to prevent accidental engine starting, to avoid
unauthorized use by children or
others or theft.
Operation
Attach tether cord eyelet to clothing,
then snap cap (DESS key) over post
before starting engine.
mmo2008-003-012_a
TYPICAL
1. Snap over post
2. Attach to clothing
If emergency engine shut off is required, pull tether cord cap (DESS key)
from post completely.
52
______________________
DESS (Digita lly Encoded
Security System) Key/Cut-Out
Switch
On these models, the tether cord cap
(DESS key) is digitally encoded to provide you and your snowmobile with
the equivalent security of a conventional lock key and it shuts off the engine preventing snowmobile to runaway if the operator falls off the vehicle accidently.
TheDESSkeyprovidedwithyour
snowmobile contain s an electronic
chip which features a unique permanently memorized digital code. Your
authorized LYNX dealer programs
this key in the ECM (Engine Control
Module) of your snowmobile to allow
engine operation above 3000 RPM if
and only if this unique code has been
read after engine starting.
If another DESS key is installed, the
engine will start but will not reach drive
pulley engagement speed to move vehicle.
Make sure the DESS key is free of dirt
or snow.
A30H08A
1
DESS KEY
1. Free of dirt or snow
Additional DESS Keys
The ECM of your snowmobile can be
programmed by your authorized LYNX
dealer to accept 8 different keys.
We recom mend th e purchase of additional keys from your authorized LYNX
dealer. If you have more than one
DESS-equipped LYNX snowmobile,
each can be programmed by your authorized LYNX dealer to accept the
other vehicles keys.
DESS Pilot Lamp Codes
NOTE: If any code still occurs, contact
an authorized LYNX dealer.
_____________________
53
WARNING SIGNALS
BEEPER DISPLAY MESSAGE
DESCRIPTION
2shorts
WELCOME...
Personalized welcome message, good key
Slow short beeps/
repetitive
CHECK KEY
Unable to read key
(bad connection)
Make sure the key
is free of dirt or
snow. Reinstall key
and restart eng ine .
Vehicle can not be
driven.
Fast short beeps/
repetitive
BAD KEY
Invalid key or
key not programmed
Use the proper key
for this vehicle
or have the key
programmed.
Vehicle can not be
driven.
15) Engine Cut-Out Switch
Push-pull type switch. To stop the engine in an emergency, select OFF position (down) and simultaneously apply
the brake. To restart, button must be
at the ON position (up).
mmo2007-009-038_a
OFF POSITION
mmo2007-009-038_b
ON POSITION
All operators of the snowmobile
should familia rize themselves with
the function of this device by using
it several times on first outing and
whenever stopping the engine thereafter. This engine cut-out procedure
will become a reflex a nd will prepare
operators for emergency situations
requiring its use.
WARNING
If the switch has b een used in an
emergency caused by a suspected malfunction, the source of the
malfunction should be determined
and corrected before restarting
engine. See an authorized LYNX
dealer for servicing.
54
______________________
16) Rewind Starter Handle
Auto-rewind type located on right
hand side of snowmobile. To engage
mechanism, pull handle slowly until a
resistance is felt then pull vigorously.
Slowly release handle.
17) Choke Lever
See proper usage instructions in OPERATING INSTRUCTION S section.
This device features a 3-position lever
to facilitate cold start.
1
2
3
A06H1KA
1. OFF
2. Position 2
3. Position 3
Initial Cold Starting
NOTE: Do not operate the throttle
lever with the choke lever on.
Movethechokelevertoposition3and
start the engine. As soon as the engine starts, move the lever to position 2. After a few seconds (10 seconds maximum) move the choke lever
to OFF.
NOTE: In severe cold weather, colder
than - 20°C you may need to flip choke
lever from O FF to position 1 a couple
of times once engine is started.
Warm Engine Starting
Start the engine without any choke.
If the engine will not start after two
pulls of the rope or two 5 second attempts with the electric starter move
choke lever to position 2. Start the
engine without activating the throttle
lever. As soon as the engine starts
move the choke lever to OFF.
18) Fuel Tank Cap
Unscrew to fill up tank then fully tighten.
WARNING
Always stop the engine before refueling. Fuel is flammable and explosive under certain conditions.
Always work in a well ven tilated
area. Do not smoke or allow open
flames or sparks in the vicinity.
Open cap slowly. If a differential pressure co ndition is noticed
(whistling sound heard when loosening fuel tank cap) have vehicle
inspected and/or repaired before
further operation. Do not overfill or top off the fuel tank before
placing the vehicle in a warm area.
As temperature i ncreases, fuel
expands and might overflow. Always wipe off any fuel spillage
from the vehicle. Periodically verify fuel system.
NOTE: Do not sit or lean on seat when
fuel tank cap is not properly installed.
19) Heated Carburetor
Valve
The heated carburetor valve should be
closed except:
– When riding between - 5°C and 5°C
in a high relative humidity.
– When riding in deep powder snow.
– When following another snowmo-
bile in high snow conditions.
_____________________
55
mmo2007-009-018_a
TYPICAL — REMOVE BELT GUARD
1. Carburetor valve
mmo2007-009-039_a
1. ON position
2. OFF position
CAUTION: When operating the
snowmobile above 5°C (41°F),
move the carburetor heating valve
to the OFF position.
20) Hood and Side Panels
Hood
To open hood, release hood retaining
pins then slide hood towards the front
of the vehicle.
Hood
Step 1: Release retaining pins
Step 2: Slide hood towards the front
Side Panels
To open a side panel, stretch a nd unhook the latches.
Side panels
TYPICAL
1. Latches
21) Fuses
The electrical system is protected with
fuses, refer to MAINTENANCE for details.
The fuse holders are located in the engine compartment.
CAUTION: Do not use a higher rated fuse as this can cause severe
damage to electrical components
and/or be a potential fire.
56
______________________
WARNING
If fuse has burnt out, source of
malfunction should be determined
and corrected before restarting.
See an authorized LYNX dealer for
servicing.
593SS and 800R Engines
Manual Start
mmo2007-009-017_b
RH SIDE OF ENGINE COMPARTMENT
1. Fuse location
Electric Start
mmo2008-003-033_a
RH SIDE OF ENGINE COMPARTMENT
1. Fuse location
2. Battery
Electric Fuel Level Sender
mmo2007-009-016_b
BEHIND AIR INTA KE SILENCER
1. Fuse location
22) Grab H andle/Bumper
To be used whenever snowmobile requires manual lifting.
WARNING
Do not attempt to lift the vehicle
by hand alone. Use appropriate
lifting device or have assistance
to share lifting stress in order to
avoidriskofstraininjuries.
mmo2008-003-016_a
FRONT
1. Grab handle/bumper
_____________________
57
Rear
REAR
1. Grab handle/bumper
CAUTION: Do not use skis to pull or
lift snowmobile.
23) Storage Compartme nt
WARNING
All storage compartments must be
properly latched and they must not
contain any sharp, heavy or breakable objects.
CAUTION: MAXIMUM load is 1.8 kg
(4 lb) evenly distributed.
Pull latch slightly upward then, backward to unlock cover.
Storage compartment
1. Storage compartment
24) Tool Kit
A tool kit containing tools for basic
maintenance is supplied with the vehicle.
Tool bag is located in engine compartment on pulley guard.
Tool kit
1. Tool kit
25) Spark Plug Storage
A space is provided in the tool kit to
keep spare spark plugs dry and prevent shocks that might affect the adjustment or break them.
NOTE: Spare spark plugs are not supplied with snowmobile.
NOTE: Check spare spark plug gap according to SPECIFICATIONS before installation.
CAUTION: Do not attempt to adjust
spark plug gap.
26) Spare Drive Belt Holder
A spare drive belt can be stored in
holder.
NOTE: Sp are drive belt is n o t supplied
with the snowmobile.
CAUTION: To avoid damages to the
drive belt, ensure that belt does not
come in contact with tuned pipe
when installed in its support.
58
______________________
Spare drive belt
INSTALLED CORRECTLY
1. Ensure there is no contact with tuned pipe
27) Shields and Guards
WARNING
Never operate engine without belt
guard securely installed or, with
hood, brake disk guard or side panels opened or removed.
Your sn owmobile is provided with a
number of shields and guards. Leave
these in place on your vehicle as they
are designed to keep clothin g and
hands out of moving parts and away
from hot components. Never attempt
to make adjustments to any moving
part while the engine is running.
mmo2008-003-015_b
TYPICAL
1. Side panels
2. Upper fro nt hood
3. Lower front hood
mmo2008-003-062_a
1. Belt guard
2. Brake disk guard
28) Track
WARNING
Never stud a track that has not
been approved for studs. Installing studs on an unapproved
track could increase the risk of the
track tearing or severing, possibly
resulting in serious injury or death.
Before proceeding with the installation of special studs on tracks you
must contact your authorized LYNX
snowmobile dealer for current specific
studding availability and applications.
BRP does not recommend to ride a
snowmobile equipped with high lug
profile track at high speed in a trail,
on hard packed surfaces or ice for an
extended period of time.
In the event that you have to, reduce
your speed, then minimize the distance you ride on those surfaces.
CAUTION: Running those tracks at
high speed in a trail, on hard packed
surfaces or ice put more stress on
the lugs, which tend to heat up as a
result. To avoid potential degradation or damage to the track, reduce
your speed, then minimize the distance you ride on those surfaces.
_____________________
59
For general instructions on maintenance of tracks, refer to the sections
TRACK CONDITION and TRACK TENSION AND ALIGNMENT in the MAINTENANCE section of this guide.
29) 1+1 Seat
Xtrim®models only (as option).
WARNING
Anypassengermustbeableto
firmly lay is feet on the footrests
andkeephishandsonthegrab
handles at all times when seated.
Respecting those physical criteria
is important to ensures that the
passenger is stable and to reduce
the risks of ejection.
1+1 Seat Removal
Unplug 1+1 seat connector.
mmo2008-003-029_a
1. Connector location
mmo2008-003-028_a
1. Connector
Push and hold seat latch while gently
lifting rear of seat.
mmo2008-003-026_a
1. Seat l at ch location
mmo2008-003-025_a
1. Seat latch
Continue lifting movement until you
canreleasethefrontretainingdevice
then completely remove seat.
mmo2008-003-027_a
1. Retaining device
CAUTION: Make sure to unplug
seat harness before removing seat.
1+1 Seat Installation
Insert seat retaining device into set
base.
60
______________________
mmo2008-003-027_a
1. Retaining device
When seat rests in its position, firmly
push seat down to latch.
NOTE: A distinctiv e snap will be felt.
Double check that the seat is secure
by giving it a tug to confirm proper
latching.
WARNING
Make sure seat is securely latched
before riding.
Connect 1+1 seat connector.
mmo2008-003-028_a
1. Connector
30) Rear Passenger
Heating Grip Switch
Xtrim RE-X models only
(as option)
Three-position switch. Select the desired position to keep rear passenger's
hands at a comfortable temperature.
mmo2008-003-022_a
PASSENGER LH GRAB HANDLE
1. Switch
2. LH grab handle
31) Rear Grab Handles
Xtrim models only
Rear grab handles provides a grip for
the passenger.
32) Rear Rack
WARNING
All objects in rear rack must be
properly latched. Do not carry
any breakable objects. Excessive
weight in rack may reduce steering ability.
CAUTION: Always readjust suspension according to the load. The
capacity of this rack is limited, the
MAXIMUM cargo load is 15.8 Kg
(35lb). Rideatverylowspeed
when loaded. Avoid speed over
bumps.
33) 12-Volt Power Outlet
Xtrim modesl Only
A 12-volt electric appliance may be
connected to that jack connector.
Electric current is supplied whenever
engine is running.
34) C-Type Hitch
Xtrim modesl only.
CAUTION: Refer to decal on vehicle
for towing weight capacities.
_____________________
61
WARNING
Never tow an accessory with a
rope. Always us e a rigid tow bar.
Using a rope would result in a collision between the object and the
snowmobile and possibly in a tip
over in case of a rapid deceleration
or on a downward slope.
How to use the C-Type Hitch
Detach hitch from its support by removing the hairpin.
mmo2008-003-070_a
1. Hitch
2. Hairpin
Remove rod from hitch then at tach
rigid tow bar to hitch using the same
rod.
mmo2008-003-071_a
TYPICAL
1. Rod
Secure rod to hitch using hairpin previously removed.
mmo2008-003-072_a
TYPICAL
1. Hairpin
2. Rod
CAUTION: To avoid damages to the
vehicle, always release hitch from
its support. Ensure hitch moves
freely when towing accessories.
mmo2008-003-073_a
HITCH MOVES FREELY WHEN TOWING
To avoid noise from hitch when not
in use, secure hitch to its support by
using the hairpin.
mmo2008-003-074_a
HITCH NOT IN USE
1. Hitch
2. Support
3. Hairpin
62
______________________
RECOMMENDED FUEL AND OIL
Recommended Fuel
Use unleade d gasoline a vailable from
most service stations or oxygenated
fuel containing a maximum total of
10% of ethanol or methanol or both.
The gasoline used must have the
following recommended minimum
octane number.
OCTANE NUMBER
98 E (RON)
95 E (RON)
ENGINES
95 98
593SS
XX
600 HO E-TEC
XX
800R Power TEK X
—
CAUTION: Never experiment with
other fuels or fuel ratios. The use
of unrecommended fuel can result
in snowmobile performance deterioration and damage to critical parts
in the fuel system and engine components. Do not mistake oil reservoir cap for fuel tank cap. Oil reservoir cap i s identified OIL.
WARNING
Always stop the engine before refueling. Fuel is flammable and explosive under certain conditions.
Always work in a well ven tilated
area. Do not smoke or allow open
flames or sparks in the vicinity.
Open cap slowly. If a differential pressure co ndition is noticed
(whistling sound heard when loosening fuel tank cap) have vehicle
inspected and/or repaired before
further operation. Do not overfill or top off the fuel tank before
placing the vehicle in a warm area.
As temperature i ncreases, fuel
expands and might overflow. Always wipe off any fuel spillage
from the vehicle. Periodically verify fuel system.
Fuel System Antifreeze
When using oxygenate d fuel, additional gas line antifreeze or water
absorbing additives are not required
and should be not used.
Recommended Oil
CAUTION: Use only injection oil
that flows at - 40°C (- 40°F). Do not
mismatch oil reserv oir cap with
fuel tank cap. Oil reservoir cap is
identified OIL.
Always maintain a sufficient amount
of recommended injection oil in the
injection oil reservoir.
Use only two-stroke engine injection
oil sold by authorized LYNX dealers.
CAUTION: Check level and refill everytimeyourefuel.
_____________________
63
oilreservoir
TYPICAL
1. Injection oil reservoir
2. Level marks (1/4, 1/2, 3/4)
WARNING
Do not overfill. Reinstall cap and
fully tighten. Wipe off any oil
spills. Oil is highly flammable
when heated.
RECOMMENDED INJECTION OIL
XP-S synthetic oil (P/N
619590100)
(2) (3)
XP-S synthetic blend (P/N
619590103)
(2) (3)
XP-S mineral injection oi l
(4)
ENGINES
593SS
XXX
600 HO E-TEC
—
X
(1)
X
800R Power TEK
—
X
(1)
X
(1)
Prefered.
CAUTION:
(2)
XP-S synthetic oil and
XP-S synthetic blend oil are specially formulated and tested for the severe requirements of the 600 HO
E-TEC and other engines. Use of
any other brand two-stroke oil may
void the limited warranty. Use only
XP-S synthetic oil or XP-S synthetic
blend. There is no known equivalent on the market for the m oment.
If a high quality equiva lent were
available, it could be used.
(3)
XP-S synthetic oil and XP-S
synthetic blend injection oil are
compatible, they can be mixed
together.
CAUTION: Never use four-stroke
petroleum or synthetic motor oil
and never mix these with outboard motor oil. Do not use NMM A
TC-W, TC-W2 or TC-W3 outboard
two-stroke engine oils or ashless
two-stroke engine oils. Avoid mixing different brands of API TC oil as
resulting chemical reactions may
cause severe engine damage.
XP-S Mineral Injectio n
This is a special blend of basic oil and
additives specially selected to ensure
unequalled lubrication, engine cleanliness and minimum spark plug fouling.
XP-S Synthetic and XP-S
Synthetic Blend Oil
The XP-S synthetic blend and XP-S
synthetic oil provides superior lubri-
cation, reduced engine component
wear and oil deposit, thus maintaining
maximum-level performance and antifriction properties. These s ynthetic
and synthetic blend injection oil meets
the latest ASTM and JASO standards
by ensu rin g high biodegradability and
low exhaust smoke.
64
______________________
BREAK-IN PERIOD
Engine
CAUTION: A break-in period of
10 operating hours — 500 km
(300 miles) — is re qui red before
running the snowmobile at full
throttle.
During break-in period, maximum
throttle should not exceed 3/4 opening. However, brief full acceleration
and speed variations contribute to a
good break-in.
CAUTION: Engine overheating,
continued wide open throttle runs
and prolonged cruising without
speed variations should be avoided, this can cause engine damage
during the break-in period.
593SS and 800R Engine Only
To assure additional protection during
the initial engine break-in, 500 mL of
recommended injection oil should be
added to fuel for the first full filling of
fuel tank. Have spark plugs cleaned
after engine break-in.
Belt
A new drive belt requires a break-in period of 50 km . Avoid strong acceleration/deceleration, pulling a load o r high
speed cruising.
10-Hour Inspection
NOTE: The 10-hour inspection is at the
expense of the snowmobile owner.
As with any precision piece of mechanical equipment, we suggest that
after the first 10 hours of operation or
500 km, whichever comes first, your
snowmobile be checked by an authorized LYN X deale r. This inspection will
also give you the opportunity to discuss the unanswered questions you
may have encountered during the first
hours of operation.
_____________________
65
OPERATING INSTRUCTIONS
Pre-Operation Check
WARNING
The pre-operation check is very
important prior to operating the
vehicle. Always check the proper operation of critical controls,
safety features and mechanical
components before starting. If
not done as specified here, severe
injury or death might occur.
– Remove snow and ice from body in-
cluding seat, footrests, controls and
instruments.
– Lights — The headlamp, the tail-
light and the brake light are standard equipment. Be sure lights are
clearofdirt,slushorsnowandare
in good working order or condition.
– Verify that t rack and idler wheels
are free to turn and not frozen.
WARNING
Alwaysuseawidebasesnowmobile mechanical stand to properly
support vehicle during any track
verification. Slowly accelerate engine in order to rotate track at
very low speed when it is not on
ground.
– Activate the brake control lever
and make sure the brake fully applies before the brake control lever
touches the handlebar grip. It must
fully return when released.
– Check the p arking device. Apply
parking brake and check if it operates properly.
– Activate the throttle control lever
several times to check that it operates easily and smoothly.
WARNING
Throttle lever must operate easily and smoothly. It must return to
idle position when released.
– Check operation of tether cord cap
(DESS key), engine cut-out switches, headlamp switch (HI-LO), taillight, brake light and pilot lamps.
– Verify that skis a nd steering operate
freely. Check corresponding action
of skis versus handlebar.
– Check fuel and oil for levels and
leaks. Replenish as necessary and
see an authorized LYNX dealer in
case of any leaks.
– Verify that air silencer prefilter is
free of snow.
– All storage compartments must be
properly latched and they must not
contain any heavy or breakable objects. Hood and side panels must
be also properly latched.
WARNING
All adjustable features should be
positioned at optimal setting. Securely tighten all adjustm ent locks .
– Make certain your snowmobile is
pointed away from people or objects before you start it. No one is
to be standing in front of or in back
of the snowmobile.
– Be warmly dressed with clothing
designed for snow mobiling.
66
______________________
PRE-OPERATION CHECK LIST
ITEM OPERATION
Body including seat, footrests,
lights, controls and instruments
Check that there is no sn ow or ice.
Track and idler wheels
Check for free movement.
Brake lever
Check prope r action.
Parking device
Check prope r action.
Throttle l ever
Check prope r action.
Switches and lights Check proper action. Tether cord must be
attached to driver clothing eyelet.
Skis and steering Check for free movement and proper action.
Fuel and oil
Check for proper level and leaks.
Air silencer prefilter
Check that there is no sn ow or ice.
Adjustable features
Check for optimal adjustment and securely
tightened adjustment locks.
Storage compartment Check for proper latching and no heavy or
breakable objects.
Vehicle vicinity
Snowmobile must be pointed away from people
or objects. No one is to be standing in front of or
in back of the snowmobile.
Clothing
Be warmly dressed with clothing designed for
snowmobiling.
Engine Starting Procedure
General
Procedure
– R echeck thro ttle control lever oper-
ation.
– Ensure that the tether cord cap
(DESS key) is in position and that
thecordisattachedtoyourclothing
eyelet.
– Ensure that the engine cutout
switch is in the ON position.
Manual Starting
– Grab manual starte r handle, pull
handle slowly until a resistance is
felt, then hold handle firmly and pull
vigorously to start engine.
WARNING
Do not apply throttle while starting.
Electric Starting (if so equipped)
– Depressing the START/RER button
will engage the electric starter and
start the engine.
– Release button immediately when
engine has started.
WARNING
Do not apply throttle while starting.
_____________________
67
CAUTION: Do not use electric
starter for more than 10 seconds.
A rest period should be observed
between the cranking cycles to
let electric starter cool down. Using electric starter when engine
has started could damage electric
starter mechanism.
NOTE: If for any reason, the engine
cannot be cranked electrically, start
engine manually using the rewind
starter.
Carburetor Engine
Starting Procedure
Procedure
– Rec heck throttle control lever oper-
ation.
– Ensure that the tether cord cap
(DESS key) is in position and that
thecordattachedtoyourclothing
eyelet.
– Ensure that the engine cutout
switch is in the ON position.
– Activate the choke according to the
temperature as explained below.
Choke A pplication
Initial Cold Starting When
Temperature is Below - 10°C (+ 15°F)
NOTE: Do not operate the throttle
lever with the choke lever on.
Set the choke lever to position 3.
NOTE: After the engine is started,
let e ng ine warm up at fast id le until
engine speed drops. Then, close off
choke to ensure proper air-fuel mixture.
1
2
3
A06H1KA
1. OFF
2. Position 2
3. Position 3
Initial Cold Starting When
Temperature is Above - 10°C
(above + 15°F)
Set the choke lever to position 2.
NOTE: After the engine is started,
close off choke to ensure proper
air-fuel mixture.
Warm Engine Starting
Start the engine without any choke.
If the engine will not start after two
pulls of the rope or two 5 second attempts with the electric starter move
choke lever to position 2. Start the
engine without activating the throttle
lever. As soon as the engine starts
move the choke lever to OFF.
Procedure (cont'd)
Manual Starting
– Grab rewind starter handle, pull
handle slowly until a resistance is
felt, then hold handle firmly and pull
vigorously to start engine.
Electric Starting (if so equipped)
WARNING
Never depress throttle while starting engine.
68
______________________
CAUTION: Do not engage electric
starter for more than 10 seconds
at a time. A rest period should be
observed between the cranking cycles to allow electric starter to cool
down. Using electric starter when
engine has started could damage
electric starter mechanism.
– Depressing the START/RER button
will engage the electric starter and
start the engine.
– Release button immediately when
engine has started.
NOTE: If for any reason, the engine
cannot be started electrically, start engine manually using the rewind starter.
Vehicle Warm-Up
Before every ride, vehicle has to be
warmed up as follows.
Engage parking brake.
Snowmobile must be securely sup-
ported by the rear bumper using a
wide-base snowmobile mechanical
stand. Track must be 100 mm (4 in)
off the ground.
Attach tether cord to operator's clothing eyelet.
Start engine and allow it to warm up
two or three minutes at idle speed.
Disengage parking brake.
WARNING
Make sure wide-base snowmobile
mechanical stand is stable. Stay
clear of the front of vehicle and the
track. Do not use too much throttle
during warm-up or when track is
free-hanging.
Apply throttle until drive pulley engages. Let track rotate at low speed
for several turns. The lower the vehicle temperature, the longer vehicle
warm-up should be.
Shut-off the engine and remove the
wide-base snowmobile mechanical
stand.
Skis may be frozen on the ground.
Grab both skis one at a time by their
loops and lift their front end slightly off
the ground.
After restarting engine, the vehicle can
be driven at low speed for the first 2 or
3 minutes of riding. After that, it may
be driven up to the legal speed limit as
per normal safety practices.
Shifting in Reverse
When the engine is running, depressing the RER button will slow down engine RPM to almost a stop and advance the ignition timing to cause direction change in crankshaft rotation.
– En g ine will automatically shift into
forward when re-starting after stopping or stalling.
– Shifting procedure will take place
only when the engine is running.
– If engine is running at a speed
above 4300 RPM , the reverse function of the RER button is cancelled.
– It is recommended to warm up the
engine to its normal operating temperature before shifting.
Shifting in Reverse
WARNING
Shifting to reverse mode on these
snowmobiles is done by depressing the RER button when the engine is running. Wait until the
reverse alarm sounds and the
RERpilotlampcomesoninthe
dash before operating throttle to
proceed in reverse. The reverse
speed of these snowmobiles is not
limited. Always proceed with caution as fast reverse could result
in loss of vehicle stability. Come
to complete stop before depressing RER button. Always remain
seated and apply the brake before
shifting. Ensure the path behind
is clear of obstacles or bystanders
before proceeding.
_____________________
69
With the snowmobile completely
stopped and engine running at idle,
press a nd release the RER button.
The RER pilot lamp will blink when the
snowmobile is engaged in reverse.
Apply throttle slowly and evenly. Allow drive pulley to engage then accelerate carefully.
Shifting in Forward
With the snowmobile completely
stopped and engine running at idle,
press a nd release the RER button.
RER pilot lam p will stop.
Apply throttle slowly and evenly. Al-
low drive pulley to engage then accelerate carefully.
Shutting Off the Engin e
Release throttle lev er and wait until
engine has returned to idle speed.
Shut off the engine using either engine cut-out switch or tether cord cap
(DESS key) engine cut-out switch.
WARNING
Always remove the tether cord cap
(DESS key) when vehicle is not in
operation in order to prevent accidental engine starting or to avoid
unauthorized use by children or
others or theft.
Post-Operation Care
Shut off the engine. Install rear of vehicle on a wide-base snowmobile mechanical stand.
Remove snow and ice from rear
suspension, track, front suspension,
steering mechanism and skis.
Always cover your snowmobile when
leaving it outside overnight or during
extended periods of inactivity. This
will protect it from frost and s no w as
well as help retain its appearance.
70
______________________
SPECIAL OPERATING INSTRUCTIONS
Riding at High Altitudes
CAUTION: Failure to re-calibrate
may cause serious engine damage.
Refer to an authorized LYNX dealer..
Riding in Cold Weather
Carburetor Equipped Models
All vehicles h ave been calibrated for
- 20°C (- 4°F). They can be operated at
warmer winter temperatures without
risk of problems.
CAUTION: Forcoldertemperatures
than - 20°C (- 4°F), carburetor(s)
must be recalibrated to avoid engine damage. Refer to an authorized LYNX dealer.
Refer also to RIDING AT HIGH ALTITUDES OR SEA LEVEL.
Emergency Starting
The engine can be started with the
emergency starter rope supplied with
the tool kit.
Remove belt guard.
WARNING
Do not wind starting rope around
your hand. Hold rope by the handle only. Do not start the snowmobile by the drive pulley unless it is
atrueemergencysituation. Have
the snowmobile repaired as soon
as possible.
mmo2008-005-008_a
Attach one end of emergency rope to
rewind handle.
NOTE: The spark plug socket can be
used as an emergency handle.
mmo2008-005-007
Attach the other end of emergency
rope to the starter clip supplied in the
tool kit.
mmo2008-005-009
Hook up clip on drive pulley.
_____________________
71
mmo2008-005-012_a
1. Clip installation location
Wind the rope tightly around drive pulley. When pulled, pulley must rotate
counterclockwise.
mmo2008-005-014_a
Pull the rope using a sharp, crisp pull
so the rope c omes free of the drive
pulley.
Start engine as per usual manual starting.
WARNING
When starting the snowmobile
in an emergency situation, using
drive pulley, do not reinstall the
belt guard and return slowly to
have snowmobile repaired.
Towing an Accessory
Always use a rigid tow bar to tow
an a ccess ory. Any t owed accessory
should have reflectors on both sides
and at the rear. Check local laws for
brake light(s) requirements.
WARNING
Never tow an accessory with a
rope. Always us e a rigid tow bar.
Using a rope would result in a collision between the object and the
snowmobile and possibly in a tip
over in case of a rapid deceleration
or on a downward slope.
Towing Another
Snowmobile
If a snowmobile is disabled and must
be towed use a rigid tow bar, remove
the drive belt from disabled snowmobile and tow at moderate speed.
CAUTION: Always remove the drive
belt of the snowmobile that is to be
towedtopreventdamagetoitsbelt
and drive system.
In an emergency situation only, if a
rigid tow bar is not available, a rope can
be used provided you proceed with
extra caution. In some areas, it may
be ille gal to do so. Check with state
or local authorities.
Remove the drive belt, attach the rope
to the ski legs (spindles), have someone sit on the towed snowmobile to
activate the brake, and tow at low
speed.
CAUTION: In order to prevent damage to the steering system, never
attach the tow rope to the ski loops
(handles).
WARNING
Never ride at high speed when
towing a disabled snowmobile.
Proceed slowly with extra caution.
Transporting the Vehicle
Make sure tha t oil reservoir and fuel
tank caps are properly installed.
72
______________________
Tilt bed trailers can eas ily be equipped
with a winch mechanism to afford
maximum safety in loading. Simple
as it may seem, never drive your
snowmobile onto a tilt bed trailer or
any other kind of trailer or vehicle.
Many serious accidents have resulted from driving up and over a trailer.
Anchor your vehicle securely, front
and rear, even on short hauls. Be
certain all equipment is securely fa stened. Cover your snowmobile when
trailering to prevent road grime from
causing damage.
Be certain your trailer meets state or
provincial requirements. Ensure the
hitch and safety chains are secure and
the brake, turn indicators and clearance lights all function.
_____________________
73
SUSPENSION ADJUSTMENTS
Snowmobile handling and comfort depend upon suspension adjustments.
Choice of suspension adjustments
vary with carrying load, driver's
weight, personal preference, riding
speed and field condition.
NOTE: Some adjustments may not apply to your snowmobile. Use special
keys in tool kit.
REAR SUSPENSION TYPE
TYPE
MODELS
PPS 121 PPS 144
Rave 600RS; Rave
600; Rave 600 HO
E-TEC and Rave 800
R Power Tek
X
—
Xtrim 600 HO
E-TEC and 800 R
Power Tek
—
X
Adjustable suspension
Snowmobile handling and comfort depend upon suspension adjustments.
Choice of suspension adjustments
vary with carrying load, driver’s
weight, personal preference, riding
speed and field condition.
NOTE: Some adjustments may not apply to your snowmobile. Use special
keys in tool kit (SOME MODELS).
1. Rear springs - comfort and ride height
2. Center spring - handling
3. Stopper strap – snowmobile weight transfer
4. Front shock - handling
Suspension adjustments
TYPICAL — PPS
1. Rear springs adjustable for comfort and ride
height
2. Center spring for steering behavior
3. Stopper strap for snowmobile weight
transfer
4. Rear shock motion ratio — Damping
strength
5. Center shock motion ratio — Damping
strength (not seen on picture)
6. Rebound strength adjustment
Following are guidelines to fine-tune
suspension.
The best way to set up the suspension, is to start from factory s ettings,
then customize each adjustment one
at a time. It may be necessary to
readjust center spring after adjusting
front springs for instance. Test run
the snowmobile under the same c onditions; trail, speed, snow, driver riding
position, etc. Change one adjustment
and retest. Proceed methodically until you are satisfied.
74
______________________
WARNING
Always remove tether cord cap before performing any maintenance
or adjust ment, unless otherwise
specified. Vehicle must be parked
inasafeplace,awayfromthetrail.
Always lift the front of vehicle off
the ground with a suitable lifting
device before adjusting ski suspension. Lift the rear of vehicle
off the ground with a wide-base
snowmobile stand with a rear deflector panel before rear suspension adjustment.
WARNING
Do not attempt to lift the vehicle by
hand alone. Use appropriate lifting device to a void risk of strain injuries. Always make sure the lifting device is stable and secure before proceeding to adjust the suspension components.
CAUTION: Whenever adjusting
rear suspension, check track tension and adjust as necessary.
Slight suspension bottoming occurring
under the worst riding conditions indicatesagoodchoiceofspringpreload.
NOTE: Some models may come from
factory equipped with Take/Apart (T/A)
shocks. These can be rebuilt or re-calibrated. See an authorized Lynx dealer.
Take/Apart type of shock absorbers
need service at least once a year or
after 1500km (refer to maintenance
schedule).
SHOCK ABSORBER
ADJUSTMENTS
1.Screw Ring Type Shock
In some models you have to first open
lock ring then turn adjust ring to position wanted.
1.
2.
IN SOME MODELS
1. Increase or decrease spring preload
2. Locking ring
Shock dampening adjustment
In some models you m ay adjust also
dampening strength of shock.
IN SOME MODELS ONLY
1. Rebound adjustment.
2. Compression adjustment.
_____________________
75
1.
2.
1. Low speed compression adjuster (flat
screwdriver)
2. High speed compression adjuster (17mm
wrench)
Turning the sm all brass screw [1]
clockwise increases the low-speed
compression dampening.
Turning the red nut [2] clockwise increases the high-speed compression
dampening.
These adju stm e nt have no effect on
rebound dampening.
Rear Springs — Comfort
IMPORTANT: Make sure that all objects to be transported are in place in
storage compartment and rear rack.
• Grab rear bumper and lift until suspension is fully extended.
• From this point, rear of snowmobile
shouldcollapseby50to75mm(2
to 3 in) when driver and passenger
(if so applicable) t ake place. Measure at rear bumper as shown in
next photo.
WARNING
Do not attempt to lift the vehicle
by hand alone. Use appropriate
lifting device or have assistance
to share lifting stress in order to
avoidriskofstraininjuries.
C
B
A
TYPICAL — PROPER ADJUSTMENT
A. Suspension fully extended
B. Suspension has collapse with drive r,
passenger(s) and load added
C. Distance between dimension A and B, must
notexceed50to75mm(2to3in),seetable
Rear Springs Adjustment
”C” CAUSE SOLUTION
50 to 75
mm (2 to
3in)
No adjustment required
More than
75 mm
(3 in)
Too so f t o f
adjustment
Increase preload
(see preload
adjustment)
Less than
50 mm
(2 in)
Too har d o f
adjustment
Decrease preload
(see preload
adjustment)
NOTE: Xtrim models only. When
carrying passenger adjust rear shock
spring preload to 17mm (normal adjustment 8mm).
Center Spring — Steering
Behavior
• Ride at moderate speed on a trail.
• If handlebar is felt too easy or too
hard to turn, adjust center spring
accordingly.
76
______________________
WARNING
Before proceeding with any suspension adjustment, remember:
– park in a safe place
– remove tether cord cap
– lift rear of vehicle off the ground
with a wide-base snowmobile
stand with a rear deflector panel
– make sure lifting device is stable
and secure.
CENTER SPRING ADJUSTMENT
STEERING BEHAVIOR ADJUSTMENT
VEHICLE
SPEED
HANDLE-
BAR
STEERING
ATTITUDE
PROB-
LEM
SOLU-
TION
Easy to turn Neutral
No adjustment
required
Harder to
turn
Over-
steering
Too
soft of
adjust-
ment
Increase
preload
Mode-
rate
Very easy
to turn
Under-
steering
Too
hard of
adjust-
ment
Decrease
preload
Preload Adjustment
Stopper Strap — Weight
Transfer
• Ride at low speed then fully accelerate.
• Notesteeringbehavior.
• Adjust stopper strap length accordingly,
WARNING
Before proceeding with any suspension adjustment, remember:
– park in a safe place
– remove tether cord cap
– lift rear of vehicle off the ground
with suitable lifting device
– make sure lifting device is stable
and secure.
CAUTION: Whenever stopper strap
length is changed, track tension
must be readjusted.
STOPPER STRAP — WEIGHT TRANSFER
WEIGHT TRANSFER ADJUSTMENTS
STEERING
BEHAVIOR
TRACK SKIS
PROB-
LEM
SOLU-
TION
Comfor-
table
Good
weight
transfer
Light
pressure
No adjustment
required
Light
Too
much
weight
transfer
Lift off
the
ground
Too long
strap
Reduce
strap
length
Heavy
Not
enough
weight
transfer
Heavy
pressure
Too
short
strap
Increase
strap
length
Strap Adjustment
Front Springs — Handling
• Ride at moderate speed and check
for proper handling.
• Adjust front springs accordingly.
WARNING
Before proceeding with any suspension adjustment, remember:
– park in a safe place
– remove tether cord cap
– lift rear of vehicle off the ground
with a wide-base snowmobile
stand with a rear deflector panel
– make sure lifting device is stable
and secure.
WARNING
Always adjust both front springs to
same position.
_____________________
77
FRONT SPRINGS ADJUSTMENT
HAND-
LING
STEE-
RING
PROB-
LEM
SOLU-
TION
Good
Comfor-
table
No adjustment required
Bad
Too easy
to turn
Too sof t
of adjust-
ment
Increase
spring preload
Bad
Hard to
turn
Too h ard
of adjust-
ment
Decrease
spring preload
Preload Adjustment
CAUTION: Make sure that both
front springs are still pre loaded
whenfrontofvehicleisoffthe
ground.
mmo2008-003-032_a
FRONT SUSPENSION
1. Front springs for handling
Following are guidelines to fine-tune
suspension.
The best way to set up the suspension, is to start from factory settings ,
then customize each adjustment one
at a time. Adjustments 2 through 6
are interrelated. It may be necessary
to readjust center spring after adjusting front springs for instance. Test run
the snowmobile under the same conditions; trail, speed, snow, driver riding
position, etc. Change one adjustment
and retest. Proceed methodically until you are satisfied.
WARNING
Always remove the tether cord
cap (DESS key) before performing
any maintenance or adjustment,
unless otherwise specified. Vehicle must be parked in a safe place,
away from the trail. Always lift
the front of vehicle off the ground
with a suitable lifting device before
adjusting ski suspen sion. Lift the
rear of vehicle off the ground with
a wide-base snowmobile stand
with a rear deflector panel before
rear suspension adju stment.
WARNING
Always remove the tether cord
cap (DESS key) before performing
any maintenance or adjustment,
unless otherwise specified. Vehicle must be parked in a safe place,
away from the trail. Always lift
the front of vehicle off the ground
with a suitable lifting device before
adjusting ski suspen sion. Lift the
rear of vehicle off the ground with
a wide-base snowmobile stand
with a rear deflector panel before
rear suspension adju stment.
WARNING
Do not attempt to lift the vehicle by
hand alone. Use appropriate lifting device to a void risk of strain injuries. Always make sure the lifting device is stable and secure before proceeding to adjust the suspension components.
CAUTION: Whenever adjusting
rear suspension, check track tension and adjust as necessary.
Front Springs — Handling
– Ride at moderate speed and check
for proper handling.
– Adjust front springs accordingly.
78
______________________
WARNING
Before proceeding with any suspension adjustment, remember:
– park in a safe place
– remove the tether cord cap
(DESS key).
WARNING
Always adjust both front springs to
same position.
FRONT SPRINGS ADJUSTMENT
HANDLING STEERING PROBLEM SOLUTION
Good Comfortable No adjustment required
Bad
Too easy
to turn
Adjusted
too soft
Increase
spring
preload
Bad Hardtoturn
Adjusted
too hard
Decrease
spring
preload
Preload Adjustment
mmo2008-003-038_a
1. Adjustment ring
2. Ring positions
CAUTION: Make sure that both
front springs are still pre loaded
whenfrontofvehicleisoffthe
ground.
Front Suspension Shock
Damping
Rave 600 HO E-TEC and 800
R Power Tek Only
Compression/Rebound
Adjustment
Front shock on the above mentioned models feature a compression/
rebound adjustment.
Turn the damping adjuster accordingly.
Turning it clockwise increases shock
damping action (stiffer).
mmo2007-009-020_a
TYPICAL
1. Damping adjuster
_____________________
79
Suspension Troubleshooting Chart
PROBLEM CORRECTIVE MEASURES
Front suspension wandering
Check ski alignment and camber angle ad justment.
SeeanauthorizedLYNXdealer.
Reduce ski ground pressure.
– Reduce front suspension spring preload.
– Increase center spring preload.
– Reduce rear spring preload.
Snowmobile seems unstable and
seems to pivot around its center
Reduce rear suspen sion front arm pressure.
– Reduce center spring preload.
– Increase rear spring preload.
– Increase front suspension
spring preload.
Steering feels too heavy
Reduce ski ground pressure.
– Reduce front suspension spring preload.
– Increase center spring preload.
Rear of snowmobile seems too
stiff
Reduce rear spring preload.
Rear of snowmobile seems too
soft
Increase rear spring preload.
Rear suspension front shock
absorber is frequently bottoming
Increase center spring preload.
Track spins too much at start
Lengthen stopper strap.
Deep Snow Riding
When operating the snowmobile in deep snow, it may be necessary to vary stopper strap length and/or riding position, to change the angle at which the track rides
on the snow. Operator's familiarity with the various adjustments as well as snow
conditions will dictate the most efficient combination.
80
______________________
TROUBLESHOOTING
Beeper Codes
Beeper codes are used to inform you on the DESS system operation and/or as a
complement of the p ilot lamps to catch your attention if an anomaly occurs or to
inform you of a p articular condition.
For more details on DESS system beeper codes, refer to DESS PILOT LAMP
CODES in TETHER CUT-OUT SWITCH.
For more details on gauge pilot lamps, refer to GAUGE PILOT LAMPS.
For any beep code not listed in this Operator's Guide, refer to an authorized LYNX
dealer.
General
ENGINE IS CRANK ED BUT FAILS TO START.
1. Engine cut-out s witch is in OFF position or tether cord cap (DESS key)
away from post.
– Place engine cut-out switch in the ON pos ition and install tether cord cap
(DESS key) on post.
2. Mixture not rich enough to start cold engine.
– Check fuel tank level and check starting procedure, particularly use of the
choke.
3. Flooded engine (spark plug wet when removed).
– Do not choke. Remove wet spark plug, place engine cut-out switch in OFF
position and crank engine several times. Install clean dry spark plug.
– Start engine following usual starting procedure. If engine continues to
flood, see an authorized LYNX dealer.
4. No fuel to the engine (spark plug dry when removed).
– Check fuel tank level; check condition of fuel and impulse lines and their
connections. A failure of the fuel pump or carburetor has occurred. Contact
an authorized LYNX dealer.
5. Spark plug/ignition (no spark).
– Remove spark plug(s) then reconnect to spark cap. Check that engine cut-
out switch is at the ON position and the tether cord cap (DESS key) snapped
over the receptacle.
– Start engine with spark plug(s) grounded to engine away from spark plug
hole. If no spark appears, replace spark plug. If trouble persists, contact
an authorized LYNX dealer.
6. Engine compression.
– As the engine is pulled over with the rewind starter, “cycles” of resistance
should be felt as piston goes past top dead center (each piston on multicylinder engines).
– If no pulsating resistance is felt, it suggests a major loss of compression.
Contact an authorized LYNX dealer.
_____________________
81
ENGINE LACKS ACCELERATION OR POWER.
1. DESS did not read tether cord cap (DESS KEY) code. DESS pilot lamp
blinks once every 1.5 seconds. Engine can not exceed 3000 RPM.
– Properly install tether cord cap (DESS key).
2. DESS has read a different code then the one programmed. DESS
pilot lamp blinks rapidly (3 times per second). Engine can not exceed
3000 RPM.
– Install a tether cord cap (DESS key) for which this snowmobile was pro-
grammed.
3. Fouled or defective spark plug.
– Check item 5 of ENGINE TURNS OVER BUT FAILS TO START.
4. Lack of fuel to engine.
– Check item 4 of ENGINE TURNS OVER BUT FAILS TO START.
5. Carbur eto r adj us t m ents.
– Contact an authorized LYNX dealer.
6. Drive belt worn too thin.
– If the drive belt has lost more than 3 mm (1/8 in) of its original width, it will
affect vehicle performance.
– Replace drive belt.
7. Drive and driven pulleys require servicing.
– Contact an authorized LYNX dealer.
ENGINE BACKFIRES.
1. DESS did not read tether cord cap (DESS key) code. DESS pilot lamp
blinks once every 1.5 seconds. Engine can not exceed 3000 RPM.
– Properly install tether cord cap (DESS key).
2. DESS has read a different tether cord cap (DESS key) code then the one
programmed. DESS pilot lamp blinks rapidly (3 times per second). Engine can not exceed 3000 RPM.
– Install a tether cord cap (DESS key) for which this snowmobile was pro-
grammed.
3. Faulty spark plug (carbon accumulation).
– See item 5 of ENGINE TURNS OVER BUT FAILS TO START.
4. Engine is running too hot.
– See item 6 of ENGINE LACKS ACCELERATION OR POWER.
5. Ignition timing is incorrect or there is an ignition system failure.
– Contact an authorized LYNX dealer.
ENGINE MISFIRES.
1. DESS did not read tether cord cap (DESS key) code. DESS pilot lamp
blinks once every 1.5 seconds. Engine can not exceed 3000 RPM.
– Properly install tether cord cap (DESS key).
82
______________________
ENGINE MISFIRES. (cont’d)
2. DESS has read a different code then the one programmed. DESS
pilot lamp blinks rapidly (3 times per second). Engine can not exceed
3000 RPM.
– Install a tether cord cap (DESS key) for which this snowmobile was pro-
grammed.
3. Fouled/defective/worn spark plugs.
– Clean/verify spark plug gap and identification number. Replace as required.
4. Too much oil supplied to engine.
– Improper oil pump a djustment, refer to an authorized LYNX dealer.
5. Water in fuel.
– Drain fuel system and refill with fresh fuel.
SNOWMOBILE CANNOT REACH FULL SPEED.
1. Drive belt.
– Check item 6 of ENGINE LACKS ACCELERATION OR POWER.
2. Incorrect track adjustment.
– See MAINTENANCE and/or an authorized LYNX dealer for proper alignment
and tension adjustments.
3. Pulleys misaligned.
– Contact an authorized LYNX dealer.
4. Engine.
– See items 1, 2, 6 and 7 of ENGINE LACKS ACCELERATION OR POW ER.
_____________________
83
SPECIFICATIONS
NOTE: Because of its ongoing commitment to product quality and innovation,
BRP reserves the right, at any time, to make changes in design and specifications
and/or to make additions to, or improvements in its products without imposing
any obligation upon itself to install them on its products previously manufactured.
MODEL RAVE 600
ENGINE SYSTEM
Engine type
Rotax™ 593 SS, liquid cooled
w/Reed valve, RAVE™
Cylinders
2
Displacement cc (in3) 597 (36.4)
Bore mm (in) 76 (3)
Stroke
mm (in) 65.8 (2.6)
Maximum horsepower RPM 8000 RPM
Carburetion
2xTM-40
Exhaust system
Single tuned pipe, baffle
muffler
DRIVE SYSTEM
Drive pulle y type TRA™ III
Driven pulley type
QRS
Engagement RPM
Small sprocket number of teeth
23
Large sprocket number of teeth
45
Drive sprocket number of teeth 9
Brake system Hydraulic, RE-X brake type
Track nominal width 381 mm
Track nominal length 3072 mm
Track profile height 31.8 mm
Deflection 30-35 mm
Track tension
Force
(1)
7.3 kg
Track alignment
Equal distance bet ween edges
of track guides and slider shoes
84
______________________
MODEL RAVE 600
SUSPENSION
Front suspension
A-LFS
Front shock
36mm HPG™ T/A
Front suspension max. travel 242 mm
Rear suspension
PPS-120
Rear shock
36mm HPG T/A
Rear suspension max. travel 390 mm
ELECTRICAL
Lightning system output
360 Watts @ 6000 RPM
Headlamp bulb HI/LOW beam
2 x 60/55 Watts (H-4)
Taillight bulb 5/21
Type
NGK BR10 ECS
(2)
Spark plug
Gap
Not adjustable
(0,75 ± 0.05 mm
Fuse
Refer to FUSE section
DIMENSIONS
Vehicle overall length 2748 mm
Vehicle overall width 1225 mm
Vehicle overall height 1130 mm
Official dry weight
199 kg
Ski stance
1080 mm
_____________________
85
MODEL RAVE 600
LIQUIDS
Recommended fuel type Regular unleaded
Minimum octane 95 E
Recommended oil (engine)
Refer to RECOMMENDED
OIL section
Brake system fluid
SRF(DOT4)orGTLMA(DOT4)
Oil type (chaincase/transmission) XP-S synthetic chaincase oil
Mixture
Ethyl glycol/water mix (50%
coolant, 50% distilled water).
Use coolant specifically
designed for alum inum engines
Coolant
Premix (P/N 219 700 362) 12 x 1 L
CAPACITIES
Fuel tank L 39
Oil tank
L3.7
(1)
Measure gap between slider shoe and bottom inside track when exerting a downward
pull to the track.
(2)
CAUTION: Do not attempt to adjust gap on this plug.
(3)
Drive belt height must be adjusted every time a new drive belt is installed.
Confirm drive belt part number application with a n authorized LYNX dealer.
86
______________________
MODEL
RAVE 600 HO E-TEC/
RAVE XTRIM 600 HO E-TEC
ENGINE SYSTEM
Engine type
Rotax 6 00 HO E - TEC, liquid cooled
w/Reed valve,3–D RAVE
Cylinders
2
Displacement cc (in3)594.4
Bore mm (in) 72
Stroke
mm (in) 73
Maximum engine speed 8100 RPM
Carburetion Direct injection E-TEC
Exhaust system
Single tuned pipe, baffle muffler
DRIVE SYSTEM
Drive pulley type TRA III
Driven pulley type
QRS
Engagement 3600 RPM
Drive belt part number 417 300 383
(3)
Small sprocket number of teeth
Rave 600 HO
E-TEC
23
Rave Xrim 600
HO E-TEC
23
Large sprocket number o f teeth
Rave 600 HO
E-TEC
45
Large sprocket number o f teeth
Rave Xtrim 600
HO E-TEC
45
Drive sprocket number of teeth 9
Brake system Hydraulic, RE-X brake type
Track nominal width 380 mm
_____________________
87
MODEL
RAVE 600 HO E-TEC/
RAVE XTRIM 600 HO E-TEC
DRIVE SYSTEM (Cont’d)
Track nominal lenght
Rave 600 HO
E-TEC
3072mm
Track nominal lenght Rav eXtrim 600
HO E-TEC
3648 mm
Track nominal height 38mm
Deflection 30-35 mm
Track tension
Force
(1)
7.3 kg
Track alignment
Equal distance betwee n edges of
track guides and slider shoes
SUSPENSION
Front suspension
A-LFS
Front shock
Rave 600 HO
E-TEC
36mm HPG clicker T/A
Front shock
Rave Xtrim 600
Ho E-TEC
36mm HPG T /A
Front suspension max. travel 242 mm
Rear suspension
Rave 600 HO
E-TEC
PPS-121
Rear suspension
Rave Xtrim 600
HO E-TEC
PPS-144
Front arm shock
Rave 600 HO
E-TEC
46mm HPG clicker T/A
Front arm shock
Rave Xtrim 600
HO E-TEC
36mm HPG T /A
Rear arm shock
Rave 600 HO
E-TEC
46mm HPG-clicker T/A
Rear arm shock
Rave Xtrim 600
HO E-TEC
46mm HPG-T/A Piggy bag
Rear suspension max. travel 390 mm
88
______________________
MODEL
RAVE 600 HO E-TEC/
RAVE XTRIM 600 HO E-TEC
ELECTRICAL
Lightning system output
12 V/360 W
55 V/1100 W
Headlamp bulb HI/LOW beam
2 x 60/55 Watts (H-4)
Taillight bulb 5/21
Type
NGK PZFR6F
(2)
Gap
Not adjustable
(0.8 +0/–0.1mm)
Spark plug
Torq ue
Refer to SPARK PLUG INSTALLATION
for proper intalla tion procedure
Fuse
Refer to FUSE section
Vehicle overall length
Rave 600 HO
E-TEC
2748 mm
Vehicle overall lenght
Rave Xtrim 600
HO E-TEC
3235 mm
Vehicle overall width 1225 mm
Vehicle overall height
Rave 600 HO
E-TEC
1130 mm
Vehicle overall height
Rave Xtrim 600
HO E-TEC
1210 mm
DIMENSIONS
Rave 600 HO
E-TEC
210 kg
Official dry weight
Rave Xtrim 600
HO E-TEC
231 kg
Ski stance
1080 mm
_____________________
89
MODEL
RAVE 600 HO E-TEC/
RAVE XTRIM 600 HO E-TEC
LIQUIDS
Recommended fuel type Regular u nle aded
Recommended fuel octane level
95 E ( RON)
Recommended oil (engine)
Refer to RECOMMENDED
OIL section
Brake system fluid
SRF (DOT 4) or GTLMA (DOT 4)
Oil type (chaincase) XP-S synthetic chaincase oil
Mixture
Ethyl glycol/water mix (50%
coolant, 50 % distilled water).
Use coolant specifically designed
for aluminum engines
Coolant
Premix (P/N 219 700 362) 12 x 1 L
CAPACITIES
Fuel tank L 39
Oil tank
L3.7
(1)
Measure gap between slider shoe and bottom insid e track when exerting a downward
pull to the track.
(2)
CAUTION: Do not attempt to adjust gap on this plug.
(3)
Drive belt height must be adjuste d every time a new drive belt is installed.
Confirm drive belt part number application with an authorized LYNX dealer.
90
______________________
MODEL
RAVE 800 R POWER TEK/
XTRIM 800R POWER TEK
ENGINE SYSTEM
Engine type
Rotax 800R, Power TEK, liquid
cooled, 3-D RAVE
Cylinders
2
Displacement 799.5
Bore 82 mm
Stroke
75.7 mm
Maximum engine speed 8150 RPM
Carburetion
2xTM-40
Exhaust system
Single tuned pipe, baffle
muffler
DRIVE SYSTEM
Drive pu lley type TRA VII
Driven pulley type
QRS
Engagement 3800 RPM
Drive belt part number 417 300 16 6
(3)
Rave 800 R
Power TEK
27
Small sprocket number of teeth
Rave Xtrim 800
R Power TEK
23
Large sprocket number of teeth
Rave 800 R
Power TEK
45
Large sprocket number of teeth
Rave Xtrim 800
R POwer TEK
45
Drive sprocket number of teeth 9
Brake system Hydraulic, RE-X brake type
Track nominal width 380 mm
Rave 800 R
Power TEK
3072 mm
Track nominal length
Rave Xtrim 800
RPoerTEK
3648 mm
_____________________
91
MODEL
RAVE 800 R POWER TEK/
XTRIM 800R POWER TEK
DRIVE SYSTEM (cont'd)
Track profile height 38 mm
Deflection 30-35 mm
Track tension
Force
(1)
7.3 kg
Track alignment
Equal distance bet ween edges
of track guides and slider shoes
SUSPENSION
Front suspension
A-FLS
Rave 800 R
Power TEK
36mm HPG clicker T/A
Front shock
Rave Xtrim 800
R Power TEK
36mm HPG T/A
Front suspension max. travel 242 mm
Rave 800 R
Power TEK
PPS-121
Rear suspension
Rave Xtrim 800
R Power TEK
PPS-144
Rave 800 R
Power TEK
46mm HPG clicker T/A
Front arm shock
Rave Xtrim 800
R POwer TEK
36mm HPG T/A
Rave 800 R
Power TEK
46mm HPG-clicker T/A
Rear arm shock
Rave Xtrim 800
R Power TEK
46mm H PG T/A Piggy pag
Rear suspension max. travel 390 mm
ELECTRICAL
Lightning system output
360 Watts @ 6000 RPM
Headlamp bulb HI/LOW beam
2 x 60/55 Watts (H-4)
Taillight bulb 5/21
Type
NGK BR9ECS
(2)
Spark plug
Gap
Not adjustable
(0.80 ± 0.05 mm
Fuse
Refer to FUSE section
92
______________________
MODEL
RAVE 800 R POWER TEK/
XTRIM 800R POWER TEK
DIMENSIONS
Rave 800 R
Power TEK
2748 mm
Vehicle o verall length
Rave Xtrim 800
R Power TEK
3235 mm
Vehicle overall width 1225 mm
Rave 800 R
POwer TEK
1130 mm
Vehicle o verall height
Rave Xtrim 800
R Power TEK
1210 mm
Rave 800 R
Power TEK
209 kg
Official dry weight
Rave Xtrim 800
R Power TEK
230 kg
Ski stance
1080 mm
LIQUIDS
Recommended fuel type Premium unleaded
Minimum octane
95 E (RON)
Recommended oil (engine)
Refer to RECOMMENDED
OIL section
Brake system fluid
SRF(DOT4)orGTLMA(DOT4)
Oil type (chaincase/transmission) XP-S synthetic chaincase oil
Mixture
Ethyl glycol/water mix (50%
coolant, 50% distilled water).
Use coolant specifically
designed for alum inum engines
Coolant
Premix (P/N 219 700 362) 12 x 1 L
CAPACITIES
Fuel tank L 39
Oil tank
L3.7
(1)
Measure gap between slider shoe and bottom inside track when exerting a downward
pull to the track.
(2)
CAUTION: Do not attempt to adjust gap on this plug.
(3)
Drive belt height must be adjusted every time a new drive belt is installed.
Confirm drive belt part number application with a n authorized LYNX dealer.
_____________________
93
94
______________________
MAINTENANCE
INFORMATION
_____________________
95
PERIODIC MAINTENANCE CHART
WARNING
It is recommended that the assistance of an authorized LYNX dealer be periodically obtained on other components/systems not covered in this guide.
Unless otherwise specified, engine must be cold and not running. Remove
the tether cord cap (DESS key) before performing any maintenance or adjustment, unless otherwise specified. Vehiclemustbeparkedinasafe
place, away from the trail.
WARNING
Observe WARNINGS and CAUTIONS mentioned throughout this guide
which are relevant to the item being checked. When component conditions seem less than satisfactory, replace with genuine BRP parts or
approved equivalents.
Some items may not apply to your particular model. Refer to MAINTENANCE in
SHOP MANUAL for more details.
96
______________________
2–STROKE MAINTENANCE CHART (FAN
AND LIQUID COOLED)
10-HOUR OR 500 KM INITIAL INSPECTION
(1)
WEEKLY OR EVERY 250 KM
(2)
MONTHLYOREVERY1000KM
(3)
ONCE A YEAR OR EVERY 3000 KM
(1)
EVERY2YEARSOR6000KM
(1) (4)
STORAGE
(1)
A: ADJUST
C: CLEAN
I: INSPECT
L: LUBRICATE
R: REPLACE
T: PROCEED WITH TASK
PRESEASON
(1)
PART/TASK
ENGINE
Rewind starter and rope
I,L,C I
REWIND STARTER
Engine motor m ounts
III
ENGINE REMOVAL AND
INSTALLATION
Exhaust system
III
Exhaust manifold screws I
I
EXHAUST SYSTEM
Cooling system cap, hoses and clamps
III
Coolant I R
COOLING SYSTEM
Crankshaft PTO Seal
(5)
I
BOTTOM END
RAVE valves
(5)
C
RAVE valves (E-TEC)
Clean every 3 years or 10000 km
RAVE valves solenoid (not 593 SS)
I
TOP END
Air filter I,C I,C
Air silencer prefilter
II
AIR INTAKE SYSTEM
Engine lubrication
T
STORAGE PROCEDURE
LUBRICATION SYST EM
Injection oil filter (All except E-TEC)
R
OIL INJECTION SYSTEM
Oil injection pump (All except E-TEC)
AAA
OIL INJECTION PUMP
_____________________
97
10-HOUR OR 500 KM INITIAL INSPECTION
(1)
WEEKLY OR EVERY 250 KM
(2)
MONTHLYOREVERY1000KM
(3)
ONCE A YEAR OR EVERY 3000 KM
(1)
EVERY2YEARSOR6000KM
(1) (4)
STORAGE
(1)
A: ADJUST
C: CLEAN
I: INSPECT
L: LUBRICATE
R: REPLACE
T: PROCEED WITH TASK
PRESEASON
(1)
PART/TASK
FUEL SYSTEM
Add fuel stabilizer T
STORAGE PROCEDURE
Fuel filter R
PRESEASON PREPARATION
Fuel lines, fuel rail and connections I I I
Carburetor (All except SDI and E-TEC)
A,C
Throttle cable I I I
Throttle I I L I
Choke (All except SDI and E-TEC)
III
FUEL SYSTEM
Throttle body (SDI and E-TEC)
(5)
C
INJECTION SYSTEM
ELECTRICAL SYSTEM
EMS fault codes
(5)
II
MONITORING SYSTEM/FAULT
CODES
Spark plugs
(5) (7)
II R
Spark plugs (E-T EC) Replace every 3 years or 10000 km
IGNITION SYSTEM
Battery (if so equipped )
(8)
II II
CHARGING SYSTEM
Wiring harnesses and cables
(5)
II
I
ELECTRICAL CON NE CTORS
Operation of lighting system (HI/LO beam,
taillight and brake light)
II
I
Headlamp beam aiming
II
Engine cut-out switch and tether cut-out
switch operation test
II I
LIGHTS, INSTRUMENTS AND
ACCESSORIES
98
______________________
