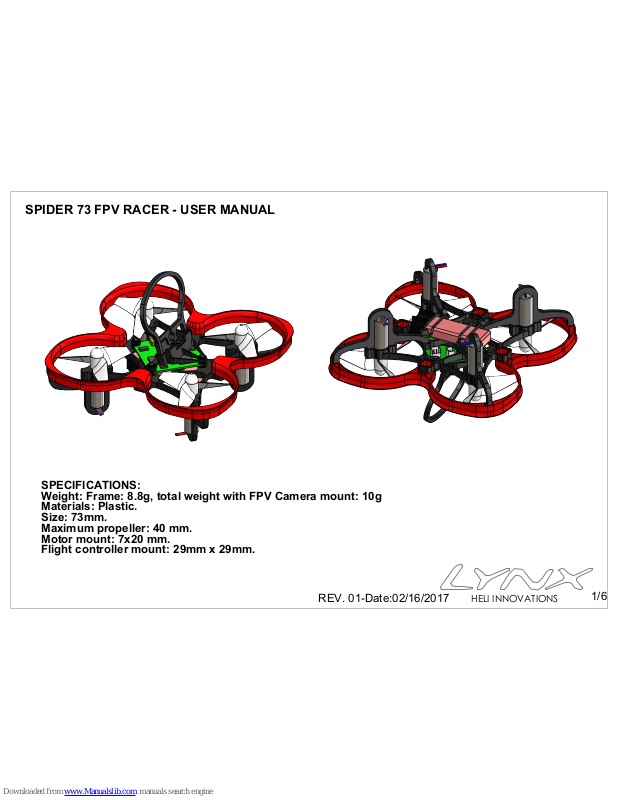

SPECIFICATIONS:
Weight: Frame: 8.8g, total weight with FPV Camera mount: 10g
Materials: Plastic.
Size: 73mm.
Maximum propeller: 40 mm.
Motor mount: 7x20 mm.
Flight controller mount: 29mm x 29mm.
SPIDER 73 FPV RACER - USER MANUAL
REV. 01-Date:02/16/2017
1/6
HELI INNOVATIONS
Fly Direction REF
Spider 73-Main Frame PreAssembly with Shourd and
FC Mount
SPIDER 73 FPV RACER - USER MANUAL
2/6
REV. 01-DATE:02/16/2017
4 x Motor Mount
PACKAGE LIST PART
4 x M1x3
4 x Washer
15
FPV Camera
Mount PTU-Black
2 x O-Ring ID 12 - W 1
2 x O-Ring ID 12-W 1
4 x Extra Motor Mount
HELI INNOVATIONS
4 x Motor 7x20 mm
Motor Wire
Note: Rotate Motor in order Electric Wire will follow
the arrow, as showen
Fly Direction REF
Bottom View
Normal Motor Mount
(Use Extra Motor Mount for bigger Battery,
Eflite 300mAh/500mAh suggest)
Note 1: Pay attention Motor
Wire position to avoid short
circuit or pinching
SPIDER 73 FPV RACER - USER MANUAL
3/6
REV. 01-DATE:02/16/2017
Step 01: Motor Assembly
Step 02: Motor Mount Assembly
Note 2: Carefully press fit all 16 Motor Mount pins into
Frame sockets
HELI INNOVATIONS
4 x M1x3 PANS Head Screw Self Tapping
Camera Mount
4 x Washer ∅4x∅1x0.5
Flight Control (Furious FPV Acrowhoop V2 suggest)
(Assembly FC following Fly direction REF)
FLY DIRECTION REF
FRONT
(Extra information for FPV Camera Mount PTU, see page
number 6)
SPIDER 73 FPV RACER - USER MANUAL
4/6
REV. 01-DATE:02/16/2017
Step 03: Flight Control Assembly
BACK
After assembly FC with Frame, connect Motor with FC.
Note: Assembly Motor Wire following below picture
Motor Wire
HELI INNOVATIONS
BOTTOM VIEW
2 x Oring 12x1
2 x Oring 12x1
Battery (PULSE 300mAh 1S 3.7V 30C/
Eflite 300mAh/500mAh suggest)
2 x CW propeller
2 x CCW propeller
2 x CCW propeller
2 x CW propeller
Fly Direction
Step 05: Propeller Assembly
Step 04: O-Ring Battery Support Assembly
REV. 01-DATE:02/16/2017
5/6
SPIDER 73 FPV RACER - USER MANUAL
Note rotation direction of the Propeller
FRONT
BACK
BACK
FRONT
Fly Direction
HELI INNOVATIONS
HELI INNOVATIONS
Roll bar
Note: Slot face lens
Camera Mount
Camera
Inductrix FPV Rollbar Camera Mount TPU - 7/15/20 deg Set - V2 - Manual
Roll Bar into Camera Mount socket (as showen)
Step 01: Insert Camera into Camera Mount
Step 02: Insert Roll Bar into Step 01, press fit
REV. 01-DATE:01/13/2017
Insert the Roll Bar Pins
into Camera Mount sockets
and press fit carefully
