Getting Started
Packaging
The shipping carton and packaging materials
provide protection for the module during transit.
Please retain the shipping cartons in case
subsequent shipping of the product becomes
necessary.
Product Description
The P VD 5010 B is a high quality frame / line
synchronizer designed primarily for broadcast and
professional applications.
The two available SDI inputs can be synchronized
to external sync with an additional video delay of
up to a maximum of 6 frames adjustable in 37ns
increments. Minimum delay in Framesynch mode is
1 Frame, in Linesynch mode less than 1 µs. SDI
Inputs can be switched into the processor
seamlessly, also via a GPI. A separate delay output
is provided for external audio delay processing.
From both SDI inputs 2 AES audio groups can be
extracted, separately processed and embedded
again to avoid audio clicks due to the video frame
synchronization.
In addition 2 external AES inputs and outputs are
provided and can be processed and embedded
into the SDI output signal
The P VD 5010 B features a wide range of available
adjustments (via optional Rack Controller). Basic
adjustments are possible using the local multifunction switch and integrated display.
CardModules are installed in the series 5000 card
frame that can accommodate up to 10
CardModules. All modules are hot swappable and
Options include full redundant power and a range
of controller options.
Page 7
Reference Manual P VD 5010 B Version 1.1
Key Features
o Selectable frame or line synchronization
mode of operation
o Dual standard operation (525/625)
o Additional Video Delay of up to 6 frames
max in 37ns increments
o Two SDI inputs with seamless (interference
free) changeover via GPI
o SDI inputs with active loop through
o Two SDI outputs provided
o Delay output pulse for external audio delay
processor
o Internal deembedding of two audio groups
(4 x AES) with Channel Swap, Mute etc. and
embedding of processed audio groups into
SDI stream
o 2 x AES input and 2 x AES output
o Local DIP-switch, push buttons and LED’s for
local control and status monitoring
o Microprocessor controlled with local display
and menu driven user interface
o Flash Ram storage for settings
o Remote control interface
Page 8
Reference Manual P VD 5010 B Version 1.1
Functional Diagram
Figure 1 below is the basic functional diagram for
the P VD 5010 CardModule. The audio path is
shown in detail as separate diagram.
Figure 1- P VD 5010 B Functional Diagram
Page 9
Reference Manual P VD 5010 B Version 1.1
Figure 1.1: Audio Processing
Module Layout
Figure 2 shows the physical layout of the P VD 5010
CardModule and also the connection panel which
is fitted to the rear of the rack.
Page 10
Reference Manual P VD 5010 B Version 1.1
Figure 2: Physical layout P VD 5010 B
Page 11
Reference Manual P VD 5010 B Version 1.1
Connections
Video/Audio Connections
The P VD 5010 B CardModule is configured with
standard 75 Ohm BNC connectors. Connection is
self-explanatory. We recommend the use of high
quality cables for digital video and audio
connections to reduce the risk of interference or
errors due to excessive cable attenuation. Some
guidelines for max cable length are shown below.
250m (820 feet) Belden 8281 (270Mbits/s)
Note. Due to the compact design of the
connection plate it will be necessary to use a
connection tool to secure the BNC video
connectors.
Page 12
Reference Manual P VD 5010 B Version 1.1
GPI
There is a GPI (General Purpose Input) on the P VD
5010 CardModule. Connection is made through a
BNC connector.
With the GPI connection either the inputs can be
switched or the P VD 5010 can be switched to
FREEZE mode.
Switching the inputs with the GPI:
If there is no connection (OPEN/HIGH) between
signal input and GND, IN1 is selected. If signal input
is connected to GND (CLOSED/LOW), IN2 is
selected.
Switching to Freeze mode:
If there is no connection (OPEN/HIGH) between
signal input and GND, the P VD 5010 is in normal
operation. If signal input is connected to GND
(CLOSED/LOW), the P VD 5010 will switch to FREEZE.
Page 13
Reference Manual P VD 5010 B Version 1.1
Audio Delay Pulse
The Audio Delay Pulse is connected through a BNC
connector with TTL levels and needs 75 Ohm
termination.
Min. Delay in Frame Synch Mode is 1 Frame
Min. Delay in Line Synch Mode is < 1µs
Audio Delay – synchronous mode
When the frame sync is used in normal
asynchronous mode it is possible for the frame sync
to drop or add frames to keep in sync (which is
normal). Under these circumstances simply
dropping frames of audio would result in audible
clicks and pops. We overcome this by loosely
tracking the audio to the video within an audio
delay window of +/- 0.5 frame with respect to
video.
If you have a synchronous input to the frame sync,
then there is a new mode to switch the frame sync
into a audio / video delay line function [expert tab,
selection "synchronous"] In this mode the +/- 0.5
frame window is removed and the audio is
perfectly in time with the video.
Page 14
Installation
Caution
The CardModule is shipped in a
protective anti-static bag. Please take
suitable precautions to avoid static
discharge onto any part of the PCB or
components when handling module or
serious damage could result.
Each Card Module is supplied with a rear
connection panel and two mounting screws.
Please follow the following procedure for
installation of the card module into the Series 5000
Reference Manual P VD 5010 B Version 1.1
Card Frame.
a) Select a slot in the card frame where the
CardModule will be located
b) Remove the blank connection panel from the
rear of the rack (if fitted)
c) Install the rear connection panel using the
screws supplied. Do not tighten the screws fully
d) Slide the card module into the card frame and
carefully check the CardModule easily
connects to the rear connection plate. The
card should fit easily and should not require
excessive force to insert, if you feel any
resistance, there could be something wrong
with the rear connection panel location. Do not
try and force the connection. Remove the rear
connection panel and check alignment with
the CardModule.
e) Insert and remove the CardModule a few times
to ensure correct alignment and then tighten
the two screws to secure the rear connection
plate
Page 15
Reference Manual P VD 5010 B Version 1.1
Settings and Control
The P VD 5010 B has an integrated micro-controller,
which enables the module to be configured and
controlled locally using the multifunction switch and
4 character dot matrix display, or from remote
when using one of the optional controllers and
control software.
Once set, all settings are automatically saved in
non-volatile internal memory. (Flash ram) The
module will always recall the settings used prior to
power down.
Figure 3 – Switch and Display Location
Page 16
Reference Manual P VD 5010 B Version 1.1
Multi Function Switch
The CardModule is equipped with a multi-function
switch located on the front bottom edge of the
card (refer to figure 3)
Multi-function Switch
Side Front
Switch Operations
Up Down
Figure 4 – Switch Operation
Enter
Page 17
Reference Manual P VD 5010 B Version 1.1
Using the Local Display Menus
Making local adjustments to the module is done
using the multifunction switch and the integrated 4character dot matrix display (figure 3). The menu
system is layered, and navigation through the
system is done using the UP and DOWN functions of
the switch. ENTER is used to move between menu
levels and also enter a selection.
Navigation
Switch Function Operation
UP Move UP within a level
DOWN Move down within a level
ENTER Change levels / Make selection

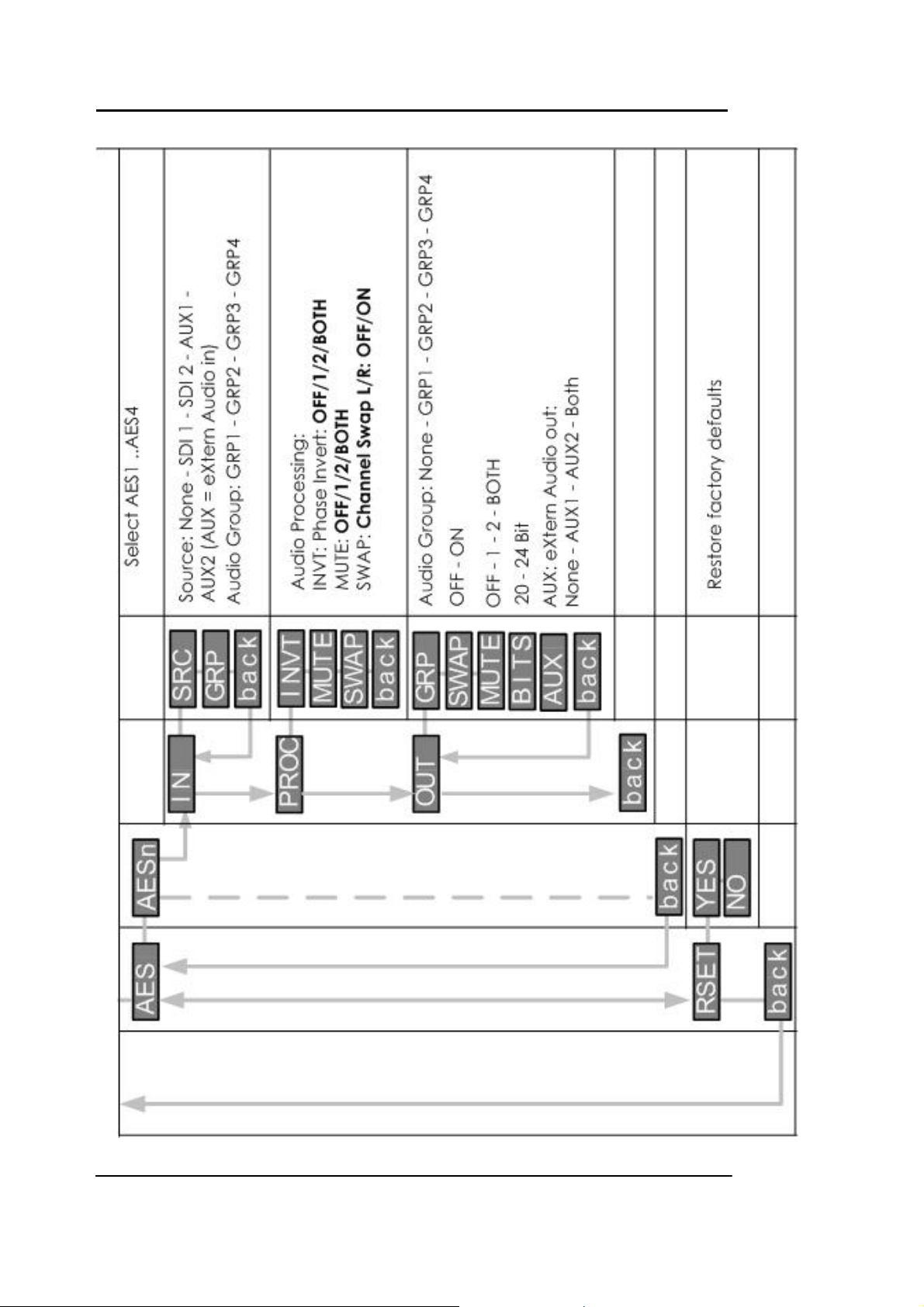

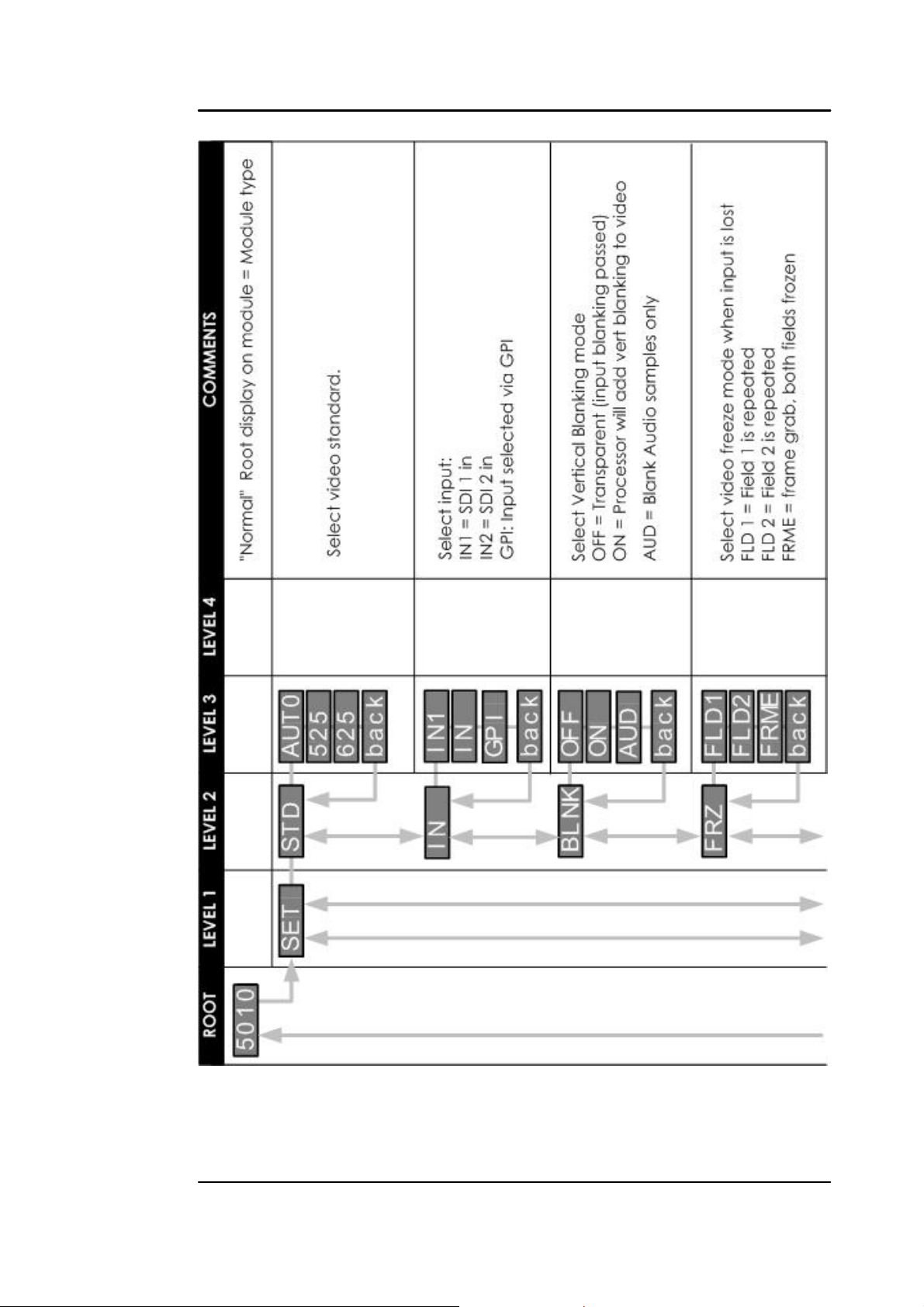

Menu Structure
The Menu structure is defined in the next table, and
should be used when navigating through the
system.
Notes / Tips.
ENTER moves between Levels
UP/DOWN moves between items within the level
When you enter a new setting the system will jump
back one level in the menu system.
• The “back” selection in the menu structure will
take you back one level when selected.
• When an item is selected which has several
setting possibilities the first value displayed will be
the value currently stored in the system. The
order of the available settings for any menu item
• If left unattended, the menu will default to the
Page 18
in the table supplied does not represent the
order he settings will actually be displayed.
root display after a preset timeout.
Reference Manual P VD 5010 B Version 1.1
Page 19
Reference Manual P VD 5010 B Version 1.1
Page 20
Reference Manual P VD 5010 B Version 1.1
Page 21
Reference Manual P VD 5010 B Version 1.1
Page 22
Reference Manual P VD 5010 B Version 1.1
Factory Preset Condition
The P VD 5010 B is delivered programmed and
preset for the following mode of operation:
Mode Frame Synchronizer
Input Input 1
Standard Auto
Blanking (VBI) Transparent
Freeze mode Frame
Reference External
Line delay (CH A) 0000
Pixel delay (CH A) 0000
Frame delay (CHA) 0000
Line delay (CH B) 0000
Pixel delay (CH B) 0000
Frame delay (CHB) 0000
Pedestal default (OFF)
Saturation default (OFF)
Brightness default (OFF)
Hue default (OFF)
If this is the mode of operation required, then no
adjustments are necessary.
These settings can be recalled at any time by
selecting reset from the menu system.
Auto Store
If no parameters are changed for 10 seconds then
the current settings will be written into flash memory
automatically, this can be seen by the alarm LED
flashing yellow four times.
Page 23
Reference Manual P VD 5010 B Version 1.1
Alarm/LED Status Indicators
The P VD 5010 B module has integral LED indicators,
which serve as alarm and status indication for the
module. Function is described below.
Status Indicators
3 status LED`s are provided on the PCB, LED 1, LED
2, LED 3 (Figure 2)
LED Color Indication
1
2
3
Green Ref = 525/60 Hz
Yellow Ref = 625/50 Hz
Red External Ref = invalid or missing
Green SDI 1 Input = 525/60 Hz
Yellow SDI 1 Input = 625/50 Hz
Red SDI 1 Input = invalid or missing
Green SDI 2 Input = 525/60 Hz
Yellow SDI 2 Input = 625/50 Hz
Red SDI 2 Input = invalid or missing
Alarm Indicator
There is also a single alarm LED on the lower edge
of the module LED 4. This is visible through the card
frame front cover and provides a general
indication of the module status.
LED Color Indication
Green Normal Operation
Red Board Failure
LED OFF indicates power is lost, or there is a power
supply fault.
Page 24
Reference Manual P VD 5010 B Version 1.1
Locate Function
For larger systems which may have multiple cards
of the same type in a single rack, or multiple rack
systems on a large central control system we have
added a useful utility which will help to visually
locate a suspect module quickly (When used in
conjunction with the optional control system and
software)
Once the specific module has been selected on
the control system there is a locate button on the
top of the GUI:

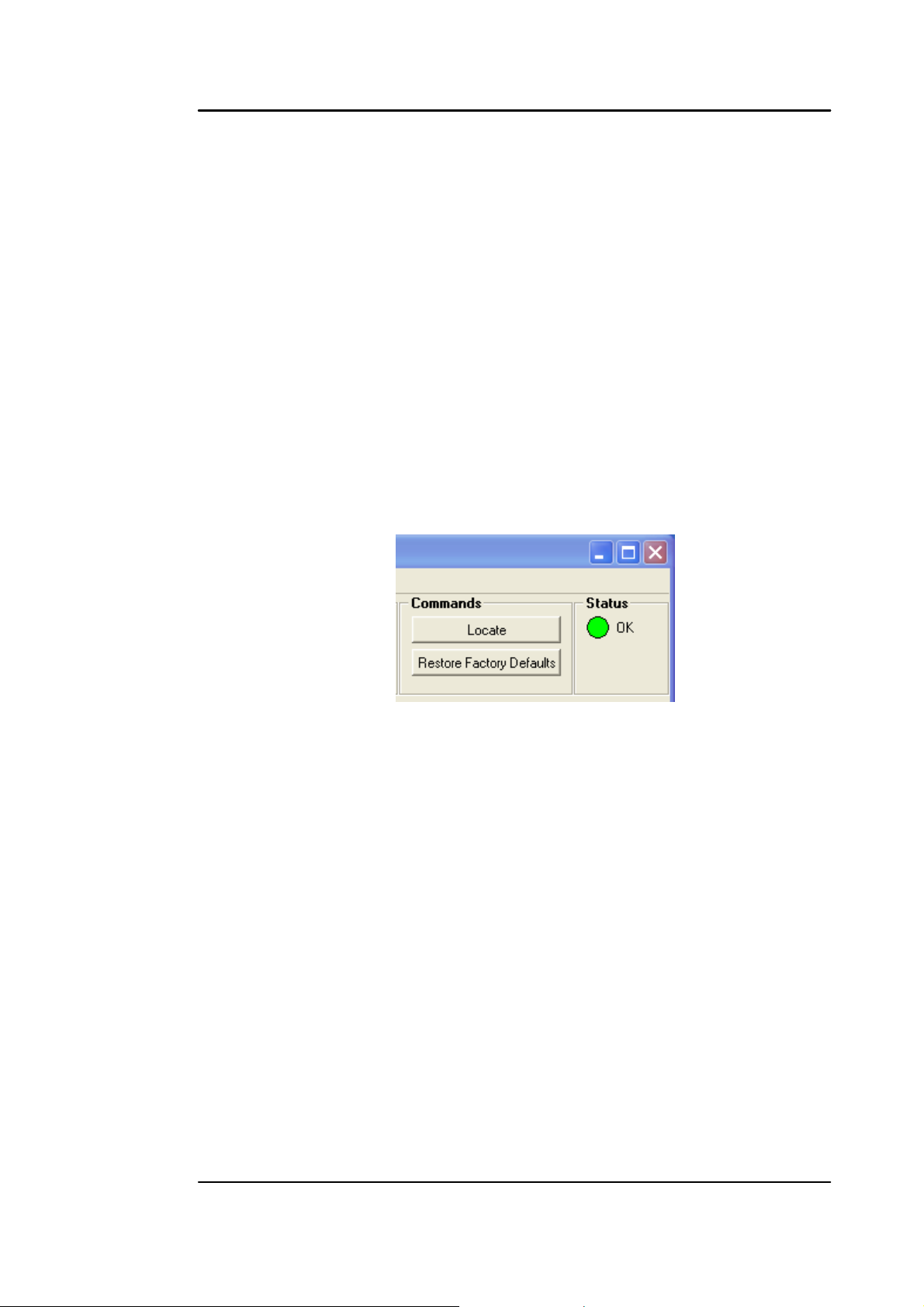

Locate Function in Control System
When Locate is selected the status indicator on the
GUI and the alarm LED will flash yellow in the
following continuous sequence.
3 short flashes…. Pause…. 3 short flashes …
Use of the locate function will not interfere with the
normal operation of the module.
For more details on this feature please check the
documentation supplied with the controller
software.
Page 25
Reference Manual P VD 5010 B Version 1.1
Specifications
Video Inputs
Signal 2 x SDI inputs - selectable (SMPTE 259M-C)
Connection/Impedance BNC/75 Ohms
Cable Length 250 m; Belden 8281 (270Mbit/s)
Return Loss > 15dB (270 MHz)
Reference Input
Signal Composite analog sync, 525/60Hz or 625/50Hz
Detection Automatic
Connection/Impedance BNC/75 Ohms
Video Outputs
Signal 2 x SDI (SMPTE 259M-C)
Connection/Impedance BNC/75 Ohms
Return Loss > 15dB (270 MHz)
Jitter < 0.2 UI
(P VD 5010 B)
Audio Inputs
Signal 2x AES3-id balanced transformer isolated inputs
Connection/Impedance BNC/75 Ohms
Return Loss >25dB (32KHz to 100KHz)
Audio Outputs
Signal 2 x AES3-id balanced transformer isolated outputs
Connection/Impedance BNC/75 Ohms
Output Level 1.0v p-p (nominal)
Delay Output
Signal TTL pulse duty cycle = delay from input to output
Connection BNC, 75 Ohm
Operating Modes
Line Line Synchronizer
Frame Frame Synchronizer
Performance
Adjustment range Min delay to 6 frames max in 37ns increments;
Min Delay: Frame Synch Mode: 1 Frame
Line Synch Mode: 1 µs
Control Local display and multi-function switch ; remote
when using a controller and LYNX control SW.
Electrical Specifications
Operating Voltage 12 VDC
Power Consumption 9 W
Safety IEC 60950/ EN 60950/VDE 0805
Mechanical
Size 283mm x 78mm
Weight Card module 120g, connection panel 50g
Ambient
Temperature 5°C to 40°C Maintaining specifications
Humidity Max 90% non condensing
Supplied Accessories
Documentation P VD 5010 B Reference Manual
Page 26
Reference Manual P VD 5010 B Version 1.1
Available Options
Below is a list of related products for the P VD 5010
B CardModule. Please refer to product brochures or
our web site for more detailed information.
Model Description
R FR 5010
R PS 5010
R CT 5020
R CT 5010
Series 5000 Rack Frame (empty) with single
power supply
Redundant power supply for the R FR 5010
Card Frame
Rack controller for the R FR 5010 Card
Frame
Rack Bus Extension for the R FR 5010 Card
Frame. In combination with R CT 5020
Parts List
Due to the very dense design and miniature
surface mount technology the module is not field
serviceable. The information for a replacement
assembly is below.
P VD 5010 B CardModule (complete)
Description Media Processor
Model Number P VD 5010 B
Part Number 6.155.008.261
Sub Assemblies:
P VD 5010 B Processing Board only (BS 5012 B)
Part Number 6.155.007.300
Rear Conn. Panel for P VD 5010 B (MA 5001_B)
Part Number 6.155.008.371
Page 27
Reference Manual P VD 5010 B Version 1.1
Service
If you are experiencing problems, or have questions
concerning your P VD 5010 B CardModule please
contact your local distributor for assistance.
We offer a fixed cost service exchange program for
defective Series 5000 CardModules out of
Warranty. Please contact your distributor or check
our web site for details on this program.
More detailed information and product updates
may be available on our web site:
www.lynx-technik.com
You will also find links to contact us directly for
assistance.
Page 28
Reference Manual P VD 5010 B Version 1.1
Contact Information
Please contact your local distributor; this is your
local and fastest method for obtaining support and
sales information.
LYNX Technik can be contacted directly using the
information below.
Address LYNX Technik AG
Brunnenweg 3
D-64331 Weiterstadt
Germany.
Website www.lynx-technik.com
E-Mail info@lynx-technik.com
LYNX Technik manufactures a complete range of
high quality modular products for broadcast and
Professional markets, please contact your local
representative or visit our web site for more product
information.
Page 29
Reference Manual P VD 5010 B Version 1.1
This page is intentionally left blank
Page 30
Reference Manual P VD 5010 B Version 1.1
Notes
Page 31
Loading...
