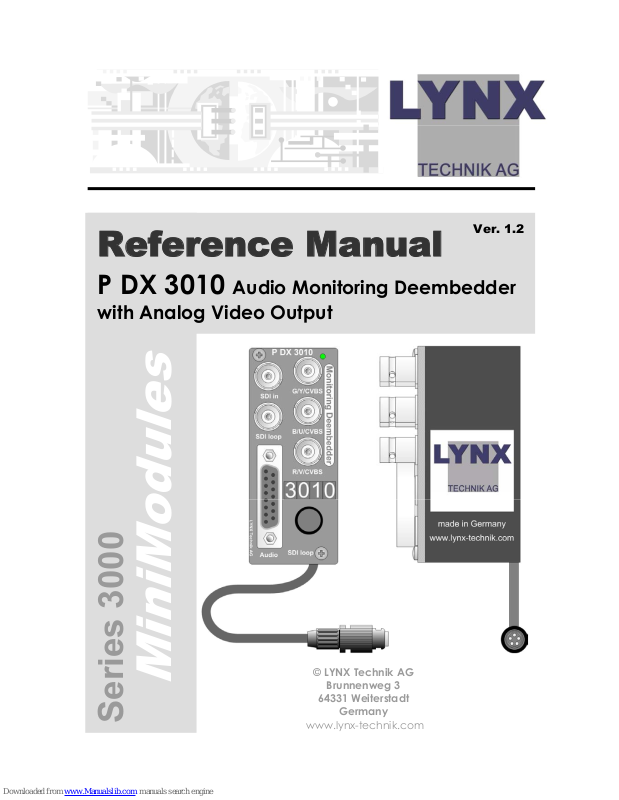

Series 3000
© LYNX Technik AG
Brunnenweg 3
64331 Weiterstadt
Germany
www.lynx-technik.com
Reference Manual
P DX 3010 Audio Monitoring Deembedder
with Analog Video Output
MiniModule
s
Ver. 1.2
Reference Manual P DX 3010 Version1.2
Page 2
Information in this document is subject to change without
notice. No part of this document may be reproduced or
transmitted in any form or by any means, electronic or
mechanical for any purpose, without express written permission
of LYNX Technik AG.
LYNX Technik AG may have patents, patent applications,
trademarks, copyrights or other intellectual property rights
covering the subject matter in this document. Except as
expressly written by LYNX Technik AG, the furnishing of this
document does not give you any license to patents,
trademarks, copyrights or other intellectual property of LYNX
Technik AG or any of its affiliates.
© LYNX Technik AG 2004 - 2005 all rights reserved
Reference Manual P DX 3010 Version1.2
Page 3
Warranty
LYNX Technik AG warrants that the product will be free from
defects in materials and workmanship for a period of two (2)
years from the date of shipment. If this product proves defective
during the warranty period, LYNX Technik AG at its option will
either repair the defective product without charge for parts and
labor, or will provide a replacement in exchange for the
defective product.
In order to obtain service under this warranty, customer must
notify LYNX Technik of the defect before expiration of the
warranty period and make suitable arrangements for the
performance of service. Customer shall be responsible for
packaging and shipping the defective product to the service
center designated by LYNX Technik, with shipping charges
prepaid. LYNX Technik shall pay for the return of the product to
the customer if the shipment is within the country which the LYNX
Technik service center is located. Customer shall be responsible
for payment of all shipping charges, duties, taxes and any other
charges for products returned to any other locations.
This warranty shall not apply to any defect, failure, or damage
caused by improper use or improper or inadequate
maintenance and care. LYNX Technik shall not be obligated to
furnish service under this warranty a) to repair damage resulting
from attempts by personnel other than LYNX Technik
representatives to install, repair or service the product; b) to
repair damage resulting from improper use or connection to
incompatible equipment; c) to repair any damage or
malfunction caused by the use of non LYNX Technik supplies; or
d) to service a product which has been modified or integrated
with other products when the effect of such modification or
integration increases the time or difficulty servicing the product.
THIS WARRANTY IS GIVEN BY LYNX TECHNIK WITH RESPECT TO THIS
PRODUCT IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED. LYNX TECHNIK AND ITS VENDORS DISCLAIM ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. LYNX TECHNIK`S RESPONISIBILITY TO REPAIR AND
REPLACE DEFECTIVE PRODUCTS IS THE SOLE AND EXCLUSIVE
REMEDY PROVIDED TO THE CUSTOMER FOR BREACH OF THIS
WARRANTY. LYNX TECHNIK AND ITS VENDORS WILL NOT BE LIABLE
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTAL
DAMAGES IRRESPECTIVE OF WHETHER LYNX TECHNIK OR THE
VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGES.
Reference Manual P DX 3010 Version1.2
Page 4
Regulatory information
Europe
Declaration of Conformity
USA
FCC 47 Part 15
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to the part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own
expense
We LYNX Technik AG
Brunnenweg 3
D-64331 Weiterstadt
Germany
Declare under our sole responsibility that the product
TYPE: P DX 3010
To which this declaration relates is in conformity with the following
standards (Environments E1-E3):
EN 55103-1 /1996
EN 55103-2 /1996
EN 60950 /2001
Following the provisions of 89/336/EEC and 73/23/EEC directives.
Winfried Deckelmann
Weiterstadt, August 2004
Place and date of issue Legal Signature
Reference Manual P DX 3010 Version1.2
Page 5
Contents
Warranty .......................................................................... 3
Regulatory information................................................... 4
Europe .....................................................................................4
Declaration of Conformity..................................................4
USA.........................................................................................4
FCC 47 Part 15 ...................................................................4
Contents........................................................................... 5
Getting Started ................................................................ 7
Packaging................................................................................7
Product Description.................................................................7
Functional Diagram.................................................................9
Module Layout........................................................................9
Connections .................................................................. 11
Audio / Video Connections...................................................11
Audio Connector (balanced).............................................11
Power Connections ...............................................................12
DC Power Connector........................................................12
Installation ..................................................................... 13
Mechanical ............................................................................13
Stand Alone Operation .....................................................13
Multiple Units...................................................................14
Electrical Installation. ...........................................................15
Stand Alone Operation .....................................................15
Settings and Control ..................................................... 16
Multi Function Switch ..........................................................16
Using the Local Display Menus............................................16
Navigation ........................................................................16
Menu Structure......................................................................16
Factory Preset Condition ..................................................17
Front Panel Alarm Indicator .............................................22
Available Options ......................................................... 24
Parts List.......................................................................... 25
Service ........................................................................... 25
Contact Information ..................................................... 26
Reference Manual P DX 3010 Version1.2
Page 6
This Page is intentionally left blank
Reference Manual P DX 3010 Version1.2
Page 7
Getting Started
Packaging
The shipping carton and packaging materials
provide protection for the module during transit.
Please retain the shipping cartons in case
subsequent shipping of the product becomes
necessary.
Product Description
The P DX 3010 is a high quality monitoring demultiplexer (Audio de-embedder), with analog
Video an Audio outputs, designed primarily for
broadcast and professional applications.
The Module accepts 1 SDI input signal with up to
four audio groups embedded. One audio group
can be selected and de-multiplexed and output as
analog Audio signals on a 110 Ohm SubD15
connection. One reclocked output of the input
signal is also provided. The SDI signal can be output
as analog video (YUV, RGB or CVBS)
The P DX 3010 has a variety of features, which
include:
• User selectable audio groups. (1 through 4)
• Supports 525 / 625 line standards
• Supports 20 and 24 bit audio
• Supports 8 and 10 bit video
• Local matrix display and multifunction
switch for control and status monitoring
• All settings stored in non-volatile flash ram
• One reclocked output of input video
• Analog video outputs
Reference Manual P DX 3010 Version1.2
Page 8
The module has a built in micro-controller with local
controls, status and alarm indicators and well as
internal flash ram for storing setups. Any operational
parameters configured and stored into the module
are recalled when powered up.
The P DX 3010 is part of the 3000 series of
MiniModules, which offer high quality, modularity
and flexibility in a very small form factor ideal for
applications where space is at a premium.
The modules can be used either stand alone using
the optional power supply brick, or as part of a
tightly integrated space saving system where up to
10 MiniModules can be mounted utilizing the
optional LYNX R FR 3005 / 3010 rack housing. This
includes integrated power supply and optional
redundant power supply.
Reference Manual P DX 3010 Version1.2
Page 9
Functional Diagram
Figure 1 below is the basic functional diagram for
the P DX 3010 MiniModule.
Figure 1- P DX 3010 Functional Diagram
Module Layout
Figure 2 shows the physical layout of the P DX 3010
MiniModule. Video I/O is made through standard
75 Ohm BNC video connections and Audio output
through a SubD15 connector. Module
configuration is set via multi function switch and a
matrix display located on the connector side of the
module.
If the module is being used in a stand alone
application then the optional power supply (R PS
3001 E, R PS 3001 U or R PS 3001-3) is required to
power the module (not shown)
Reference Manual P DX 3010 Version1.2
Page 10
Figure 2 – Module Layout
Reference Manual P DX 3010 Version1.2
Page 11
Connections
Audio / Video Connections
The P DX 3010 MiniModule is configured with
standard 75 Ohm BNC connectors for Video I/O.
The Audio outputs are provided on a SubD15
connector. Connection is self-explanatory for
Video. Audio see below. We recommend the use
of high quality video cable suitable for digital video
connections to reduce the risk of interference or
errors due to excessive cable attenuation.
Note. Due to the compact design of the module it
will be necessary to use a connection tool to
secure the BNC video connectors to the module.
Audio Connector (balanced)
SubD 15-pin female connector
Pin
Number
Connection
Pin
Number
Connection
1 + Audio 1 9 - Audio 1
2 GND Audio 1/2 10 + Audio 2
3 - Audio 2 11 GND Audio 1/2
4 + Audio 3 12 - Audio 3
5 GND Audio 3/4 13 + Audio 4
6 - Audio 4 14 GND Audio 3/4
7 15
8
18
9
15
Reference Manual P DX 3010 Version1.2
Page 12
!
Power Connections
If using the module in a stand-alone application
use the separate R PS 3001 E (for Europe), R PS 3001
U (USA) power brick option or the R PS 3001- desk
power supply.
DC Power Connector
The MiniModule has a captive power lead fitted to
the module, with a male 5 pin locking bayonet
connector. This connection provides DC power
and also data connectivity to the module.
Connector wiring is shown below.
3
4
5
1
2
GND
+ 5V
i2C-SDA (data)
i2C-SCL (clock)
Power ConnectionData Connection
Male Connector
(view looking into connector from front)
Caution
Only use the optional LYNX R PS power
modules. Ensure the 5-pin power
connector is locked securely in place.
Reference Manual P DX 3010 Version1.2
Page 13
!
Installation
Mechanical
Stand Alone Operation
The P DX 3010 MiniModule can be used in a stand
alone application. There are two options for the use
of the module in this way.
a) Using the R FR 3005 Rack Frame 1 option. This
allows up to any 10 of the MiniModules to be
secured onto a rack frame assembly for 19 inch
rack mounting. This keeps the modules secured,
organized and out of the way. The R PS 3001
power brick option or the R FR 3010 option is
required to power each module. Please refer to
the R FR 3005 Reference Manual supplied with
this option for more details.
b) Single Use. The MiniModule can be powered
independently with the R PS 3001 option and
used in any location where this functionality is
required.
Caution. Care needs to be taken
when using the module in this way, as
it is not physically secured. Keep the
module away from the floor to avoid
the risk of someone stepping or
tripping on the unit, and locate the
unit away from excessive sources of
heat and any sources or moisture.
If using more than one MiniModule in any
installation, the R FR 3005/3010 Rack frame
combination is highly recommended.
Reference Manual P DX 3010 Version1.2
Page 14
Multiple Units
Most applications will require more than one
MiniModule, which can include any of the
available Series 3000 MiniModule product range.
There are two options for mounting multiple units.
a) Using the R FR 3005 Rack Frame option. This
allows up to any 10 of the MiniModules to be
secured onto a rack frame assembly for 19 inch
rack mounting. The R PS 3001 power brick
option or the R FR 3010 option is required to
power each module. Please refer to the R FR
3005 Reference Manual for more details.
b) Using the R FR 3010 Rack frame extension
option. Can be combined with the R FR 3005
Rack frame option. Each module plugs into a
connection bus, which provides common
power for all modules. (no R PS external power
supplies are needed). Please refer to the
respective reference manuals for these options
for details of mechanical installation.
The very small size and density of the MiniModules
combined with the available rack frame options
allows the addition of a complex and custom signal
distribution system without taking any additional
front rack space. The rack frames are designed for
installation in the back of 19-inch racks where there
is normally plenty of available space. Ideal for
mobile truck installations and facility expansions
where space is at a premium.
Reference Manual P DX 3010 Version1.2
Page 15
!
!
Electrical Installation.
Stand Alone Operation
The MiniModule requires the R PS 3001 power brick
option for stand-alone operation. Three versions are
available R PS 3001 E for European markets, R PS
3001 U for the US markets and the R PS 3001-3 desk
power supply. Please ensure you have the correct
power option for your region. The connection to
the module is made with a small 5-pin connector,
which has a twist bayonet securing system. Please
make sure the connection is solid and locked in
place. A strain relief is included within the module
to prevent excessive strain on the connection.
Signal connections should be made with care,
please ensure connections are correct and
compatible equipment is feeding / receiving the
signals from the module or damage can result.
Caution. Only use the optional LYNX R PS
3001 power modules. Ensure the 5-pin
power connector is locked securely in
place.
Caution. Care needs to be taken when
using the module in this way, if it is not
physically secured. Keep the module
away from the floor to avoid the risk of
someone stepping or tripping on the unit,
and locate the unit away from excessive
sources of heat and any sources or
moisture.
Reference Manual P DX 3010 Version1.2
Page 16
Settings and Control
Multi Function Switch
The MiniModule is equipped with a multi-function
switch located on the connector side of the
module (refer to figure 2)
The switch can be turned left and right and can be
pressed down for ENTER. Turning left and right
guides you through the menu.
Using the Local Display Menus
Making local adjustments to the module is done
using the multifunction switch and the integrated 4character dot matrix display (figure 2). The menu
system is layered, and navigation through the
system is done using the LEFT and RIGHT functions of
the switch. ENTER is used to move between menu
levels and also enter a selection.
Navigation
Menu Structure
The Menu structure is defined in the next table, and
should be used when navigating through the
system.
Notes / Tips.
ENTER moves between Levels
LEFT/RIGHT moves between items within the level
When you enter a new setting the system will jump
back one level in the menu system.
Switch Function Operation
RIGHT Move UP within a level
LEFT Move down within a level
ENTER Change levels / Make selection
Reference Manual P DX 3010 Version1.2
Page 17
• The “back” selection in the menu structure will
take you back one level when selected.
• When an item is selected which has several
setting possibilities the first value displayed will
be the value currently stored in the system. The
order of the available settings for any menu item
in the table supplied does not represent the
order he settings will actually be displayed.
• If left unattended, the menu will default to the
root display after a preset timeout.
Factory Preset Condition
The P DX 3010 is delivered preset for the following
mode of operation:
• Audio Group 1 selected
• Audio Full Scale Level = 15 dBu
• CVBS, YC video output
If this is the mode of operation required, then no
adjustments are necessary.
Reference Manual P DX 3010 Version1.2
Page 18
Reference Manual P DX 3010 Version1.2
Page 19
Reference Manual P DX 3010 Version1.2
Page 20
Reference Manual P DX 3010 Version1.2
Page 21
Reference Manual P DX 3010 Version1.2
Page 22
Front Panel Alarm Indicator
There is also a single alarm LED on the front side of
the module, which is designed for quick and easy
indication of a problem condition in installations
where visible access to the bottom of the module is
not convenient.
LED OFF indicates power is lost, or there is a power
supply fault.
LED Color Indication
Green
Signal (Audio/Video) present, PLL
locked, signal locked
Yellow
No Audio present or test signal
selected
Red
no signal, PLL unlocked
Reference Manual P DX 3010 Version1.2
Page 23
Specifications (P DX 3010)
Digital Video
SDI Video in 1 x Serial Digital Video. SMPTE 259M-C
Input impedance 75 Ohm (BNC connectors)
SDI Video out 1 reclocked Serial Digital Video. SMPTE 259M-C
Output impedance 75 Ohm (BNC connectors)
Output level 0.8V p-p
Cable Equalization Up to 250m (Belden 8281 / 270Mbit/s)
Jitter < 0.2 UI
Return loss > 15dB (270 MHz)
Outputs Analog Video
Return Loss >35dB (5,75MHz)
Signal to noise >60dB
Quantization 10 Bits (internal processing 10Bit)
Sampling 54 MHz (4x Oversampling)
Signals RGB or YUV or 3 x CVBS or CVBS/YC
(switchable)
Outputs Analog Audio
Signal 2 x balanced stereo outputs (one stereo output per
channel)
Impedance 50 Ohm (SubD25 female connector)
Max Level 24 dBu into 10K Ohms
Full Scale Level Adjustable between -39dB to 24dB (in 0.5dB incr.)
Quantisation 24 bits
Noise Floor < -85 dBu (A-weighted)
Distortion < 0.005% (20 Hz to 20 KHz)
Frequency Response +\- 0.2dB (20 Hz to 20 KHz)
Crosstalk < -80dB (20 Hz to 20 KHz)
Electrical Specifications
Operating Voltage + 5V DC
Power Consumption 7 W
Connection DC input via 5 pin locking bayonet connector
Safety IEC 60950/ EN 60950/VDE 0805
Mechanical
Size 85.5mm x 35.3mm x 58mm + connectors
Weight 350g
Ambient
Temperature 5°C to 35°C Maintaining specifications
-20°C to +70°C Storage
Humidity Max. 80% non condensing
Supplied Accessories
Documentation P DX 3010 D Reference Manual
Reference Manual P DX 3010 Version1.2
Page 24
Available Options
Below is a list of available options for the P DX 3010
MiniModule. Please refer to product brochures or
our web site for more detailed information.
Model Description
R PS 3001 E
External brick power supply module for
Series 3000 MiniModules. European market
version. 100-240 VAC input, +5V DC output.
R PS 3001 U
External brick power supply module for
Series 3000 MiniModules. USA market
version. 110-240 VAC input, +5V DC output.
R PS 3001 -3
External desk power supply module for
Series 3000 MiniModules. 110-240 VAC
input, +5V DC output.
R FR 3004
4 Module mounting frame. This is a small
mechanical mounting bracket for 4
MiniModules. Can be mounted with screws
on any surface.
R FR 3005
Rack Frame 1. This is a basic 19-inch rack
mountable frame which can accommodate
10 MiniModules with power bricks R PS 1 or
can be extended with the R FR 3010.
R FR 3010
Rack Frame 2. This is a card cage with
integrated central power supply, optional
redundant power supply and optional
controller, which can accommodate 10
MiniModules. Can be combined with R FR
3005
R PS C15
1.5m cable extension to connect one
MiniModule to R FR 3010
R PS C25
2.5m cable extension to connect one
MiniModule to R FR 3010
R PS 5010
Redundant power supply for the R FR 3010
card cage
R CT 5020
Rack controller for the R FR 3010 rack
frame
R CT 5010
Rack Bus Extension for R FR 3010 rack
frame. In combination with R CT 5020
R CT 3000
Service Adapter for remote configuration of
one MiniModule via PC
Reference Manual P DX 3010 Version1.2
Page 25
Parts List
Due to the very dense design and high level of
integration there are no user serviceable electronic
assemblies within the P DX 3010 module.
P DX 3010 D Mini Module (complete)
Description Monitoring Demultiplexer
Model Number P DX 3010
Part Number 6.155.002.245
Service
If you are experiencing problems, or have questions
concerning your P DX 3010 MiniModule please
contact your local distributor for assistance.
We offer a fixed cost service exchange program for
defective Series 3000 MiniModules out of Warranty.
Please contact your distributor or check our web
site for details on this program.
More detailed information and product updates
may be available on our web site:
www.lynx-technik.com
You will also find links to contact us directly for
assistance.
Reference Manual P DX 3010 Version1.2
Page 26
Contact Information
Please contact your local distributor; this is your
local and fastest method for obtaining support and
sales information.
LYNX Technik can be contacted directly using the
information below.
Address LYNX Technik AG
Brunnenweg 3
64331 Weiterstadt
Germany.
Website www.lynx-technik.com
E-Mail info@lynx-technik.com
LYNX Technik manufactures a complete range of
high quality modular products for broadcast and
Professional markets, please contact your local
representative or visit our web site for more product
information.
Reference Manual P DX 3010 Version1.2
Page 27
This Page is intentionally left blank
Reference Manual P DX 3010 Version1.2
Page 28
Notes
Loading...
