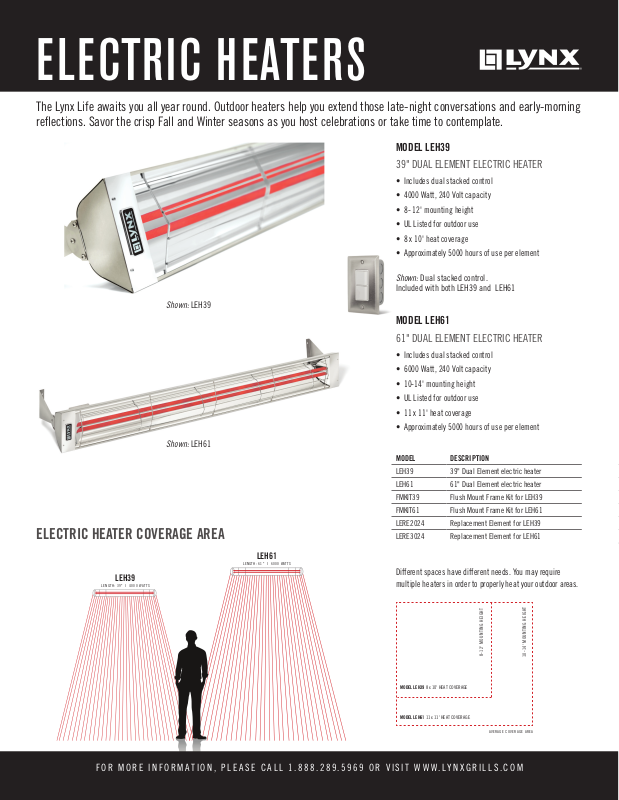

Page 1
ELECTRIC HEATERS
The Lynx Life awaits you all year round. Outdoor heaters help you extend those late-night conversations and early-morning
reflections. Savor the crisp Fall and Winter seasons as you host celebrations or take time to contemplate.
MODEL LEH39
39" DUAL ELEMENT ELECTRIC HEATER
• Includes dual stacked control
• 4000 Watt, 240 Volt capacity
• 8- 12' mounting height
• UL Listed for outdoor use
• 8 x 10' heat coverage
• Approximately 5000 hours of use per element
Shown: Dual stacked control.
Included with both LEH39 and LEH61
Shown: LEH39
MODEL LEH61
61" DUAL ELEMENT ELECTRIC HEATER
• Includes dual stacked control
• 6000 Watt, 240 Volt capacity
• 10-14' mounting height
• UL Listed for outdoor use
• 11 x 11' heat coverage
• Approximately 5000 hours of use per element
Shown: LEH61
MODEL DESCRIPTION
LEH39 39" Dual Element electric heater
LEH61 61" Dual Element electric heater
FMKIT39 Flush Mount Frame Kit for LEH39
FMKIT61 Flush Mount Frame Kit for LEH61
LERE2024 Replacement Element for LEH39
ELECTRIC HEATER COVERAGE AREA
LERE3024 Replacement Element for LEH61
LEH61
LENGTH: 61" I 6000 WATTS
LEH39
LENGTH: 39" I 4000 WATTS
Different spaces have different needs. You may require
multiple heaters in order to properly heat your outdoor areas.
8-12' MOUNTING HEIGHT
MODEL LEH39 8 x 10' HEAT COVERAGE
MODEL LEH61 11 x 11' HEAT COVERAGE
AVERAGE COVERAGE AREA
FOR MORE INFORMATION, PLEASE CALL 1.888.289.5969 OR VISIT WWW.LYNXGRILLS.COM
10-14' MOUNTING HEIGHT
Page 2
Lynx Grills Infrared Electric Heaters may be flush-mounted into a non-sloped ceiling.
• Choose from two sizes: a 39” or 61” frame, and from wattages ranging from 4,000–6,000
watts.
• Installation requires a flat ceiling and minimum 2” x 8” studs, where the heater can face
straight down when recessed.
• Avoid flush mounting the heater close to a ceiling fan or light fixture.
• You will need to hire a licensed contractor in order to complete a flush mount installation.
5/8" DRYWALL
1 HOUR FIRE RATING
LINE ENTIRE CAVITY
(5 SIDES)
MINIMUM
OPENINGS
2 X 8 STUDS
65.25” for 61” Heater
11.75
MINIMUM
43” for 39” Heater
1 HOUR FIRE RATING
5/8" DRYWALL
SUBFLOOR
JUNCTION BOX MOUNTED OUTSIDE
THE LINED POCKET ON TOP OR SIDE
FIXTURE WHIP w/ HIGH TEMPERATURE CONNECTORS
CONNECTION MADE AT JUNCTION BOX (provided)
2 X 8 STUDS
MINIMUM
FLUSH MOUNT YOUR HEATER IN FOUR SIMPLE STEPS
Step 1
Frame the pocket that will house the heater with a one hour-rated fire containment box.
Step 2
The junction box must be mounted outside of the lined pocket. You can choose to mount the
junction box in a variety of locations, depending upon where you’ll be accessing it.
LYNX GRILLS FLUSH MOUNT HEATER KITS
INSTALLATION INSTRUCTIONS
FLUSH MOUNT HEATER KITS
INSTALLATION INSTRUCTIONS
FOR MORE INFORMATION, PLEASE CALL 1.888.289.5969 OR VISIT WWW.LYNXGRILLS.COM
Page 3
EXPOSED FLANGE
.500
HEATER FLUSH
w/ FINISHED CEILING
HEATER FLUSH
w/ FLANGE
1/2" CLEAR
FROM HOLES
SUB-FLOOR 5/8" DRYWALL CAP
DECORATIVE TRIM
PARTIALLY COVERING FLANGE
2 X 8 STUDS
MINIMUM
2 X 8 STUDS
MINIMUM
Step 3
Install the frame into the finished pocket. You may choose to leave all four inches of the trim
exposed, or partially cover it with a decorative ceiling (1/2” clearance is required from ventilation
holes).
Step 4
Install the heater (heater must face horizontal to the floor) and adjust the tabs to set the heater
height appropriately. The heater must be in the enclosure before installing into the ceiling.
TABS
ADJUSTABLE
3.750
SIDE VIEW
FLUSH MOUNT HEATER KITS
INSTALLATION INSTRUCTIONS
FOR MORE INFORMATION, PLEASE CALL 1.888.289.5969 OR VISIT WWW.LYNXGRILLS.COM
Page 4
WARNING:
FRAME AND HEATERS CANNOT BE MOUNTED ON A SLOPED/PITCHED
CEILING.
FLUSH MOUNT APPLICATIONS MUST ALWAYS BE INSTALLED WITH
HEATERS HORIZONTAL TO THE FLOOR ON A FLAT, NON-SLOPED CEILING.
4.00
SURFACE VIEW
Enclosed fixture whip is supplied with three 12 gauge high-temp wires (black, red, and green
(ground). It is installed in a flexible metal conduit.
NOTE: Two optional 14 gauge high-temp wires (black) are supplied loose in packaging for use
with four wire application. Remove the 12 gauge black wire from the flexible conduit and replace
with the two 14 gauge black wires.
Ground Lead 1 Lead 2/Neutral
Ground Lead 1 Lead 2/Neutral
2 Element Heater
3 Wire Applicaon
(Both elements running together)
Connecons to be made in J-Box
2 Element Heater
4 Wire Applicaon
(Each element running independently)
Connecons to be made in J-Box
Lead 1
FLUSH MOUNT HEATER KITS
INSTALLATION INSTRUCTIONS
FOR MORE INFORMATION, PLEASE CALL 1.888.289.5969 OR VISIT WWW.LYNXGRILLS.COM
