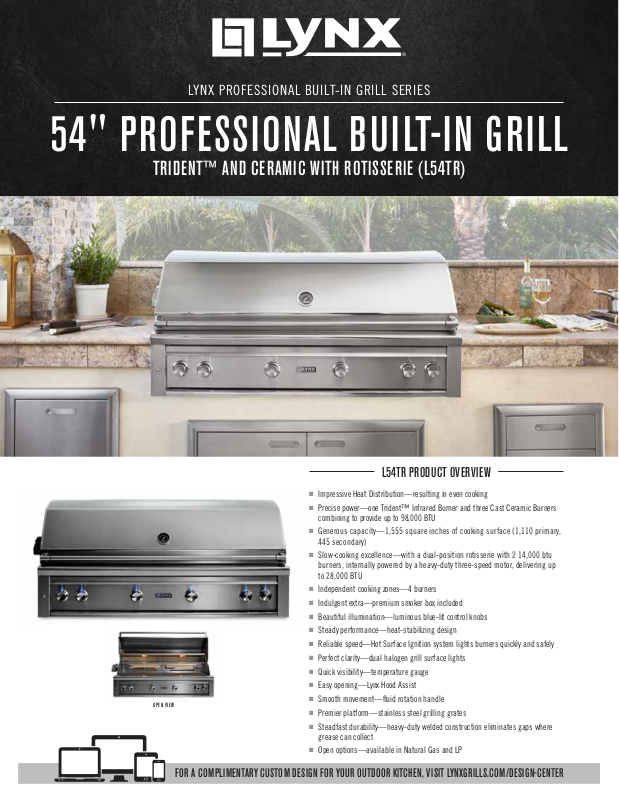

LYNX PROFESSIONAL BUILT-IN GRILL SERIES
54" PROFESSIONAL BUILT-IN GRILL
TRIDENT™ AND CERAMIC WITH ROTISSERIE (L54TR)
OPEN VIEW
L54TR PRODUCT OVERVIEW
■
Impressive Heat Distribution—resulting in even cooking
■
Precise power—one Trident™ Infrared Burner and three Cast Ceramic Burners
combining to provide up to 98,000 BTU
■
Generous capacity—1,555 square inches of cooking surface (1,110 primary,
445 secondary)
■
Slow-cooking excellence—with a dual-position rotisserie with 2 14,000 btu
burners, internally powered by a heavy-duty three-speed motor, delivering up
to 28,000 BTU
■
Independent cooking zones—4 burners
■
Indulgent extra—premium smoker box included
■
Beautiful illumination—luminous blue-lit control knobs
■
Steady performance—heat-stabilizing design
■
Reliable speed—Hot Surface Ignition system lights burners quickly and safely
■
Perfect clarity—dual halogen grill surface lights
■
Quick visibility—temperature gauge
■
Easy opening—Lynx Hood Assist
■
Smooth movement—fluid rotation handle
■
Premier platform—stainless steel grilling grates
■
Steadfast durability—heavy-duty welded construction eliminates gaps where
grease can collect
■
Open options—available in Natural Gas and LP
FOR A COMPLIMENTARY CUSTOM DESIGN FOR YOUR OUTDOOR KITCHEN, VISIT LYNXGRILLS.COM/DESIGN-CENTER
Page 2
54" PROFESSIONAL BUILT-IN GRILL
3”minimum clearanc
12” minimum clearance
12” minimum clearance
TRIDENT™ AND CERAMIC WITH ROTISSERIE (L54TR)
L54TR PRODUCT FEATURES
Our unrelenting attention to detail and our passion for innovation have fostered the stunning features that define the LynxProfessionalSeries.
These features begin with meticulous hand-crafted excellence, and they culminate in powerful capabilities that give you precision control.
TRIDENTTM INFRARED BURNER CERAMIC RADIANT BRIQUETTES SEAMLESS WELDED CONSTRUCTION HEAT STABILIZING DESIGN
HOT SURFACE IGNITION EXPANSIVE GRILLING SURFACE ROTISSERIE SYSTEM SMOKER BOX
FOR MORE
INFORMATION ON
LYNX PROFESSIONAL
PRODUCT FEATURES,
PLEASE VISIT
LYNXGRILLS.COM
INTEGRATED ILLUMINATION CERAMIC BURNER LYNX HOOD ASSIST
PRODUCT DIMENSIONS: WIDTH: 54" / HEIGHT: 25.81" / DEPTH: 34"
CUT OUT DIMENSIONS: WIDTH: 53" / HEIGHT: 10.88" / DEPTH: 24.50"
SHIPPING DIMENSIONS: WIDTH 63.25" / HEIGHT 34" / DEPTH 34"
GAS REQUIREMENTS: SHIPS IN LIQUID PROPANE OR NATURAL GAS
FROM FACTORY
ELECTRICAL REQUIREMENTS: INSTALLATION REQUIRES AN OUTDOOR
120V/15GFI ELECTRICAL OUTLET ADJACENT TO PRODUCT
between accessories
e
H
2 ½”minimum clearance between accessories.
between accessories
D
W
COUNTERTOP NOTCH DETAIL
PRODUCT TECHNICAL SPECIFICATIONS
COOKING CONFIGURATION: BUILT-IN GRILL WITH 1 TRIDENT™ INFRARED
BURNER AND 3 CERAMIC BURNERS AND ROTISSERIE
PRODUCT SPECIFICATIONS & INSTALLATION
FOR EVEN MORE ON THIS PRODUCT AND OTHER COMPLIMENTARY LYNX PRODUCTS, VIST LYNXGRILLS.COM
