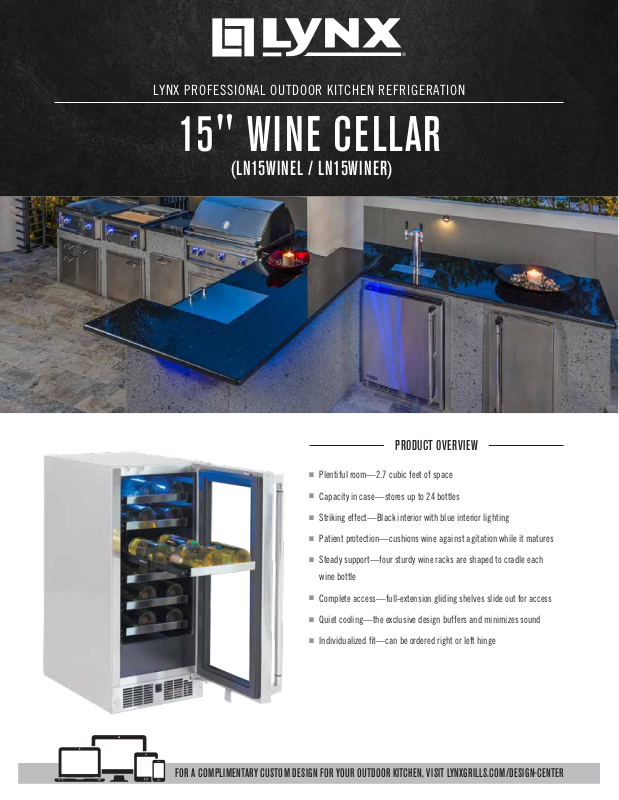

Page 1
LYNX PROFESSIONAL OUTDOOR KITCHEN REFRIGERATION
15" WINE CELLAR
(LN15WINEL / LN15WINER)
PRODUCT OVERVIEW
■
Plentiful room—2.7 cubic feet of space
■
Capacity in case—stores up to 24 bottles
■
Striking effect—Black interior with blue interior lighting
■
Patient protection—cushions wine against agitation while it matures
■
Steady support—four sturdy wine racks are shaped to cradle each
wine bottle
■
Complete access—full-extension gliding shelves slide out for access
■
Quiet cooling—the exclusive design buffers and minimizes sound
■
Individualized fit—can be ordered right or left hinge
FOR A COMPLIMENTARY CUSTOM DESIGN FOR YOUR OUTDOOR KITCHEN, VISIT LYNXGRILLS.COM/DESIGN-CENTER
Page 2
LN15WINE
LYNX OUTDOOR REFRIGERATION
INFORMATION AT-A-GLANCE
PRODUCT DIMENSIONS
If necessary to gain clearance inside
the rough-in opening a hole can be cut
through the adjacent cabi-net and the
power cord routed through this hole to
a power outlet. Another way to increase
the available opening depth is to recess
the power outlet into the rear wall to
gain the thickness of the power cord
plug. Not all recessed outlet boxes will
work for this applica-tion as they are
too narrow, but a recessed outlet box
equivalent to Arlington #DVFR1W is
recommended for this application,
(see below).
SHOWN: DVFR1W
* Depth dimension of rough-in opening may vary depend-ing on each individual installation.
To recess entire door “F” dimension plus 1” (2.5 cm) for thickness of power cord plug is required.
** Minimum rough-in opening required is to be larger than the adjusted height of the cabinet.
# A grounded 15 amp dedicated circuit is required. Follow all local building codes when
installing electrical and appli-ance.
FOR EVEN MORE ON THIS PRODUCT AND OTHER COMPLIMENTARY LYNX PRODUCTS, VIST LYNXGRILLS.COM
