MAKE THE MOST OF YOUR
CARE & USE/INSTALLATION
LPZA and LPZAF Napoli Outdoor Oven
WARNINGS
WARNING
• NEVER USE DENTED, RUSTY OR DAMAGED PROPANE CYLINDERS. NEVER STORE ADDITIONAL OR
EMPTY PROPANE CYLINDERS IN THE OVEN CABINET OR IN THE VICINITY OF THIS OR ANY OTHER
APPLIANCE. DO NOT STORE PROPANE CYLINDERS INDOORS OR ON THEIR SIDES.
• NEVER OPERATE THIS APPLIANCE UNATTENDED OR WITHIN 10FT (3.0M) OF ANY COMBUSTIBLE
STRUCTURE, OR 25FT (7.5M) OF ANY FLAMMABLE LIQUID.
• CHILDREN SHOULD NEVER BE LEFT ALONE OR UNATTENDED IN AN AREA WHERE AN OVEN IS
LOCATED. PLACE YOUR OVEN WELL AWAY FROM AREAS WHERE CHILDREN PLAY. DO NOT STORE
ITEMS THAT MAY INTEREST CHILDREN IN OR AROUND THE OVEN, IN THE CART, OR IN THE MASONRY
ENCLOSURE.
• NEVER MOVE THE OVEN WHEN HOT. WHEN IN USE, PORTIONS OF THE OVEN ARE HOT ENOUGH TO
CAUSE SEVERE BURNS.
• ALWAYS MAINTAIN THE REQUIRED CLEARANCES FROM COMBUSTIBLES AS DETAILED. THE OVEN
IS DESIGNED FOR OUTDOOR USE ONLY. NEVER USE IN A GARAGE, BUILDING, SHED, BREEZEWAY,
OR OTHER ENCLOSED AREA. DO NOT USE THIS OVEN UNDER ANY UNPROTECTED COMBUSTIBLE
CONSTRUCTION.
• GAS OVENS ARE NOT DESIGNED OR CERTIFIED FOR AND ARE NOT TO BE INSTALLED IN OR ON
RECREATIONAL VEHICLES, PORTABLE TRAILERS, BOATS OR ANY OTHER MOVING INSTALLATION.
• ALWAYS HAVE AN ABC FIRE EXTINGUISHER ACCESSIBLE — NEVER ATTEMPT TO EXTINGUISH A
GREASE FIRE WITH WATER OR OTHER LIQUIDS.
• STORING YOUR OVEN: STORE YOUR OVEN IN A WELL-VENTILATED AREA. IF STORED INDOORS,
DETACH AND LEAVE L.P. CYLINDER OUTDOORS IN A WELL-VENTILATED AREA AWAY FROM HEAT AND
AWAY FROM WHERE CHILDREN MAY TAMPER WITH IT.
• KEEP ANY ELECTRICAL SUPPLY CORD AND THE FUEL SUPPLY HOSE AWAY FROM ANY HEATED
SURFACES. ELECTRICAL CORDS SHOULD BE PLACED AWAY FROM WALKWAYS TO AVOID TRIPPING
HAZARD.
• DO NOT REPAIR OR REPLACE ANY PART OF THE OVEN UNLESS SPECIFICALLY RECOMMENDED IN
THIS MANUAL. OTHER SERVICE SHOULD BE PERFORMED BY A QUALIFIED TECHNICIAN.
• IF THE OVEN IS INSTALLED BY A PROFESSIONAL INSTALLER OR TECHNICIAN, BE SURE THAT HE/
SHE SHOWS YOU WHERE YOUR GAS SUPPLY SHUT-OFF IS LOCATED. ALL GAS LINES MUST HAVE A
SHUT-OFF THAT IS READILY AND EASILY ACCESSIBLE. IF YOU SMELL GAS, CHECK FOR GAS LEAKS
IMMEDIATELY. CHECK ONLY WITH A SOAP AND WATER SOLUTION. (SEE INDEX: “LEAK TESTING” FOR
FURTHER DETAILS.) NEVER CHECK FOR GAS LEAKS WITH AN OPEN FLAME.
• INSPECT THE LP GAS SUPPLY HOSE PRIOR TO EACH USE OF THE OVEN. IF THERE IS EVIDENCE OF
EXCESSIVE ABRASION OR WEAR, OR THE HOSE IS CUT, IT MUST BE REPLACED BEFORE USING THE
OVEN.
• NEVER REMOVE THE GROUNDING PRONG FROM THE PLUG OR USE THIS PRODUCT WITH AN
UNGROUNDED, 2-PRONG ADAPTER.
• IF A FIRE SHOULD OCCUR, KEEP AWAY FROM THE APPLIANCE AND IMMEDIATELY CALL YOUR FIRE
DEPARTMENT.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN FIRE, EXPLOSION OR BURN
HAZARD WHICH COULD CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE.
This instruction manual contains importand information necessary for the proper assembly and safe use
of this appliance. Read and follow all warnings and instructions before using the appliance. Follow all
warnings and instructions when using the appliance.
2
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
WARNINGS...continued
WARNING
READ THIS MANUAL CAREFULLY and completely before using your oven to reduce the risk of:
1. Fire
2. Burn hazard, personal injury or property damage
3. Ruined pizza or other unpleasant cooking experiences
4. Unapproved installation or servicing.
THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read this manual thoroughly before installation, use, or servicing of this product.
DANGER
IF YOU SMELL GAS:
1. Shut off all gas supply lines to the oven.
2. Extinguish any open flames.
3. Carefully open the oven door. Remember, it will
be extremely hot!
4. If odor continues, keep everyone away from the
oven and immediately call your gas supplier or
your fire department.
WARNING
1. DO NOT store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
DANGER
S’IL Y A UNE ODEUR DE GAZ:
1. Coupez l’admission de gaz de l’appariel.
2. Éteindre toute flamme nue.
3. Ouvrez soigneusement la porte du four .
Rappelez-vous , il peut être extrêmement chaud!
4. Si l’odeur persiste, éloignez-vous de l’appareil
et appelez immédiatement le fournisseur de gaz
ou le service d’incendie.
AVERTISSMENT
1. Ne pas entreposer ni utiliser de l’essence ni
d’autres vapeurs ou liquides inflammables
dans le voisinage de l’appareil, ni de tout
autre appareil.
2. Une bouteille de propane qui n’est pas
raccordée en vue de son utilisation, ne doit
pas être entreposée dans le voisinage de cet
appareil ou de tout autre appareil.
WARNING! CALIFORNIA PROPOSITION 65
1. The burning of gas cooking fuel generates some by-products which are on the list of substances which are
known by the State of California to cause cancer or reproductive harm.
2. California law requires businesses to warn customers of potential exposure to such substances. To minimize
exposure to the substances, always operate this unit according to the use and care instructions found in this
manual. Be certain to provide adequate ventilation when cooking.
This product complies with ANSI standard Z21.89/CSA 1.18-2013
latest edition and has been tested and approved by Intertek.
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
To obtain replacement parts or service contact:
Lynx Grills, Inc.
7300 Flores Street
Downey, CA 90242
888-289-5969
3
|
A MESSAGE TO OUR CUSTOMERS
LITE
You’ve just joined the world of Lynx cooks … a
discriminating collection of amateur and professional chefs
that take outdoor cooking to a new level.
Your oven has been designed and built with meticulous
attention to detail and it offers some unique and powerful
features. You can achieve maximum performance and
enjoyment of these features only by carefully reading this
manual ... before your first cook-out.
This manual includes important safety tips and great hints
for better cooking. You’ll want to keep it handy for easy
reference.
Also, at Lynx, we enjoy hearing from our customers. We
like to hear about your successes but also about any
difficulties you are having. Please feel free to contact us
with any questions or problems, or just to share a new
recipe. Please include the model number of your oven in
your correspondence.
With the proper use and care this product will provide
years of trouble-free service.
Should your Lynx oven change ownership, please make
sure that the new owner receives this manual.
Thanks again for your purchase. Enjoy!
HOW TO LIGHT YOUR NAPOLI OUTDOOR OVEN
Note: The main burners feature safety control valves with thermocouple sensors that automatically shut off
the flow of gas if the burner goes out for any reason.
1. Before each use, complete the checklist below.
2. Make sure all burner control knobs are in the “OFF” position.
OFF
3. Push and hold the control knob for 5 – 7 seconds.
4
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
HOW TO LIGHT YOUR NAPOLI OUTDOOR OVEN...continued
4. Turn the knob to the “LITE” position and continue to hold the knob in for an additional 10 – 20 seconds to allow the
thermocouple to heat up and keep the safety valve open.
LITE
5. If the burner should go out, turn the knob off for 1 minute and repeat steps 3 and 4.
CHECKLIST BEFORE EACH USE (FOR YOUR SAFETY)
• Do you smell gas? If yes, shut off everything and call the
gas company or a qualified plumber to check for leaks, if
not please continue.
• Are you prepared to stay with the oven during the entire
cooking process? If not, gather what you need before
starting the lighting process. If yes, please continue.
• Is your cooking area free and clear of any combustibles,
besides your food, that might ignite? If no, clear the
area before starting the lighting process, If yes, please
continue.
• Do all control knobs turn freely? If not, call for service, if
yes, please continue.
• If you are using a portable propane cylinder, is it
connected and leak tested? If not, check the connection
before continuing. If yes please continue.
• Do you know where your oven’s main gas supply shut off
valve is located? If not, locate it before continuing. If yes,
please continue.
• Is the wind blowing just lightly and not blowing on the
front of the oven? If not, you could wait until the wind
subsides, or you can reposition the oven so that wind
blows into the back. Another option is to reposition the
vent exhaust opening to face forward or backward as
needed.
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
5
|
TABLE OF CONTENTS
HOW TO LIGHT YOUR OVEN 4
A MESSAGE TO OUR CUSTOMERS 4
CHECKLIST BEFORE EACH USE 5
USE & CARE GUIDELINES 7
Lynx Oven Models 7
IMPORTANT SAFETY PRECAUTIONS 8
BEFORE YOU START 9
If Shipment Arrives Damaged 9
Important Notes 9
UNPACKING & ASSEMBLY 10
BAKING IN WINDY CONDITIONS 11
USING YOUR LYNX OVEN 12
Pre-Bake Checklist 12
Cooking Suggestions 13
Lighting your Oven 15
CLEANING YOUR LYNX OUTDOOR OVEN 16
TROUBLESHOOTING YOUR LYNX OVEN 17
Potential Problems 17
Contacting Lynx Customer Care 20
The Lynx Story 20
LYNX LIMITED WARRANTY 21
LYNX COMMON AREA LIMITED WARRANTY 22
SPECIFICATIONS & INSTALLATION 24
GAS CONNECTIONS 26
Natural Gas 26
LP Gas 27
ELECTRICAL CONNECTIONS 29
FINAL CHECKS 30
Leak Testing 30
WIRING SCHEMATICS 31
LYNX PROFESSIONAL EXPLODED PARTS VIEW 32
LYNX PROFESSIONAL PARTS LIST 33
MODEL-SPECIFIC BTU OUTPUTS & MAX. RUNS FOR APPLIANCES 34
INDEX 35
6
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
LYNX OVEN MODELS
USE & CARE GUIDELINES
This use & care manual covers the Lynx Napoli Outdoor Oven models listed below. Some features and options will
vary based upon the model that you purchased.
BUILT-IN FREESTANDING
LPZA LPZAF
COUNTER TOP MODELS
LPZA
The Napoli Outdoor Oven comes equipped
with legs ready for counter top installation. For
built-in applications remove the legs and follow
the cut out dimensions found in this manual.
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
7
|
IMPORTANT SAFETY PRECAUTIONS
PLEASE REVIEW THESE IMPORTANT SAFETY PRECAUTIONS BEFORE YOU USE YOUR
OVEN.
1. NEVER LEAVE THE OVEN UNATTENDED WHILE
COOKING.
2. Always use caution when operating the oven in a windy
area. (See INDEX: “Baking in Windy Conditions” for
further details.)
3. Avoid wearing loose-fitting garments or long sleeves
while baking. They could ignite.
4. Never touch the hot surfaces or immediate surrounding
metal surfaces with your bare hands while baking.
5. Use an insulated glove or mitt when opening and
operating the oven.
6. Do not heat unopened food containers as pressure
build-up will cause the container to explode.
7. Inspect the LP hose before each use. If the hose shows
excessive wear or abrasion, or the hose is cut it must
be replaced with a hose assembly available from Lynx
Grills.
8. Never use charcoal or any other solid fuel in the oven.
12. Do not lean on side shelves and never place a load
weighing more than 25 pounds on a side shelf.
13. If any burner does not light or goes out during
operation, turn off all gas control knobs, open the oven
and wait five (5) minutes before attempting to re-light.
14. Portable LP cylinders: Always shut off the main valve on
the LP cylinder after each use.
COLD WEATHER WARNING:
PROPANE
Extremely cold temperatures may cause your
burners to light inside the burners instead of
outside. Once lit, if you hear a ‘whooshing’
sound, immediately turn the burner knobs OFF
to extinguish the flame. Wait 1 minute and then
re-light the burners.
9. Spiders and insects like to nest in the burners, venturis,
valves and orifices of an oven, disrupting the gas flow.
This very dangerous condition can cause a fire behind
the control panel, damaging the oven and risking
personal injury. If your oven has been unused for a long
time, inspect and clean the venturis, valves and orifices.
10. Do not use the oven unless a leak check has been
performed on all gas connections. (See INDEX: “Leak
Test Procedure” for further details.)
11. Never operate the oven while under the influence of
alcohol or drugs.
USE CAUTION WHEN OPENING
OR REMOVING THE DOOR
The oven door and handle can become very hot
and may cause injury. Use oven grade insulated
gloves or mitts and utensils when handling the
door.
8
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
BEFORE YOU START
IMPORTANT NOTES
HOW LONG IS YOUR RUN?
Keep all gas supply lines as short as possible because
gas lines lose pressure over distance and with each elbow
and tee that is added. This drop in pressure affects oven
performance. (See INDEX: “Gas Supply Line Runs” for
further details.)
ARE YOU “ON-THE-LEVEL”?
Proper leveling during installation is critical. An oven that
is out of level will cause erratic burner combustion and
inefficient, uneven heating. A carpenter’s spirit level should
be used to level the oven both front-to-back and
side-to-side.
If the floor is uneven or has a decided slope, re-leveling
may be required each time you move a freestanding unit.
WARNING
• Never locate the oven under a unprotected roof or overhang, in a building, garage, shed or other such enclosed
area.
• Never locate the oven under any unprotected combustible construction.
• Installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Natural Gas and propane Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2, in Canada.
IF SHIPMENT ARRIVES DAMAGED
VISIBLE LOSS OR DAMAGE
Be certain any visible damage to the carton is noted on
freight bill or express receipt and signed by the person
making delivery.
FILE CLAIM FOR DAMAGES IMMEDIATELY, regardless of
extent of damage.
CONCEALED LOSS OR DAMAGE
If damage is unnoticed until the oven is unpacked, notify
the transportation company or carrier immediately and
file a “concealed damage” claim with them. This should
be done within (15) days of the date delivery is made to
you. Be sure to hold on to the container for inspection. We
cannot assume responsibility for damage or loss incurred
in transit. (See INDEX: “Obtaining Service from Lynx” for
further details.)
Shipping receipts should be signed “not inspected for
concealed damage.”
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
9
|
The oven arrives nearly ready to use and requires only
UNPACKING & ASSEMBLY
minor assembly.
By carefully following the uncrating and unpacking steps,
you will improve the customer’s first Lynx experience.
Shipping weight on smaller units is app. 300 pounds and
larger units may weigh over 500 pounds.
One way to safely move
the cart off of the pallet
is by lifting one end of
the oven high enough to
place a ramp under the
wheel and then lift the
other end while rolling
the oven off of the pallet.
WARNING:
EXCESSIVE WEIGHT HAZARD!
Use two or more people to move or install this
unit. Failure to follow this instruction can result in
back or other personal injuries.
CRATE & CARTON
• IMPORTANT! Do not remove staples around the top of
the carton. These staples hold a wooden pallet in place
inside the carton that protects the unit from damage.
Removing these staples may cause the pallet to fall on
the top of oven.
The LPZA Outdoor oven can be used as a freestanding
model when used with the LPZAF cart assembly (available
separately).
The cart assembly comes fully assembled and provides a
convenient counter space to mount your oven. The oven is
mounted on the counter top without the use of fasteners
and provides ample counter space and storage space for
all of your tools and accessories.
INTERIOR PACKING
Lynx uses sturdy tie-down cables and straps to ensure your
oven arrives at your home in the same condition that it
left our factory. BE SURE YOU HAVE REMOVED ALL TIE
DOWNS BEFORE USING YOUR OVEN.
Remove any loose items from the packaging and firebox.
How to Remove the Carton
1. Cut the main strap holding the oven to the pallet.
2. Remove the staples at the bottom of the carton.
3. Lift off the carton.
4. With assistance, remove the oven from the pallet and
place into desired location.
The wheels of the LPZAF cart sit down in the gaps of the
shipping crate so the cart can sit safely and solidly on the
crate during shipping. The cart cannot be slid directly off of
the pallet.
10
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
Cart will not
slide directly
off pallet.
BAKING IN WINDY CONDITIONS
Outdoor cooking can create more heat than interior
kitchen ranges.
These high-performance burners require a constant, steady
supply of fresh air to mix with the fuel. Your Lynx oven pulls
air in through the front and vents hot gases out through the
vent stack.
Air enters through the front of the oven.
Using your oven in windy conditions may disrupt the air
flow. If, while using your oven burners on high and the door
closed, you notice that the temperature gauge fails to rise
... be careful. If wind has kept hot gases from exiting the
rear of the oven the control panel and knobs may have
become extremely hot.
But there are a few things you can do to further prevent
the possibility of improper heat buildup:
• If you suspect the oven is overheating, using an oven
mitt, open the front door. Then adjust the burner control
knob to a lower setting.
• Install your oven with a wind break behind it.
• Reposition the exhaust stack to face away from the
prevailing wind.
Please Note: Any damage caused from use in windy
conditions, such as melted knobs or igniter wires,
or control panel discoloration from heat buildup, is
excluded from warranty coverage.
Your Napoli Outdoor Oven is provided with a reversible
oven exhaust vent which can be configured to vent to
the front or to the rear. The stack can be repositioned to
minimize wind disruption.
To reverse the exhaust vent direction simply lift the vent
from the oven mounting position and turn it around to face
the opposite direction. The vent will rest in place without
the use of fasteners. Be sure oven is off and cooled before
reversing the vent stack.
NOTE: Do not operate the oven with the exhaust vent
removed.
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
11
|
USING YOUR LYNX OUTDOOR OVEN
Best results are achieved when the outdoor oven is allowed
PRE-BAKE CHECKLIST
to preheat a minimum of 35 minutes with the door closed
for best performance. Allow a little more time for colder
ambient temperatures.
With the burners on high the outdoor oven internal
temperature can reach 700 °F to 800 ° F. After preheating,
a medium high setting is an ideal temperature for preparing
thin and medium crust pizza. Cooking time will be
approximately 4 minutes and remember to rotate the pizza
often for even heating.
With the burners set from medium to low the internal
temperature can reach 300°F to 500°F. This is suitable for
cooking medium to deep dish pizzas, calzones, roasts and
slow baked items. Cooking times will be 8 to 10 minutes.
Remember to rotate your pizzas a couple times during
baking for even doneness. Thick pizzas can take up to 20
–30 minutes depending on the thickness of the dough.
Avoid baking greasy or fatty food directly on the oven deck.
When preparing these types of meals cooking utensils, such
as cookie sheets, pots and pans, should be used.
When cooking roasts and vegetables it is best to preheat
your cooking utensils prior to placing in the oven.
BEFORE YOUR FIRST USE
There are a few must-check safety precautions to consider
before you use your oven. Please be sure that:
• All packing materials and tie-downs have been removed.
(See INDEX: “Unpacking and Assembly” for further
details.)
• You have fuel connected. (See INDEX: “Gas
Requirements” for further details.)
• You have electricity connected. (See INDEX: “Electric
Requirements” for further details.)
• A qualified plumber has performed a leak test on all the
fittings that supply fuel to your oven.
• IF YOUR OVEN DOES NOT LIGHT IN 4 TO 5 SECONDS
you may need to purge the line. (See INDEX: “Purging
the Gas Line”
AT EACH NEW SEASON
At the start of each new outdoor cooking season you
should remove and check the venturis, orifices and valves
for obstructions.
Spiders and insects often nest in these areas of the oven
and can disrupt air flow, causing damage to the oven and
personal injury.
Also, check all hoses and fittings for damage, abrasion,
wear and tear.
BEFORE EACH USE
Before any use, always make sure that:
• ... you do not smell gas before you light the oven. If you
do smell gas, shut everything off and have a qualified
plumber check for leaks.
• … the cooking area is free and clear of any combustibles,
besides your food, that might ignite.
• … the control knobs turn freely.
• … if you are using a portable propane cylinder, it is
securely connected and leak tested. (See INDEX:
“Cylinder Retention Instructions” for details.)
• … you know where the main gas supply shut-off is
located.
• … the burners are seated properly in the oven. The main
burners must sit flush and firmly on the burner mounting
support frame. (See INDEX: “Unpacking and Assembly”
for further details.)
• … wind is not blowing too strongly or blowing on the
front of oven.
12
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
COOKING SUGGESTIONS
NO-COOK PIZZA SAUCE
1 28 oz. Can of San Marzano Tomatoes. Do not drain, use tomatoes and liquid.
1 Tsp Salt
1/2 Tsp Sugar
1 Tsp Minced Garlic
1 Tsp Oregano, dry
1 Tbsp Basil, fresh, finely chopped
Directions for Pizza Sauce:
1. Blend all ingredients in a blender, except for basil.
2. Mix in freshly chopped basil and store in an air tight container in the fridge until needed.
PIZZA DOUGH
Makes 1 large pizza.
1 teaspoon yeast
1⁄2 cup warm water (around 110 degrees F)
1 1⁄2 cups all-purpose flour
2 teaspoons sugar
1 teaspoon salt
2 tablespoon extra virgin olive oil plus 1 teaspoon for coating
Directions for Dough:
1. Pour water in an electric mixer’s bowl and dissolve the yeast in the water and set aside for 5 minutes.
2. Pour in all the remaining ingredients and mix on the 2nd lowest setting using the hook attachment for 2 to 3 mins until
the dough is smooth.
3. Oil the dough and the interior of the mixing bowl. Place the dough ball back in the bowl and cover it with plastic
wrap. Let dough rise at room temperature for 2 hours.
4. Punch down the dough, form a round ball again with the dough and return it to the same bowl, cover again and let it
rise for 1 more hour. Dough is ready to be used.
5. Pre-heat outdoor oven to 600 F. Build your pizza with pizza sauce, fresh mozzarella cheese and your favorite toppings.
Pizza should cook for about 5 minutes or until lower crust is set and crispy.
Enjoy!
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
13
|
Make sure the oven is properly preheated before cooking your pizza to prevent sticking to the pizza deck. Similarly, do not
COOKING SUGGESTIONS ...continued
use frozen pizza in the oven to prevent sticking and overcooking.
Pizzas should not be prepared until ready to go into the oven. Pizzas allowed to sit will tend to stick to the pizza peel or
counter top.
Cook most medium and smaller pizzas directly on the oven deck at higher temperature for 4 to 8 minutes.
Larger and thicker pizzas can be cooked on a pizza rack or pizza pan at lower temperature for longer bake times.
Keep pizzas centered in the oven for best results
Using excessive toppings on pizzas may result in overcooking before the toppings are done, or soggy pizza centers.
To prevent pizza dough from sticking to the pizza peel or the oven deck use corn meal or flour spread on the deck and
peel surfaces. Be sure to brush away any remaining corn meal or flour from the oven deck prior to cooking another pizza.
During cooking rotate the pizzas often to achieve uniform doneness. Use the pizza peel or long handled tongs. Tongs are
useful to lift the pizza to check for crust doneness.
14
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
LIGHTING YOUR OVEN
WARNING
1. Never attempt to light a burner if you smell gas.
2. Remove the oven door, or pull out the baking tray when lighting your outdoor oven.
3. Releasing fuel into a closed oven before lighting will increase the risk of explosion, property damage , personal
injury or death.
4. Keep your face and body as far from the oven as possible when lighting. Any time a burner doesn’t light within
5 seconds, turn off the control, wait 5 minutes for gas to dissipate, and repeat the lighting procedure.
5. YOU NEVER LEAVE THE OVEN UNATTENDED WHILE COOKING.
ELECTRIC IGNITION
Before proceeding, make sure you have completed the
“Before Each Use” checklist.
Follow these steps to light any of the burners on your oven:
First, make sure all burner control knobs are set to OFF.
The oven burner features a thermocouple sensor with a
safety valve that automatically shuts off the flow of gas if
the burner goes out.
The burners can be manually lit with a kitchen match in the
event of an ignitor failure. Light a kitchen match and hold
it at the front edge of the burner and turn the gas control
knob to the light position.
After ignition CONTINUE HOLDING THE CONTROL KNOB
IN for 10 to 20 seconds. During this time the thermocouple
will heat up and the safety valve will remain open.
If you release the control knob before the thermocouple
has heated up, the safety valve will shut off the flow of gas
to the oven burner and you will have to re-light the burner.
To light the oven burner, push and hold the control knob
in for 2 seconds and then turn the knob to the “LITE”
position.
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
15
|
STAINLESS STEEL
CLEANING YOUR LYNX OVEN
Lynx products are known for their attractive appearance.
We achieve this by selecting only the finest grades of
stainless steel and applying exacting workmanship.
In order to maintain this attractive appearance over the life
of the oven it is important to take the following steps:
• After each use wipe down the exterior of the oven to
remove grease and splatters.
• Be sure to follow the cleaning instructions for keeping the
cooking surface clean and ready for use.
• Use a commercially available Stainless Steel cleaner to
clean and polish the exterior surfaces.
Doing these things on a regular basis minimizes the
amount of effort required.
Part of the appeal of your Lynx oven is the fine grain finish.
When removing stubborn stains:
SPECIAL NOTE FOR LOCATIONS NEAR POOLS AND
COASTAL AREAS
The 304 stainless steel material used in the construction of
a Lynx oven is highly rust resistant, however, chlorine in the
air from swimming pools or the salt from sea air may cause
surface rust to appear and even create some pitting if left
on the product.
Here are a few tips to avoid this:
• Regularly wipe down the exterior surfaces with a
damp cloth. (Micro fiber cloths such as Ecloth perform
very well).
• Allow the surfaces to dry before installing the cover. Do
not cover a damp oven.
• In extreme environments apply a rust inhibitor which
leaves a microscopic protective layer on the oven.
Products that provide a layer of vapor corrosion inhibitors
(VpCI™) protect the surface very well.
• Do not use metallic abrasives and always rub in the
direction of the grain.
• Some household cleaning products are not suitable for
stainless steel; be sure to read the label before using on
your Lynx oven.
• Always use the mildest cleaning solution first, scrubbing
in the direction of the grain. Specks of grease may gather
in the grain of the stainless steel and bake on to the
surface, giving the appearance of rust.
To remove these baked-on foods use a fine to medium
grit non-metallic abrasive pad (Scotch Brite is good) in
conjunction with a stainless steel cleaner.
• For seasonal storage use the product referred to above,
ensure the oven is dry and then cover and secure the
cover to minimize the amount of damp air getting to the
surfaces.
THE LYNX LIMITED LIFE TIME WARRANTY PROVIDES
PROTECTION AGAINST RUST THROUGH OF PARTS THAT
RENDER THE PRODUCT INOPERATIVE. IT DOES NOT
COVER OCCASIONAL SURFACE RUST OR STAINING DUE
TO ENVIRONMENTAL CONDITIONS.
After your first use certain areas of the oven may discolor
from the intense heat given off by the burners - this is
normal and cannot be cleaned off.
For light and heavy food stains there are many different
stainless steel cleaners available.
• Solutions used for cleaning concrete and masonry
can be very corrosive and will ‘attack’ stainless steel.
Ensure your Lynx products are well protected before
you allow the use of such chemicals near your oven.
16
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
BEFORE YOU CALL FOR SERVICE
TROUBLESHOOTING YOUR LYNX OVEN
POTENTIAL PROBLEMS
Please check a few things before calling for service:
• Is there fuel supplied to the oven?
• Is the main shut-off valve open?
• Are you using the correct type of fuel? (LP or Natural Gas)
(See INDEX: “Gas Requirements” for further details.)
OVEN WON’T LIGHT
First, confirm that the oven is getting electricity by turning
on the lights, then:
Check The Igniters
Your Lynx oven uses an electric ignition system that does
not spark. Instead, the igniters will glow constantly when a
control knob is turned ON.
• Ensure that all burners are set to OFF.
• Is your propane cylinder empty? Have you recently
refilled the propane cylinder? If so, is the connection
tight?
• Have you opened the valve on the propane cylinder?
• Is the oven plugged in to a live electric circuit?
If you’ve checked the above items, review the
troubleshooting list below before calling for Lynx for
service.
If match lighting doesn’t work, re-check fuel connections
for leaks and ensure the supply is of the correct type and is
of adequate pressure. (See INDEX: “Leak Test Procedure”
for further details.)
If the burner will light with a match, then the igniter may
not be functioning correctly. Call for service.
If the burner will not match light, and you know you are
getting gas, wait for any gas to dissipate and remove the
burner and check it for blockages.
• Remove the oven door, or pull open the drawer.
• Turn the burner knob ON and wait approximately 1
minute for the igniter to glow.
• Check all igniters. If they do not glow, proceed with
trouble shooting.
Check The Burners
If the igniters are working check to see if gas is reaching
the burners by attempting to match light a burner.
BE CAREFUL! IF THE BURNER FAILS TO IGNITE, WAIT
5 MINUTES BEFORE ATTEMPTING TO IGNITE OTHER
BURNER! (See INDEX: “Match Lighting” for further details.)
SMELL OF GAS WHILE COOKING
IF YOU SMELL GAS WHILE THE OVEN IS OPERATING,
IMMEDIATELY TURN OFF ALL BURNERS AND SHUT OFF
THE MAIN FUEL SUPPLY.
• Perform a leak test (See INDEX: “Leak Test Procedure” for
further details.)
• Check for blockages
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
17
|
LOW OR INSUFFICIENT HEAT
POTENTIAL PROBLEMS ...continued
To reset the flow control:
Ensure that you’ve preheated the burner(s) for at least 20 to
35 minutes with the door closed.
Proper leveling during installation is critical. An oven that
is out of level will cause erratic burner combustion and
inefficient, uneven heating. A carpenter’s spirit level should
be used to level the oven both front-to-back and side-toside.
If the low heat problem persists:
• Check the gas supply line sizing requirements.
• Check the gas supply line for kinks or damage.
• Check the burner control for proper operation.
REPLACE any damaged supply lines.
• Check the Regulator
Make sure that the regulator & hose assembly is the one
designed for and supplied with your Lynx oven and that it
is correctly set up for the type of fuel you are using. (See
INDEX: “Regulator Conversion” for further details.)
The hose and regulator provided by Lynx must be used if
your oven is set-up for an LP Gas Cylinder.
Check that there is no physical pressure being applied
to the regulator attached to the back of the oven. The
regulator contains a flexible diaphragm and should not be
allowed to touch the oven body or its surroundings.
• Check for Obstructions
Ensure that the burners are clean and free from
obstructions.
LP (Propane) units:
• Is the cylinder almost empty?
Almost-empty cylinders may not have sufficient pressure to
run the burners at high heat.
• Have the line pressure checked by a qualified technician
(See INDEX: “Gas Requirements” for further details.)
• Flow Limiting Device
Improper lighting procedures may have activated the LP
cylinder’s flow control device, reducing the heat output.
• Shut off all burner controls and close the LP cylinder
valve.
• Wait 30 seconds and, very slowly, reopen the cylinder
valve.
• Wait a few seconds and relite a burner.
Bulk LP Cylinder Users
Bulk LP cylinder lines must be properly regulated.
Ensure that you are using a 4/11 appliance regulator
supplied by Lynx and converted to LP gas. Also ensure that
you do not have more than one regulator in line.
Natural Gas units:
• Supply Line
Ensure that the supply line is at least 3/4” inside diameter
or 1” outside diameter.
• Check line pressure
Natural gas inlet pressure should be at least 7” W.C. and
manifold pressure not less that 4” W.C. under full load (with
all burners on.)
• Check burners for blockages
• Check flame characteristics. (See INDEX: “Flame, Correct
Size”)
LIGHTS WON’T LIGHT
• Check Power
Ensure that the oven is connected to a live AC power
source.
• Reset Transformer
Disconnect power from the oven and wait 5 minutes for the
transformer to cool down and reset. Then reconnect power.
If, after resetting the transformer and replacing bulbs, you
still do not have power, call for service.
• Replace the Bulb
Replacement bulbs are halogen, 12 volt,
10W max, T3 type with a G4 bi-pin, and
are readily available at most stores. The glass cover is held
18
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
POTENTIAL PROBLEMS ...continued
in place by two spring tension tabs. The bulbs are easily
See-through side panel view of the burner venturi and orice
Orice
Burner Venturi
removable without the use of tools. Simply grasp the glass
lens at the outer corners, near the front tension clips and
push the lens back. Then, swing the lens down and pull
it loose. You may have to loosen the screw to remove the
lens.
Pull on
spring
tabs to
release
light
cover
Avoid touching the glass of a new bulb. Halogen bulbs are
very sensitive to the oils found in human skin. Touching the
bulbs may shorten their life.
Pull the bulb straight out from the socket without twisting.
Hold the bulb using a paper towel or other cloth and gently
press it straight into the socket. The glass cover should be
gently snapped back into place.
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
19
|
CONTACTING LYNX CUSTOMER CARE
Before calling Lynx Customer Care, please make sure you
have the following information:
• Model number
• Date of purchase
• Proof of purchase by the original owner
• Serial number
The serial number can be located on the rating plate which
is located in this Care and Use Manual, and on the bottom
of the oven enclosure. Pull out the bottom cooking deck to
access the rating plate.
For warranty service, contact the Lynx Customer Care
Department for an authorized service agent near you at:
(888) 289-5969
Your satisfaction is of the utmost importance to us. If a
problem cannot be resolved to your satisfaction, please
write, fax or email us:
Lynx Professional Grills
7300 Flores Street
Downey, CA 90242
Service: (888) 289-5969
Tel: (562) 299-6900
Fax: (562) 299-6978
www.lynxgrills.com
Contact Lynx for replacement parts. Parts are shipped
F.O.B. Downey, CA.
www.lynxgrills.com
THE LYNX STORY
Lynx began with a vision.
A small group of manufacturing engineers with over a
century of collective experience had a dream. They dared
to take their extensive commercial manufacturing know-how
and create a line of outdoor cooking products that offer
commercial elegance and performance to the consumer
market.
Lynx has taken the quality,
workmanship, service
and innovation of the
commercial market and
incorporated it into the
Lynx Professional Grills
line of consumer and
commercial products.
The combination of
creative design, superior
materials and exceptional
craftsmanship elevates
Lynx products to a class of
their own.
Lynx original commercial products are used every day in
restaurants, hotels and theme parks across the USA:
LYNX SATISFIED CUSTOMERS
• TGI Fridays
• Applebee’s
• Houston’s
• Red Lobster
• Hard Rock Café
• Wolfgang Puck’s
• Cheesecake Factory
• Red Robin
• Planet Hollywood
• Hilton
• Hyatt
• Four Seasons Marriott
Le Meridian
• Sheraton
• Conrad International
• Bellagio
• New York New York
• MGM Grand
• Treasure Island
• Mirage
• Paris
• Venetian
• Excalibur
• Mandalay Bay
• Riviera
• Desert Inn
• Hard Rock Hotel
• Disney World
20
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
LYNX LIMITED WARRANTY
I. Limited Lifetime Warranty
The stainless steel body and the burners are warranted
to be free from defects in material and workmanship
when subjected to normal domestic use and service for
the life of the original purchaser. This warranty excludes
surface corrosion, scratches, and discoloration which may
occur during normal use. This warranty is limited to the
replacement of the defective parts, with the owner paying all
other costs including labor, shipping and handling.
II. Limited Five-Year Warranty
The following oven parts are warranted to be free from
defects in material and workmanship, when subjected to
normal domestic use and service, for a period of five (5) years
from the original date of purchase; manifolds, gas valves
and refractory dome and base. This warranty is limited to the
replacement of the defective parts, with the owner paying all
other costs including labor, shipping, and handling.
III. Limited Two-Year Warranty
All other oven components are warranted to be free from
defects in material and workmanship, when subjected to
normal domestic use and service, for a period of two (2)
years from the original date of purchase. This warranty is
limited to the replacement of the defective parts, with the
owner paying all other costs including labor, shipping and
handling.
IV. Limited One-Year Warranty.
contained in this manual, or the local codes.
5) Lynx shall not be liable for incidental, consequential,
special or contingent damages resulting from its breach of
this written warranty or any implied warranty.
6) Some states do not allow limitations on how long an
implied warranty lasts, or the exclusions of or limitations
on consequential damages. This warranty gives you
specific legal rights and you may have other rights which
vary from state to state.
7) No one has the authority to add to or vary Lynx’s warranty,
or to create for Lynx any other obligation or liability in
connection with the sale or use of its products.
8) Limited to the replacement of defective parts with the
owner paying all other costs including labor.
9) This Warranty does not apply to normal wear and tear.
Note that all refractory materials will form small cracks
over time. These cracks will not affect the performance of
the oven.
V. What is not covered: Lynx shall not be responsible for
and shall not pay for the following:
1) Installation or start-up, damages or problems caused by
improper installation or use;
2) Service by an unauthorized service provider;
3) Damage or repair due to service by an unauthorized
service provider or use of unauthorized parts;
For a period of one (1) year from the original date of
purchase, Lynx will replace or repair parts found to be
defective at no cost to the original purchaser. This includes
the cost of shipping replacement parts and, where necessary,
service labor at prevailing local rates by a Lynx authorized
service person. Service will be provided during normal
business hours and must be authorized in advance by Lynx.
IV. Limitations & Exclusions
1) This Warranty shall apply to products purchased and
located in the United States and Canada. Products must
be purchased in the country where service is requested.
2) Warranty applies only to the original purchaser and may
not be transferred.
3) Warranty is in lieu of all other warranties expressed or
implied and all other obligations or liabilities related to
the sale or use of its oven products.
4) Warranty shall not apply and Lynx is not responsible
for damage resulting from misuse, abuse, alteration
of or tampering with the appliance, accident, hostile
environment, flare-up fires, improper installation, or
installation not in accordance with the instructions
4) Warranty does not apply to products installed in any
commercial or non-residential application. Examples
of excluded applications include, but are not limited to
day care centers, schools, bed and breakfast centers,
churches, private clubs, fire stations, club houses,
common areas in multi-family dwellings, restaurants,
hotels, nursing homes, food service locations and
institutional food service locations.
5) To correct normal adjustments or settings, due to
improper installation, commissioning or local gas supply
properties.
6) Shipping and handling costs, export duties, installation,
removal, or re-installation cost.
7) Display models are sold “as is”. If you have purchased
a display model, please be advised that it is sold “as is”
and that it is subject to the following warranty exclusions:
any exterior or cosmetic damage is non-warrantable;
any missing components will be replaced at consumer’s
expense; major handling damage to manifold, valve and
ignition system will be serviced at consumer’s expense; all
other warranty’s (standard warranty) will remain in effect.
8) The cost of a service call to diagnose trouble.
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
21
|
LYNX COMMON AREA LIMITED WARRANTY
The Lynx Limited Warranty covers residential installations
only and is non-transferable to any other party. This ‘nonresidential’ warranty applies when the product is installed in
common areas where more than a single party has rightful
access to its use or in locations considered beyond normal
residential use such as B&B’s, and private clubs.
THIS PROVISION EXCLUDES ALL COMMERCIAL
APPLICATIONS, INCLUDING, BUT NOT LIMITED TO
RESTAURANTS AND INSTITUTIONAL FOOD SERVICE
LOCATIONS.
I. Limited Five-Year Warranty
The stainless steel body and the burners and the refractory
dome and base are warranted to be free from defects
in material and workmanship when subjected to normal
domestic use and service for a period of 5 years from the
date of purchase of the original purchaser. This warranty
excludes surface corrosion, scratches, and discoloration
which may occur during normal use. This warranty is limited
to the replacement of the defective parts, with the owner
paying all other costs including labor, shipping and handling.
II. Limited One-Year Warranty
The structural integrity of the interior oven parts, exterior,
and drip pans are warranted to be free from defects in
material and workmanship, when subjected to normal
domestic use and service, for a period of one year from the
date of purchase. This warranty is limited to the replacement
of the defective parts, with the owner paying all other costs
including labor.
4) Warranty shall not apply and Lynx is not responsible
for damage resulting from misuse, abuse, alteration
of or tampering with the appliance, accident, hostile
environment, flare-up fires, improper installation, or
installation not in accordance with the instructions
contained in this manual, or the local codes.
5) Lynx shall not be liable for incidental, consequential,
special or contingent damages resulting from its breach of
this written warranty or any implied warranty.
6) Some states do not allow limitations on how long an
implied warranty lasts, or the exclusions of or limitations
on consequential damages. This warranty gives you
specific legal rights and you may have other rights which
vary from state to state.
7) No one has the authority to add to or vary Lynx’s warranty,
or to create for Lynx any other obligation or liability in
connection with the sale or use of its products.
8) Limited to the replacement of defective parts with the
owner paying all other costs including labor.
V. What is not covered: Lynx shall not be responsible for
and shall not pay for the following:
1) Installation or start-up, damages or problems caused by
improper installation or use;
2) Service by an unauthorized service provider;
3) Damage or repair due to service by an unauthorized
service provider or use of unauthorized parts;
III. Limited Parts & Labor Warranty
All other oven components are warranted to be free from
defects in material and workmanship for a period of 90
days from the original date of purchase. Lynx will replace or
repair parts found to be defective at no cost to the original
purchaser. After the 90 day period Lynx will sell parts to
the holder of this warranty at Lynx contractor prices for an
additional 9 months.
IV. Limitations & Exclusions
1) This Warranty shall apply to products purchased and
located in the United States and Canada. Products must
be purchased in the country where service is requested.
2) Warranty applies only to the original location of
installation and may not be transferred.
3) Warranty is in lieu of all other warranties expressed or
implied and all other obligations or liabilities related to
the sale or use of its oven products.
4) To correct normal adjustments or settings, due to
improper installation, commissioning or local gas supply
properties;
5) Shipping and handling costs, export duties, installation,
removal, or re-installation cost.
6) Display models are generally sold “as is.” If you have
purchased a display model, please be advised that it is
sold “as is” and that it is subject to the following warranty
exclusions: any exterior or cosmetic damage is nonwarrantable; any missing components will be replaced at
consumer’s expense; major handling damage to manifold,
valve and ignition system will be serviced at consumer’s
expense; all other warranty’s (standard warranty) will
remain in effect.
7) The cost of a service call to diagnose trouble.
22
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
WARNINGS
WARNING
1. Always maintain the required clearances from combustible construction as detailed. The oven is designed for
outdoor use only. Never use in a garage, building, shed, breezeway or other enclosed area. This oven shall
not be used under any unprotected overhead combustible construction.
2. Gas ovens are not design certified for and are not to be installed in or on recreational vehicles, portable
trailers, boats or any other moving installation.
3. Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. Electrical cords
should be placed away from walkways to avoid creating a tripping hazard.
4. Do not repair or replace any part of the oven unless specifically recommended in this manual. Other service
should be performed by a qualified technician.
5. All gas lines must have a shut-off that is readily and easily accessible. Be sure the owner knows where the
shut-off is located. If you smell gas, check for gas leaks immediately. Check only with a soap and water
solution. Never check for gas leaks with an open flame. (See INDEX: “Leak Testing” for further details.)
WARNING
1. The outdoor cooking gas appliance and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of 0.5 psi (3.5 kPa).
2. The outdoor cooking gas appliance must be isolated from the gas supply piping system by closing its
individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures
equal to or less than 1/2 psi (3.5 kPa).
STATE OF MASSACHUSETTS
1. Massachusetts requires all gas be installed using a plumber or gas fitter carrying the appropriate
Massachusetts license.
2. All permanently-installed natural gas or propane installations require a “T” handle type manual gas valve be
installed in the gas supply line to this appliance.
3. This does not apply to portable propane installations using a 20 pound cylinder.
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
23
|
BUILT-IN INSTALLATIONS
SPECIFICATIONS & INSTALLATION
OVERHEAD PROTECTION AND EXHAUST REMOVAL
The Lynx Built-In oven is designed for easy installation into
masonry enclosures.
NOTE: Lynx outdoor ovens are intended for installation
in a built in masonry enclosure or mounted to a noncombustible counter or the optional LPZAF freestanding
cart.
For built-in applications the oven drops into the opening
shown in the specifications and installation details drawing.
A deck is required to support the oven from the bottom.
The enclosure should have ventilation holes to prevent LP
gas build-up in the event of a leak. The deck ledges and
counter should be flat and level. (refer to ANSI Z21.58
Standard for Outdoor Cooking Gas Appliances, Section 1.7
Enclosures For Self Contained LP-Gas Supply Systems)
This oven requires that a 120 volt, 60 hertz, 15 amp GFI
certified outlet be installed by a qualified electrician.
CLEARANCE TO COMBUSTIBLE MATERIALS
Minimum clearance from the sides and back of the oven to
adjacent combustible construction below the countertop of
unit are 0” from the sides and back.
Do not install this appliance under any unprotected
overhead combustible construction. If installed under any
combustible construction the cooking area over the oven
must be covered with an exhaust hood. The hood must
provide 3 to 6 inches of overhang on all exposed sides.
The exhaust hood shall provide no less than 1200 CFM for
proper exhaust ventilation. The hood must be approved for
outdoor installation and provided with a dedicated GFCI
protected branch circuit.
Dégagement minimal entre les parois latérales et
l’arrière de l’appariel et la construction combustible
au-dessous du panneau supérieur de l’appareil (0 cm à
partir des parois latérales et 0 cm à partir de l’arrière).
Minimum clearance from sides and back of unit to adjacent
combustible construction extending above the countertop
is 18” from the sides and back.
Dégagement horizontal minimal entre les parois
latérales et l’arrière de l’appariel et la construction
verticale combustible au-dessus de l’appareil (45.7
cm à partir des parois latérales et 45.7 cm à partir de
l’arrière).
Do not use this appliance under unprotected overhead
combustible surfaces.
Ne pas utiliser cet appareil en-dessous de surfaces
combustibles non protégées.
24
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|

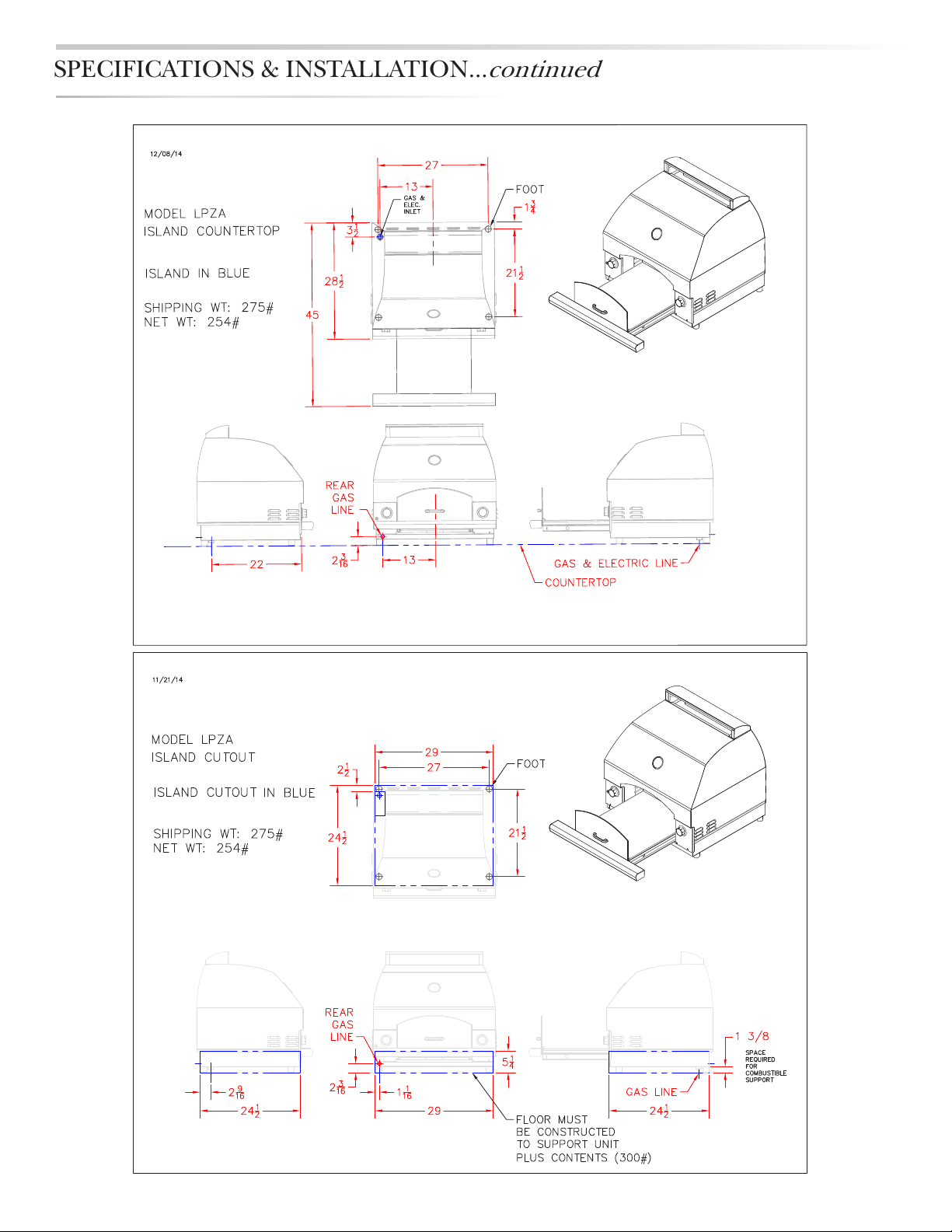

SPECIFICATIONS & INSTALLATION...
continued
LYNX 30 IN. NAPOLI OUTDOOR OVEN
LYNX 30 IN. NAPOLI OUTDOOR OVEN
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
25
|
WARNING
NEVER CONNECT A GAS LINE DIRECTLY TO THE OVEN. A PRESSURE REGULATOR MUST BE INSTALLED ON
ALL GAS EQUIPMENT. ALL LOCAL CODES REQUIRE IT AND LYNX SUPPLIES THE CORRECT REGULATOR WITH
YOUR OVEN. REMOVING OR FAILING TO INSTALL THE PRESSURE REGULATOR CAN RESULT IN FIRE AND
SERIOUS PERSONAL INJURY AND WILL VOID THE WARRANTY.
GAS CONNECTIONS
Keep last two
threads clean
The oven is factory set to use either propane (LP) or natural
gas (NAT). It is critical that the gas you use matches that
which the oven was set up for. You can verify that by
checking the rating plate.
The Rating plate lists serial numbers, model numbers and gas type.
The rating plate is located in one or more of the following
places:
• Attached to the inside bottom of the oven assembly once
the cooking drawer is opened and the deck removed.
• On the back of the Care & Use Manual
Ensure that the gas supplied meets with the minimum
pressure requirements. Do not operate the oven on any gas
other than that for which the oven has been set.
NATURAL GAS
Lynx recommends that only qualified professionals perform
the required plumbing on this product.
To ensure satisfactory performance, the gas supply line
must be sized to accommodate the total BTU requirements
of all the gas-fired equipment that will be connected to that
line.
In no case should pipe less than 3/4” inside diameter or 1”
outside diameter ever be used to connect this product.
• Calculate the total BTU output of all equipment and
refer to “INDEX: Gas Supply Line Runs” for allowable run
distances for ¾ inch pipe. Failure to meet these minimum
requirements may reduce performance of the oven and
any other appliances running on that supply line.
• Always keep supply line runs as short as possible. (See
INDEX: “BTU Output” for specific model outputs)
• A gas shut-off valve must be installed in an easily
accessible location by a qualified plumber.
Fuel WC Max Inlet WC Min Under
Full Load
Nat Gas 10 in 4 in
LP 14 in 11 in
Water Column Requirements
Both the regulator and the manifold orifices have been
tuned for the type of gas specified on the rating plate.
Converting to a different type of gas requires a conversion
kit, available from Lynx or from your dealer and must be
installed by a qualified technician.
All installation and all installation parts must conform to
local codes with the National Electrical Code, ANSI Z223.1/
NFPA 70 latest edition and the National Fuel Gas Code,
ANSI Z223.1/NFPA 54 in the U.S. and CGA-B149.1/.2 in
Canada.
Canadian installations must conform to CGA-B149.1/.2
natural gas/propane installation code. (Canada)
26
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
• Keep threading compound off of the first two pipe
threads to avoid having any small pieces of compound
break loose and clog a burner valve or orifice. Do not use
threading compound on any flare fittings.
For built-in installations, it is recommended that any flexible
pipe used be kept as short as possible. (See INDEX: “Gas
Connections” for typical permanent hook up.)
For freestanding units using natural gas, Lynx strongly
recommends using a a mobile flex gas line. Always keep
the line away from the firebox.
This is available at your local hardware store or from your
dealer.
LP GAS
Ovens set up for LP gas come equipped with an LP hose/
regulator assembly for connection to a standard 20 lb.
LP cylinder. (Type 1). All fittings necessary to attach the
assembly to the oven are included.
The LP cylinder must include a collar to protect the cylider
valve, and when the cylinder is not being used with the
oven place a dust cap on the valve.
Permanently plumbed LP connections, such as those in
line with a bulk cylinder, require a 4/11 regulator. (Lynx P/N
30781)
When using the 4/11 regulator you must ensure that it is
set for the proper fuel type. This is done by removing the
regulator cap and gasket and looking at the bottom of the
plunger to see what fuel type is visible. This is the regulator
fuel setting. NAT is for natural gas and LP is for propane
gas. The LP setting can be further identified by the large
diameter disk on the bottom of the plunger. To change
from one gas to the other simply push the plunger to the
side to snap it out of the cap, turn the plunger so it reads
the desired gas type on the bottom, and push the plunger
until it snaps back into place in the cap then replace the
cap into the regulator.
Never connect an unregulated gas line to the oven.
LP Cylinder Requirements
The LP cylinder must be constructed and marked in
accordance with the specifications for LP gas cylinders of
the U.S. Department of Transportation (DOT) and designed
for use with a Type 1 system only.
Cylinders of free standing ovens must be secured using
the provided cylinder retention system to avoid accidental
movement.
When exchanging
your cylinder for a
refill, exchange only
for a Type 1 20lb
cylinder with an over-fill
protection device.
Never use a cylinder with a damaged valve.
A dented or rusty LP cylinder may be hazardous and
should be avoided. If in doubt, have it checked by your LP
supplier.
Always check for leaks after every LP cylinder change. (See
INDEX: “Leak Test” for further details.)
Always shut off the LP-gas supply at the cylinder when the
oven is not in use.
Cylinders must be stored outdoors in a well-ventilated area
out of the reach of children. If your oven is stored indoors,
the LP cylinder must be stored outside.
GAS CONNECTIONS ...continued
WARNING
Do not change the regulator/hose assembly or
use any other assembly than the one supplied with
your Lynx oven.
Do not attempt to use a 5LP-A equipped
regulator/hose assembly with a standard 510 POL
cylinder/valve assembly.
Do not store a spare LP-gas cylinder under or near
this appliance.
Never fill the cylinder beyond 80 percent full.
If the information above is not followed exactly, a
fire causing death or serious injury may occur.
LP cylinder with type 1 valve connection
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
27
|
GAS CONNECTIONS ...continued
LP Connections
Make sure the LP cylinder valve is fully closed. It is possible
for the valve to be open without releasing gas but, as soon
as you start connecting the regulator, gas will leak from the
connection.
Insert the regulator inlet into the cylinder valve and turn the
black coupler clockwise until the coupler is hand tight. Do
not over-tighten this connection.
To disconnect the coupler, first make sure the main cylinder
valve is turned off. Grasp the coupler and turn counter
clockwise. The inlet will then disengage.
Always leak-test the connection after refilling or exchanging
LP cylinders. (See INDEX: “Leak Test” for further details.)
• Turn on the gas valve and confirm that the igniter is
glowing. It is furthest from the fuel source and will
completely purge the lines. It will take several seconds for
the burner to light.
• The igniter will stay ON and light the burner when the air
has been removed from the line.
• Wait at least 5 minutes after shutting off the control
before attempting to light the burners.
GAS CONVERSION KITS
Gas conversion kits are available from Lynx Grills to allow
the oven to operate on either Natural gas or LPG. These
kits should be installed by a qualified technician.
GAS LINE PURGING
You should purge the gas line of air before attempting to
light the oven.
• Make sure all oven controls are in the “OFF” position.
• Slowly turn on the main gas supply.
NG OR BULK PROPANE CONNECTIONS
1/2” MxF
Street
Elbow
Inline Regulator
P/N 30781
The kits come with complete installation instructions.
These instructions should be read completely and fully
understood before installing the conversion kit.
A flame adjustment may be necessary after conversion from
NG to LP (see Index: Flame Adjustment).
PORTABLE LP TANK CONNECTIONS
1/2” MxF
Street
Elbow
Grill Manifold
1/2” MIP
Fitting
Flexible Gas Line to Inlet
28
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
1/2” MxF
3/8” Brass
Elbow
Grill Manifold
Portable LP Tank Regulator
ELECTRICAL CONNECTIONS
WARNING: ELECTRICAL GROUNDING
• Product installation must meet local electric codes or, in the absence of local codes, the latest edition of the
National Electrical Code ANSI/NFPA No. 70 or the Canadian Electrical Code CGA 1.6b2005.
• Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance.
• Do not use this outdoor cooking appliance if it has been submerged under water without thorough inspection by
a qualified technician.
• This oven is equipped with a three prong (grounding) electric plug for your protection against shock hazard
and must be plugged directly into a properly grounded three prong outlet. Never cut or remove the grounding
prong from this plug.
• Use only extension cords with a 3 prong grounding plug, rated for the power of the equipment, and approved
for outdoor use with a “W-A” marking.
• To protect against electric shock, do not immerse any part of the power cord, an extension cord or any plugs in
water or other liquid.
• Unplug the product from the outlet when not in use and before cleaning. Allow it to cool before putting on or
taking off parts.
• Do not let the cord hang over the edge of a table or touch hot surfaces.
• Do not use an outdoor cooking gas appliance for purposes other than intended.
• Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appliance
malfunctions or has been damaged in any manner. Contact the manufacturer for repair.
CONNECTION TO AC
Installation requires an outdoor 120VAC 15A GFI (Ground
Fault Interrupter) electrical outlet adjacent to the oven.
The GFI outlet features an internal breaker that reduces
shock hazard. This type of outlet should be installed by a
qualified electrician either inside the island enclosure for
built-in units, or near the location where a free-standing unit
will be used.
The oven wiring harness is designed to facilitate
connections to other Lynx accessories such as the side
burners.
When installing the transformer to the oven be careful to
prevent the wiring and transformer from contacting any
hot surfaces behind or below the oven. It is recommended
that the transformer be located below the oven in a readily
accessible location. Be sure to provide adequate access to
facilitate service if the transformer or connections should
need future maintenance.
If the electrical system fails to operate, a connection may
have come loose in shipping or the GFI may have tripped,
requiring a reset. See the Troubleshooting section for more
details.
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
29
|
FINAL CHECKS
LEAK TESTING
DANGER!
To prevent fire or explosion hazard, DO NOT
smoke or allow any potential source of ignition
(sparks, electrical arcing, etc) in the area while
performing a leak test. Leak tests should be
conducted outdoors only. Never conduct a leak
test using fire or flame.
Leak Test Procedure:
• Create a soapy solution of 1 part soap and 3 parts water.
• Confirm that all control knobs are in the off position.
• Turn on the fuel supply. For natural gas, turn the valve
handle 1/4 turn to align with the gas flow.
• For L.P., turn the cylinder valve knob counter clockwise
one full rotation.
There should be no lifting, fluttering or lazy blue flames.
Some food particles will show as yellow flames but should
burn off.
LOW HEAT BURNER ADJUSTMENT
The valves on your Lynx outdoor oven feature an
adjustable low setting.
Fluctuations in gas pressure, gas conversion and even in the
quality of the gas itself may affect burner performance at the
“LOW” setting. It could be either too high or too low.
To Adjust the Burner to a Low Setting:
• Make sure the oven is cool.
• Light the burner and allow it to preheat on high for 3
minutes.
• Turn the burner to “LOW”.
• Pull off the control knob.
• While holding the valve shaft with pliers as shown insert a
small flat screwdriver into the center shaft and adjust the
flame’s low setting. (1/8” blade 3” long shaft)
• Apply the soap solution generously by paint brush or
squirt bottle on all connections and fittings.
• If bubbles appear to “grow” on any of the
connections, you have a gas leak. IMMEDIATELY turn
off the gas supply.
Fixing a Gas Leak:
• Shut off the gas supply
• Turn all oven controls to the “ON” position to purge the
oven of any gas build-up, then turn the controls back
“OFF”.
• Wash off the soapy solution with cold water and dry.
• Tighten the loose joint, or replace the faulty part with
manufacturer-recommended replacement parts.
• DO NOT attempt to repair the L.P. cylinder valve if it is
damaged. The only way to safely resolve a damaged
cylinder is to REPLACE IT.
• Repeat the leak test to ensure that no leaks are present.
NOTE: The burners do not have an air shutter.
• The appearance of the burners should be visually
checked. The ceramic tiles should be uniformly red to
orange in appearance. Burners flames should be 4-5
inches tall and predominately blue in color with some
yellow tipping.
Clockwise will lower the flame setting, counterclockwise will
raise it.
The proper setting is where the flame is stable at its
lowest setting. The factory setting for propane gas is ½ to
¾ turn from the very bottom of the adjustment. The setting
for natural gas is 1-½ to 1-¾ from the bottom. After the low
settings are proper, turn all burners to high for visual inspection.
ONE LAST THING
Finally, before leaving, check all the burners for proper
operation. Make sure the control knobs turn freely and
completely through their full range.
IMPORTANT:
Make sure the owner knows where the main gas supply
shut off valve is located.
Finally, for safety and for proper use & care, you must
leave this manual with the owner. Make sure you advise
them to keep it for future reference.
For technical assistance call:
Lynx Customer Care
888-289-5969
30
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
LPZA & LPZAF
WIRING SCHEMATICS
ASSEMBLY
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
31
|
LYNX NAPOLI OUTDOOR OVEN EXPLODED PARTS VIEW
Napoli Oven
LPZA
9.20.17
17
B-1
19
21
20
31
(1)
(2)
25
26
1
A-5
2
7
18
DETAIL A
SCALE 1 : 5
6
39
40
37
11
38
42
12
C-2
43
34
24
16
17
3
4
43
A
9
B
D-1
22
23
13
B-2
C
(2)
31
A-5
10
C-2
30
5
C-2
8
27
DETAIL C
SCALE 1 : 5
28
29
DETAIL B
SCALE 1 : 5
32
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
35
36
32
33
LYNX NAPOLI OUTDOOR OVEN PARTS LIST
ITEM PART No. DESCRIPTION QTY.
1 70323 COVER, HOOD WELDMENT 1
2 70319 HOOD WELDMENT 1
3 35117 DOME, EZ CAST 1
4 35316 GASKET, FIBERGLASS 1
5 80943 FLOOR SUPPORT ASSEMBLY 1
6 81119 PULLOUT TRAY ASSY. 1
7 80939 ACCESS DOOR ASSY. 1
8 35175 CONTROL PANEL, RH 1
9 80949 CONTROL PANEL, LH 1
10 70336 BASE PAN WELDMENT 1
11 70343 SUPPORT, WHEEL ASSY. RH 1
12 70344 SUPPORT, WHEEL ASSY. LH 1
13 80937 GAS TRAIN ASSEMBLY 1
14 70338 SUPPORT, BURNER RH 1
15 70339 SUPPORT, BURNER LH 1
16 L11168 BURNER, IR 16" - 27" 2
17 35313 IR IGNITER COVER, NAPOLI 2
18 80791 IR BRACKET ASSEMBLY- RH 1
19 80790 IR BRACKET WELDMENT 1
20 20018 THERMOCOUPLE, IR 2
21 33052 IGNITER, HOT SURFACE (SHORT) 2
22 10192 BEARING, FLT SS 1.3125 DIA 8
23 10193 SPACER, 1/4 NOM, 1/2 O.D. X .21, SS, RND 8
24
35765
THERMOMETER, WATERTIGHT 1
25 11074 LYNX LOGO 1
26 31062 NUT, 1/8, SPEED, STEEL, SELF THREADING 2
27 32554 LED HOUSING 2
28 32055 WASHER, 5/16, SPL, SS 2
29 35318 BEZEL PLATE 2
30 10001 BEZEL 2
31 31929 SCREW, #6-32 X 1/8", PHP, SS 4
32 34374 RUBBER BUMPER, 0.75" HT 4
33 32202 SCREW, 1/4-20 x 3/4 4
34 31880 ORIFICE NG #43 2
13020 ORIFICE LP #54 2
35
31795 BRASS 90 DEGREE ELBOW 7/16-20 2
36
35179 VALVE NIPPLE 2
37
70322 MANAFOLD ASSEMBLY 1
38
35222 FLEX TUBE, 1/4" X 7" LG , SS 2
39
34970 VALVE, SAFETY ADJUSTABLE, BODY 2
40
35311 KNOB 2
41
35169 BULLNOSE, 30" HANDLE 1
42 35118 CORLITE TILE 1
FASTENERS
A 30290 SCREW, 1/4-20 X 1/2, THP, STEEL -
B 31930 SCREW, 1/4-20 X 3/8, HHD, SS -
C 14014 SCREW, #8-32 X 3/8, THP, SS 6 -
D 14043 SCREW, 1/4-20 X 1, FHP, SS -
ELECTICAL (NOT SHOWN - REF 70346
80847 TRANSFORMER ASSEMBLY* 1
80446 HALOGEN LIGHT ASSEMBLY 1
(43) 33148 LIGHT SWEITCH 1
70347 POWER HARNESS ASSEMBLY 1
70348 LED HARNES ASSEMBLY 1
70349 IGNITION HARNESS ASSEMBLY 1
11/02/17
33100
TRANSFORMER ONLY 1
34755 PIZZA PEEL 1
35337 INSULATION 1
43
*
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
33
|
MODEL-SPECIFIC BTU OUTPUTS & MAX. RUNS FOR APPLIANCES
MODEL-SPECIFIC BTU OUTPUTS
MODEL INFRARED BURNER (Btu) TOTAL INPUT
LPZA 2 @ 20,000 40,000 Btu/Hr
MAXIMUM RUNS FOR ALL
APPLIANCES ON SUPPLY LINE
Run Length
3/4” Pipe (in feet)
10 360,000
20 245,000
30 198,000
40 169,000
50 150,000
60 135,000
70 123,000
80 115,000
Max BTU for all
Appliances on line
NOTE: IF A 1/2 INCH LINE IS USED
WITH NATURAL GAS IT SHOULD BE
NO LONGER THAN 12 FEET.
34
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
|
INDEX
#
4/11 Regulator ............................................................. 27
B
Baking in Windy Conditions ......................................... 11
Before Each Use .......................................................... 12
Before You Start ............................................................. 9
BTU Outputs, Model Specic ...................................... 34
C
Checklist Before Each Use ............................................. 5
Cleaning Your LYNX Oven ........................................... 16
Clearance to Combustibles ......................................... 24
Contacting LYNX .......................................................... 20
Conversion Kits. ............................................................ 28
Cut-out Dimensions, Built-in Outdoor Oven. ............... 25
D
Damage:
Concealed ....................................................................... 9
Visible .............................................................................. 9
E
Electrical Connections ................................................. 29
Exploded Parts View .................................................... 32
F
Final Checks ................................................................. 30
G
Gas Connections .......................................................... 26
Gas Line Purging .......................................................... 28
Gas Requirements ........................................................ 26
Gas Supply Line Runs .................................................. 34
O
Obtaining Service from LYNX ....................................... 20
P
Parts List ....................................................................... 33
Parts View, Exploded ................................................... 32
Pre-Bake Checklist ....................................................... 12
Using Your Lynx Outdoor Kitchen (Pre-Heating) .......... 12
Purging the Gas Line .................................................... 28
R
Regulator Conversion .................................................. 27
S
Schematic, LPZA & LPZAF ............................................ 31
Service, contacting LYNX ............................................. 20
T
Technical Support ........................................................ 20
Troubleshooting .......................................................... 17
U
Unpacking and Assembly ............................................. 10
Using Your Oven ........................................................... 12
W
Warranty:
Warranty, Limited .......................................................... 21
Warranty, Common Area Limited ................................. 22
Windy Conditions, Baking in ........................................ 11
I
Important Safety Precautions ......................................... 8
L
Leak Test Procedure ..................................................... 30
Lighting, Manual .......................................................... 15
Lighting Your Oven ........................................................ 5
LP Cylinder Requirements ............................................. 27
LP Gas ........................................................................... 27
M
Manual Lighting ............................................................. 5
Maximum Runs for all appliances on supply line .......... 34
Message to Our Customers............................................ 5
N
Natural Gas .................................................................. 26
NAPOLI OUTDOOR OVEN CARE & USE/INSTALLATION
35
|
P/N 35315
The best outdoor kitchen products come from:
Lynx Grills, Inc.
7300 Flores Street Downey, CA 90242
Service: (888)-289-5969 Fax: (562) 299-6978
www.lynxgrills.com
Loading...
