Lynx L700PSLP, L700PSNG Specifications

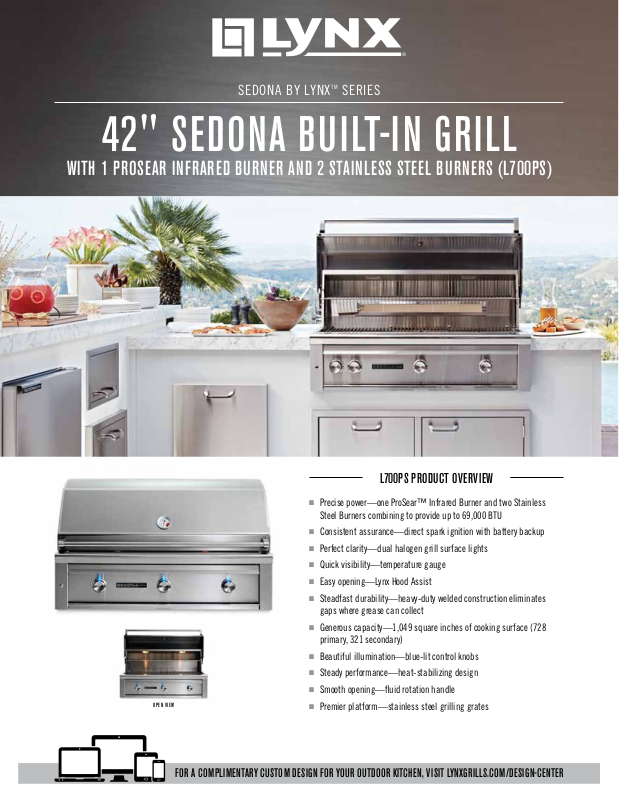

SEDONA BY LYNXTM SERIES
42" SEDONA BUILT-IN GRILL
WITH 1 PROSEAR INFRARED BURNER AND 2 STAINLESS STEEL BURNERS (L700PS)
OPEN VIEW
L700PS PRODUCT OVERVIEW
■
Precise power—one ProSear™ Infrared Burner and two Stainless
Steel Burners combining to provide up to 69,000 BTU
■
Consistent assurance—direct spark ignition with battery backup
■
Perfect clarity—dual halogen grill surface lights
■
Quick visibility—temperature gauge
■
Easy opening—Lynx Hood Assist
■
Steadfast durability—heavy-duty welded construction eliminates
gaps where grease can collect
■
Generous capacity—1,049 square inches of cooking surface (728
primary, 321 secondary)
■
Beautiful illumination—blue-lit control knobs
■
Steady performance—heat-stabilizing design
■
Smooth opening—fluid rotation handle
■
Premier platform—stainless steel grilling grates
FOR A COMPLIMENTARY CUSTOM DESIGN FOR YOUR OUTDOOR KITCHEN, VISIT LYNXGRILLS.COM/DESIGN-CENTER
42" SEDONA BUILT-IN GRILL
WITH 1 PROSEAR INFRARED BURNER AND 2 STAINLESS STEEL BURNERS (L700PS)
L700PS PRODUCT FEATURES
The Sedona by LynxTM Series is always evolving to be the best at something new. That philosophy is reflected in its features.
We’ve refined these features to give you a grilling experience that’s both simple and stunning.
PROSEARTM INFRARED BURNER CERAMIC RADIANT BRIQUETTES SEAMLESS WELDED CONSTRUCTION
EXPANSIVE GRILLING SURFACE SPARK IGNITION SYSTEM LYNX HOOD ASSIST
FOR MORE
STAINLESS STEEL BURNERS
INTEGRATED ILLUMINATION
L700 ISLAND PREPARATION
INFORMATION ON
SEDONA BY LYNX
TM
PRODUCT FEATURES,
SERIES
48”
1/4
”
23
5”
41”
PLEASE VISIT
LYNXGRILLS.COM
CUT-OUT DIMENSIONS: WIDTH: 41” / HEIGHT: 10” / DEPTH: 21.25”
1/2
”
4
3”
Insulated
Jacket
5/8
”
11
* 2" round hole must be
located at rear of grill cutout. 120V GFI
outlet must be located within 6' of the
2" hole.
3”
min.
3/8
36
”
min.
1/4
2
”
1/2
3
”
Grill*
Access
Doors
1/4
21
”
10
2”
19”
3/4
”
33
PRODUCT TECHNICAL SPECIFICATIONS
COUNTERTOP NOTCH DETAIL INSULATING JACKET
SHIPPING DIMENSIONS:
SHIPPING WEIGHT: 240 POUNDS
GAS REQUIREMENTS: SHIPS IN LIQUID PROPANE OR NATURAL GAS
FROM FACTORY
ELECTRICAL REQUIREM ENTS: INSTALLATION REQUIRES AN OUTDOOR
120V/15GFI ELECTRICAL OUTLET ADJACENT TO PRODUCT
COOKING CONFIGURATION: BUILT-IN GRILL WITH ROTISSERIE, 1 PROSEAR
INFRARED BURNER AND 2 STAINLESS STEEL BURNERS
WIDTH 34” / HEIGHT 47” / DEPTH 30”
BUILT-IN GRILL WITH INSULATING JACKET
Model A B C
L700 41" 10" 21 ¼"
Insulating
A
PRODUCT SPECIFICATIONS & INSTALLATION
Note: Insulating jacket required for all grills installed into a combustible enclosure. For natural gas grills,
Lynx recommends using ¾" gas lines. Side burners may be rotated 90 degrees. See installation manuals for details.
Jacket
5”
4-1/2"
FOR EVEN MORE ON THIS PRODUCT AND OTHER COMPLIMENTARY LYNX PRODUCTS, VIST LYNXGRILLS.COM
C
3”
B
