Lynx L42CC1, L30WD1 INSTALLATION INSTRUCTIONS AND OPERATION MANUAL

User Manual / Installation Instructions

Warming Drawer and Warming Drawer Cabinet

Models: L30WD L42CC

CAUTION: UNPLUG the warming drawer before beginning any work. Make sure you READ and UNDERSTAND

these instructions BEFORE installation. If you have any questions or concerns prior to, or during service, please call Customer Care/Tech. Support at 888-289-5969, Mon.– Fri. 6AM to 4:30PM, and Saturdays from 8AM to 1PM Pacific Time.

Made in the USA

Lynx Grills, Inc.

7300 Flores Street, Downey, CA 90242

Service: 888-289-5969

Tel:562-299-6900 Fax: 562-299-6978 www.lynxgrills.com

As product improvement is an ongoing process at Lynx, we reserve the right to change specifications and design without notice.

Part #31949, Rev. C 9/14

1

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

Read this manual carefully and completely before using your warming drawer to reduce the risk of:

1. Fire

2. Burn hazard, personal injury or property damage

3. Unapproved installation or service This product is designed for indoor or outdoor installation. Improper installation, adjustment, alteration, service or maintenance can cause personal or property damage. Read this manual thoroughly before installation, use or service.

IMPORTANT: When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions before using the warming drawer

2. Do not store or use gasoline or other flammable vapors and liquids in the drawer or in the vicinity of this or any other appliance.

3. Do not touch hot surfaces. Use handles or knobs. Use only dry potholders. Moist or damp pot holders may cause steam burns.

4. To protect against electrical shock, do not immerse cord, plugs, or base in water or other liquids.

5. Close supervision is necessary when the appliance is used by or near children.

6. Unplug the unit when not in use and before cleaning. Allow to cool before putting on or taking off parts.

7. Do not operate any appliance with damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment. Contact Lynx Customer Care Department for service facility information or additional details.

8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

9. ETL listed for indoor and outdoor use.

10. Do not let the cord hang over the edge of a table or counter, or allow it to touch hot surfaces.

11. Do not place on or near a hot gas or electric burner or in a heated oven.

12. Make sure the appliance is turned off before plugging in or removing the plug from the power receptacle.

13. This appliance is designed to be installed by a qualified technician and plugged into a dedicated, properly grounded, GFIC outlet.

14. Do not use this appliance for anything other than the intended use.

15. Keep the warming drawer away for water sprinklers.

16. Do not store any materials, not recommended by the manufacture, in the drawer when not in use.

17. Always place steam racks in desired position while the appliance is cool.

18. Do not obstruct the warming drawer vent ducts

19. Do not cover food with plastic wraps or use plastic food containers in the drawer while heating. Plastics will melt and damage the drawer interior.

20. Do not place food in unopened containers in the drawer. Pressure could build up and cause the container to burst resulting in damage or personal injury.

21. Use care while opening a heated drawer to allow hot air and steam to escape before removing or replac- ing food.

22. Do not touch the heating elements or drawer interior surfaces while the drawer is in use.

23. Do not repair or replace any part of this warming drawer. All servicing should be done by an authorized service agency. Contact Lynx Customer Care Department for service information.

24. Save these instructions for future reference.

2

Electrical Information

WARNING: ELECTRICAL GROUNDING

1. Warming drawer must be installed in accordance with the local electric code or, in the absence

of local codes, the latest edition of the National Electrical Code ANSI/NFPA No. 70, or the Cana-

dian Electrical Code CGA 1.6b 2005.

2. Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor appliance. This type

of outlet should be installed by a qualified electrician.

3. This warming drawer is equipped with a three prong (grounded) electric plug for your protection

against shock hazard and must be plugged directly into a properly grounded three prong outlet.

Never cut or remove the grounding prong from this plug.

4. Use only extension cords with a 3 prong grounding plug rated for the power of the equipment

and approved for outdoor use with a “WA” marking.

5. To protect against electric shock, do not immerse any part of the power cord, extension cord, or

any plugs in water or other liquids.

6. Unplug the warming drawer from the outlet before cleaning when not in use for extended peri-

ods. Allow the drawer to cool before putting on or taking off parts.

7. Do not use the warming drawer for purposes other than intended.

8. Do not operate the warming drawer with a damaged cord, plug or after the appliance malfunc-

tions, or has been damaged in any manner. Contact Lynx Customer Care for repairs.

Connection to AC

Installation requires and outdoor 120 VAC, 15 amp dedicated GFI protected outlet.

The warming drawer is rated as follows; 120 VAC, 60 Hz, 450 W, 4 AMP

3

Warming Drawer Installation

4

Warming Drawer Cabinet Installation

5

Warming Drawer Features

6

Warming Drawer Cabinet Features

ITEM DESCRIPTION

STORAGE DRAWER

14

15

16

7

TANK DRAWER

DOOR PANEL

Part No.

80879

80164

80873

Temperature Controls

Heat Light On

Moisture Vent Control

blue light turns on when the

8

Heating Instructions

9

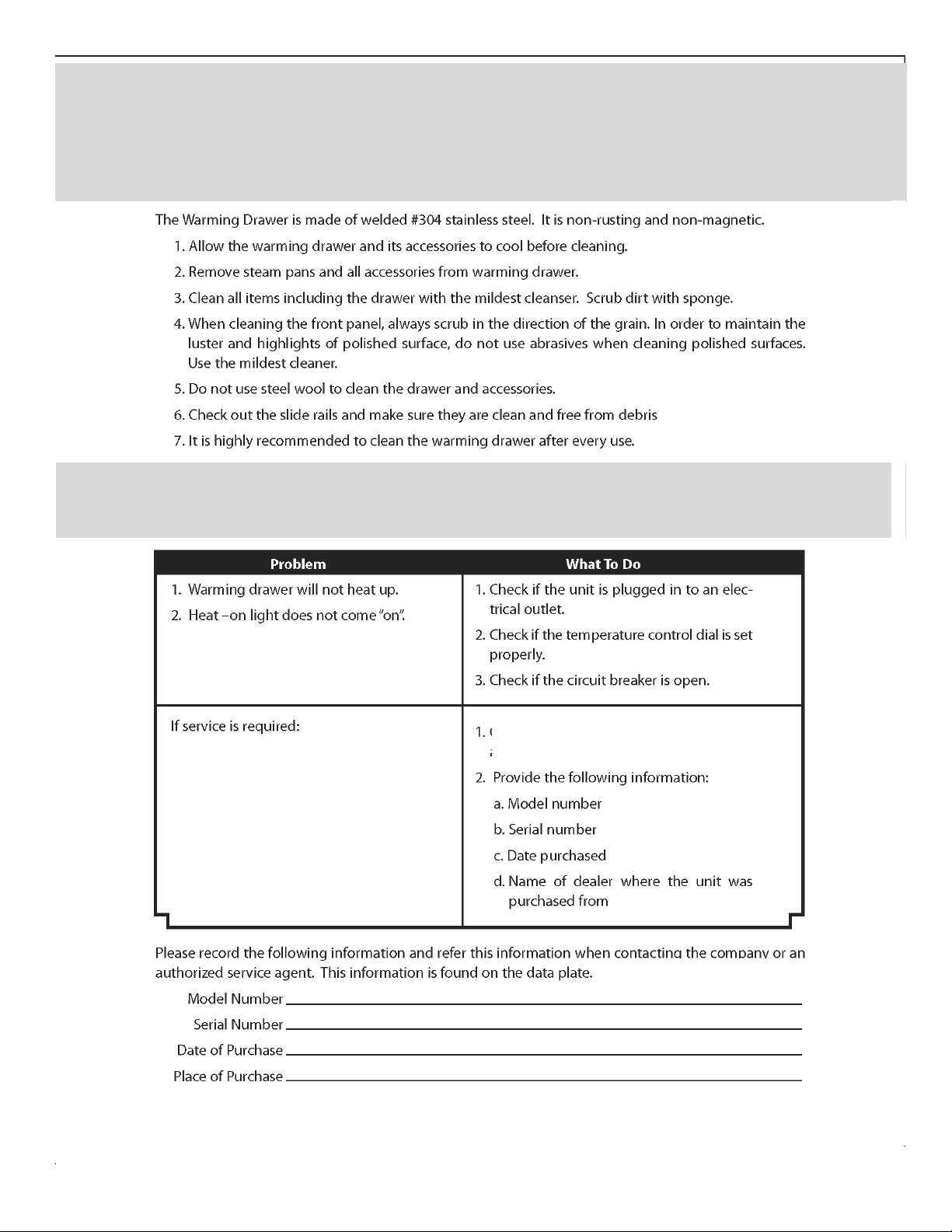

Cleaning and Maintenance

Trouble Shooting Guide

Call Lynx Customer Care Department

located on the right rear side panel.

10

Lynx Limited Warranty

I. Limited Lifetime Warranty

The stainless steel housing is warranted to be free from defects in material and workmanship when subjected to normal domestic use and service for the lifetime of the original purchaser. This warranty excludes surface corrosion, scratches, and discoloration which may occur during regular use. This warranty is limited to the replacement of the defective parts, with the owner paying all other cost including labor.

II. Limited Five-Year Warranty

The structural integrity of the interior parts, exterior, and drip pans are warranted to be free from defects in material and workmanship, when subjected to normal domestic use and service, for a period of five (5) years from the original date of purchase. Lynx will replace of repair parts found to be defective at no cost to the original purchaser.

III. Limited Two-Year Warranty

All other components are warranted to be free from defects in material and workmanship, when subjected to normal domestic use and service, for a period of two (2) years from the original date of purchase. This warranty is limited to the replacement of the defective parts, with the owner paying all other costs including labor, shipping and handling.

IV. Limited One-Year Warranty

For a period of one (1) year from the original date of purchase, Lynx will replace or repair parts found to be defective at no cost to the original purchaser. This includes the cost of shipping replacement parts and, where necessary, service labor at prevailing local rates by a Lynx authorized service person. Service will be provided during normal business hours and must be authorized in advance by Lynx.

V. Limitations & Exclusions

1. This Warranty shall apply to products purchased and located in the United States and Canada. Products must be purchased in the country where service is requested.

2. Warranty applies only to the original purchaser and may not be transferred.

3. Warranty is in lieu of all other warranties expressed of implied and all other obligations or liabilities related to the sale or use of its grill products.

4. Warranty shall not apply and Lynx is not responsible for damage resulting from misuse, abuse, alteration of or tampering with the appliance, accident, hostile environment, flare-ups, improper installation, or installation mot in accordance with the instructions contained in this manual, or the local codes.

5. Lynx shall not be liable for incidental, consequential, special or contingent damages resulting from is breach of this warranty or any implied warranty.

6. Some states do not allow limitations on how long an implied warranty lasts, or the exclusions of or limitations on consequential damages. This warranty fives you specific legal rights and you may have other rights which vary from state to state.

7. No one has the authority to add to or vary Lynx’s warranty, or to create for Lynx any other obligation or liability in connection with the sale of use of its products.

8. Limited to the replacement of defective parts with the owner paying all other costs including labor.

VI. What is not covered: Lynx shall not be responsible for and shall not pay for the following:

1. Installation or start-up, damages or problems caused buy improper installation or use;

2. Service by an unauthorized service provider;

3. Damage or repair due to service by and unauthorized service provider of use of unauthorized parts;

4. Warranty does not apply to products installed in any commercial or non-residential application. Examples of excluded applications include, but are not limited to day care centers, schools, bed and breakfast centers, churches, private clubs, fire stations, club housed, common areas in multi-family dwellings, restaurants, hotels, nursing homes, food service locations, and institutional food service locations.

5. To correct normal adjustments or settings, sue to improper installation, commissioning of local gas supply properties.

6. Sipping and handling costs, export duties, installation, removal, or re-installation costs.

7. Display modes are sold “as is”. If you have purchased a display model, please be advised that it is sold “as is” and that it is subject to the following warranty exclusions: any exterior of cosmetic damage is non-warrantable; any missing components will be replaced ar consumer’s expense; major handling damage to manifold, valve and ignition system will e serviced at consumer’s expense; all other warranty’s (standard warranty) will remain in effect.

8. The cost of a service call to diagnose trouble.

11

Lynx Common Area Limited Warranty

The Lynx Limited Warranty covers residential installations only and is not-transferable to any other party. This ‘non-residential’ warranty applies when the product is installed in common area where more than a single party has the rightful access to its use or in locations considered beyond normal residential use such ad B&Bs, and private clubs.

THIS PROVISION EXCLUDES ALL COMMERCIAL APPLICATIONS, INCLUDING, BUT NOT LINITED TO RESTAURANTS AND INSTITUTIONAL FOOD SERVICE LOCATIONS.

I. Limited Five-Year Warranty

The stainless steel housing is warranted to be free from defects in material and workmanship when subjected to normal domestic use and service for a five (5) year period from the original purchase date. This warranty excludes surface corrosion, scratches, and discoloration which may occur during regular use. This warranty is limited to the replacement of the defective parts, with the owner paying all other cost including labor.

II. Limited One -Year Warranty

The structural integrity of the interior parts, exterior, and drip pans are warranted to be free from defects in material and workmanship, when subjected to normal domestic use and service, for a period of one (1) year from the original date of purchase. Lynx will replace of repair parts found to be defective at no cost to the original purchaser.

III. Limited Parts & Labor Warranty

All other components are warranted to be free from defects in material and workmanship for a period of 90 days form the original date of purchase. Lynx will replace or repair parts found to be defective at no cost to the original purchaser. After the 90 day period Lynx will sell parts to the holder of this warranty at Lynx contractor prices for an additional 9 months.

IV. Limitations & Exclusions
