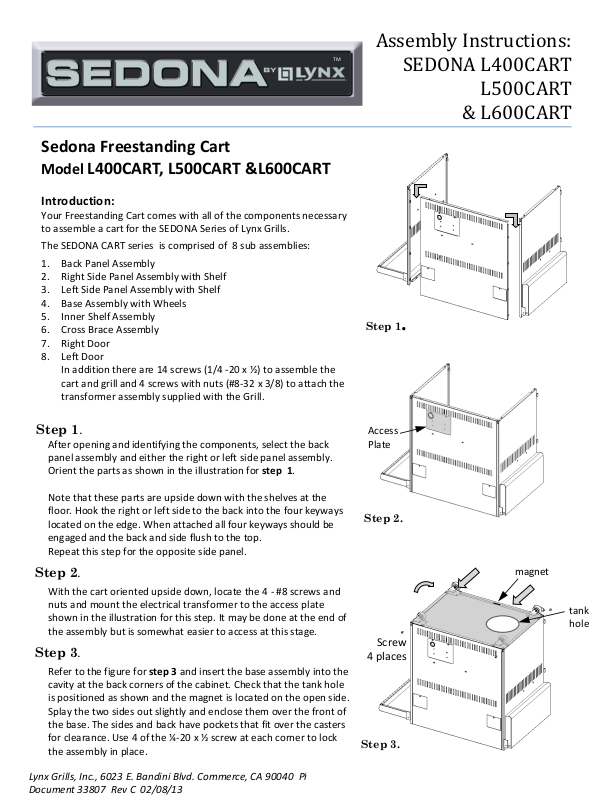

Sedona Freestanding Cart

Model L400CART, L500CART &L600CART

Introduction:

Your Freestanding Cart comes with all of the components necessary
to assemble a cart for the SEDONA Series of Lynx Grills.

The SEDONA CART series is comprised of 8 sub assemblies:

1. Back Panel Assembly

2. Right Side Panel Assembly with Shelf

3. Left Side Panel Assembly with Shelf

4. Base Assembly with Wheels

5. Inner Shelf Assembly

6. Cross Brace Assembly

7. Right Door

8. Left Door
In addition there are 14 screws (1/4 -20 x ½) to assemble the

cart and grill and 4 screws with nuts (#8-32 x 3/8) to attach the
transformer assembly supplied with the Grill.

Assembly Instructions:

SEDONA L400CART

L500CART

& L600CART

Step 1.

Step 1.

After opening and identifying the components, select the back
panel assembly and either the right or left side panel assembly.
Orient the parts as shown in the illustration for step 1.

Note that these parts are upside down with the shelves at the
floor. Hook the right or left side to the back into the four keyways

located on the edge. When attached all four keyways should be

engaged and the back and side flush to the top.
Repeat this step for the opposite side panel.

Step 2.

With the cart oriented upside down, locate the 4 - #8 screws and
nuts and mount the electrical transformer to the access plate
shown in the illustration for this step. It may be done at the end of
the assembly but is somewhat easier to access at this stage.

Step 3.

Refer to the figure for step 3 and insert the base assembly into the

cavity at the back corners of the cabinet. Check that the tank hole
is positioned as shown and the magnet is located on the open side.
Splay the two sides out slightly and enclose them over the front of
the base. The sides and back have pockets that fit over the casters
for clearance. Use 4 of the ¼-20 x ½ screw at each corner to lock
the assembly in place.

Access
Plate

Step 2.

magnet

tank
hole

Screw

4 places

Step 3.

Lynx Grills, Inc., 6023 E. Bandini Blvd. Commerce, CA 90040 Phone: (323)838‐1770 Fax: (323)838‐1778 | www.lynxgrills.com

Document 33807 Rev C 02/08/13

Step 4.

To begin step 4 turn the cabinet upright to secure the
Inner Shelf Assembly. The L400 and L500 shelf will only
assemble as shown at the right with the electrical hole to
the rear and the screws mounting at the back and left
side. The shelf is not only useful but necessary for the
proper stability of the cart. DO NOT omit the inner shelf
or any part in these instructions.

The inner shelf is secured by 4 of the ¼-20 x ½ screws.

Two through the back and two through the left side.

The L600 shelf as shown here will assemble
the same as above.

Step 4.
L600

Step 5.

Step 4.
L400
L500

Step 5 is the last assembly on the L400/L500 cart before
installing the Grill to the cart. The cross brace fits into
recesses located at the front edge of the cart above the
hinge brackets. Orient the brace with the center magnet
facing forward and positioned such that the magnet is

higher than center rather than lower. Install the brace from

the backside of the flanges and align the nutcerts at each
end with the holes provided for the screws. The brace is
secured by 2 of the ¼-20 x ½ screws.

The L600 door frame is attached along with the cross brace .
Support the cross brace from the backside of the front

flanges. Align the nutcerts at each end with the holes

provided for the screws. Position the door frame over the
nutcerts and cross brace , and secure them both with the ¼­20 x ½ screws.

Step 5.
L400
L500

Step 5.
L600
