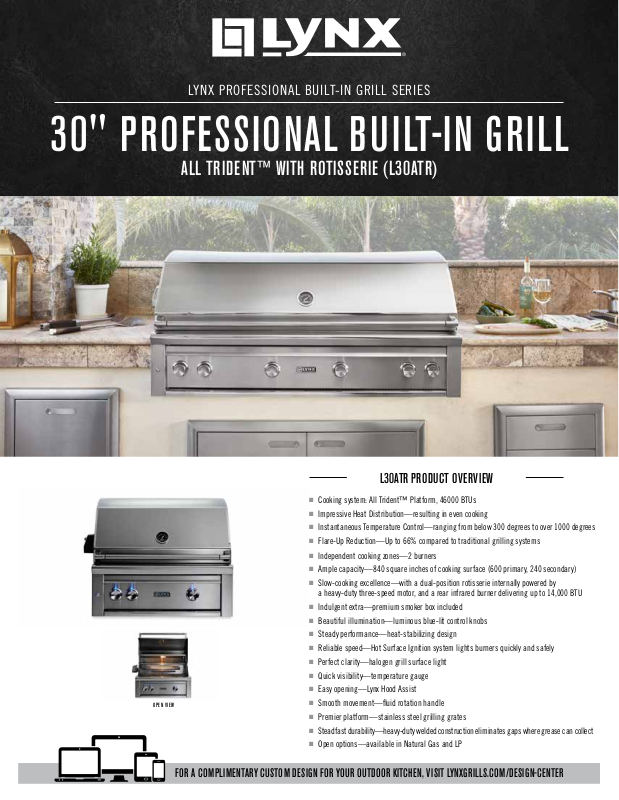

Lynx L30ATRNG, L30ATRLP Specifications
LYNX PROFESSIONAL BUILT-IN GRILL SERIES
30" PROFESSIONAL BUILT-IN GRILL
ALL TRIDENT™ WITH ROTISSERIE (L30ATR)
OPEN VIEW
L30ATR PRODUCT OVERVIEW
■
Cooking system: All Trident™ Platform, 46000 BTUs
■
Impressive Heat Distribution—resulting in even cooking
■
Instantaneous Temperature Control—ranging from below 300 degrees to over 1000 degrees
■
Flare-Up Reduction—Up to 66% compared to traditional grilling systems
■
Independent cooking zones—2 burners
■
Ample capacity—840 square inches of cooking surface (600 primary, 240 secondary)
■
Slow-cooking excellence—with a dual-position rotisserie internally powered by
a heavy-duty three-speed motor, and a rear infrared burner delivering up to 14,000 BTU
■
Indulgent extra—premium smoker box included
■
Beautiful illumination—luminous blue-lit control knobs
■
Steady performance—heat-stabilizing design
■
Reliable speed—Hot Surface Ignition system lights burners quickly and safely
■
Perfect clarity—halogen grill surface light
■
Quick visibility—temperature gauge
■
Easy opening—Lynx Hood Assist
■
Smooth movement—fluid rotation handle
■
Premier platform—stainless steel grilling grates
■
Steadfast durability—heavy-duty welded construction eliminates gaps where grease can collect
■
Open options—available in Natural Gas and LP
FOR A COMPLIMENTARY CUSTOM DESIGN FOR YOUR OUTDOOR KITCHEN, VISIT LYNXGRILLS.COM/DESIGN-CENTER
30" PROFESSIONAL BUILT-IN GRILL
3”minimum clearanc
12” minimum clearance
12” minimum clearance
ALL TRIDENT™ WITH ROTISSERIE (L30ATR)
L30ATR PRODUCT FEATURES
Our unrelenting attention to detail and our passion for innovation have fostered the stunning features that define the LynxProfessionalSeries.
These features begin with meticulous hand-crafted excellence, and they culminate in powerful capabilities that give you precision control.
TRIDENTTM INFRARED BURNER SEAMLESS WELDED CONSTRUCTION HEAT STABILIZING DESIGN
INTEGRATED ILLUMINATION
HOT SURFACE IGNITION EXPANSIVE GRILLING SURFACE ROTISSERIE SYSTEM SMOKER BOX
FOR MORE
INFORMATION ON
LYNX PROFESSIONAL
PRODUCT FEATURES,
PLEASE VISIT
LYNXGRILLS.COM
LYNX HOOD ASSIST
PRODUCT TECHNICAL SPECIFICATIONS
PRODUCT DIMENSIONS: WIDTH: 30” / HEIGHT: 25” / DEPTH: 27.88”
CUT OUT DIMENSIONS: WIDTH: 29” / HEIGHT: 10.88” / DEPTH: 24.50”
SHIPPING DIMENSIONS: WIDTH 38.50” / HEIGHT 37” / DEPTH 34.25”
SHIPPING WEIGHT: 231 POUNDS
GAS REQUIREMENTS: SHIPS IN LIQUID PROPANE OR NATURAL GAS
FROM FACTORY
ELECTRICAL REQUIREMENTS: INSTALLATION REQUIRES AN OUTDOOR
120V/15GFI ELECTRICAL OUTLET ADJACENT TO PRODUCT
COOKING CONFIGURATION: BUILT-IN GRILL WITH ALL TRIDENT™ INFRARED
BURNERS AND ROTISSERIE
between accessories
e
H
2 ½”minimum clearance between accessories.
PRODUCT SPECIFICATIONS & INSTALLATION
between accessories
D
W
FOR EVEN MORE ON THIS PRODUCT AND OTHER COMPLIMENTARY LYNX PRODUCTS, VIST LYNXGRILLS.COM
COUNTERTOP NOTCH DETAIL
