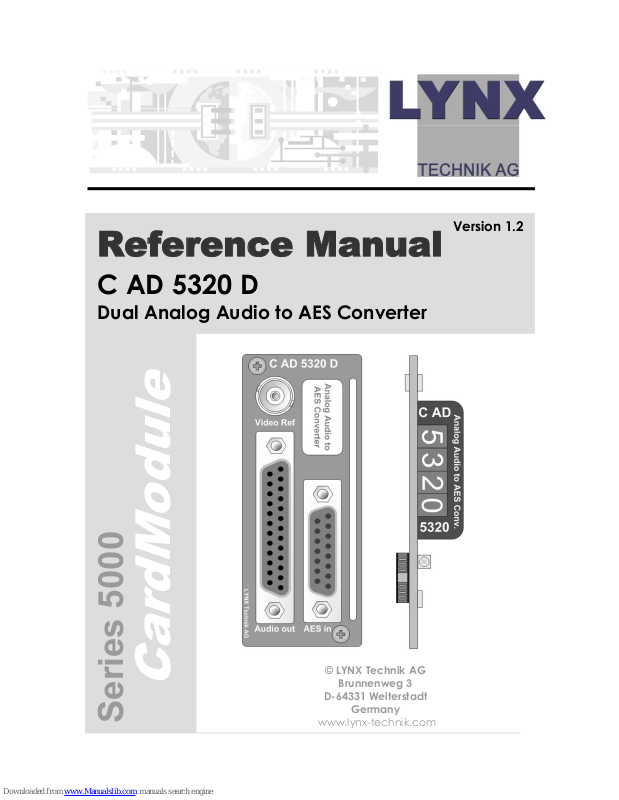

Series 5000
© LYNX Technik AG
Brunnenweg 3
D-64331 Weiterstadt
Germany
www.lynx-technik.com
Reference Manual
C AD 5320 D
Dual Analog Audio to AES Converter
CardModul
e
Version 1.2
Reference Manual C AD 5320 D Version1.2
Page 2
Information in this document is subject to change without
notice. No part of this document may be reproduced or
transmitted in any form or by any means, electronic or
mechanical for any purpose, without express written permission
of LYNX Technik AG.
LYNX Technik AG may have patents, patent applications,
trademarks, copyrights or other intellectual property rights
covering the subject matter in this document. Except as
expressly written by LYNX Technik AG, the furnishing of this
document does not give you any license to patents,
trademarks, copyrights or other intellectual property of LYNX
Technik AG or any of its affiliates.
© LYNX Technik AG 2003 all rights reserved
Reference Manual C AD 5320 D Version1.2
Page 3
Warranty
LYNX Technik AG warrants that the product will be free from
defects in materials and workmanship for a period of two (2)
year from the date of shipment. If this product proves defective
during the warranty period, LYNX Technik AG at its option will
either repair the defective product without charge for parts and
labor, or will provide a replacement in exchange for the
defective product.
In order to obtain service under this warranty, customer must
notify LYNX Technik of the defect before expiration of the
warranty period and make suitable arrangements for the
performance of service. Customer shall be responsible for
packaging and shipping the defective product to the service
center designated by LYNX Technik, with shipping charges
prepaid. LYNX Technik shall pay for the return of the product to
the customer if the shipment is within the country which the LYNX
Technik service center is located. Customer shall be responsible
for payment of all shipping charges, duties, taxes and any other
charges for products returned to any other locations.
This warranty shall not apply to any defect, failure, or damage
caused by improper use or improper or inadequate
maintenance and care. LYNX Technik shall not be obligated to
furnish service under this warranty a) to repair damage resulting
from attempts by personnel other than LYNX Technik
representatives to install, repair or service the product; b) to
repair damage resulting from improper use or connection to
incompatible equipment; c) to repair any damage or
malfunction caused by the use of non LYNX Technik supplies; or
d) to service a product which has been modified or integrated
with other products when the effect of such modification or
integration increases the time or difficulty servicing the product.
THIS WARRANTY IS GIVEN BY LYNX TECHNIK WITH RESPECT TO THIS
PRODUCT IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED. LYNX TECHNIK AND ITS VENDORS DISCLAIM ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. LYNX TECHNIK`S RESPONISIBILITY TO REPAIR AND
REPLACE DEFECTIVE PRODUCTS IS THE SOLE AND EXCLUSIVE
REMEDY PROVIDED TO THE CUSTOMER FOR BREACH OF THIS
WARRANTY. LYNX TECHNIK AND ITS VENDORS WILL NOT BE LIABLE
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTAL
DAMAGES IRRESPECTIVE OF WHETHER LYNX TECHNIK OR THE
VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGES.
Reference Manual C AD 5320 D Version1.2
Page 4
Regulatory information
Europe
Declaration of Conformity
USA
FCC 47 Part 15
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to the part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own
expense
We LYNX Technik AG
Brunnenweg 3
D-64331 Weiterstadt
Germany
Declare under our sole responsibility that the product
TYPE: C AD 5320 D
To which this declaration relates is in conformity with the following
standards (environments E1 – E3):
EN 55103-1 /1996
EN 55103-2 /1996
EN 60950 /2001
Following the provisions of 89/336/EEC and 73/23/EEC directives.
Winfried Deckelmann
Weiterstadt, May 2004
Place and date of issue Legal Signature
Reference Manual C AD 5320 D Version1.2
Page 5
Contents
Warranty ...................................................................................3
Regulatory information............................................................4
Europe................................................................................... 4
Declaration of Conformity ..................................................4
USA ....................................................................................... 4
FCC 47 Part 15.................................................................. 4
Contents ................................................................................... 5
Getting Started .........................................................................7
Packaging.............................................................................. 7
Product Description ...............................................................7
Functional Diagram................................................................ 8
Module Layout ....................................................................... 8
Connections ........................................................................... 10
Audio Connections............................................................... 10
Audio Input Connections (balanced)................................ 10
Audio Output Connector (balanced) ................................11
Audio Input Connections (un-balanced)........................... 11
Installation.............................................................................. 12
Settings and Control..............................................................13
Multi Function Switch........................................................... 14
Using the Local Display Menus............................................ 15
Navigation .......................................................................15
Local Adjustments Available............................................ 15
Factory Default Values .................................................... 15
Menu Structure .................................................................... 16
Auto Store ....................................................................... 16
Alarm/LED Status Indicators.................................................20
Channel Condition Indicators...........................................20
Reference Status Indicator .............................................. 20
Alarm Indicator ................................................................ 20
Locate Function............................................................... 21
Specifications (C AD 5320 D) ................................................ 22
Available Options................................................................... 23
Parts List ................................................................................23
Service....................................................................................24
Contact Information...............................................................25
Reference Manual C AD 5320 D Version1.2
Page 6
This page is intentionally left blank
Reference Manual C AD 5320 D Version1.2
Page 7
Getting Started
Packaging
The shipping carton and packaging materials
provide protection for the module during transit.
Please retain the shipping cartons in case
subsequent shipping of the product becomes
necessary.
Product Description
The C AD 5320 is a high quality dual channel
analog audio to AES converter (A/D) and is
designed primarily for broadcast and professional
applications.
The module accepts balanced analog audio
inputs and converts these to 24 bit AES digital
streams. Sampling rates of 32 kHz, 44.1 kHz, 48 kHz
and 96 kHz are supported. The converter can be
locked to external video reference, external AES
reference or internal reference. Input full scale
ranging is adjustable and an internal test tone
generator is also provided.
AES outputs are isolated with transformers.
The C AD 5320 features a wide range of available
adjustments (via optional Rack Controller). Basic
adjustments are possible using via the local multifunction switch and integrated display.
CardModules are installed in the series 5000 card
frame that can accommodate up to 10
CardModules. All modules are hot swappable and
Options include full redundant power and a range
of controller options.
Reference Manual C AD 5320 D Version1.2
Page 8
Functional Diagram
Figure 1 below is the basic functional diagram for
the C AD 5320 CardModule.
Figure 1- C AD 5320 Functional Diagram
Module Layout
Figure 2 shows the physical layout of the C AD 5320
CardModule and also the connection panel which
is fitted to the rear of the rack.
Reference Manual C AD 5320 D Version1.2
Page 9
Figure 2 – Module Layout
Caution
Use static precautions when handling the
PCB. Static discharge could result in serious
damage to the module.
Reference Manual C AD 5320 D Version1.2
Page 10
Connections
Audio Connections
The C AD 5320 D Module is configured for SubD
audio connections for audio I/O and a BNC
connector for video reference. The SubD
connectors should be wired in accordance with
the tables below. Please use high quality screened
cable to prevent the introduction of noise and
interference to the audio signals (twisted pair
suitable for balanced audio signals).
Audio Input Connections (balanced)
SubD 25 pin female connector. (TASCAM pinout)
Figure 3 - Audio output connection detail
Pin
Number
Connection
Pin
Number
Connection
1 + IN Left 1 14 - IN Left 1
2 GND IN Left 1 15 + IN Right 1
3 - IN Right 1 16 GND IN Right 1
4 + IN Left 2 17 - IN Left 2
5 GND IN Left 2 18 + IN Right 2
6 - IN Right 2 19 GND IN Right 2
7
8
9
10
11
12
13
113
1425
Reference Manual C AD 5320 D Version1.2
Page 11
Audio Output Connector (balanced)
SubD 15-pin female connector
Figure 4 – Audio input connection detail
Audio Input Connections (un-balanced)
Although the module is designed primarily for
balanced line audio connections it is possible to
make un-balanced audio connections to the
module. NOTE. When used in this manor certain
technical specifications of the module cannot be
maintained.
Figure 5 – Audio wiring detail
Pin
Number
Connection
Pin
Number
Connection
1 9
2 10 + AES Ref in
3 - AES Ref in 11 GND AES Ref in
4 + AES OUT 2 12 - AES OUT 2
5 GND OUT 2 13 + AES OUT 1
6 - AES OUT 1 14 GND OUT 1
7 15
8
Twisted pair blanced
audio
Balanced Pin Identification
Wiring for balanced audio Wiring for un-balanced audio
Screen / GND
Signal
Screen
- Input / output
+ Input / output
GND
18
9
15
Reference Manual C AD 5320 D Version1.2
Page 12
Installation
Caution
The CardModule is shipped in a
protective anti-static bag. Please take
suitable precautions to avoid static
discharge onto any part of the PCB or
components when handling module or
serious damage could result.
Each Card Module is supplied with a rear
connection panel and two mounting screws.
Please follow the following procedure for
installation of the card module into the Series 5000
Card Frame.
a) Select a slot in the card frame where the
CardModule will be located
b) Remove the blank connection panel from the
rear of the rack (if fitted)
c) Install the rear connection panel using the
screws supplied. Do not tighten the screws fully
d) Slide the card module into the card frame and
carefully check the CardModule easily
connects to the rear connection plate. The
card should fit easily and should not require
excessive force to insert, if you feel any
resistance, there could be something wrong
with the rear connection panel location. Do not
try and force the connection. Remove the rear
connection panel and check alignment with
the CardModule.
e) Insert and remove the CardModule a few times
to ensure correct alignment and then tighten
the two screws to secure the rear connection
plate
Reference Manual C AD 5320 D Version1.2
Page 13
Settings and Control
The C AD 5320 has an integrated micro-controller,
which enables the module to be configured and
controlled locally using the multifunction switch and
4 character dot matrix display, or from remote
when using one of the optional controllers and
control software.
Once set, all settings are automatically saved in
non-volatile internal memory. (Flash ram) The
module will always recall the settings used prior to
power down.
Figure 6 – Switch and Display Location
Reference Manual C AD 5320 D Version1.2
Page 14
Multi Function Switch
The CardModule is equipped with a multi-function
switch located on the front bottom edge of the
card (refer to figure 6)
Figure 7 – Switch Operation
Up Down
Enter
Switch Operations
Multi-function Switch
Side Front
Reference Manual C AD 5320 D Version1.2
Page 15
Using the Local Display Menus
Making local adjustments to the module is done
using the multifunction switch and the integrated 4character dot matrix display (figure 3). The menu
system is layered, and navigation through the
system is done using the UP and DOWN functions of
the switch. ENTER is used to move between menu
levels and also enter a selection.
Navigation
Local Adjustments Available
All of the critical adjustments to the module are
accessible using the local display and multi function switch.
Factory Default Values
The module can be reset via the local menu to
factory preset values:
- Mute off
- 0 dB Full Scale at 15 dBu
- Reference: Video
- Sampling Frequency: 48kHz
- Test Tone off
- Gain: 0 dB = 128
Switch Function Operation
UP Move UP within a level
DOWN Move down within a level
ENTER Change levels / Make selection
Reference Manual C AD 5320 D Version1.2
Page 16
Menu Structure
The Menu structure is defined in the next table, and
should be used when navigating through the
system.
Notes / Tips.
ENTER moves between Levels
UP/DOWN moves between items within the level
When you enter a new setting the system will jump
back one level in the menu system.
The “back” selection in the menu structure will take
you back one level when selected.
When an item is selected which has several setting
possibilities the first value displayed will be the value
currently stored in the system. The order of the
available settings for any menu item in the table
supplied does not represent the order he settings
will actually be displayed.
If left unattended, the menu will default to the root
display after a preset timeout.
Auto Store
If no parameters are changed for 10 seconds then
the current settings will be written into flash memory
automatically, this can be seen by the alarm LED
flashing yellow four times.
Reference Manual C AD 5320 D Version1.2
Page 17
Reference Manual C AD 5320 D Version1.2
Page 18
Reference Manual C AD 5320 D Version1.2
Page 19
Reference Manual C AD 5320 D Version1.2
Page 20
Alarm/LED Status Indicators
The C AD 5320 module has integral LED indicators,
which serve as alarm and status indication for the
module. Function is described below.
Channel Condition Indicators
One LED is provided for each channel
LED 1 = Channel 1/2
LED 2 = Channel 3/4
Reference Status Indicator
Alarm Indicator
There is also a single alarm LED on the lower edge
of the module (LED 3). This is visible through the
card frame front cover and provides a general
indication of the module status.
LED OFF indicates power is lost, or there is a power
supply fault.
LED Color Indication
Green Inputs and reference OK
Yellow Test tone selected or one input lost or
OVERLOAD or MUTE
Red No input present
LED State Indication
Green Inputs OK and Reference OK, no
MUTE, no OVERLOAD
Green Flashing Inputs OK and Reference OK, but
MUTE or OVERLOAD
Yellow Only one input present, Reference OK,
no MUTE, no OVERLOAD
or Test tone active
Yellow Flashing Only one input present and
OVERLOAD or MUTE
Red Inputs missing
LED State Indication
Green Reference OK (AES or Video
Reference)
Yellow Internal reference
Red Invalid reference
Reference Manual C AD 5320 D Version1.2
Page 21
Locate Function
For larger systems which may have multiple cards
of the same type in a single rack, or multiple rack
systems on a large central control system we have
added a useful utility which will help to visually
locate a suspect module quickly (When used in
conjunction with the optional control system and
software)
Once the specific module has been selected on
the control system there is a locate button on the
top of the GUI:
Locate Function in Control System
When Locate is selected the status indicator on the
GUI and the alarm LED will flash yellow in the
following continuous sequence.
3 short flashes…. Pause…. 3 short flashes …
Use of the locate function will not interfere with the
normal operation of the module.
For more details on this feature please check the
documentation supplied with the controller
software.
Reference Manual C AD 5320 D Version1.2
Page 22
Specifications
(C AD 5320 D)
Analog Input
Signal 2x balanced analog stereo inputs (one stereo
signal per channel)
Impedance 110 Ohm
Connection Female SubD 25pin connector
Max level 24dBu
0dB FS level Adjustable (12dBu, 15dBu, 18dBu; 21dBu or 24
dBu)
Reference Input
Video Reference Black burst, 75Ohm on BNC connector
AES Reference AES reference input (on SubD 15 pin connector)
Outputs
Signal 2 x balanced AES3 through isolation transformers
Impedance 110Ohm
Connection Female SubD 15pin connector
Level 4 V p-p nom.
Performance
Sampling Sampling rates: 32kHz, 44.1kHz, 48kHz, 96kHz
Quantization 24 bit
Noise floor < -100dB (A-weighted, 1kHz, 6dBu)
Distortion < 0.005% @ 20Hz to 20kHz
Frequency response +/-0.2dB @ 20Hz to 20kHz
Crosstalk < -95dB @ 20Hz to 20kHz
Status Monitoring Signal presence detection
Overload detection
Electrical Specifications
Operating Voltage + 12VDC
Power Consumption 5 VA
Safety IEC 950/ EN 60950/VDE 0805
Mechanical
Size 283mm x 78 mm
Weight Card module 120 g, connection panel 50 g
Ambient
Temperature 5°C to 40°C Maintaining specifications
Humidity Max 80% non condensing
Supplied Accessories
Documentation C AD 5320 D Reference Manual
Reference Manual C AD 5320 D Version1.2
Page 23
Available Options
Below is a list of related products for the C AD 5320
CardModule. Please refer to product brochures or
our web site for more detailed information.
Model Description
R FR 5010
Series 5000 Rack Frame (empty) with single
power supply
R PS 5010
Redundant power supply for the R FR 5010
Card Frame
R CT 5020
Rack controller for the R FR 5010 Card
Frame
R CT 5010
Rack Bus Extension for the R FR 5010 Card
Frame. In combination with R CT 5020
Parts List
Due to the very dense design and miniature
surface mount technology the module is not field
serviceable. The information for a replacement
assembly is below.
C AD 5320 D CardModule (complete)
Description Dual Analog Audio to AES Conv.
Model Number C AD 5320 D
Part Number 6.155.009.290
Sub Assemblies:
C AD 5320 Processing Board only (BS 5025)
Part Number 6.155.001.252
Rear Connection Panel for C AD 5320 D (MA5002_A)
Part Number 6.155.007.262
Reference Manual C AD 5320 D Version1.2
Page 24
Service
If you are experiencing problems, or have questions
concerning your C AD 5320 CardModule please
contact your local distributor for assistance.
We offer a fixed cost service exchange program for
defective Series 5000 CardModules out of
Warranty. Please contact your distributor or check
our web site for details on this program.
More detailed information and product updates
may be available on our web site:
www.lynx-technik.com
You will also find links to contact us directly for
assistance.
Reference Manual C AD 5320 D Version1.2
Page 25
Contact Information
Please contact your local distributor; this is your
local and fastest method for obtaining support and
sales information.
LYNX Technik can be contacted directly using the
information below.
Address LYNX Technik AG
Brunnenweg 3
D-64331 Weiterstadt
Germany.
Website www.lynx-technik.com
E-Mail info@lynx-technik.com
LYNX Technik manufactures a complete range of
high quality modular products for broadcast and
Professional markets, please contact your local
representative or visit our web site for more product
information.
Reference Manual C AD 5320 D Version1.2
Page 26
This page is intentionally left blank
Reference Manual C AD 5320 D Version1.2
Page 27
Notes
Loading...
