Reference Manual
C AD 3320 D / C AD 3321 D
Dual Analog Audio to AES Converter
MiniModules
C AD 3320 D
AUDIO IN
LYNX Technik AG
AES
Dual Analog Audio
To AES Converter
made in Germany
www.lynx-technik.com
VID REF
Reference Manual C AD 3320 D / C AD 3321 D Version 1.1
Page 2
Information in this document is subject to change without
notice. No part of this document may be reproduced or
transmitted in any form or by any means, electronic or
mechanical for any purpose, without express written permission
of LYNX Technik AG.
LYNX Technik AG may have patents, patent applications,
trademarks, copyrights or other intellectual property rights
covering the subject matter in this document. Except as
expressly written by LYNX Technik AG, the furnishing of this
document does not give you any license to patents,
trademarks, copyrights or other intellectual property of LYNX
Technik AG or any of its affiliates.
© LYNX Technik AG 2003 all rights reserved
Reference Manual C AD 3320 D / C AD 3121 D Version1.1
Page 3
Warranty
LYNX Technik AG warrants that the product will be free from
defects in materials and workmanship for a period of two (2)
years from the date of shipment. If this product proves defective
during the warranty period, LYNX Technik AG at its option will
either repair the defective product without charge for parts and
labor, or will provide a replacement in exchange for the
defective product.
In order to obtain service under this warranty, customer must
notify LYNX Technik of the defect before expiration of the
warranty period and make suitable arrangements for the
performance of service. Customer shall be responsible for
packaging and shipping the defective product to the service
center designated by LYNX Technik, with shipping charges
prepaid. LYNX Technik shall pay for the return of the product to
the customer if the shipment is within the country which the LYNX
Technik service center is located. Customer shall be responsible
for payment of all shipping charges, duties, taxes and any other
charges for products returned to any other locations.
This warranty shall not apply to any defect, failure, or damage
caused by improper use or improper or inadequate
maintenance and care. LYNX Technik shall not be obligated to
furnish service under this warranty a) to repair damage resulting
from attempts by personnel other than LYNX Technik
representatives to install, repair or service the product; b) to
repair damage resulting from improper use or connection to
incompatible equipment; c) to repair any damage or
malfunction caused by the use of non LYNX Technik supplies; or
d) to service a product which has been modified or integrated
with other products when the effect of such modification or
integration increases the time or difficulty servicing the product.
THIS WARRANTY IS GIVEN BY LYNX TECHNIK WITH RESPECT TO THIS
PRODUCT IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED. LYNX TECHNIK AND ITS VENDORS DISCLAIM ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. LYNX TECHNIK`S RESPONISIBILITY TO REPAIR AND
REPLACE DEFECTIVE PRODUCTS IS THE SOLE AND EXCLUSIVE
REMEDY PROVIDED TO THE CUSTOMER FOR BREACH OF THIS
WARRANTY. LYNX TECHNIK AND ITS VENDORS WILL NOT BE LIABLE
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTAL
DAMAGES IRRESPECTIVE OF WHETHER LYNX TECHNIK OR THE
VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGES.
Reference Manual C AD 3320 D / C AD 3321 D Version 1.1
Page 4
Regulatory information
Europe
Declaration of Conformity
USA
FCC 47 Part 15
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to the part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own
expense
We LYNX Technik AG
Brunnenweg 3
D-64331 Weiterstadt
Germany
Declare under our sole responsibility that the product
TYPE: C AD 3320 D / C AD 3321 D
To which this declaration relates is in conformity with the following
standards:
EN 55103-1 /1996
EN 55103-2 /1996
EN 60950 /1997
Following the provisions of 89/336/EEC and 73/23/EEC directives.
Winfried Deckelmann
Bickenbach, January 2003
Place and date of issue Legal Signature
Reference Manual C AD 3320 D / C AD 3121 D Version1.1
Page 5
Contents
Warranty ...............................................................................................3
Regulatory information........................................................................4
Europe...............................................................................................4
Declaration of Conformity .............................................................4
USA...................................................................................................4
FCC 47 Part 15 ............................................................................4
Contents ...............................................................................................5
Getting Started .....................................................................................7
Packaging .........................................................................................7
Product Description...........................................................................7
Features ............................................................................................8
Functional Diagram ...........................................................................9
Module Layout................................................................................... 9
Connections .......................................................................................11
Audio Connections ..........................................................................11
Audio Input Connections (balanced)...........................................11
Audio Output Connector (balanced) ...........................................12
Audio Input Connections (un-balanced) .....................................12
Power Connections .........................................................................13
DC Power Connector..................................................................13
Installation..........................................................................................14
Mechanical ......................................................................................14
Stand Alone Operation ...............................................................14
Multiple Units.............................................................................. 15
Electrical Installation. ......................................................................16
Stand Alone Operation ...............................................................16
Multiple Units.............................................................................. 17
Settings and Control..........................................................................17
Switch Settings................................................................................18
Switch Function Detail ................................................................19
Auto Store ..................................................................................20
Factory Preset Condition................................................................. 20
Alarm/LED Status Indicators.............................................................21
Channel Condition Indicators .....................................................21
Front Panel Alarm Indicator........................................................22
Locate Function ..........................................................................22
Specifications (C AD 3320/3321 D) ...................................................23
Available Options...............................................................................24
Parts List.............................................................................................25
Service ................................................................................................25
Contact Information...........................................................................26
Reference Manual C AD 3320 D / C AD 3321 D Version 1.1
Page 6
This page is intentionally left blank
Reference Manual C AD 3320 D / C AD 3121 D Version1.1
Page 7
Getting Started
Packaging
The shipping carton and packaging materials
provide protection for the module during transit.
Please retain the shipping cartons in case
subsequent shipping of the product becomes
necessary.
Product Description
The C AD 3320 D (European version) / C AD 3321 D
(US version) is a high quality dual channel analog
audio to AES converter designed primarily for
broadcast and professional applications.
The Module accepts balanced analog audio
inputs and converts these to 24 bit AES digital
streams. Sampling rates of 32KHz, 44.1KHz, 48KHz
and 96KHz are supported. The converter can be
locked to external video reference, external AES
reference or internal reference. Input full scale
ranging is adjustable and an internal test tone
generator is also provided.
The module has a built in micro-controller with local
controls, status and alarm indicators and well as
internal flash ram for storing setups. Remote control
and remote status monitoring is possible when used
with the one of the available controller options and
LYNX control software.
The C AD 3320 D / C AD 3321 D is part of the 3000
series of MiniModules, which offer high quality,
modularity and flexibility in a very small form factor
ideal for applications where space is at a premium.
The modules can be used either stand alone using
the optional power supply brick, or as part of a
Reference Manual C AD 3320 D / C AD 3321 D Version 1.1
Page 8
tightly integrated space saving system where up to
10 MiniModules can be mounted utilizing the
optional LYNX R FR 3005 / 3010 rack housing. This
includes integrated power supply and optional
remote control interfaces.
Features
• 2 stereo channels of audio AD conversion
• Balanced analog inputs
• Adjustable input full scale ranging
• Transformer coupled AES outputs
• Sample rates from 32kHz to 96kHz
• Video Black Burst reference, AES reference or
Internal reference
• Integrated test tone generator
• Overload detection
• Compact size
• Remote control interface
• Microprocessor controlled
• Internal flash ram for storing setups
Reference Manual C AD 3320 D / C AD 3121 D Version1.1
Page 9
Functional Diagram
Figure 1 below is the basic functional diagram for
the C AD 3320 D / C AD 3321 D MiniModule.
Figure 1- C AD 3320 D / C AD 3321 D Functional Diagram
Module Layout
Figure 2 shows the physical layout of the C AD 3320
D / C AD 3321 D MiniModule. This module utilizes
two SubD connectors for the audio input and
outputs and AES reference. Reference video is a
BNC connection. Please refer the connections
section of this manual for wiring details for the
connectors.
If the module is being used in a stand alone
application then the optional power supply (R PS
3001 E, R PS 3001 U or R PS 3003-3) is required to
power the module (not shown)
Control / Select
Alarm
Status
Switches
Remote
0 dBFS
Select
0 dBFS
Select
AES
Receiver
Video
Sync
Internal
Clock
AD
Conversion
AD
Conversion
Test
Tone
AES
Transmitter
AES
Transmitter
IN 1 L
IN 1 R
IN 2 L
IN 2 R
AES Ref
Video Ref
Reference Manual C AD 3320 D / C AD 3321 D Version 1.1
Page 10
Figure 2 – Module Layout
C AD 3320 D
AUDIO
IN
AES
made in Germany
www.lynx-technik.com
VID REF
DIP Switch 2
ON
OFF
Alarm LED
LED 1
Front Side
Power / Data Connection
1 2 3 4
LED 2
Bottom
DIP Switch 1
ON
OFF
1 2 3 4
LED 3
Reference Manual C AD 3320 D / C AD 3121 D Version1.1
Page 11
Connections
Audio Connections
The C AD 3320 D / C AD 3321 D MiniModule is
configured for SubD audio connections for audio
I/O and a BNC connector for video reference. The
SubD connectors should be wired in accordance
with the tables below. Please use high quality
screened cable to prevent the introduction of
noise and interference to the audio signals (twisted
pair suitable for balanced audio signals).
Audio Input Connections (balanced)
SubD 25 pin female connector. (TASCAM pinout)
Figure 3 - Audio output connection detail
Pin
Number
Connection
Pin
Number
Connection
1 + IN Left 1 14 - IN Left 1
2 GND IN Left 1 15 + IN Right 1
3 - IN Right 1 16 GND IN Right 1
4 + IN Left 2 17 - IN Left 2
5 GND IN Left 2 18 + IN Right 2
6 - IN Right 2 19 GND IN Right 2
7
8
9
10
11
12
13
113
1425
Reference Manual C AD 3320 D / C AD 3321 D Version 1.1
Page 12

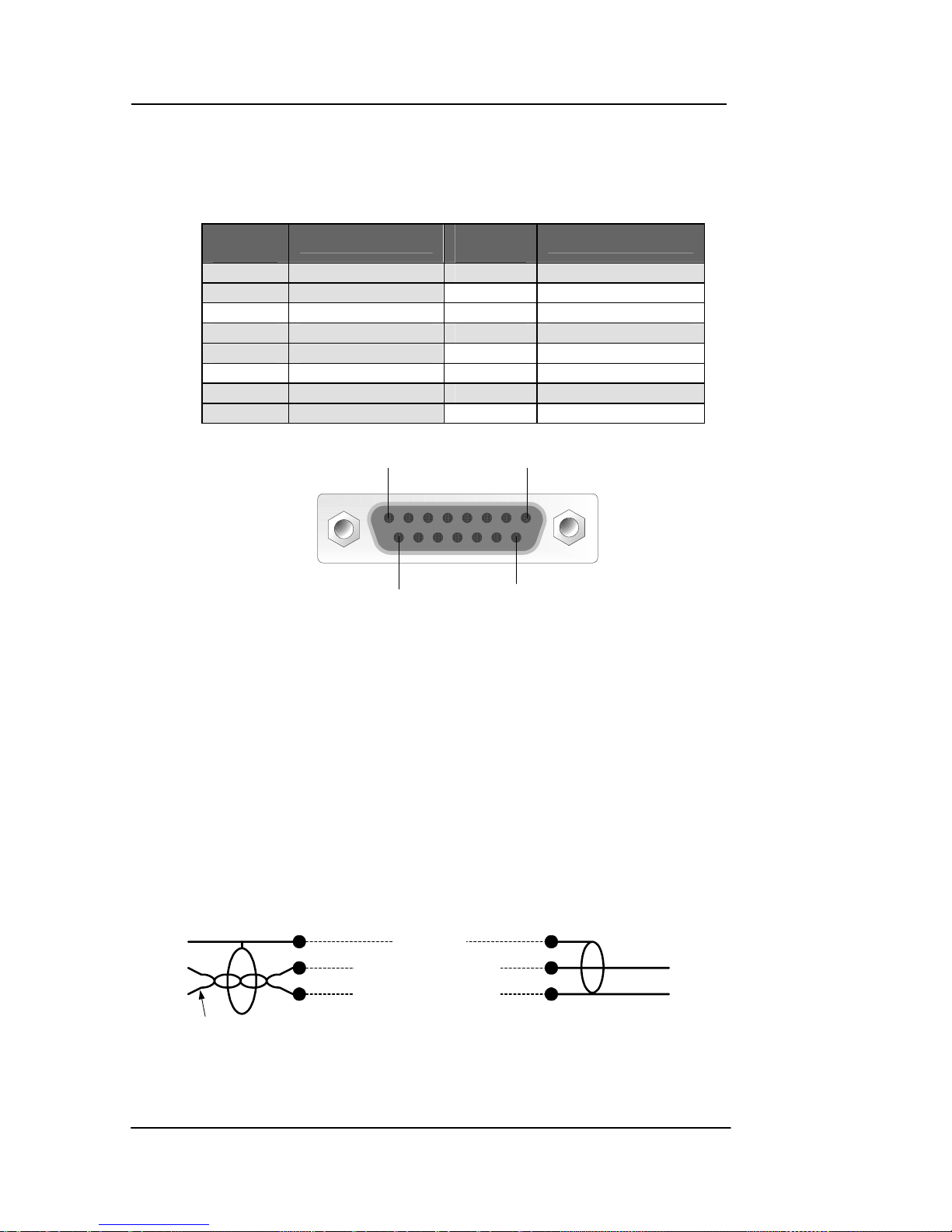

Audio Output Connector (balanced)
SubD 15-pin female connector
Figure 4 – Audio input connection detail
Audio Input Connections (un-balanced)
Although the module is designed primarily for
balanced line audio connections it is possible to
make un-balanced audio connections to the
module. NOTE. When used in this manor certain
technical specifications of the module cannot be
maintained.
Figure 5 – Audio wiring detail
Pin
Number
Connection
Pin
Number
Connection
1 9
2 10 + AES Ref in
3 - AES Ref in 11 GND AES Ref in
4 + AES OUT 2 12 - AES OUT 2
5 GND OUT 2 13 + AES OUT 1
6 - AES OUT 1 14 GND OUT 1
7 15
8
Twisted pair blanced
audio
Balanced Pin Identification
Wiring for balanced audio Wiring for un-balanced audio
Screen / GND
Signal
Screen
- Input / output
+ Input / output
GND
18
9
15
Reference Manual C AD 3320 D / C AD 3121 D Version1.1
Page 13
!
Power Connections
If using the module in a stand-alone application
use the separate R PS 3001 E (for Europe) or R PS
3001 U (USA) power brick option or the R PS 3003-3
desk power supply
DC Power Connector
The MiniModule has a captive power lead fitted to
the module, with a male 5 pin locking bayonet
connector. This connection provides DC power
and also data connectivity to the module.
Connector wiring is shown below.

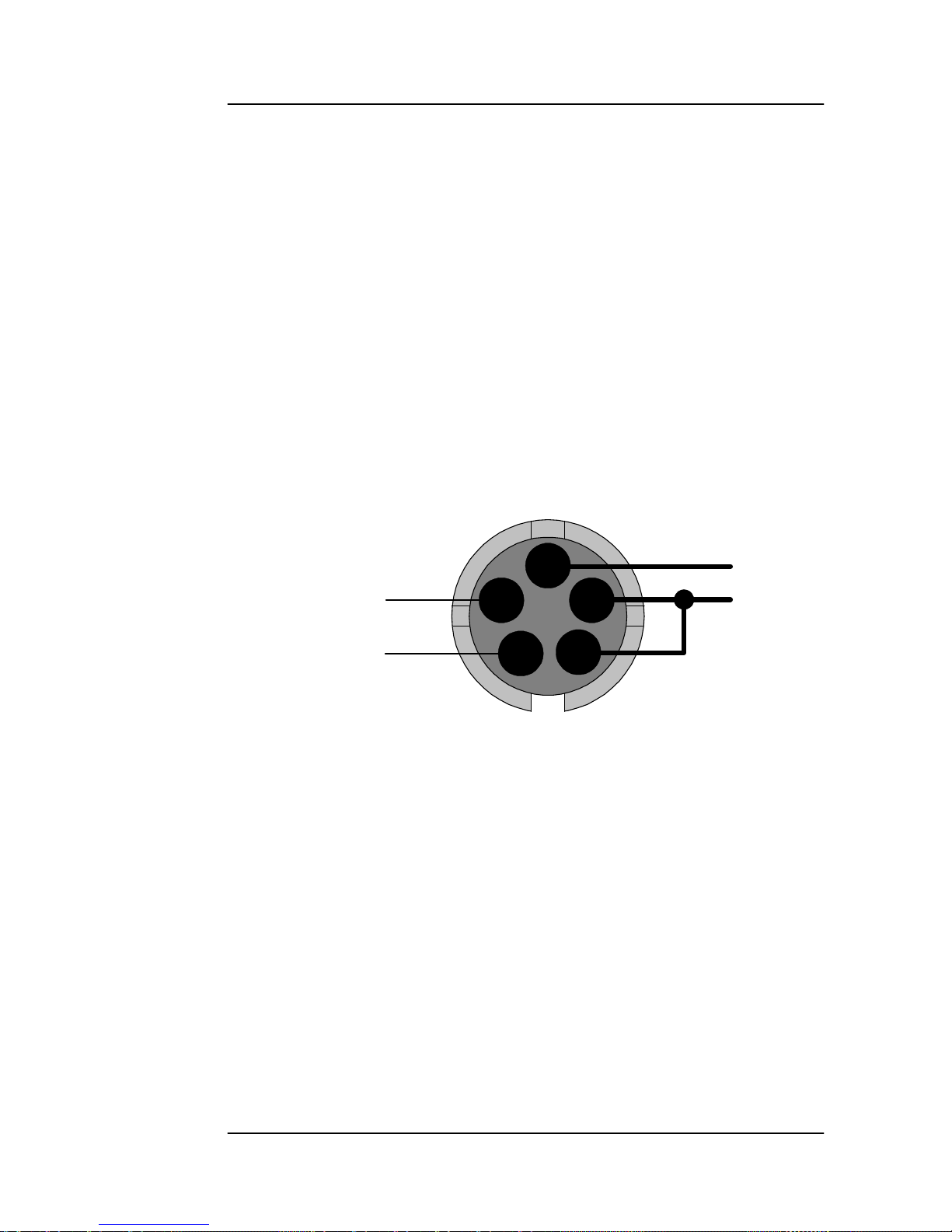

3
4
5
1
2
GND
+ 5V
i2C-SDA (data)
i2C-SCL (clock)
Power ConnectionData Connection
Male Connector
(view looking into connector from front)
Caution
Only use the optional LYNX R PS power
modules. Please make sure the brick is not
connected to the main supply when
making the DC power connection to the
module. Ensure the 5-pin power
connector is locked securely in place.
Reference Manual C AD 3320 D / C AD 3321 D Version 1.1
Page 14
!
Installation
Mechanical
Stand Alone Operation
The C AD 3320 D / C AD 3321 D MiniModule can be
used in a stand alone application. There are two
options for the use of the module in this way.
a) Using the R FR 3005 Rack Frame 1 option. This
allows up to any 10 of the MiniModules to be
secured onto a rack frame assembly for 19 inch
rack mounting. This keeps the modules secured,
organized and out of the way. The R PS 3001
power brick option or the R FR 3010 option is
required to power each module. Please refer to
the reference manuals supplied with these
options for more details.
b) Single Use. The MiniModule can be powered
independently with the R PS 3001 option and
used in any location where this functionality is
required.
Caution. Care needs to be taken
when using the module in this way, as
it is not physically secured. Keep the
module away from the floor to avoid
the risk of someone stepping or
tripping on the unit, and locate the
unit away from excessive sources of
heat and any sources or moisture.
If using more than one MiniModule in any
installation, the R FR 3005/3010 Rack frame
combination is highly recommended.
Reference Manual C AD 3320 D / C AD 3121 D Version1.1
Page 15
Multiple Units
Most applications will require more than one
MiniModule, which can include any of the
available Series 3000 MiniModule product range.
There are two options for mounting multiple units.
a) Using the R FR 3005 Rack Frame option. This
allows up to any 10 of the MiniModules to be
secured onto a rack frame assembly for 19 inch
rack mounting. The R PS 3001 power brick
option or the R FR 3010 option is required to
power each module. Please refer to the
reference manuals supplied with these options
for more details.
b) Using the R FR 3010 Rack frame extension
option. Can be combined with the R FR 3005
Rack frame option. Each module plugs into a
connection bus, which provides common
power for all modules. (No R PS external power
supplies are needed). Remote control and
status monitoring of all modules is possible with
the addition of the R CT 5020 rack controller
and R CT 5030 master controller options. Please
refer to the respective reference manuals for
these options for details of mechanical
installation.
The very small size and density of the MiniModules
combined with the available rack frame options
allows the addition of a complex and custom signal
distribution system without taking any additional
front rack space. The rack frames are designed for
installation in the back of 19-inch racks where there
is normally plenty of available space. Ideal for
mobile truck installations and facility expansions
where space is at a premium.
Reference Manual C AD 3320 D / C AD 3321 D Version 1.1
Page 16
!
!
Electrical Installation.
Stand Alone Operation
The MiniModule requires the R PS 3001 power brick
option for stand-alone operation. Two versions are
available R PS 3001 E for European markets and R
PS 3001 U for the US markets or the R PS 3003-3 desk
power supply.
Please ensure you have the correct power option
for your region. The connection to the module is
made with a small 5-pin connector, which has a
twist bayonet securing system. Please make sure
the connection is solid and locked in place. A strain
relief is included within the module to prevent
excessive strain on the connection.
Signal connections should be made with care,
please ensure connections are correct and
compatible equipment is feeding / receiving the
signals from the module or damage can result.
Caution. Only use the optional LYNX R PS
3001 power modules. Please make sure
the brick is not connected to the main
supply when making the DC power
connection to the module. Ensure the 5pin power connector is locked securely in
place.
Caution. Care needs to be taken when
using the module in this way, if it is not
physically secured. Keep the module
away from the floor to avoid the risk of
someone stepping or tripping on the unit,
and locate the unit away from excessive
sources of heat and any sources or
moisture.
Reference Manual C AD 3320 D / C AD 3121 D Version1.1
Page 17
Multiple Units
When installing multiple MiniModule units it is
recommended you use the R FR 3005 Rack Frame 1
and / or R FR 3010 Rack Frame 2 options. Please
refer to the documentation supplied with these
options for details on electrical installation.
Settings and Control
The C AD 3320 D / C AD 3321 D has an integrated
micro-controller, which enables the module to be
configured and controlled locally via the integral
dip-switch and push buttons, or from remote when
using the optional RFR rack frame and control
system. When remote operation is used the local
controls are disabled.
Once set, all settings are automatically saved in
non-volatile internal memory. The module will
always recall the settings used to prior to power off.
The module local configuration is performed from
two 4-position dip-switches which are accessible
through an access space in the bottom of the
module.
Please refer to figure 2 for the location of these
adjustments and use the procedures defined in the
next section to configure the C AD 3320 D / C AD
3321 D module.
Reference Manual C AD 3320 D / C AD 3321 D Version 1.1
Page 18
Switch Settings
Below the switch settings for the 8-position dipswitch are defined. Please refer to figure 2 for the
location of the switch.
DIP Switch 1
ON
OFF
1 2 3 4
DIP Switch 2
ON
OFF
1 2 3 4
(Connector side)
NOTE. Settings made are applied to both input
channels.
Switch 1 Setting Function
ON Local Control enabled
1
OFF Local Control disabled
ON Select Sample range High (48KHz or 96KHz)
2
OFF Select Sample range Low (32KHz or 44.1KHz)
ON Sample Rate = 44.1KHz or 96KHz **
3
OFF Sample Rate = 32KHz or 48KHz **
ON Test tone ON
4
OFF Test tone OFF (normal)
Switch 2 Setting Function
ON Select FS 18dBu (EU - C AD 3320)
Select FS 24dBu (US - C AD 3321)
1
OFF Select Low FS range (12dBu or 15dBu) (EU)
Select Low FS range (15dBu or 18dBu) (US)
ON FS range = 15dBu (EU) *
FS range = 18dBu (US) *
2
OFF FS range = 12dBu (EU) *
FS range = 15dBu (US) *
ON Mute channel 1
3
OFF Normal operation
ON Mute channel 2
4
OFF Normal operation
Reference Manual C AD 3320 D / C AD 3121 D Version1.1
Page 19
* Value selected depends on the range selected
with switch 5
** Value selected depends on range selected on
switch 2
Switch Function Detail
Dip Switch 1:
Switch 1. Local Control Enable. ON enables local
control (LED 3 green) and makes selections on the
DIP switches active. OFF disables local control (LED
3 off)
Switch 2. Sample range select. This switch is used to
select either high or low sample range presets. ON
selects the high range, which means 48KHz or
96KHz (depending on the selection of switch 6) OFF
selects the low range 32KHz or 44.1KHz (depending
on the selection of switch 3)
Switch 3. Select sample rate. Will select between
the two sample rate presets defined on switch 5
ON =44.1KHz or 96KHz OFF = 32KHz or 48KHz
Note. Switch 2 and switch 3 are interactive
Switch 4. Test Tone selection. ON selects the internal
test tone that will be on both AES outputs. OFF is
normal operation (tone off)
Dip Switch 2:
Switch 1. Full Scale (FS) range select. This switch is
used to select either high or low FS range presets
ON selects the high range, which means 18dBu (C
AD 3320) or 24dBu (C AD 3321) OFF selects the low
range 12dBu or 15dBu (C AD 3320) or 15dBu or
18dBu (C AD 3321) (depending on the selection of
switch 2)
Reference Manual C AD 3320 D / C AD 3321 D Version 1.1
Page 20
Switch 2. Select full scale range (Switch 1 OFF)
ON =15dBu for C AD 3320 and 18dBu for C AD 3321
OFF =12dBu for C AD 3320 and 15dBu for C AD 3321
Note. Switch 1 and switch 2 are interactive
Switch 3. Mute channel 1. Selecting ON will mute
the audio on channel 1 OFF is normal operation
Switch 4. Mute channel 2. Selecting ON will mute
the audio on channel 2 OFF is normal operation
Auto Store
If no parameters are changed for 10 seconds then
the current settings will be written into flash memory
automatically, this can be seen by the channel
condition LEDS flashing yellow four times.
Factory Preset Condition
The C DA 3320 / C AD 3321 is delivered with stored
presets for the following functionality.
• Test tone OFF
• FS Range = 15 dBu (C AD 3320)
• FS Range = 18 dBu (C AD 3321)
• Sample Rate = 48 kHz
• Normal Operation, no Mute
No further adjustments are needed if this is the
functionality desired.
External Reference
If no external reference is applied the module will
switch automatically to internal reference.
If AES and Video reference is applied the module
will switch to Video Reference.
Reference Manual C AD 3320 D / C AD 3121 D Version1.1
Page 21
Alarm/LED Status Indicators
The C AD 3320 D / C AD 3321 D module has built in
LED indicators that serve as alarm and status
indication for the module. Function is described
below.
The Indicators are found on the bottom of the
module and can be seen through the access holes
provided. (Figure 2)
Channel Condition Indicators
One LED is provided for each channel
LED 1 = Channel 1
LED 2 = Channel 2
LED 3
LED 3 = ON (GREEN): Local Control enabled
LED 3 = OFF: Local Control disabled
LED State Indication
Green Input and reference OK (normal)
Green Flashing Mute is ON
Yellow Invalid reference or internal reference
Yellow Flashing Input overload
Red Input missing
Reference Manual C AD 3320 D / C AD 3321 D Version 1.1
Page 22
Front Panel Alarm Indicator
There is also a single alarm LED on the front side of
the module, (figure2) which is designed for quick
and easy indication of a problem condition in
installations where visible access to the bottom of
the module is not convenient.
Locate Function
For large systems which have many modules in
various locations we have added a utility which will
help visually identify a module quickly. (When used
in conjunction with the optional control system and
software)
Once the module has been identified on the
control system it is possible to initiate the “locate”
function and flash the module LEDs yellow in the
following continuous sequence.
3 short flashes…. Pause…. 3 short flashes …
This uses the alarm LED located on the front of the
module as well as any module edge LEDs that may
be used in the module.
Use of the locate function will not interfere with the
normal operation of the module.
For more details on this feature please check the
documentation supplied with the controller
software
LED Color Indication
Green Both inputs and reference OK
Yellow Invalid reference or one input lost
Red Both inputs lost
OFF Power supply fault
Reference Manual C AD 3320 D / C AD 3121 D Version1.1
Page 23
Specifications (C AD 3320/3321 D)
Analog Input
Signal 2x balanced analog stereo inputs
Impedance 15kOhm
Connection Female SubD 25pin connector
Max level 18 dBu (C AD 3320); 24dBu (C AD 3321)
0dB FS level Adjustable (12dBu, 15dBu or 18dBu; C AD 3320)
Adjustable (15dBu, 18dBu or 24dBu; C AD 3321)
Reference Input
Video Reference Black burst, 75Ohm on BNC connector
AES Reference AES reference input (on SubD 15 pin connector)
Outputs
Signal 2 x balanced AES3 outputs
Impedance 110Ohm
Connection Female SubD 15pin connector
Level 4 V p-p nom.
Performance
Sampling Sampling rates: 32kHz, 44.1kHz, 48kHz, 96kHz
Quantization 24 bit
Noise floor < -90dB (A-weighted)
Distortion < 0.005% @ 20Hz to 20kHz
Frequency response 0.1dB @ 20Hz to 20kHz
Crosstalk < -90dB @ 20Hz to 20kHz
Status Monitoring Signal presence detection
Overload detection
Electrical Specifications
Operating Voltage + 5VDC
Power Consumption 3.5 VA
Connection DC input via 5 pin locking bayonet connector
Safety IEC 950/ EN 60950/VDE 0805
Mechanical
Size 85.5mm x 35.3mm x 37mm + connectors
Weight 250g
Ambient
Temperature 5°C to 35°C Maintaining specifications
-20°C to 70°C Storage
Humidity Max 80% non condensing
Supplied Accessories
Documentation C AD 3320 D / C AD 3321 D Reference Manual
Reference Manual C AD 3320 D / C AD 3321 D Version 1.1
Page 24
Available Options
Below is a list of available options for the C AD 3320
D / C AD 3321 D MiniModule. Please refer to
product brochures or our web site for more
detailed information.
Model Description
R PS 3001 E
External brick power supply module for
Series 3000 MiniModules. European market
version. 100-240 VAC input, +5V DC output.
R PS 3001 U
External brick power supply module for
Series 3000 MiniModules. USA market
version. 110-240 VAC input, +5V DC output.
R PS 3001-3
External desk power supply module for
Series 3000 MiniModules. 110-240 VAC
input, +5V DC output.
R FR 3005
Rack Frame 1. This is a basic 19 inch rack
mountable frame which can accommodate
10 MiniModules with power bricks R PS 1 or
can be extended with the R FR 3010.
R FR 3010
Rack Frame 2. This is a card cage with
integrated central power supply, optional
redundant power supply and optional
controller, which can accommodate 10
MiniModules. Can be combined with R FR
3005
R PS C15
1.5m cable extension to connect one
MiniModule to R FR 3010
R PS C25
2.5m cable extension to connect one
MiniModule to R FR 3010
R PS 5010
Redundant power supply for the R FR 3010
card cage
R CT 5020
Rack controller for the R FR 3010 rack
frame
R CT 5010
Rack Bus Extension for R FR 3010 rack
frame. In combination with R CT 5020
R CT 3000
Service Adapter for remote configuration of
one MiniModule via PC or Palm
Reference Manual C AD 3320 D / C AD 3121 D Version1.1
Page 25
Parts List
Due to the very dense design and high level of
integration there are no user serviceable electronic
assemblies within the C AD 3320 D / C AD 3321 D
module.
C AD 3320 D Mini Module (complete)
Description Dual Analog Audio A/D
Model Number C AD 3320 D
Part Number 6.155.002.252
C AD 3321 D Mini Module (complete)
Description Dual Analog Audio A/D
Model Number C AD 3321 D
Part Number 6.155.009.330
Service
If you are experiencing problems, or have questions
concerning your C AD 3320 D / C AD 3321 D
MiniModule please contact your local distributor for
assistance.
We offer a fixed cost service exchange program for
defective Series 3000 MiniModules out of Warranty.
Please contact your distributor or check our web
site for details on this program.
More detailed information and product updates
may be available on our web site:
www.lynx-technik.com
You will also find links to contact us directly for
assistance.
Reference Manual C AD 3320 D / C AD 3321 D Version 1.1
Page 26
Contact Information
Please contact your local distributor; this is your
local and fastest method for obtaining support and
sales information.
LYNX Technik can be contacted directly using the
information below.
Address LYNX Technik AG
Brunnenweg 3
64331 Weiterstadt
Germany.
Phone + 49 (0) 6150 1817 0
Fax + 49 (0) 6150 1817 10
Website www.lynx-technik.com
E-Mail info@lynx-technik.com
LYNX Technik manufactures a complete range of
high quality modular products for broadcast and
Professional markets, please contact your local
representative or visit our web site for more product
information.
Reference Manual C AD 3320 D / C AD 3121 D Version1.1
Page 27
Notes
Loading...
