Brief and handy:
everything your dishwasher
needs...
Before using for the first
time, read the installation
and operating instructions!
Fill with special salt
Set the water softening system *
Find out the water hardness at your water utility
company and enter
* only before using the dish-
washer for the first time or
if the water hardness
changes
Dissolves limescale (not required for set value 0!)
Read off the setting ... and then set
ABC
Reset
Quickly sorted ...
– Hold down programme button B and switch on the main
switch, then release the buttons. The display of button B
and the number 4 set by the factory flash.
– Each time button B is depressed, the setting increases by
one; if 7 has been reached, the display jumps back to 0.
– Switch off the main switch. The selected setting has been
stored in the appliance.

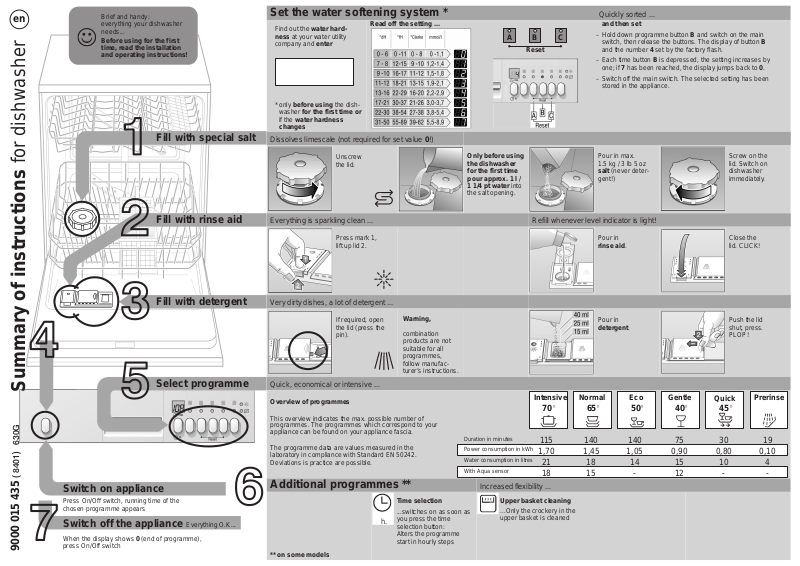

Summary of instructions for dishwasher
Switch on appliance
Press On/Off switch, running time of the
chosen programme appears
Switch off the appliance Everything O.K...
When the display shows 0 (end of programme),
9000 015 435
press On/Off switch
Fill with rinse aid
Fill with detergent
Select programme
Unscrew
the lid.
Only before using
the dishwasher
for the first time
pour approx. 1 l /
1 1/4 pt water into
the salt opening.
Pour in max.
1.5 kg / 3 lb 5 oz
salt (never detergent!)
Everything is sparkling clean ... Refill whenever level indicator is light!
Press mark 1,
lift up lid 2.
Pour in
rinse aid.
Very dirty dishes, a lot of detergent ...
If required, open
the lid (press the
pin).
Warning,
combination
products are not
suitable for all
programmes,
follow manufacturer’s instructions.
Pour in
detergent.
Quick, economical or intensive ...
Overview of programmes
This overview indicates the max. possible number of
programmes. The programmes which correspond to your
appliance can be found on your appliance fascia.
The programme data are values measured in the
laboratory in compliance with Standard EN 50242.
Deviations is practice are possible.
Additional programmes **
Time selection
...switches on as soon as
you press the time
h.
selection button:
Alters the programme
start in hourly steps
** on some models
Duration in minutes
Power consumption in kWh
Water consumption in litres
With Aqua sensor
Increased flexibility ...
Upper basket cleaning
...Only the crockery in the
upper basket is cleaned
Intensive Normal Eco
115
1,70
21
18
140
1,45
18
15
140
1,05
14
-
Gentle
75
0,90
15
12
Screw on the
lid. Switch on
dishwasher
immediately.
Close the
lid. CLICK!
Push the lid
shut, press.
PLOP!
Quick
45 50 70 65 40
30
0,80
10
-
Prerinse
19
0,10
4
-
Maintenance and care
Strainers ...
Check, if
required, clean
Rotate filter
cylinder, remove
filter system ...
For perfect rinsing results ...
rinse under
flowing water ...
Insert ... Screw in filter
system NOTE
MARK!
Cleaning the waste-water pump *
* With some models
– Ladle out water and remove filters
– Unscrew cover (Torx T20)
– Check area of fan impeller for foreign objects
– Screw in cover and insert filters
Spray arms ...
Remove
blockages/deposits
Pull lower arm
upwards ...
Eliminating minor faults yourself ...
Fault Possible Cause
Residual water in the device Waste-water pump blocked
Programme not yet ended
Device does not work/stops Supply fitting not open
Supply hose kinked
Supply fitting jammed or calcified
Plastic parts / parts of
dishes discoloured
Too little cleaning product
Discoloration caused by food colourings
(tomato sauce)
Unscrew upper
arm ...
... Self–help pays!
Remedy
Clean waste-water pump (see above).
Close and switch on appliance or
terminate programme (see Terminating
the programme).
Open supply fitting.
Lay supply hose without kinks.
1. Unscrew water connection.
2. Clean filter in the water connection.
3. Flow rate must be min. 9 l/min when
the water inlet is open.
If the flow rate is less, replace the
supply fitting.
Follow manufacturer’s specifications
(detergent).
Discoloration is quite safe; fades after
subsequent rinse cycles.
Clean spray nozzles
under flowing water
(perhaps with
toothpick) ...
Fault Possible Cause Remedy
Dishes not clean
Sand or grainy residues
on dishes
Stains and streaks
Milky residues on dishes
(can be removed)
Milky film, glasses cloudy /
dull (cannot be removed)
Insert lower arm ...
Screw in upper arm
Utensils are situated too close to each
other or on top of each other
Too little cleaning product
Unsuitable programme selected
Spray nozzles blocked
Filters dirty, not installed securely
Spray arms blocked
Rinse aid dosage too high / too low
Water softening system incorrectly set;
no special salt
Glasses not dishwasher-proof.
Spread out the utensils, avoid contact
between the utensils.
Follow manufacturer’s specifications
(detergent).
Select more intensive programme.
Clean spray arms (see above).
Clean the strainers (see above).
Arrange the utensils so that the spray
arms can rotate freely.
Streaks: Reduce dosage.
Water or limescale stains: Increase
dosage.
Set water softening system correctly.
Refill with special salt.
Use dishwasher-proof glasses.
Use glass-friendly cleaning products.
Cutlery rusty Cutlery not rust-proof
Hard knife blades are more susceptible
Extraneous rust
Use dishwasher-proof cutlery.
Never wash rusting parts in the
appliance.
Further advice can be found in the instruction manual
Stopping the programme ... Loading the dishwasher correctly ...
Press and hold the two
reset buttons simultaneously for
approximately 3 seconds while
the programme is running
(RESET)
”0” appears
The programme will stop
after 1 minute
Switch off the appliance.
Arrange dishwasher-proof utensils (having removed any ash, wax, grease, ink, sticky labels; remove,
large remnants of jam, dairy products and food) according to the operating instructions and check that
the spray arms can rotate freely.
