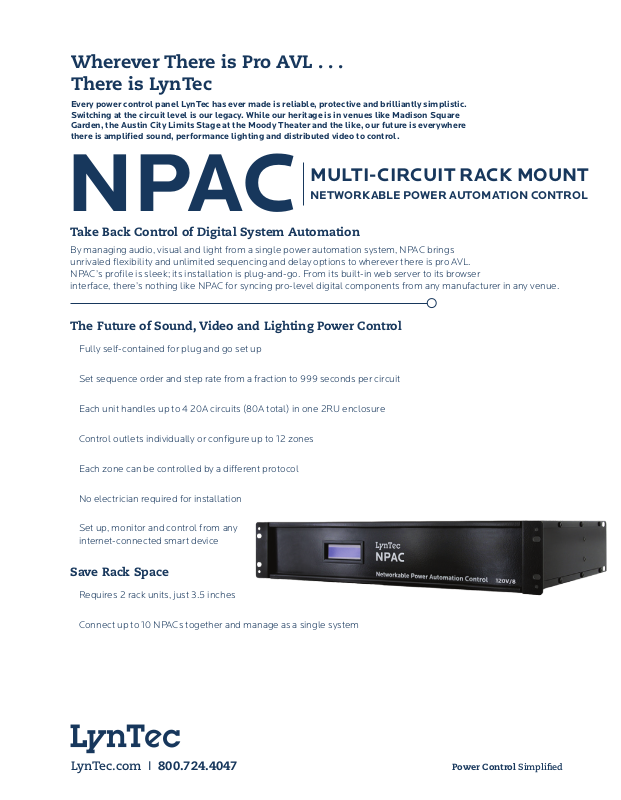

Page 1
Wherever There is Pro AVL . . .
There is LynTec
Every power control panel LynTec has ever made is reliable, protective and brilliantly simplistic.
Switching at the circuit level is our legacy. While our heritage is in venues like Madison Square
Garden, the Austin City Limits Stage at the Moody Theater and the like, our future is everywhere
there is amplified sound, performance lighting and distributed video to control.
MULTI-CIRCUIT RACK MOUNT
NETWORKABLE POWER AUTOMATION CONTROL
NPAC
Take Back Control of Digital System Automation
By managing audio, visual and light from a single power automation system, NPAC brings
unrivaled flexibility and unlimited sequencing and delay options to wherever there is pro AVL.
NPAC’s profile is sleek; its installation is plug-and-go. From its built-in web server to its browser
interface, there’s nothing like NPAC for syncing pro-level digital components from any manufacturer in any venue.
The Future of Sound, Video and Lighting Power Control
Fully self-contained for plug and go set up
Set sequence order and step rate from a fraction to 999 seconds per circuit
Each unit handles up to 4 20A circuits (80A total) in one 2RU enclosure
Control outlets individually or configure up to 12 zones
Each zone can be controlled by a different protocol
No electrician required for installation
Set up, monitor and control from any
internet-connected smart device
Save Rack Space
Requires 2 rack units, just 3.5 inches
Connect up to 10 NPACs together and manage as a single system
LynTec.com I 800.724.4047
Power Control Simplied
Page 2
NPAC
AUTOMATION CONTROL
Control at Your Fingertips on Internet-Connected Devices
Built-in web server with browser interface
Set up, control and monitor via smart phone, tablet or computer
Interfaces with IP, Telnet, DMX, sACN or contact closure control systems
Protect AVL Equipment and Prolong Lifespan
Built-in astronomical clock for automated on/off and
scheduling 84 events
Integrated over- and under-voltage protection for emergency
shut down and controlled restart
Circuit selectable emergency override input
Hardware Features
120v or 240v models available
Four 20A IEC inputs feed either 4 or 8 Panasonic HID relays
Four 20A commercial-grade duplex Nema 5-20 outlets
RJ-45 network connection
DMX in & isolated thru connections
Four contact closure inputs
Reset button on back
Nema 5-15P, 5-20P or L5-20P input cables available
ETL listing pending
Product Description
NPAC-120-4 NPAC rack-mount panel with 4 120V 20A relays (max input 80A total)
NPAC-120-8
NPAC-240-4
NPAC-240-8 NPAC rack-mount panel with 4 240V 20A relays (max input 80A total)
NPAC rack-mount panel with 8 120V 20A relays (max input 80A total)
NPAC rack-mount panel with 4 240V 20A relays (max input 80A total)
LynTec.com I 800.724.4047
