Introduction:

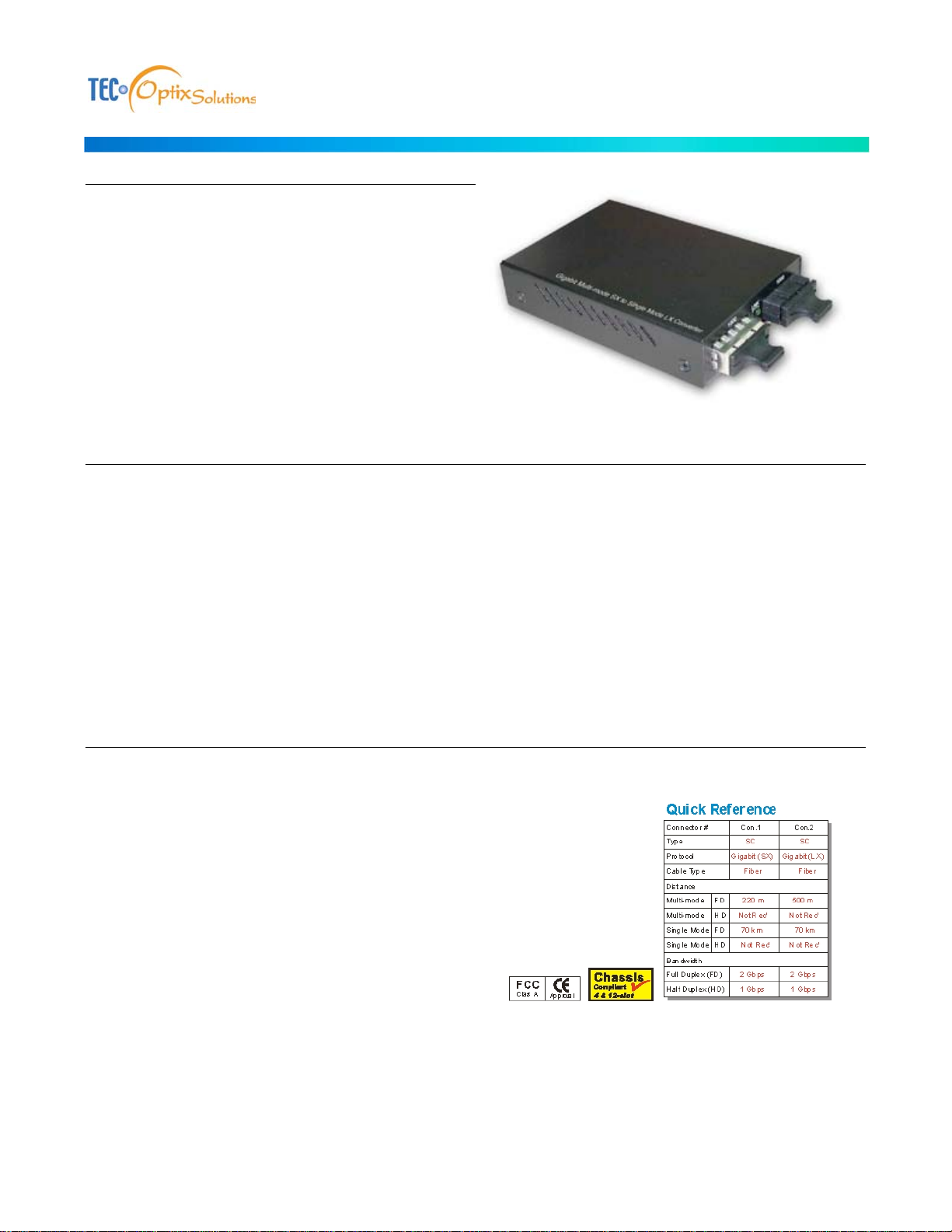

MC-3000 Series
Gigabit Multi-mode SX to Single Mode LX Converter
The MC-3000 series has been specifically design to address the
needs of Gigabit network configurations' setup in single and
multi-mode fiber cabling environments.
These converters offer high speed transparent conversion between
single mode cable segments and multi-mode fiber segments in
Gigabit networks.
Product Summary & Benefits:
Today's networks utilize a variety of fiber cables to meet the demands of bandwidth and cable distances. The MC-3000 series specifically
addresses these needs by transparently converting multi-mode fiber into single mode fiber cable in one small high performance device.
Now, network designers can accommodate dif ferent fiber cables to suit s pecific networking requireme nts.
The MC-3000 series can accommodate FDDI, Fast Ethernet and Gigabit without any drop in performance. They can handle any protocol
betwee n 1Mbps and 1000Mbps. A single to single mode and multi to multi-mode version is also available for increased cable distances.
Expands the Size of an Existing Network - provides fiber connectivity to Gigabit segments that allows for even further networking
expansion between extended workgroups. They offer building-to-building connectivity without the need to employ expensive and MIS
intensive routers.
Enhances the Distance between Networking Devices - connecting the MC-3000 to fiber segments can further extend distances of up to
140,000 meters between networking nodes. This can be achieved by a direct connection between the converters and a fiber based
networ king device.
Cabling Flexibility - put different fiber cabling anywhere within a network. Their compact size allow the converters to be easily
deployed in any narrow desktop location, or used in wall-mount installation. Several converters can be simultaneously installed by using
the MC-16000C- 12 12-slot 19" rack-mount chassis or MC-16000C-4 4- slot converter chassis.
Main Features:
Complies wit h IEEE 802.3z.
Extended distances up to 80km (single to single mode)
Compatible with all other Gigabit devices
Available with SC and WDM connectors
LEDs for link (LN K) to easily monitor network status
External and internal powe r supply options
FCC Class A & CE approved
RoHS compliant
TEC Opitx Solutions
Division of Lynn Electronics Corp.
154 Railroad Dri ve • Ivyla nd, PA. 18974
800-523-6075 • fax 215-364-2944 • email: sales@lynnelec.com
- 1 -
www.lynnelec.com
MC-3000 Series
Gigabit Multi-mode SX to Single Mode LX Converter
Specifications:
Standard: IEEE 802.3z
Connector: SC and WDM connectors
Wavelength: 850nm/1300nm
Cable: Multi-mode 62.5/125 Microns
50/125 Microns
Single Mode 9/125 Microns
Max. Distance: Fiber: 220 meters
(Multi-mode SX 62.5/125)
500 meters
(multi-mode LX 50/125)
10,000 met ers (single mode)
40,000 met ers (single mode)
80,000 meters
(long haul single mode)
Unit LED: PWR: Illuminated for normal operat ion
LNK: Illuminated when receiving link pulses
from com p li an t devices
Fiber Optic Data:
Delay: Less than 5 Bit
Power: Voltage: AC voltage to 12V DC 0.8A
power ad ap ter
Frequency: 47Hz to 63 Hz
Temperature: Operating: 0 to 50
Storage: -20 to 70
Humidity: Operating: 10% to 80%RH
Storage: 5% to 90%RH
Emissions: FCC Part 15 of Class A & CE approved
Dimensi ons: 109.2 x 73.8 x 23.4mm (LxWxH)
Weight: 160g
Applications:

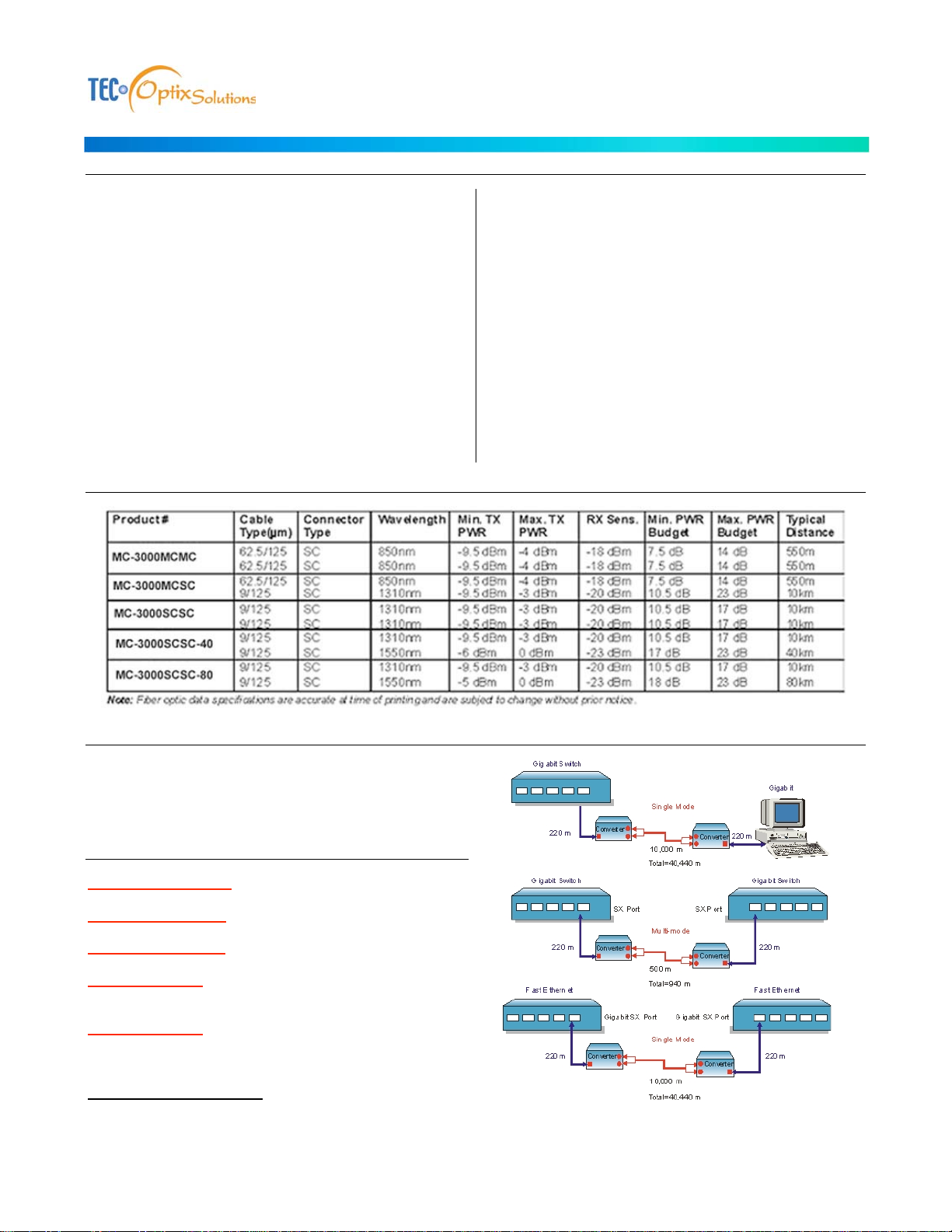

The following illustrates typical applications for the MC-3000
series. The actual distances will depend on several factors
including the quality of cables used and the terminal equipment
employed.
Ordering Information:
MC-3000MCMC: 550m
Gigabit Multi-mode SX to Multi- m ode LX Converter (SC/SC)
MC-3000MCSC: 10km
Gigabit Multi-mode SX to Single Mode LX Converter (SC/SC)
MC-3000-SCSC: 10km
Gigabit Si ngle Mode LX to Single Mode LX Converter (SC/SC)
MC-3000SCSC-40:
Gigabit Single Mode LX to Single Mode LX Converter
(SC/SC, 40km)
MC-3000SCSC-80:
Gigabit Single Mode LX to Single Mode LX Converter
(SC/SC, 80km)
Rack mount chass is available
MC-1600C-4 4 Bay
MC-1600C-12 12 Bay
