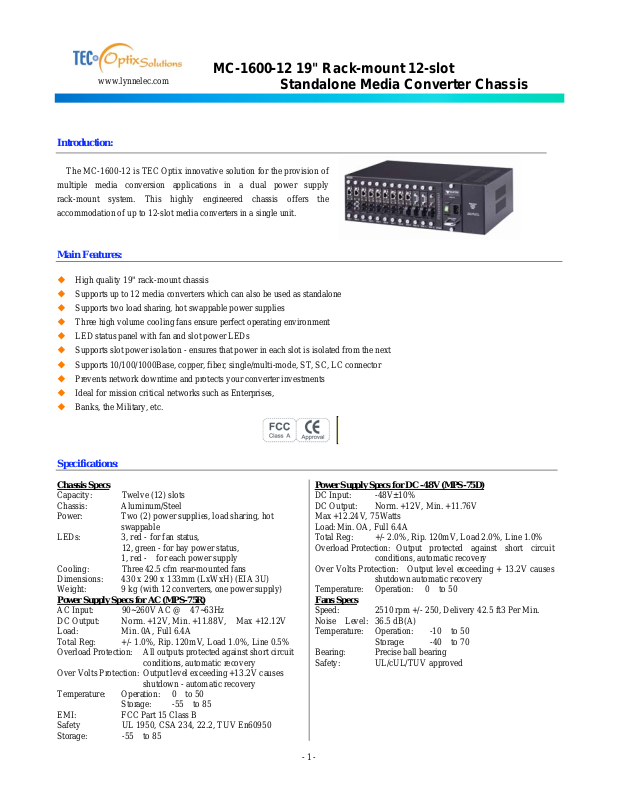

MC-1600-12 19" Rack-mount 12-slot
www.lynnelec.com
Introduction:
The MC-1600-12 is TEC Optix innovative solution for the provision of
multiple media conversion applications in a dual power supply
rack-mount system. This highly engineered chassis offers the
accommodation of up to 12-slot media converters in a single unit.
Main Featur es :
High qual ity 19" rack-mount chassis
Supports up to 12 media conver ters which can also be used as standa lone
Supports two load sharing, hot swappable pow er supplies
Three high volume cooling fans ensure perfect operat ing environment
LED status panel with fan and slot power LEDs
Supports slot power isolation - ensures that power in each slot is isolated fr om t he next
Supports 10/100/1000Bas e, copper, fiber, single/multi-mode, ST, SC, LC connector
Prevents network downtime and protects your converter investments
Ideal for mission critical networks such as Enterprises,
Banks, th e Military, et c.
Standalone Media Converter Chassis
Specifications:
Chassis Specs
Capacity: Twelve (12) slots
Chassis: Aluminum/Steel
Power: Two (2) power supplies, l oad sharing, hot
swappable
LEDs: 3, red - f or fan status,
12, green - for bay power status,
1, red - for each power supply
Cooling: Three 42.5 cfm rear-mounted fans
Dimensi ons: 430 x 290 x 133mm (LxWxH) (EIA 3U)
Weight: 9 kg (with 12 converters, one pow er supply)
Power Supply Specs for AC (MPS-75R)
AC Input: 90~260V AC @ 47~63Hz
DC Output: Norm. +12V, Min. +11.88V, Max +12.12V
Load: Min. 0A, Full 6.4A
Total Reg: +/- 1.0%, Rip. 120mV, Load 1.0%, Line 0.5%
Overl oad Protection: All outputs pr otected against short circuit
conditions, automatic recovery
Over Volts Protection: Output level exceeding +13.2V causes
shutdown - automatic recovery
Temperature: Operat ion: 0 to 50
Storage: -55 to 85
EMI: FCC Part 15 Class B
Safety UL 1950, CSA 234, 22.2, TUV En60950
Storage: -55 to 85
Power Supply Specs for DC -48V (MPS-75D)
DC Input: -48V±10%
DC Output: Norm. +12V, Min. +11.76V
Max +12.24V, 75Watts
Load: Min. OA, Full 6. 4A
Total Reg: +/- 2.0%, Rip. 120mV, Load 2.0%, Li ne 1.0%
Overload Protection: Output protected against short circuit
conditions, automatic recovery
Over Volts Protection: Output level exceeding + 13.2V causes
shutdown a utomatic recovery
Temperature: Operat ion: 0 to 50
Fans Specs
Speed: 2510 rpm +/- 250, Deli very 42.5 ft3 Per Mi n.
Noise Level: 36.5 dB(A)
Temperature: Operat ion: -10 to 50
Storage: -40 to 70
Beari ng: Precise ball bearing
Safety: UL/cUL/TUV approved
- 1 -
MC-1600-12 19" Rack-mount 12-slot
www.lynnelec.com
Applications:
Standalone Media Converter Chassis
The MC-1600-12 can accommodate a wide variety of our
existing and future media converters - please contact us for
details regarding these products.
MC-1600-12:
19" Rack Mount 12-slot Sta ndalone Media Conver ter
Chassis with one power supply
MPS-75R:
75W Modular Power Supply with High MT BF
MPS-75D:
75W DC-48V Modular Power Supply
A - A Provides 10/100Base- TX to 100Base-FX Convers ion via
MC-100ST-MM
B - B Provides 10/100Base-T to 100Base- FX Conversion via
MC-100SC-MM
C - C Provides 10/100Base-T to 100FX Multi-mode Conversion via
MC-100ST-MM
D - D Provides 100Base- FX Single Mode Conversi on via
MC-120SC-SM series
RoHS compliant
TEC Opitx Solutions
Division of Lynn Electronics Corp.
154 Railroad Dri ve • Ivyla nd, PA. 18974
800-523-6075 • fax 215-364-2944
email: sales@ lynnelec.com
- 2 -
MC-1600-12 19" Rack-mount 12-slot
www.lynnelec.com
Standalone Media Converter Chassis
- 3 -
