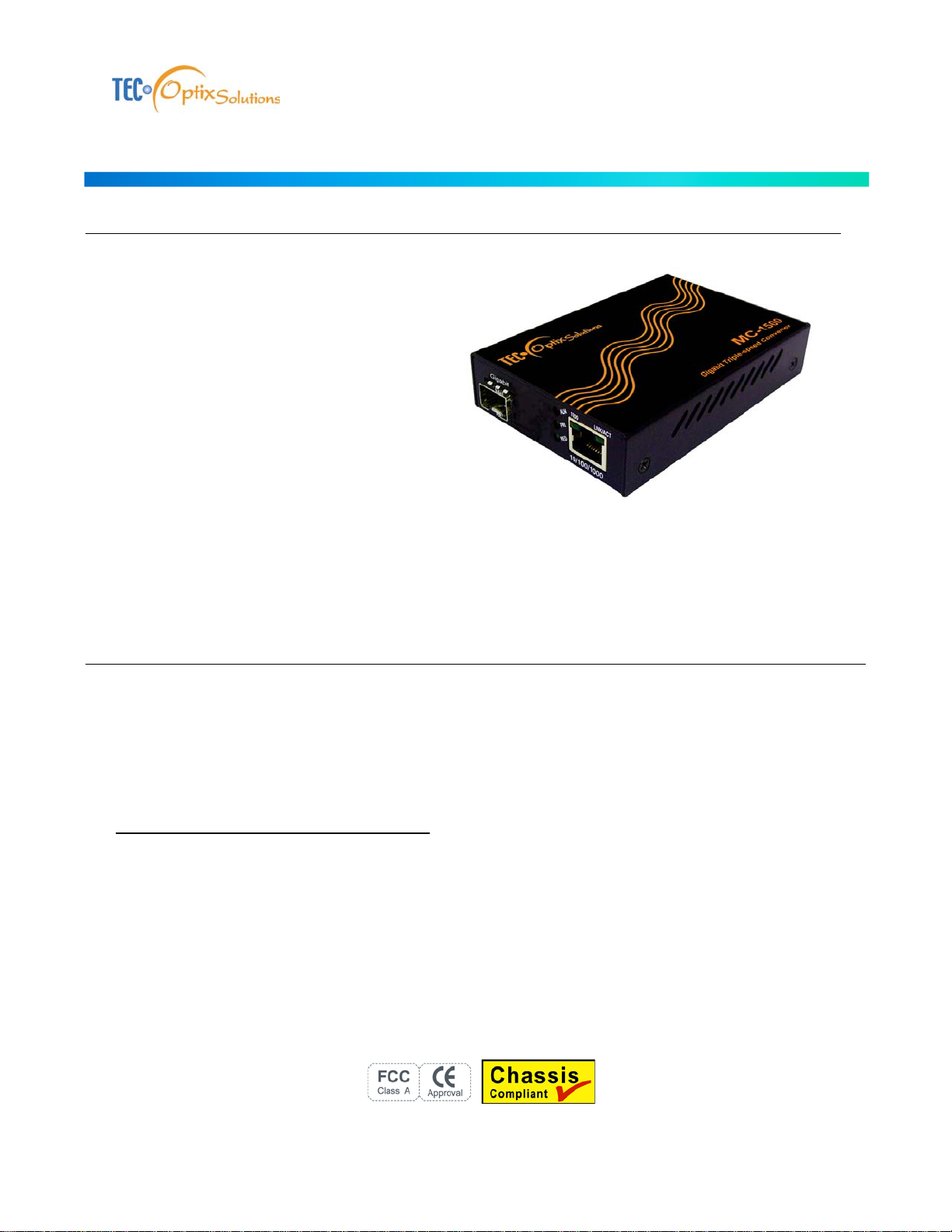

MC-1500LC-MM & SM
www.lynnelec.com
Gigabit Triple-Speed Converter
10/100/1 000 to 1000SX / LX (SFP) C onv erter Series
Introduction:
The MC-1500 media converter is specifically designed
to offer fiber advantages for mission-critical networks
like Telco/ISP backbones, cable operators, banking
and enterprise networks. The MC-1500 can reduce
network downtime and increase Quality of Service
levels. The converters are completely transparent
when installed, so the network performs exactly the
way it would do normally – only now, it can incorporate
both copper and fi ber mediums.
This flexibility in cabling allows network managers to
put fiber cables anywhere within a network without
changing the arr angem ent of the copper-based Gi gabit
segments. Their compact size allows the converters to
be wall-mounted to save space. Several converters can be simultaneously installed by using the MC-1600-4 4-slot and
MC-1600-12, 19" r a ck-mountable chassis.
The MC-1500 takes advantage of intelligent connection technology to support Auto-negotiation, thereby eliminating the
hassle of manuall y configuring or monitori ng settings. This ensures plug-n-play operabi li ty.
Main Featur es :
Standards:
Complies with IEEE 10/100Base- TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards
Interface:
One 10/100/1000 Mbps Ethernet port
Auto MDI/MDI-X suppor t on RJ- 45 port
One SFP slot for Gigabit l inks
Extends distances up t o 110Km (Single Mode)
Management:
Alarm LED illuminates to indicate link failure
Status LEDs for easy moni toring of device’s stat us
Mechanical & E nvironmental:
External power supply
Chassis-compli ant (internal power supply)
FCC Class A & CE approved
RoHS compliant
- 1 -
MC-1500LC-MM & SM
www.lynnelec.com
Gigabit Triple-Speed Converter
10/100/1 000 to 1000SX / LX (SFP) C onv erter Series
Specifications:
Standards Conformity: IEEE 10/100Base-TX & IEEE 802.3ab 1000Base-T
& IEEE 802.3z 1000Base-SX/ LX
Connector: 1 x RJ-45 or 1 x Fiber
Max. Distance: UTP: 100 meters (Cat. 5/5e/6)
Fiber: SFP; up to 2km (multi-mode)
Fiber: SFP up to 110Km (single-mode)
Unit LEDs: PWR: Illuminates for normal operation
ALM: Illuminated when failure occurs on fiber or copper link
LNK/ACT: Fiber link – Illuminated when receiving link pulses from compliant devices – Flashing when data
packets are being transmitted / received
MDI/MDI-X: Auto Selection
Power: Power Input: 12V DC @ 0.8A, external power supply adapter Frequency: 47Hz to 63Hz
Temperature: Ope rating: 0c to 50c
Storage: -20 to 70
Humidity: Operating: 10% to 90%RH
Storage: 5% to 90%RH
Emission Com pliance: FCC Part 15 of Class A & CE approved
Dimensions: 109.2 x 73.8 x 23.4mm (D x W x H)
Weigh: 158g
Dip Switches: DIP 1 LFS: Enable/disabl e Link-Fault Singnaling (LFS)
Applications:
The diagram on the left illustrates a typi cal appl ication for the MC-1500LC converter. The actual distances wi ll depend on
several fact ors, including the quality of cables used and the terminal equipment employed.
Ordering Information:
MC-1500LC-MM
MC-1500LC-MM-550M
MC-1500LC-MM-2Km
Mini GBIC, 1.25G SFP-type M ult i- m ode, 3.3V –
MC-1500LC-SM-10kM
MC-1500LC-SM-30Km
MC-1500LC-SM-50Km
MC-1500LC-SM-70Km
MC-1500LC-SM-110Km
Mini GBIC, 1.25G SFP-type M ult i- m ode, 3.3V
Rack mount chass is available
MC-1600C-4 4 Bay
MC-1600C-12 12 Bay
TEC Opitx Solutions
Division of Lynn Electronics Corp.
154 Railroad Dri ve • Ivyla nd, PA. 18974
800-523-6075 • fax 215-364-2944 • email: sales @l ynnelec.com
