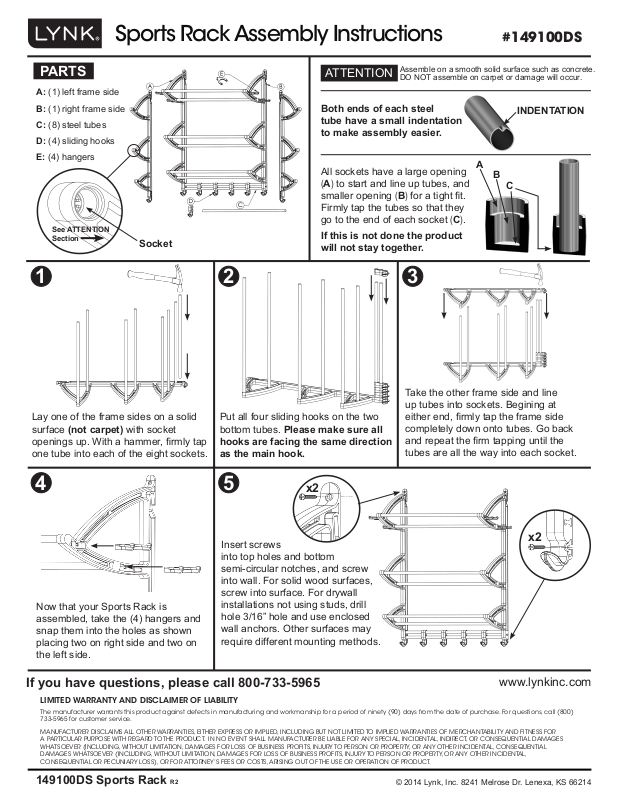

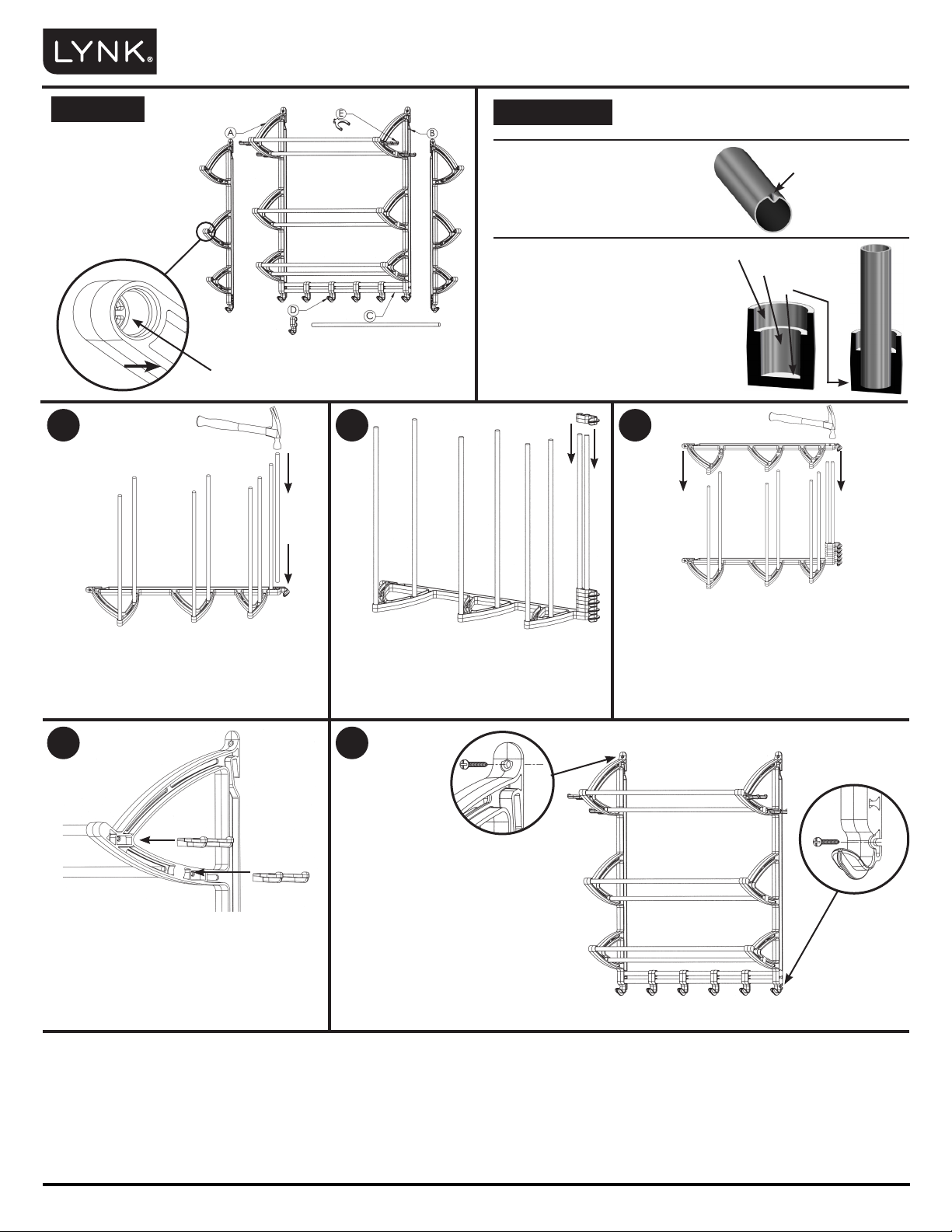

Sports Rack Assembly Instructions
#149100DS
PARTS
A: (1) left frame side
B: (1) right frame side
C: (8) steel tubes
D: (4) sliding hooks
E: (4) hangers
See ATTENTION
Section
1
Socket
2
ATTENTION
Both ends of each steel
tube have a small indentation
to make assembly easier.
All sockets have a large opening
(A) to start and line up tubes, and
smaller opening (B) for a tight t.
Firmly tap the tubes so that they
go to the end of each socket (C).
If this is not done the product
will not stay together.
Assemble on a smooth solid surface such as concrete.
DO NOT assemble on carpet or damage will occur.
3
INDENTATION
A
B
C
Take the other frame side and line
up tubes into sockets. Begining at
Lay one of the frame sides on a solid
surface (not carpet) with socket
openings up. With a hammer, rmly tap
one tube into each of the eight sockets.
4
Now that your Sports Rack is
assembled, take the (4) hangers and
snap them into the holes as shown
placing two on right side and two on
the left side.
Put all four sliding hooks on the two
bottom tubes. Please make sure all
hooks are facing the same direction
as the main hook.
5
Insert screws
into top holes and bottom
semi-circular notches, and screw
into wall. For solid wood surfaces,
screw into surface. For drywall
installations not using studs, drill
hole 3/16” hole and use enclosed
wall anchors. Other surfaces may
require different mounting methods.
x2
If you have questions, please call 800-733-5965
LIMITED WARRANTY AND DISCLAIMER OF LIABILITY
The manufacturer warrants this product against defects in manufacturing and workmanship for a period of ninety (90) days from the date of purchase. For questions, call (800)
733-5965 for customer service.
MANUFACTURER DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE WITH REGARD TO THE PRODUCT. IN NO EVENT SHALL MANUFACTURER BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES
WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, INJURY TO PERSON OR PROPERTY, OR ANY OTHER INCIDENTAL, CONSEQUENTIAL
DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, INJURY TO PERSON OR PROPERTY, OR ANY OTHER INCIDENTAL,
CONSEQUENTIAL OR PECUNIARY LOSS), OR FOR ATTORNEY’S FEES OR COSTS, ARISING OUT OF THE USE OR OPERATION OF PRODUCT.
either end, rmly tap the frame side
completely down onto tubes. Go back
and repeat the rm tapping until the
tubes are all the way into each socket.
x2
www.lynkinc.com
149100DS Sports Rack R2
© 2014 Lynk, Inc. 8241 Melrose Dr. Lenexa, KS 66214
